  1. XMLThese slides are borrowed from Silberschatz book and also from Johannes Gehrke web page.

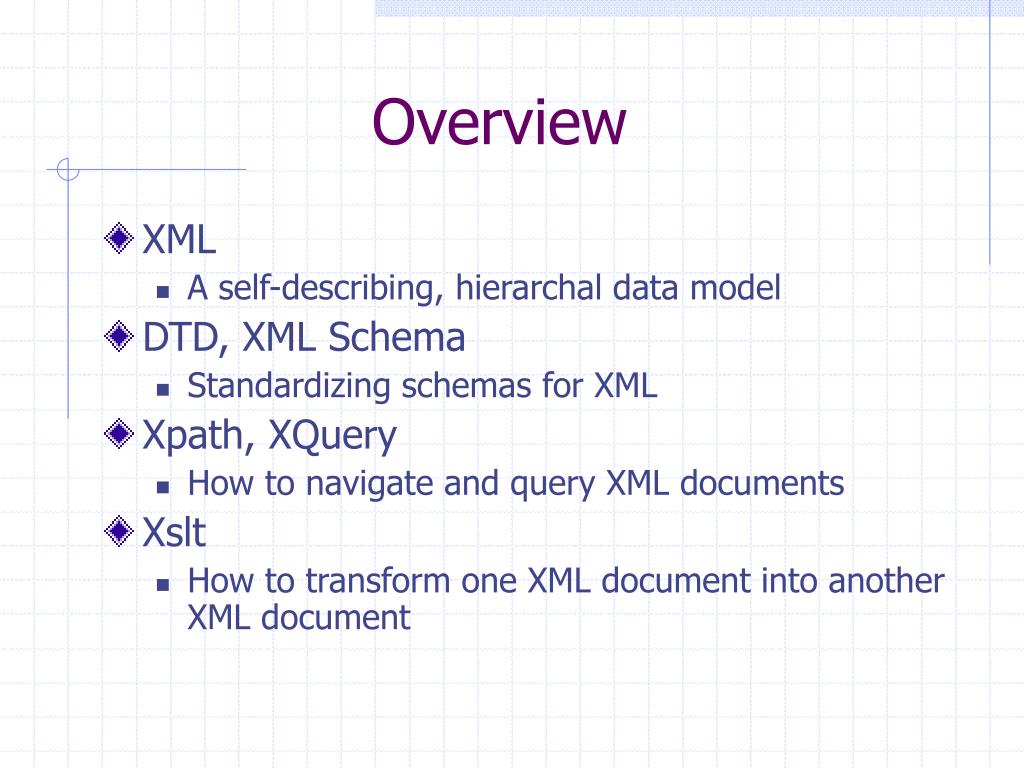

  2. Overview • XML • A self-describing, hierarchal data model • DTD, XML Schema • Standardizing schemas for XML • Xpath, XQuery • How to navigate and query XML documents • Xslt • How to transform one XML document into another XML document

  3. XML – eXtensibleMarkupLanguage • Language • A way of communicating information • Markup • Notes or meta-data that describe your data or language • Extensible • Limitless ability to define new languages or data sets

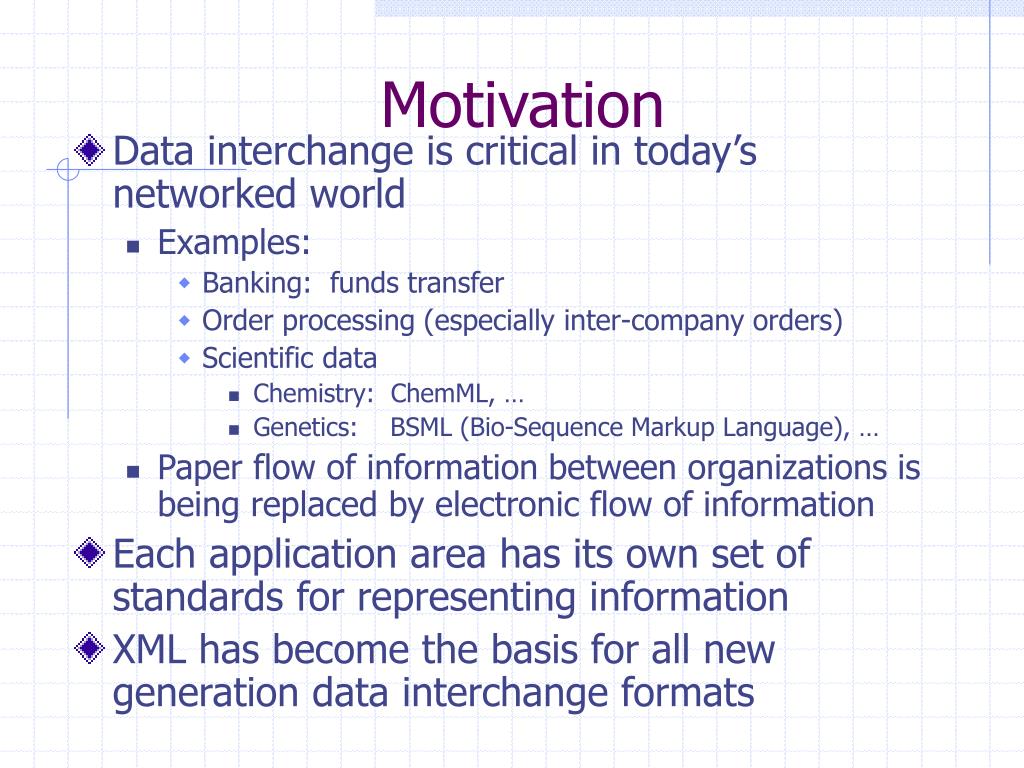

  4. Motivation • Data interchange is critical in today’s networked world • Examples: • Banking: funds transfer • Order processing (especially inter-company orders) • Scientific data • Chemistry: ChemML, … • Genetics: BSML (Bio-Sequence Markup Language), … • Paper flow of information between organizations is being replaced by electronic flow of information • Each application area has its own set of standards for representing information • XML has become the basis for all new generation data interchange formats

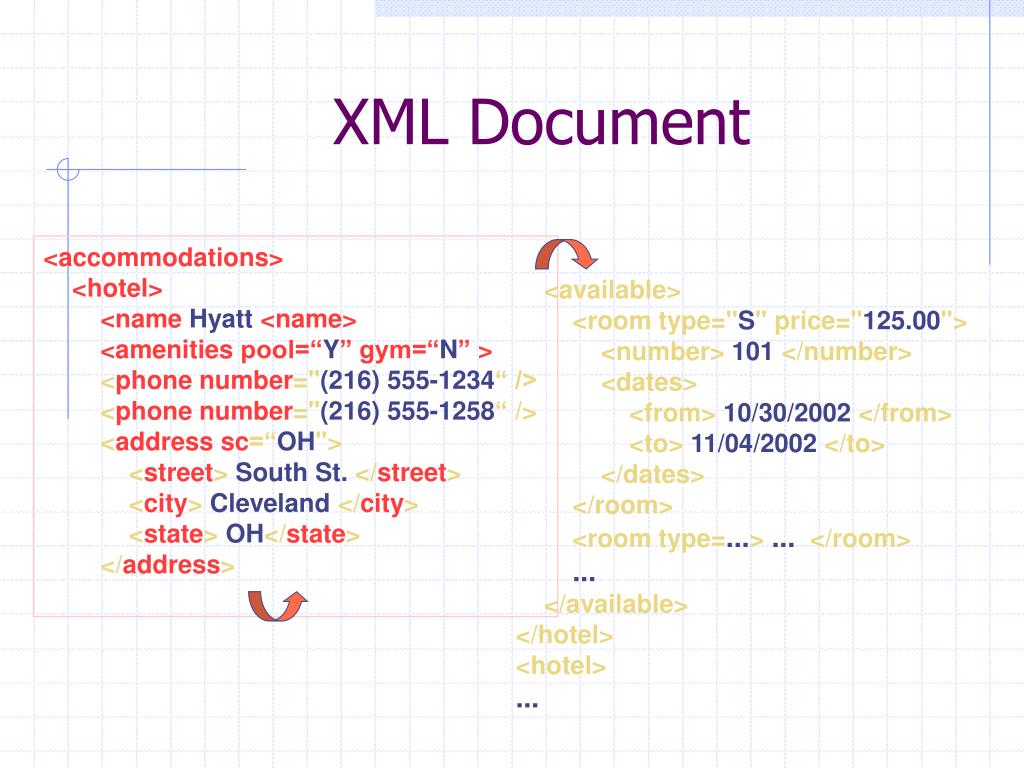

  5. XML Document <accommodations> <hotel> <name Hyatt <name> <amenitiespool=“Y”gym=“N”> <phonenumber="(216) 555-1234“ /> <phonenumber="(216) 555-1258“/> <addresssc=“OH"> <street> South St. </street> <city> Cleveland </city> <state> OH</state> </address> <available> <room type="S" price="125.00"> <number> 101 </number> <dates> <from> 10/30/2002 </from> <to> 11/04/2002 </to> </dates> </room> <room type=...> ... </room> ... </available> </hotel> <hotel> ...

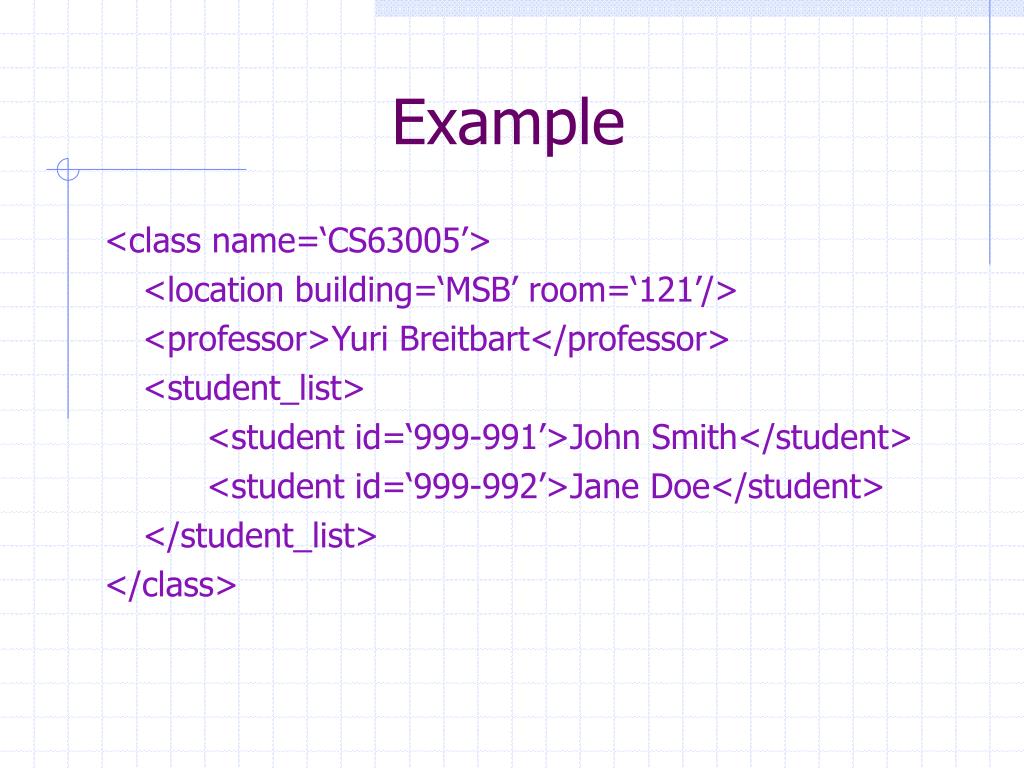

  6. Example <class name=‘CS63005’> <location building=‘MSB’ room=‘121’/> <professor>Yuri Breitbart</professor> <student_list> <student id=‘999-991’>John Smith</student> <student id=‘999-992’>Jane Doe</student> </student_list> </class>

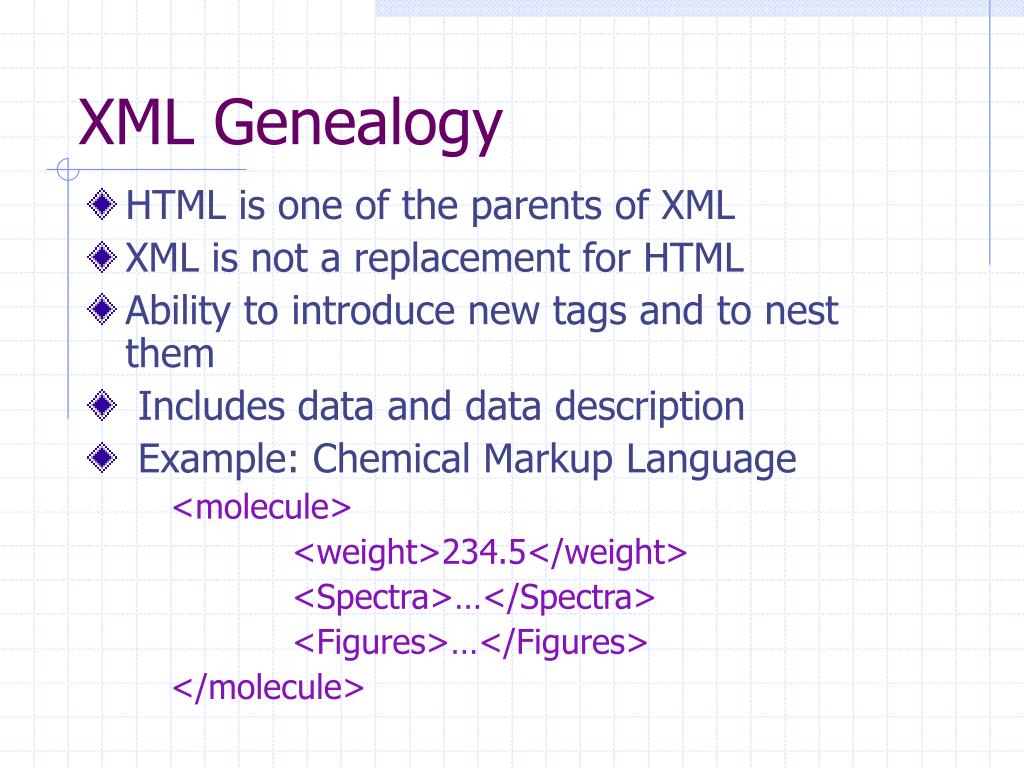

  7. XML Genealogy • HTML is one of the parents of XML • XML is not a replacement for HTML • Ability to introduce new tags and to nest them • Includes data and data description • Example: Chemical Markup Language <molecule> <weight>234.5</weight> <Spectra>…</Spectra> <Figures>…</Figures> </molecule>

  8. attribute closing tag open tag attribute value data element name Structure of XML Data • Xml is a hierarchy of user-defined tags called elements with attributes and data • Data is described by elements, elements are described by attributes <student id=‘999-991’>John Smith</student>

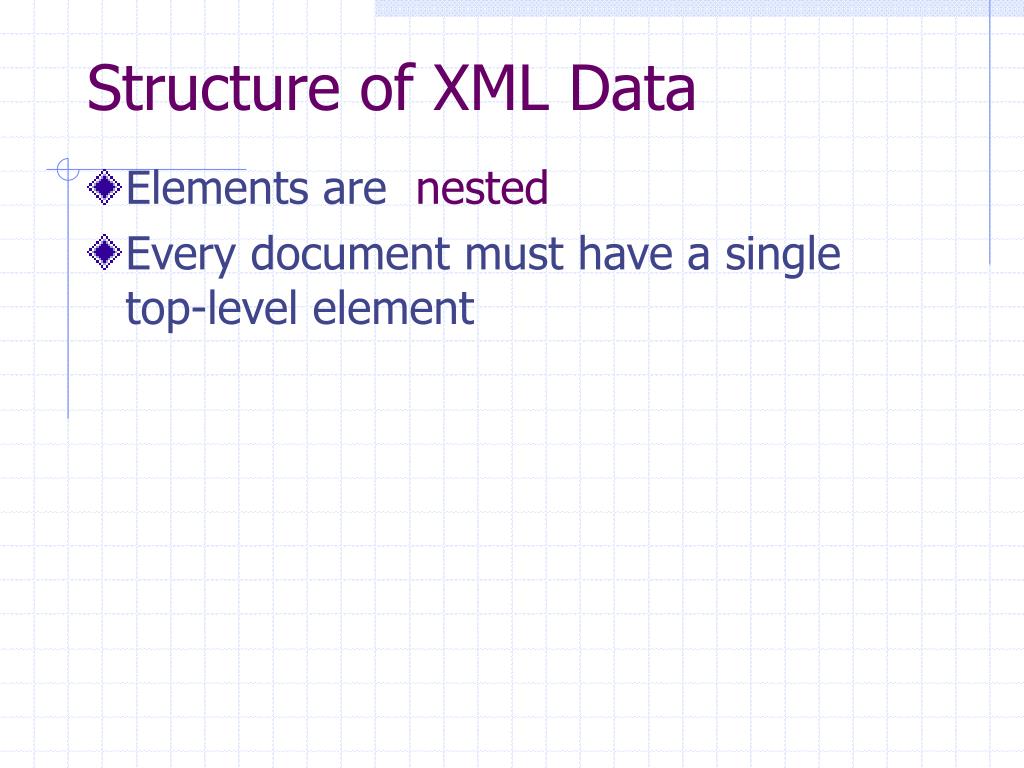

  9. Structure of XML Data • Elements are nested • Every document must have a single top-level element

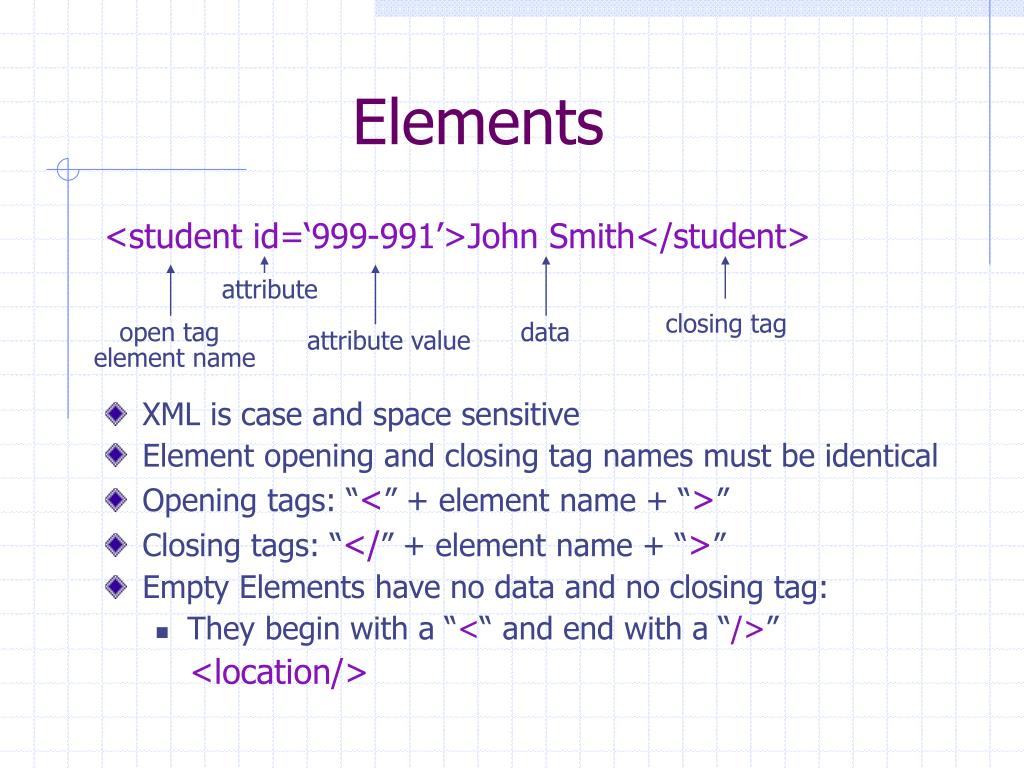

  10. attribute closing tag open tag attribute value data element name Elements <student id=‘999-991’>John Smith</student> • XML is case and space sensitive • Element opening and closing tag names must be identical • Opening tags: “<” + element name + “>” • Closing tags: “</” + element name + “>” • Empty Elements have no data and no closing tag: • They begin with a “<“ and end with a “/>” <location/>

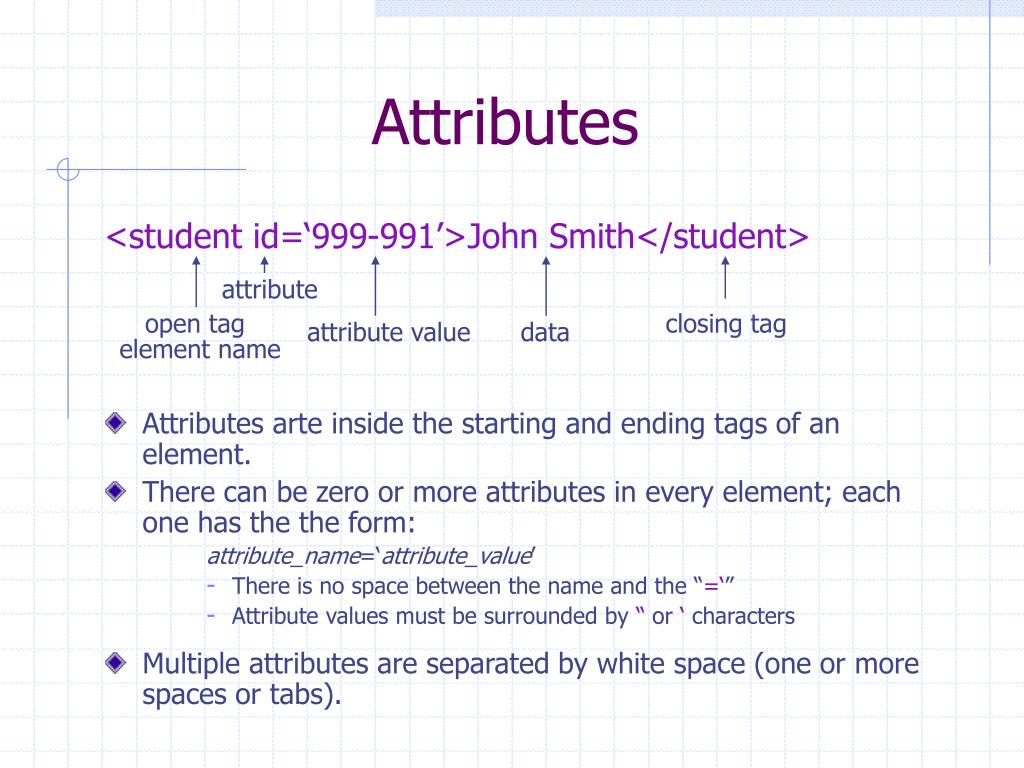

  11. attribute closing tag open tag attribute value data element name Attributes <student id=‘999-991’>John Smith</student> • Attributes arte inside the starting and ending tags of an element. • There can be zero or more attributes in every element; each one has the the form: attribute_name=‘attribute_value’ • There is no space between the name and the “=‘” • Attribute values must be surrounded by “ or ‘ characters • Multiple attributes are separated by white space (one or more spaces or tabs).

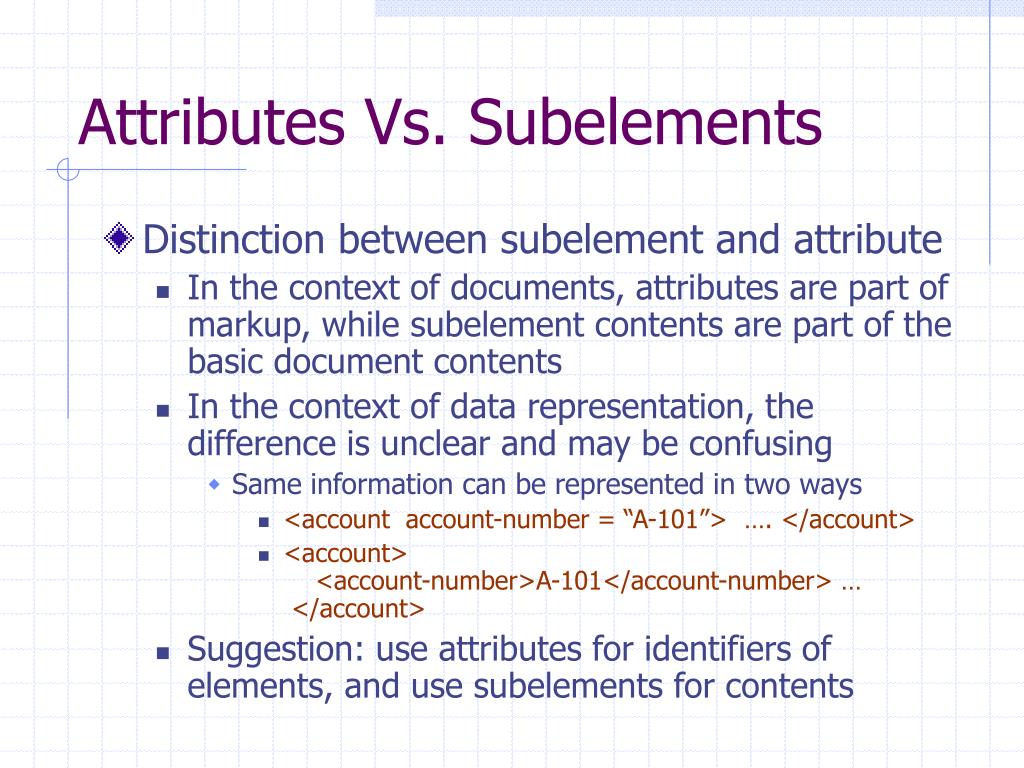

  12. Attributes Vs. Subelements • Distinction between subelement and attribute • In the context of documents, attributes are part of markup, while subelement contents are part of the basic document contents • In the context of data representation, the difference is unclear and may be confusing • Same information can be represented in two ways • <account account-number = “A-101”> …. </account> • <account> <account-number>A-101</account-number> … </account> • Suggestion: use attributes for identifiers of elements, and use subelements for contents

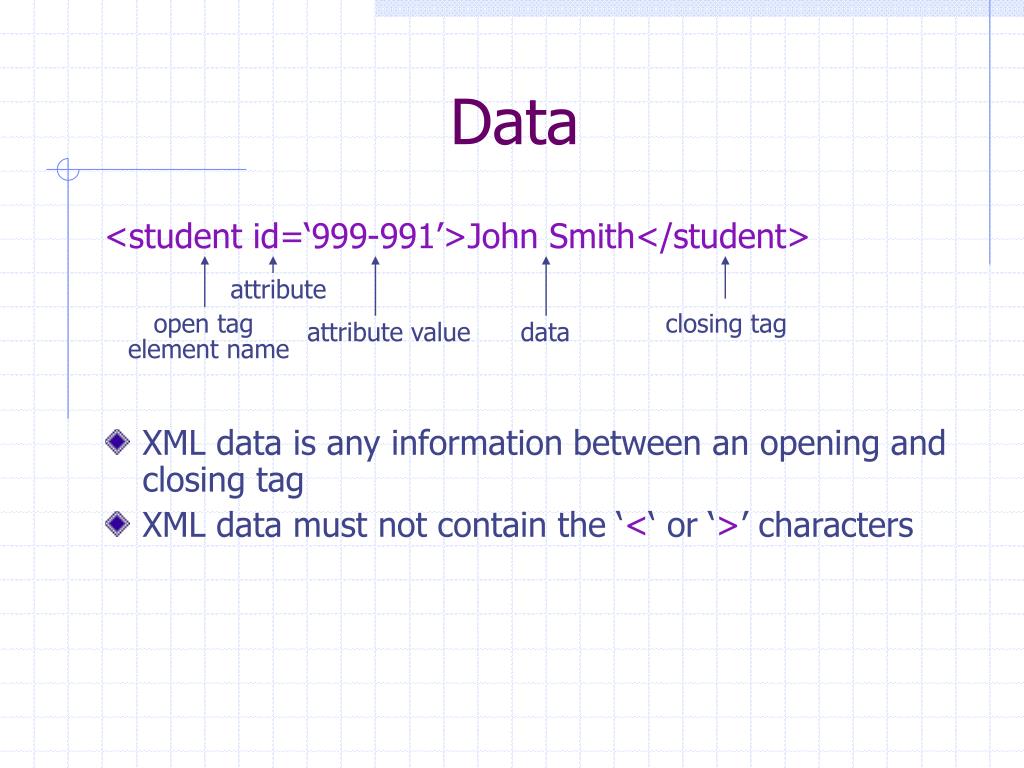

  13. attribute closing tag open tag attribute value data element name Data <student id=‘999-991’>John Smith</student> • XML data is any information between an opening and closing tag • XML data must not contain the ‘<‘ or ‘>’ characters

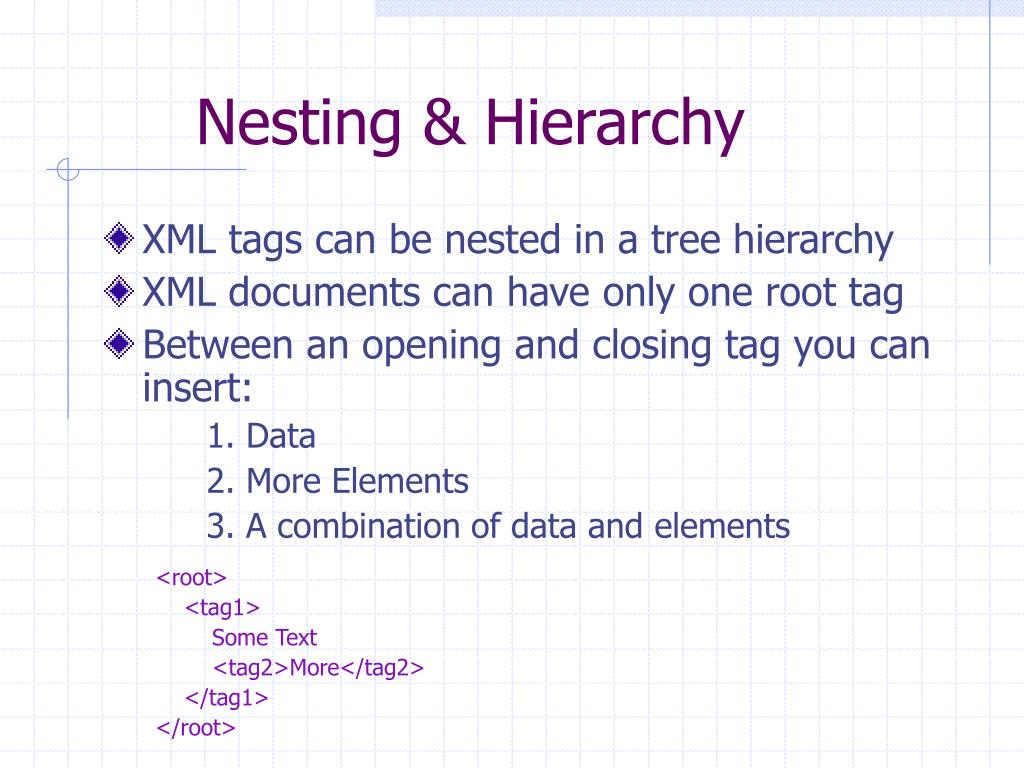

  14. Nesting & Hierarchy • XML tags can be nested in a tree hierarchy • XML documents can have only one root tag • Between an opening and closing tag you can insert: 1. Data 2. More Elements 3. A combination of data and elements <root> <tag1> Some Text <tag2>More</tag2> </tag1> </root>

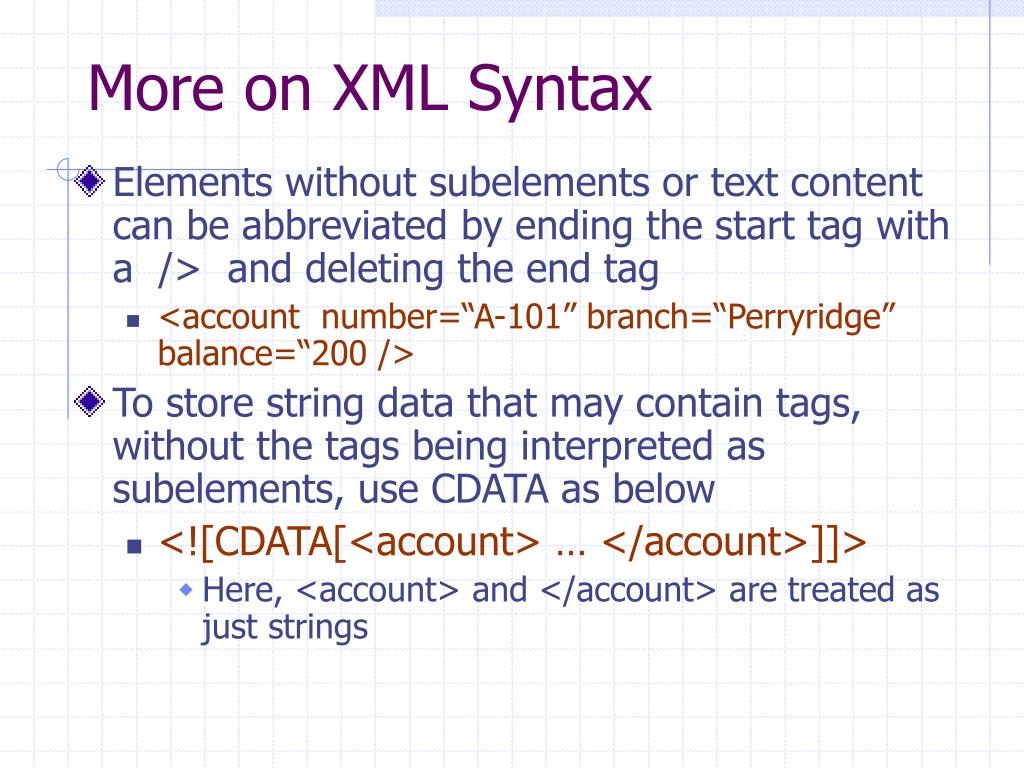

  15. More on XML Syntax • Elements without subelements or text content can be abbreviated by ending the start tag with a /> and deleting the end tag • <account number=“A-101” branch=“Perryridge” balance=“200 /> • To store string data that may contain tags, without the tags being interpreted as subelements, use CDATA as below • <![CDATA[<account> … </account>]]> • Here, <account> and </account> are treated as just strings

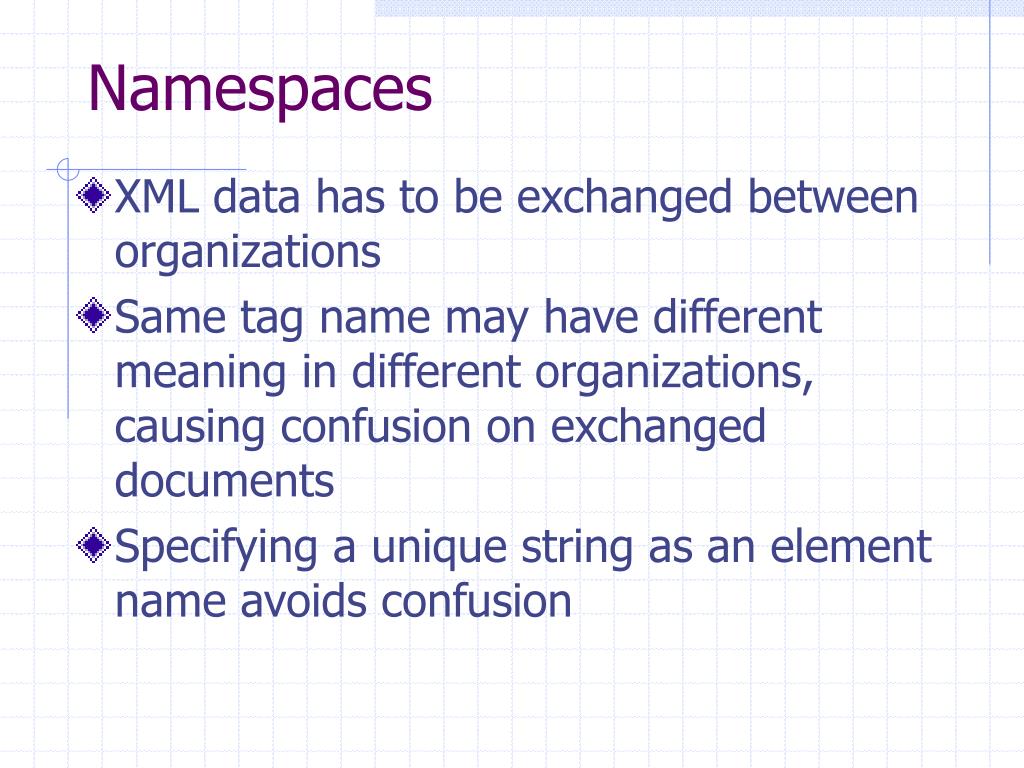

  16. Namespaces • XML data has to be exchanged between organizations • Same tag name may have different meaning in different organizations, causing confusion on exchanged documents • Specifying a unique string as an element name avoids confusion

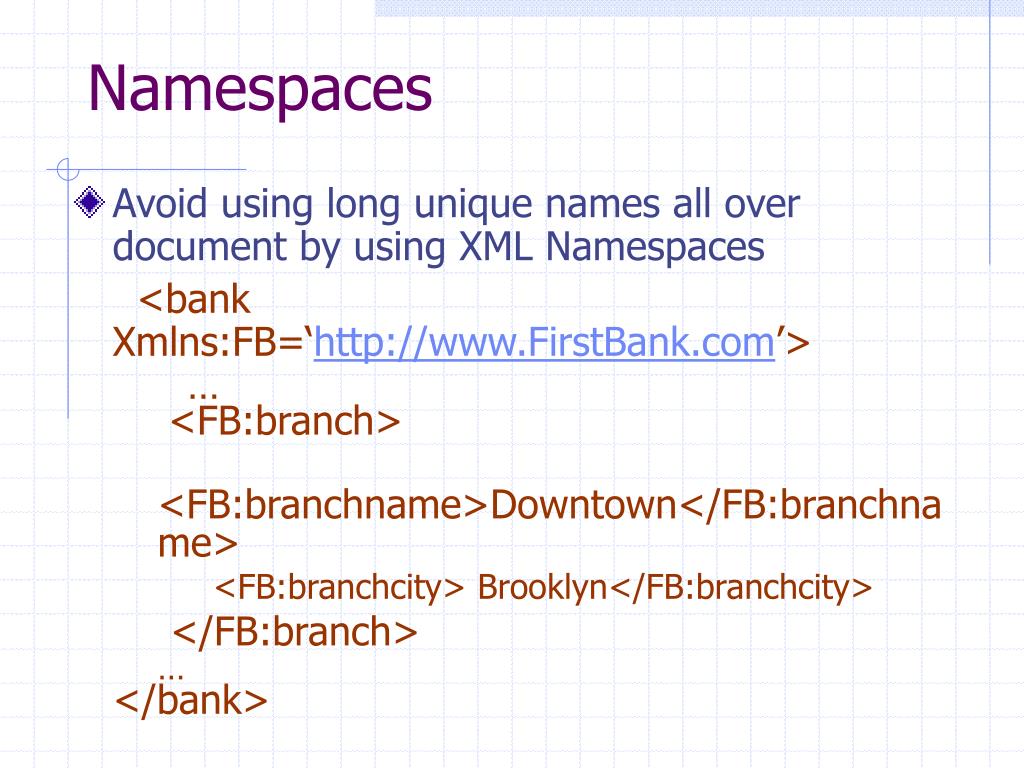

  17. Namespaces • Avoid using long unique names all over document by using XML Namespaces <bank Xmlns:FB=‘http://www.FirstBank.com’> … <FB:branch> <FB:branchname>Downtown</FB:branchname> <FB:branchcity> Brooklyn</FB:branchcity> </FB:branch>… </bank>

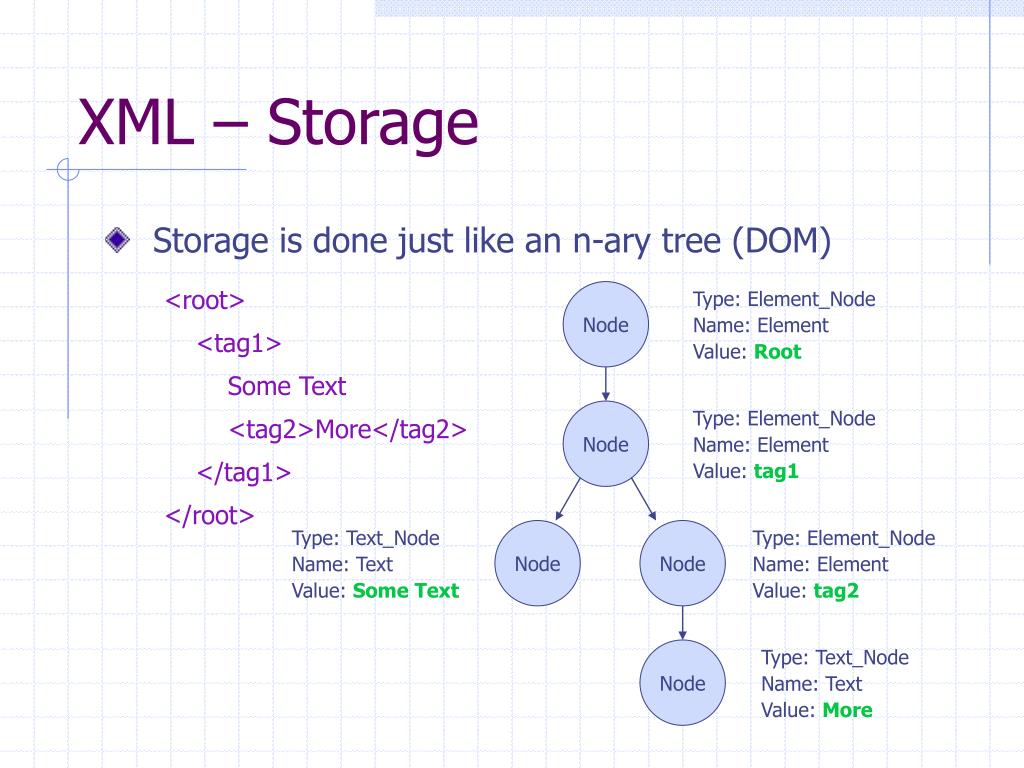

  18. Node Type: Element_Node Name: Element Value: Root Node Type: Element_Node Name: Element Value: tag1 Node Node Type: Text_Node Name: Text Value: Some Text Type: Element_Node Name: Element Value: tag2 Node Type: Text_Node Name: Text Value: More XML – Storage • Storage is done just like an n-ary tree (DOM) <root> <tag1> Some Text <tag2>More</tag2> </tag1> </root>

  19. Xml vs. Relational Model <Table> <Computer Id=‘101’> <Speed>800Mhz</Speed> <RAM>256MB</RAM> <HD>40GB</HD> </Computer> <Computer Id=‘102’> <Speed>933Mhz</Speed> <RAM>512MB</RAM> <HD>40GB</HD> </Computer> </Table> Computer Table

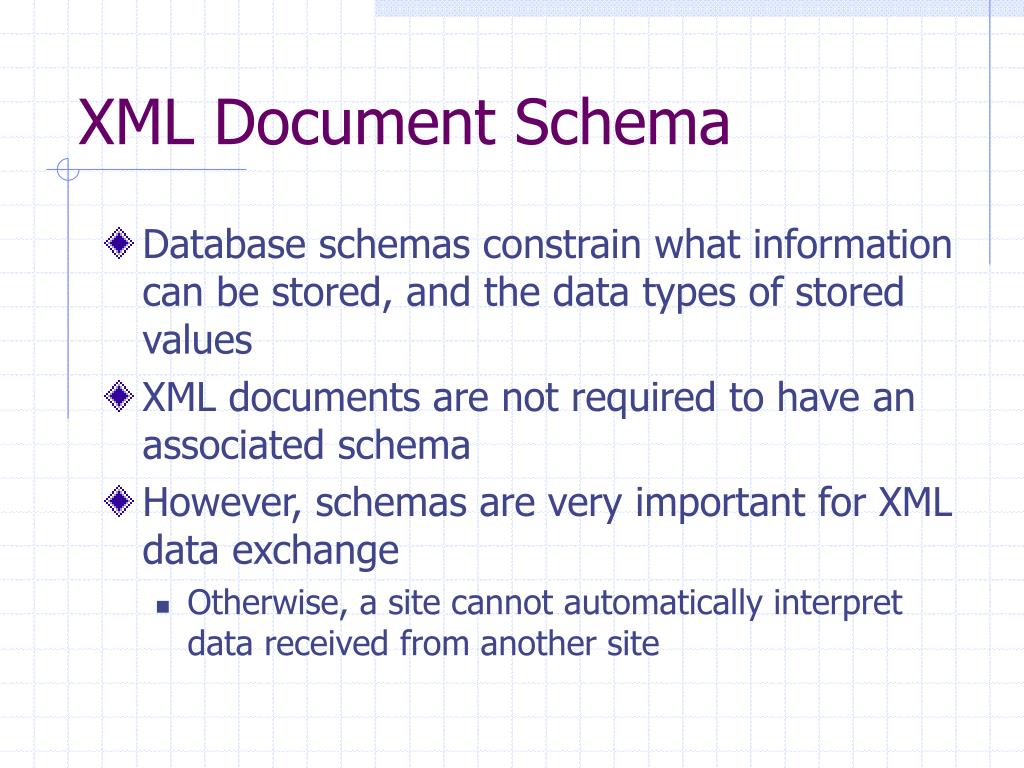

  20. XML Document Schema • Database schemas constrain what information can be stored, and the data types of stored values • XML documents are not required to have an associated schema • However, schemas are very important for XML data exchange • Otherwise, a site cannot automatically interpret data received from another site

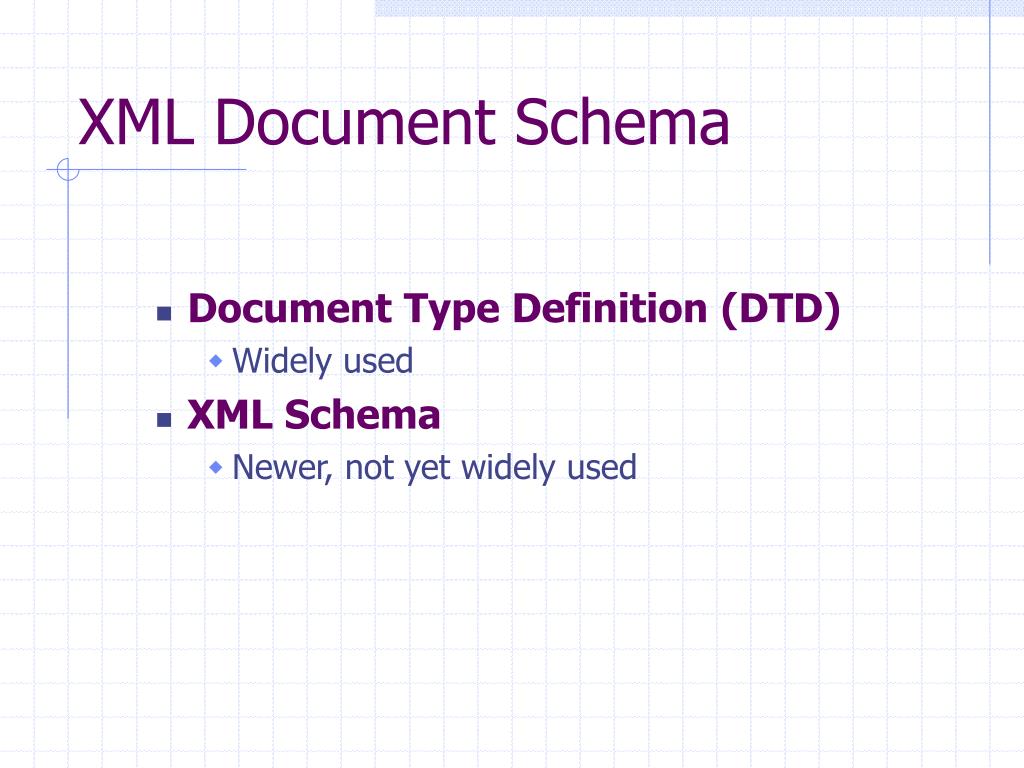

  21. XML Document Schema • Document Type Definition (DTD) • Widely used • XML Schema • Newer, not yet widely used

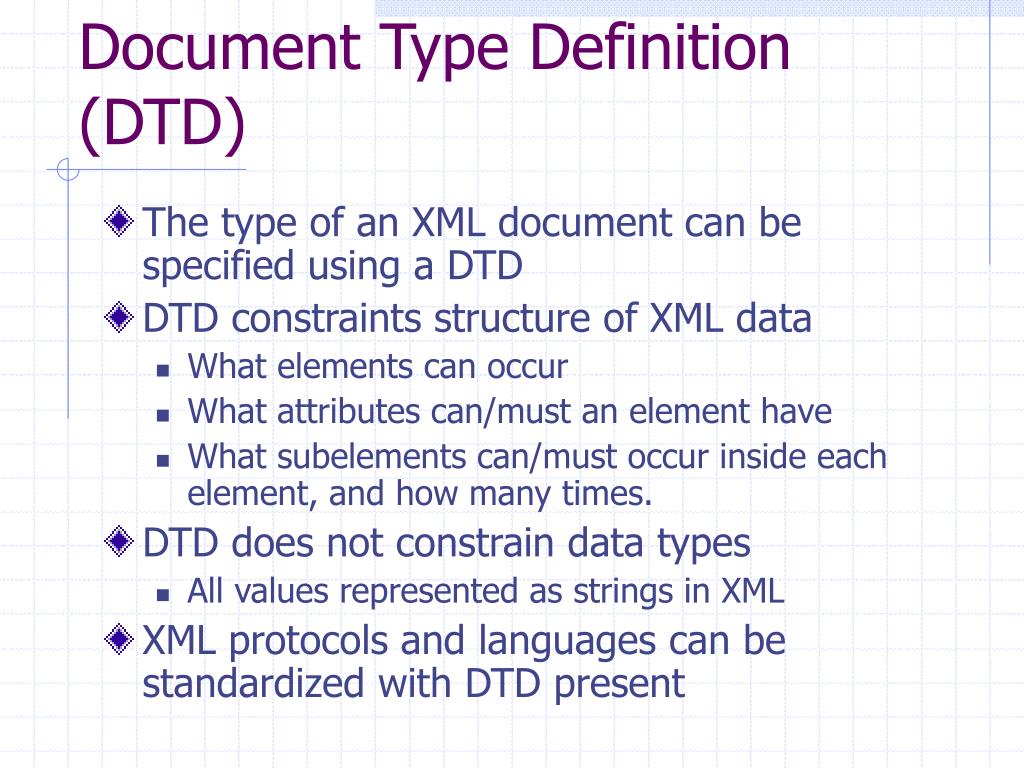

  22. Document Type Definition (DTD) • The type of an XML document can be specified using a DTD • DTD constraints structure of XML data • What elements can occur • What attributes can/must an element have • What subelements can/must occur inside each element, and how many times. • DTD does not constrain data types • All values represented as strings in XML • XML protocols and languages can be standardized with DTD present

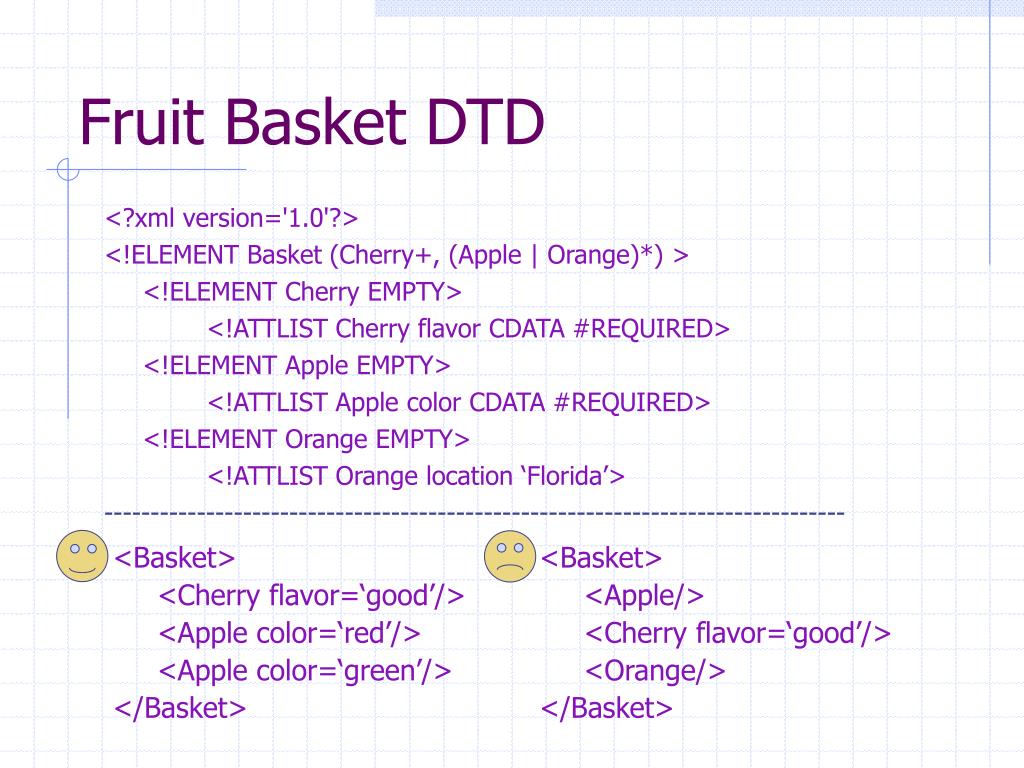

  23. Fruit Basket DTD <?xml version='1.0'?> <!ELEMENT Basket (Cherry+, (Apple | Orange)*) > <!ELEMENT Cherry EMPTY> <!ATTLIST Cherry flavor CDATA #REQUIRED> <!ELEMENT Apple EMPTY> <!ATTLIST Apple color CDATA #REQUIRED> <!ELEMENT Orange EMPTY> <!ATTLIST Orange location ‘Florida’> -------------------------------------------------------------------------------- <Basket> <Cherry flavor=‘good’/> <Apple color=‘red’/> <Apple color=‘green’/> </Basket> <Basket> <Apple/> <Cherry flavor=‘good’/> <Orange/> </Basket>

  24. <!DOCTYPE bank [ <!ELEMENT bank ( ( account | customer | depositor)+)> <!ELEMENT account (account-number branch-name balance)> <! ELEMENT customer(customer-name customer-street customer-city)> <! ELEMENT depositor (customer-name account-number)> <! ELEMENT account-number (#PCDATA)> <! ELEMENT branch-name (#PCDATA)> <! ELEMENT balance(#PCDATA)> <! ELEMENT customer-name(#PCDATA)> <! ELEMENT customer-street(#PCDATA)> <! ELEMENT customer-city(#PCDATA)> ]> Bank DTD

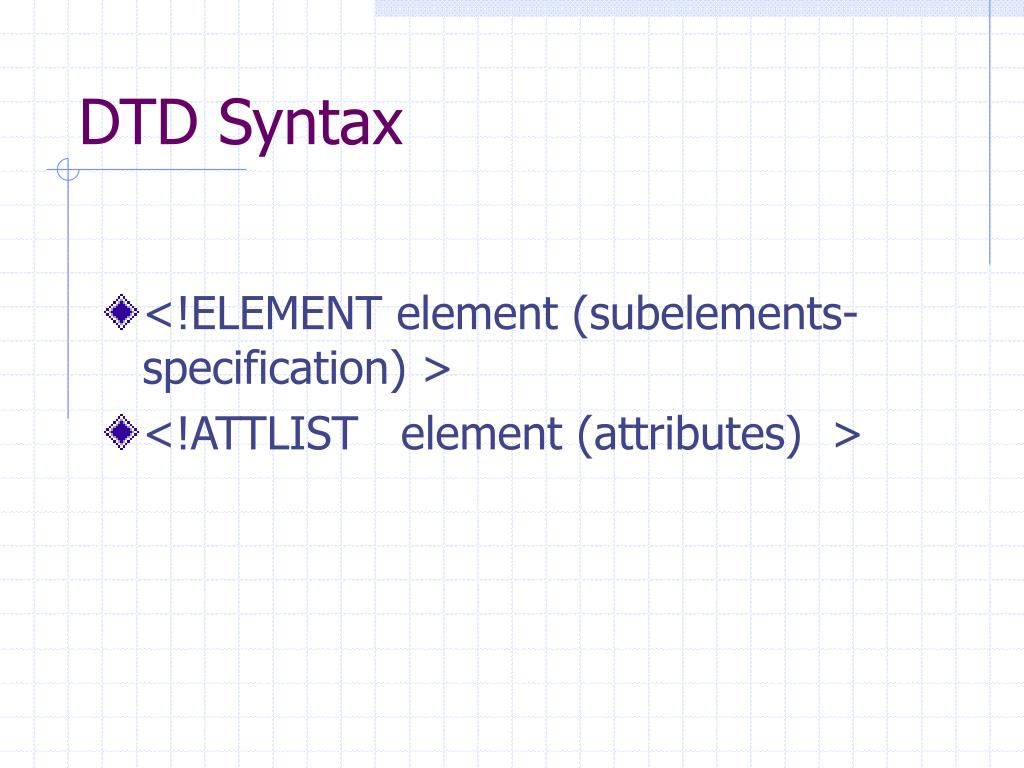

  25. DTD Syntax • <!ELEMENT element (subelements-specification) > • <!ATTLIST element (attributes) >

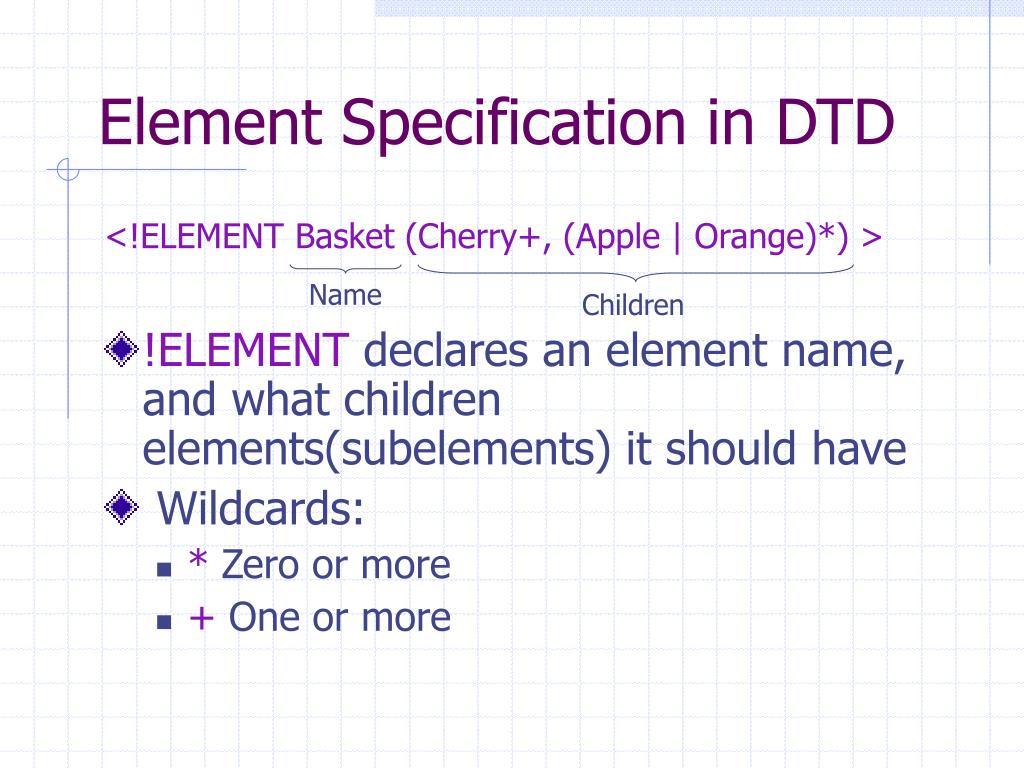

  26. Element Specification in DTD <!ELEMENT Basket (Cherry+, (Apple | Orange)*) > • !ELEMENT declares an element name, and what children elements(subelements) it should have • Wildcards: • * Zero or more • + One or more Name Children

  27. Element Specification in DTD • Subelements can be specified as • names of elements, or • #PCDATA (parsed character data), i.e., character strings • EMPTY (no subelements) or ANY (anything can be a subelement) • Example <! ELEMENT depositor (customer-name account-number)> <! ELEMENT customer-name(#PCDATA)> <! ELEMENT account-number (#PCDATA)>

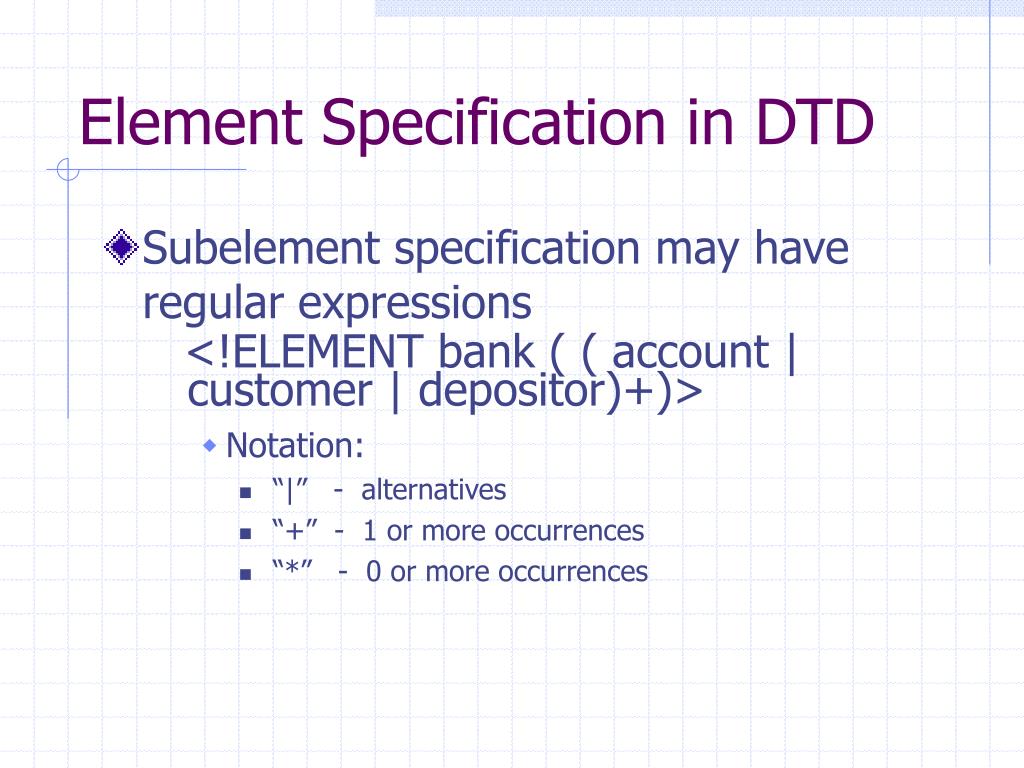

  28. Element Specification in DTD • Subelement specification may have regular expressions <!ELEMENT bank ( ( account | customer | depositor)+)> • Notation: • “|” - alternatives • “+” - 1 or more occurrences • “*” - 0 or more occurrences

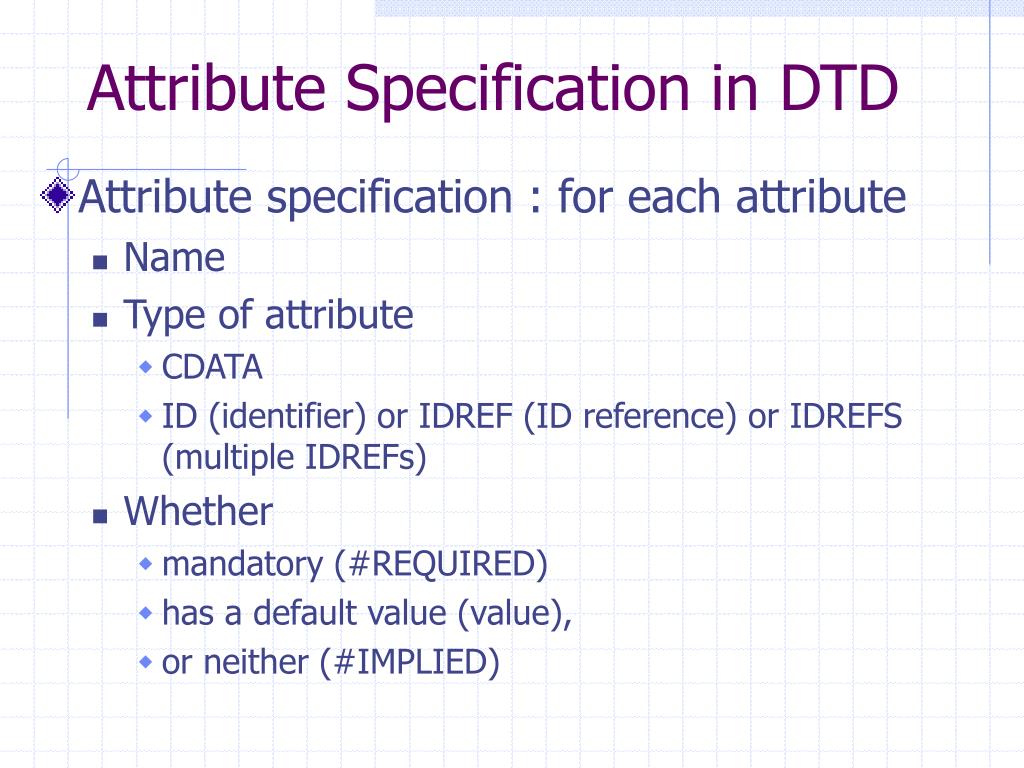

  29. Attribute specification : for each attribute Name Type of attribute CDATA ID (identifier) or IDREF (ID reference) or IDREFS (multiple IDREFs) Whether mandatory (#REQUIRED) has a default value (value), or neither (#IMPLIED) Attribute Specification in DTD

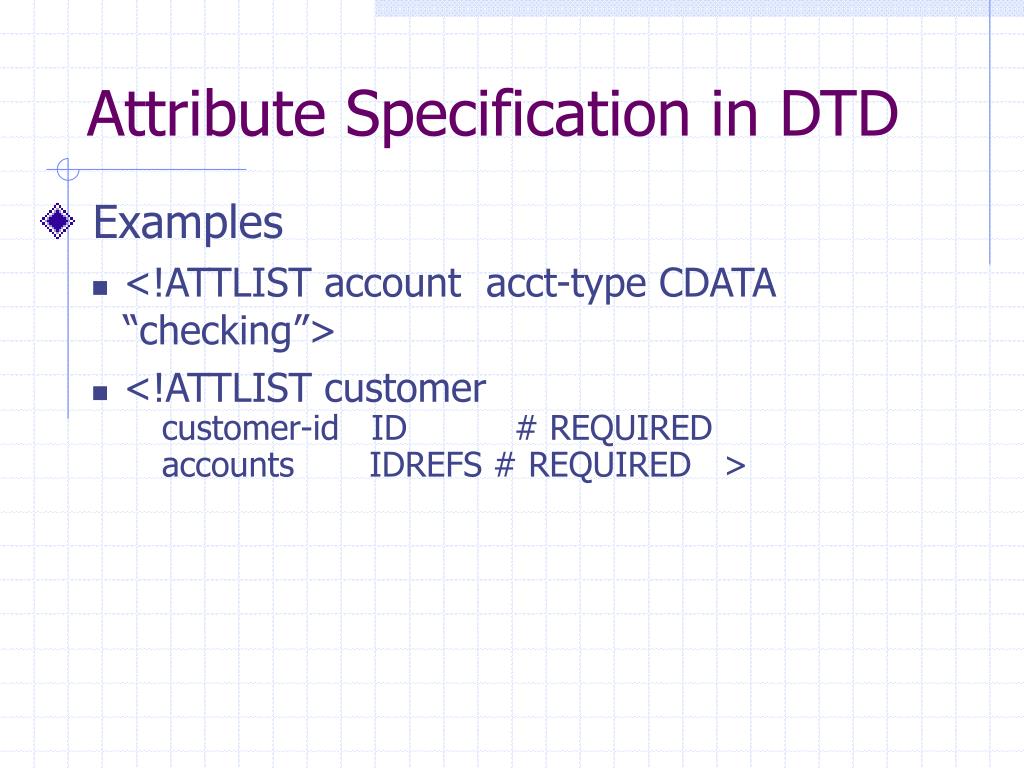

  30. Examples <!ATTLIST account acct-type CDATA “checking”> <!ATTLIST customer customer-id ID # REQUIRED accounts IDREFS # REQUIRED > Attribute Specification in DTD

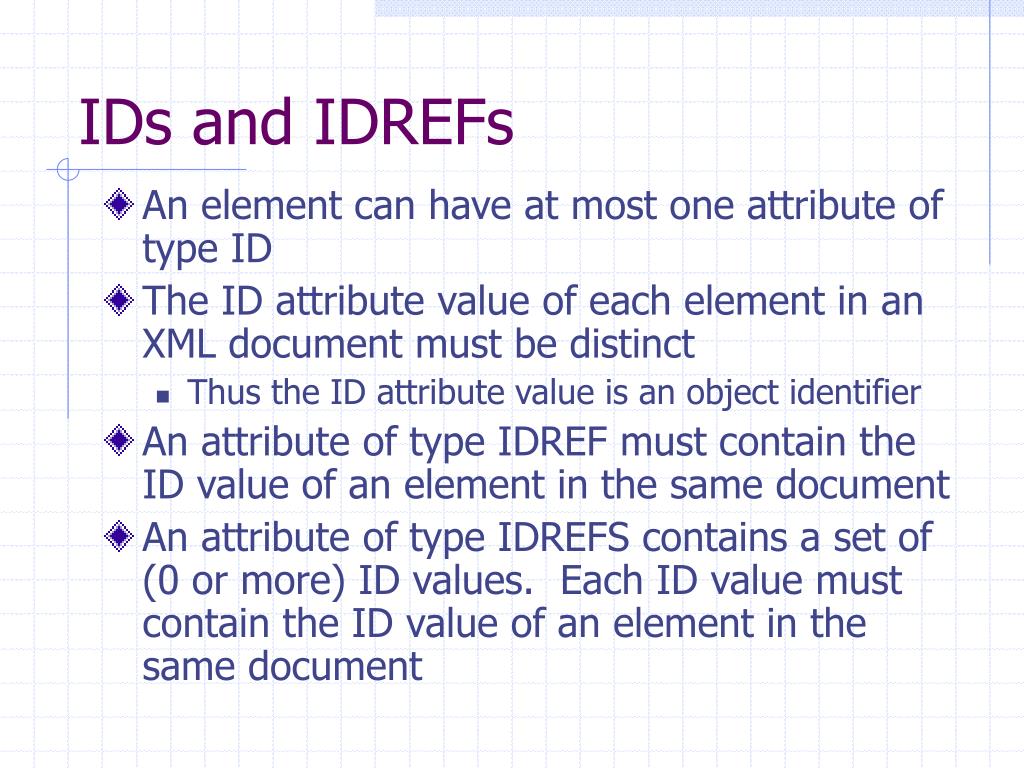

  31. IDs and IDREFs • An element can have at most one attribute of type ID • The ID attribute value of each element in an XML document must be distinct • Thus the ID attribute value is an object identifier • An attribute of type IDREF must contain the ID value of an element in the same document • An attribute of type IDREFS contains a set of (0 or more) ID values. Each ID value must contain the ID value of an element in the same document

  32. DTD –Well-Formed and Valid <?xml version='1.0'?> <!ELEMENT Basket (Cherry+)> <!ELEMENT Cherry EMPTY> <!ATTLIST Cherry flavor CDATA #REQUIRED> -------------------------------------------------------------------------------- Not Well-Formed <basket> <Cherry flavor=good> </Basket> Well-Formed but Invalid <Job> <Location>Home</Location> </Job> Well-Formed and Valid <Basket> <Cherry flavor=‘good’/> </Basket>

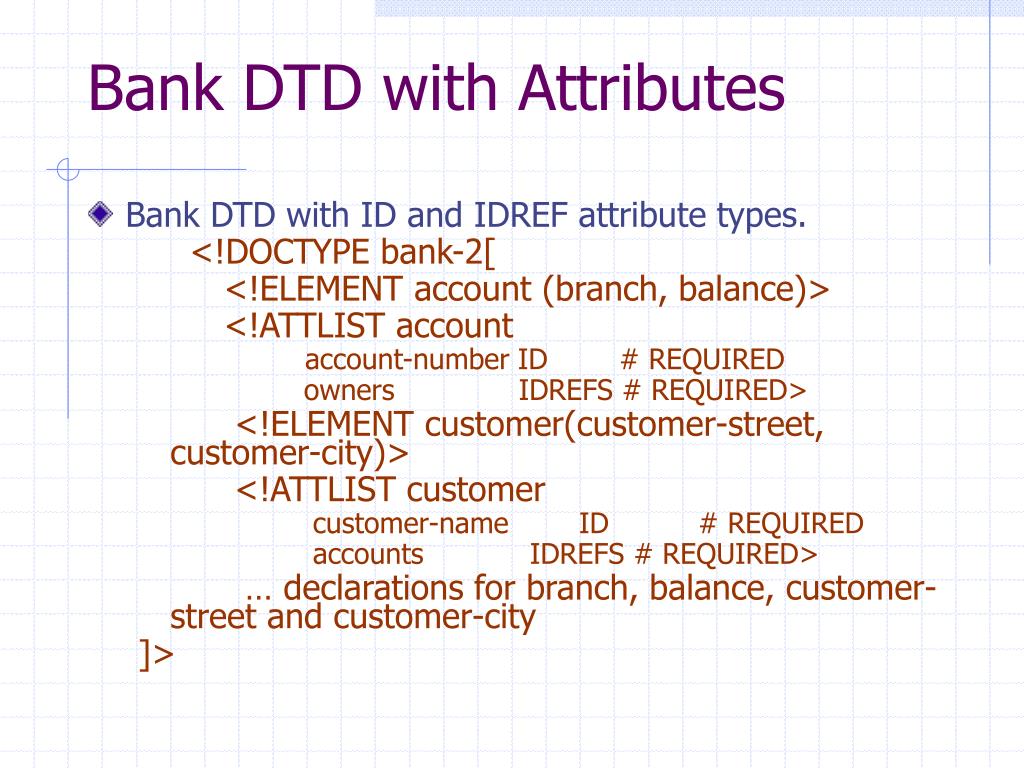

  33. Bank DTD with Attributes • Bank DTD with ID and IDREF attribute types. <!DOCTYPE bank-2[ <!ELEMENT account (branch, balance)> <!ATTLIST account account-number ID # REQUIRED owners IDREFS # REQUIRED> <!ELEMENT customer(customer-street, customer-city)> <!ATTLIST customer customer-name ID # REQUIRED accounts IDREFS # REQUIRED> … declarations for branch, balance, customer-street and customer-city ]>

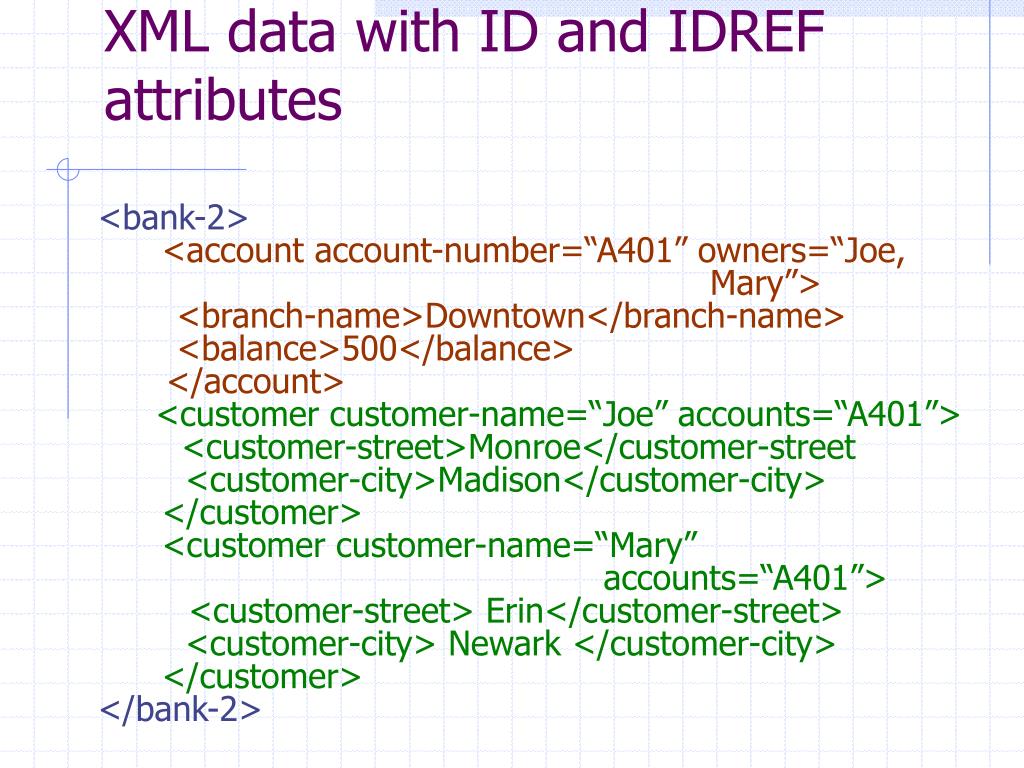

  34. <bank-2> <account account-number=“A401” owners=“Joe, Mary”> <branch-name>Downtown</branch-name> <balance>500</balance> </account> <customer customer-name=“Joe” accounts=“A401”> <customer-street>Monroe</customer-street <customer-city>Madison</customer-city> </customer> <customer customer-name=“Mary” accounts=“A401”> <customer-street> Erin</customer-street> <customer-city> Newark </customer-city> </customer> </bank-2> XML data with ID and IDREF attributes

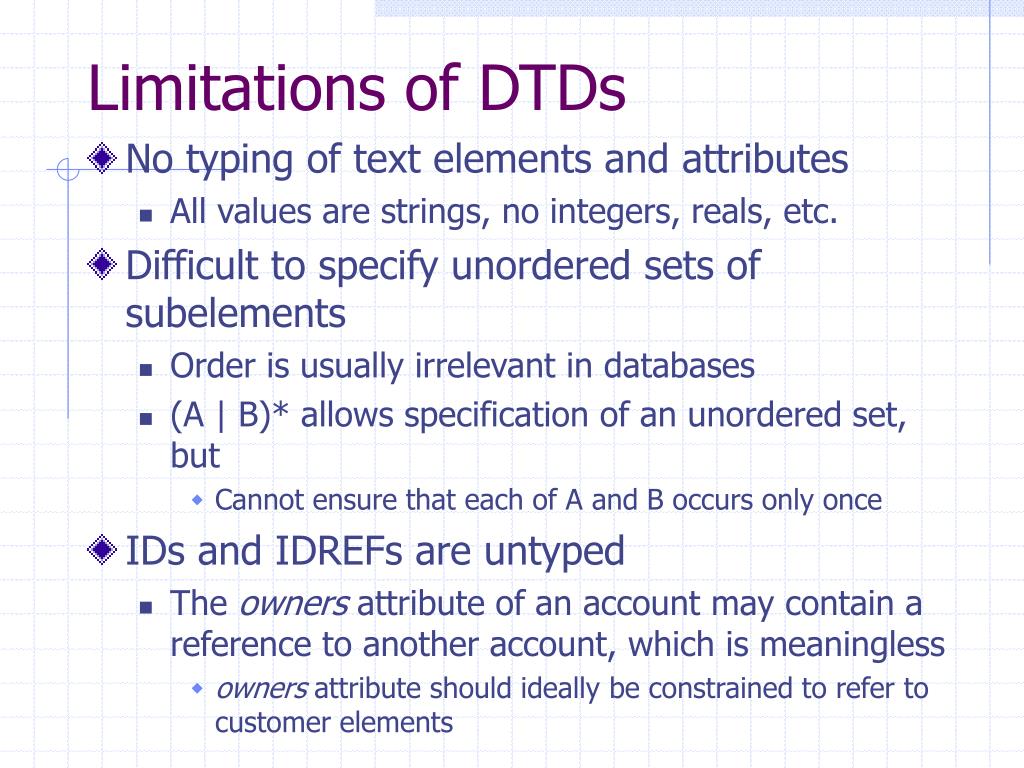

  35. Limitations of DTDs • No typing of text elements and attributes • All values are strings, no integers, reals, etc. • Difficult to specify unordered sets of subelements • Order is usually irrelevant in databases • (A | B)* allows specification of an unordered set, but • Cannot ensure that each of A and B occurs only once • IDs and IDREFs are untyped • The owners attribute of an account may contain a reference to another account, which is meaningless • owners attribute should ideally be constrained to refer to customer elements

  36. XML Schema • XML Schema is a more sophisticated schema language which addresses the drawbacks of DTDs. Supports • Typing of values • E.g. integer, string, etc • Also, constraints on min/max values • User defined types • Is itself specified in XML syntax, unlike DTDs • More standard representation, but verbose • Is integrated with namespaces • Many more features • List types, uniqueness and foreign key constraints, inheritance .. • BUT: significantly more complicated than DTDs, not yet widely used.

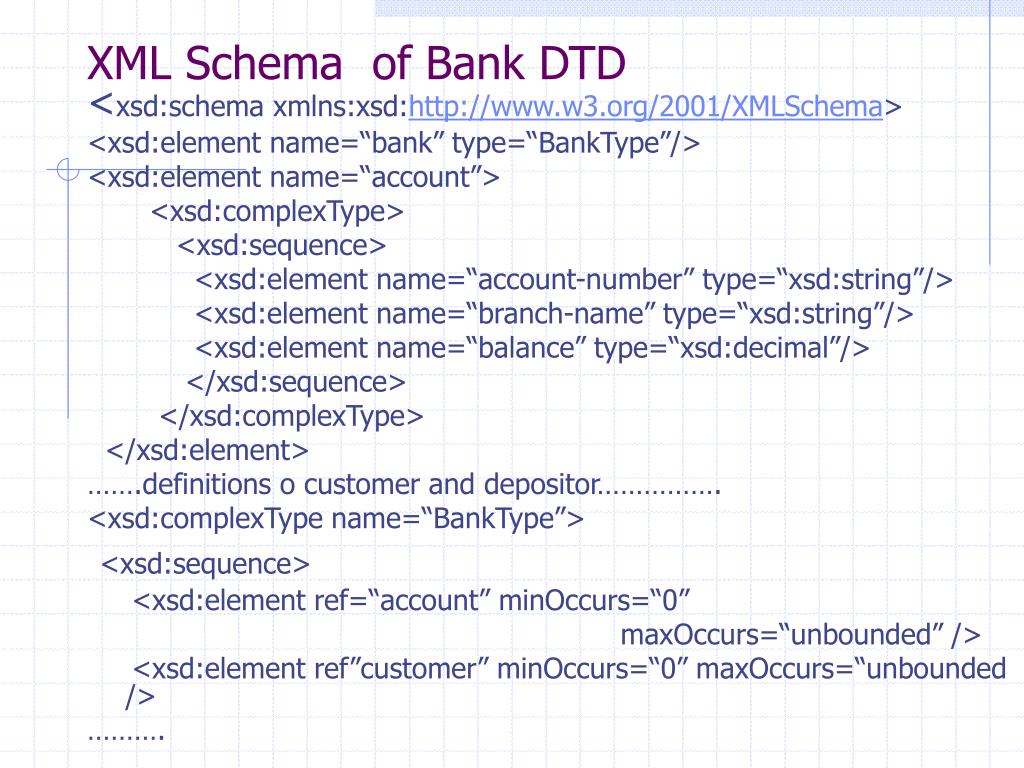

  37. <xsd:schema xmlns:xsd:http://www.w3.org/2001/XMLSchema> <xsd:element name=“bank” type=“BankType”/> <xsd:element name=“account”> <xsd:complexType> <xsd:sequence> <xsd:element name=“account-number” type=“xsd:string”/> <xsd:element name=“branch-name” type=“xsd:string”/> <xsd:element name=“balance” type=“xsd:decimal”/> </xsd:sequence> </xsd:complexType> </xsd:element> …….definitions o customer and depositor……………. <xsd:complexType name=“BankType”> <xsd:sequence> <xsd:element ref=“account” minOccurs=“0” maxOccurs=“unbounded” /> <xsd:element ref”customer” minOccurs=“0” maxOccurs=“unbounded /> ………. XML Schema of Bank DTD

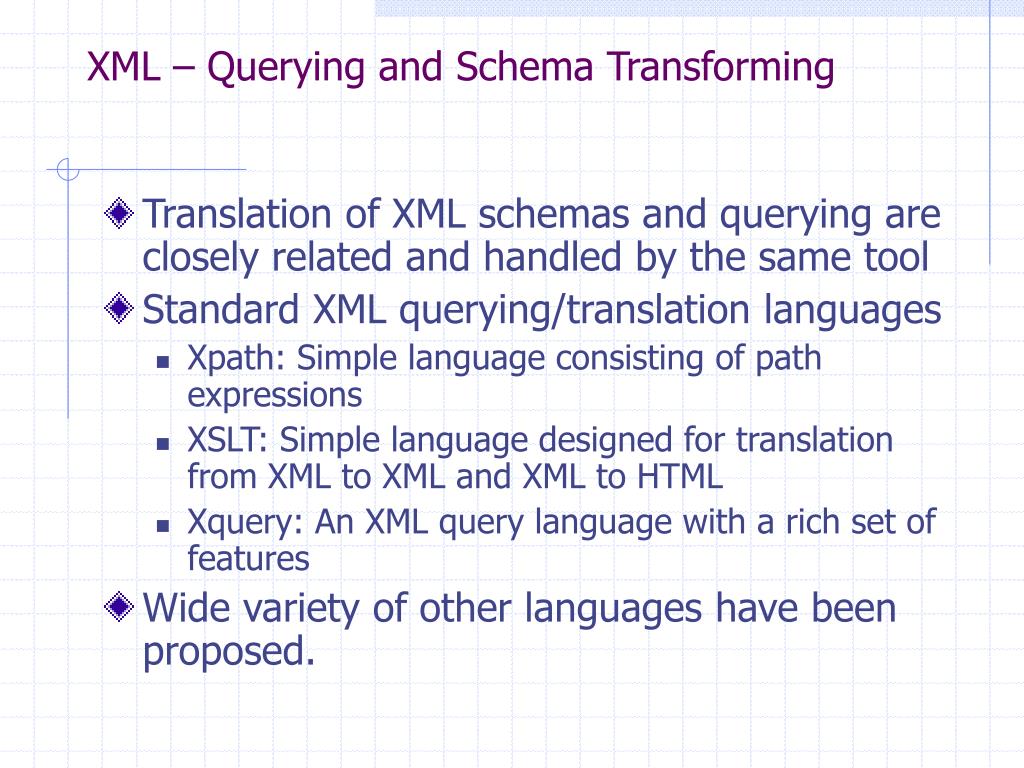

  38. XML – Querying and Schema Transforming • Translation of XML schemas and querying are closely related and handled by the same tool • Standard XML querying/translation languages • Xpath: Simple language consisting of path expressions • XSLT: Simple language designed for translation from XML to XML and XML to HTML • Xquery: An XML query language with a rich set of features • Wide variety of other languages have been proposed.

  39. Tree Model of XML Data • Query and transformation languages are based on a tree model of XML data • An XML document is modeled as a tree, with nodes corresponding to elements and attributes • Element nodes have children nodes, which can be attributes or subelements • Text in an element is modeled as a text node child of the element • Children of a node are ordered according to their order in the XML document • Element and attribute nodes (except for the root node) have a single parent, which is an element node • The root node has a single child, which is the root element of the document

  40. XPath • When XML is stored in a tree, XPath allows you to navigate to different nodes. <Class> <Student>Jeff</Student> <Student>Pat</Student> </Class> Class Student Student Text: Jeff Text: Pat

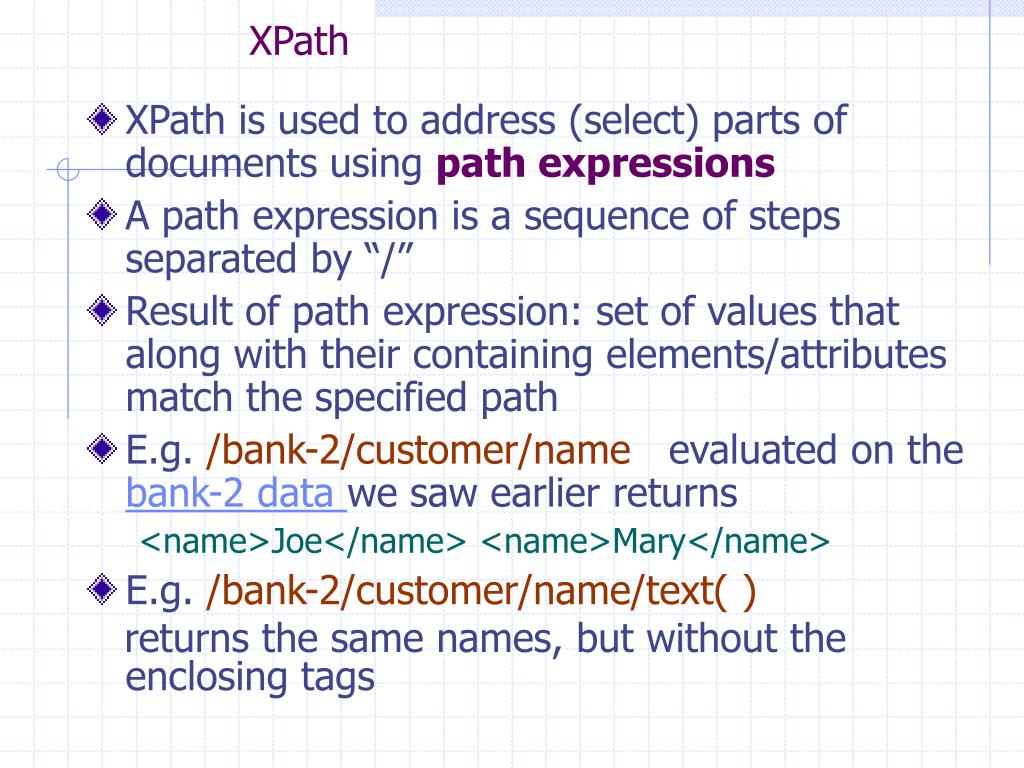

  41. XPath • XPath is used to address (select) parts of documents using path expressions • A path expression is a sequence of steps separated by “/” • Result of path expression: set of values that along with their containing elements/attributes match the specified path • E.g. /bank-2/customer/name evaluated on the bank-2 data we saw earlier returns <name>Joe</name> <name>Mary</name> • E.g. /bank-2/customer/name/text( ) returns the same names, but without the enclosing tags

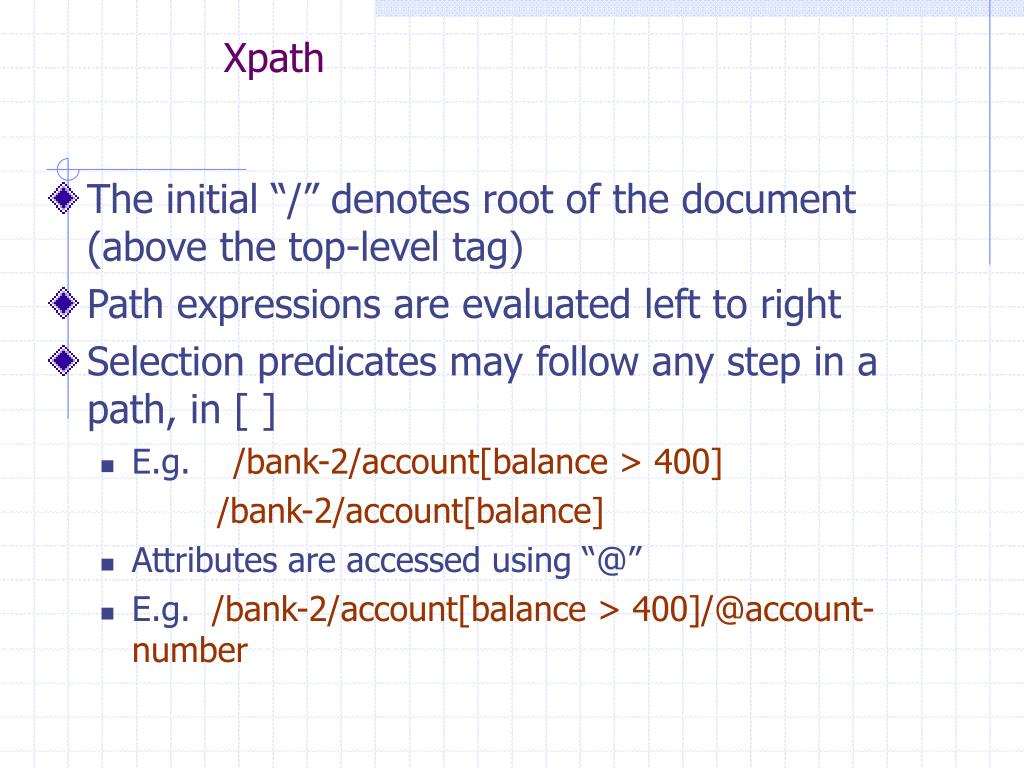

  42. The initial “/” denotes root of the document (above the top-level tag) Path expressions are evaluated left to right Selection predicates may follow any step in a path, in [ ] E.g. /bank-2/account[balance > 400] /bank-2/account[balance] Attributes are accessed using “@” E.g. /bank-2/account[balance > 400]/@account-number Xpath

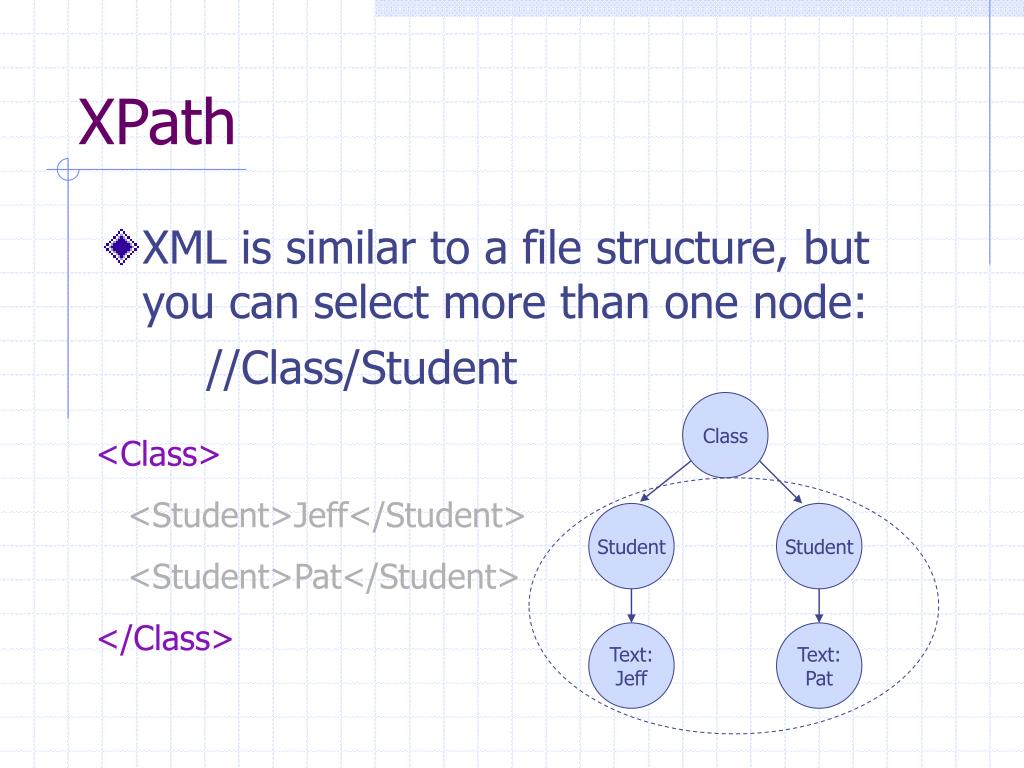

  43. XPath • XML is similar to a file structure, but you can select more than one node: //Class/Student Class <Class> <Student>Jeff</Student> <Student>Pat</Student> </Class> Student Student Text: Jeff Text: Pat

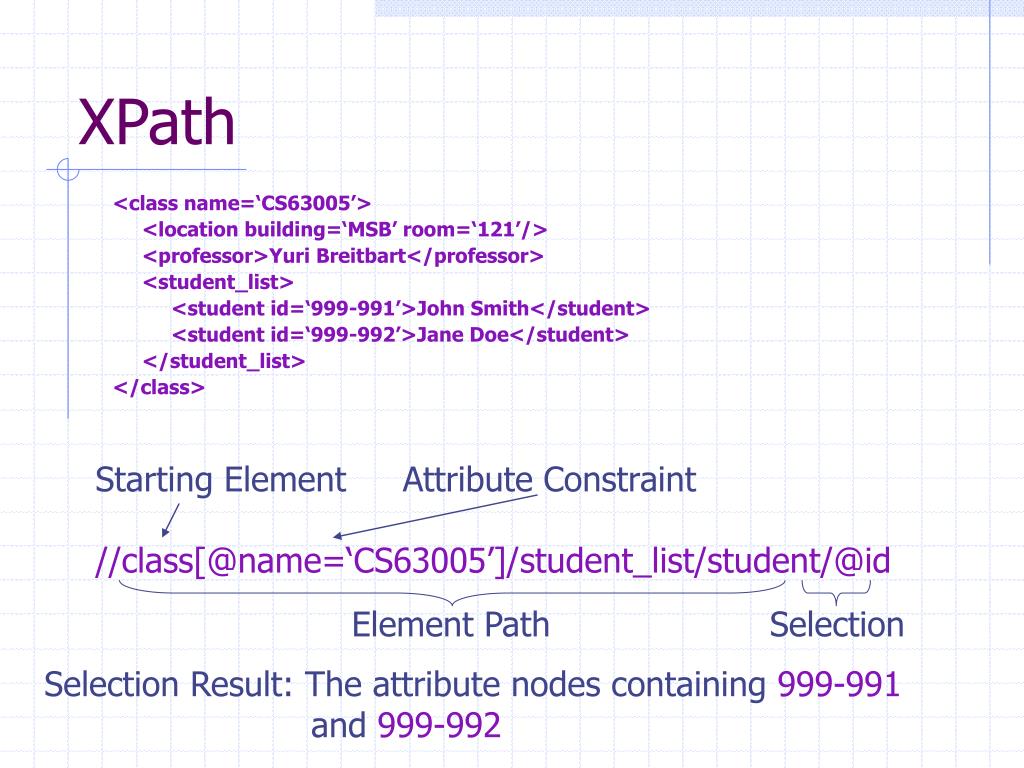

  44. XPath <class name=‘CS63005’> <location building=‘MSB’ room=‘121’/> <professor>Yuri Breitbart</professor> <student_list> <student id=‘999-991’>John Smith</student> <student id=‘999-992’>Jane Doe</student> </student_list> </class> Starting Element Attribute Constraint //class[@name=‘CS63005’]/student_list/student/@id Element Path Selection Selection Result: The attribute nodes containing 999-991 and 999-992

  45. XPath - Context • Context – your current focus in an XML document • Use: //<root>/… When you want to start from the beginning of the XML document

  46. XPath - Context XPath: List/Student Class Prof Location List Text: Gehrke Attr: Olin Student Student Text: Jeff Text: Pat

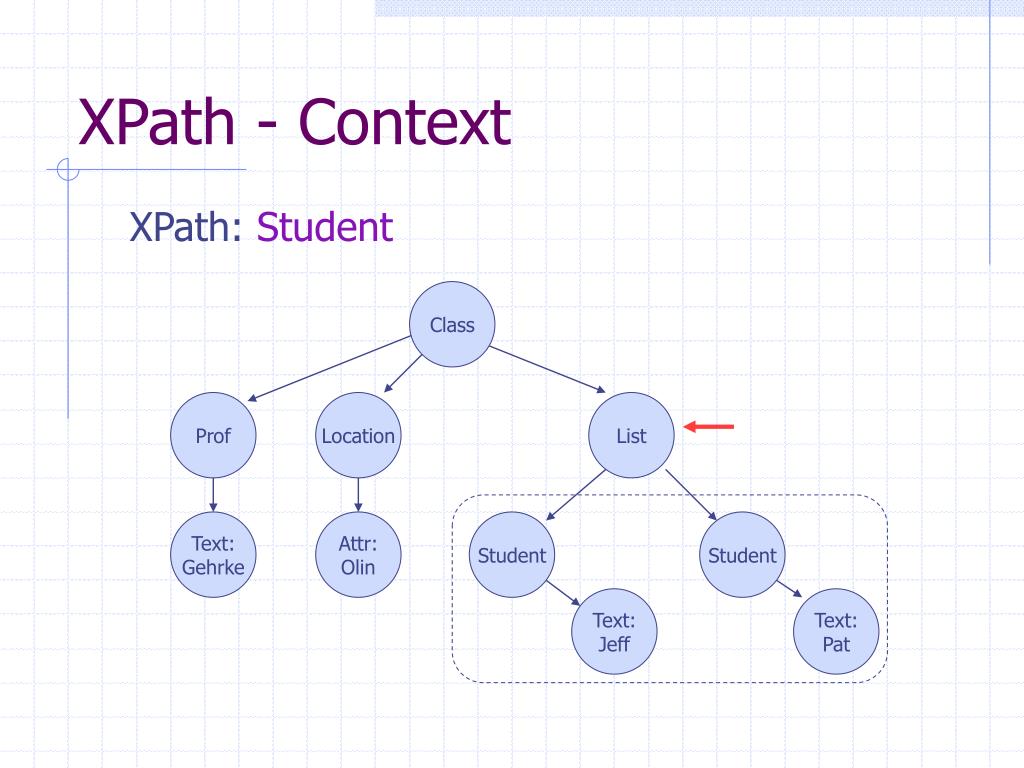

  47. Class Prof Location List Text: Gehrke Attr: Olin Student Student Text: Jeff Text: Pat XPath - Context XPath: Student

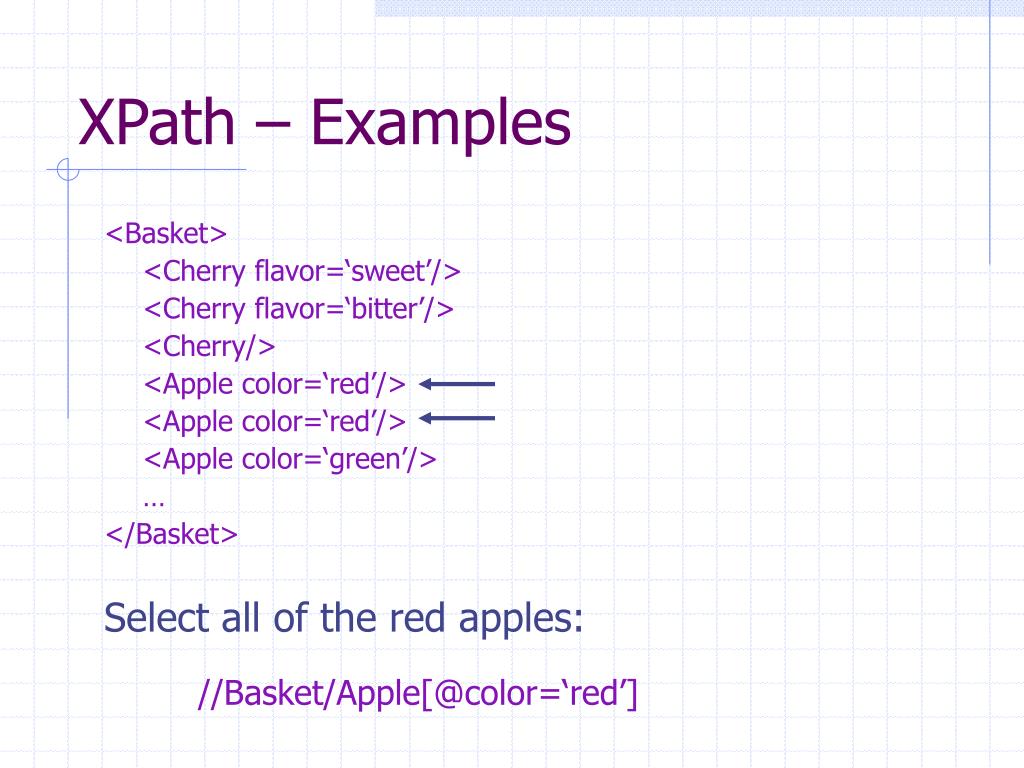

  48. XPath – Examples <Basket> <Cherry flavor=‘sweet’/> <Cherry flavor=‘bitter’/> <Cherry/> <Apple color=‘red’/> <Apple color=‘red’/> <Apple color=‘green’/> … </Basket> Select all of the red apples: //Basket/Apple[@color=‘red’]

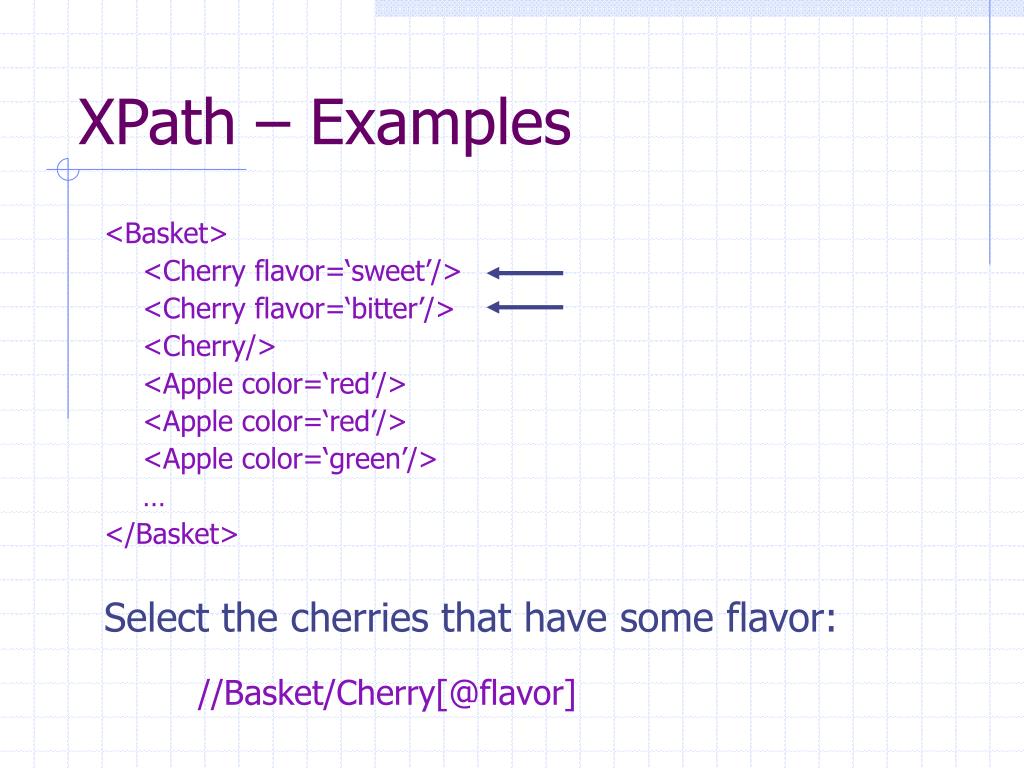

  49. XPath – Examples <Basket> <Cherry flavor=‘sweet’/> <Cherry flavor=‘bitter’/> <Cherry/> <Apple color=‘red’/> <Apple color=‘red’/> <Apple color=‘green’/> … </Basket> Select the cherries that have some flavor: //Basket/Cherry[@flavor]

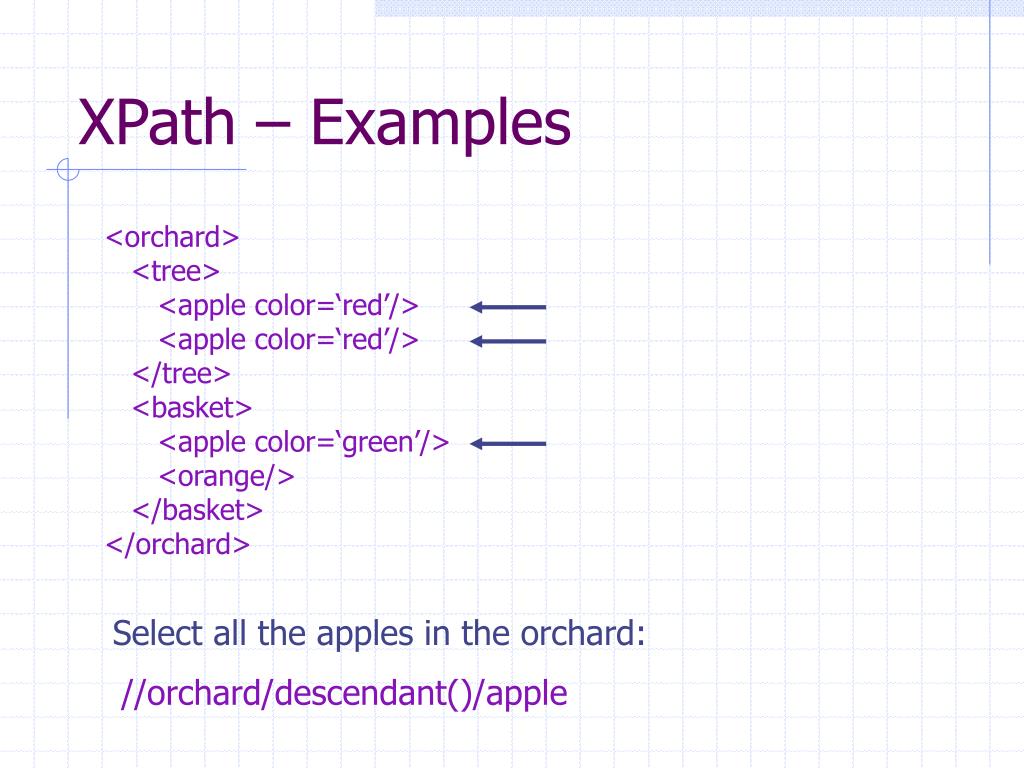

  50. XPath – Examples <orchard> <tree> <apple color=‘red’/> <apple color=‘red’/> </tree> <basket> <apple color=‘green’/> <orange/> </basket> </orchard> Select all the apples in the orchard: //orchard/descendant()/apple
