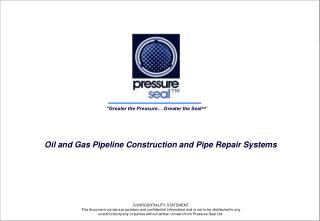

“Greater the Pressure.…Greater the Seal sm”. Oil and Gas Pipeline Construction and Pipe Repair Systems. CONFIDENTIALITY STATEMENT

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Oil and Gas Pipeline Construction and Pipe Repair Systems' - tavi


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
oil and gas pipeline construction and pipe repair systems

“Greater the Pressure.…Greater the Sealsm”

Oil and Gas Pipeline Construction and Pipe Repair Systems

CONFIDENTIALITY STATEMENT

This document contains proprietary and confidential information and is not to be distributed to any unauthorized party or parties without written consent from Pressure Seal Ltd.

company and qualifications
Company and Qualifications

“Greater the Pressure…Greater the Sealsm “

  • Company
    • Experienced Management Team
    • Petroleum, Chemical and Construction Industries
    • Pipeline and Refinery Construction Experience
    • Pipeline Security Management Experience
  • Pipeline / Construction Market Experience
    • Europe
    • Middle East
    • Asia
    • North America
oil and gas pipeline construction 2009 2010
Oil and Gas Pipeline Construction 2009 – 2010

“Greater the Pressure…Greater the Sealsm “

welding vs pressure seal system
Old Welded Process

New Pressure Seal System

Welding vs. Pressure Seal System

“Greater the Pressure…Greater the Sealsm “

Slower and More Expensive

Faster and More Cost-Effective

U.S. and International Patents Pending

key features and benefits
Benefits

No Welding or NDT Required

Faster with Lower Labour Costs

“Greater Pressure – Greater the Seal”

All High Pressure Gas and Crude Pipes

Lifecycle Stress and Fatigue Analysis

Meets All Industry Standards

Quality and Consistency

Meets Insurance Requirements

Substantially Improved Join Longevity

Environmentally Safe – No leakage

“Green” Environmental Contribution

Features

Push-fit Coupling

Easy Bolt-in Installation

Unique Differential Pressure Seal

Tested to 600 BAR / 8,702 PSI

Finite Elements Analysis (FEA)

Meets BSI, ANSI, ASME, DNV

ISO 9001-2000 Manufacturers

Certified Test Results

25 Year Seal Life-Expectancy

No Welding – No Join Corrosion

No Welding – No Atmospheric Gases

Key Features and Benefits

“Greater the Pressure…Greater the Sealsm “

U.S. and International Patents Pending

faster construction
Pipeline Welding and NDT

125 Pipe Welds per Mile

8 to 10 Hours per Pipe Join Weld

1 Join per Day per 3 Man Team

125 Days to Complete 1 Mile

NDT Required

Pipeline Trench Exposed for Days

NO Pipeline Welding and NO NDT

No Welds – Lower Labour Cost

1 Hour per Pipe Join

10 Joins per Day per 3 Man Team

12 1/2 Days to Complete 1 Mile per Team

NO NDT (Non-Destructive Testing)

Immediately Test and Backfill Trench

Faster Construction

“Greater the Pressure…Greater the Sealsm “

lower construction costs
Lower Construction Costs

“Greater the Pressure…Greater the Sealsm “

  • Eliminates Requirement for Costly Pipe Welding, Labour & Equipment
    • NO Welding Gases, Rods and Equipment
    • NO Power Generators
    • NO Pollution and Safety Risks
  • Eliminates Requirement for High Skilled and Expensive
    • NO Pipe Fitters
    • NO Certified Welders
    • NO NDT (Non-Destructive Testing)
  • Lower Security Risk
    • NO Pipeline Exposure -Immediate Backfill of Pipe Trench
  • Increases Installation Speed and Ease of Install
    • Uses More Local Labour
environmentally beneficial
Environmentally Beneficial

“Greater the Pressure…Greater the Sealsm “

  • Eliminates Welding Process
    • No Discharge of Greenhouse Gases
    • No Discharge of Toxic Gases
    • No Health and Safety Hazards
  • Pipe Joins with 25 Year Life
    • Reduced Corrosion
    • Reduced Risk of Pipe Joint Failure
    • Reduced Ground Contamination Due to Leakage
pressure seal pipeline repair system
Pressure Seal Pipeline Repair System

“Greater the Pressure…Greater the Sealsm “

  • In-Service Pipeline Repair System
    • Permanent Interlocking High Pressure Repair Clamp
    • Permanent Repair of Existing Leaking Pipelines
    • Preventative Maintenance Application
    • Unique Multi-combed, Frictional Lip Seal
    • No Need to Shut Down Pipeline
    • No Cutting or Welding
    • 25 Year Seal Life

U.S. and International Patents Pending

applications
Applications

“Greater the Pressure…Greater the Sealsm “

  • Oil Pipelines – PSR: Red Crude Oil Seal and Coupling
    • All major pipe sizes 6” to 60” and pressures
    • Special anti-corrosive 25 year seal all crude
  • Gas Pipelines – PSY: Yellow Gas Seal and Coupling
    • All major pipe sizes 6” to 60” and high pressure lines
    • Specially formulated 25 year seal gas pipelines
  • Water Pipelines – PSB: Blue Water Seal and Coupling
    • All major pipe sizes 6” to 60”
    • 25 year seal for all water pipelines
  • In-service Pipeline Repair System
    • Oil, Gas, Water, Steam Pipelines
    • No Shut Down Required
    • Preventative Maintenance
testing certification
Testing Certification
  • United Kingdom Certified Testing
    • Testing Facilities Accreditation
  • UK Accreditation Certificates
    • Metals, Alloys, and Metal Products
  • Finite Element Analysis
    • Excessive Stress and Fatigue Analysis
    • Determined long term stress loads
  • Pressure Tested
    • 600 BAR / 8,702 PSI
    • 1,000 BAR / 14,504 PSI
  • UK Pressure Test Certificates
    • 100 BAR Pressure Test
    • 200 BAR Pressure Test
    • 300 BAR Pressure Test
industry standards
Industry Standards

“Greater the Pressure…Greater the Sealsm “

  • Pressure Seal Couplings and Repair Kits Meets or Exceeds:
    • ASME B31.8-1999
      • Chapter VIII
    • ASME 31:3
      • “Piping design, Manufactured, Installed”
    • ASME B31.4
      • “Liquid Petroleum Transportation Piping Systems”
    • ASME B31.8
      • “Gas Transmission and Distribution Systems” API 5L (44th Edition)
    • ISO 3183... 8. 2. 3. 12. 2
      • Petroleum & natural gas industries
      • Steel pipe for pipelines - Technical delivery conditions
      • Part 3: Pipes of requirement Class C (page 20)
    • BS ISO 15649:2001 B7 and B8(page 22)
    • BS EN ISO 23129
      • “Petroleum and natural gas industries-pipeline transportation systems.”
      • Test procedures for mechanical connectors. Clause 8 (page 23)
features summary
Features Summary

“Greater the Pressure…Greater the Sealsm “

  • Pressure Seal Pipe Connection and Pipe Repair Systems
    • No Welds and Potential Leaks
    • No Skilled Labour Force Required
    • No Specialist Equipment Required
    • No Toxic Greenhouse Gases
    • No Pipeline Shutdown
    • Reduces Labour Costs
    • Reduces Equipment Costs
    • Reduces Security and Piracy Risks
    • Improves Pipe Join Life Expectancy to 25+ Years
    • Improved Environmental Safety
    • In-service Weld Repair System for Leaking or Potentially Leaking Pipe
    • All Pipeline Applications and Sizes from 6” to 60” Diameters
