a new approach to fusion energy

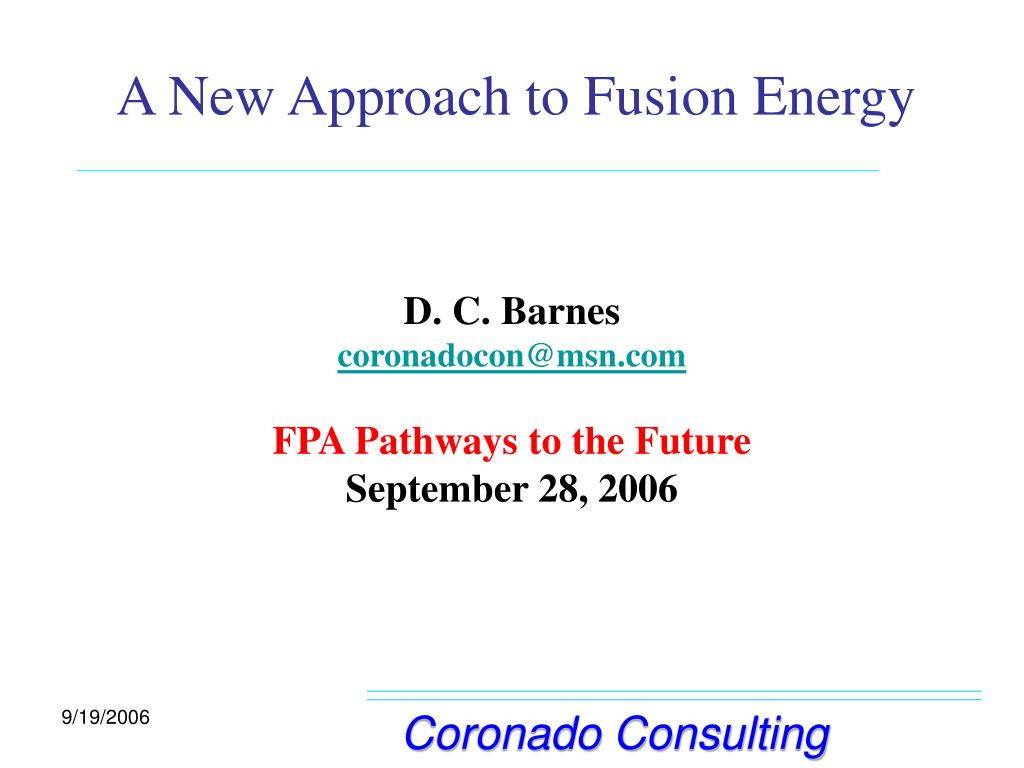

A New Approach to Fusion Energy

D. C. Barnes

coronadocon@msn.com

FPA Pathways to the Future

September 28, 2006

Coronado Consulting

outline
Outline
  • Ultimate fusion – neutronless
  • Two new ideas (both for rotating plasmas)
    • Use high T to make efficient heat engine
    • Use rotation to make waves from static field (Doppler effect)
  • Summary and plans

Coronado Consulting

the challenge of aneutronic fusion

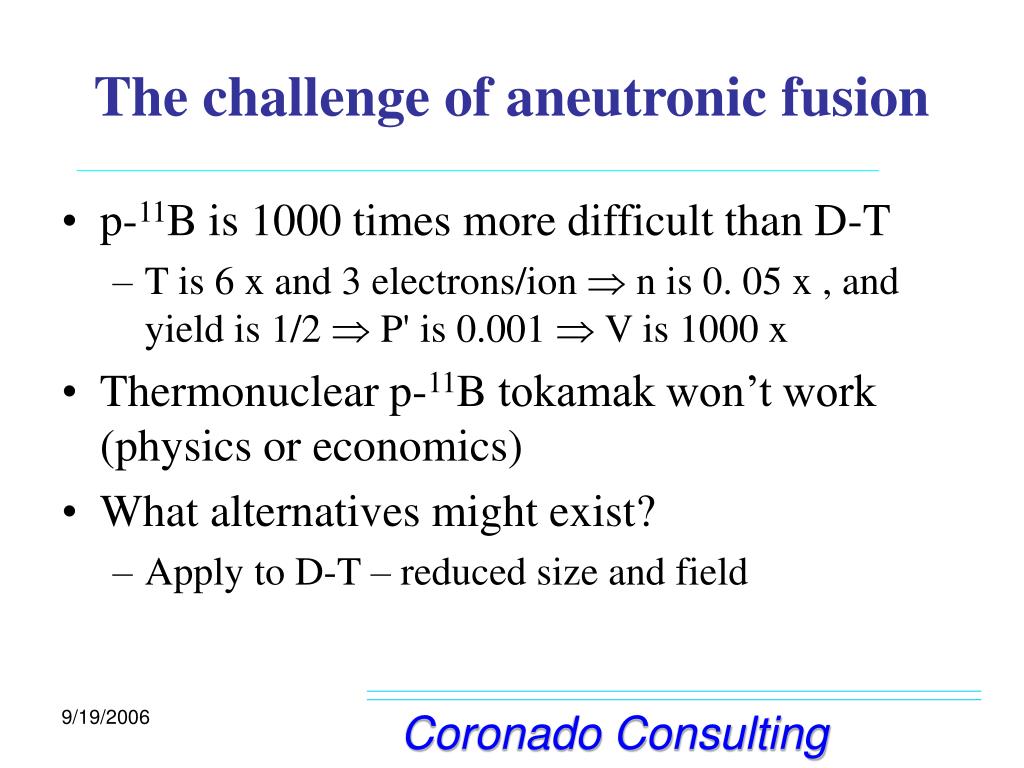

The challenge of aneutronic fusion
  • p-11B is 1000 times more difficult than D-T
    • T is 6 x and 3 electrons/ion n is 0. 05 x , and yield is 1/2  P' is 0.001  V is 1000 x
  • Thermonuclear p-11B tokamak won’t work (physics or economics)
  • What alternatives might exist?
    • Apply to D-T – reduced size and field

Coronado Consulting

how to lower the fusion threshold

0.2

phys

phys

Q

Q

0.1

200

200

300

300

400

400

500

500

600

600

T

T

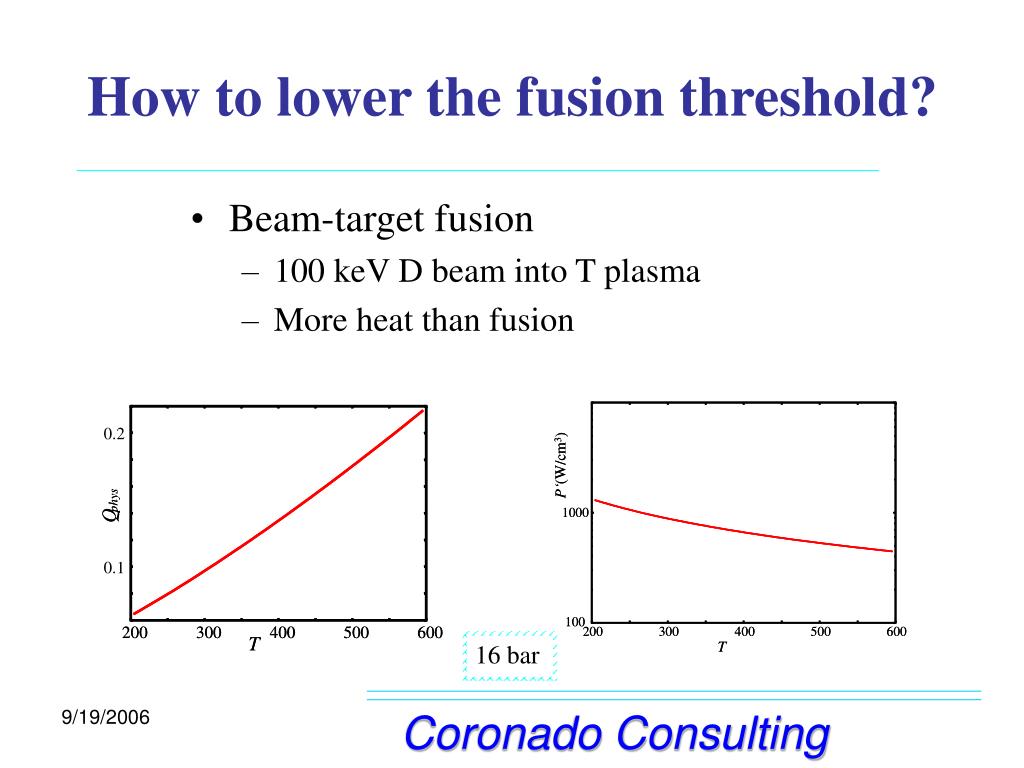

How to lower the fusion threshold?
  • Beam-target fusion
    • 100 keV D beam into T plasma
    • More heat than fusion

16 bar

Coronado Consulting

new idea 1 heat engine power flow
New idea #1: Heat engine power flow

Beam-target

fusion gives

this Qphys ~ 10-20%

Plant engineers see this Qeng ~ 10

Coronado Consulting

slide6

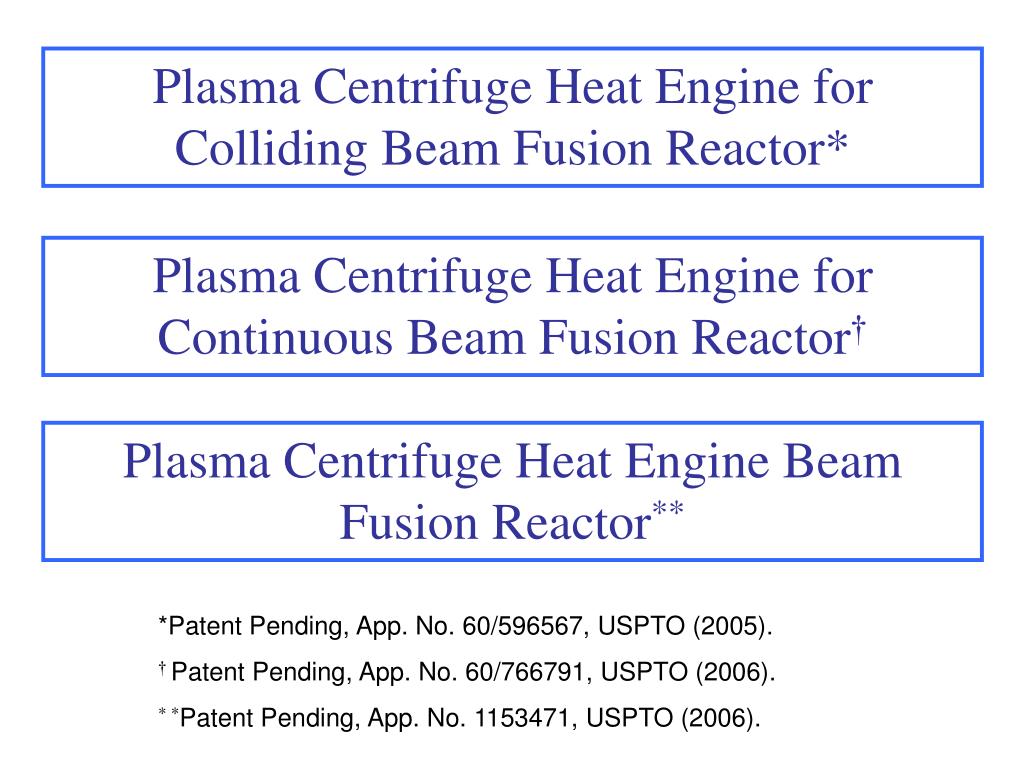

Plasma Centrifuge Heat Engine for Colliding Beam Fusion Reactor*

Plasma Centrifuge Heat Engine for Continuous Beam Fusion Reactor†

Plasma Centrifuge Heat Engine Beam Fusion Reactor**

*Patent Pending, App. No. 60/596567, USPTO (2005).

† Patent Pending, App. No. 60/766791, USPTO (2006).

**Patent Pending, App. No. 1153471, USPTO (2006).

how to make plasma heat engine

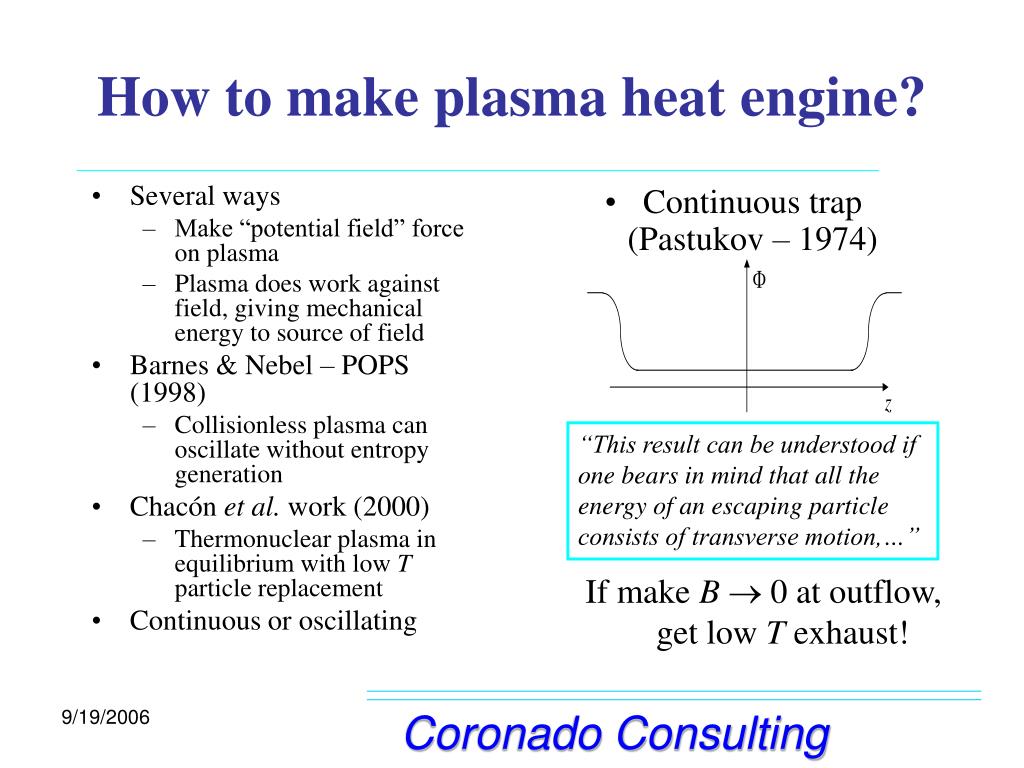

How to make plasma heat engine?
  • Several ways
    • Make “potential field” force on plasma
    • Plasma does work against field, giving mechanical energy to source of field
  • Barnes & Nebel – POPS (1998)
    • Collisionless plasma can oscillate without entropy generation
  • Chacón et al. work (2000)
    • Thermonuclear plasma in equilibrium with low T particle replacement
  • Continuous or oscillating
  • Continuous trap (Pastukov – 1974)

“This result can be understood if one bears in mind that all the energy of an escaping particle consists of transverse motion,…”

If make B 0 at outflow, get low T exhaust!

Coronado Consulting

how to make plasma heat engine1
How to make plasma heat engine?
  • Centrifugal well created in rotating plasma
    • Make B and r small at ends where particles escape
    • Open field is that outside a field reversed configuration (FRC)

Coronado Consulting

supersonic rotating plasmas exist

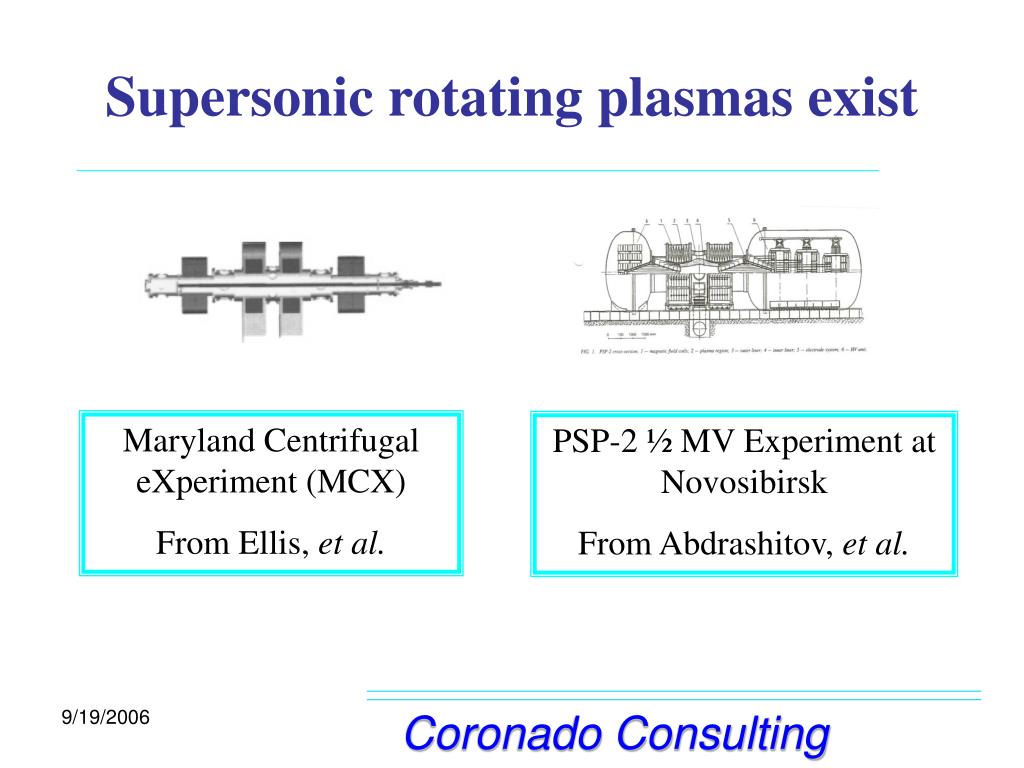

Supersonic rotating plasmas exist

Maryland Centrifugal eXperiment (MCX)

From Ellis, et al.

PSP-2 ½ MV Experiment at Novosibirsk

From Abdrashitov, et al.

Coronado Consulting

p ches d t reactor

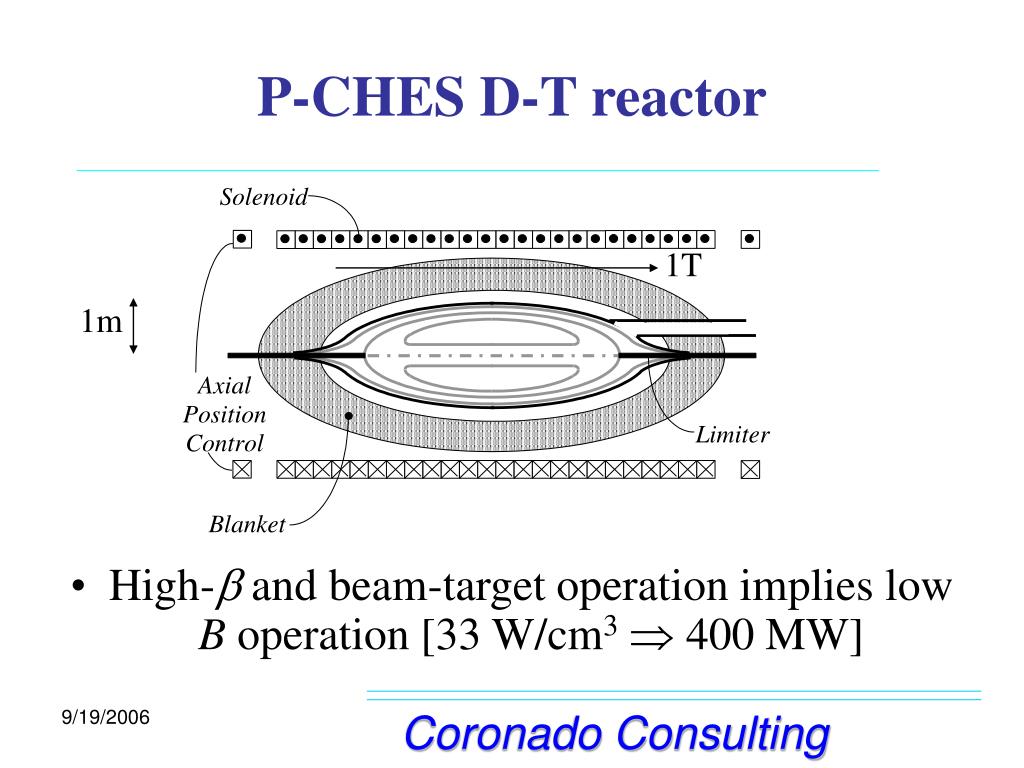

P-CHES D-T reactor
  • High-b and beam-target operation implies low B operation [33 W/cm3 400 MW]

1T

1m

Coronado Consulting

p ches d t reactor cartoon approximation
P-CHES D-T reactor (cartoon approximation)
  • Toroidal current driven by rotating magnetic field (RMF) with stationary dipole
  • Beam formed by electrostatic acceleration of injected, low-energy particles
    • e.g.Ftrapped = 0.45 W Vtrapped = +200 kV

Coronado Consulting

p ches on the path to fusion energy

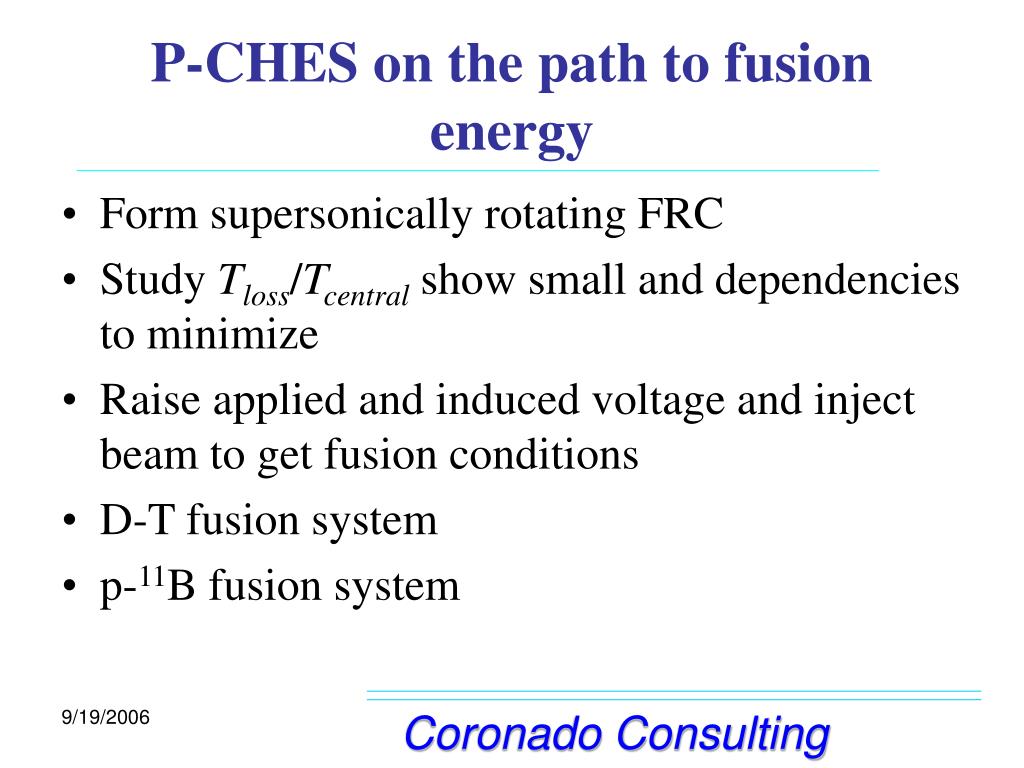

P-CHES on the path to fusion energy
  • Form supersonically rotating FRC
  • Study Tloss/Tcentral show small and dependencies to minimize
  • Raise applied and induced voltage and inject beam to get fusion conditions
  • D-T fusion system
  • p-11B fusion system

Coronado Consulting

forming rotating frc
Forming rotating FRC
  • New idea #2: Make and use waves with plasma rotation e.g. RMF

From Hoffman, et al.

From Slough and Miller

Coronado Consulting

forming rotating frc1
Forming rotating FRC

Firing end anodes produces rotating plasma

Rotating plasma “sees” RMF, producing FRC

Coronado Consulting

summary and future

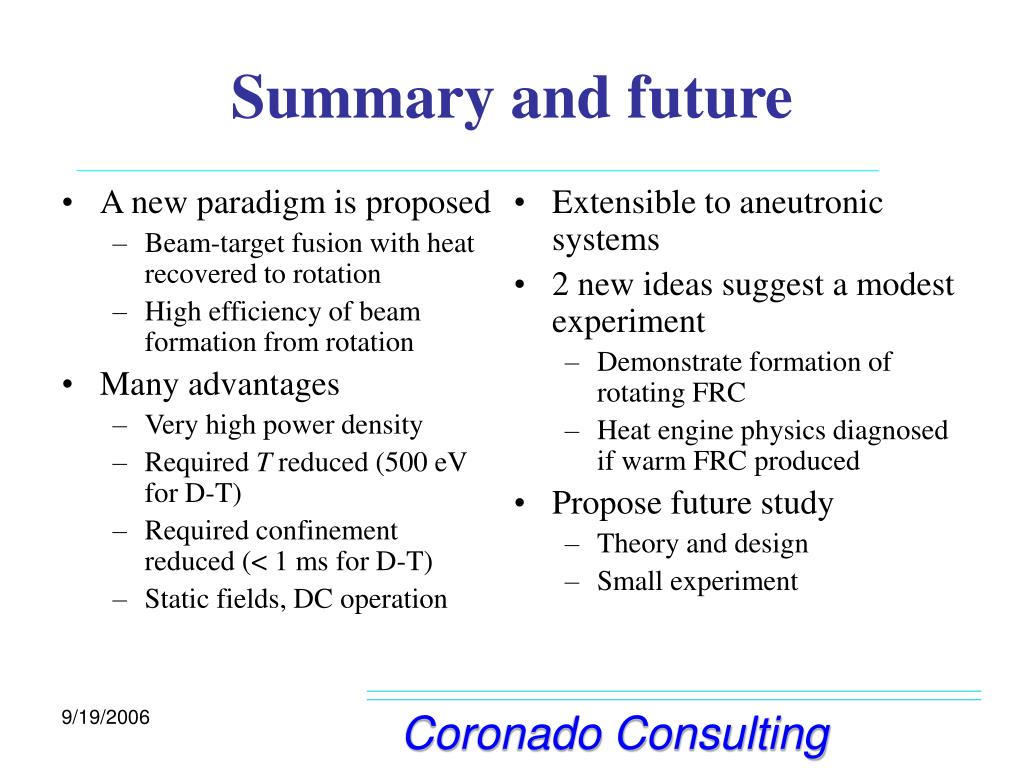

Summary and future
  • A new paradigm is proposed
    • Beam-target fusion with heat recovered to rotation
    • High efficiency of beam formation from rotation
  • Many advantages
    • Very high power density
    • Required T reduced (500 eV for D-T)
    • Required confinement reduced (< 1 ms for D-T)
    • Static fields, DC operation
  • Extensible to aneutronic systems
  • 2 new ideas suggest a modest experiment
    • Demonstrate formation of rotating FRC
    • Heat engine physics diagnosed if warm FRC produced
  • Propose future study
    • Theory and design
    • Small experiment

Coronado Consulting
