  1. X-RAY EMISSION SPECTRUM

  2. X-RAY PRODUCTION • BREMSTRAHLUNG RADIATION • CHARACTERISTIC RADIATION

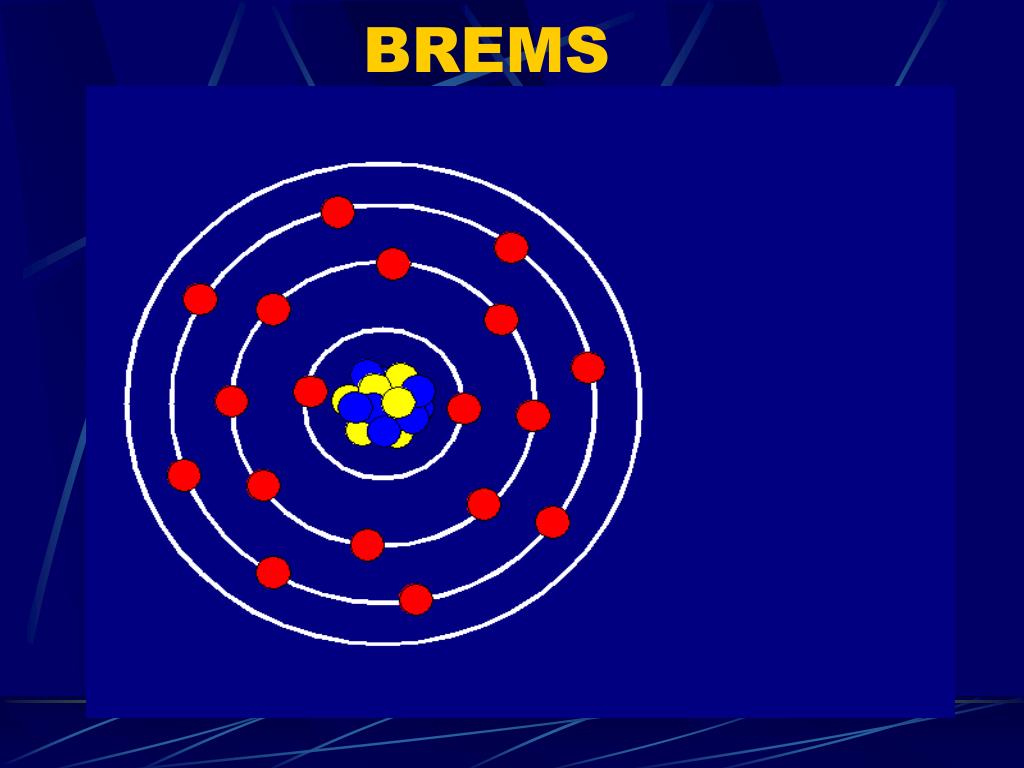

  3. BREMS

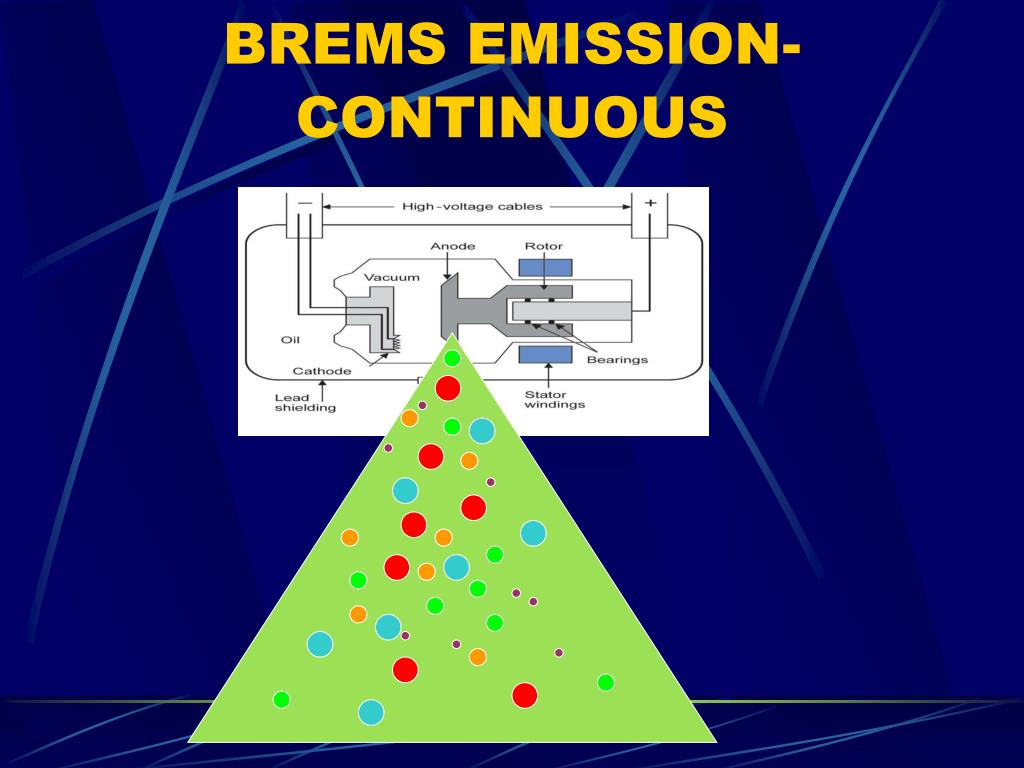

  4. BREMS EMISSION-CONTINUOUS

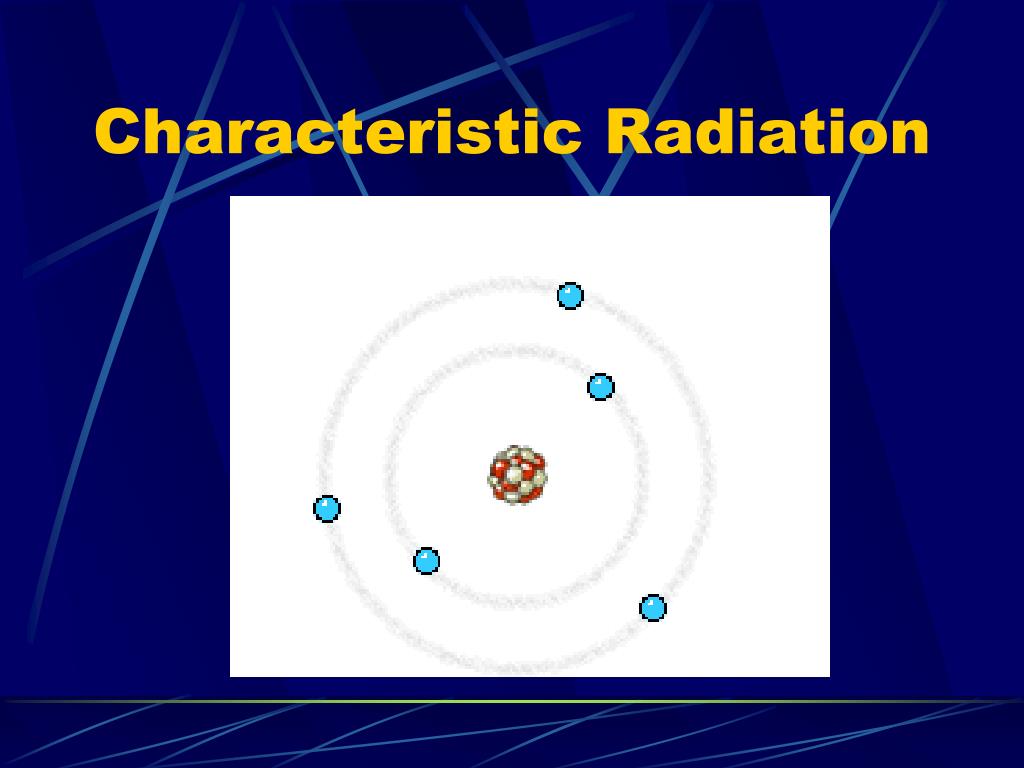

  5. Characteristic Radiation

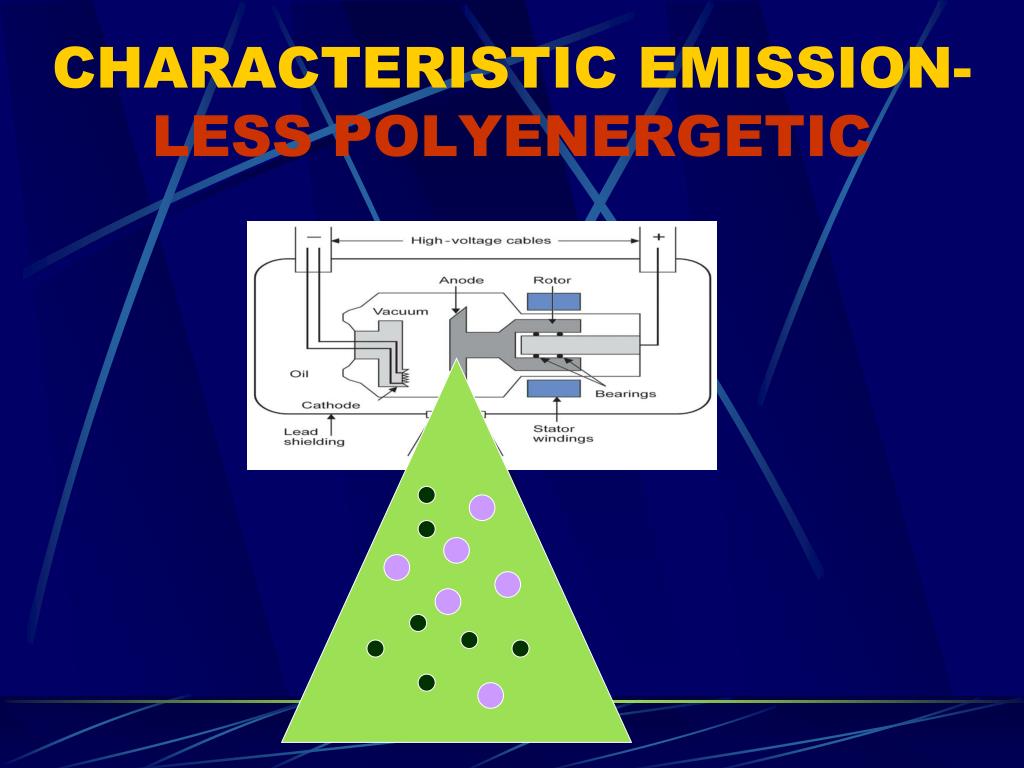

  6. CHARACTERISTIC EMISSION-LESS POLYENERGETIC

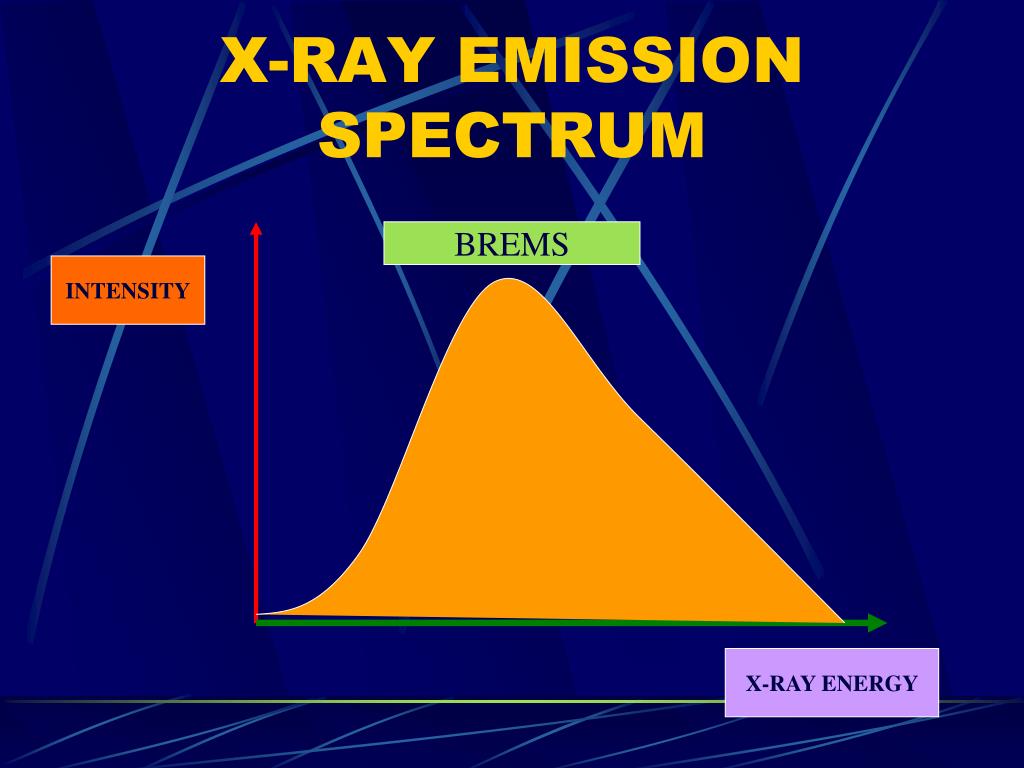

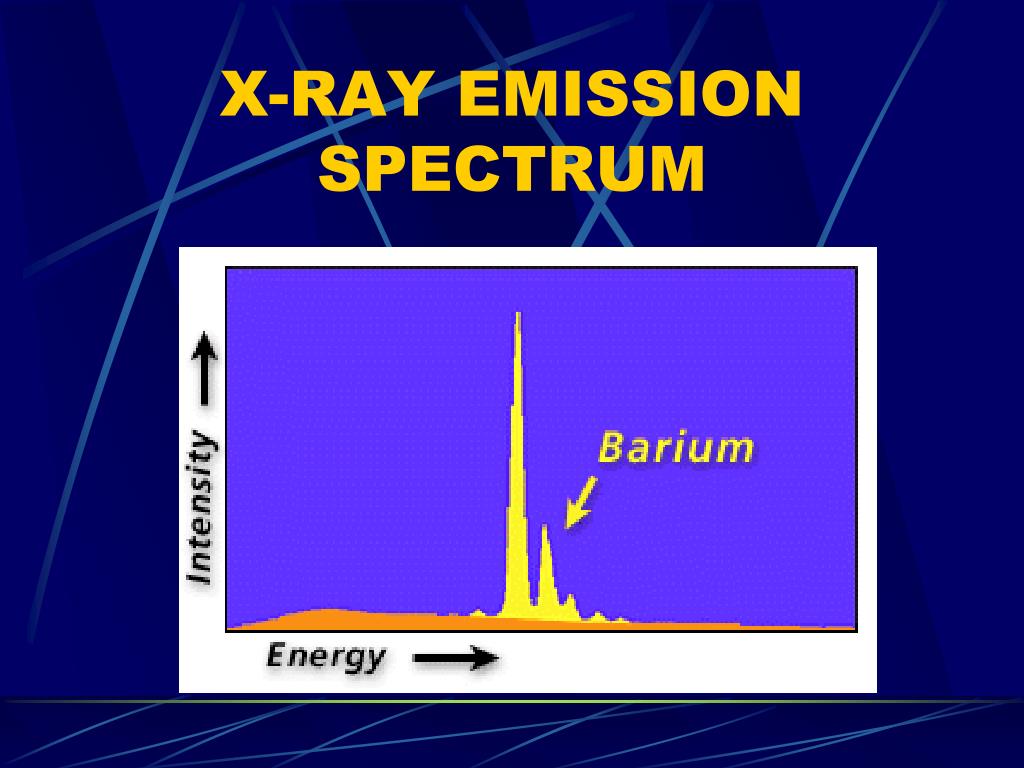

  7. X-RAY EMISSION SPECTRUM BREMS INTENSITY X-RAY ENERGY

  8. X-RAY EMISSION SPECTRUM L-CHARACTERISTIC K-CHARACTERISTIC BREMS INTENSITY X-RAY ENERGY

  9. X-RAY EMISSION SPECTRUM CHARACTERISTIC BREMS

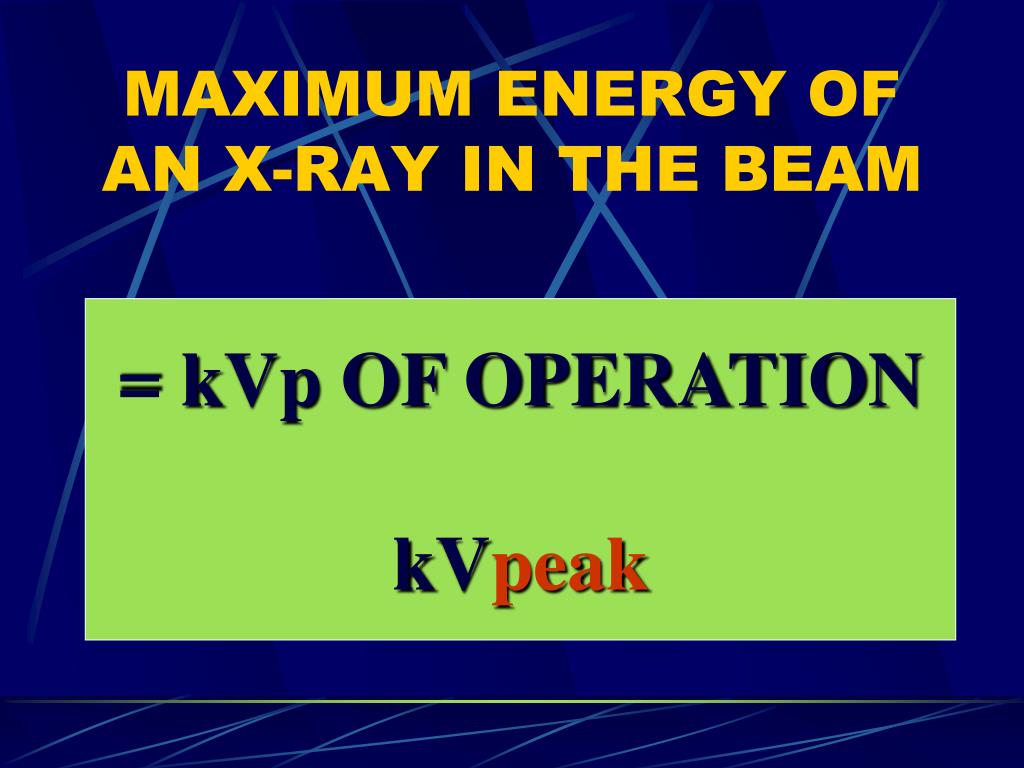

  10. MAXIMUM ENERGY OF AN X-RAY IN THE BEAM = kVp OF OPERATION kVpeak

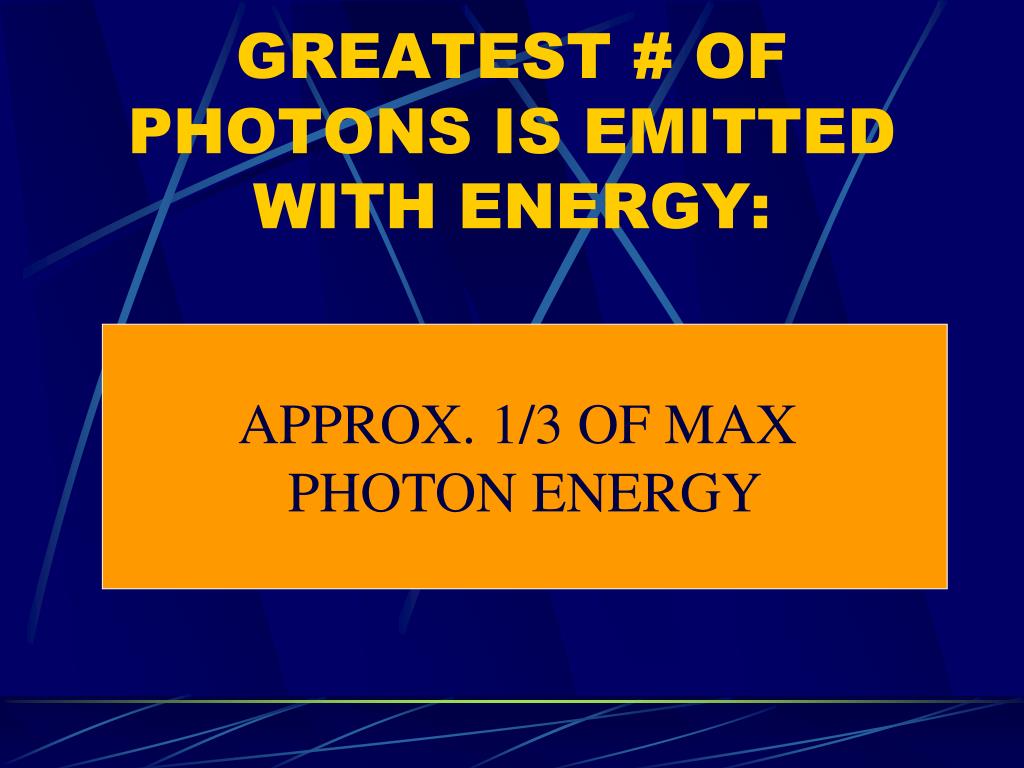

  11. GREATEST # OF PHOTONS IS EMITTED WITH ENERGY: APPROX. 1/3 OF MAX PHOTON ENERGY

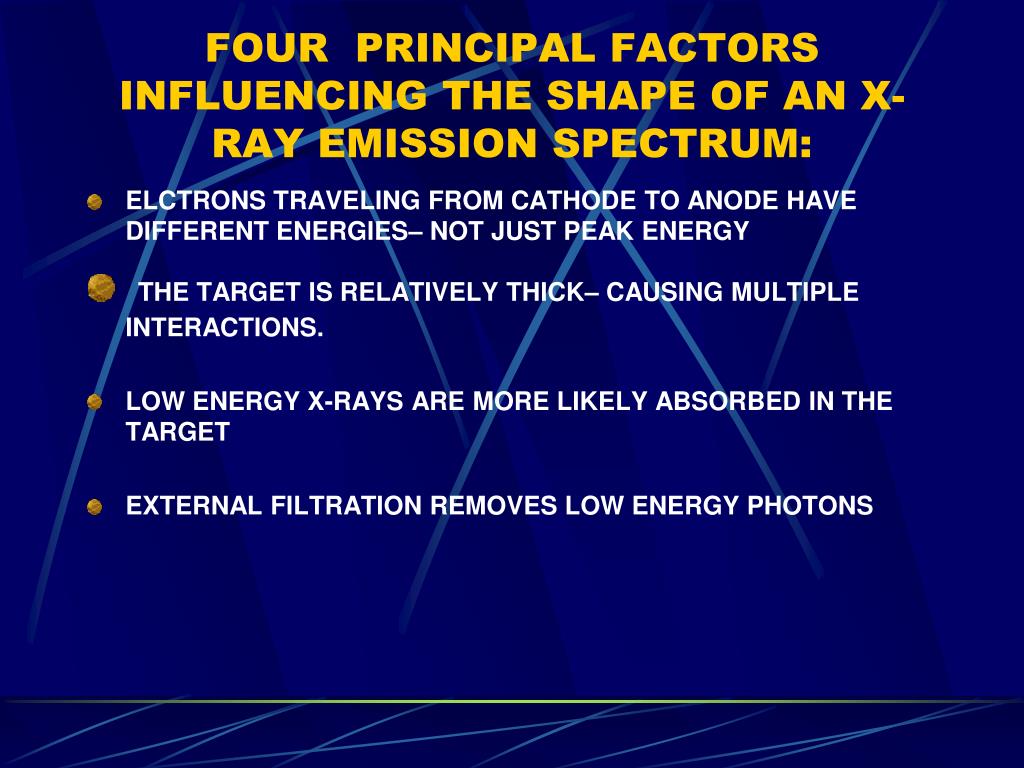

  12. FOUR PRINCIPAL FACTORS INFLUENCING THE SHAPE OF AN X-RAY EMISSION SPECTRUM: • ELCTRONS TRAVELING FROM CATHODE TO ANODE HAVE DIFFERENT ENERGIES– NOT JUST PEAK ENERGY • THE TARGETIS RELATIVELY THICK– CAUSING MULTIPLE INTERACTIONS. • LOW ENERGY X-RAYS ARE MORE LIKELY ABSORBED IN THE TARGET • EXTERNAL FILTRATION REMOVES LOW ENERGY PHOTONS

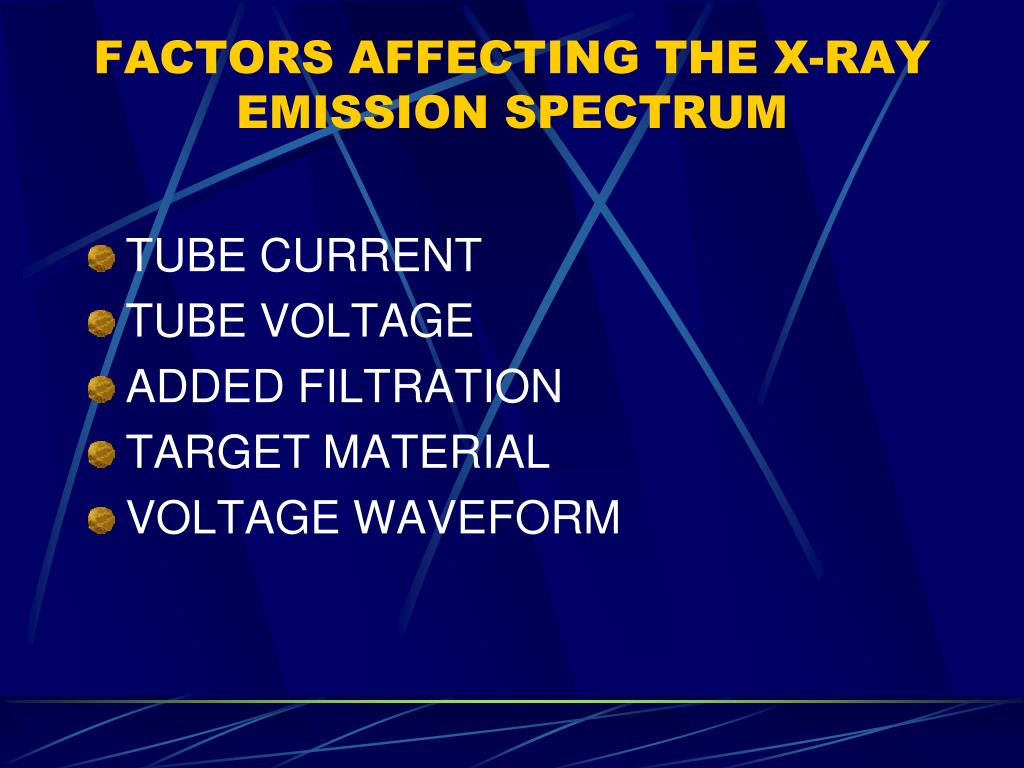

  13. FACTORS AFFECTING THE X-RAY EMISSION SPECTRUM • TUBE CURRENT • TUBE VOLTAGE • ADDED FILTRATION • TARGET MATERIAL • VOLTAGE WAVEFORM

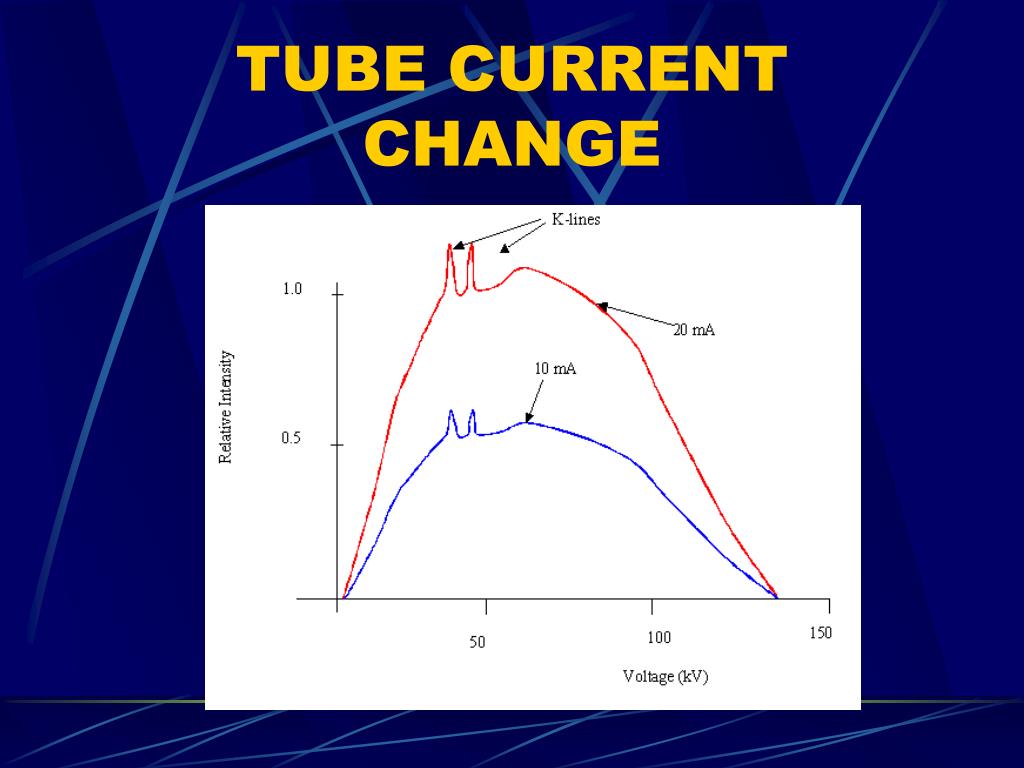

  14. TUBE CURRENT CHANGE

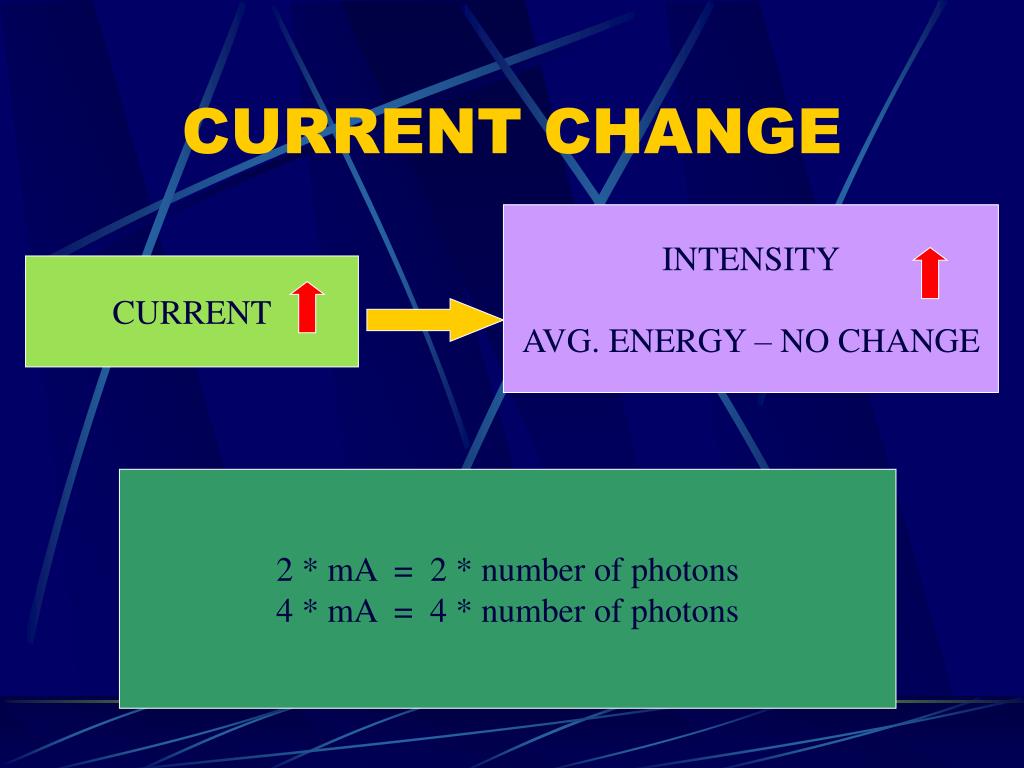

  15. CURRENT CHANGE INTENSITY AVG. ENERGY – NO CHANGE CURRENT 2 * mA = 2 * number of photons 4 * mA = 4 * number of photons

  16. Tube voltage

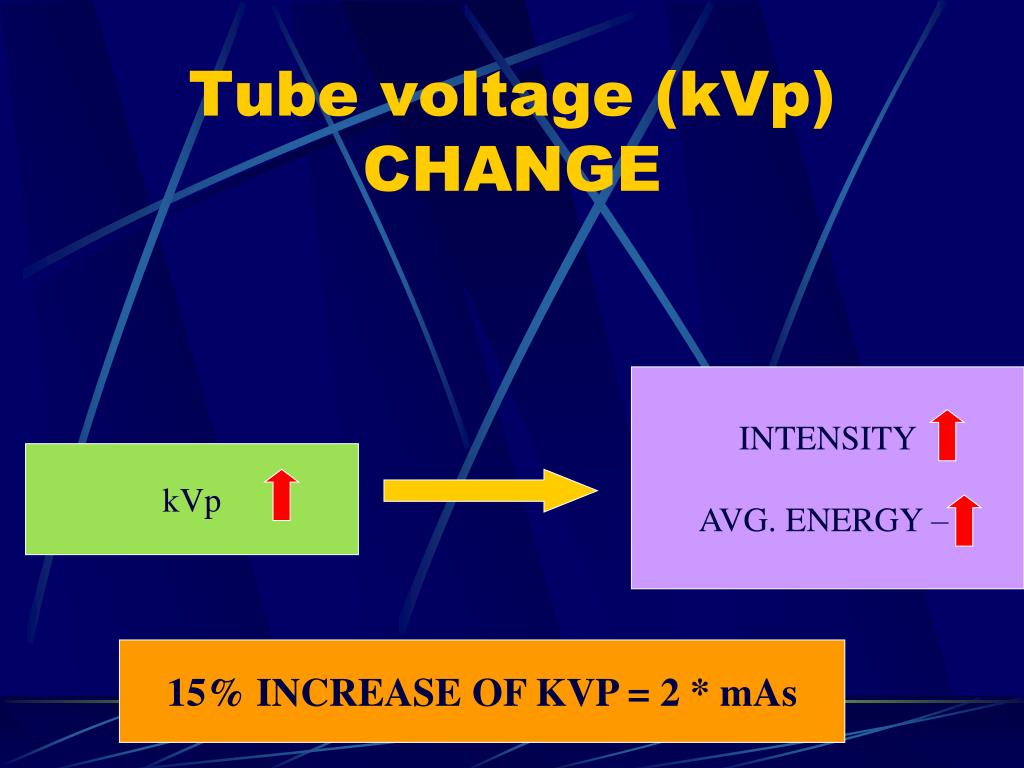

  17. Tube voltage (kVp) CHANGE INTENSITY AVG. ENERGY – kVp 15% INCREASE OF KVP = 2 * mAs

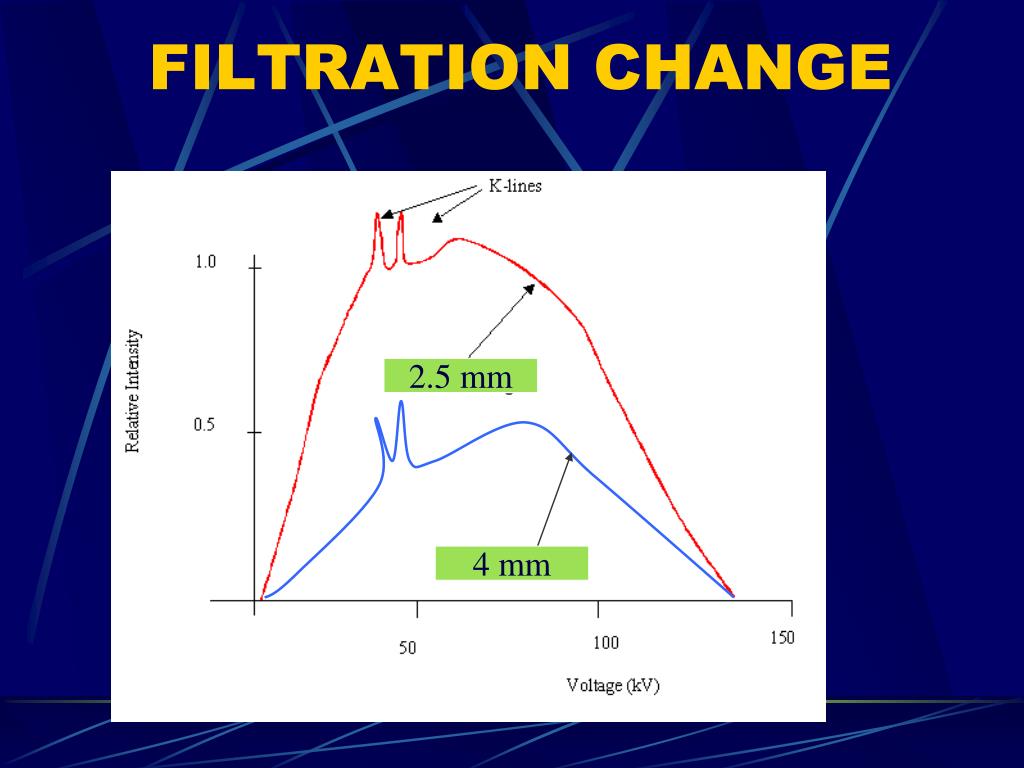

  18. FILTRATION CHANGE 2.5 mm 4 mm

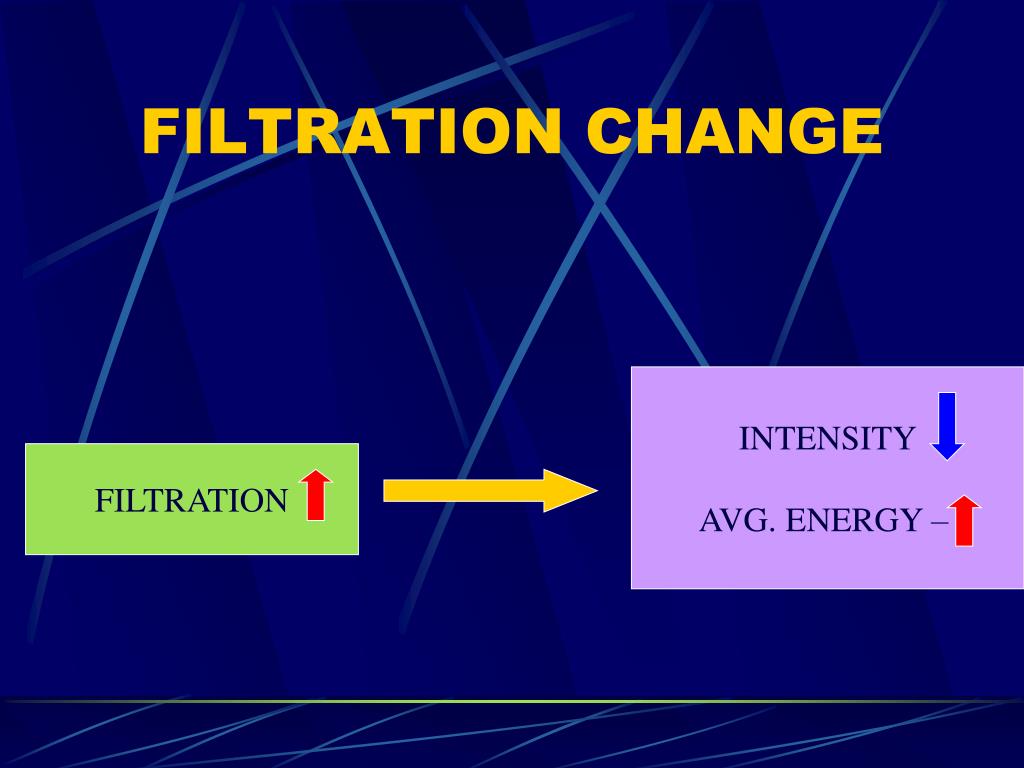

  19. FILTRATION CHANGE INTENSITY AVG. ENERGY – FILTRATION

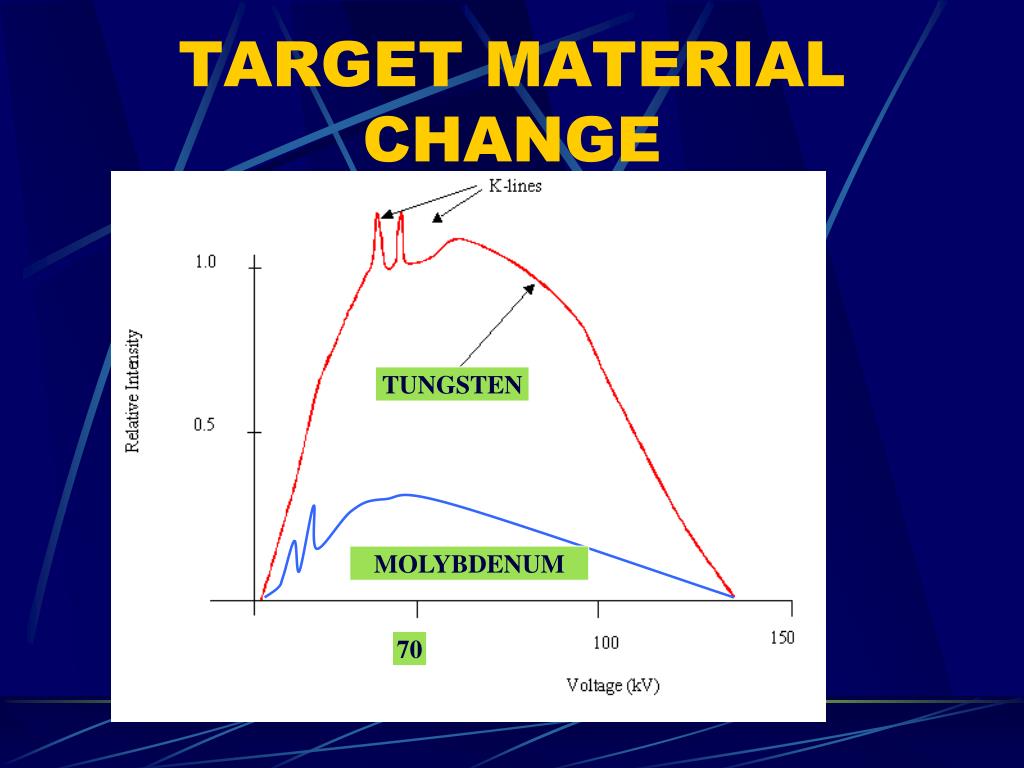

  20. TARGET MATERIAL CHANGE TUNGSTEN MOLYBDENUM 70

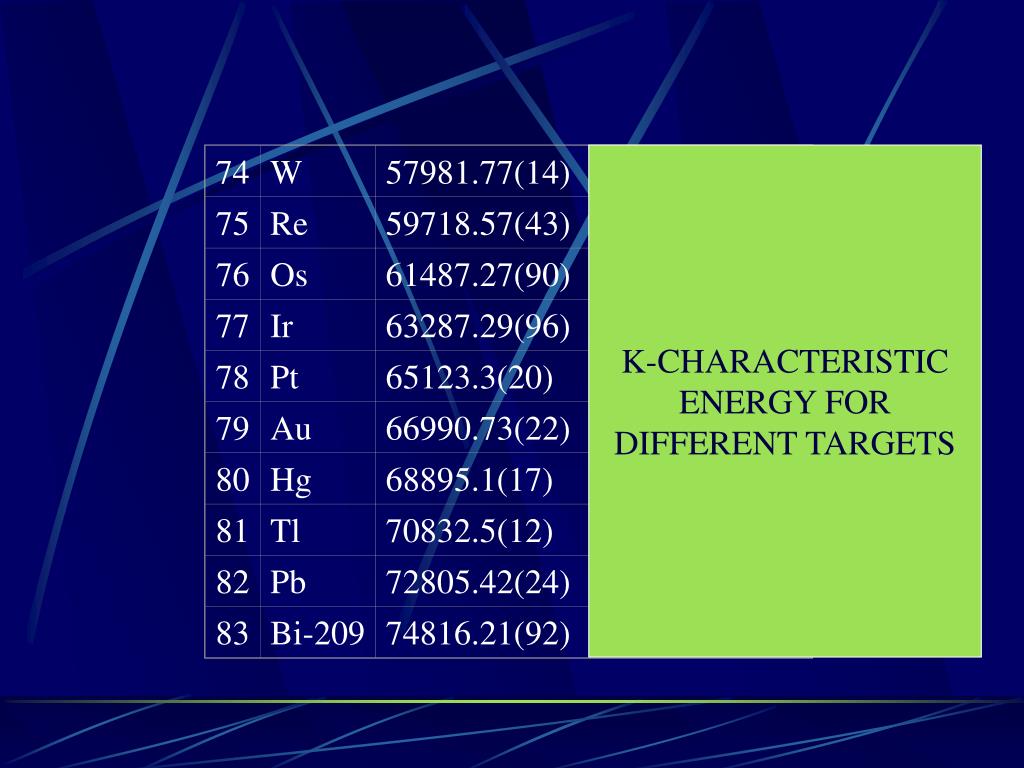

  21. 74 W 57981.77(14) 59318.847(50) 75 Re 59718.57(43) 61141.00(89) 76 Os 61487.27(90) 63001.07(95) 77 Ir 63287.29(96) 64896.2(10) 78 Pt 65123.3(20) 66832.9(21) 79 Au 66990.73(22) 68804.50(18) 80 Hg 68895.1(17) 70819.5(18) 81 Tl 70832.5(12) 72872.5(13) 82 Pb 72805.42(24) 74970.11(17) 83 Bi-209 74816.21(92) 77109.2(22) K-CHARACTERISTIC ENERGY FOR DIFFERENT TARGETS

  22. TARGET CHANGE INTENSITY AVG. ENERGY CHARACTERISTIC RADIATION CHANGE TARGET MATERIAL Z #

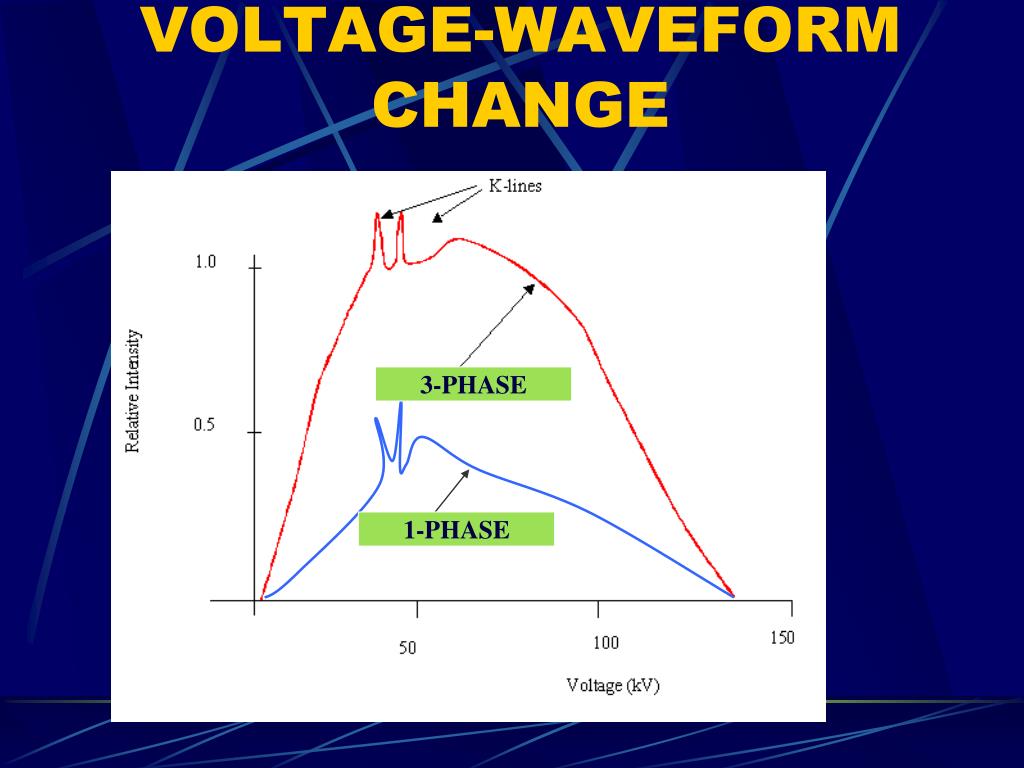

  23. VOLTAGE-WAVEFORM CHANGE 3-PHASE 1-PHASE

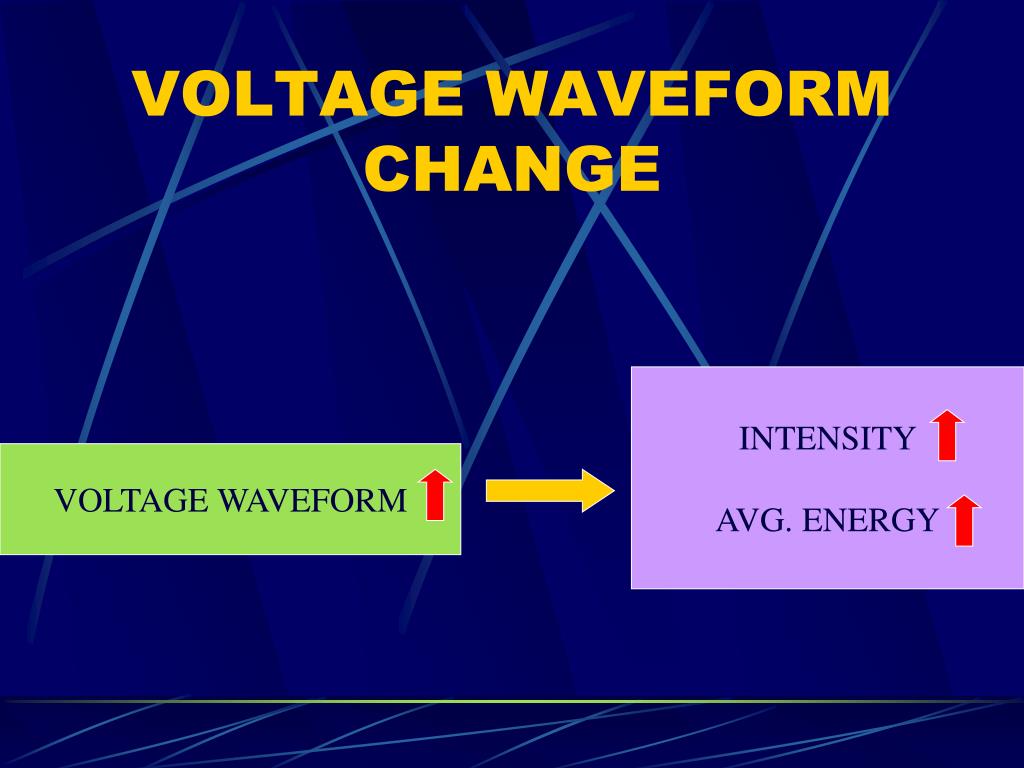

  24. VOLTAGE WAVEFORM CHANGE INTENSITY AVG. ENERGY VOLTAGE WAVEFORM

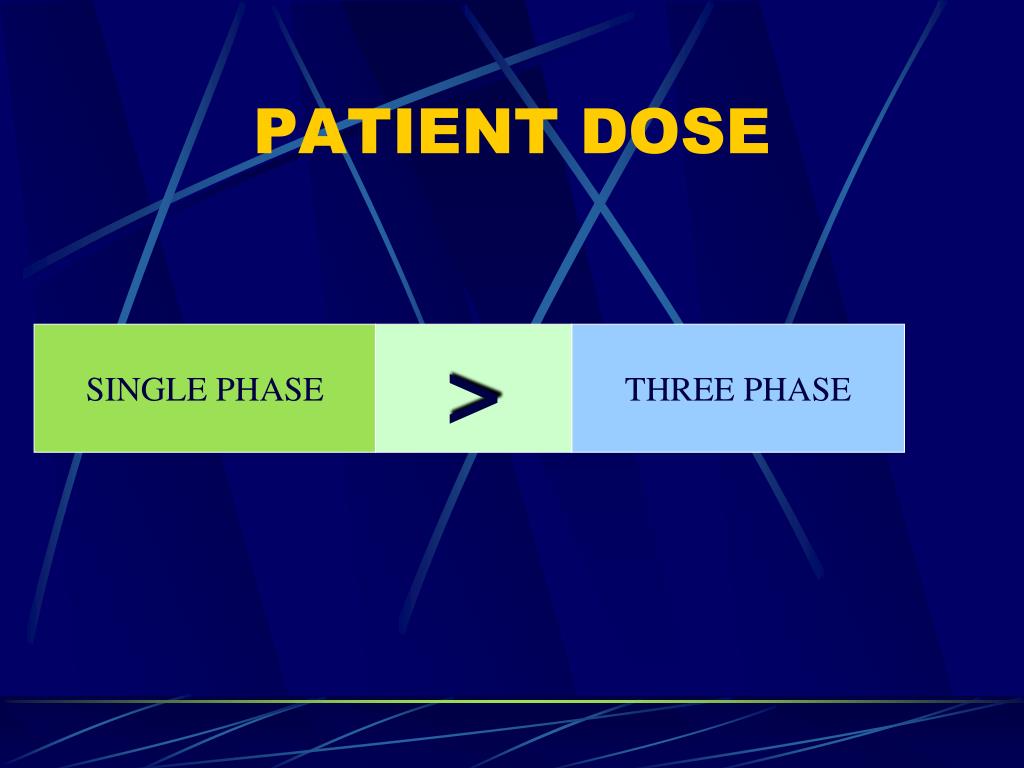

  25. PATIENT DOSE SINGLE PHASE > THREE PHASE
