tyres and the potential for carbon saving wednesday 11th september 2013

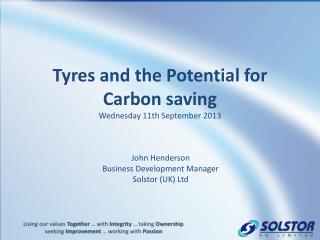

Tyres and the Potential for Carbon saving Wednesday 11th September 2013

John Henderson

Business Development Manager

Solstor (UK) Ltd

Living our values Together … with Integrity … taking Ownershipseeking Improvement … working with Passion

structure
Structure

Introduction to Solstor

Background

What process was followed?

What is re-treading?

Why use retread tyres?

What was the outcome?

Living our values Together … with Integrity … taking Ownershipseeking Improvement … working with Passion

slide3

A G Thames Group

Living our values Together … with Integrity … taking Ownership seeking Improvement … working with Passion

slide4

The Solstor Road Map

Solstor Created

1983

Primary Consolidation from Italy for UK Retailers

1995

1997

Valencia, Spain

Ravenna, Italy Hub

1999

2000

Crayford Hub Opened

Primary Consolidation from Spain for UK Retailers

2002

2003

Pan European Network created for major Ice Cream manufacturer

Profresh Solutions

2004

Retailer store deliveries

Commenced Eastern Europe operations

2006

2009

Yaxley Consolidation Hub

Solstor Intermodal

2010

Felixstowe Import / Export Hub

Boston depot

2011

2012

Solstor Polska

2013

Solstor General Cargo Solutions

Living our values Together … with Integrity … taking Ownership seeking Improvement … working with Passion

slide5

50,000

Pallets per

Week

UK Business Unit

Delivering the most demanding supply chains

Fast moving / very short lead time

Volatile promotional / seasonal activity

Diverse / remote supply locations

Right first time / Intense focus on detail

MultiTemp.

Chill

Produce

Frozen

Bananas

Ambient

Coverage from Dundee to Penzance

Living our values Together … with Integrity … taking Ownershipseeking Improvement … working with Passion

slide6

European

Coverage

  • 1000 loads per week
  • Multi temperature network :
    • Chill, Frozen, Produce
  • 17 countries currently served

60,000 tonnes of ice cream

Every Year

200 million oranges

Living our values Together … with Integrity … taking Ownership seeking Improvement … working with Passion

slide7

Customers

Living our values Together … with Integrity … taking Ownership seeking Improvement … working with Passion

slide8

Environmental

  • Efficient supply chain design
    • Loadfill optimisation
    • Resource utilisation
    • Empty vehicle running management / minimisation
  • Intermodal Services
  • Tyre Compound Innovation
  • Driver training / Vehicle telematics
  • Fuel efficient vehicle and trailer design & selection

Living our values Together … with Integrity … taking Ownershipseeking Improvement … working with Passion

background
Tyre cost at unacceptable levels

Business committed to addressing this unsustainable trend

Practice was to buy all new tyres

Low monitoring of this process – leading to lack of cost control

Type of work – regularly need to replace tyres

Competitive market place

Company interested in viable sustainability projects

Early 2012 - Set up working group to consider these objectives

Background

Living our values Together … with Integrity … taking Ownershipseeking Improvement … working with Passion

what process was followed
Objectives and timescales clearly set

Review of tyre practice from industry and advice from manufacturers

Best practice collated and compared with requirements of business

Considered at all time safety implications of any changes

Clear specification as follows

All retread tyres on trailers

New tyres on tractor front axle, re-mix on middle and retread on back axle

Key performance indicators (cost) and review process

Inc inspection and road side support

Pence per mile tyre cost

Open book contract

What process was followed?

Living our values Together … with Integrity … taking Ownershipseeking Improvement … working with Passion

what process was followed1
What process was followed?

Living our values Together … with Integrity … taking Ownershipseeking Improvement … working with Passion

what is re treading
Initial inspection - A visual and tactile examination of the casing takes place, then a non destructive shearography scan is completed detecting separations in the carcass that would remain undetected by the naked eye.

Buffing -Removes the remaining tread and sidewall rubber to predetermined dimensions by means of high speed revolving rasps and brushes and using computer-controlled machinery for exactness

Preparation To locate any minute holes in the inner wall, the carcass is subject to a penetration detection process, high voltage electricity is passed through the tyre while it is rotated. If a minute hole is located, an arc will be produced which stops the machine and identifies the location for a repair to be made. Larger holes in the casing are filled with compound and patched to rebuild the integral strength. Finally, the prepared casing is sprayed with a water-based adhesive ready for the building process.

What is re-treading?

Living our values Together … with Integrity … taking Ownershipseeking Improvement … working with Passion

what is re treading1
Building -The new tread is applied or stitched to the carcass using a patented computer-controlled process. A continuous strip of premium rubber compound is wrapped around the tyre while it revolves on an inflatable chuck.

Curing -The tyre is placed in a hot, segmented, radial matrix or mould within a curing press. The tyre is heated for up to 95 minutes at 150 degrees centigrade whilst inflated to 200psi with the use of an internal bladder placed within the carcase. The new rubber is vulcanised and produces the exact tread patterns and depths required from the mould; The same process as used for the production of new tyres.

Final inspection -This involves three further examinations.

A visual and tactile examination, where the trained eye will spot imperfections in the tread pattern or sidewall.

An inflation test where it is rapidly inflated to 110 psi over a five second period. Any imperfections in the tyre or weaknesses in the casing will cause the tyre to explode.

Shearography, which can detect even minor separations or porosity, invisible to the naked eye but which would cause the tyre to fail during service.

What is re-treading?

Living our values Together … with Integrity … taking Ownershipseeking Improvement … working with Passion

why use r etread t yres
Retreads are safe - manufactured and tested to the same criteria as new tyres. Alegal requirement in the UK since 2004 - mandatory across Europe.

They are durable last as long as new tyres, can last longer, thanks to their unique design.

The production process is flexible e.g. thicker sidewalls can be built in to reduce wear from kerb contact.

Widely used - Almost every other tyre fitted within the UK Commercial Vehicle Fleet is a retread tyre.

They save you money 20% cheaper than new budget tyres on average. When you add the additional cost-per-mile benefits, the savings are even more substantial.

Good for the environment -uses less natural resources

Why use retread tyres?

Living our values Together … with Integrity … taking Ownershipseeking Improvement … working with Passion

what was the outcome
Selected Vaculug - http://www.vaculug.com/

Full supply and service 3 year pence per mile contract

Switch saved £100k per annum on a budget of £430k on tyres

Enhanced control of spend and performance

53 tonnes CO2 saved in 2012

Each re-tread uses 75 litres less than a standard

Zero landfill

Important marketing tool

What was the outcome?

Living our values Together … with Integrity … taking Ownershipseeking Improvement … working with Passion
