Midship section drawing

Midship Section Drawing

Miftahor Rahman No 71


Learning objectives
Learning Objectives

  • Can explain the various boat building construction system

  • Can explain the component construction vessel system

  • May explain why the choice of construction systems

Teknologi dan Rekayasa


Midship section drawing

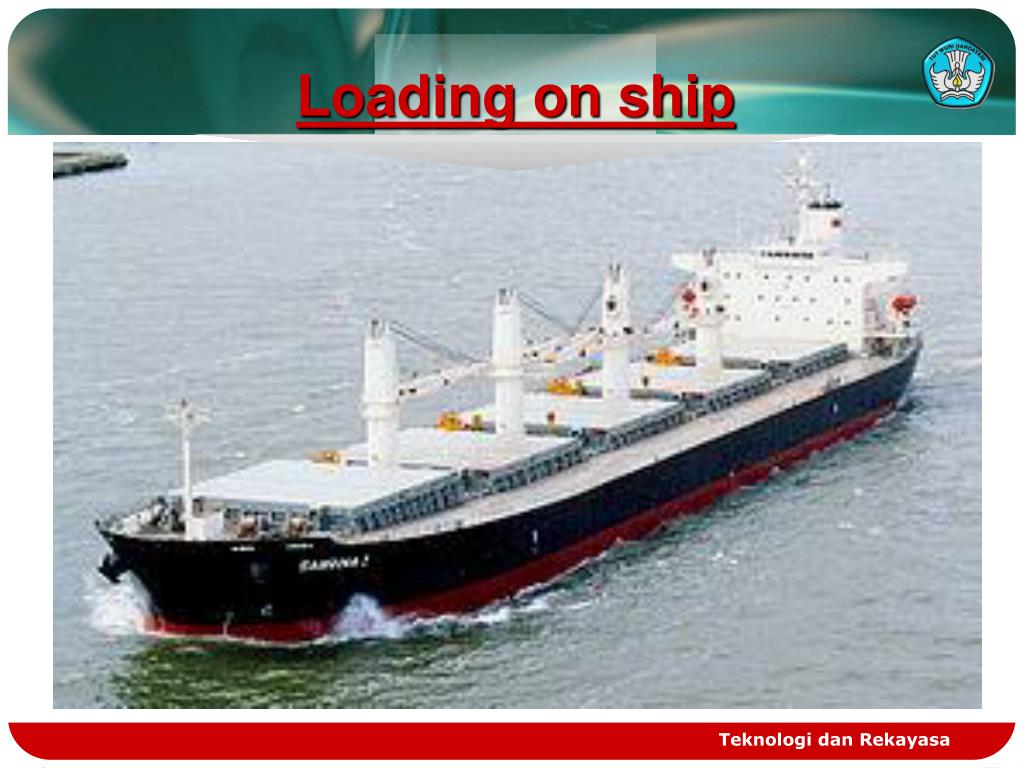

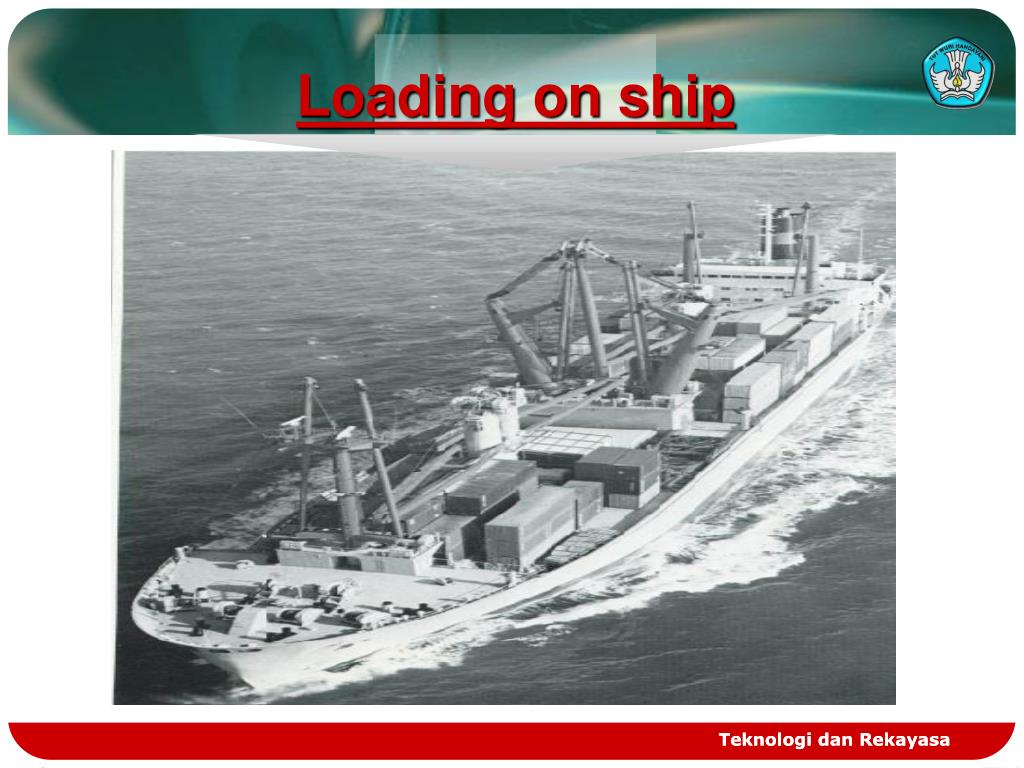

Loading on ship

Teknologi dan Rekayasa


Midship section drawing

Loading on ship

Teknologi dan Rekayasa

Teknologi dan Rekayasa


Midship section drawing

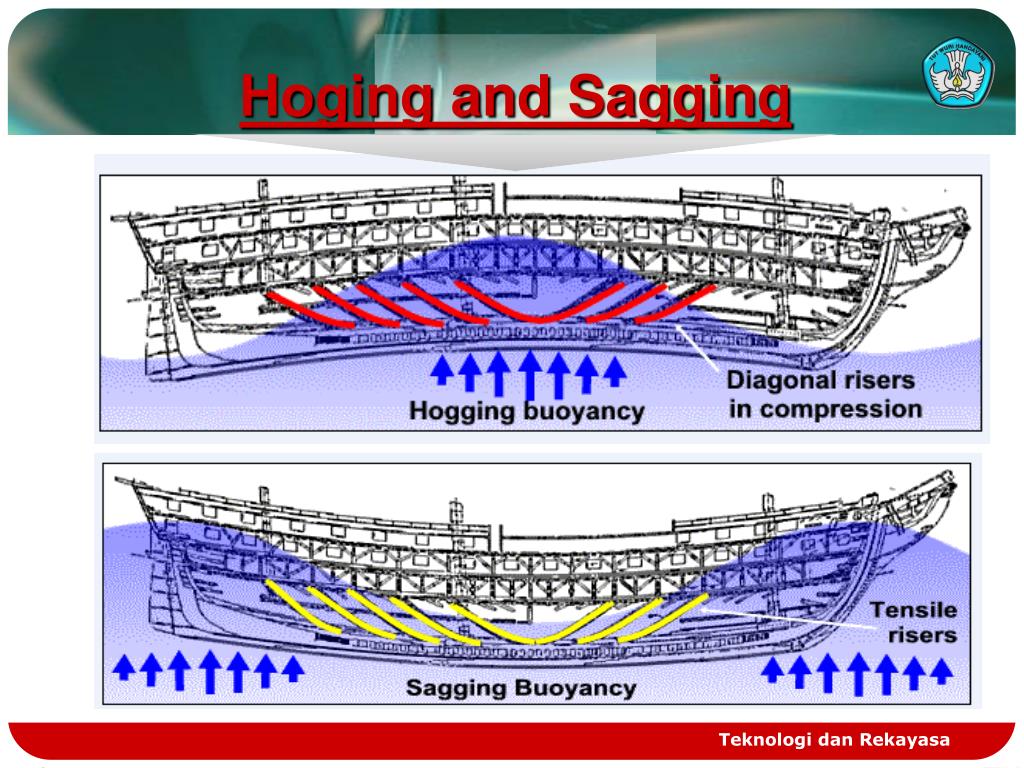

Hoging and Sagging

Teknologi dan Rekayasa


Hogging
Hogging

  • Condition where ship is supported more in its middle

  • Tension of main deck

  • Compression of bottom/keel

Teknologi dan Rekayasa


Sagging

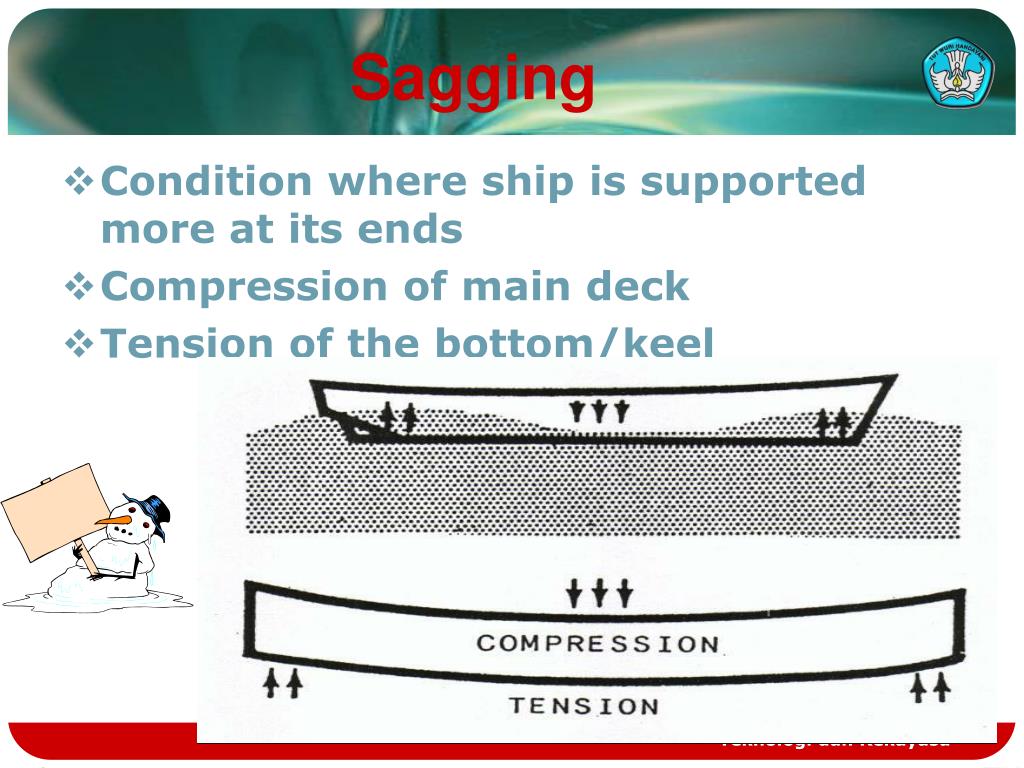

Sagging

  • Condition where ship is supported more at its ends

  • Compression of main deck

  • Tension of the bottom/keel

Teknologi dan Rekayasa

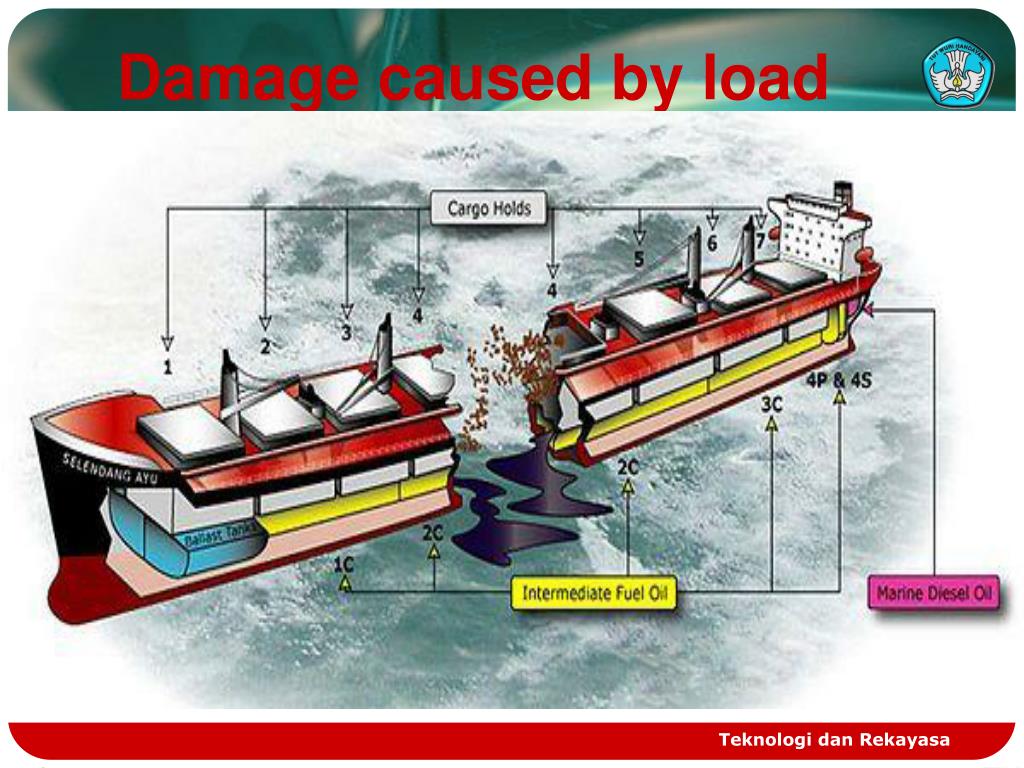

Damage caused by load
Damage caused by load

Teknologi dan Rekayasa


Midsip construction

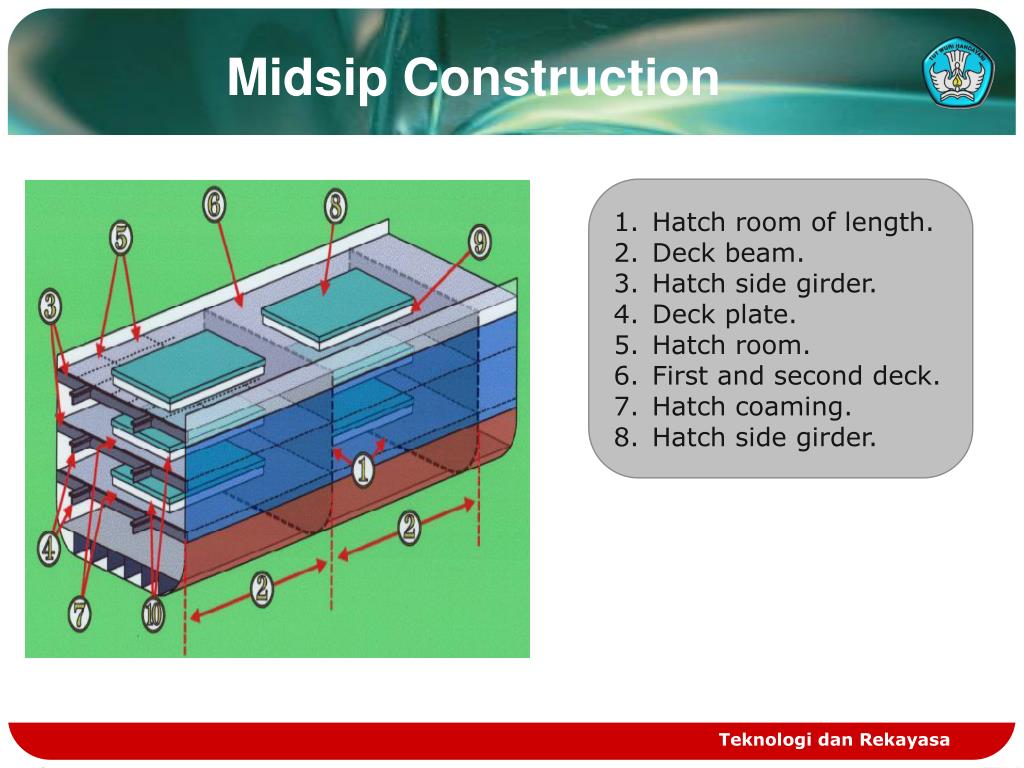

Midsip Construction

  • Hatch room of length.

  • Deck beam.

  • Hatch side girder.

  • Deck plate.

  • Hatch room.

  • First and second deck.

  • Hatch coaming.

  • Hatch side girder.

Teknologi dan Rekayasa

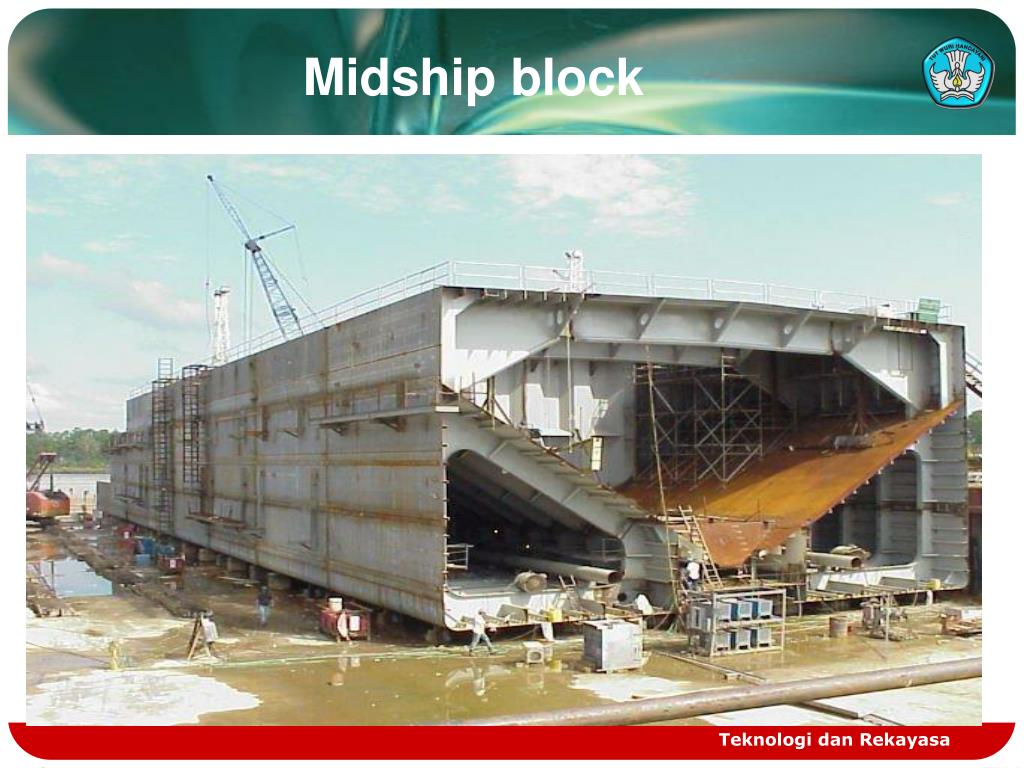

Midship block
Midship block

Teknologi dan Rekayasa


Midship section component

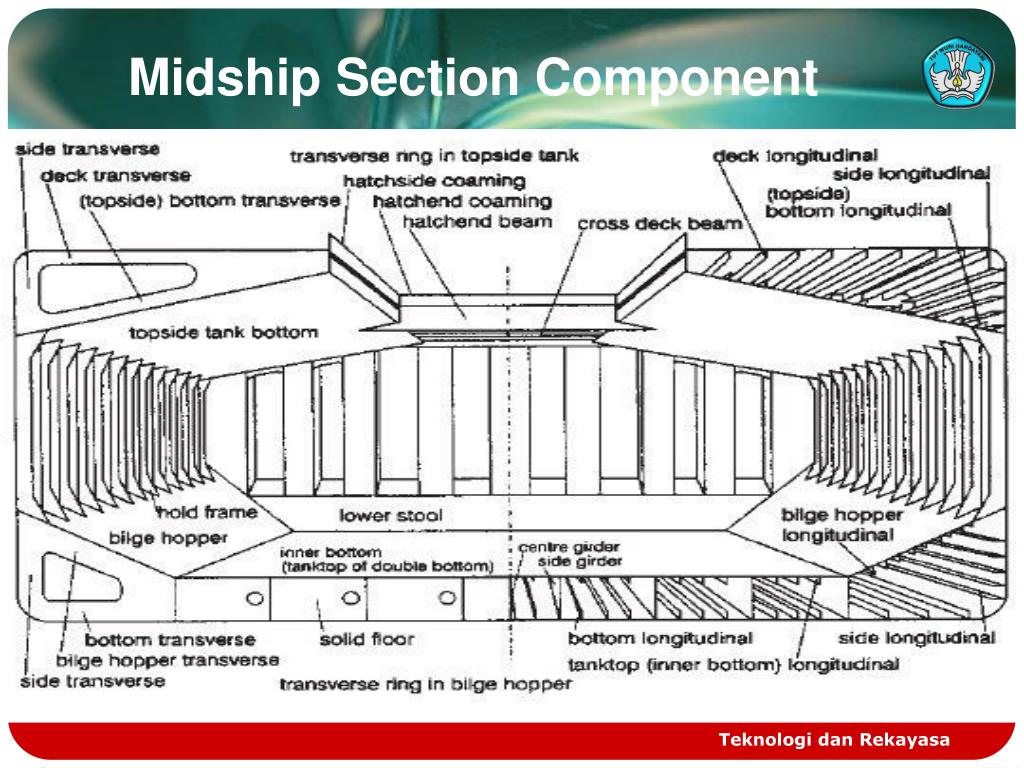

Midship Section Component

Teknologi dan Rekayasa


Ship construction system

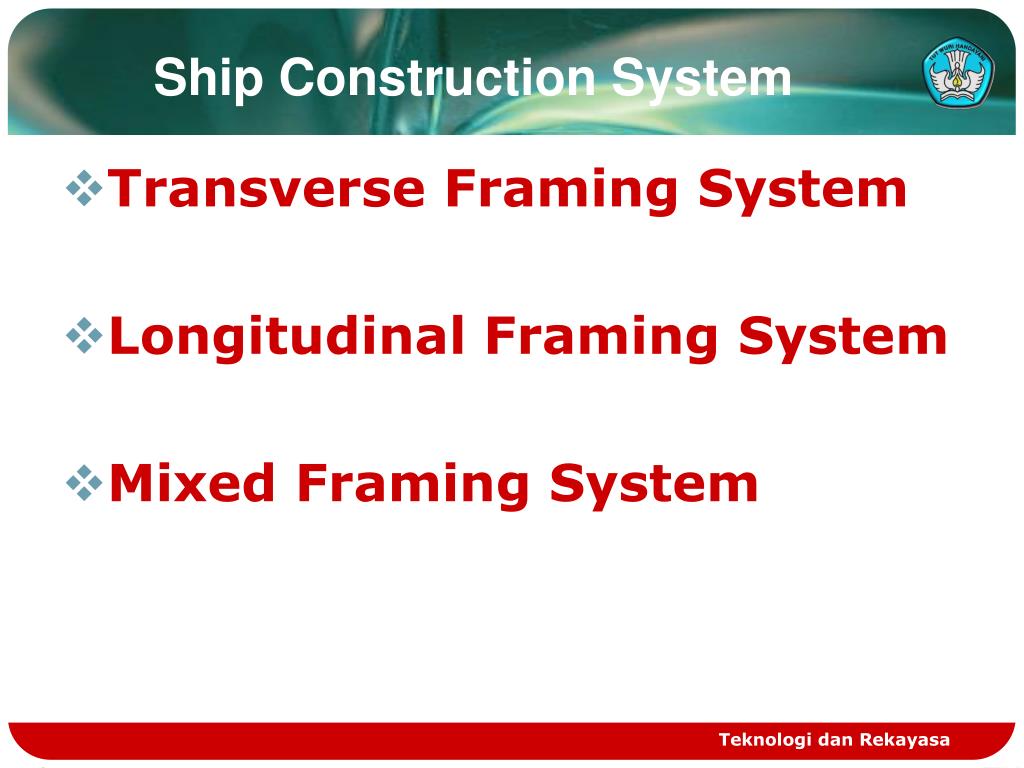

Ship Construction System

  • Transverse Framing System

  • Longitudinal Framing System

  • Mixed Framing System

Teknologi dan Rekayasa


Transverse framing system
Transverse Framing System

1.Deck beam

2.Frame

3.Margine plate

4.Inner bottom

5.Keel plate

6.Plate floor

7.Side sheel

8.Deck plate

Teknologi dan Rekayasa


Ship construction system1

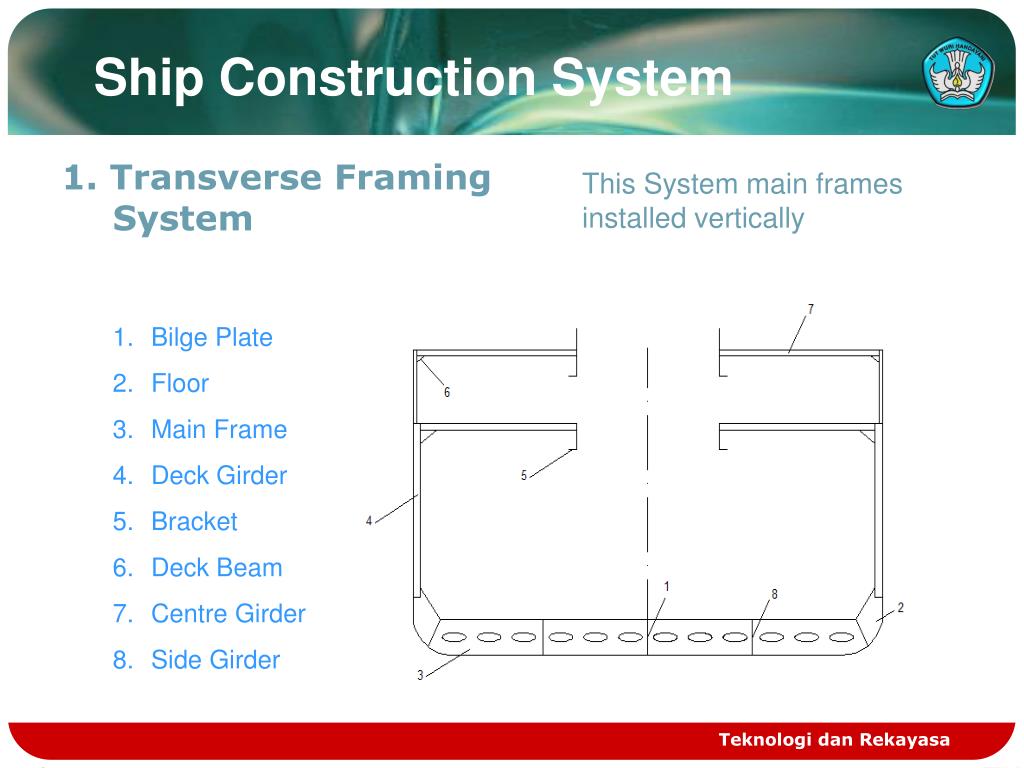

Ship Construction System

1. Transverse Framing System

This System main frames installed vertically

  • Bilge Plate

  • Floor

  • Main Frame

  • Deck Girder

  • Bracket

  • Deck Beam

  • Centre Girder

  • Side Girder

Teknologi dan Rekayasa

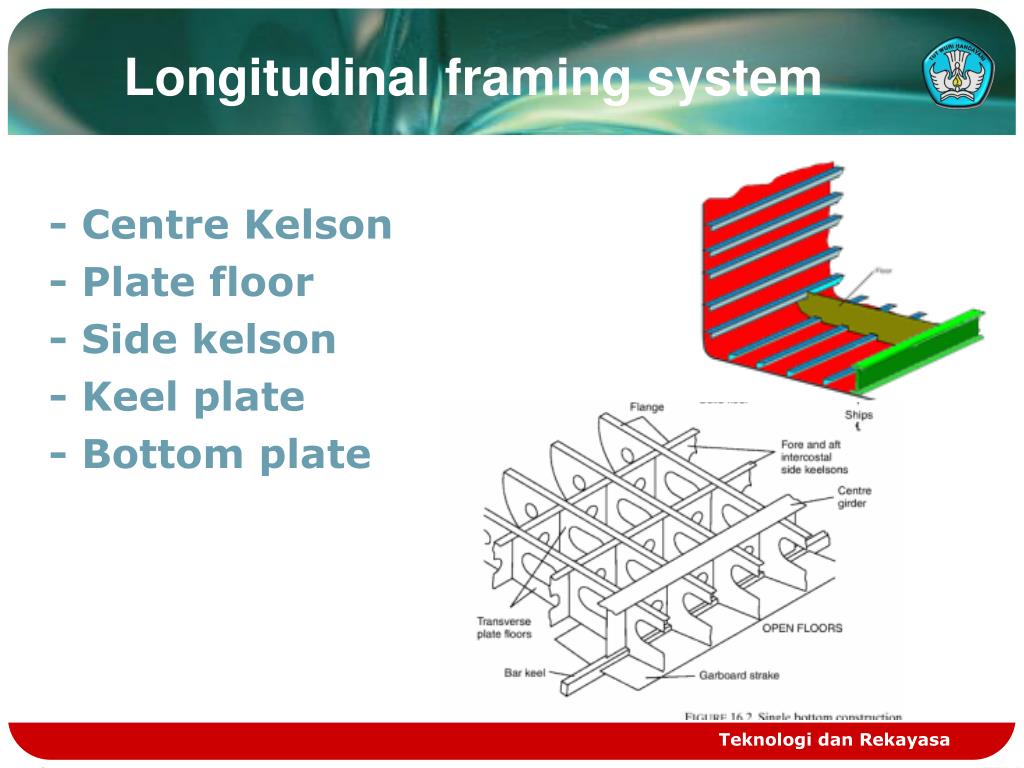

Longitudinal framing system
Longitudinal framing system

- Centre Kelson

- Plate floor

- Side kelson

- Keel plate

- Bottom plate

Teknologi dan Rekayasa

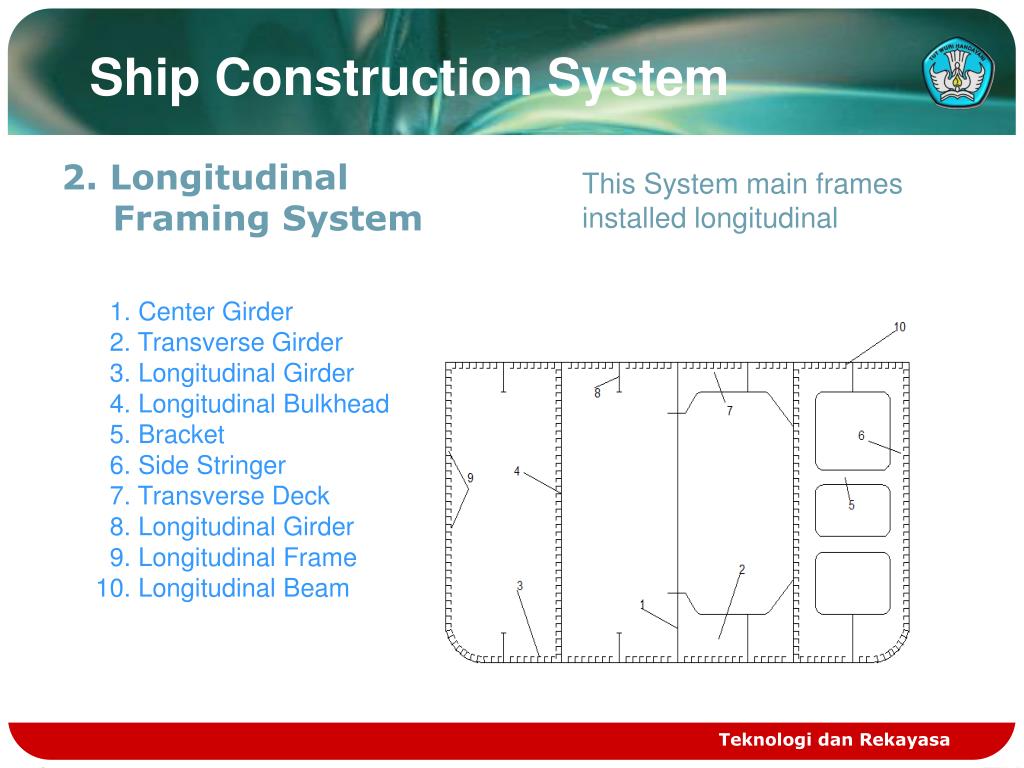

Ship construction system2
Ship Construction System

2. Longitudinal Framing System

This System main frames installed longitudinal

1. Center Girder

2. Transverse Girder

3. Longitudinal Girder

4. Longitudinal Bulkhead

5. Bracket

6. Side Stringer

7. Transverse Deck

8. Longitudinal Girder

9. Longitudinal Frame

10. Longitudinal Beam

Teknologi dan Rekayasa


Ship construction system3

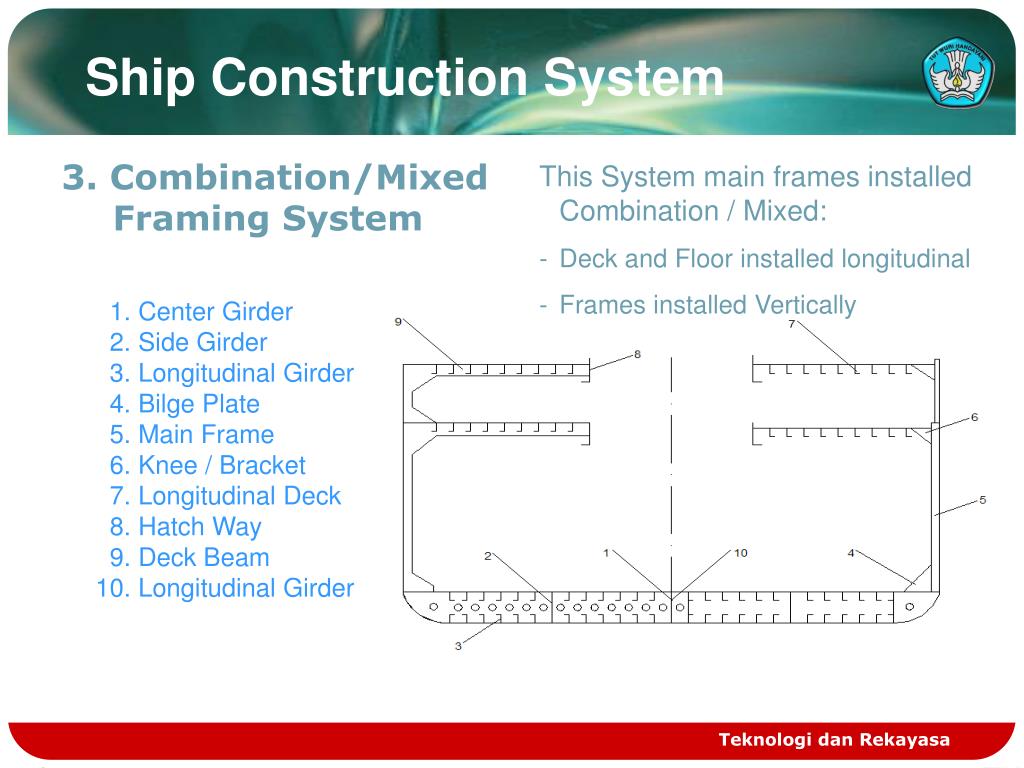

Ship Construction System

3. Combination/Mixed Framing System

  • This System main frames installed Combination / Mixed:

  • Deck and Floor installed longitudinal

  • Frames installed Vertically

1. Center Girder

2. Side Girder

3. Longitudinal Girder

4. Bilge Plate

5. Main Frame

6. Knee / Bracket

7. Longitudinal Deck

8. Hatch Way

9. Deck Beam

10. Longitudinal Girder

Teknologi dan Rekayasa


Mixed framing system

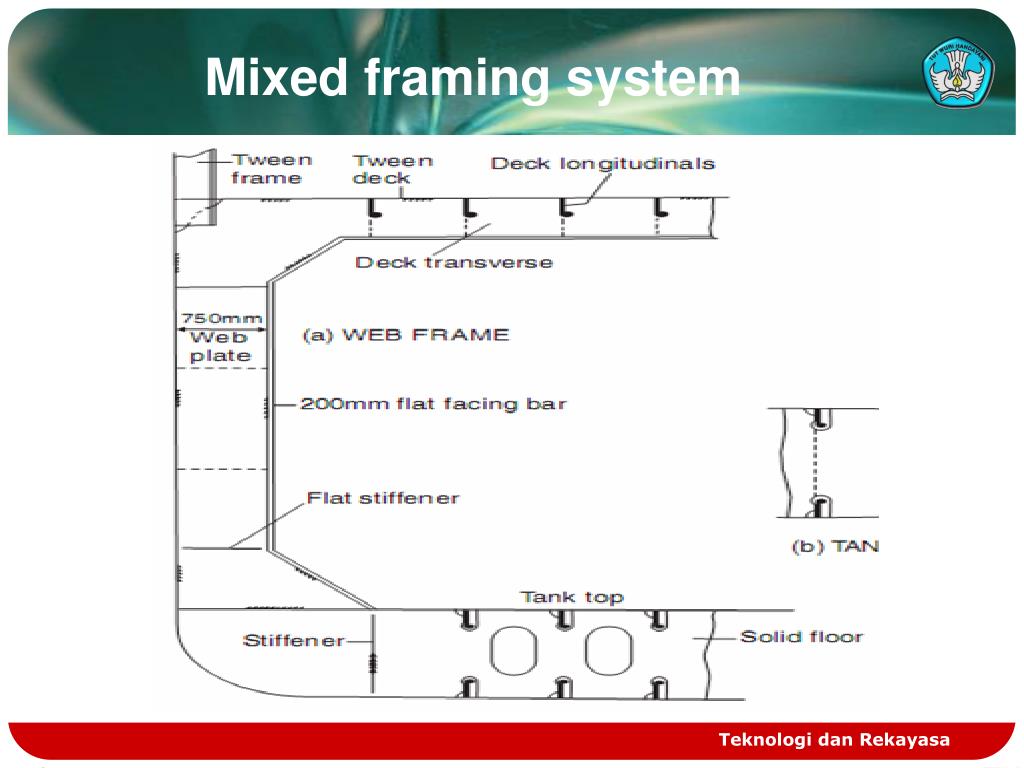

Mixed framing system

Teknologi dan Rekayasa


Bottom structure

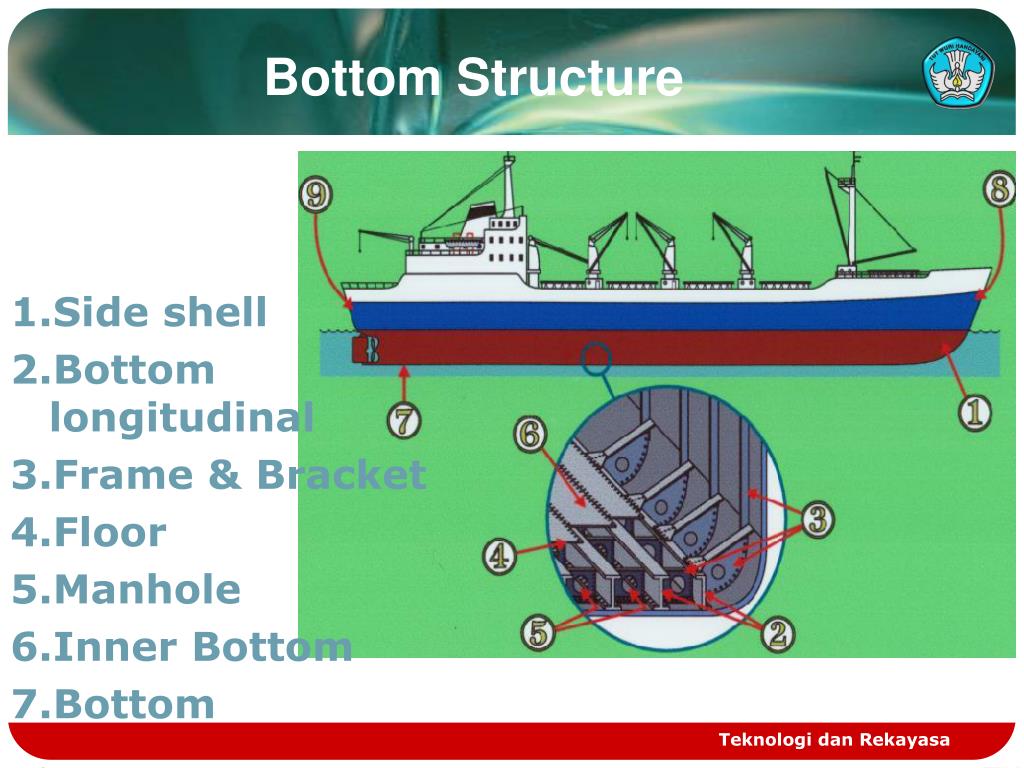

Bottom Structure

1.Side shell

2.Bottom longitudinal

3.Frame & Bracket

4.Floor

5.Manhole

6.Inner Bottom

7.Bottom

Teknologi dan Rekayasa


Hull component

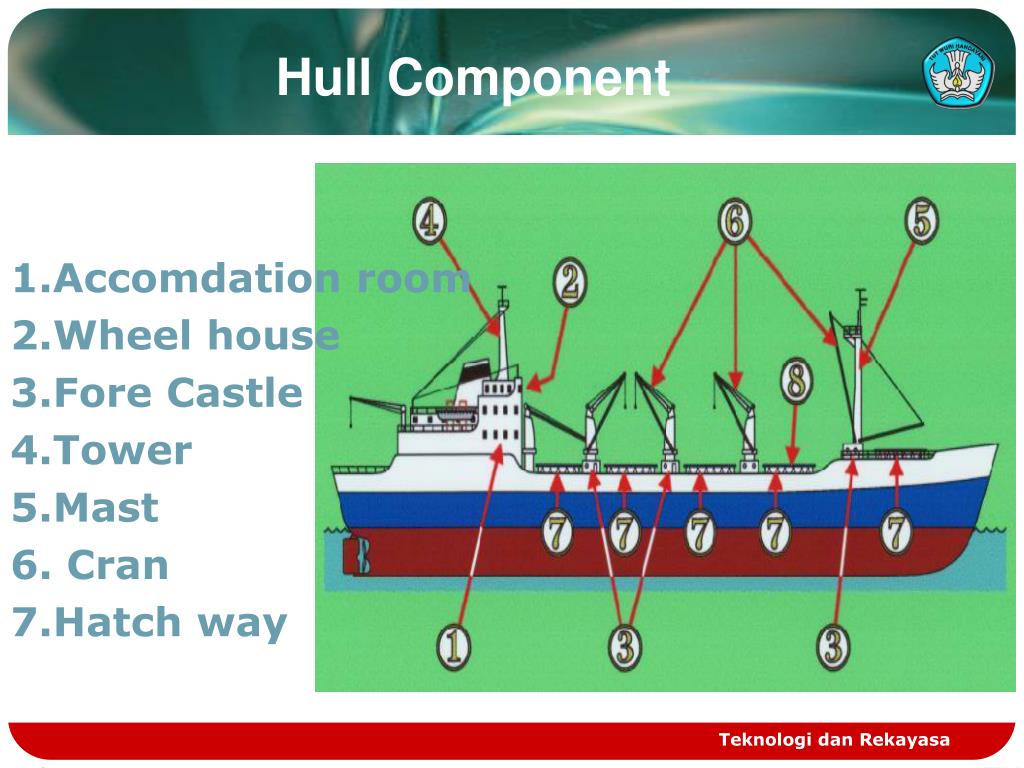

Hull Component

1.Accomdation room

2.Wheel house

3.Fore Castle

4.Tower

5.Mast

6. Cran

7.Hatch way

Teknologi dan Rekayasa

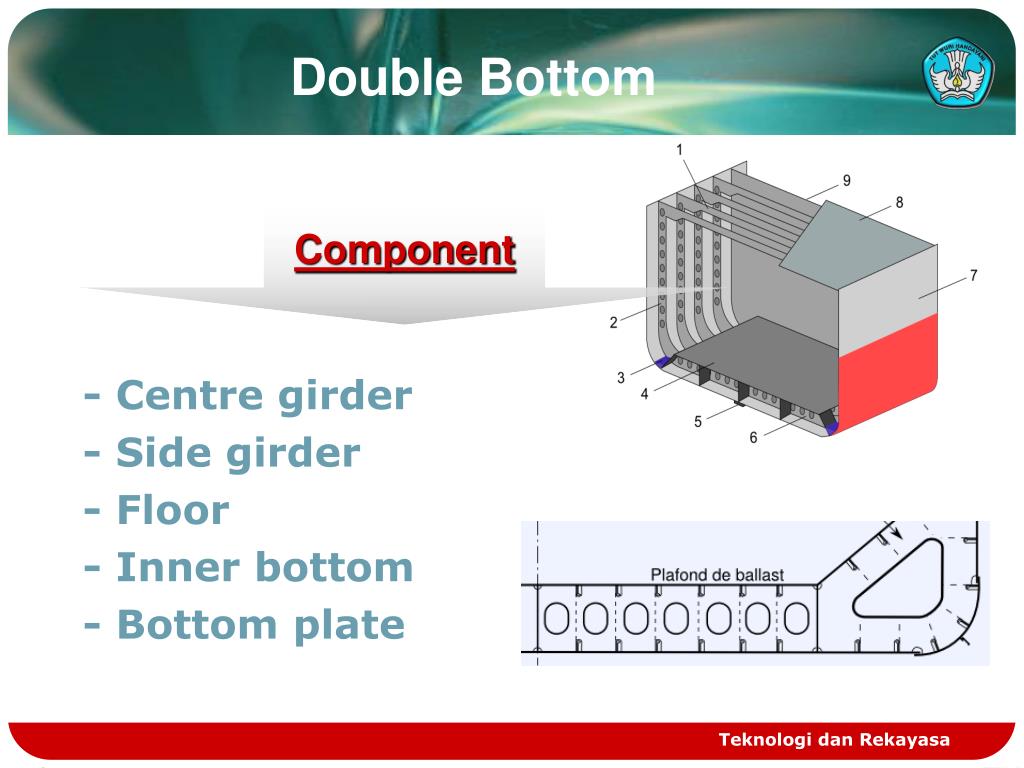

Double bottom

Component

Double Bottom

- Centre girder

- Side girder

- Floor

- Inner bottom

- Bottom plate

Teknologi dan Rekayasa

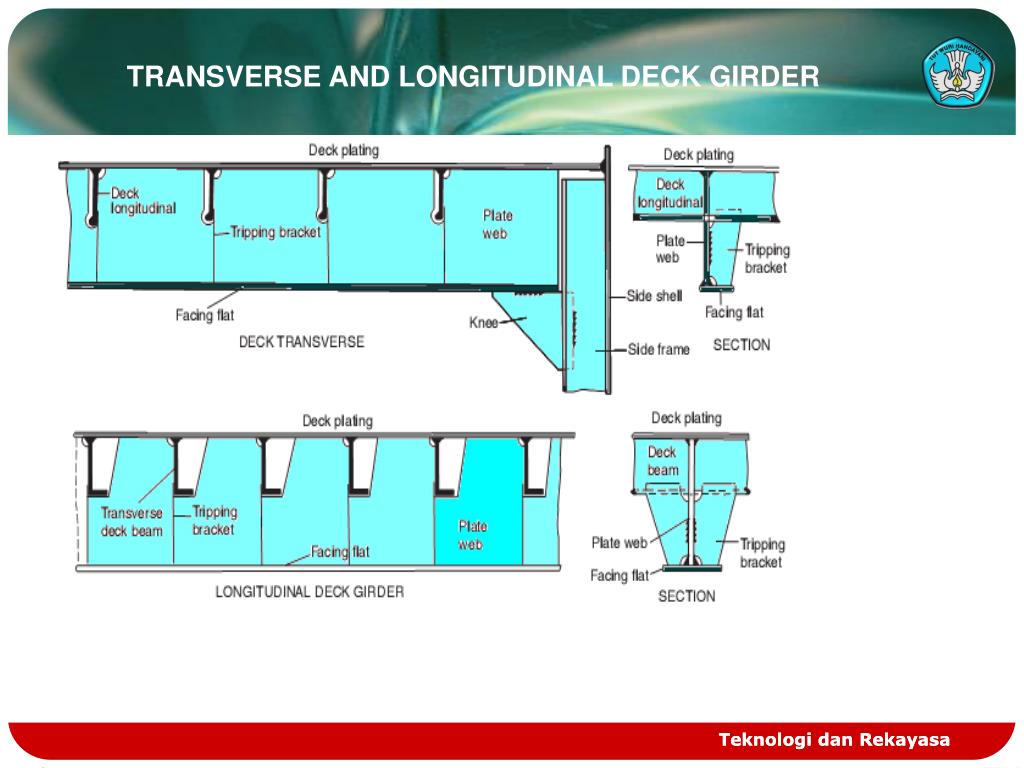

Transverse and longitudinal deck girder
TRANSVERSE AND LONGITUDINAL DECK GIRDER

Teknologi dan Rekayasa

Teknologi dan Rekayasa

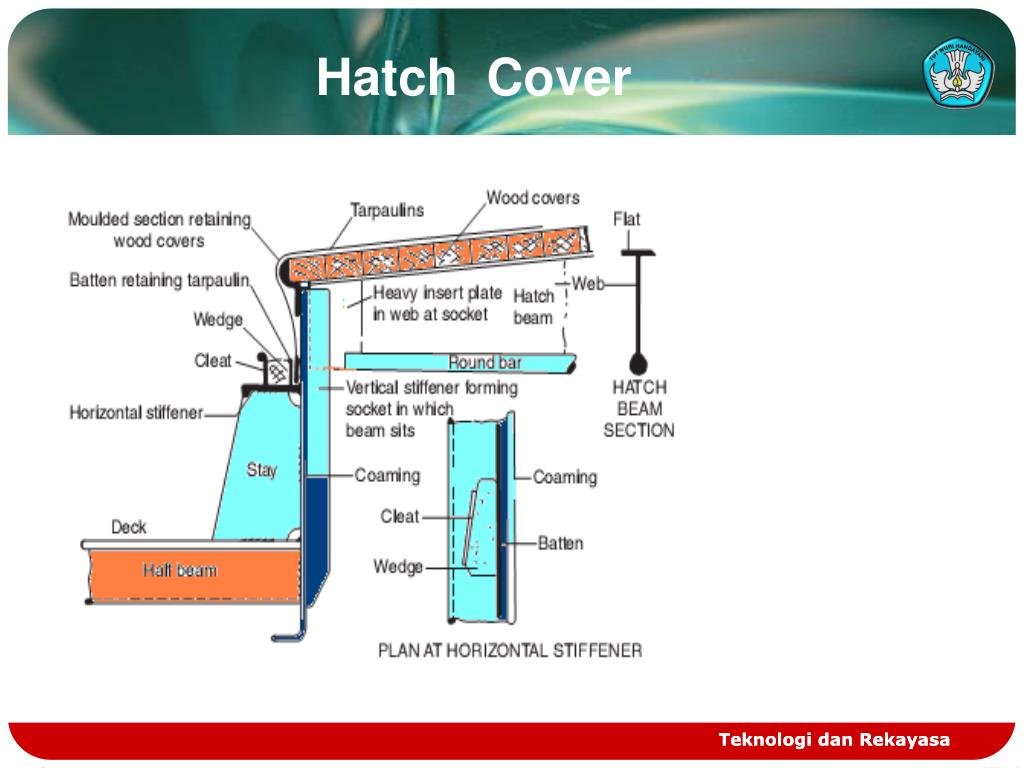

Hatch cover
Hatch Cover

Teknologi dan Rekayasa

Teknologi dan Rekayasa


Detail hatch opening
DETAIL HATCH OPENING

Teknologi dan Rekayasa

Teknologi dan Rekayasa


Bulwark detail

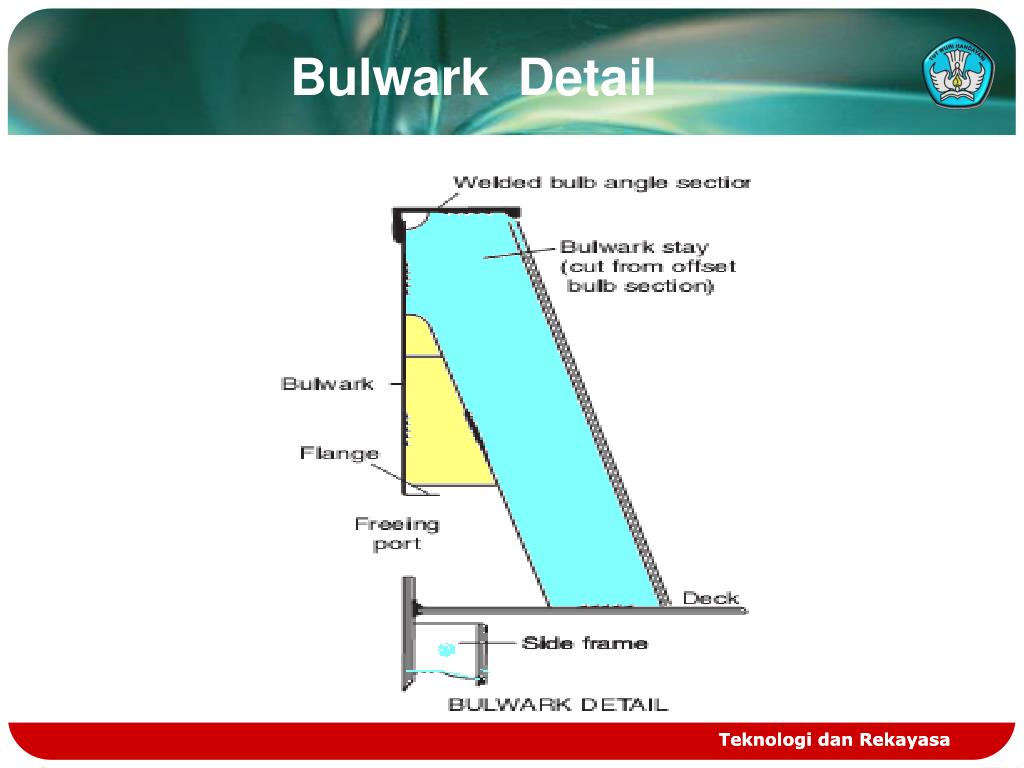

Bulwark Detail

Teknologi dan Rekayasa

Teknologi dan Rekayasa


Evaluation

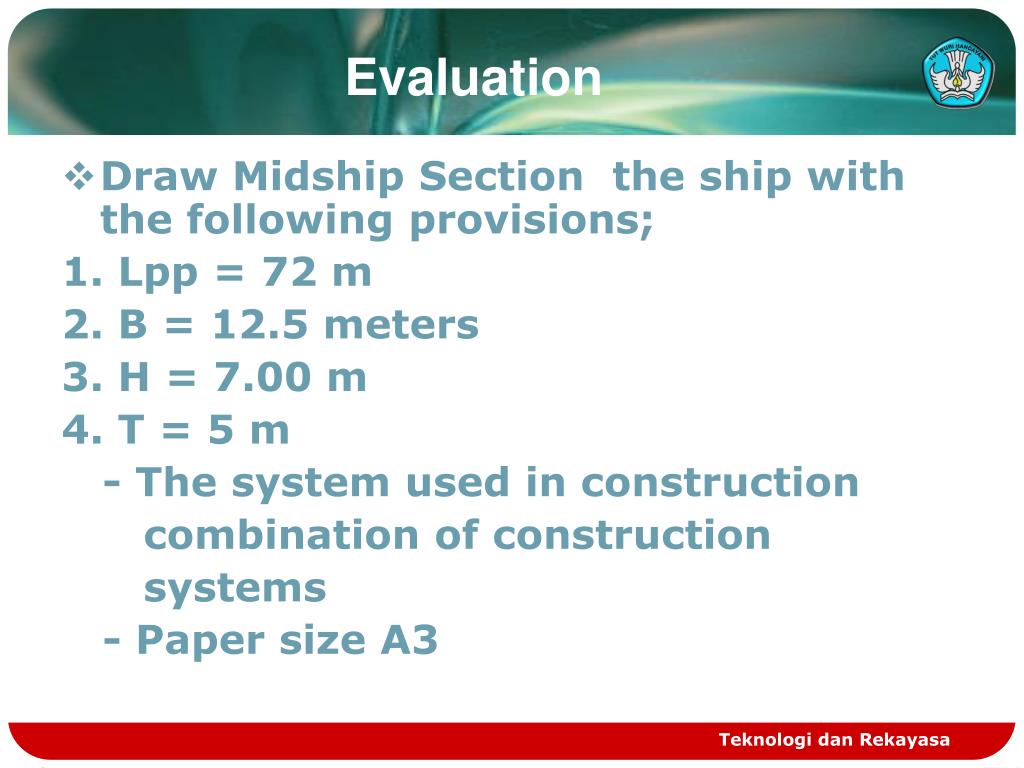

Evaluation

  • Draw Midship Section the ship with the following provisions;

    1. Lpp = 72 m

    2. B = 12.5 meters

    3. H = 7.00 m

    4. T = 5 m

    - The system used in construction

    combination of construction

    systems

    - Paper size A3

Teknologi dan Rekayasa
