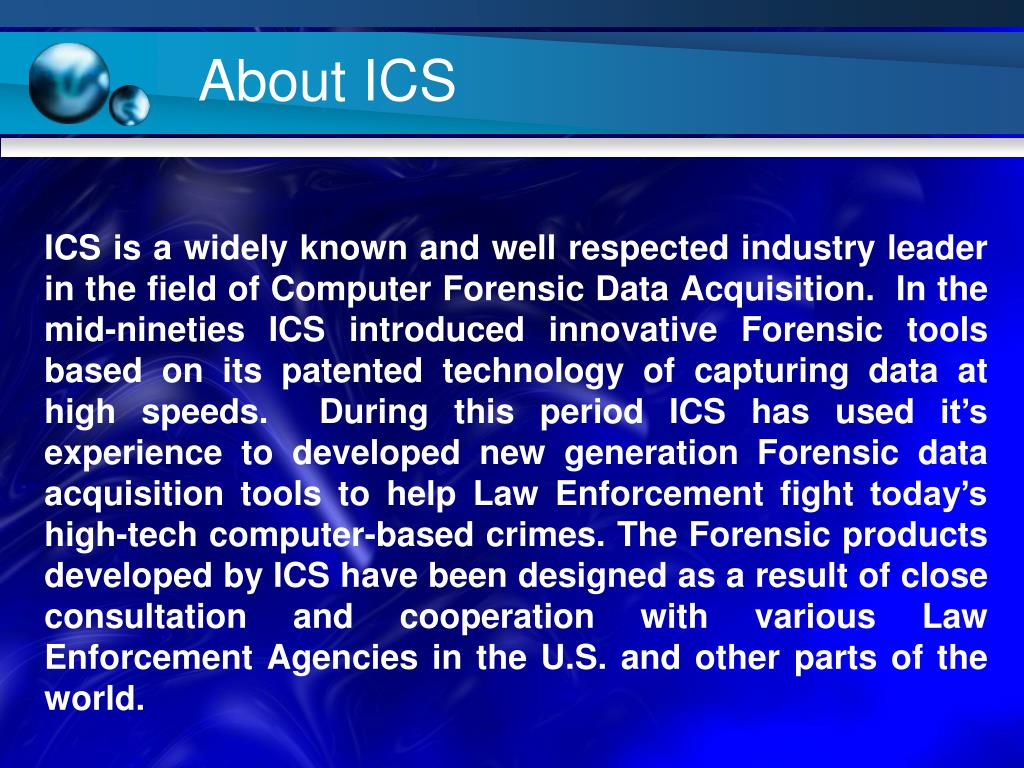

  1. About ICS ICS is a widely known and well respected industry leader in the field of Computer Forensic Data Acquisition. In the mid-nineties ICS introduced innovative Forensic tools based on its patented technology of capturing data at high speeds. During this period ICS has used it’s experience to developed new generation Forensic data acquisition tools to help Law Enforcement fight today’s high-tech computer-based crimes. The Forensic products developed by ICS have been designed as a result of close consultation and cooperation with various Law Enforcement Agencies in the U.S. and other parts of the world.

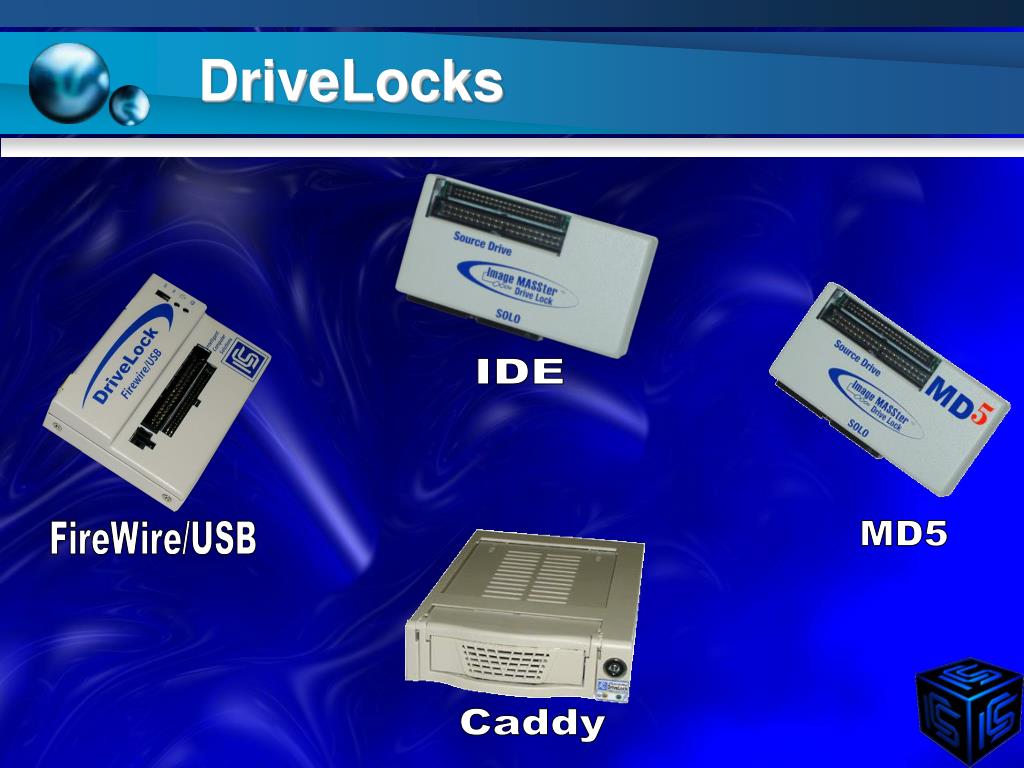

  2. DriveLocks IDE FireWire/USB MD5 Caddy

  3. DriveLock IDE • Connects to 2 1/2 inch and 3 1/2 inch drives. • Can be used in both PIO and Ultra DMA modes up to ATA-7. • Appears completely transparent to the computer. • No external power supply required. • Prevents unwanted data writes. • Easy to use. • No special software needed.

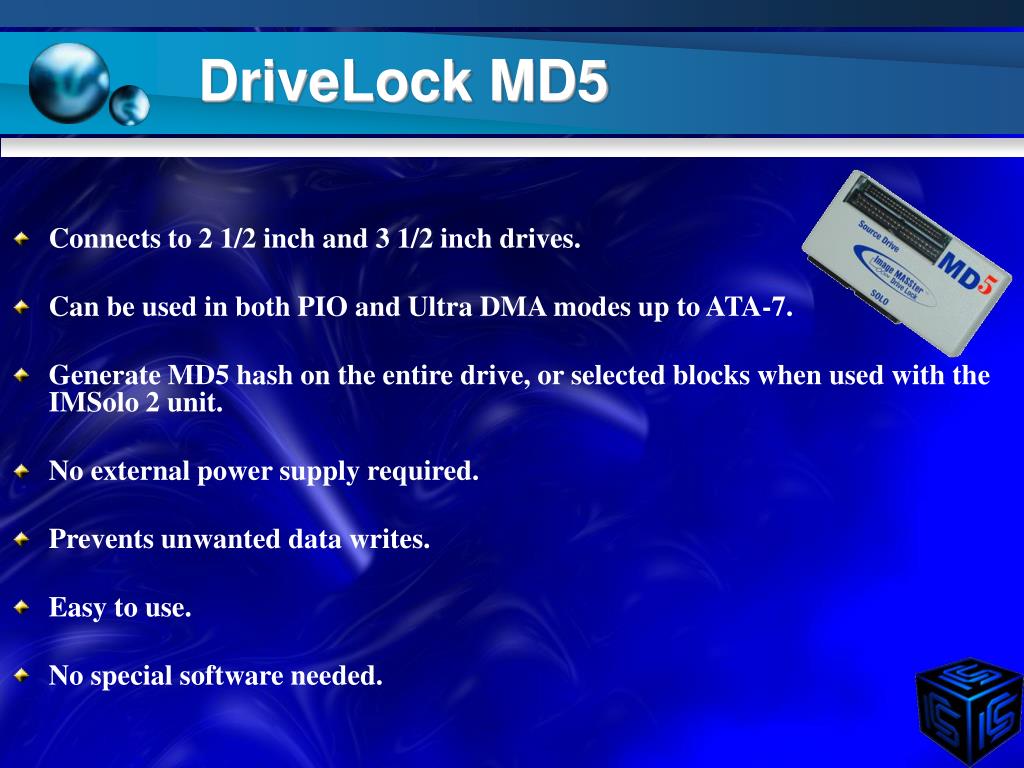

  4. DriveLock MD5 • Connects to 2 1/2 inch and 3 1/2 inch drives. • Can be used in both PIO and Ultra DMA modes up to ATA-7. • Generate MD5 hash on the entire drive, or selected blocks when used with the IMSolo 2 unit. • No external power supply required. • Prevents unwanted data writes. • Easy to use. • No special software needed.

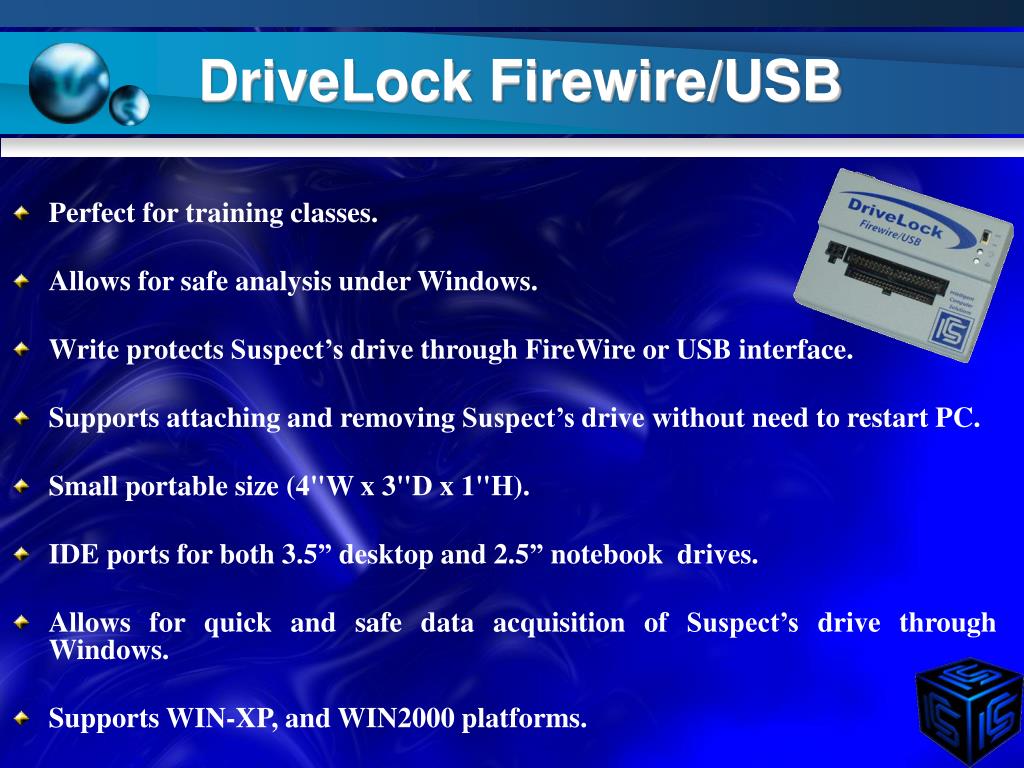

  5. DriveLock Firewire/USB • Perfect for training classes. • Allows for safe analysis under Windows. • Write protects Suspect’s drive through FireWire or USB interface. • Supports attaching and removing Suspect’s drive without need to restart PC. • Small portable size (4"W x 3"D x 1"H). • IDE ports for both 3.5” desktop and 2.5” notebook drives. • Allows for quick and safe data acquisition of Suspect’s drive through Windows. • Supports WIN-XP, and WIN2000 platforms.

  6. DriveLock in a Caddy • Connects 3.5” inch drive. • Appears completely transparent to the computer. • No external power supply required. • Can be used in both PIO and Ultra DMA modes up to ATA-7. • Prevents unwanted data writes. • Easy to use. • No special software needed.

  7. LinkMASSter-II The LinkMASSter-II is a high speed Forensic data acquisition device specializing in seizing data from Suspect’s unopened Notebook or unopened PC using the Firewire or USB interface.

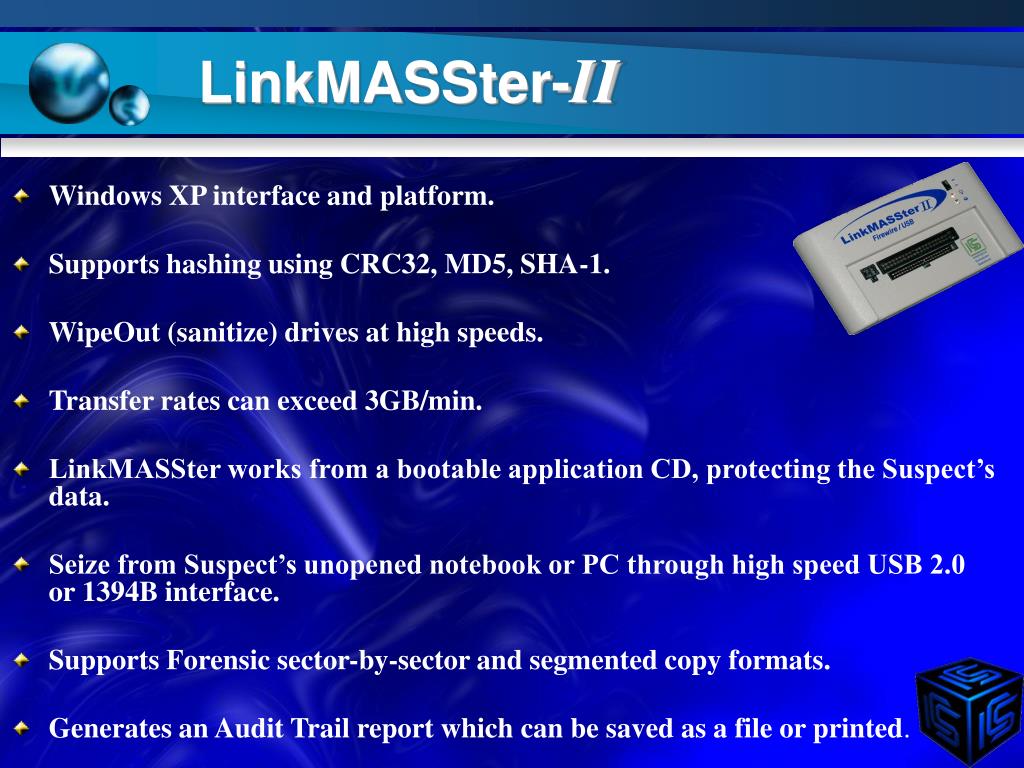

  8. LinkMASSter-II • Windows XP interface and platform. • Supports hashing using CRC32, MD5, SHA-1. • WipeOut (sanitize) drives at high speeds. • Transfer rates can exceed 3GB/min. • LinkMASSter works from a bootable application CD, protecting the Suspect’s data. • Seize from Suspect’s unopened notebook or PC through high speed USB 2.0 or 1394B interface. • Supports Forensic sector-by-sector and segmented copy formats. • Generates an Audit Trail report which can be saved as a file or printed.

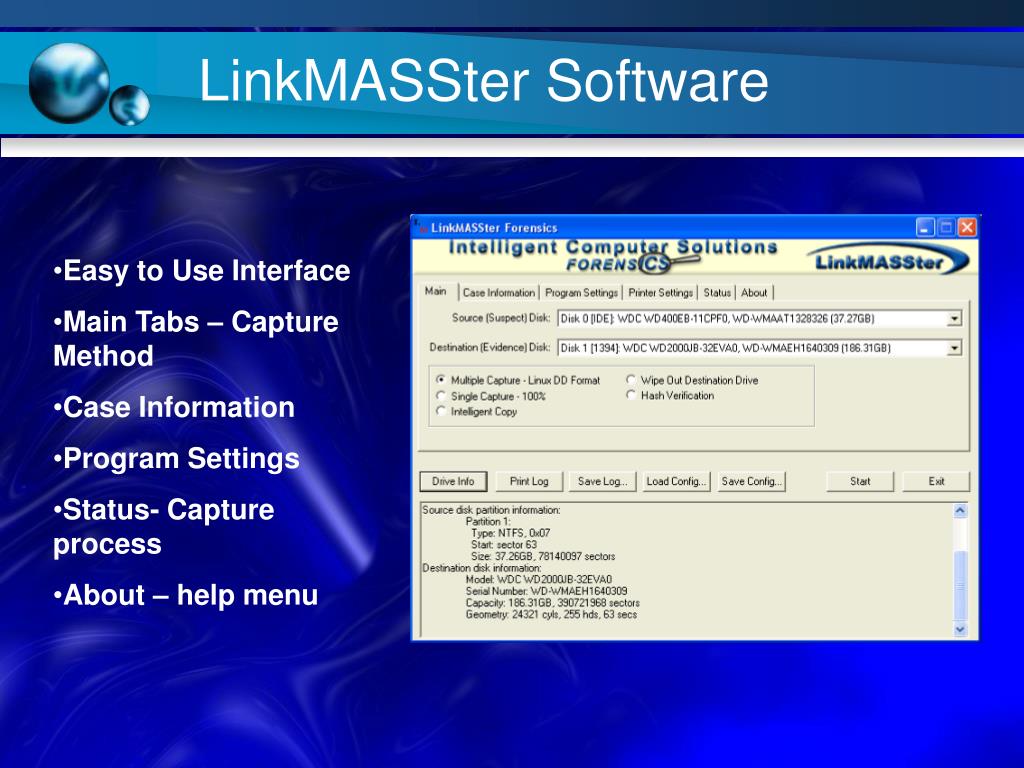

  9. LinkMASSter Software • Easy to Use Interface • Main Tabs – Capture Method • Case Information • Program Settings • Status- Capture process • About – help menu

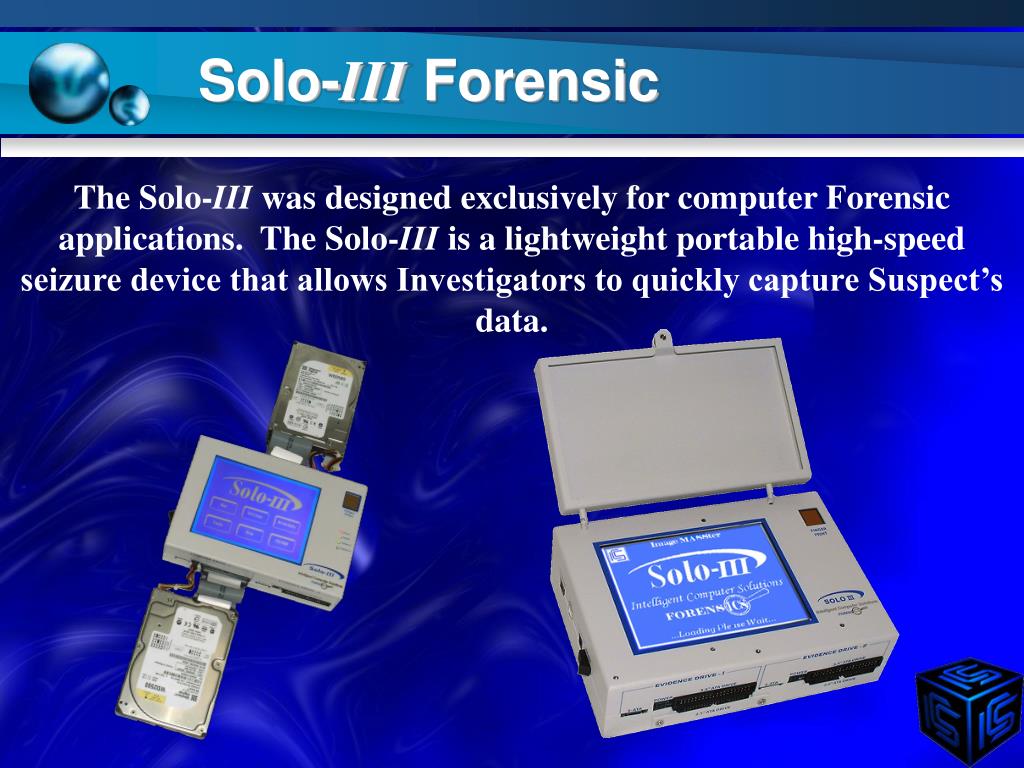

  10. Solo-III Forensic The Solo-III was designed exclusively for computer Forensic applications. The Solo-III is a lightweight portable high-speed seizure device that allows Investigators to quickly capture Suspect’s data.

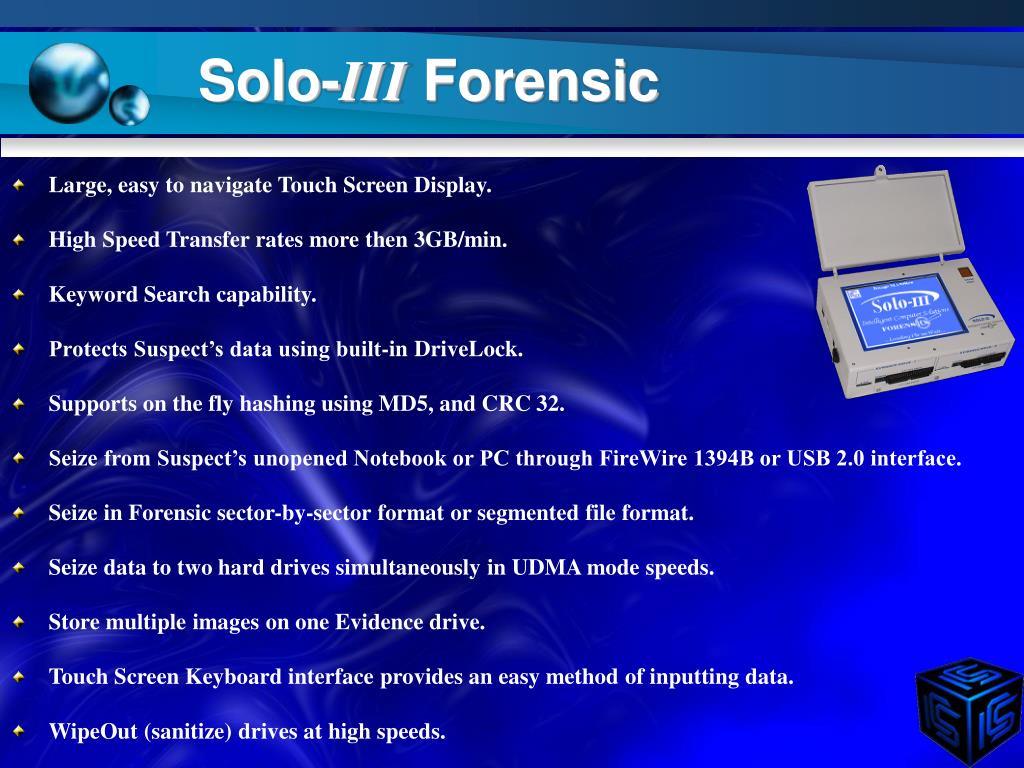

  11. Solo-III Forensic • Large, easy to navigate Touch Screen Display. • High Speed Transfer rates more then 3GB/min. • Keyword Search capability. • Protects Suspect’s data using built-in DriveLock. • Supports on the fly hashing using MD5, and CRC 32. • Seize from Suspect’s unopened Notebook or PC through FireWire 1394B or USB 2.0 interface. • Seize in Forensic sector-by-sector format or segmented file format. • Seize data to two hard drives simultaneously in UDMA mode speeds. • Store multiple images on one Evidence drive. • Touch Screen Keyboard interface provides an easy method of inputting data. • WipeOut (sanitize) drives at high speeds.

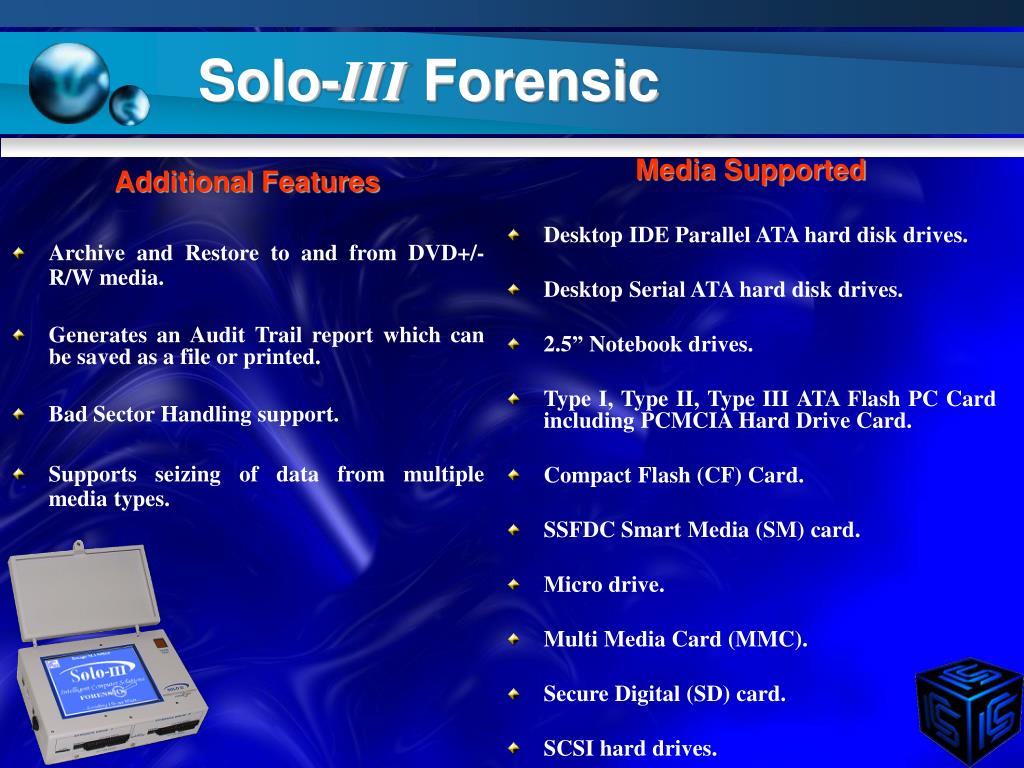

  12. Solo-III Forensic Media Supported • Desktop IDE Parallel ATA hard disk drives. • Desktop Serial ATA hard disk drives. • 2.5” Notebook drives. • Type I, Type II, Type III ATA Flash PC Card including PCMCIA Hard Drive Card. • Compact Flash (CF) Card. • SSFDC Smart Media (SM) card. • Micro drive. • Multi Media Card (MMC). • Secure Digital (SD) card. • SCSI hard drives. Additional Features • Archive and Restore to and from DVD+/- R/W media. • Generates an Audit Trail report which can be saved as a file or printed. • Bad Sector Handling support. • Supports seizing of data from multiple media types.

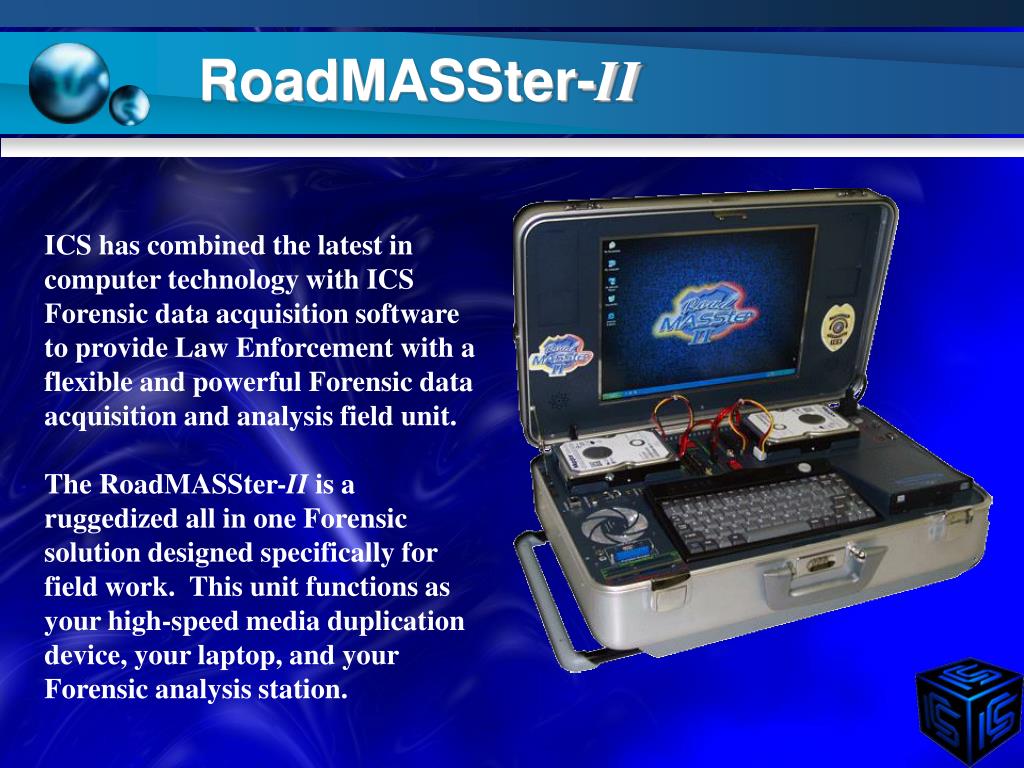

  13. RoadMASSter-II ICS has combined the latest in computer technology with ICS Forensic data acquisition software to provide Law Enforcement with a flexible and powerful Forensic data acquisition and analysis field unit. The RoadMASSter-II is a ruggedized all in one Forensic solution designed specifically for field work. This unit functions as your high-speed media duplication device, your laptop, and your Forensic analysis station.

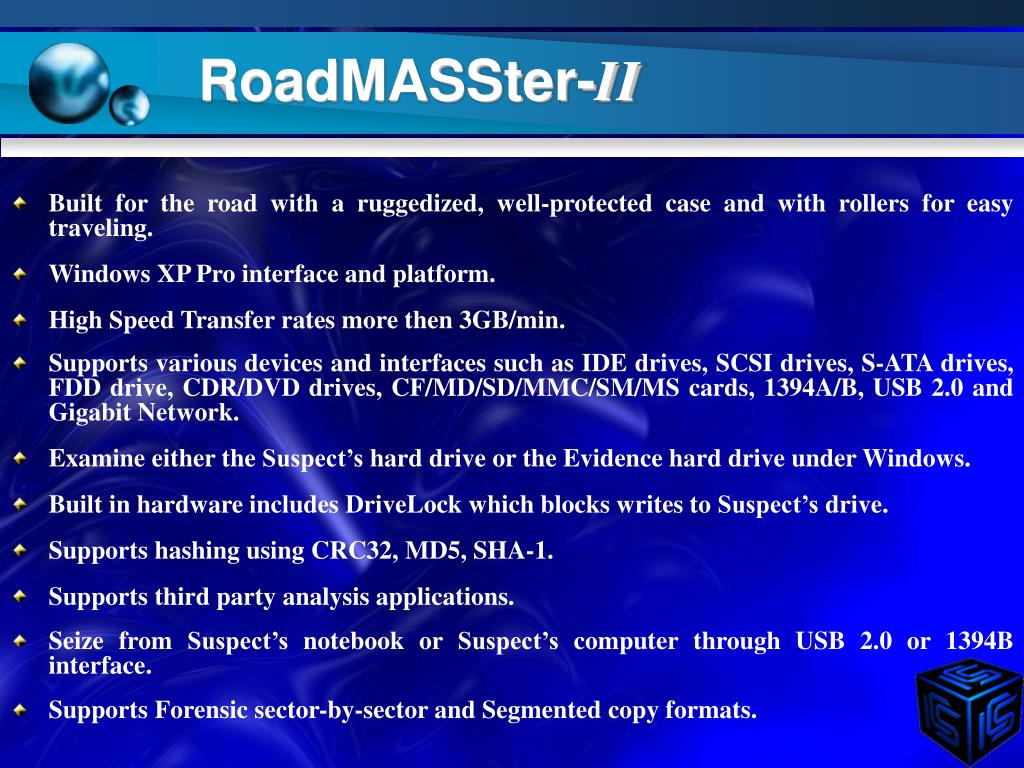

  14. RoadMASSter-II • Built for the road with a ruggedized, well-protected case and with rollers for easy traveling. • Windows XP Pro interface and platform. • High Speed Transfer rates more then 3GB/min. • Supports various devices and interfaces such as IDE drives, SCSI drives, S-ATA drives, FDD drive, CDR/DVD drives, CF/MD/SD/MMC/SM/MS cards, 1394A/B, USB 2.0 and Gigabit Network. • Examine either the Suspect’s hard drive or the Evidence hard drive under Windows. • Built in hardware includes DriveLock which blocks writes to Suspect’s drive. • Supports hashing using CRC32, MD5, SHA-1. • Supports third party analysis applications. • Seize from Suspect’s notebook or Suspect’s computer through USB 2.0 or 1394B interface. • Supports Forensic sector-by-sector and Segmented copy formats.

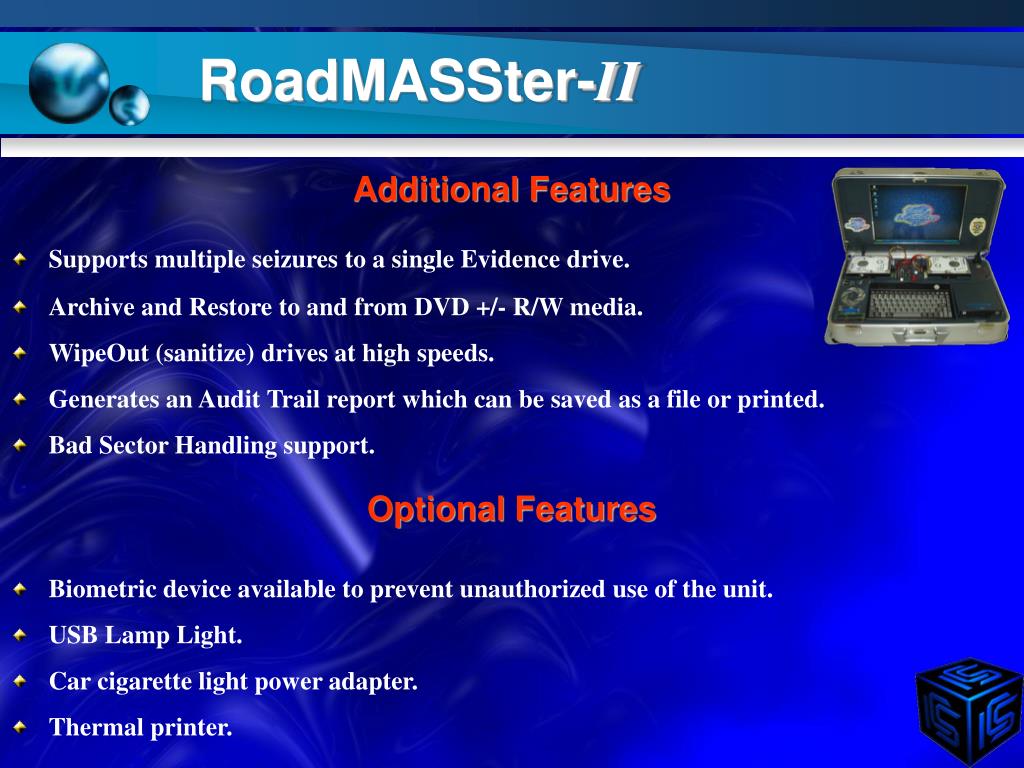

  15. RoadMASSter-II Additional Features • Supports multiple seizures to a single Evidence drive. • Archive and Restore to and from DVD +/- R/W media. • WipeOut (sanitize) drives at high speeds. • Generates an Audit Trail report which can be saved as a file or printed. • Bad Sector Handling support. Optional Features • Biometric device available to prevent unauthorized use of the unit. • USB Lamp Light. • Car cigarette light power adapter. • Thermal printer.

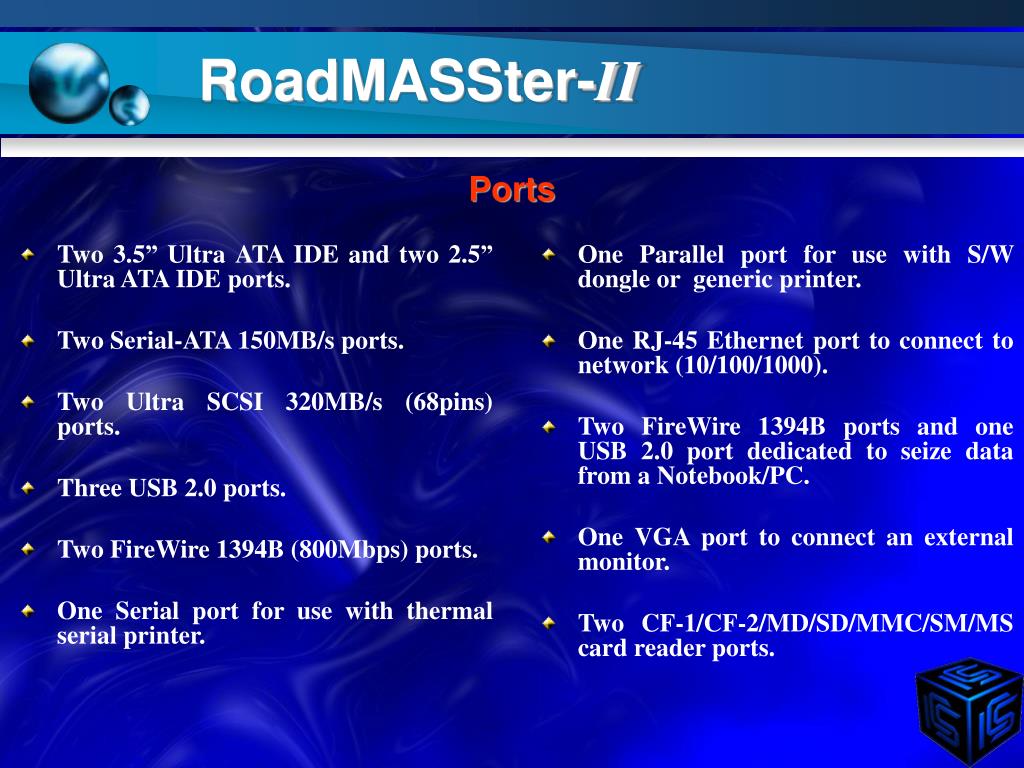

  16. RoadMASSter-II • Two 3.5” Ultra ATA IDE and two 2.5” Ultra ATA IDE ports. • Two Serial-ATA 150MB/s ports. • Two Ultra SCSI 320MB/s (68pins) ports. • Three USB 2.0 ports. • Two FireWire 1394B (800Mbps) ports. • One Serial port for use with thermal serial printer. Ports • One Parallel port for use with S/W dongle or generic printer. • One RJ-45 Ethernet port to connect to network (10/100/1000). • Two FireWire 1394B ports and one USB 2.0 port dedicated to seize data from a Notebook/PC. • One VGA port to connect an external monitor. • Two CF-1/CF-2/MD/SD/MMC/SM/MS card reader ports.

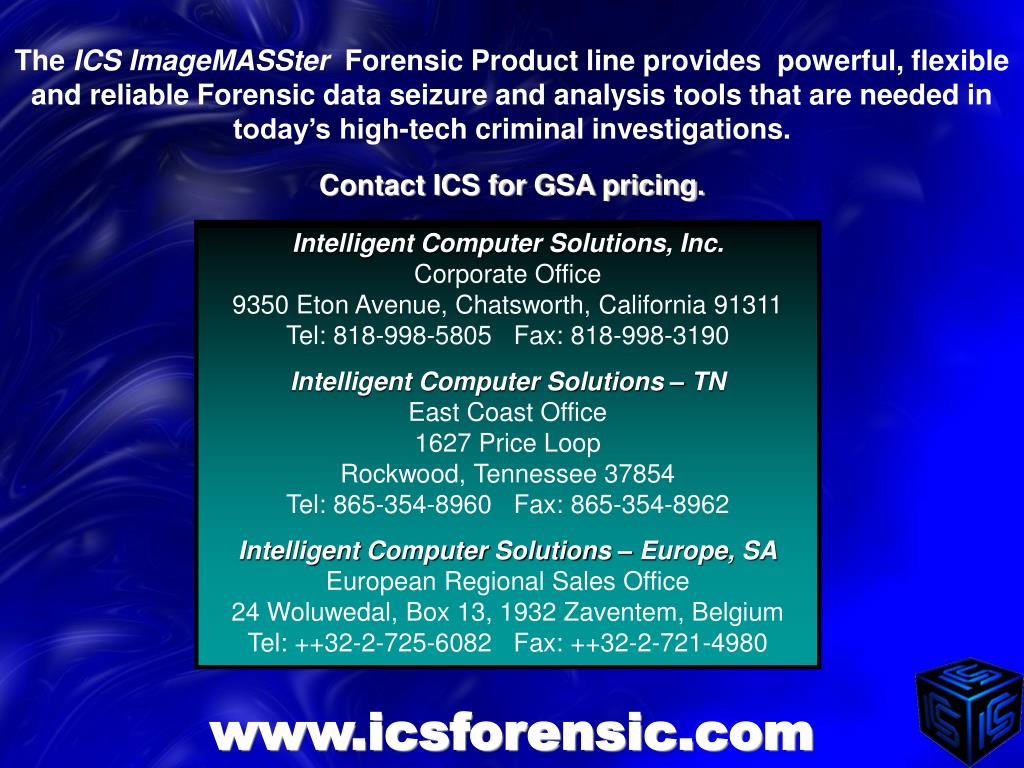

  17. The ICS ImageMASSter Forensic Product line provides powerful, flexible and reliable Forensic data seizure and analysis tools that are needed in today’s high-tech criminal investigations. Contact ICS for GSA pricing. Intelligent Computer Solutions, Inc.Corporate Office 9350 Eton Avenue, Chatsworth, California 91311Tel: 818-998-5805 Fax: 818-998-3190 Intelligent Computer Solutions – TNEast Coast Office1627 Price LoopRockwood, Tennessee 37854Tel: 865-354-8960 Fax: 865-354-8962 Intelligent Computer Solutions – Europe, SAEuropean Regional Sales Office24 Woluwedal, Box 13, 1932 Zaventem, BelgiumTel: ++32-2-725-6082 Fax: ++32-2-721-4980 www.icsforensic.com
