Presentation Transcript
new volume delay function wac aw jastrz bski
NEW VOLUME DELAY FUNCTIONWacław Jastrzębski

Scott Wilson Ltd – Poland Branch

the overcapacity problem
The Overcapacity Problem

Volume>>Capacity

Scott Wilson Ltd – Poland Branch

problem
Problem

Using standard VDF functions, sometimes the forecasted demand results in volumes greater than capacity, whereas the actual capacity may in fact be sufficient .

Scott Wilson Ltd – Poland Branch

model representation of human behaviors using the language of mathematic

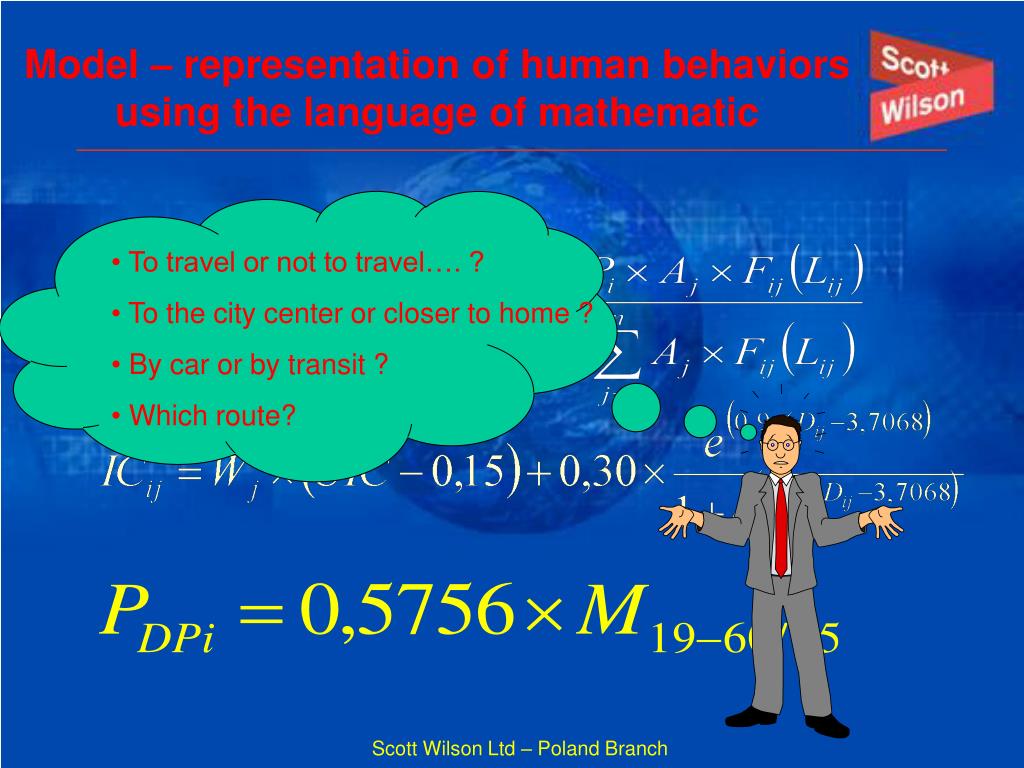

Model – representation of human behaviors using the language of mathematic
  • To travel or not to travel…. ?
  • To the city center or closer to home ?
  • By car or by transit ?
  • Which route?

Scott Wilson Ltd – Poland Branch

f our step model
Four Step Model

Scott Wilson Ltd – Poland Branch

r eality vs m odel c urves

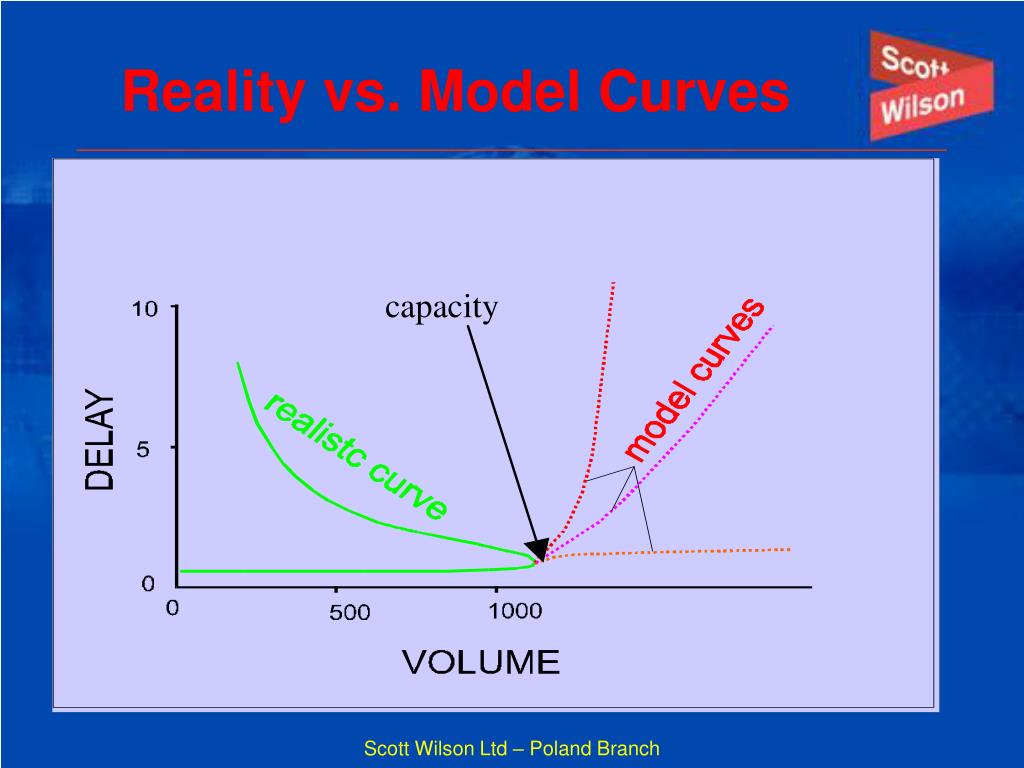

Reality vs. Model Curves

capacity

Scott Wilson Ltd – Poland Branch

m athematical conditions for vdf f unction
Mathematical Conditions for VDF Function

- F(x) is a strictly increasing function for the variable between 0 and + (F’(0)>0) - F(0) = T0, where T0 is the free-flow time; - F’(x) existing and is strictly increasing – that means that function is convex – this last condition is not essential but desirable;The calculation time for the new function should not use more CPU time than BPR function,

Scott Wilson Ltd – Poland Branch

behavioral conditions
Behavioral Conditions
  • Time spent in traffic congestion weights much more for the traveler than the travel time at the acceptable speed;
  • Within the range of 0.2-0.8 of capacity, the average speed of traffic shows little sensitivity to the volume of traffic. After reaching the capacity level the travel time increases substantially;
  • Traveler chooses a path based on previous experience
  • Traveler can adjust the path as new information on traffic situation is acquired.

Scott Wilson Ltd – Poland Branch

the modeling conditions
The Modeling Conditions
  • The function should „force” the algorithm to seek additional paths in order to minimize the number of links with volume greater then capacity;
  • The free-flow-speed is the actual average speed as determined through the surveys (regardless of legal limitations such as speed limits).
  • The function takes into account that traffic lights decrease the average speed;

Scott Wilson Ltd – Poland Branch

various mathematical formulas for vdf
Various Mathematical Formulas for VDF

Scott Wilson Ltd – Poland Branch

slide11

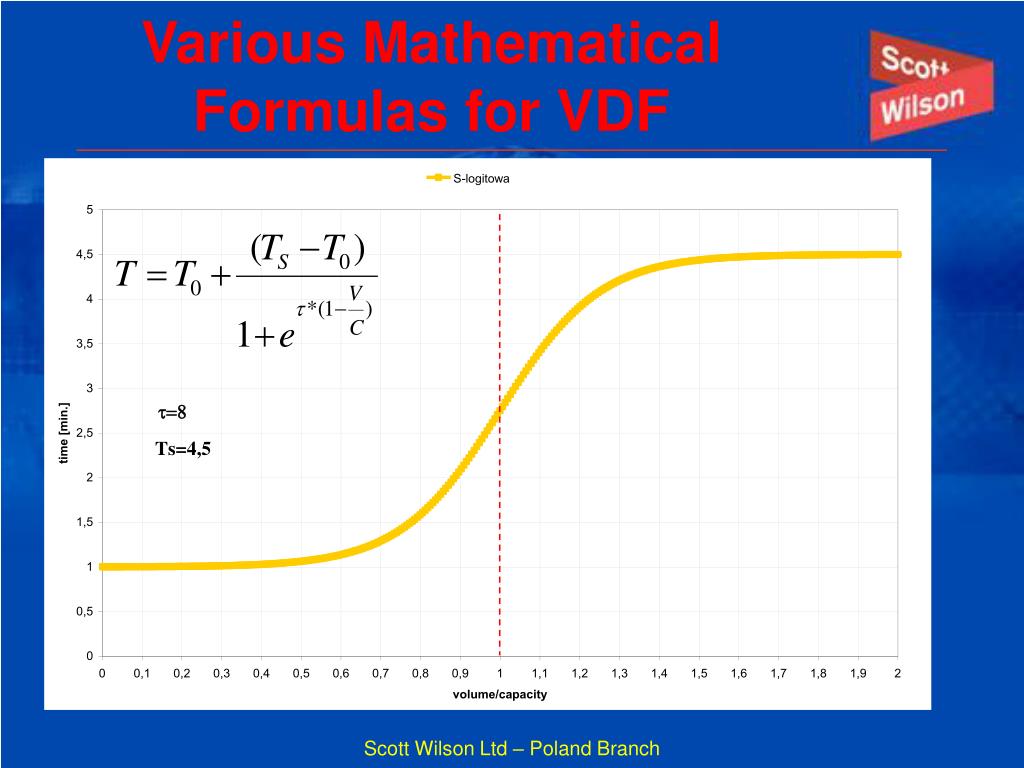

Various Mathematical Formulas for VDF

Scott Wilson Ltd – Poland Branch

slide12

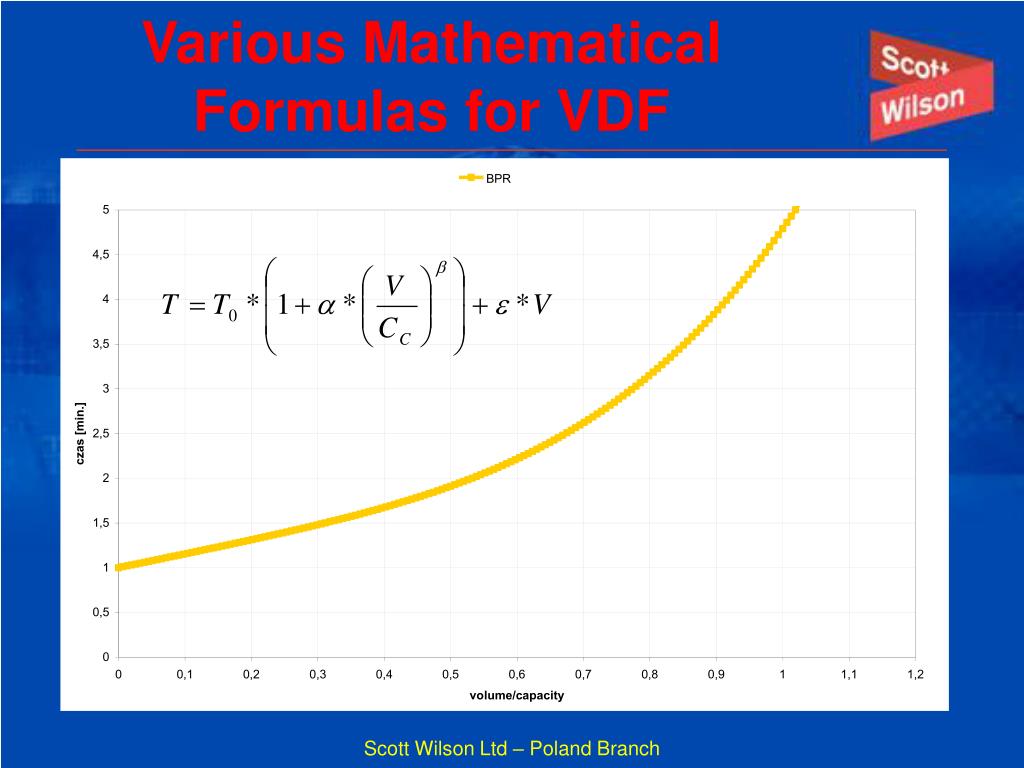

Various Mathematical Formulas for VDF

Scott Wilson Ltd – Poland Branch

slide13

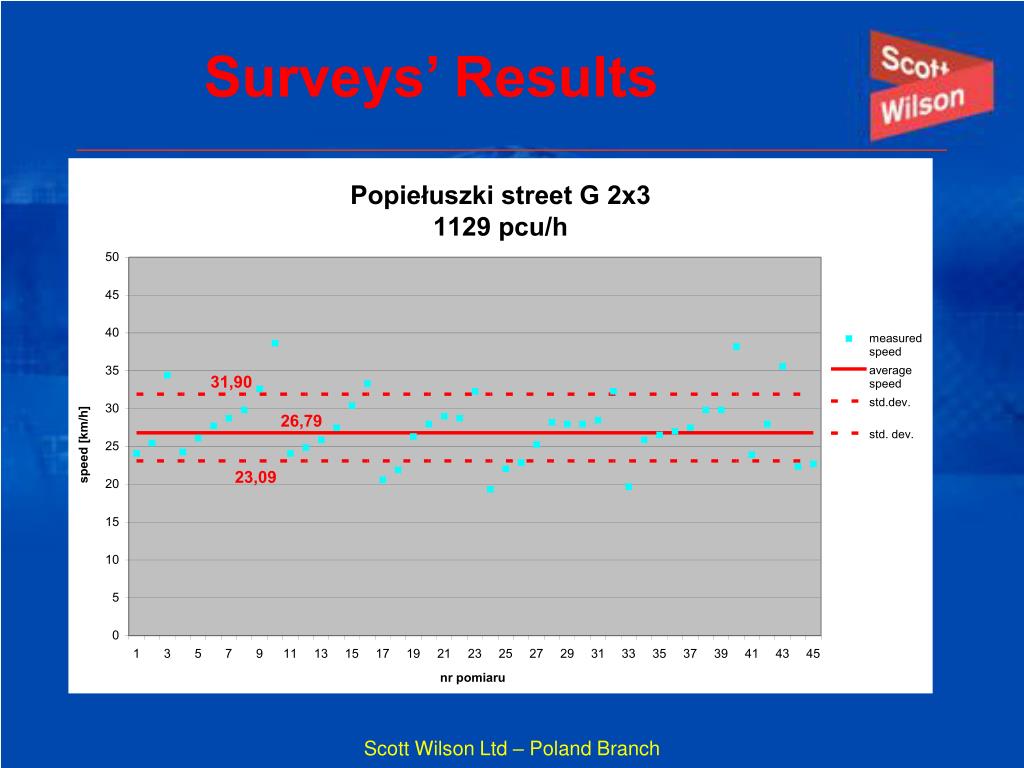

Surveys’ Results

Scott Wilson Ltd – Poland Branch

slide14

Surveys’ Results

t

Scott Wilson Ltd – Poland Branch

surveys results
Surveys’ Results

Scott Wilson Ltd – Poland Branch

new function
New Function

b – odd integer >1

Scott Wilson Ltd – Poland Branch

mathematical condition

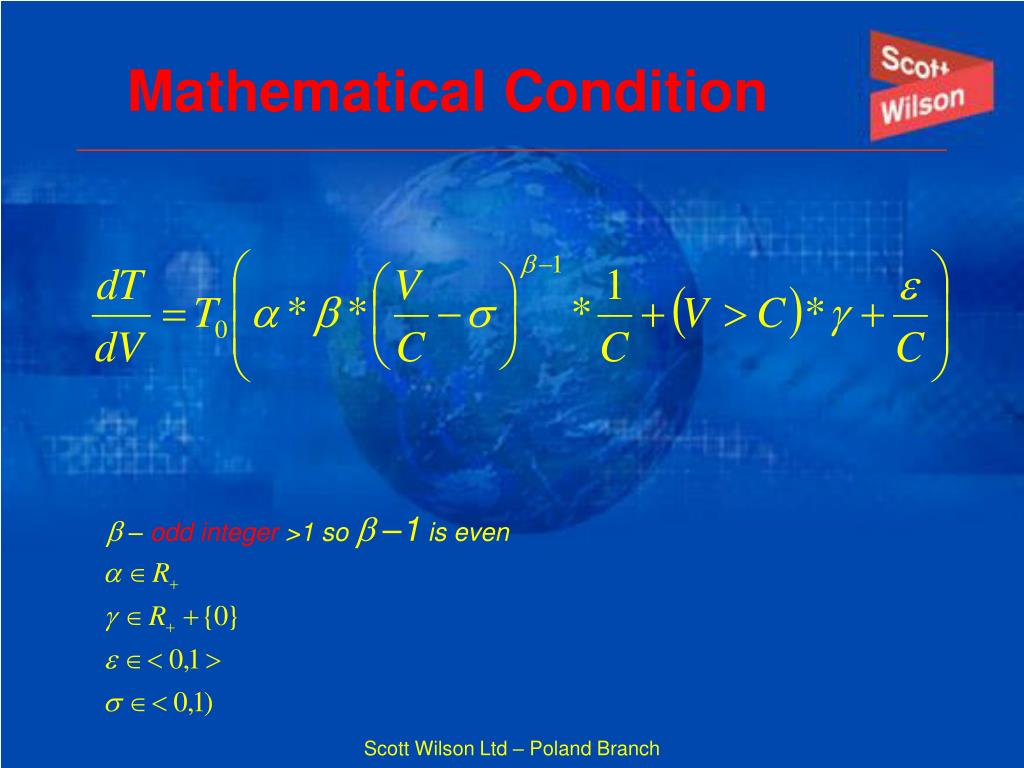

Mathematical Condition

b – odd integer >1 so b –1 is even

Scott Wilson Ltd – Poland Branch

continuity
Continuity

Scott Wilson Ltd – Poland Branch

new function19
New Function

Scott Wilson Ltd – Poland Branch

what does it mean free flow speed
What Does it Mean “free flow speed”?

Scott Wilson Ltd – Poland Branch

function and surveys
Function and Surveys

Scott Wilson Ltd – Poland Branch

emme i mplementation

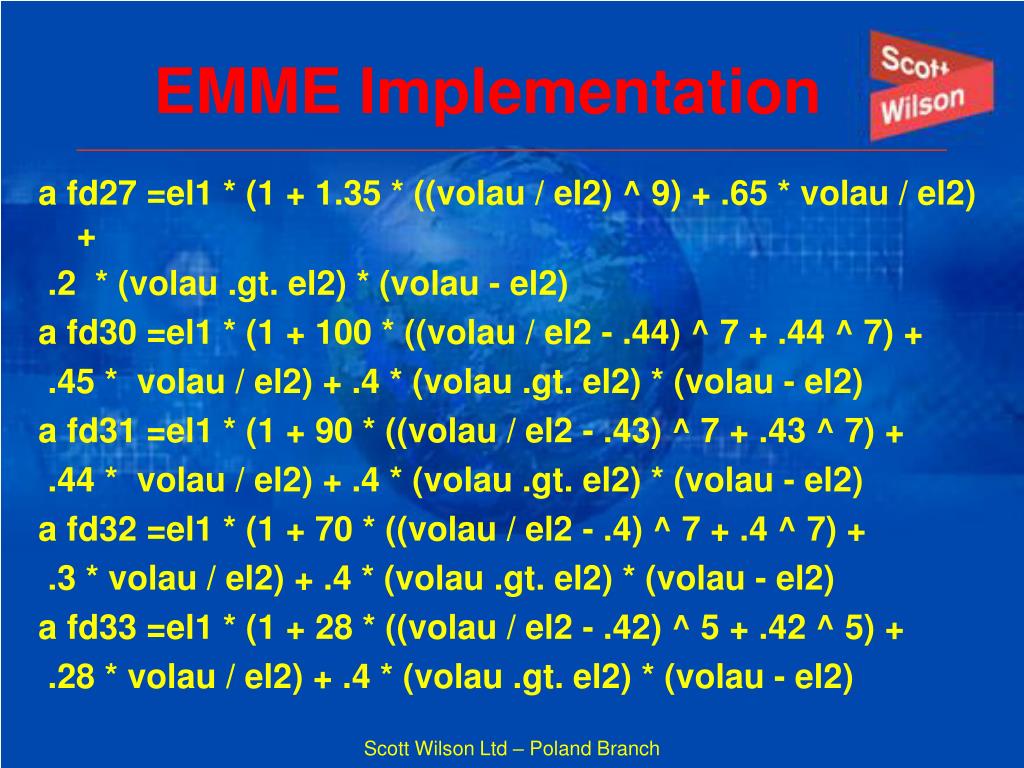

EMME Implementation

a fd27 =el1 * (1 + 1.35 * ((volau / el2) ^ 9) + .65 * volau / el2) +

.2 * (volau .gt. el2) * (volau - el2)

a fd30 =el1 * (1 + 100 * ((volau / el2 - .44) ^ 7 + .44 ^ 7) +

.45 * volau / el2) + .4 * (volau .gt. el2) * (volau - el2)

a fd31 =el1 * (1 + 90 * ((volau / el2 - .43) ^ 7 + .43 ^ 7) +

.44 * volau / el2) + .4 * (volau .gt. el2) * (volau - el2)

a fd32 =el1 * (1 + 70 * ((volau / el2 - .4) ^ 7 + .4 ^ 7) +

.3 * volau / el2) + .4 * (volau .gt. el2) * (volau - el2)

a fd33 =el1 * (1 + 28 * ((volau / el2 - .42) ^ 5 + .42 ^ 5) +

.28 * volau / el2) + .4 * (volau .gt. el2) * (volau - el2)

Scott Wilson Ltd – Poland Branch

equilibrium assignment

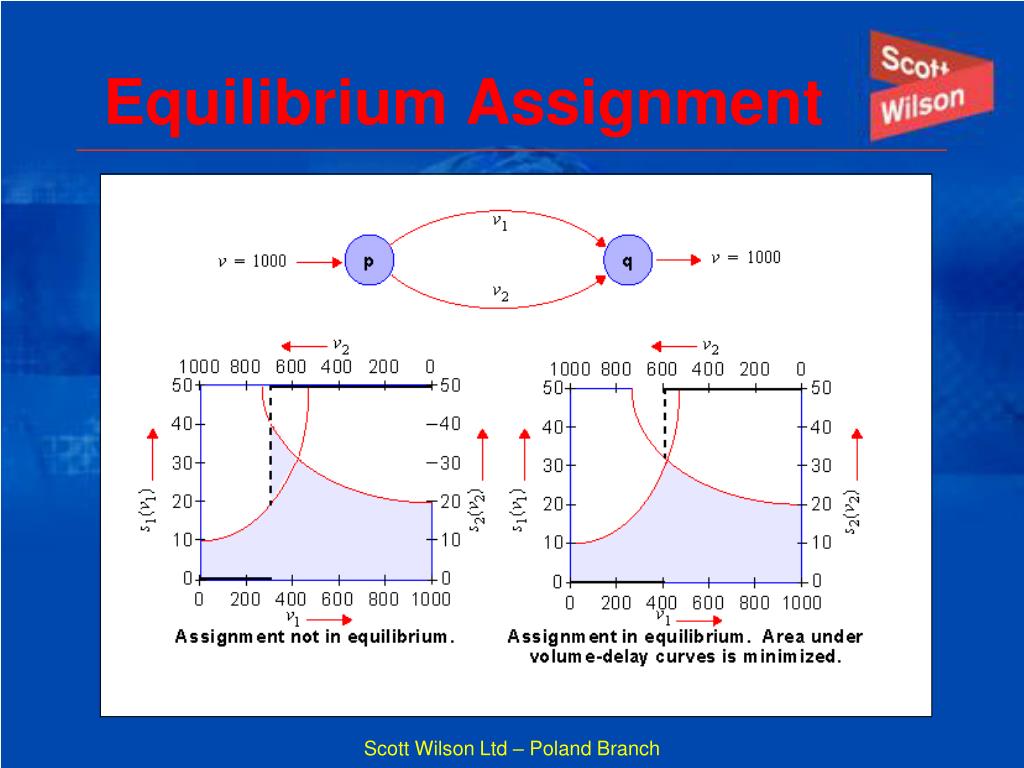

Equilibrium Assignment

Scott Wilson Ltd – Poland Branch

equilibrium assignment24
Equilibrium Assignment

Scott Wilson Ltd – Poland Branch

h ow does i t w ork
HowDoes It Work?

- capacity 700 pcu/h

- free flow speed 70 km/h

- speed on the capacity limit 20 km/h

- practical capacity 0,65 capacity

- speed on the practical capacity limit ~ 45 km/h

Scott Wilson Ltd – Poland Branch

various functions

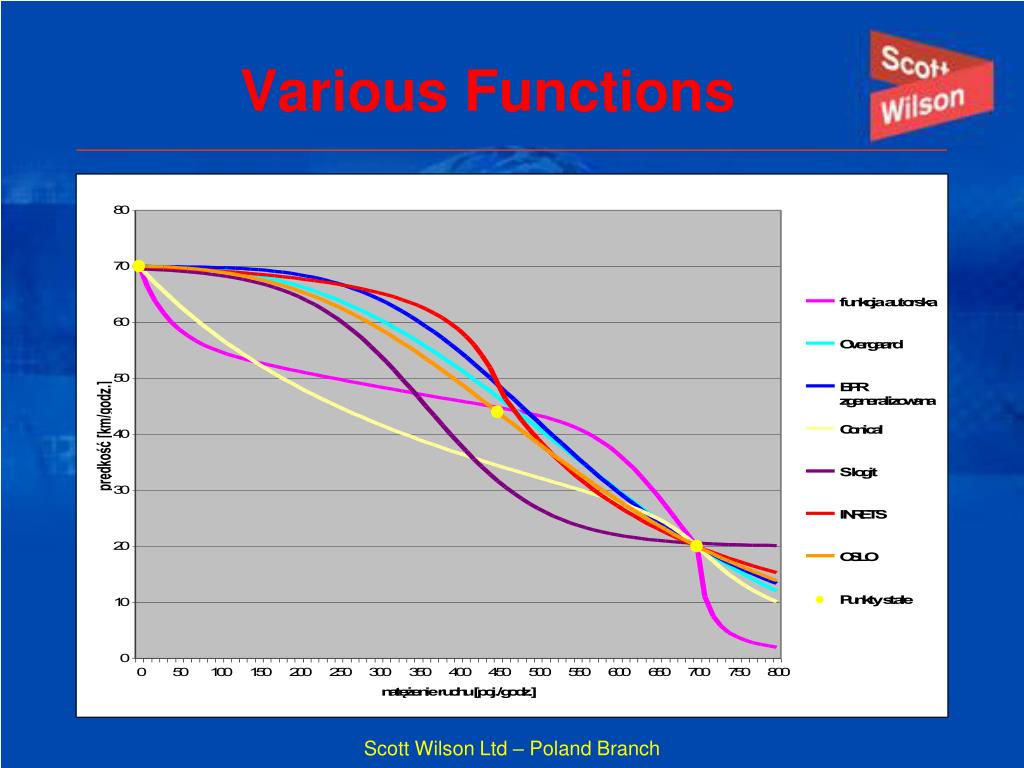

Various Functions

Scott Wilson Ltd – Poland Branch

results for various functions

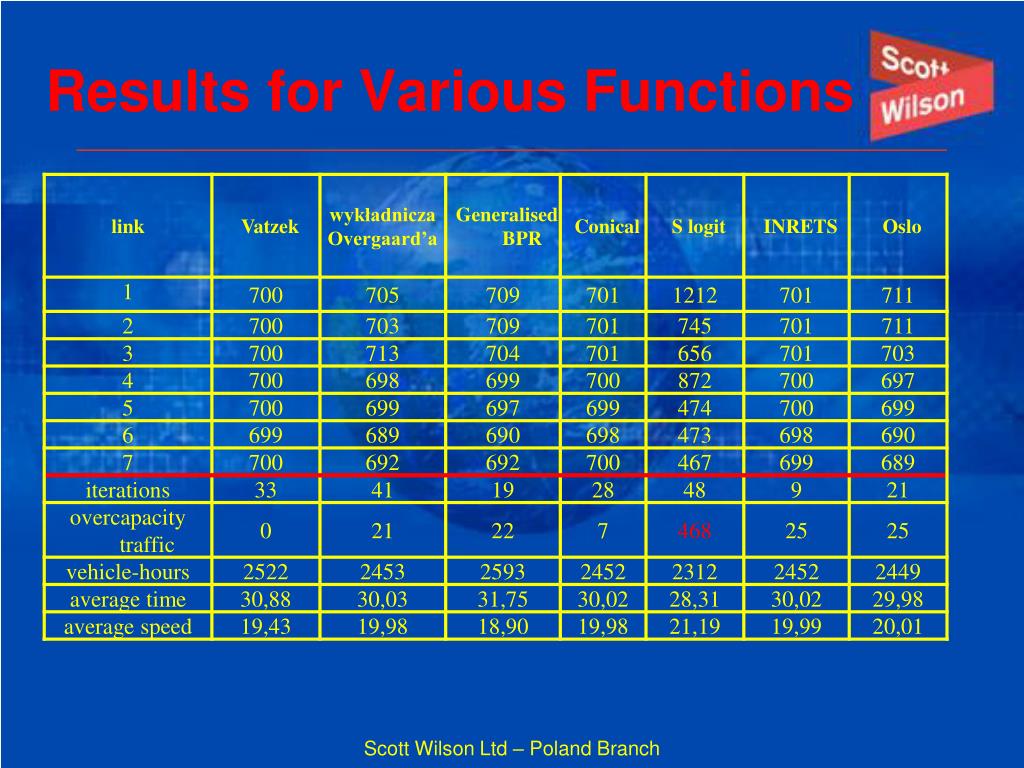

Results for Various Functions

Scott Wilson Ltd – Poland Branch

matrix reduction to eliminate overcapacity
Matrix Reduction to Eliminate Overcapacity

Scott Wilson Ltd – Poland Branch

slide29
NO FUNCTION IS PERFECT!

Scott Wilson Ltd – Poland Branch

disadvantages

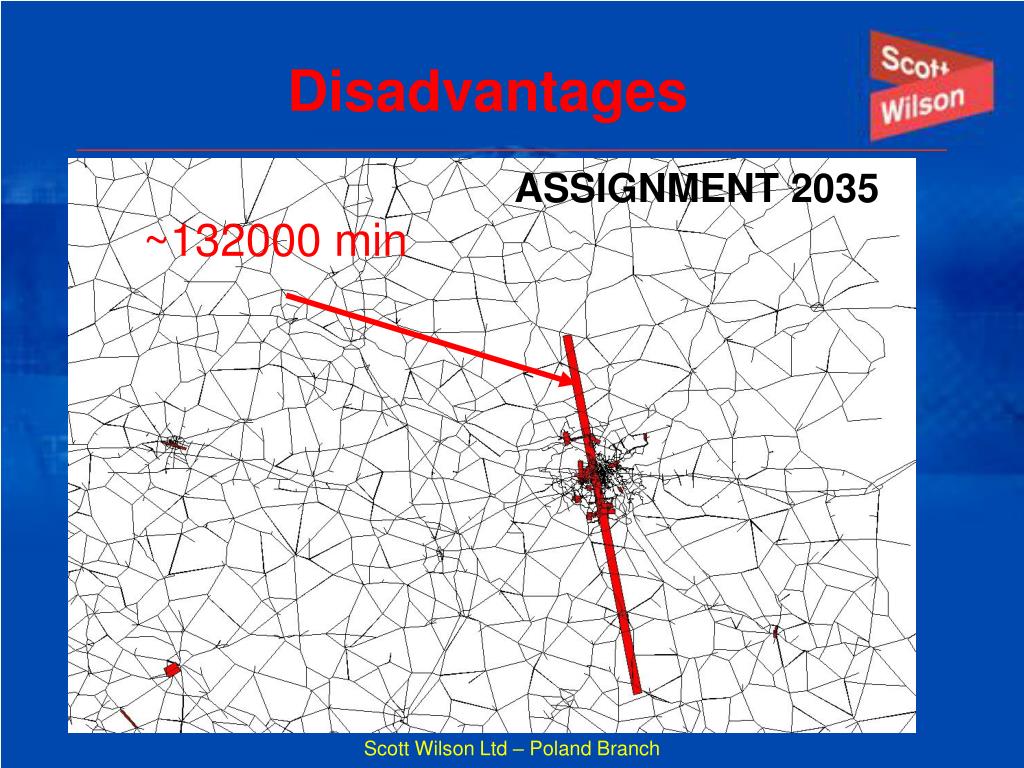

Disadvantages

ASSIGNMENT 2035

~132000 min

Scott Wilson Ltd – Poland Branch

r eason n o alternative paths
Reason? No alternative paths

Scott Wilson Ltd – Poland Branch

s olution
Solution
  • Check network carefully and add new possible links – even local to add extra capacity
  • Add extra capacity or additional centroid connector

Scott Wilson Ltd – Poland Branch
