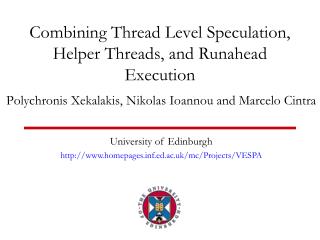

Combining Thread Level Speculation, Helper Threads, and Runahead Execution

University of Edinburgh

http://www.homepages.inf.ed.ac.uk/mc/Projects/VESPA

Polychronis Xekalakis, Nikolas Ioannou and Marcelo Cintra

introduction
Introduction
  • Single core, out-of-order cores don’t scale
    • Simpler solution: multi-core architectures
  • No speedup for single thread applications
    • Use Thread Level Speculation to extract TLP
    • Use Helper Threads or RunAhead to improve ILP
  • However for different apps. (or phases) some models work better than some others
  • Our Proposal:
    • Combine these execution models
    • Decide at runtime when to employ them

ICS 2009

contributions
Contributions
  • Introduce mixed Speculative Multithreading (SM) Execution Models
  • Design one that combines TLS, HT and RA
  • Propose a performance model able to quantify ILP and TLP benefits
  • Unified approach outperforms state-of-the-art SM models:
    • TLS by 10.2% avg. (up to 41.2%)
    • RA by 18.3 % avg. (up to 35.2%)

ICS 2009

outline
Outline
  • Introduction
  • Speculative Multithreading Models
  • Performance Model
  • Unified Scheme
  • Experimental Setup and Results
  • Conclusions

ICS 2009

helper threads
Helper Threads
  • Compiler deals with:
    • Memory ops miss/ hard-to-predict branches
    • Backward slices
  • HW deals with:
    • Spawn threads
    • Different context
    • Discard when finished
  • Benefit:
    • ILP (Prefetch/Warmup)

ICS 2009

runahead execution
RunAhead Execution
  • Compiler deals with:
    • Nothing
  • HW deals with:
    • Different context
    • When to do RA
    • VP Memory
    • Commit/Discard
  • Benefit:
    • ILP (Prefetch/Warmup)

ICS 2009

thread level speculation
Thread Level Speculation
  • Compiler deals with:
    • Task selection
    • Code generation
  • HW deals with:
    • Different context
    • Spawn threads
    • Detecting violations
    • Replaying
    • Arbitrate commit
  • Benefit: TLP/ILP
    • TLP (Overlapped Execution)
      • + ILP (Prefetching)

ICS 2009

outline1
Outline
  • Introduction
  • Speculative Multithreading Models
  • Performance Model
  • Unified Scheme
  • Experimental Setup and Results
  • Conclusions

ICS 2009

understanding performance benefits
Understanding Performance Benefits
  • Complex TLS thread interactions, obscure performance benefits
  • Even more true for mixed execution models
  • We need a way to quantify ILP and TLP contributions to bottom-line performance
  • Proposed model:
    • Able to break benefits in ILP/TLP contributions

ICS 2009

performance model
Performance Model
  • Sall = Sseq x Silp x Sovl
    • Compute overall speedup (Sall)

Tseq/Tmt

ICS 2009

performance model1
Performance Model
  • Sall = Sseq x Silp x Sovl
    • Compute overall speedup (Sall)
    • Compute sequential TLS speedup (Sseq)

Tseq/T1p

ICS 2009

performance model2
Performance Model
  • Sall = Sseq x Silp x Sovl
    • Compute overall speedup (Sall)
    • Compute sequential TLS speedup (Sseq)
    • Compute speedup due to ILP (Silp)

(T1+T2)/(T1’+T2’)

ICS 2009

performance model3
Performance Model
  • Sall = Sseq x Silp x Sovl
    • Compute overall speedup (Sall)
    • Compute sequential TLS speedup (Sseq)
    • Compute speedup due to ILP (Silp)
    • Use everything to compute TLP (Sovl)

Sall/(Sseq x Silp)

ICS 2009

outline2
Outline
  • Introduction
  • Speculative Multithreading Models
  • Performance Model
  • Unified Scheme
  • Experimental Setup and Results
  • Conclusions

ICS 2009

unified execution model
Unified Execution Model
  • Can we improve TLS?
    • Some of the threads do not help
    • Slack in usage of cores
  • Improve TLP:
    • Requires a better compiler
  • Improve ILP:
    • Combine TLS with another SM !
    • Most of the HW common

ICS 2009

combining tls ht and ra
Combining TLS, HT and RA
  • Start with TLS
  • Provide support to clone TLS threads and convert them to HT
  • Conversion to HT means:
    • Put them in RA mode
    • Suppress squashes and do not cause additional squashes
    • Discard them when they finish
  • No compiler slicing  purely HW approach

ICS 2009

intricacies to be handled
Intricacies to be Handled
  • HT may not prefetch effectively!
  • Dealing with contention
    • HT threads much faster  saturate BW
  • Dealing with thread ordering
    • TLS imposes total thread order
    • HT killed  squashes TLS threads

ICS 2009

creating and terminating ht
Creating and Terminating HT
  • Create a HT on a L2 miss we can VP
    • Use mem. address based confidence estimator
    • VP only if confident
  • Create a HT if we have a free processor
  • Only allow most speculative thread to clone
    • Seamless integration of HT with TLS
    • BUT: if parent no longer the most spec. TLS thread, the HT has to be killed
  • Additionally kill HT when:
    • Parent/HT thread finishes
    • HT causes exception

ICS 2009

outline3
Outline
  • Introduction
  • Speculative Multithreading Models
  • Performance Model
  • Unified Scheme
  • Experimental Setup and Results
  • Conclusions

ICS 2009

experimental setup
Experimental Setup
  • Simulator, Compiler and Benchmarks:
    • SESC (http://sesc.sourceforge.net/)
    • POSH (Liu et al. PPoPP ‘06)
    • Spec 2000 Int.
  • Architecture:
    • Four way CMP, 4-Issue cores
    • 16KB L1 Data (multi-versioned) and Instruction Caches
    • 1MB unified L2 Caches
    • Inst. window/ROB – 80/104 entries
    • 16KB Last Value Predictor

ICS 2009

comparing tls runahead and unified scheme1
Comparing TLS, RunAhead and Unified Scheme
  • Almost additive benefits

ICS 2009

comparing tls runahead and unified scheme2
Comparing TLS, RunAhead and Unified Scheme
  • Almost additive benefits
  • 10.2% over TLS, 18.3% over RA

ICS 2009

understanding the extra ilp
Understanding the extra ILP
  • Improvements of ILP come from:
    • Mainly memory
    • Branch prediction (improvement 0.5%)
  • Focus on memory:
    • Miss rate on committed path
    • Clustering of misses (different cost)

ICS 2009

normalized shared cache misses
Normalized Shared Cache Misses
  • All schemes better than sequential
  • Unified 41% better than sequential

ICS2009

isolated vs clustered misses
Isolated vs. Clustered Misses

.

  • Both TLS + RA  Large window machines
  • Unified does even better

ICS 2009

outline4
Outline
  • Introduction
  • Multithreading Models
  • Performance Model
  • Unified Scheme
  • Experimental Setup and Results
  • Conclusions

ICS 2009

also on the paper
Also on the paper …
  • Dealing with the load of the system
  • Converting TLS threads to HT
  • Multiple HT
  • Effect of a better VP
  • Detailed comparison of performance model against existing models (Renau et. al ICS ’05)

ICS 2009

conclusions
Conclusions
  • CMPs are here to stay:
    • What about single threaded apps. and apps with significant seq. sections?
  • Different apps. require different SM techniques
    • Even within apps. different phases
  • We propose the first mixed execution model
    • TLS is nicely complemented by HT and RA
  • Our unified scheme outperforms existing SM models
    • TLS by 10.2% avg. (up to 41.2%)
    • RA by 18.3 % avg. (up to 35.2%)

ICS 2009
