what is an orbital diagram
What is an orbital diagram?
  • An orbital diagram is a representation of an atom where arrows in boxes are used to show the electron configuration of the atom.

s =  p =  d =  f = 

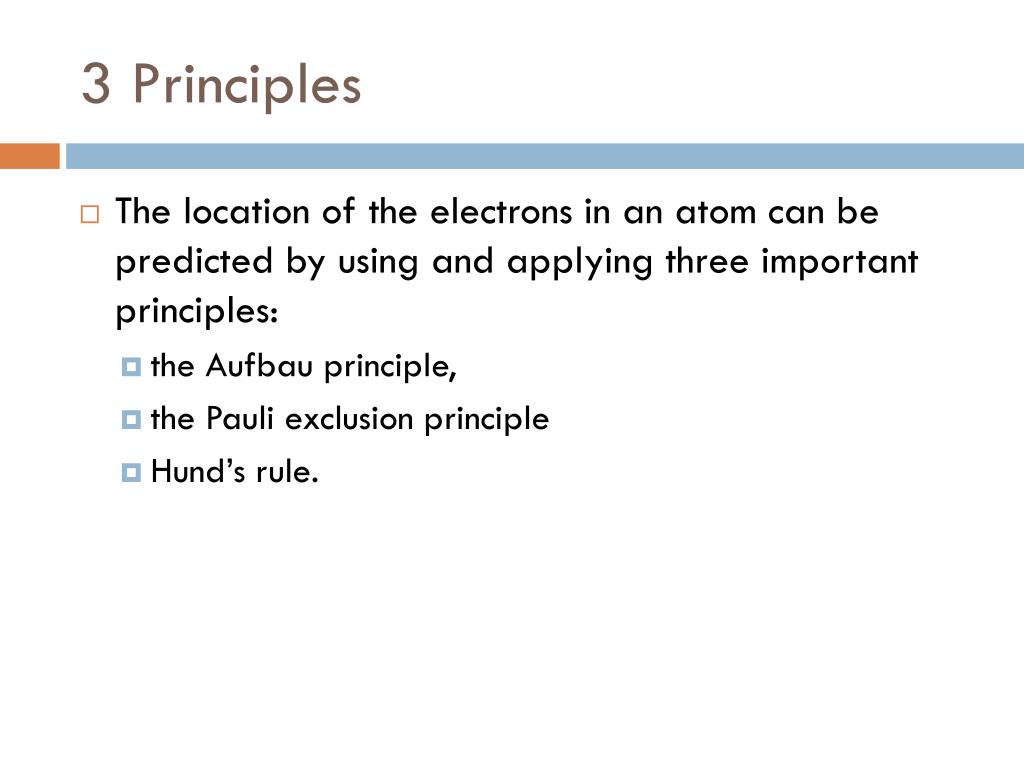

3 principles
3 Principles
  • The location of the electrons in an atom can be predicted by using and applying three important principles:
    • the Aufbau principle,
    • the Pauli exclusion principle
    • Hund’srule.
aufbau principle
Aufbau Principle
  • The Aufbau Principle states that electrons are added one at a time to the lowest energy orbital available until all the electrons of the atom have been accounted for.
pauli exclusion principle
Pauli Exclusion Principle
  • The Pauli Exclusion Principle states that an orbital can hold a maximum of 2 electrons. To occupy the same orbital, 2 electrons must spin in opposite directions. Each electron is represented by an arrow. The arrow points upward when the electron spin () is counterclockwise and downward when the electron spin is clockwise.
hund s rule
Hund’s Rule
  • The Hund’sRule states that electrons occupy equal-energy orbitals so that a maximum number of unpaired electrons results.

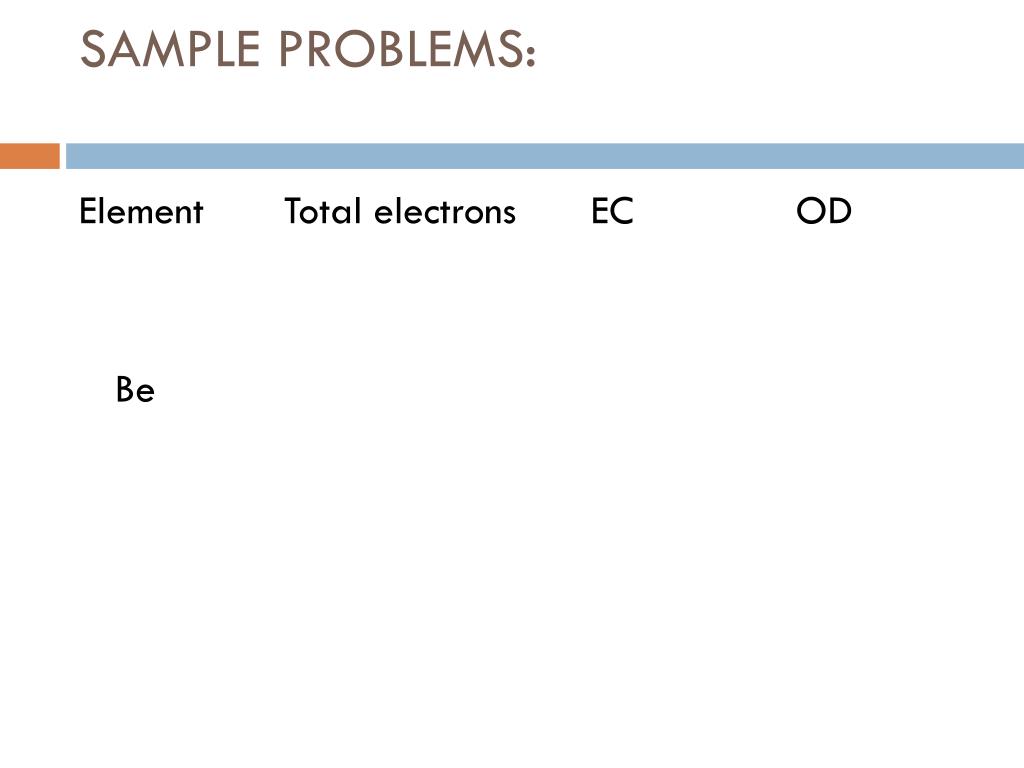

sample problems
SAMPLE PROBLEMS:

Element Total electrons EC OD

Be
