  1. CXP HSMC Power Diagram Author: Lennard Streat Date: 5/14/2014

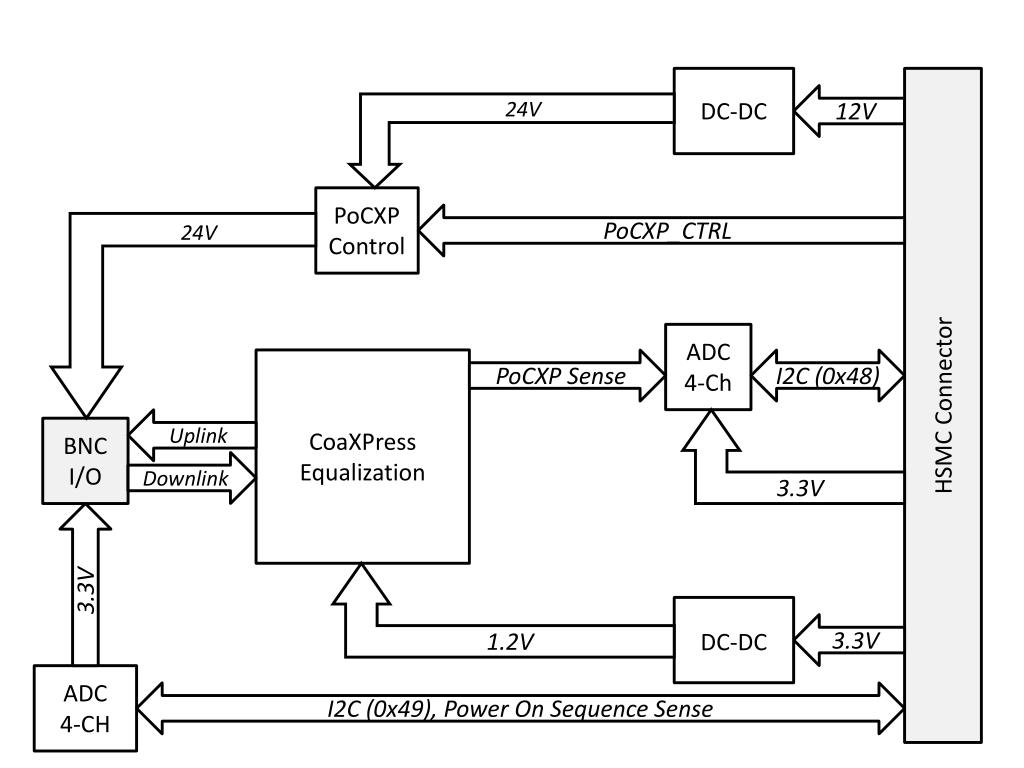

  2. DC-DC 12V 24V PoCXP Control PoCXP_CTRL 24V ADC 4-Ch CoaXPress Equalization PoCXP Sense I2C (0x48) HSMC Connector Uplink 3.3V BNC I/O Downlink 3.3V 1.2V DC-DC 3.3V ADC 4-CH I2C (0x49), Power On Sequence Sense

  3. TPS55340 12V @ 3.23A 24V @ 1.3A PoCXP0 PoCXP 1 PoCXP 2 PoCXP 3 LM3671-1.2 3.3V @ 0.1A 1.2V @ 0.24A Equalizer 0 Equalizer 1 Equalizer 2 HSMC Power Supply Equalizer 3 Current Sense Amplifiers (4x) PoCXP ADC Device Detect (Power Sequence) ADC Power-On Sequence Sense Supply
