Presentation Transcript
connectivity diagram
Connectivity Diagram

WGT

OrCU

Router

Ethernet (CAT5)

Connect to Lan2

Ethernet (CAT5)

Connect to Lan1

Internet

  • Open and mount the WGT according to the manual
  • Connect the WGT to power (120Volt)
  • Open and mount the OrCU according to the manual
  • Connect the OrCU to power (120Volt)
  • Connect the WGT with Ethernet cable to “Lan1” connector of the OrCU
  • Connect the OrCU to the Internet Router with Ethernet cable from “Lan2” connector

FHO Server

port forwarding
Port Forwarding
  • Click Start -> Run
  • Type “cmd” and press Enter
  • Type “ipconfig /all” in the new Command Prompt Window
  • Write down the IPv4 value of the result (i.e. 192.168.10.25)
  • Browse to your Internet Router (in most cases http://192.168.x.1, where “x” represent the bold value of step 4)
  • Login to you router (“admin/password” is the default login)
  • Locate the “Advanced” menu and look for “Port Forwarding” option (sometimes it can be found under “Network” or “Applications” menus)
  • Add a new port forwarding by creating a named instance (“DP Only” for example) and adding the IP address of the OrCU (default IP is 192.168.x.y, where “x” represent the bold value of step 4 and “y” represents the value from the last step of IP Assignment page)
  • Choose the type of protocol – Both (support TCP and UDP)
  • Choose Local Port as 6443 (sometimes referred to as “Private Port”)
  • Choose Remote Port as 6443 (also referred to as “Public Port”)
  • Apply new setting and reboot the router.
network information
Network Information
  • Click “Start” – “Run”
  • Type “ipconfig /all” and press Enter
  • Write down the values of IPv4, Mask, Gateway, DNS Servers
ip assignment

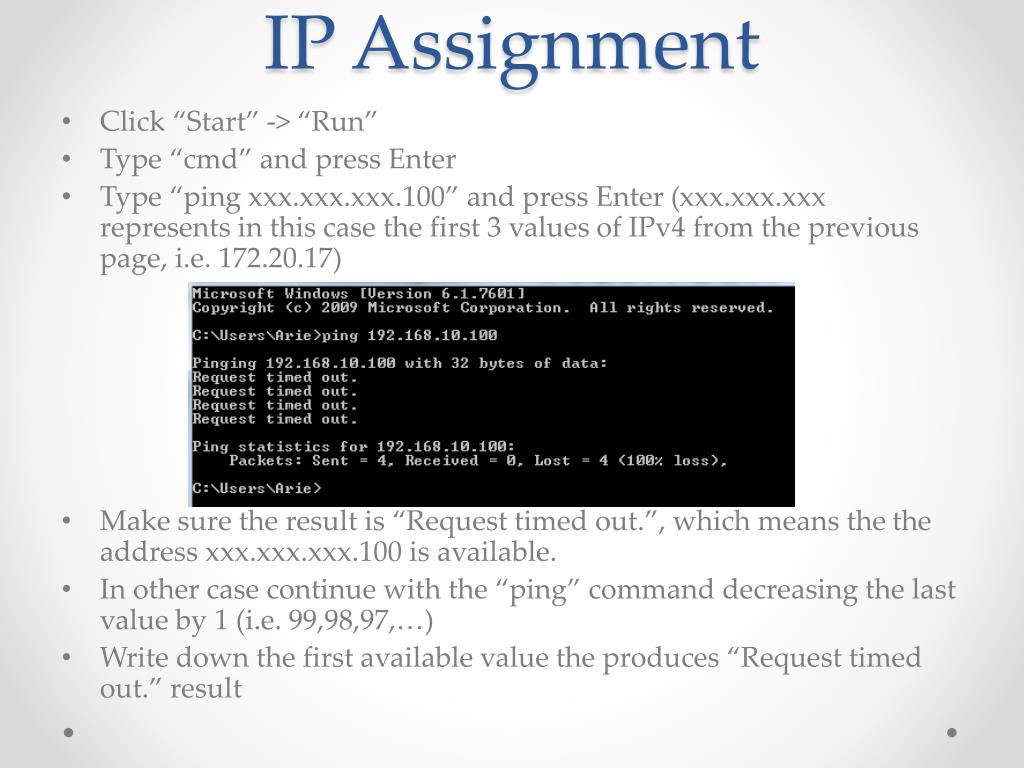

IP Assignment
  • Click “Start” -> “Run”
  • Type “cmd” and press Enter
  • Type “ping xxx.xxx.xxx.100” and press Enter (xxx.xxx.xxx represents in this case the first 3 values of IPv4 from the previous page, i.e. 172.20.17)
  • Make sure the result is “Request timed out.”, which means the the address xxx.xxx.xxx.100 is available.
  • In other case continue with the “ping” command decreasing the last value by 1 (i.e. 99,98,97,…)
  • Write down the first available value the produces “Request timed out.” result
