  1. AIXM 5 Development Status

  2. AIXM – the first versions AIP Sources

  3. AIXM - Internationalization Complete Data Model (Military/Civilian) Standards (ISO) Global Requirements

  4. AIXM 5 - Global Standard AIXM

  5. Mission • Based on global aeronautical data requirements • ICAO standards and practices • Industry requirements • Modular and extensible • Support current and future AIM information system requirements • Digital AIPs • Automated charting and publications • Integrated digital NOTAMs • Aerodrome Mapping Databases and applications • Situational displays • Etc.

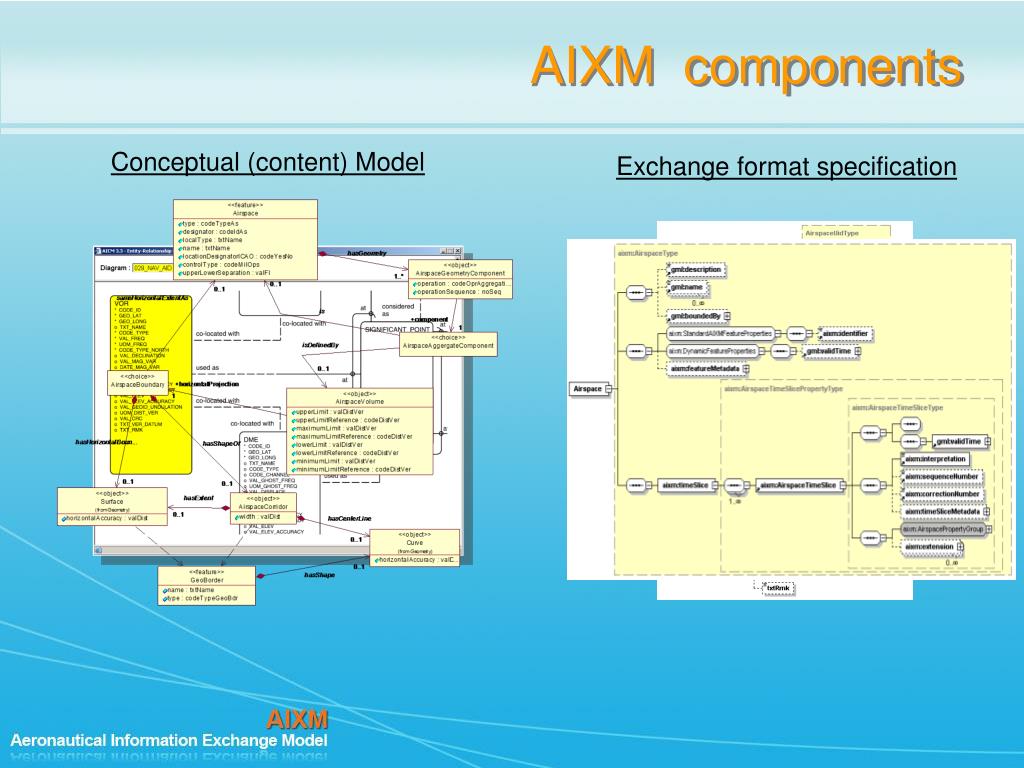

  6. AIXM components Conceptual (content) Model Exchange format specification

  7. Timeline AIXM 3.3

  8. AIXM 5 RC 1 • First draft UML model and XML schema • Starting from AIXM 4.5 • Still missing many features and attributes that are necessary in order to support digital NOTAMs

  9. Timeline AIXM 3.3

  10. AIXM 5 RC 2 • Support for Airport Mapping Database (AMDB) • Obstacle model -> Vertical Structures model • Full compliance with the Geography Markup Language (ISO 19136) XML Schema • Refinement of the Temporality model • Punctual corrections and extensions following feedback from the stakeholder community

  11. Timeline AIXM 3.3

  12. AIXM 5 RC 3 • Objectives • model for Aerial Refuelling Routes • model for Military Training Routes • “Digital NOTAM” message format • revision of the Service model ? • rules for AIXM application schemas

  13. Validation and implementation AIXM 3.3

  14. AIXM 5 trials • EUROCONTROL • (TU Darmstadt, 2006) AMDB-xNOTAM • (TU Darmstadt, 2007) Procedures-xNOTAM • xNOTAM Trial (JAN-JUN 2008) • FAA • Digital NOTAM submission project …more details after the lunch break!
