Presentation Transcript
slide1

“Hydrogem” -a new glycerin additive to improve the application of agrochemicals

Ariel Orlando Destéfano, Centro-Oeste, Agricultura Rondonopolis, MT, Brazil [holder of patent]

Alan McCracken,

Owner MACBRI ProdutosAgricolasLtda, Brazil.

slide3

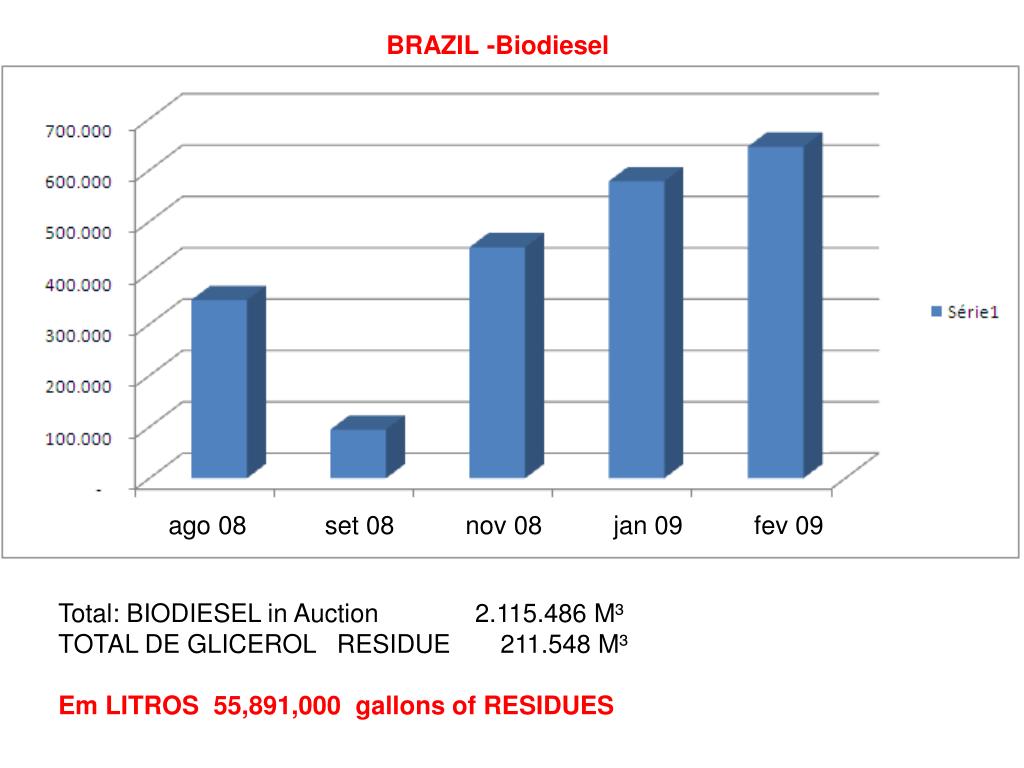

BRAZIL -Biodiesel

ago 08 set 08 nov 08 jan 09 fev 09

Total: BIODIESEL in Auction 2.115.486 M³

TOTAL DE GLICEROL RESIDUE 211.548 M³

Em LITROS 55,891,000 gallons of RESIDUES

slide4

Brasília – With a production of 317 million gallons of biodiesel em 2008, Brazil has beccome the third largest producer and consumer in the world, only behind Germany and USA.

However the production capacity in jan 2009 reached, 978 million gallons.

slide7

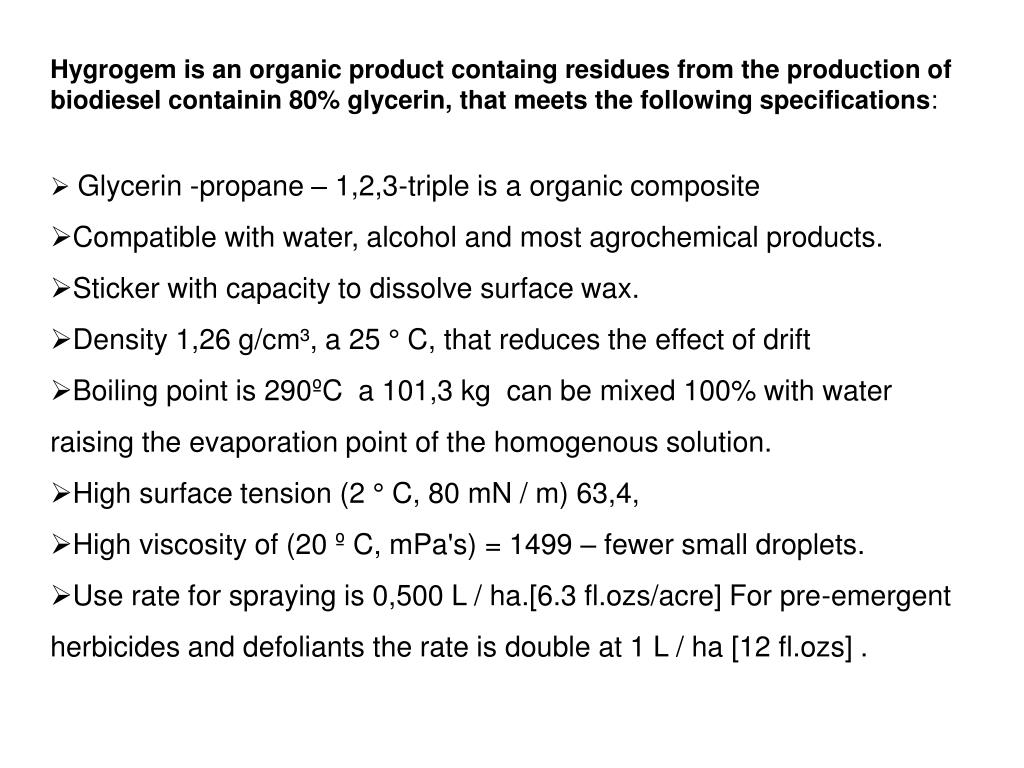

Hygrogem is an organic product containg residues from the production of biodiesel containin 80% glycerin, that meets the following specifications:

  • Glycerin -propane – 1,2,3-triple is a organic composite
  • Compatible with water, alcohol and most agrochemical products.
  • Sticker with capacity to dissolve surface wax.
  • Density 1,26 g/cm³, a 25 ° C, that reduces the effect of drift
  • Boiling point is 290ºC a 101,3 kg can be mixed 100% with water raising the evaporation point of the homogenous solution.
  • High surface tension (2 ° C, 80 mN / m) 63,4,
  • High viscosity of (20 º C, mPa's) = 1499 – fewer small droplets.
  • Use rate for spraying is 0,500 L / ha.[6.3 fl.ozs/acre] For pre-emergent herbicides and defoliants the rate is double at 1 L / ha [12 fl.ozs] .
slide8

Hydrogem is a “patented vehicle” utilized to reduce losses and to enhance the absorption and performance of agrochemicals. The product includes natural organic products containing macro nutrients and quelatized micronutrients .

slide10

Hygrogem

in tests

Primavera - MT

slide11

E

Q

U

I

P

M

E

N

T

slide12

Evaporation test

Spray solution 10 L/ha

Water 9 L/ha + 1 L/ha de adjuvantes

Time of measurement of the droplets-every 10 minutes.

EVAPORATION RATE = COMPARISON OF INITIAL AND FINAL DIAMETER.

Conditions: Constant at 30,8°C & 67,3% Relative humidity

slide14

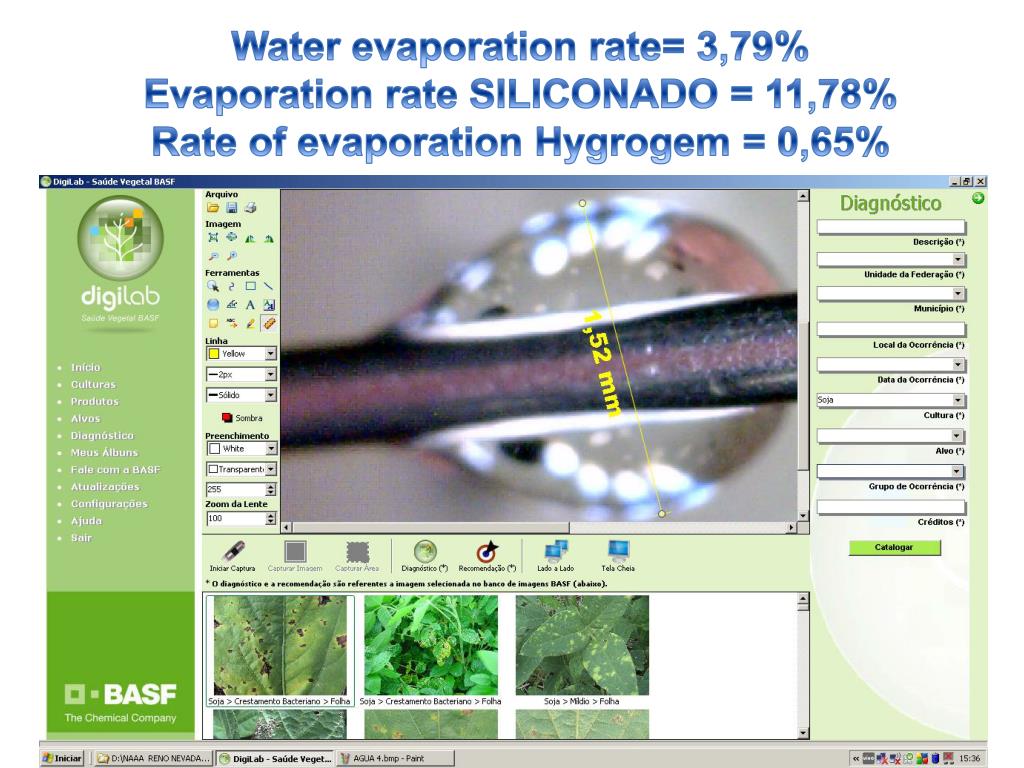

Water evaporation rate= 3,79%

Evaporation rate SILICONADO = 11,78%

Rate of evaporation Hygrogem = 0,65%

slide15

WATER

WATER + ORGANO-SILICON

Resíduos of biodiesel

Hygrogem

slide16

Surface tension

Contact angle

superficie

Area of contact

slide17

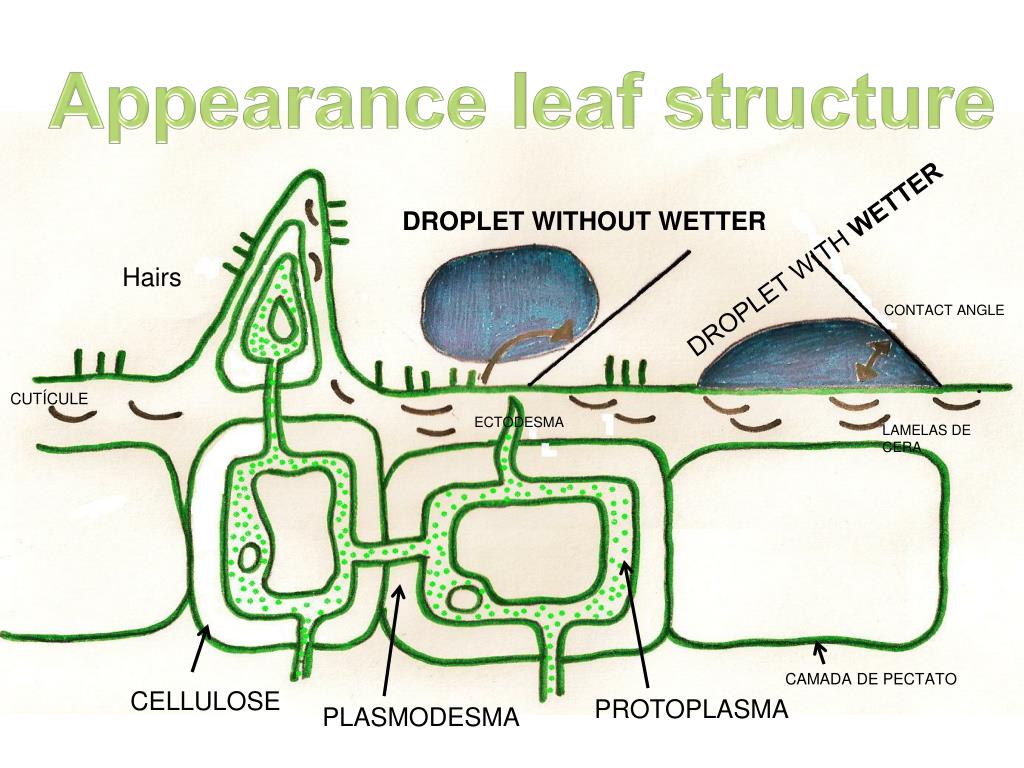

Appearance leaf structure

DROPLET WITHOUT WETTER

DROPLET WITH WETTER

Hairs

CONTACT ANGLE

CUTÍCULE

ECTODESMA

LAMELAS DE CERA

CAMADA DE PECTATO

CELLULOSE

PROTOPLASMA

PLASMODESMA

slide18

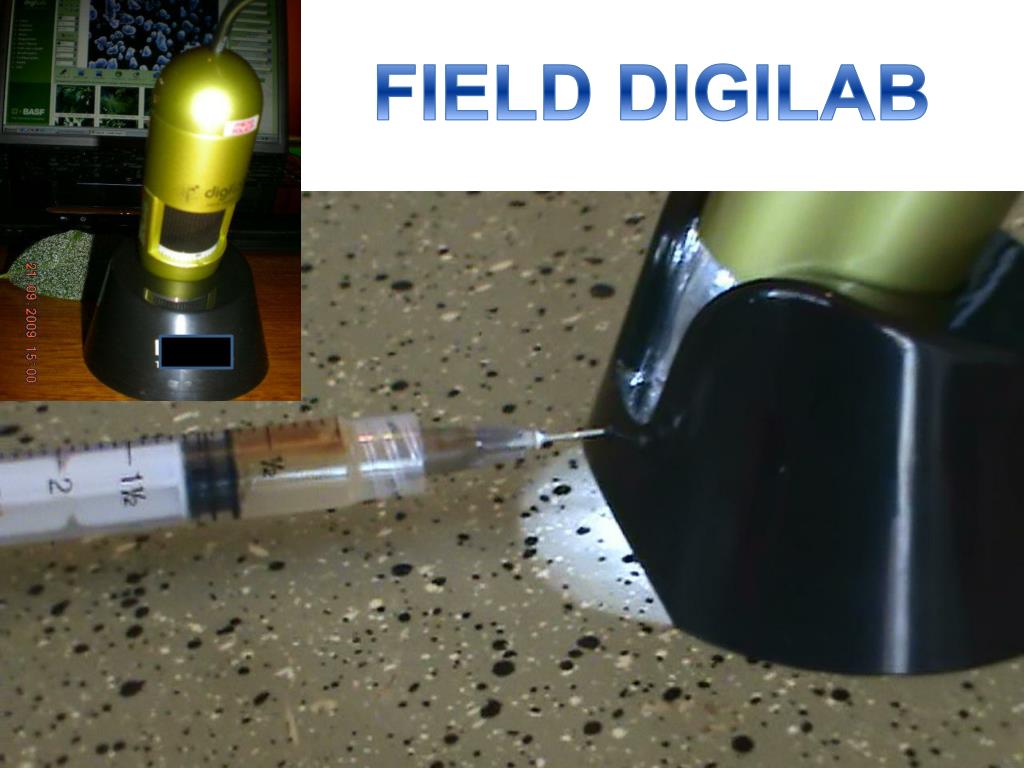

Evaporation rates using DIGILAB

WATER 3,79%

SILICONADO 11,78%

HYGROGEM 0,65%

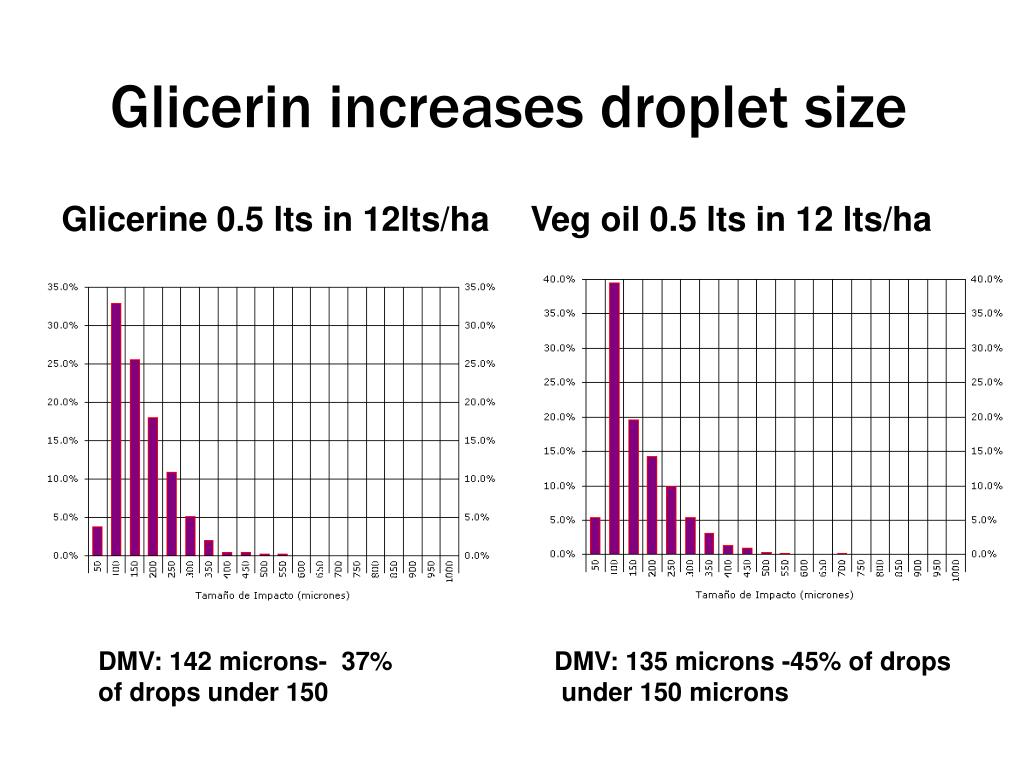

glicerin increases droplet size
Glicerin increases droplet size

Glicerine 0.5 lts in 12lts/ha

Veg oil 0.5 lts in 12 lts/ha

DMV: 142 microns- 37% of drops under 150

DMV: 135 microns -45% of drops

under 150 microns

slide22

Thanking you for your attention.

Ariel Orlando Destéfano, Centro-Oeste, Agricultura Rondonopolis, MT, Brazil [holder of patent]

coagricultura@uol.com.br

Alan McCracken,

Owner MACBRI ProdutosAgricolasLtda, Brazil.

mccracken.alan@gmail.com
