Presentation Transcript
Update on renal transplantation l.jpg

Update on Renal Transplantation

Clifford Miles, MD, MS

University of Nebraska Medical Center

Objectives l.jpg

  • Review national data for ESRD and kidney transplantation

  • Current immune suppressants, trends in use, and glimpse of the future

  • BK virus associated nephropathy

  • Proposed changes in allocation system

Adjusted prevalent rates annual percent change figure 2 22 l.jpg
Adjusted prevalent rates & annual percent change Figure 2.22

December 31 point prevalent ESRD patients; rates adjusted for age, gender, & race.

Esrd and life expectancy l.jpg
ESRD and life expectancy

N Engl J Med 1998; 338:20

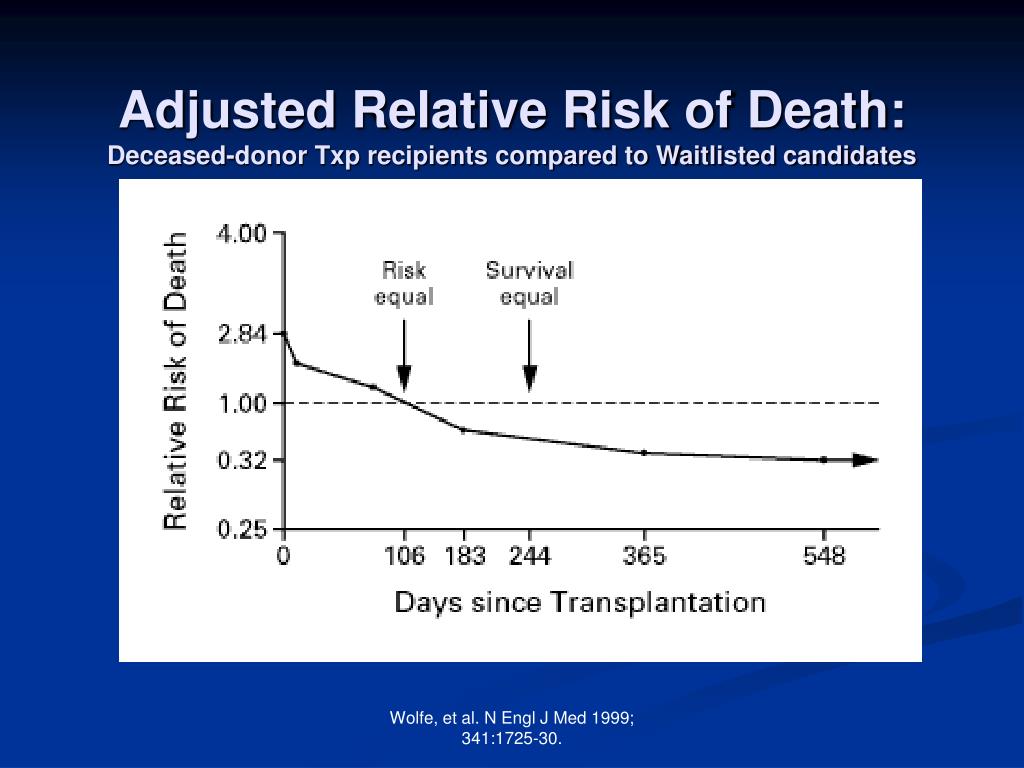

Adjusted relative risk of death deceased donor txp recipients compared to waitlisted candidates l.jpg
Adjusted Relative Risk of Death:Deceased-donor Txp recipients compared to Waitlisted candidates

Wolfe, et al. N Engl J Med 1999; 341:1725-30.

Number of transplants by donor type figure 7 1 l.jpg
Number of transplants, by donor typeFigure 7.1

Transplant counts as known to the USRDS (reconciled from various sources).

Current immunosuppressive agents l.jpg





Mycophenolic Acid





Polyclonal Anti-Thymocyte Globulin



Current Immunosuppressive Agents

† use is off-label in transplantation

Calcineurin inhibitors l.jpg
Calcineurin inhibitors

  • Prevent rejection by inhibiting IL-2 gene transcription

  • Cyclosporine (1983): Sandimmune, Neoral, Gengraf

  • Tacrolimus (1994): Prograf, generic available outside US

Calcineurin inhibitor side effects l.jpg
Calcineurin inhibitor side effects

  • Both: hypertension, hyperlipidemia, renal vasoconstriction, interstitial fibrosis, Na+ retention, hyperkalemia, Mg++ wasting, hyperuricemia, neuropathy

  • CsA: hirsutism

  • TAC: alopecia, GI distress, diabetes

  • Both: drug interactions

Baseline calcineurin inhibitor use figure 7 57 l.jpg
Baseline calcineurin inhibitor use Figure 7.57

First-time, kidney-only transplants, 1995–2005. Immunosuppression as identified to OPTN.

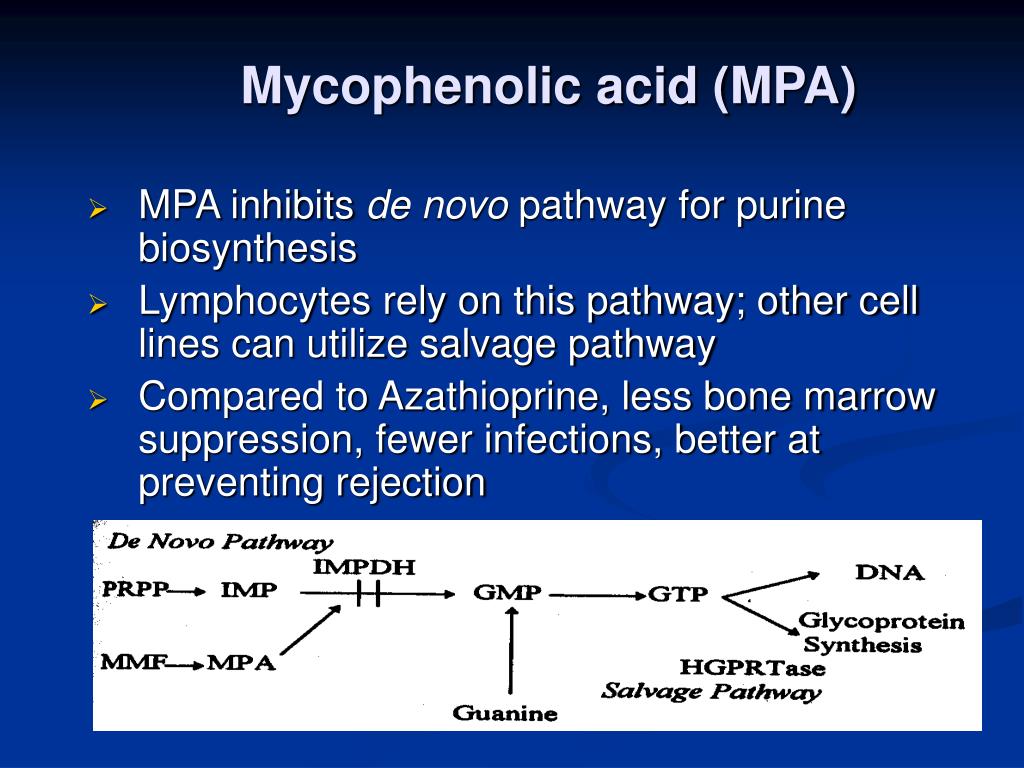

Mycophenolic acid mpa l.jpg
Mycophenolic acid (MPA)

  • MPA inhibits de novo pathway for purine biosynthesis

  • Lymphocytes rely on this pathway; other cell lines can utilize salvage pathway

  • Compared to Azathioprine, less bone marrow suppression, fewer infections, better at preventing rejection

Mycophenolic acid mpa18 l.jpg
Mycophenolic acid (MPA)

Mycophenolate sodium

Mycophenolate mofetil

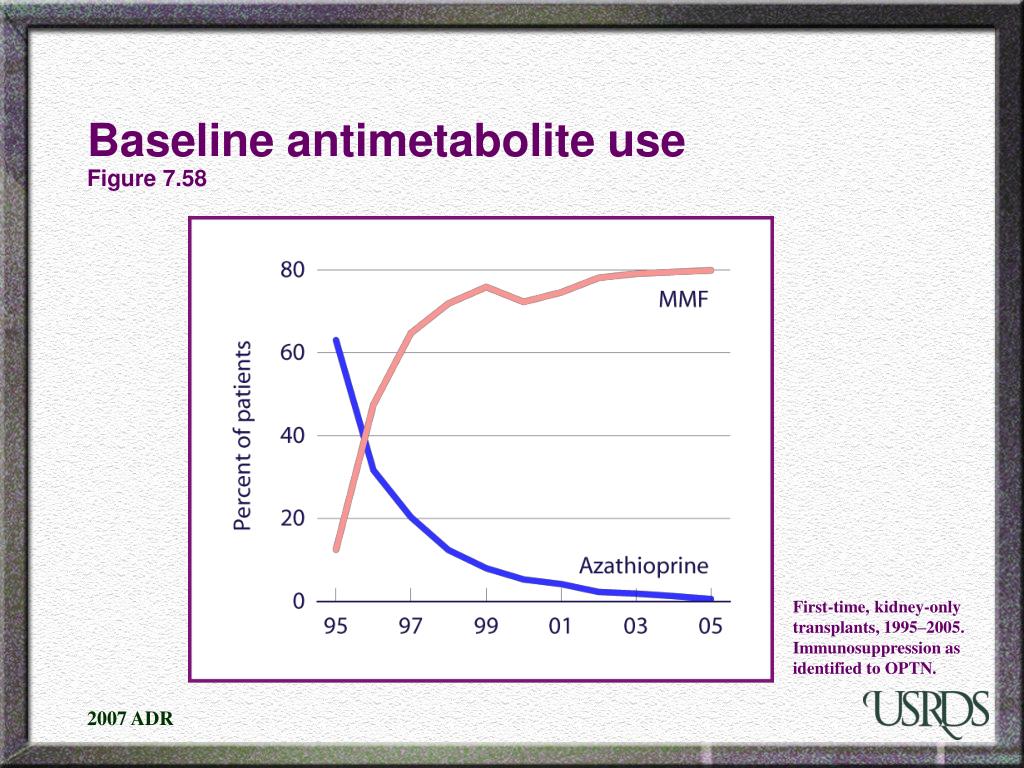

Baseline antimetabolite use figure 7 58 l.jpg
Baseline antimetabolite use Figure 7.58

First-time, kidney-only transplants, 1995–2005. Immunosuppression as identified to OPTN.

Sirolimus l.jpg

  • Macrolide isolated from Streptomyces hydroscopicus, found in the soil of Easter Island (Rapa nui)

  • FDA approval 1999 for use in transplantation

    • Phase III trials showed SRL + CsA + steroids was effective at preventing rejection

    • Expanded approval in 2003, as replacement for CsA >3 months post-transplant

Mechanism l.jpg

  • Proliferation signal inhibitor (PSI)

    • Binds to FKBP12, inhibits key kinases in signal transduction pathway of IL-2, CD-28

    • Cell cycle arrested at G1 → S


What s next l.jpg
What’s next?

  • Numerous companies, compounds, trials

  • Potential targets expand as knowledge of T cell activation increases

Halloran PF. NEJM 2004.

Everolimus l.jpg

  • 2nd “mTOR inhibitor” in transplantation

  • Differs in structure by just one hydroxyethyl group from sirolimus

  • Shorter ½ life (28 vs. 62 hours)

  • Approved for use in Europe

Potential benefits of mtor inhibitors l.jpg
Potential benefits of mTor inhibitors

  • Potent prophylaxis against acute cellular rejection

  • Less vasoconstriction

  • Not associated with acute or chronic renal insufficiency

    • Less interstitial fibrosis: down-regulation of TGF-β and PDGF

    • Sustained GFR

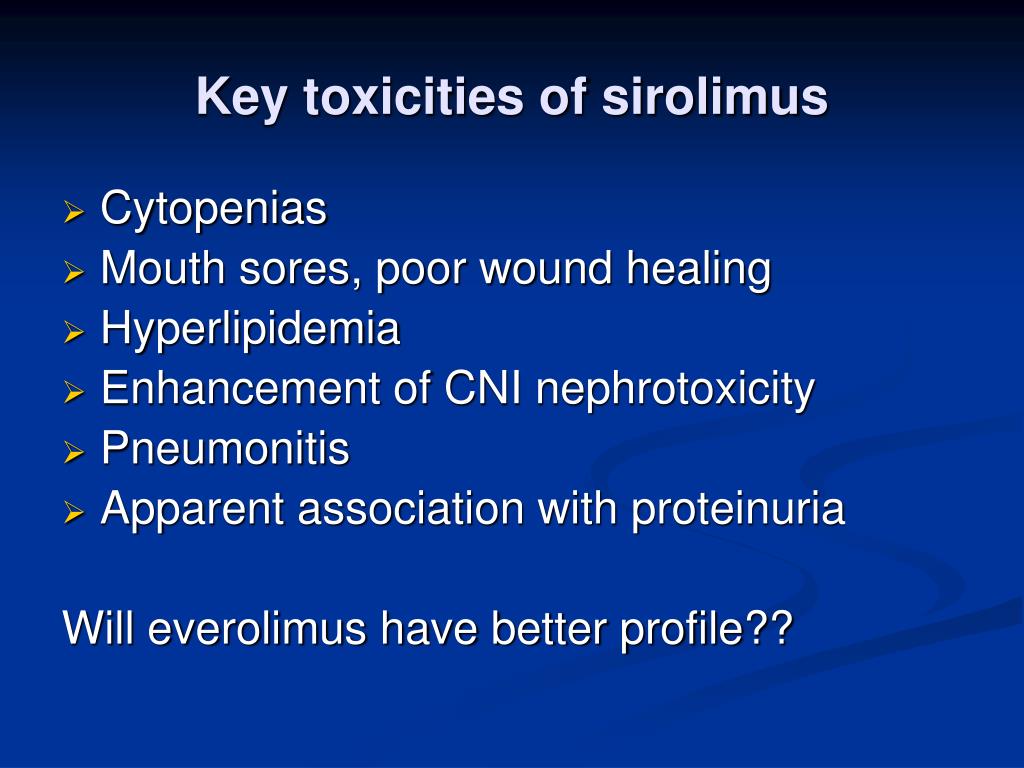

Key toxicities of sirolimus l.jpg
Key toxicities of sirolimus

  • Cytopenias

  • Mouth sores, poor wound healing

  • Hyperlipidemia

  • Enhancement of CNI nephrotoxicity

  • Pneumonitis

  • Apparent association with proteinuria

    Will everolimus have better profile??

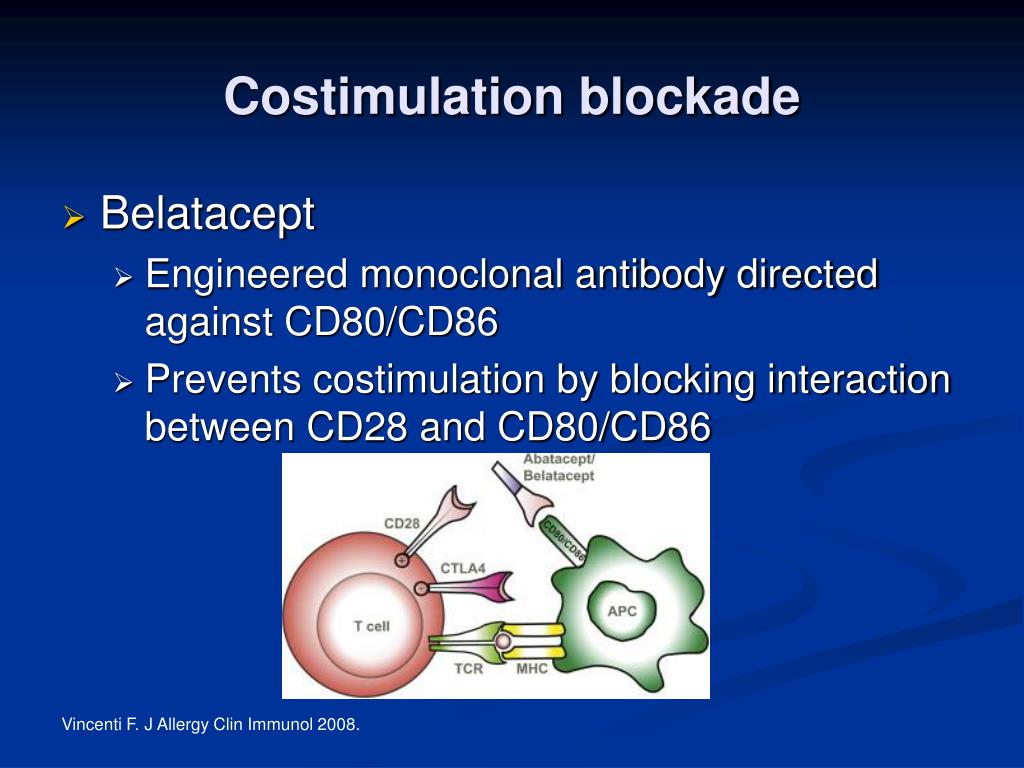

Costimulation blockade l.jpg
Costimulation blockade

  • Belatacept

    • Engineered monoclonal antibody directed against CD80/CD86

    • Prevents costimulation by blocking interaction between CD28 and CD80/CD86

Vincenti F. J Allergy Clin Immunol 2008.

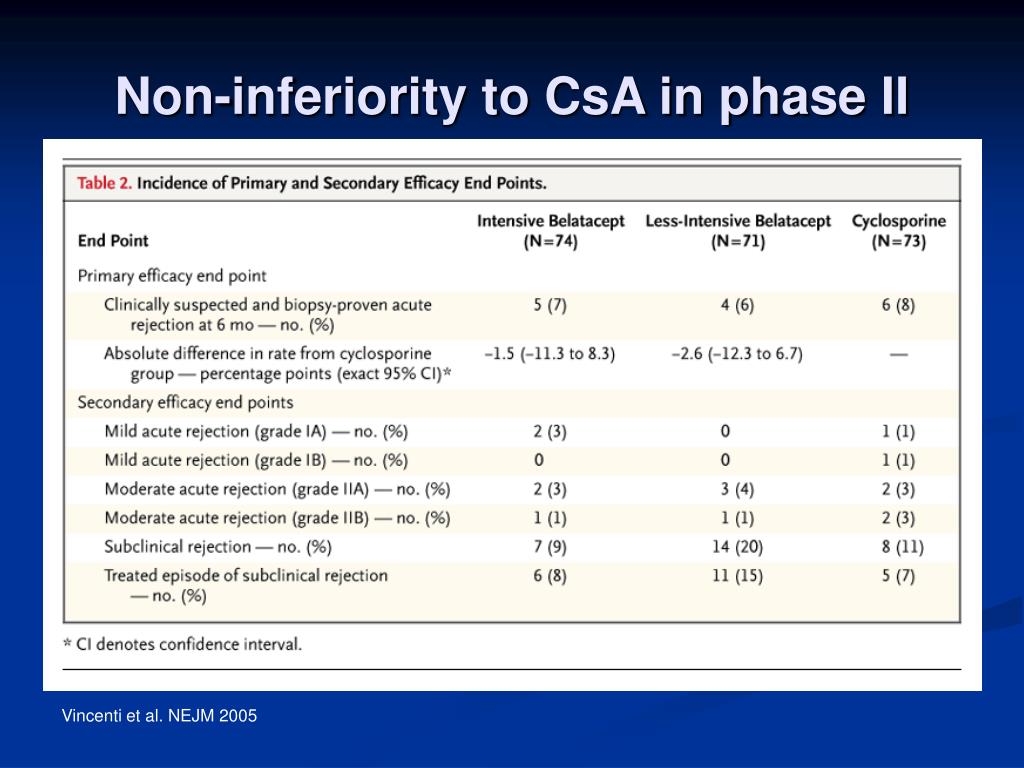

Non inferiority to csa in phase ii l.jpg
Non-inferiority to CsA in phase II

Vincenti et al. NEJM 2005

Renal function and histology l.jpg
Renal function and histology

  • Measured GFR significantly better in belatacept groups than CsA

  • Lesser degree of tubular atrophy and interstitial fibrosis with belatacept

  • Phase III trial now underway in US

Bk virus associated nephropathy l.jpg
BK virus-associated nephropathy

  • Double-stranded DNA polyoma virus

    • JC → PML

    • SV40 → renal disease in immunodeficient monkeys

  • 1971: BK virus first isolated from a kidney transplant recipient with ureteral stricture

  • 1st reported case of nephropathy in 1993 (Pitt), graft failure in 3 months*

  • Affects ~8% of renal transplant recipients

  • 30-60% of affected allografts fail of BKVAN within 1 year

* Purighalla R, et al. Am J Kid Dis 1995.

Epidemiology l.jpg

  • Estimated that 80-90% of adult population has been exposed to BK virus

  • Probably multiple routes of transmission, but respiratory secretions predominate

  • Primary infection may be asymptomatic, mild URI, cystitis…

  • Enters latent phase, in urogenital tract, lymphoid tissue, brain

Pathogenesis l.jpg

  • BK replication (viruria) occurs during states of immune suppression

    • Pregnancy

    • Malignancy

    • HIV

    • Diabetes

    • Transplantation

  • Viremia (13-20%) & nephropathy (5-8%) are unique to the post-kidney transplant setting

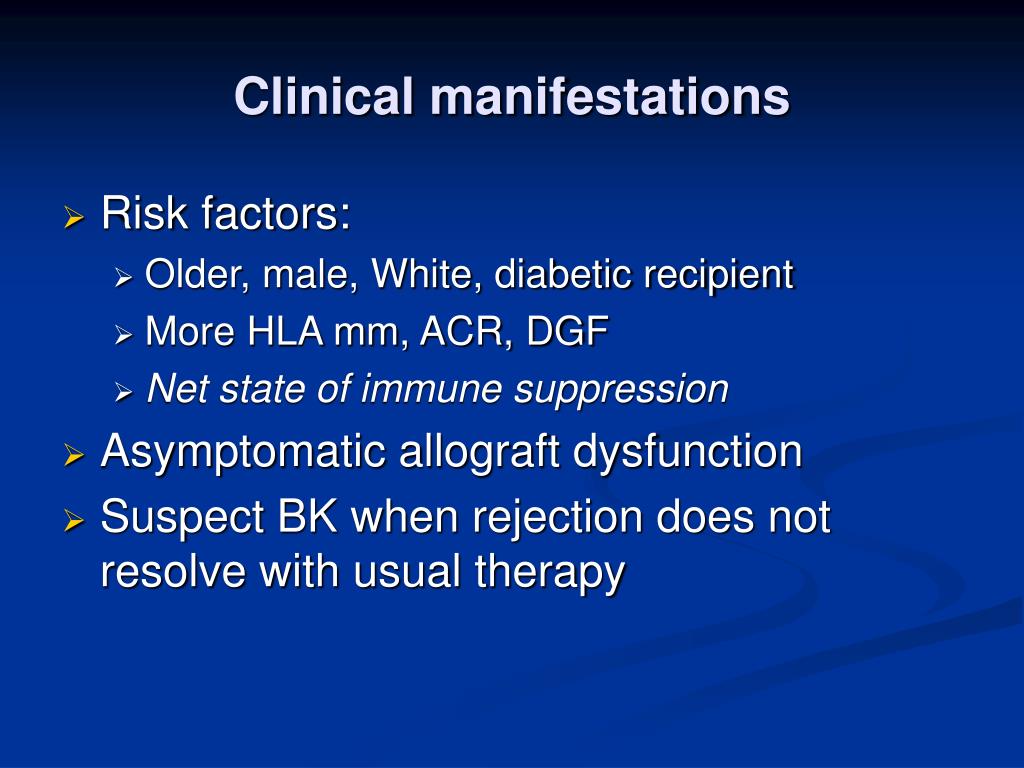

Clinical manifestations l.jpg
Clinical manifestations

  • Risk factors:

    • Older, male, White, diabetic recipient

    • More HLA mm, ACR, DGF

    • Net state of immune suppression

  • Asymptomatic allograft dysfunction

  • Suspect BK when rejection does not resolve with usual therapy

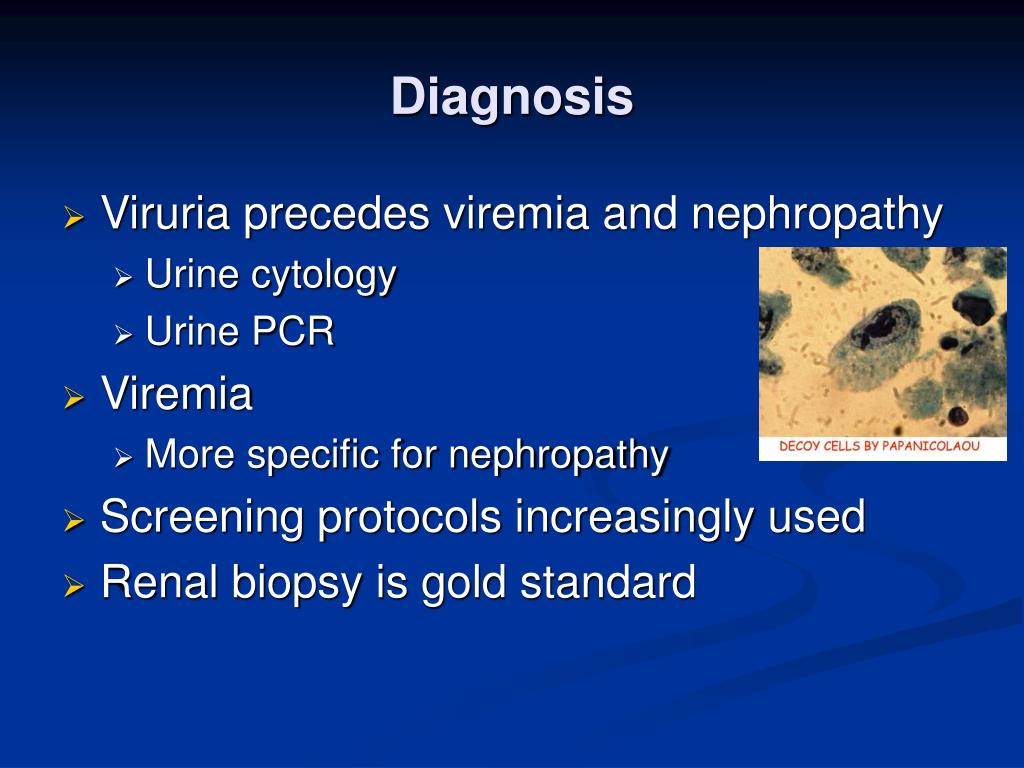

Diagnosis l.jpg

  • Viruria precedes viremia and nephropathy

    • Urine cytology

    • Urine PCR

  • Viremia

    • More specific for nephropathy

  • Screening protocols increasingly used

  • Renal biopsy is gold standard

Bk nephritis l.jpg
BK nephritis

  • Variable degree of interstitial inflammation, fibrosis, atrophy

  • Nuclear inclusions

  • Similar in appearance to cellular rejection

  • Immunohistochemistry useful

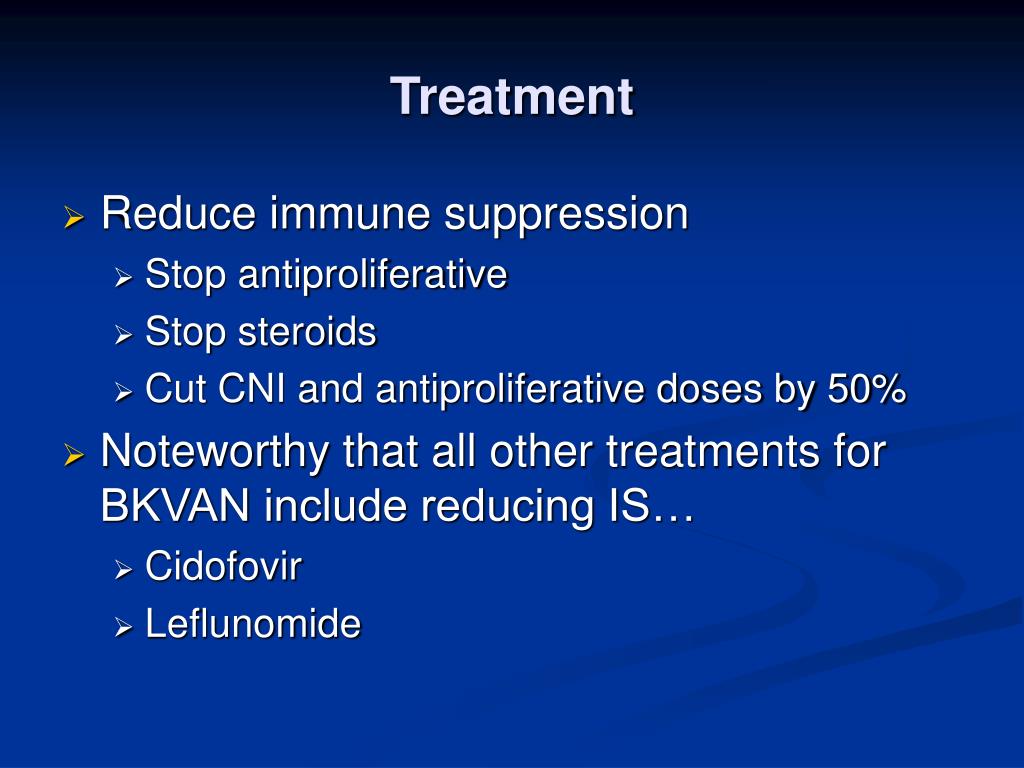

Treatment l.jpg

  • Reduce immune suppression

    • Stop antiproliferative

    • Stop steroids

    • Cut CNI and antiproliferative doses by 50%

  • Noteworthy that all other treatments for BKVAN include reducing IS…

    • Cidofovir

    • Leflunomide

Current deceased donor kidney allocation algorithm l.jpg
Current Deceased Donor Kidney Allocation Algorithm

Standard criteria donor (SCD) kidneys

5% - kidney plus life saving organ

15% - zero HLA-A,B,DR mismatched candidates (mandatory national sharing)

65% - HLA mismatched candidates based upon a point system

Time on waitlist

0-2 points for degree matching at HLA-DR locus

Points awarded to sensitized candidates, pediatric candidates, and previous kidney donors

Expanded criteria donor (ECD) kidneys based on waitlist time alone

Concerns with allocation system l.jpg
Concerns with allocation system

OPTN Kidney committee began reviewing performance of the current algorithm in 2004

3 principal areas of concern:

Allocation system itself: inequitable, inefficient, suboptimal utility

Donor organ supply limitations

Effects of geography on allocation equity

Geographic disparity l.jpg
Geographic disparity

Data source: www.optn.org

Life years from transplant lyft l.jpg
Life Years From Transplant (LYFT)

LYFT is the difference between two predicted lifetimes:

Expected lifetime without a transplant

Expected lifetime with a transplant from a specific donor

Example, a hypothetical 30 year old (otherwise average) candidate’s remaining life might be:

18 years with a deceased donor kidney transplant

12 years with dialysis

LYFT = 6 extra years of life with transplant

This hypothetical candidate’s LYFT would be greater if his or her expected survival

on dialysis would be shorter, or

post-transplant would be longer

Median survival and lyft hypothetical 55 year old diabetic kidney transplant candidate l.jpg




Median Survival and LYFT:Hypothetical55 year-old diabetic kidney transplant candidate

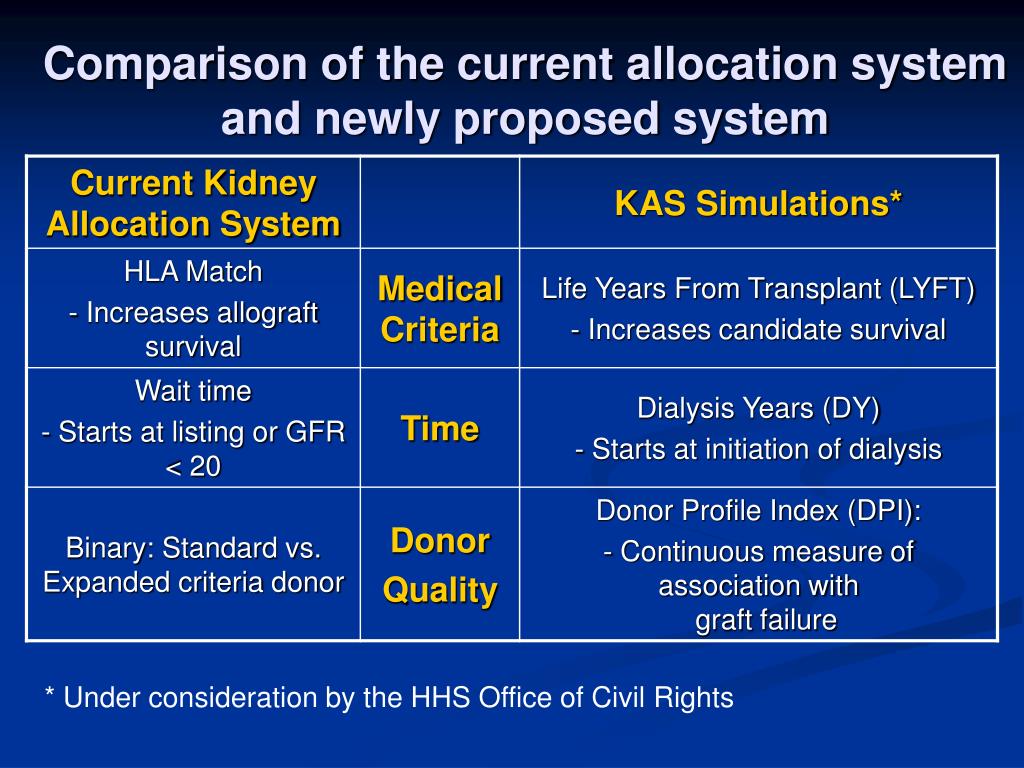

Comparison of the current allocation system and newly proposed system l.jpg
Comparison of the current allocation system and newly proposed system

* Under consideration by the HHS Office of Civil Rights

Summary l.jpg
Summary proposed system

  • ESRD continues to be a growing problem

  • Transplantation is the treatment of choice

  • The development of new drugs and new ways to combine drugs continues

  • BK virus is a relatively new concern, and is an important source of morbidity

  • Changes in the allocation system for deceased donor kidneys are likely

Thanks l.jpg
Thanks!! proposed system
