crystal inc cs8900a isa ethernet controller

Crystal Inc.CS8900A-ISA Ethernet Controller

Presented by

Kallol Par

April, 17 2003

key features

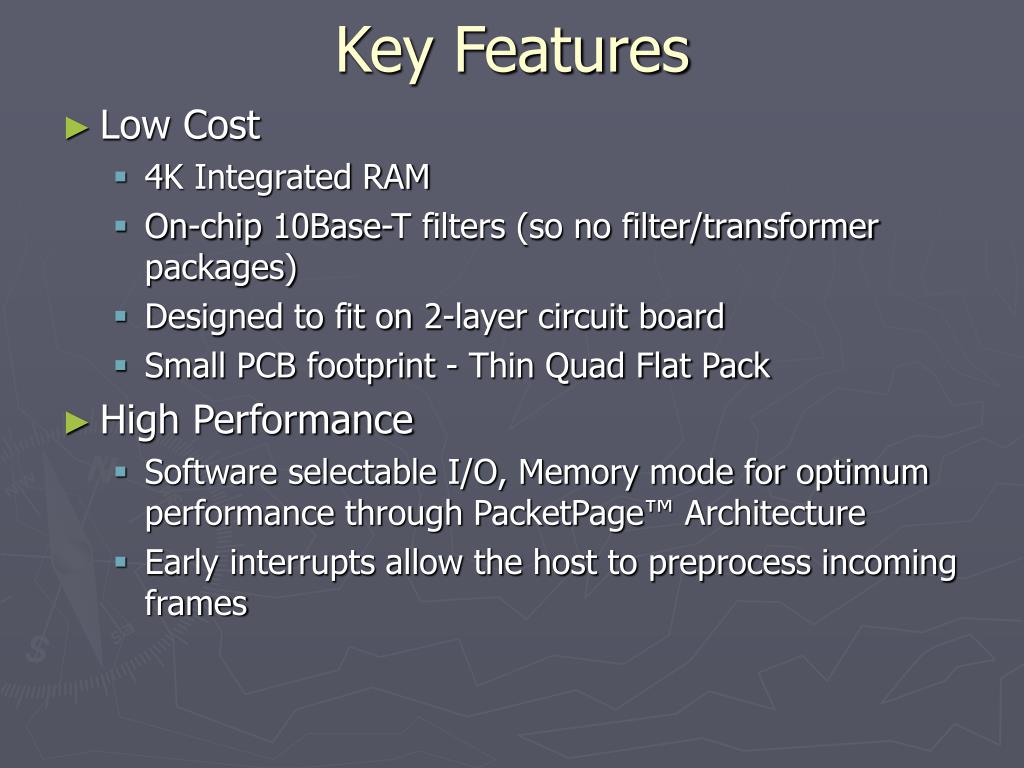

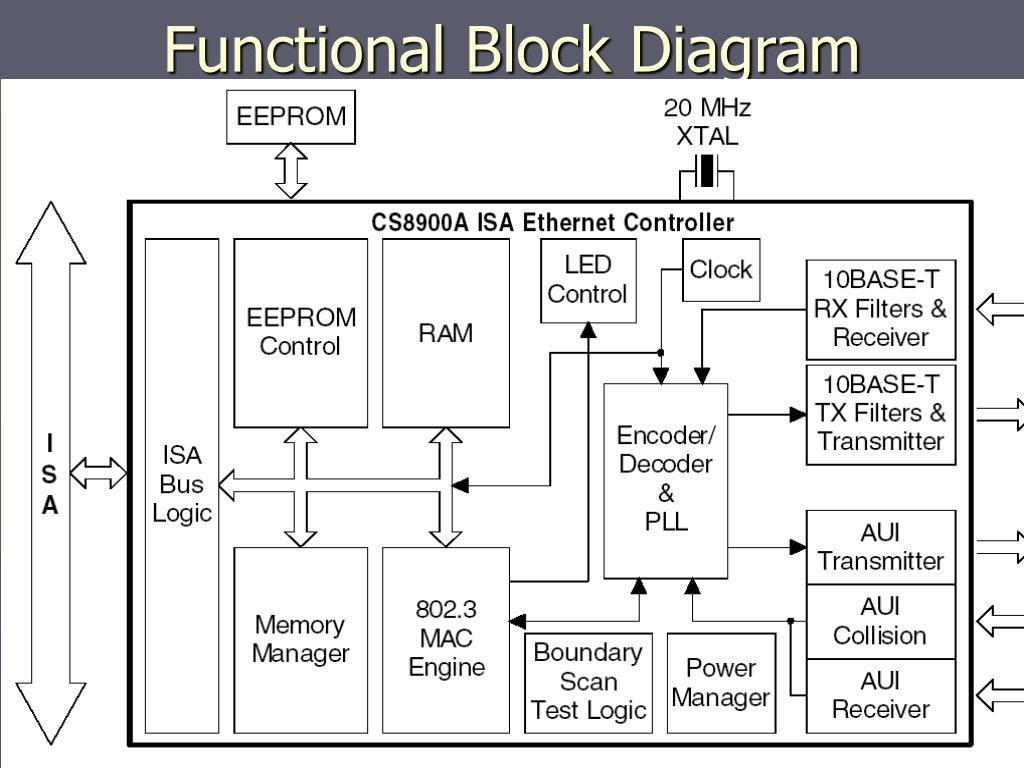

Key Features
  • Low Cost
    • 4K Integrated RAM
    • On-chip 10Base-T filters (so no filter/transformer packages)
    • Designed to fit on 2-layer circuit board
    • Small PCB footprint - Thin Quad Flat Pack
  • High Performance
    • Software selectable I/O, Memory mode for optimum performance through PacketPage™ Architecture

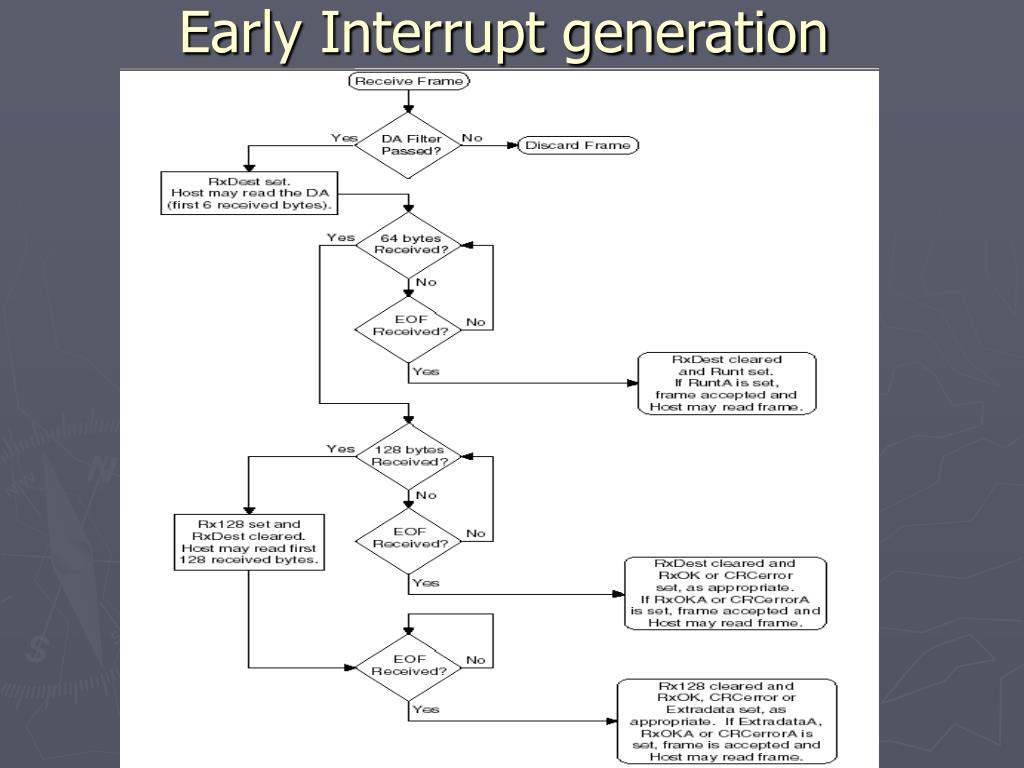

    • Early interrupts allow the host to preprocess incoming frames

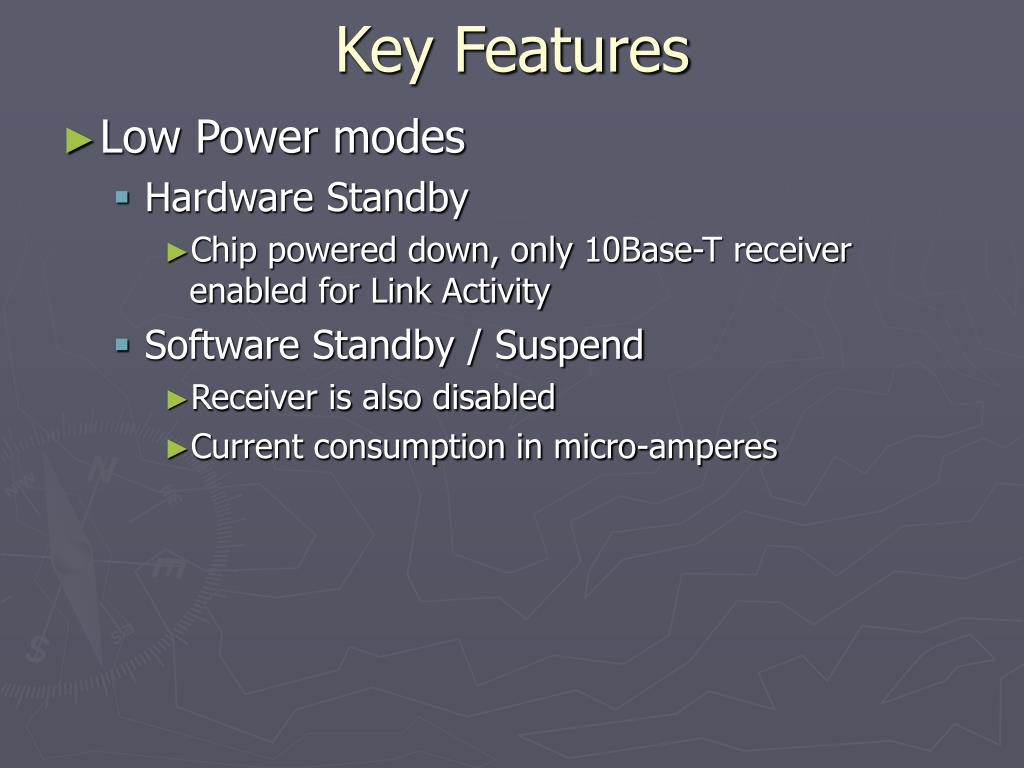

key features1
Key Features
  • Low Power modes
    • Hardware Standby
      • Chip powered down, only 10Base-T receiver enabled for Link Activity
    • Software Standby / Suspend
      • Receiver is also disabled
      • Current consumption in micro-amperes
pin description

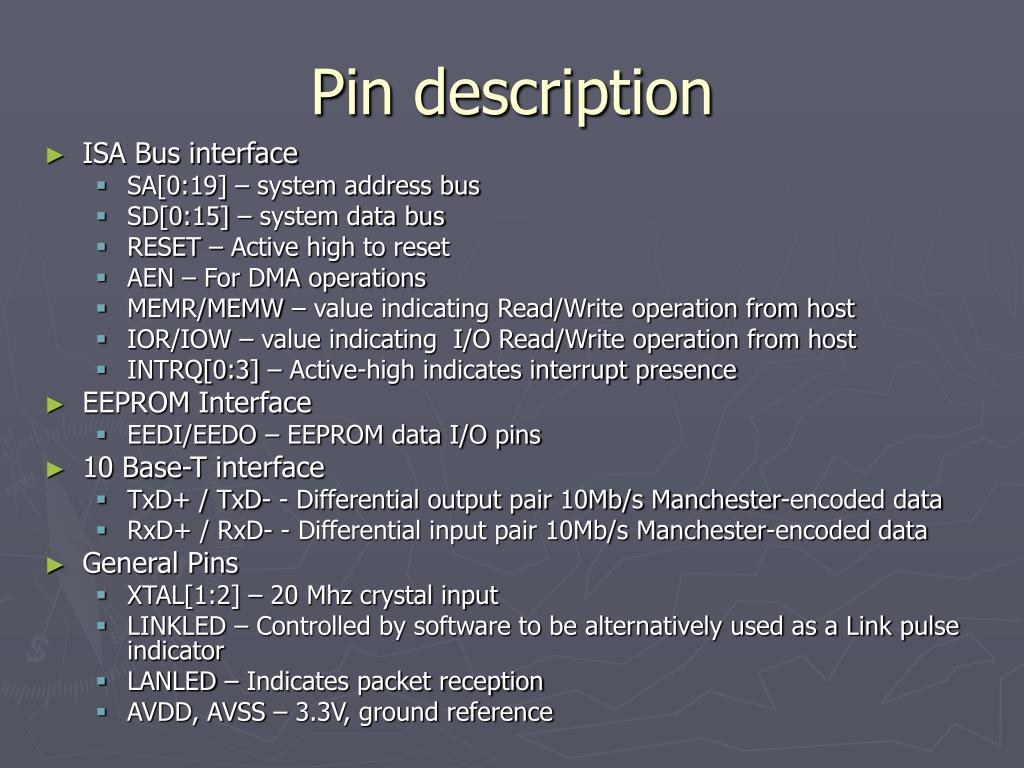

Pin description
  • ISA Bus interface
    • SA[0:19] – system address bus
    • SD[0:15] – system data bus
    • RESET – Active high to reset
    • AEN – For DMA operations
    • MEMR/MEMW – value indicating Read/Write operation from host
    • IOR/IOW – value indicating I/O Read/Write operation from host
    • INTRQ[0:3] – Active-high indicates interrupt presence
  • EEPROM Interface
    • EEDI/EEDO – EEPROM data I/O pins
  • 10 Base-T interface
    • TxD+ / TxD- - Differential output pair 10Mb/s Manchester-encoded data
    • RxD+ / RxD- - Differential input pair 10Mb/s Manchester-encoded data
  • General Pins
    • XTAL[1:2] – 20 Mhz crystal input
    • LINKLED – Controlled by software to be alternatively used as a Link pulse indicator
    • LANLED – Indicates packet reception
    • AVDD, AVSS – 3.3V, ground reference

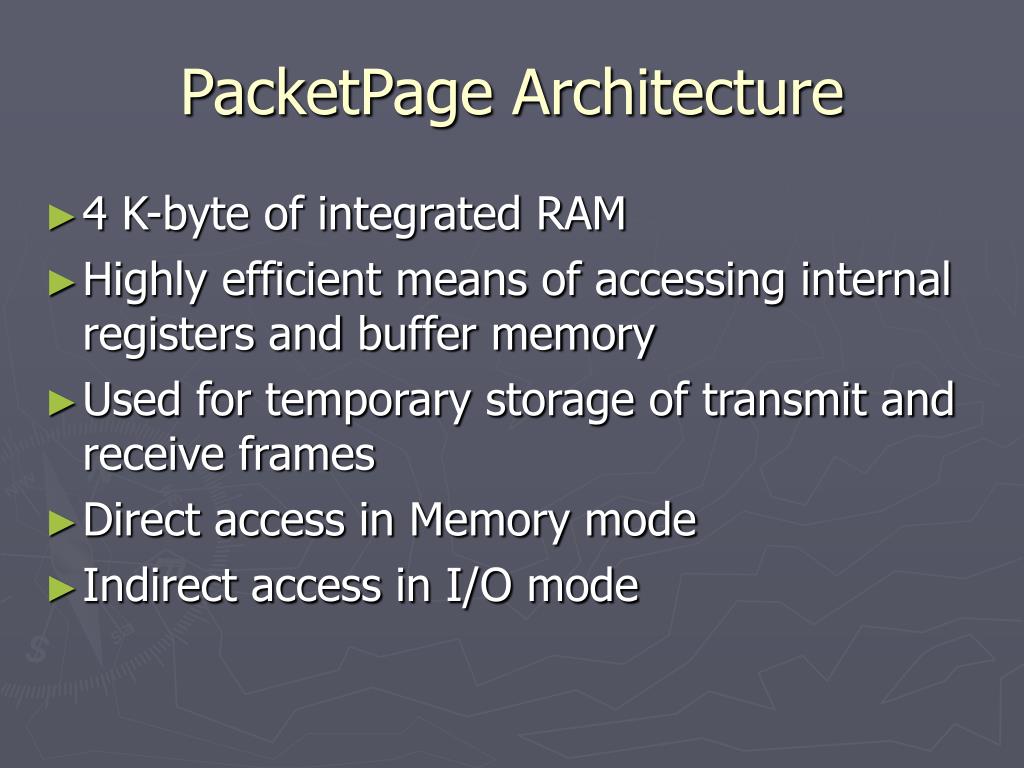

packetpage architecture
PacketPage Architecture
  • 4 K-byte of integrated RAM
  • Highly efficient means of accessing internal registers and buffer memory
  • Used for temporary storage of transmit and receive frames
  • Direct access in Memory mode
  • Indirect access in I/O mode
slide8

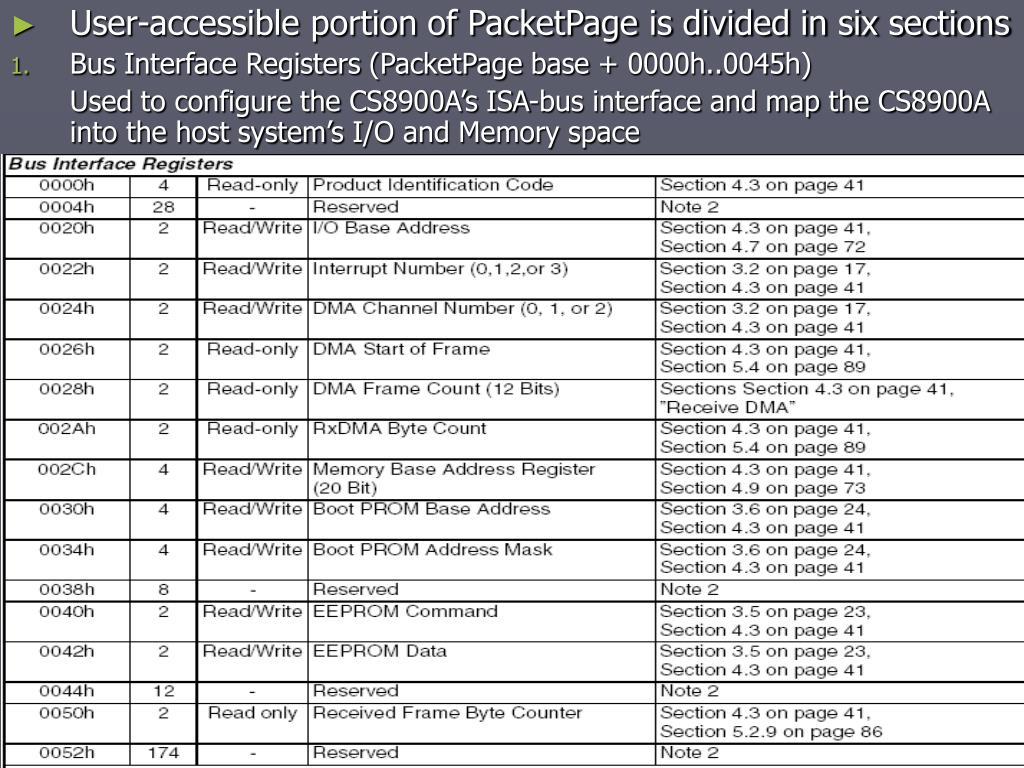

User-accessible portion of PacketPage is divided in six sections
  • Bus Interface Registers (PacketPage base + 0000h..0045h)

Used to configure the CS8900A’s ISA-bus interface and map the CS8900A into the host system’s I/O and Memory space

slide9

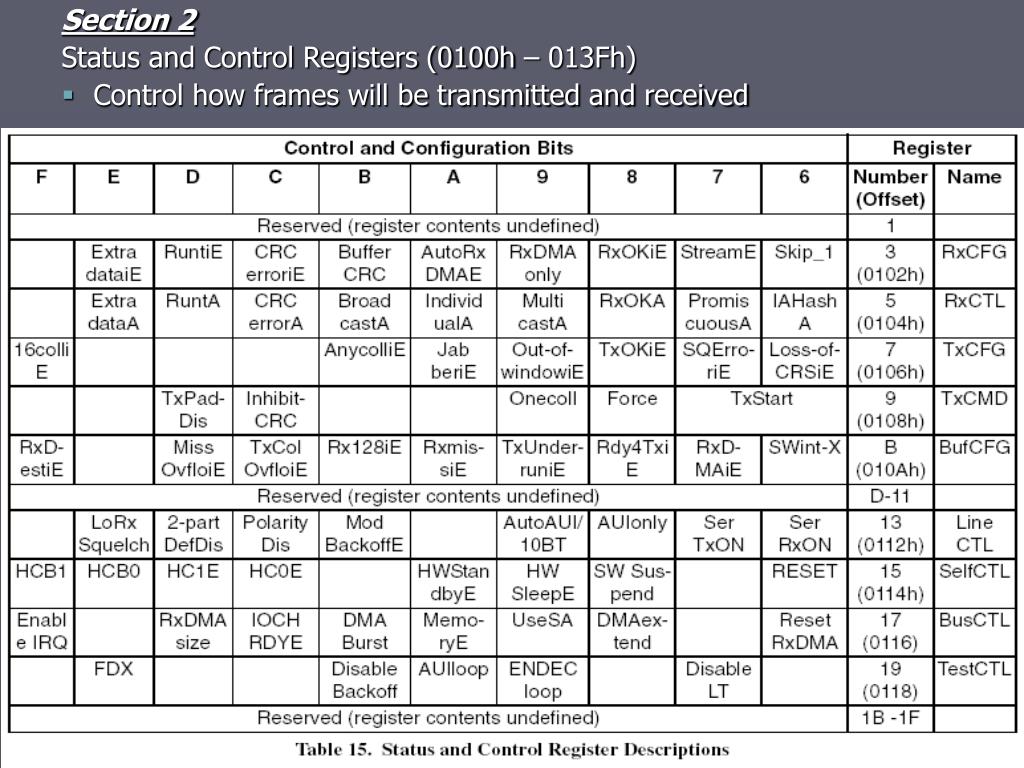

Section 2

Status and Control Registers (0100h – 013Fh)

  • Control how frames will be transmitted and received
slide11
Section 3

Initiate Transmit Registers TxCMD, TxLength (0144h – 0146h)

Section 4

Address filter Registers – Logical address, Individual Address (0150h – 0158h)

Section 5

Receive Frame location – RxStatus, RxLength, Receive frame length (0400h – 0404h)

Section 6

Transmit Frame location (0A00)

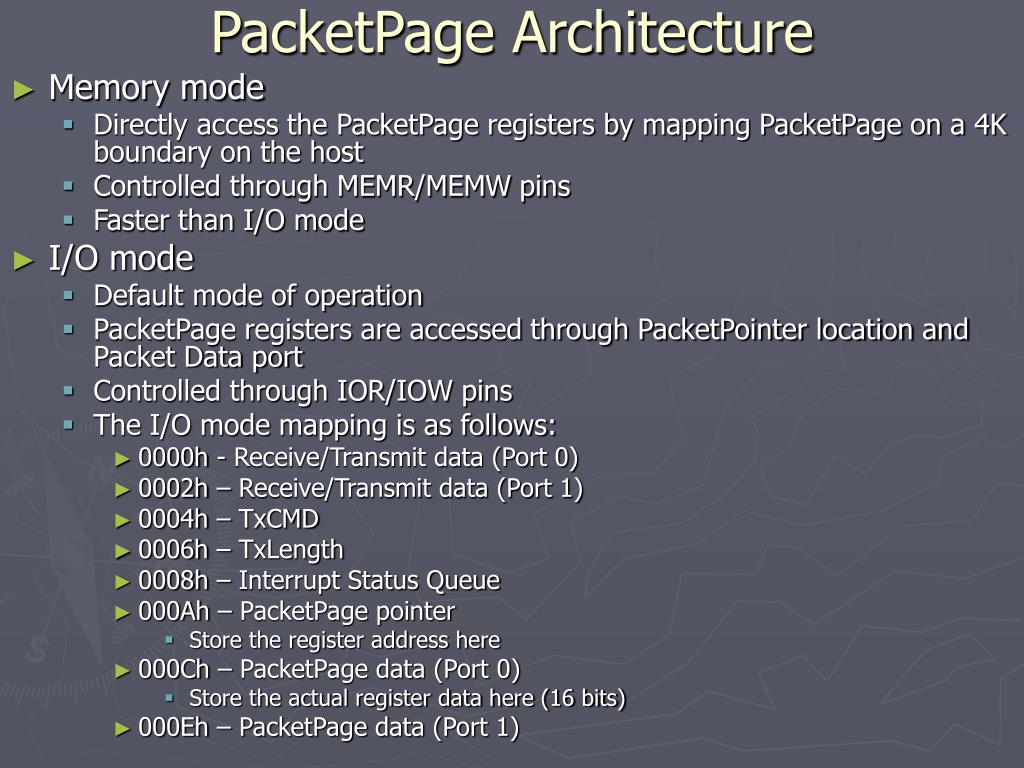

packetpage architecture1
PacketPage Architecture
  • Memory mode
    • Directly access the PacketPage registers by mapping PacketPage on a 4K boundary on the host
    • Controlled through MEMR/MEMW pins
    • Faster than I/O mode
  • I/O mode
    • Default mode of operation
    • PacketPage registers are accessed through PacketPointer location and Packet Data port
    • Controlled through IOR/IOW pins
    • The I/O mode mapping is as follows:
      • 0000h - Receive/Transmit data (Port 0)
      • 0002h – Receive/Transmit data (Port 1)
      • 0004h – TxCMD
      • 0006h – TxLength
      • 0008h – Interrupt Status Queue
      • 000Ah – PacketPage pointer
        • Store the register address here
      • 000Ch – PacketPage data (Port 0)
        • Store the actual register data here (16 bits)
      • 000Eh – PacketPage data (Port 1)
mac frame encapsulation

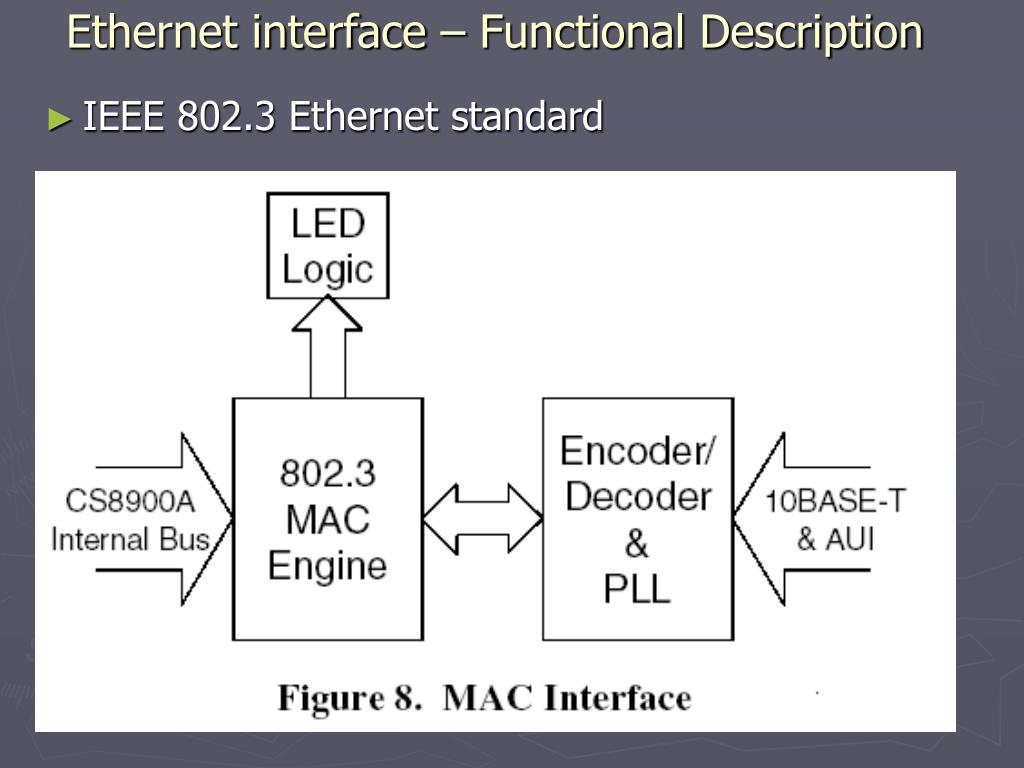

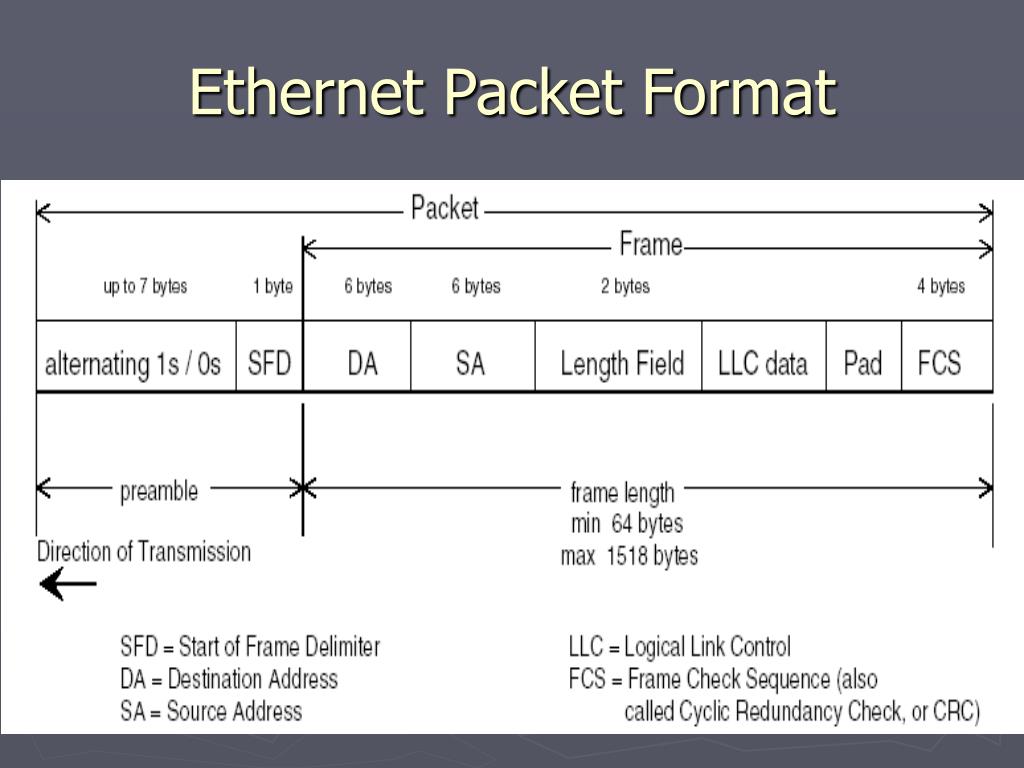

MAC Frame Encapsulation

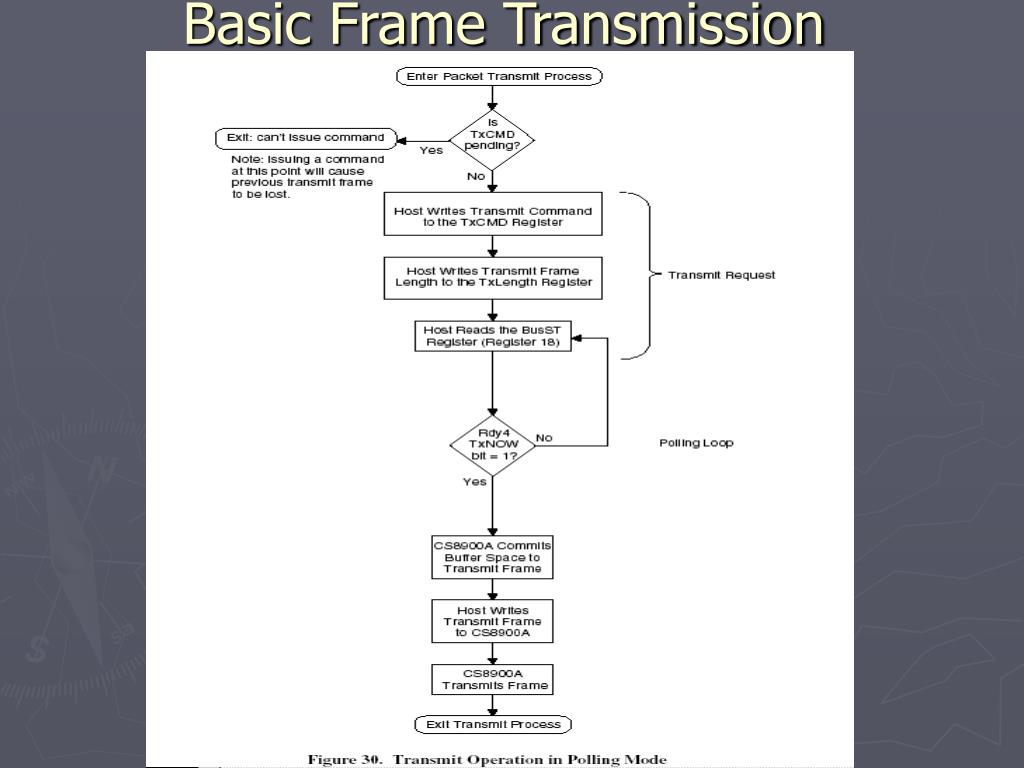

  • Generate the Preamble, SFD and FCS for user data
  • Transmission Error Detection and Handling

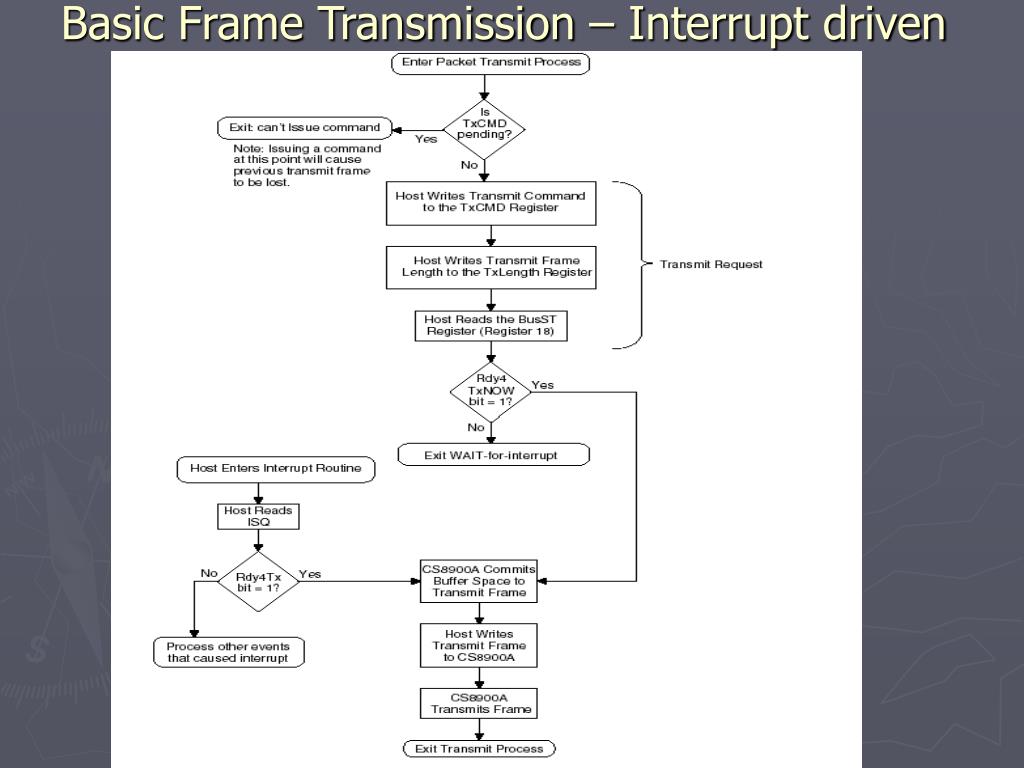

    • Can be configured to interrupt host
    • Controlled through registers – TxEvent, TxCFG
    • Transmit Collision interrupt generated after 16 frame collisions
mac frame reception

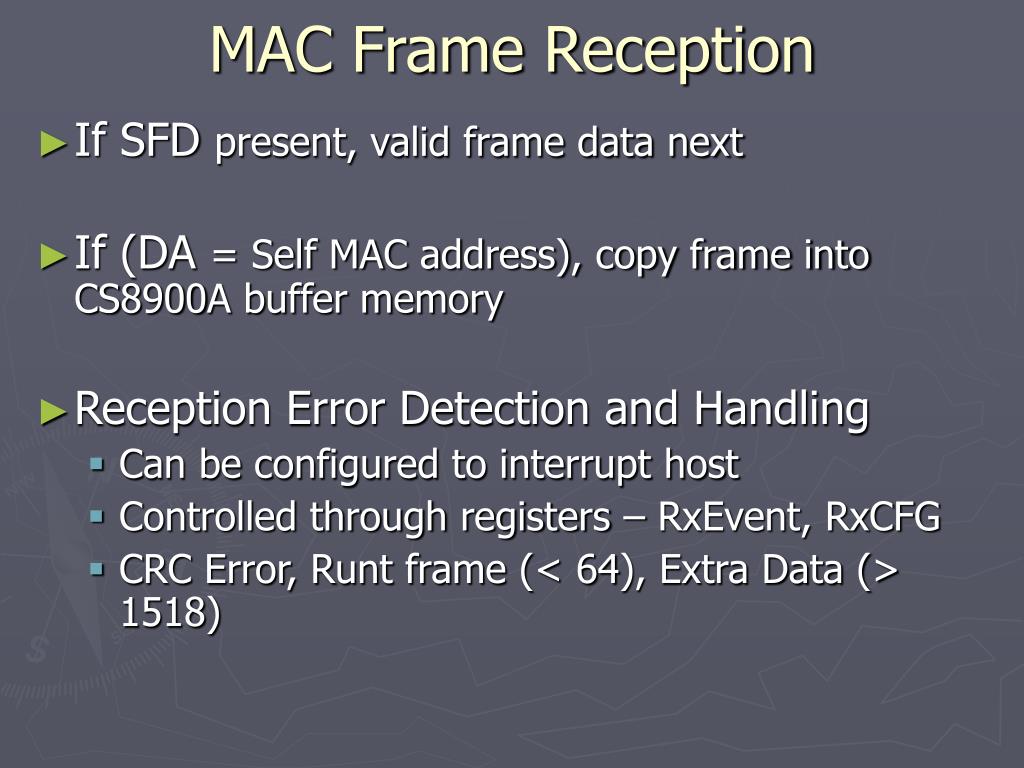

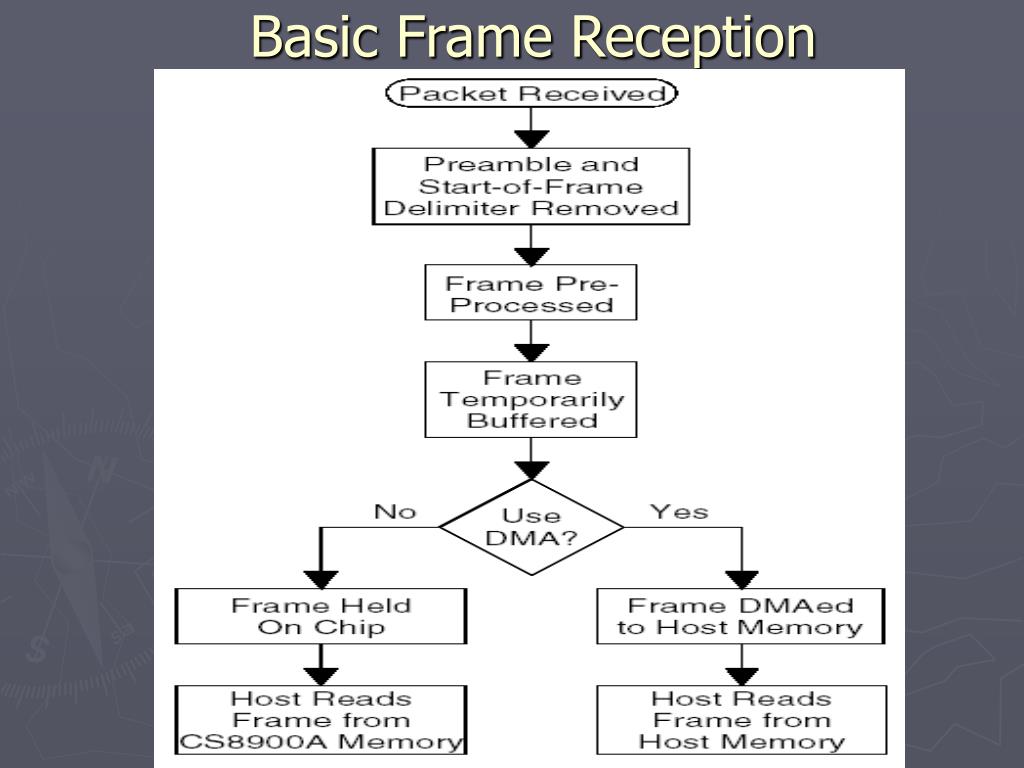

MAC Frame Reception

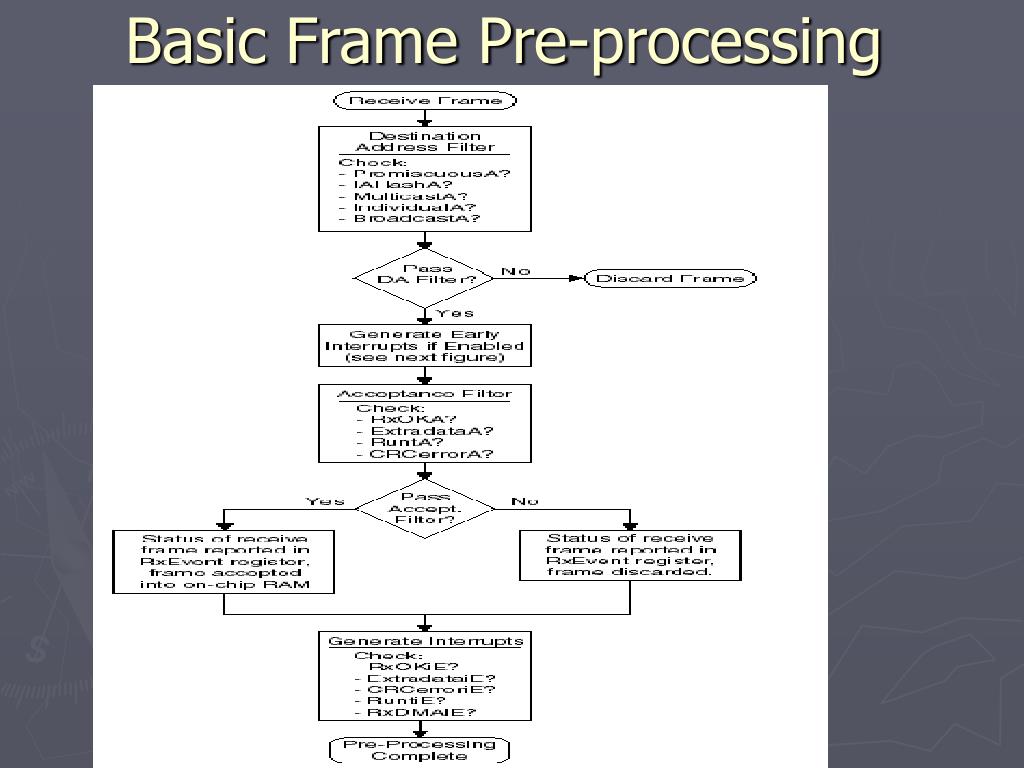

  • If SFD present, valid frame data next
  • If (DA = Self MAC address), copy frame into CS8900A buffer memory
  • Reception Error Detection and Handling
    • Can be configured to interrupt host
    • Controlled through registers – RxEvent, RxCFG
    • CRC Error, Runt frame (< 64), Extra Data (> 1518)

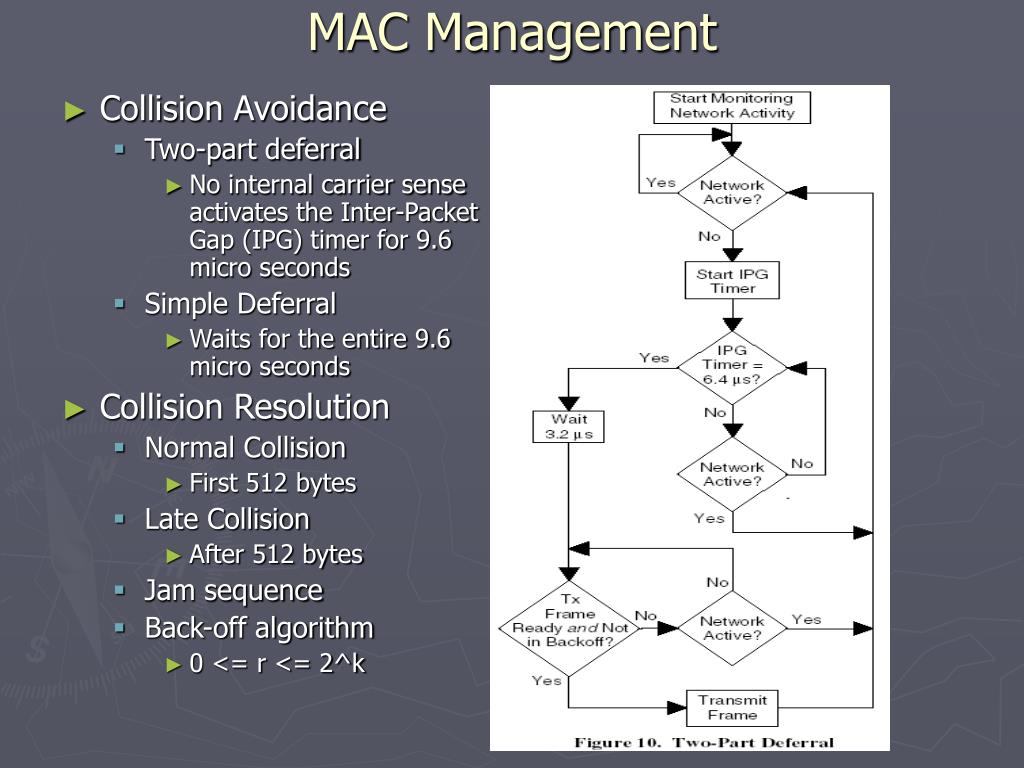

mac management
MAC Management
  • Collision Avoidance
    • Two-part deferral
      • No internal carrier sense activates the Inter-Packet Gap (IPG) timer for 9.6 micro seconds
    • Simple Deferral
      • Waits for the entire 9.6 micro seconds
  • Collision Resolution
    • Normal Collision
      • First 512 bytes
    • Late Collision
      • After 512 bytes
    • Jam sequence
    • Back-off algorithm
      • 0 <= r <= 2^k

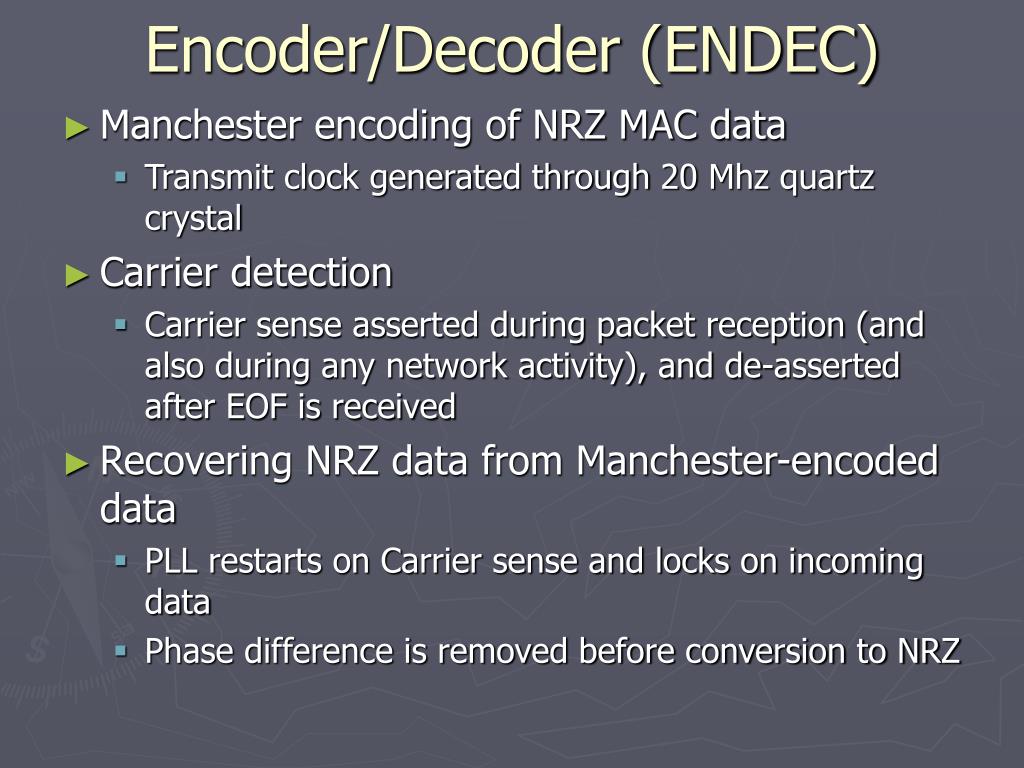

encoder decoder endec

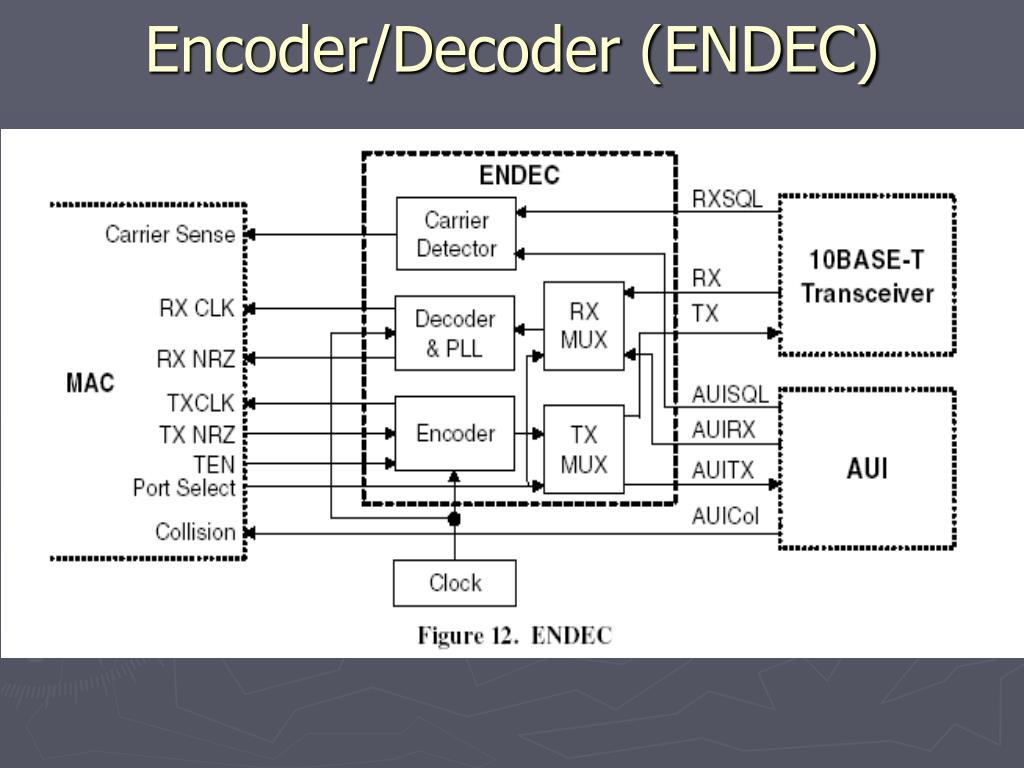

Encoder/Decoder (ENDEC)
  • Manchester encoding of NRZ MAC data
    • Transmit clock generated through 20 Mhz quartz crystal
  • Carrier detection
    • Carrier sense asserted during packet reception (and also during any network activity), and de-asserted after EOF is received
  • Recovering NRZ data from Manchester-encoded data
    • PLL restarts on Carrier sense and locks on incoming data
    • Phase difference is removed before conversion to NRZ
10 base t transceiver
10 Base-T Transceiver
  • 10 Base-T filters
    • Low pass filters eliminate need for external filters
  • Transmitter
    • Wave shaping on Manchester-encoded data from ENDEC
  • Receiver
    • Squelch circuit to validate signal amplitude
reference

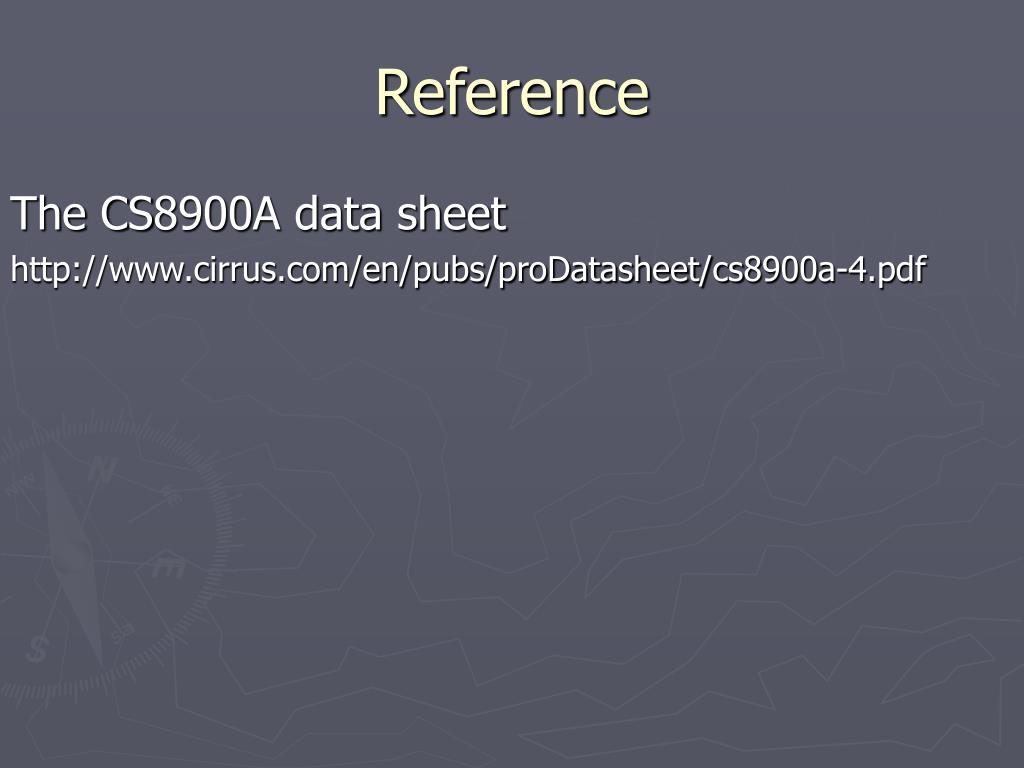

Reference

The CS8900A data sheet

http://www.cirrus.com/en/pubs/proDatasheet/cs8900a-4.pdf
