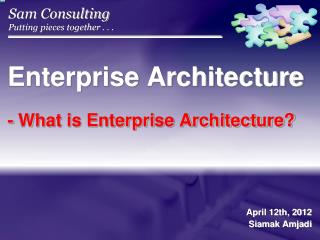

Enterprise Architecture - What is Enterprise Architecture?. April 12th, 2012 Siamak Amjadi . What is. €NTERPRI$€ . all about?. What is Architecture . According to the Oxford Dictionary “The art or science of building or constructing edifices of any kind for human use…”

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Enterprise Architecture - What is Enterprise Architecture?' - taffy


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
slide2

What is

€NTERPRI$€

all about?

what is architecture
What is Architecture

According to the Oxford Dictionary

  • “The art or science of building or constructing edifices of any kind for human use…”
  • “The special method or ‘style’ in accordance with which the details of the structure and ornamentation of a building are arranged.”
what is architecture1
What is Architecture
  • The organizational structure of a system or component.
    • IEEE Standard 610, “Standard Computer Dictionary: A Compilation of IEEE Standard Computer Glossaries”
  • The fundamental organization of a system embodied in its components, their relationships to each other, and to the environment, and the principles guiding its design and evolution.
    • IEEE Standard 1471, IEEE Recommended Practice for Architectural Description of Software-Intensive Systems.
enterprise architecture
Enterprise Architecture …
  • The Enterprise is a company or an organisation with a defined set of ”offerings” based on a set of resources (including Information Technology)
  • Architecture is the art and science of designing structures and infrastructures. It is a method to describe the activity of designing any kind of system, (commonly used in IT).
  • Enterprise Architecture (EA) is a blueprint describing
    • Value streams and the organisation, which executes them.
    • The information structures to make the execution possible
    • The (IT) solutions to contain and maintain the information
    • The technology supporting the IT Solutions
    • Stakeholders and their interrelations
  • Strategic Roadmapping
    • EA enables the transformation of the Enterprise via an Enterprise-wide roadmapping and project portfolio
what is a system architecture in contrast to ea
What is a System Architecture … in contrast to EA
  • How to Design IT Solutions
    • Guidelines for how each component should be build
    • Descriptions such as OO, Class, design patterns etc
  • Differences between architecture and design
    • Many different designs may address the same need
    • Different architectures imply different needs

Sample from reality: A house

Architecture

Design

  • Number of rooms
  • Main Structure
  • Character
  • Guiding ines
  • Interior design
  • Rooms structure
  • Electricity
  • Etc’
what is enterprise architecture
What is Enterprise Architecture
  • Enterprise Architecture is not technical!
  • EA is a methodology to align the IT to the Business.
  • Answering all of the enterprise needs
  • Transverse view.
  • knowing and managing the current situation, paving the road for the wanted one.
  • Implementation of information management
  • Enforce homogeneous solutions and enable “One system” to the users.
the togaf way
The TOGAF way
  • Never ending organization process which builds upon several stages:
    • Initiation
    • Business architecture.
    • Information architecture
    • Applications architecture
    • Infrastructure architecture
    • Governance
    • Gap analysis
    • And again …
overview of enterprise architecture
Overview of Enterprise Architecture

Information Architecture

Business Architecture

  • Logical Data Models
  • Physical Data Models
  • Data Management Resources
  • Business Strategy
  • Organization & Governance
  • Key Processes

Solution Architecture

Technology Architecture

  • Solution Blueprint
  • Component Interaction
  • Service definitions
  • Realtionships to Business Processes
  • Hardware
  • Software
  • Networlk infrastructure
slide10

What Are You Doing?

What Can You Change to be Better?

How Are You Doing?

Why?

therefore we need ea
Therefore we need EA . . . .

“You Can’t Manage What You Can’t Measure”

— Peter Drucker

slide12

Where / How Does

€NTERPRI$€

Architecture

Fit in Organizational development

stakeholders
Stakeholders
  • Project Teams:
    • Project teams use the EA to gain an understanding of the current architectural landscape, the future vision of the enterprise architecture, and the services available to development teams.
  • Sponsors:
    • Sponsors can benefit from the EA by gaining an understanding of the technical direction of the company as well as the Architectural Governance Process. This knowledge can then be used to shape their decisions regarding IT investments.
  • Architecture Governors:
    • They can use EA to provide a consistent representation of the context and principles of both the current and future state during the project review process.
  • Portfolio Managers:
    • The use the EA to proactively identify potential risks in projects, and to assist in assessing the individual projects in order to mitigate technology risks.
best practices in architecture review
Best Practices in Architecture Review
  • Communicate regularly with all stakeholders :
    • Keep executives, support groups, architects, and developers in the loop on successes and objectives.
  • Use a mix of formal and informal authority:
    • The power to stop a project is important; avoiding the need to use it is even more important.
  • Tie your architecture process to project phases:
    • Project funding and staffing should require architecture sign-off, as should other project management phases.
  • Standardize architecture review process artifacts:
    • A consistent set of artifacts, with examples, streamlines the process and improves the quality of project team efforts.
slide16

Company knows where it is and where it want to be.

Planned reorganisations towards the target state..

Projects interact but not according to clear EA roadmaps.

Some larger Initiatives are on the design table.

Fostering innovation at the front lines

50

40

60

30

70

20

80

10

90

Typical

0

100

Company has improved the way it make strategies.

It targets business-process and looks for optimal Product life-cycle opportunities.

Projects interact in initiatives according to sketches EA roadmaps & guidelines.

Visionary shift in mindset and paradigm.

Awareness of need for common strategies and standards amongst senior mgmt.

Initiatives to assess current state and near-future enterprise-wide needs and actions.

Scattered projects with narrow focus.

Current Strategies are unknown and/or undocumented.

Overview on the current challenges are not organised.

Scattered projects with narrow focus.

Projects are focused around lines of business rather than processes & Product life-cycles.

The Architecture of the Enterprise is communicated, understood and followed.

Means to follow and implement them are available & supported.

Portfolio mgmt, business process mgmt, business service mgmt align to EA agenda.

Customer centric enterprise in continuous improvement is harvesting and measuring benefits

Planning next steps.

Strategyometer

ea and business process management maturity
Performance Driven IT | Page 17

No process documentation

Process tools

Linked BPM and SOA strategies

Process repository

Process reuse

No “recognition” of process problems

No ‘culture of process’

Process controllership

Processes linked to business strategy

Multi-process, multi-department ….Enterprise BPM

Classic

Process metrics

A culture of process in place

Basic methodology

Clear enterprise process methodology

EA and Business Process Management Maturity

Maturing

Immature

Mature

Some documentation, but no sophisticated or integrated

toolset

Inter-Enterprise BPM

slide18

Enterprise

Architecture

In a context

a simplified demand chain mapped to ea

Change Requirements

Technologies

A Simplified Demand Chain; mapped to EA

Corporate Goals

Demand Chain

Business Vision

Improve

Time to Market

Example

Business Strategy

Changes in

Business Strategy

Improve Product

Design Process

Business

Approach

Business Model

Business Operations

Changes in

Business Model

Reduce Process

Change Time

Business Architecture

Improve Solution

Delivery Time

IT Strategies

Information

Architecture

Solution

Strategy

Platforms & Patterns

System simplifications

And SOA

Example

Solution

Architecture

Technology

Architecture

Technology

Architecture

scattered information everywhere yet lacking an overall enterprise architecture
Scattered Information EverywhereYet, lacking an overall Enterprise Architecture

Information

  • (How well do) We know our company
  • There are stacks of Information available everywhere
  • But . . .
  • Not all information are related
  • Not all are equally verified
  • Some need better structure
  • Others should be documented
  • Some should be defined
  • Others need be harmonized
  • Enterprise Architecture is meant to provide interrelated verified information for Business Ma'nagers and IT Managers . . .
  • . . . Putting pieces together

Time

a model so simple
A model? So simple?

Enterprise Architecture

is a Model to create

this overall overview

enterprise architecture ea as a concept
EA is to link the architecture of the Business (processes, products, operations etc), Business Information, the business supportingIT Solutions and Technologies to host the solutions.

Its role is to provide a more intelligent basis for Application Decisions and yield to streamline the Application Portfolio, thereby strengthening the working relationship between Business Management and IT Management.

It will assess and provide overview of compliance to Business Domains, Drivers, Requirements, Direction and Principles.

EA governance links EA plans to IT actions, hence ensuring that, IT Planning, Project Portfolio Management and Project Execution align with business and enterprise goals.

Business Domain

Business Domain

Business Domain

Business Architecture

Gap Analyses

Information Architecture

AS IS descriptions

TO BE descriptions

Solution Architecture

Enterprise Architecture (EA) as a Concept
  • EA is to link the architecture of the Business (processes, products, operations etc), Business Information, the business supportingIT Solutionsand Technologiesto host the solutions.
  • Its role is to provide a more intelligent basis for Application Decisions and yield to streamline the Application Portfolio, thereby strengthening the working relationship between Business Management and IT Management.
  • It will assess and provide overview of compliance to Business Domains, Drivers, Requirements, Direction and Principles.
  • EA governance links EA plans to IT actions, hence ensuring that, IT Planning, Project Portfolio Management and Project Execution align with business and enterprise goals.
  • EA is to link the architecture of the Business (processes, products, operations etc), Business Information, the business supportingIT Solutions and Technologies to host the solutions.
  • Its role is to provide a more intelligent basis for Application Decisions and yield to streamline the Application Portfolio, thereby strengthening the working relationship between Business Management and IT Management.
  • It will assess and provide overview of compliance to Business Domains, Drivers, Requirements, Direction and Principles.
  • EA governance links EA plans to IT actions, hence ensuring that, IT Planning, Project Portfolio Management and Project Execution align with business and enterprise goals.
  • EA is to link the architecture of the Business (processes, products, operations etc), Business Information, the business supportingIT Solutions and Technologies to host the solutions.
  • Its role is to provide a more intelligent basis for Application Decisions and yield to streamline the Application Portfolio, thereby strengthening the working relationship between Business Management and IT Management.
  • It will assess and provide overview of compliance to Business Domains, Drivers, Requirements, Direction and Principles.
  • EA governance links EA plans to IT actions, hence ensuring that, IT Planning, Project Portfolio Management and Project Execution align with business and enterprise goals.
  • EA is to link the architecture of the Business (processes, products, operations etc), Business Information, the business supportingIT Solutions and Technologies to host the solutions.
  • Its role is to provide a more intelligent basis for Application Decisions and yield to streamline the Application Portfolio, thereby strengthening the working relationship between Business Management and IT Management.
  • It will assess and provide overview of compliance to Business Domains, Drivers, Requirements, Direction and Principles.
  • EA governance links EA plans to IT actions, hence ensuring that, IT Planning, Project Portfolio Management and Project Execution align with business and enterprise goals.

Align with

Enterprise Goals

Technology Architecture

slide23

B u s i n e s s Architecture

Information Architecture

S o l t u i o n Architecture

Technology Architecture

Business Model & Business Processes

Key Information Entities & Flows

IT Solution Portfolio Overview

Technology Strategies/

Infrastructure Patterns

business is everywhere
May be not necessary to mention ... Business elements are not only in the Business Architecture. They are everywhere, and we as Enterprise Architects must educate the avarage stakeholders to understand their portion of Business Elements

Business Architecture

Information Architecture

Solution Architecture

BusinessElements

BusinessElements

BusinessElements

BusinessElements

TechnologyElements

TechnologyElements

TechnologyElements

TechnologyElements

Technology Architecture

Enterprise

Programme or

Business Domain

Solution

and/or

Project

Just in case . . .

Business is everywhere

Context

Concept

Level of Abstraction

Logical

Physical

the function of enterprise architecture

Business Architecture

Information Architecture

Solution Architecture

Technology Architecture

The Function of Enterprise Architecture
  • EA is a Planning, Governance, and Innovation function.
  • EA helps IT management to understand and plan the changes, which are needed for IT in order to be in alignment with Business Needs and Directions.
  • EA marshals IT’s R&D and innovation activities toward serving the longterm business strategies.
  • EA leaders and BCIOs should position EA as part of IT Governance — not as a separate function — and make sure that this governance plays at different governance levels; starting at the overall IT Strategy & Plan and runs through Project Portfolio Governance to governance of individual projects
  • This will ensure that, IT planning, project portfolio management, and project execution align with enterprise goals.
the relevance of ea

Business Architecture

Information Architecture

Solution Architecture

Technology Architecture

The Relevance of EA
  • Single source of information to (competing) strategic initiatives
    • The current and future initiatives in each enterprise, such as Project Portfolio Management (PPM), Strategic Planning processes, SOA adoptions, future Business Process Management (BPM)1, future Business Service Management (BSM)1, and application or process rationalization will be more successful if they reuse common strategic information. Providing this information is an ideal task for our EA repository.
  • We do face higher pressure for more rapid decision-making.
    • The challenge of minimizing risks from change becomes greater as our IT complexity increases. EA and our EA repository must provide capabilities for tracking interdependencies — offering Impact Analysis and Risk Analysis assisting prioritisation of the right initiatives.
  • Enterprises seek growth and increasing globalisation – while demanding Local Efficiency and Agility.
    • Organizations tend to share not only products and services between countries and regions, but increasingly also processes and applications — in addition to the IT infrastructure that many firms have already consolidated. But standardization and consolidation are not applied blindly. Successful firms also understand the peculiarities of local markets and thus adapt global best practices to local requirements. EA repositories and modeling tools allow analysis and modification of shared processes and applications.

1) The classic Enterprise Architecture models do not in specific include Business Process Management (BPM) & Business Service Management (BSM). The author has different view. Our maturity today calls for BPM and BSM. This view will be presented later in this presentation.

business architecture ba

Business Architecture

Information Architecture

Solution Architecture

Technology Architecture

Business Architecture (BA)

The classic Enterprise Architecture models do not include Business Process Management & Business Service Management as a part of Business Architecture. The author has a different view, which will be presented later.

  • Communicate the business visions, strategies, priorities and needs across the business operations to provide direction and context to other architectural governance structures.
  • BA describes Business Operations, Value Chains and Business Processes 1.
  • BA presents the long-term business demands, policies, strategies and needs as well as the short-term prioritisations and budgeting.
  • This provides significant opportunities for understanding both long- and short-term interdependencies and implications (affecting IT decisions).

1) Business Organisations are dynamic and subject to (ir)regular changes. Business Operations, Value Propositions, and Value Chains (a customer centric view, hence a business process oriented view) are of a more stable nature. Thus, forming the Business Architecture based on customers centric Business Processes are more valuable than organisations.

business information architecture
One way of keeping consistency between business architecture and IT initiatives is to have a clear information architecture.

The Information Architecture presents a “Conceptual Information Model”, which reflects the business concepts (It supports the scoping and planning of projects.)

The more descriptive “Logical Data Model” offers the detailed information/data structures, which are required to support the business concepts. (It supports the documentation of the data requirements from the enterprise perspective and from the business process perspective.)

One more detailed model is to be developed together with projects (i.e. the semantics of the information). This model leads to definition of the Business Services’ crossing points.

Business Architecture

Information Architecture

Solution Architecture

Technology Architecture

Business Information Architecture

Data is a fundamental building block of Interoperability, information management and the design of efficient, non duplicative systems

solution architecture
IT Solutions are to provide the business information, which is specified by the Information Architecture.

Solution Architecture provides the “Infrastructure of applications and the IT solutions”, depicting the “logistics of business information” and the affiliation of business logic.

This dimension of EA also illustrates the interrelations between business operations, business information and business logic. This knowledge will improve the consistency, quality, and interoperability of business solutions.

Business Information and Business Logic can also be presented in terms of Business Services (often common cross business unit or Nordic services).

This makes BSM – Business Service Management – an increasingly relevant topic in line with growing number of Services in NTP, Master Data Management, Document Management, CMS services plus others to come. (Se this slide.) BSM supports Business AND Information Architecture.

Steps of executable business processes (in a process engine) are presented as business services (on a service bus).

This makes BPM (Business Process Management – from an execution perspective) an emergent important part of Solution Architecture. BPM supports Business AND Information Architecture.

Maintaining the appropriate role of each system

Business Architecture

Information Architecture

Solution Architecture

Technology Architecture

Solution Architecture
technology architecture ta
The technology architecture describes the technical platforms, infrastructure and technologies, which are required to run the business solutions.

Technology Architecture includes:

Hardware Platform

Software

The Network Infrastructure

In most cases, the Facility Manager has the overall responsibility for our Technology Architecture.

Organizations which outsource the facility management to a third party, often lose competence within this area. This results in a critical lack of overview and knowhow around TA.

Business Architecture

Information Architecture

Solution Architecture

Technology Architecture

Is Half of the

Agility Story Enough?

Business Architecture

Information Architecture

Solution Archit

ecture

NP

NP

Technology Architecture

Technology Architecture (TA)
a simplified demand chain mapped to ea1

Change Requirements

Technologies

A Simplified Demand Chain; mapped to EA

Corporate Goals

Demand Chain

Business Vision

Improve

Time to Market

Example

Business Strategy

Changes in

Business Strategy

Improve Product

Design Process

Business

Approach

Business Model

Business Operations

Changes in

Business Model

Reduce Process

Change Time

Business Architecture

Improve Solution

Delivery Time

IT Strategies

Information

Architecture

Solution

Strategy

Platforms & Patterns

System simplifications

And SOA

Example

Solution

Architecture

Technology

Architecture

Technology

Architecture

where to place the ea governance
EA leaders and BCIOs should position EA as part of IT Governance — not as a separate function. They have to make sure that this governance plays at several governance levels; starting at the overall IT Strategy & Plan and runs through Project Portfolio Governance to governance of individual projects. (See next slide.)

The practical implementation of such a governance structure will require to involve chief architects in multiple levels of governance path.

IT policies should lay out the role of the EA function in setting directions, influencing plans, and approving project decisions. EA group heads must use their IT management sponsorship and credibility to achieve the mandat that is equivalent to what a policy would cover. (See next slide.)

The basics of IT architecture governance takes the form of Nordea’s repository of Reference Architectures, Models, and Patterns.

The project architects must seek (and governed) to re-use as much as possible from the Nordea’s assets that are relevant to the project at hand.

One responsibility of the EA Governance is to innovate and to keep Nordea in the front of competitive edge – while avoiding unmanaged complexity in IT. EA governance may use the capabilities/opportunities of the large Initiatives and Transformations to introduce new patterns and/capabilities. (See the following slides.)

Business Architecture Gov.

IT Governance

EA Governance

Project Portfolio Governance

IT Service Governance

Project Governance

Where to Place the EA Governance
ea governance as a part of it governance overview

Business Architecture Governance

IT Governance

EA Governance

Project Portfolio Governance

IT Service Governance

Project Governance

EA Governance as a Part of IT Governance - OVERVIEW
ea governance as a part of it governance

Enterprise Architecture Governance

Alignment with business drivers and plans,

EA Roadmaps &

The EA To-Be State

Sponsorship, credibility,

communication channels

Project Portfolio Governance

Project Prioritisation and business case, project approvals, portfolio rationalisation/alignments (e.g. in programmes and other initiatives)

IT Service Governance

Business (SOA) Service Catalogue and Repository and Service Levels.

(Service Management is currently only in NTP – soon elsewhere.)

Support in Design work &

Review at Project Gates

Project Governance

Schedule, cost, requirements, design, testing, change control

EA Governance as a Part of IT Governance

Business Architecture Governance

IT Governance

Overall Strategies, Priorities, Policies, Investment Decisions & Performance Metrics.

IT Governance is about how IT investment decisions are made, who is involved, whatprocesses are used, and how decisions are tracked.

business units road map

& applications roadmaps

Ongoing Business Needs, architecture needs/priorities

CIOs must recognize EA Governing Boards, such as Architecture Forum Review Board, as an extension to the IT governance.

context dependency of the governance scale
Context Dependency of the Governance – Scale

Transformation

Initiatives

Projects

Projects

Initiatives

Projects

Projects

Projects

Small

Scale

Large

Scale

Characteristics:

  • Discrete
  • Localized
  • Stable
  • Tactical
  • Short Term

Characteristics:

  • Breakthrough
  • Enterprise
  • Destabilizing
  • Strategic
  • Medium Term

Characteristics:

  • Continuous
  • Ubiquitous
  • Routine
  • Visionary
  • Longer Term

They will be making decisions with little understanding of long- term dependencies or implications.

Decisions are based on mid-term horizons and implications. Tend to reuse existing assets & introduce a few new.

Long-term decisions, competitive advantages, innovative, build bridges and pave the way for the rest of Nordea.

governance and the scale of the changes
Governance and the Scale of the “Changes”
  • Projects
    • EA Governance yields to the shift of project focus from tactical, project-level architecture toward strategic target architecture.
    • Enhance the collaboration between projects and support teams as well as streamline use of technology – ensure a high level of reuse.
  • Initiatives (in addition to above)
    • Follow and enhance the enterprise architecture road map – with part time allocation of EA architects to the initiative. Support and Educate.
    • Create focus around BPM (Business Process Management) and BSM (Business Service Management). Address potentials of BPM across business operations/units.
    • Improving architecture governance (including SOA governance – reuse of/ producing Business Services according to target business needs).
    • Establish and drive architecture networks amongst unrelated teams to encourage architecture compliance
  • Transformations (in addition to above)
    • We have to establish a well organized collaboration with full time allocations of EA chief architect(s). Follow and develop EA roadmap (including storyboard to diminish older/obsolete patterns ).
    • Organise BPM and BSM teams/projects. Identify reusable (may be foundation-creating) services and business assets in alignment with the long-term Business Visions and roadmaps.
    • EA Chief Architects must identify potentials for IT innovation, thus they can enable & accelerate the execution of the transformation and/or ensure the achievement of the goals.
these roles collaborate in the broad decision making processes
These roles collaborate in the broad decision making processes.

Change Planning

  • The Enterprise Architecture Board(Must be established.)
  • Nordea’s EA Board, owned or sponsored by the Business

Architecture Domain

Owners & Key Stakeholders

  • Business Domain or Programme Architecture Boards
  • Board of Architects for Business Domains; with specific knowledge of Business and the Solutions supporting the Business

Domain DesignAuthorities

Domain DesignAuthorities

  • Solution Architecture Boards
  • Project Architects with specific knowledge of the Solutions and the architectural (technology) patterns.

Solution Design Authorities

Solution Design Authorities

Solution Design Authorities

Solution Design Authorities

perspectives in ea governance

Project

Justifications

and Goals

Enterprise

Designs

Trans-

formation

Projects

Road maps

Capabilities

Interdependencies

Resources

Implementation

Project priority & scope

  • Roadmaps for business units
  • Other initiatives .
  • Ensure Consistency.
  • Provide insights .
  • Design Standards
  • Design Elements

Project

Designs

Project

Linkages

Perspectives in EA Governance

Business

Strategy

and Planning

Vision

Culture Values

Opportunities Strategies

Goals Options Priorities

Directions Guidelines

Align project execution with Nordea overall Business Goals.

Design and Feedback Loop to Nordea Enterprise Architecture

Collaboration, Support, Education, Review

Where the

rubber hits

the ground!

Innovation and value guiding principles

Enabling architectural and technical capability

Portfolio

Management

and Alignment

Enterprise

Architecture

Link Enterprise Architecture & Business Plans to IT actions

Business Project Selection & execution

ea communication changes transformations

Business Unit A

Business Unit B

Business Unit C

Business Unit D

Vertical HierarchySilo Mentality within Business Units

HorizontalCustomer Centred

Core Process 1

Core Process 2

Core Process 3
