Eicher Tractor with Power Steering System - TAFE

The EICHER 480 Prima G3 is a powerful 45 HP tractor featuring a durable 3-cylinder, 2500 cc SIMPSON water-cooled engine for efficient performance. Built with an 8F 2R partial constant mesh transmission, this 2WD model ensures smooth operation in the field. Its live PTO and 1650 kg lifting capacity provide versatility for multiple tasks, while power steering, oil-immersed brakes, and a 57 L fuel tank enhance ease of use and reliability.<br>

tafetractorsandfarmequipments
Download Presentation

Eicher Tractor with Power Steering System - TAFE

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

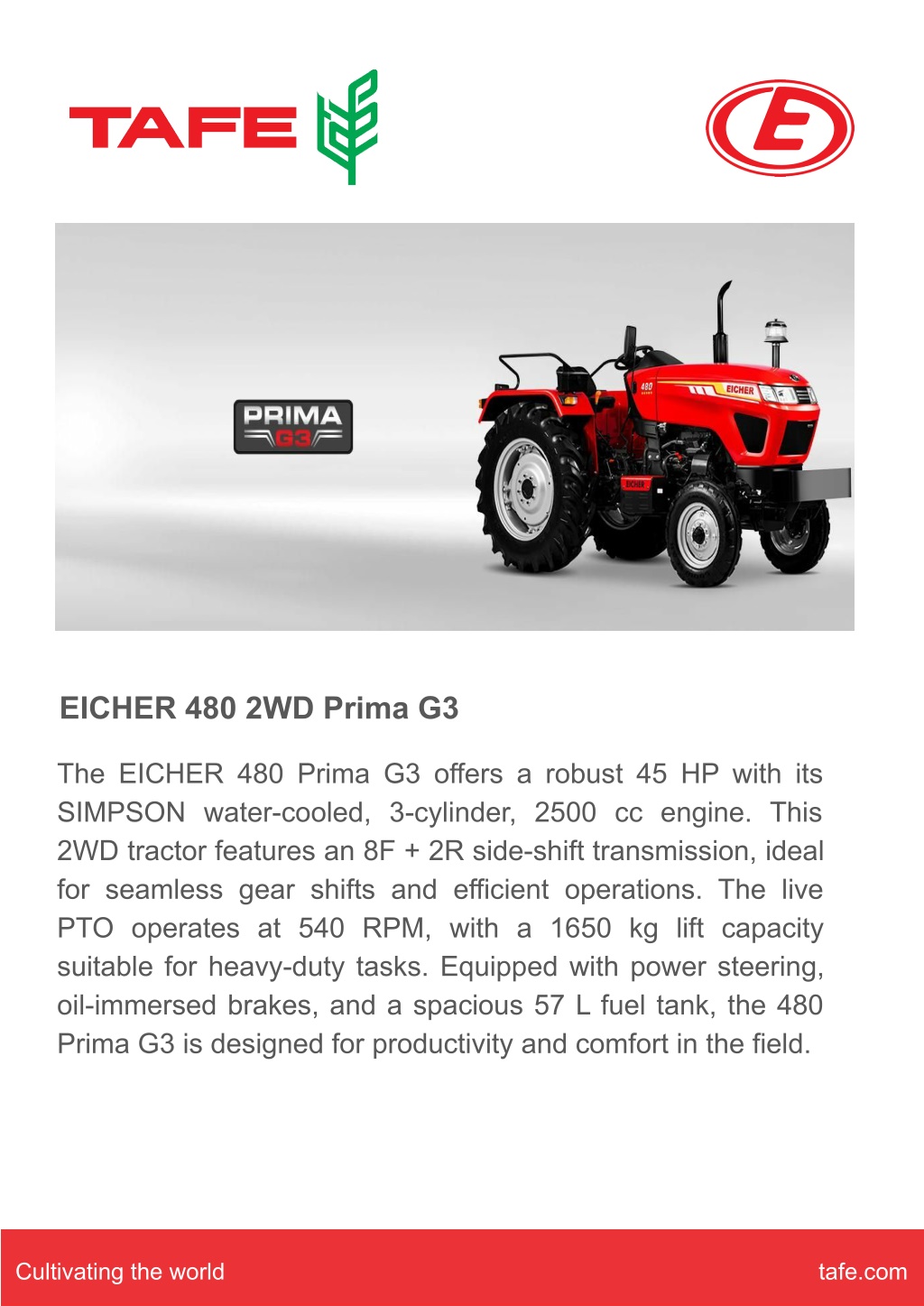

  1. EICHER 480 2WD Prima G3 The EICHER 480 Prima G3 offers a robust 45 HP with its SIMPSON water-cooled, 3-cylinder, 2500 cc engine. This 2WD tractor features an 8F + 2R side-shift transmission, ideal for seamless gear shifts and efficient operations. The live PTO operates at 540 RPM, with a 1650 kg lift capacity suitable for heavy-duty tasks. Equipped with power steering, oil-immersed brakes, and a spacious 57 L fuel tank, the 480 Prima G3 is designed for productivity and comfort in the field. Cultivating the world tafe.com

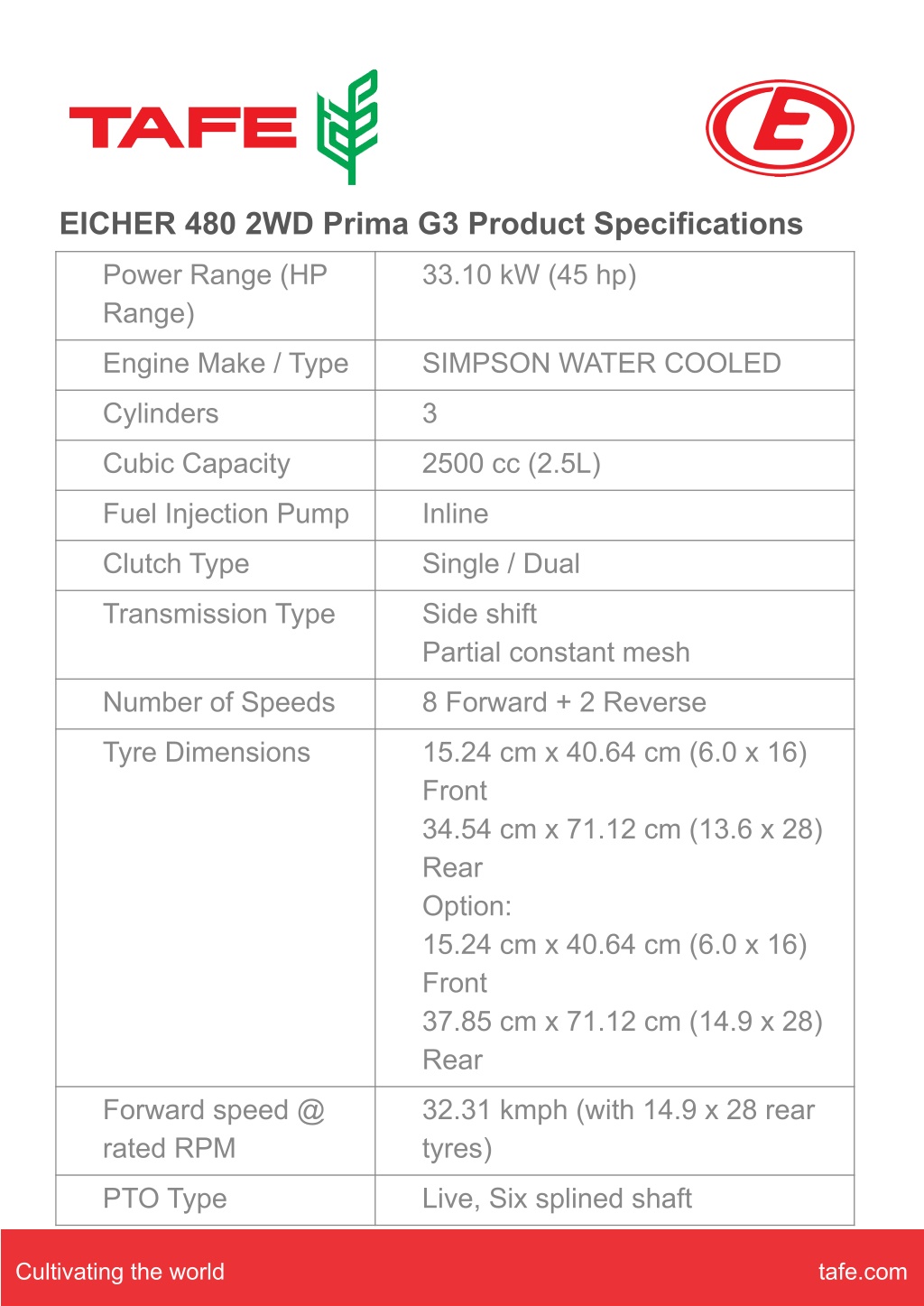

  2. EICHER 480 2WD Prima G3 Product Specifications Power Range (HP Range) 33.10 kW (45 hp) Engine Make / Type SIMPSON WATER COOLED Cylinders 3 Cubic Capacity 2500 cc (2.5L) Fuel Injection Pump Inline Clutch Type Single / Dual Transmission Type Side shift Partial constant mesh Number of Speeds 8 Forward + 2 Reverse Tyre Dimensions 15.24 cm x 40.64 cm (6.0 x 16) Front 34.54 cm x 71.12 cm (13.6 x 28) Rear Option: 15.24 cm x 40.64 cm (6.0 x 16) Front 37.85 cm x 71.12 cm (14.9 x 28) Rear Forward speed @ rated RPM 32.31 kmph (with 14.9 x 28 rear tyres) PTO Type Live, Six splined shaft Cultivating the world tafe.com

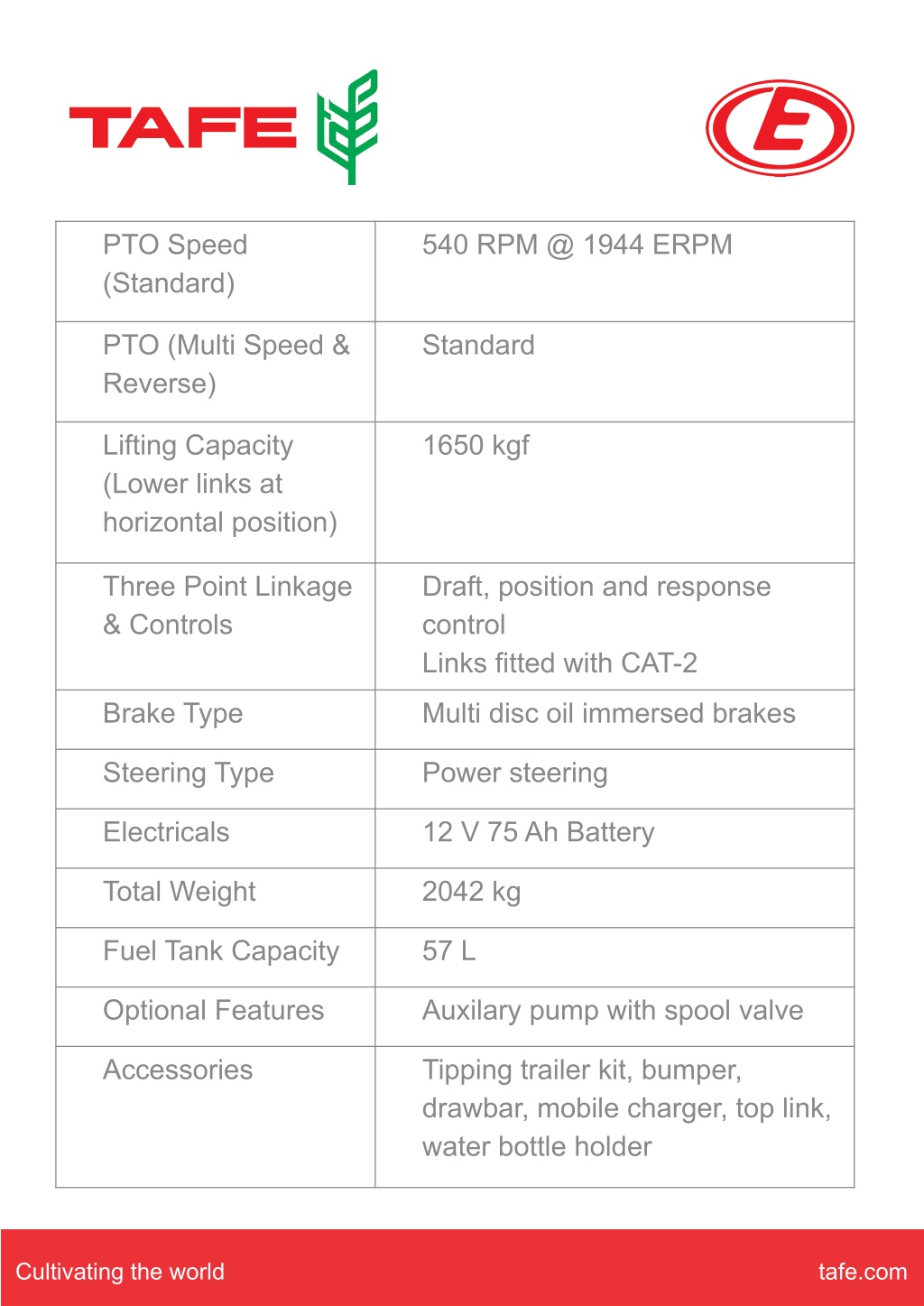

  3. PTO Speed (Standard) 540 RPM @ 1944 ERPM PTO (Multi Speed & Reverse) Standard Lifting Capacity (Lower links at horizontal position) 1650 kgf Three Point Linkage & Controls Draft, position and response control Links fitted with CAT-2 Brake Type Multi disc oil immersed brakes Steering Type Power steering Electricals 12 V 75 Ah Battery Total Weight 2042 kg Fuel Tank Capacity 57 L Optional Features Auxilary pump with spool valve Accessories Tipping trailer kit, bumper, drawbar, mobile charger, top link, water bottle holder Cultivating the world tafe.com
