java oop for android

Java OOP for Android

Part 1: OOP Introduction

Part 2: OOP for Android

java oop
Java OOP
  • Java with Android API is a Object-oriented programming(OOP) language for Android based mobile application development.
  • An object-Oriented Programming encapsulates attributes and behaviors in objects.
  • In addition, OOP also support inheritance and polymorphism.
encapsulation of class and object
Encapsulation of Class and Object

Objects and Classes

  • Object-oriented language describes a entity/objects binding its data(state), and operations(behavior) on that data.
  • The data is encapsulated by its operations, i.e the data can only be accessed by the methods of this object of the class.
  • A class is a kind of type which defines the template of fields (data) and methods (operation) t from which a instance(object) is constructed.
  • Here is the definition of a very, very simple class with one field, count, and one method, inc()
encapsulation of class and object1
Encapsulation of Class and Object

publicclassCounter {

/** a field: its scope is the entire class */

privatelongcount;

/** Modify the field. */

publicvoid inc() { count++; }

}

object creation
Object Creation
  • A new object, an instance of some class, is created by using the new keyword:

Counter counter1 = new Counter();

  • On the left side of the assignment operator “=”, this statement defines a reference variable, named counter1.
  • This reference variable has a type, Counter, so it can only point to a object of Counter.
  • The right side of the assignment, the class Counter default constructor allocates memory for a new instance of the Counter class and initializes the instance.
  • The assignment operator assigns a reference to the newly created object to the variable.
inheritance
Inheritance
  • A type may inherit from other types. A class that inherits from another is said to subtype/subclass of its parent type/class.
  • The parent class is called the supertype/superclass. A superclass may have several different subclasses and it is called the base type for those subclasses.
  • Both methods and fields within the superclass may be visible from its subclass unless they have private visibility scope.
  • The relation from a subclass to its superclass is a “is a” relationship (specialization/generalization) just as a graduate is a student and a undergraduate student is a student.
  • Both under- or graduate students have a common properties of a student, and in addition, they have their own special features.
inheritance1
Inheritance
  • Inheritance represents such hierarchical relationship between classes(entities) in which one class inherits attributes and behaviors from at least one other category.
  • More examples, dog/cat inherits from animal (dog or cat is a kind of animal), car/track inherits from vehicle (car/track is a kind of vehicle), and circle/triangle/square inherits from shape (they are kinds of shape).
  • Animal, vehicle, and shape are more generic class; and tiger, car, and circle are more specific class.
interface inheritance
Interface Inheritance
  • Java provides the reserved word extends for specifying a hierarchical relationship between two classes.
  • For example, suppose you have a Student class and want to introduce a undergraduate student class as a kind of Student.
  • Relating two classes via extends
interface inheritance1
Interface Inheritance

class Student

{

// member declarations

}

classUnderGraduateStudentextends Student

{

// member declarations

}

interface inheritance2
Interface Inheritance
  • Explanation:

– UnderGraduateStudent is the class being defined

– extendsindicates that UnderGraduateStudent is an extension of another class

– Student is the name of the pre-defined class being extended by UnderGraduateStudent

polymorphism
Polymorphism
  • Polymorphism is the ability to have behavior at runtime.
  • Polymorphism is implemented by late binding at run time in Java.
  • Two major forms of Polymorphism are
    • Parametric
    • Subtype
parametric
Parametric
  • Parametric: Parametric polymorphism in Java is supported by generic which allows a function or a data type to be written generically, so that it can handle values identically without depending on their type.
  • Collection classes are written using Generic Type which allows Collections to hold any type of object in run time without any change in code and this has been achieved by passing actual Type as parameter.
  • The following example shows a parametrized list data type and two parametrically polymorphic functions on them:
parametric1

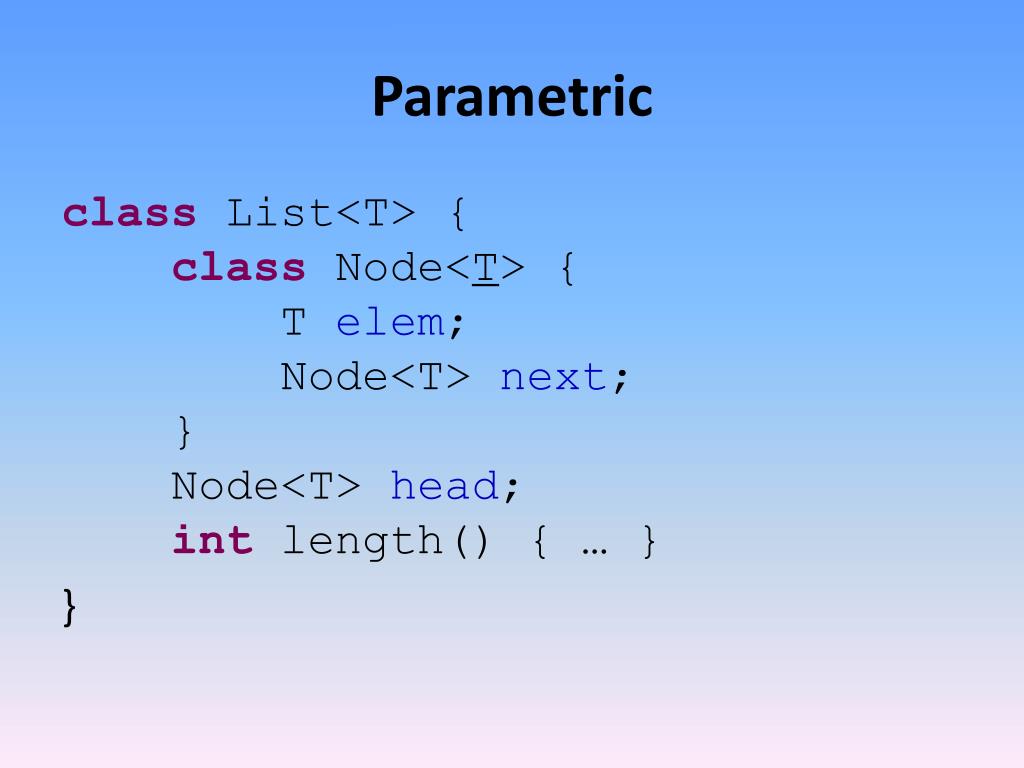

Parametric

class List<T> {

class Node<T> {

T elem;

Node<T> next;

}

Node<T> head;

int length() { … }

}

parametric2
Parametric
  • Any parametrically polymorph function is necessarily restricted in what it can do, working on the shape of the data instead of its value, leading to the concept of parametricity.
subtype
Subtype
  • Objects of a same type can have different behavior when subtypes of a given class are assigned to a variable of the base class type.
  • When a subclass instance is used in a superclass context, executing a supertype method on the subclass instance will actually execute the subclass’s version of that operation.
  • For example, suppose that Dog and Cat are subclass of class Animal, and that both classes contain a eat() method inherited from class Animal.
subtype1
Subtype
  • Assigning a Dog instance to a variable of type Animal,

Animal myAnimal = new Dog();

myAnimal.eat(); //eat method of Dog class

Animal myAnimal = new Cat();

myAnimal.eat();//eat method of Cat class

  • You can see the statements in line 2 and 4 above that the same statement results in different methods executions at run time.
  • The following example shows three classes – Shape <- Rectangle <- RoundedRectangle – with linear inheritance relationship:
interfaces
Interfaces
  • An interface in Java is a protocol or contract.
  • A class can implement multiple interfaces and override the abstract methods declared in the interface.
  • A interface is a kind of abstract class type without implementation.
interfaces1
Interfaces
  • An interface’s fields are constant and must be initialized.
  • An interface’s methods are implicitly declared public and abstract.
  • The Handler identifies a type that specifies what to do (act something) but not how to do it.
  • Implementation details are left up to classes that implement this interface.
  • Instances of such classes should know how to act themselves.
declaring interfaces
Declaring Interfaces
  • Declaring a Handler interface

publicinterface Handler

{

inttimeout=60;

void action(int x);

}

implementing the handler interface
Implementing the Handler interface

classMyhandlerimplements Handler

{

privateintx;

voidMyHandler(int x)

{

this.x = x;

}

intgetX()

{

returnx;

}

@Overridepublicvoid action(int x)

{

x++;

System.out.println("new x is" + x );

}

}

introduction to android
Introduction to Android
  • Android is a software stack for mobile devices that includes an operating system, middleware and key applications.
  • The Android SDK provides the tools and APIs necessary to begin developing applications on the Android platform using the Java programming language.
directories and files
Directories and Files

•Project

◦src

◦gen

◦Android [Version]

◦assets

◦res

▪drawable-hdpi

▪drawable-ldpi

▪drawable-mdpi

▪layout

▪menu

▪values

file androidmanifest xml
File: AndroidManifest.xml

Configure the application:

Versioning, icon, initialize activities, configure permissions

<?xmlversion="1.0"encoding="utf-8"?>

<manifestxmlns:android="http://schemas.android.com/apk/res/android"

android:versionCode="1"

android:versionName="1.0"package="android.dodgeball">

<uses-sdkandroid:minSdkVersion="8"/>

<applicationandroid:icon="@drawable/icon"android:label="@string/app_name">

<activityandroid:name="android.dodgeball.DodgeBallActivity"

android:label="@string/app_name">

<intent-filter>

<actionandroid:name="android.intent.action.MAIN"/>

<categoryandroid:name="android.intent.category.LAUNCHER"/>

</intent-filter>

</activity>

</application>

</manifest>

file androidmanifest xml1
File: AndroidManifest.xml

Setup w/o coding

Manifest

Application

Permissions

Instrumentation

directory src
Directory: src

Application source code

directory res drawable
Directory: res/drawable-*
  • Image files
  • Drawable-hdpi: high resolution
  • Drawable-mdpi: medium resolution
  • Drawable-ldpi: low resolution
  • Coding in .java file:
  • Setup in .xml file:

mBitmap = BitmapFactory.decodeResource(res, R.drawable.icon);

canvas.drawBitmap(mBitmap, mX, mY, null);

<ImageViewandroid:layout_width="wrap_content"android:layout_height="wrap_content"android:src="@drawable/icon"android:id="@+id/imageView1"></ImageView>

directory res layout
Directory: res/layout
  • UI definitions
  • Layouts
  • Widgets

<?xmlversion="1.0"encoding="utf-8"?>

<LinearLayoutxmlns:android="http://schemas.android.com/apk/res/android"

android:layout_width="fill_parent"android:layout_height="fill_parent"

android:orientation="vertical">

<Buttonandroid:onClick="startgame"android:id="@+id/button1"android:layout_height="wrap_content"android:layout_width="wrap_content"android:text="Start Game"></Button>

</LinearLayout>

directory res layout1
Directory: res/layout
  • Setup w/o coding
  • Drag and drop
directory res menu
Directory: res/menu

Define menus accessible to the user

Setup w/o coding

directory res values
Directory: res/values
  • Constants, supports internationalization

Value types:

Setup w/o coding

application and activities

APK Package

APK Package

APK Package

Application and Activities

Task

Process

Process

Process

Activity

Activity

Activity

Activity

Activity

Activity

ContentProvider

ContentProvider

ContentProvider

Process

Service

Service

Service

implementing the lifecycle callbacks
Implementing the lifecycle callbacks

publicclassExampleActivityextendsActivity{@OverridepublicvoidonCreate(BundlesavedInstanceState){super.onCreate(savedInstanceState);// The activity is being created.}@OverrideprotectedvoidonStart(){super.onStart();// The activity is about to become visible.}@OverrideprotectedvoidonResume(){super.onResume();// The activity has become visible (it is now "resumed").}@OverrideprotectedvoidonPause(){super.onPause();// Another activity is taking focus (this activity is about to be "paused").}@OverrideprotectedvoidonStop(){super.onStop();// The activity is no longer visible (it is now "stopped")}@OverrideprotectedvoidonDestroy(){super.onDestroy();// The activity is about to be destroyed.}}

oncreate bundle savedstate
onCreate(Bundle savedState)

Activity instance creation

Set content view

Initializations

@Override

publicvoidonCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.main);

b1=(Button)findViewById(R.id.button1);

b1.setVisibility(0);

}

ui view1
UI View

<?xmlversion="1.0"encoding="utf-8"?>

<LinearLayoutxmlns:android="http://schemas.android.com/apk/res/android"

android:layout_width="fill_parent"android:layout_height="fill_parent"

android:orientation="vertical">

<TextViewandroid:id="@+id/textView1"android:layout_width="wrap_content"android:layout_height="wrap_content"android:text="Hello in help.xml"></TextView>

<Buttonandroid:id="@+id/button1"android:layout_width="wrap_content"android:layout_height="wrap_content"android:text="Submit1"></Button>

<Buttonandroid:id="@+id/button2"android:layout_width="wrap_content"android:layout_height="wrap_content"android:text="Submit2"></Button>

<Buttonandroid:id="@+id/button3"android:layout_width="wrap_content"android:layout_height="wrap_content"android:text="Submit3"></Button>

</LinearLayout>

help.xml

ui view2
UI View

publicvoidonCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.help);

b1=(Button)findViewById(R.id.button1);

b2=(Button)findViewById(R.id.button2);

b3=(Button)findViewById(R.id.button3);

b3.setVisibility(100);

}

classic inheritance in android
Classic Inheritance in Android

The code defines a class called Hello_worldActivity as an extension of Activity

publicclassDodgeBallActivityextends Activity {

/** Called when the activity is first created. */

publicstatic Button b1;

@Override

publicvoidonCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.main);

b1=(Button)findViewById(R.id.button1);

}

publicvoidstartgame(View v){

Panel p=new Panel(this);

WindowManagerwindowManager = getWindowManager();

Display display = windowManager.getDefaultDisplay();

p.screenWidth = display.getWidth();

p.screenHeight = display.getHeight();

setContentView(p);

}

}

oop instance for android
OOP Instance for Android
  • The following code is an instance by using encapsulation, inheritance, and polymorphism in Android program.
  • It is creating a class named “Element”, it contains several functions and variables with the declarations of public, protected, and private
slide43

Encapsulation

class Element {

protectedintmX;

protectedintmY;

protectedintwspeed=0;

protectedinthspeed=0;

publicintscreenWidth;

publicintscreenHeight;

public Element() { }

privatevoidcheckedge(){…… } //private method, others can't see or use

publicvoid move(){…… }

publicvoid build(){

}

publicvoid draw(Canvas canvas,intX,intY,Paint paint){

paint.setColor(Color.GREEN);

canvas.drawCircle(X,Y,15,paint);

paint.setColor(Color.RED);

canvas.drawCircle(X,Y,10,paint);

paint.setColor(Color.BLUE);

canvas.drawCircle(X,Y,5,paint);

}

publicvoid draw(Canvas canvas, Paint paint) {

}

}

slide44

Inheritance

  • The following code is for defining a class “MyRectangle” to inherit the class “Element” with syntax extends
  • In this class, it declares a new public value rect , and override the method “build” and “draw”

classMyRectangleextends Element{

publicMyRectangle() {

mX=50;

mY=50;

}

publicRectFrect;

@Override

publicvoid build(){

rect= newRectF(mX, mY, mX+20, mY+20);

}

publicvoid draw(Canvas canvas,intX,intY,Paint paint){

this.build();

this.move();

paint.setColor(Color.RED);

canvas.drawRect(rect, paint);

}

}

slide45

The following code is for defining a class “MyTriangal” to inherit the class “Element”

  • In this class, it declares a new public value path, and override the method “build” and “draw”

classMyTriangalextends Element{

publicMyTriangal() {

mX=80;

mY=80;

}

public Path path = new Path();

@Override

publicvoid build(){

path.reset();

path.moveTo(mX, mY-8);

path.lineTo(mX-7,mY+7);

path.lineTo(mX+8, mY+7);

path.lineTo(mX, mY-8);

path.close();

}

publicvoid draw(Canvas canvas,intX,intY,Paint paint){

this.build();

this.move();

paint.setColor(Color.BLUE);

canvas.drawPath(path, paint);

}

}

slide46

The following code is for defining a class “MyCircle” to inherit the class “Element”

  • In this class, it declares a new public value radius, and

classMyCircleextends Element{

publicMyCircle() {

mX=120;

mY=120;

}

privateintradius=10;

publicvoid move(intX,int Y){

if((X-mX)*wspeed<0){

wspeed=-wspeed;

}

if((Y-mY)*hspeed<0){

hspeed=-hspeed;

}

mX+=wspeed;

mY+=hspeed;

}

publicvoid draw(Canvas canvas, intX,intY,Paint paint){

paint.setColor(Color.YELLOW);

canvas.drawCircle(mX,mY,radius,paint);

this.move(X,Y);

}

}

slide47

Polymorphism

  • The following code is for creating new instances from the classes

public Element e[]=new Element[4];

e[0]=new Element();

e[1]=newMyRectangle();

e[2]=newMyTriangal();

e[3]=newMyCircle();

  • The following code is for initializing and running the new instances

e[1].wspeed=1;

e[1].hspeed=1;

e[2].wspeed=3;

e[2].hspeed=-2;

e[3].wspeed=1;

e[3].hspeed=1;

……for(inti=0;i<4;i++){

……

e[i].draw(canvas, mX, mY, paint);

}

ui input
UI Input
  • Typical input sources
    • Keyboard
    • Touch Screen
  • Event-based Paradigm
    • Register to listen for device events
ontouchevent example
onTouchEvent() Example

@Override

publicbooleanonTouchEvent(MotionEvent event) {

int action = event.getAction();

switch (action) {

caseMotionEvent.ACTION_DOWN:

if(!paused){

if((int) event.getX()>mX){…… }

elseif((int) event.getX()<mX){…… }

if((int) event.getY()>mY){…… }

elseif((int) event.getY()<mY){…… }

}

else{…… }

break;

caseMotionEvent.ACTION_MOVE:

……

break;

caseMotionEvent.ACTION_UP:

……

break;

}

returntrue;

}
