Java and OOP

1. Java and OOP Part 3 – Extending classes

2. Inheritance • Suppose we want a version of an existing class, which is slightly different from it. • We want to avoid starting again from scratch • We can define the new class to be a sub-class of the first class.

3. Terms used • The original class is called the base class, the ancestor class or the super class • The process of designing the sub-class from the base class is called 'sub-classing' the base class

4. Sub-classing • The subclass inherits all members and methods of the first • where needed we can write new versions of inherited methods – which replace the old method • we can add extra members and methods • You can’t ‘loose’ a member or method • No limit to levels of inheritance

5. Example • Common type of sub-classing is specialization • Suppose we want a type of product which is perishable • When we deliver new stock, we throw away old stock – not add to it • First review the Product class:

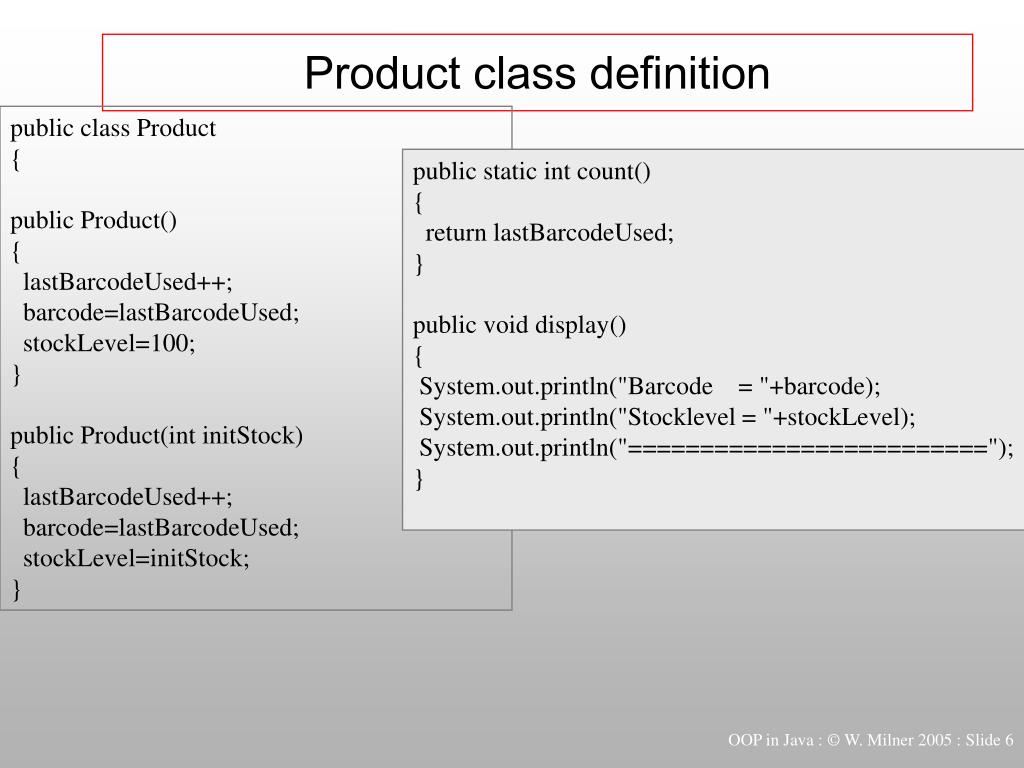

6. Product class definition public class Product { public Product() { lastBarcodeUsed++; barcode=lastBarcodeUsed; stockLevel=100; } public Product(int initStock) { lastBarcodeUsed++; barcode=lastBarcodeUsed; stockLevel=initStock; } public static int count() { return lastBarcodeUsed; } public void display() { System.out.println("Barcode = "+barcode); System.out.println("Stocklevel = "+stockLevel); System.out.println("========================="); }

7. public boolean needMore() { if (stockLevel==0) return true; else return false; } public void sell(int howMany) { stockLevel-=howMany; if (stockLevel<0) stockLevel=0; } Rest of Product public int getStockLevel() { return stockLevel; } private static int lastBarcodeUsed=0; private int barcode; protected int stockLevel; } public void deliver(int howMany) { if (howMany<0) { System.out.println("Invalid delivery"); return; } else stockLevel+=howMany; }

8. Implementation of Perishable public class Perishable extends Product { public void deliver(int howMany) { stockLevel=howMany; } }

9. Protected • Problem – the deliver method in Perishable references the private field stockLevel – not allowed • Solution – use access control modifier protected • Excerpt from modified Product definition – .. private static int lastBarcodeUsed=0; private int barcode; protected int stockLevel; }

10. public class First { public static void main(String[] args) { Product prod = new Product(); prod.deliver(100); Perishable perish1 = new Perishable(); Perishable perish2 = new Perishable(); perish1.deliver(50); perish2.deliver(60); prod.display(); perish1.display(); perish2.display();} } Using the subclass All 3 use default constructor =stocklevel 100 Barcode = 1 Stocklevel = 200 ==================== Barcode = 2 Stocklevel = 50 ==================== Barcode = 3 Stocklevel = 60 ====================

11. Constructors of sub-classes • Constructors are not methods • They are not inherited • If you don't define one – the no-arg constructor of the base class is called for you – see last example

12. super() • super(); can be used as the first statement in a constructor • It means the corresponding superclass constructor is called • Further statements can take further action • For example..suppose Perishable products have an extra store location code..

13. Using super() public Perishable(int initStock, int initLocationCode) { super(initStock); locationCode = initLocationCode; } public Product(int initStockLevel) { barcode=lastBarcodeUsed++; stockLevel=initStockLevel; }

14. More on super() • super() cannot be anywhere except the first line of a constructor • If you don’t use super(), the system executes it anyway • IOW a subclass constructor first executes the no-arg constructor of the super class

15. Exercise • Define an Employee class, with fields payrollNumber and rateOfPay • Define a Manager class as a sub-class of Employee. They are paid monthly – define their pay() method to display their pay • Define a Clerical class as a sub-class of Employee. They are hourly paid. Add an hoursWorked field, and a pay() method.

16. Object • All classes descend from the class Object • public class MyClass.. Is in effect: • public class MyClass extends Object.. • While if you say • public class MyClass extends MySuperClass • Then MySuperClass, or its ancestor, descends from Object • Object objects have few useful methods • Except toString(), which converts the object to a descriptive string • Which is what System.out.println calls • For example..

17. Object example Object someObject= new Object(); System.out.println(someObject); Output: java.lang.Object@187c6c7

18. Changing and using toString In Perishable definition.. .. public String toString() { return "Perishable ID="+barcode+" Loc="+locationCode+" stock="+stockLevel; } .. in use.. Perishable p1 = new Perishable(20,30); Perishable p2 = new Perishable(20,45); System.out.println(p1); System.out.println(p2); calls toString() of Perishable objects Output: Perishable ID=0 Loc=30 stock=20 Perishable ID=1 Loc=45 stock=20

19. final methods • A method declared as final in a superclass cannot be altered in a subclass • For example..

20. Defining a method as final In Product.. public final void display() { System.out.println("Barcode = "+barcode); System.out.println("Stocklevel = "+stockLevel); System.out.println("========================="); } In Perishable.. public void display() { .. .. } In use: Perishable p1 = new Perishable(20,30); Output on next slide

21. Trying to override final - compile time error C:\Walter\JavaProgs\Perishable.java:19: display() in Perishable cannot override display() in Product; overridden method is final public void display() ^ 1 error

22. Final classes – and why • A class declared as final cannot be subclassed • Methods and classes are usually declared as final for security • Otherwise – a subclass of a standard superclass might be defined, with.. • Unpleasant overridden methods • But at run-time a subclass object would look like the superclass • Eg the String class is final for this reason

23. Abstract classes • Superclasses which are 'general' can be declared abstract • Used when subclasses will all implement the same method – in different ways, but • The superclass is too general to actually implement the method itself • For example..

24. Example abstract class • Suppose we had a superclass called Shape • And subclasses called Triangle, Rectangle, Square and so on. • Each would need a draw method • But we could not program the draw method of a Shape instance • So the draw method of Shape is declared abstract • As is the class as a whole • This means Shape cannot be instantiated

25. Example abstract class public abstract class Shape { public Shape(int initHeight, int initWidth) { width=initWidth; height=initHeight; } public abstract void draw(); protected int width; protected int height; }

26. public class Rectangle extends Shape { public Rectangle(int h, int w) { super(h,w); } public void draw() { for (int i=0; i<height; i++) { for (int j=0; j<width; j++) System.out.print("*"); System.out.println(); } } } Subclass of abstract class

27. Using the subclass Rectangle r = new Rectangle(4,5); r.draw();

28. Exercise • Copy the Shape class • Define a Triangle class by subclassing Shape – define the draw method • How would you deal with a Square class?
