  1. Real Time ScadaLynx Model 50386 A New Technology Transmitter

  2. System Applications • Satellite • SCADA Two-Way Radio • ALERT/IFLOWS • Phone Modem • Data Logging • Multiple Path

  3. Dual Processor Design • Allows the 50386 to run on batteries with solar panel recharge • The main processor is a high power 386EX microprocessor • It performs its duties then shuts down to conserve power • A second low power PIC I/O processor wakes up the 386 on events

  4. The 386EX Microprocessor • Collects and processes sensor data • Tests for alarm conditions • Drives the communication telemetry • Performs controls • Logs data in 2MB Flash memory

  5. Low Power PIC I/O Processor • Waits for a 386 wake up condition • Counts digital sensor events and wakes when programmable changes are met • Monitors data telemetry and wakes when communications are active • Wakes at timed intervals

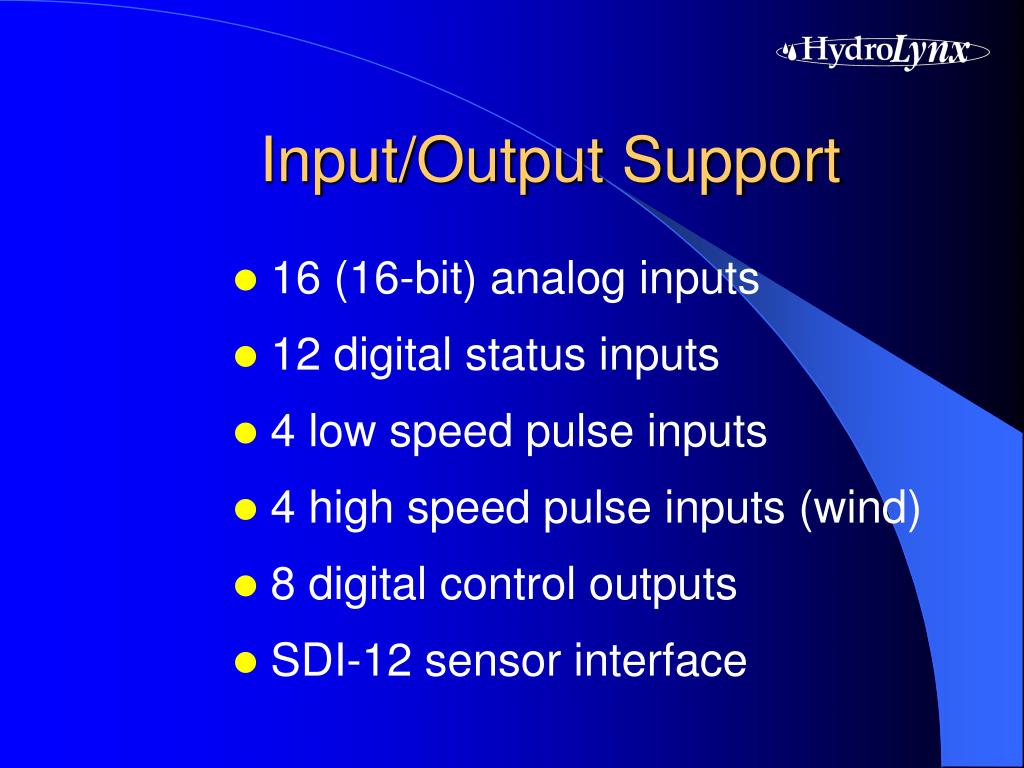

  6. Input/Output Support • 16 (16-bit) analog inputs • 12 digital status inputs • 4 low speed pulse inputs • 4 high speed pulse inputs (wind) • 8 digital control outputs • SDI-12 sensor interface

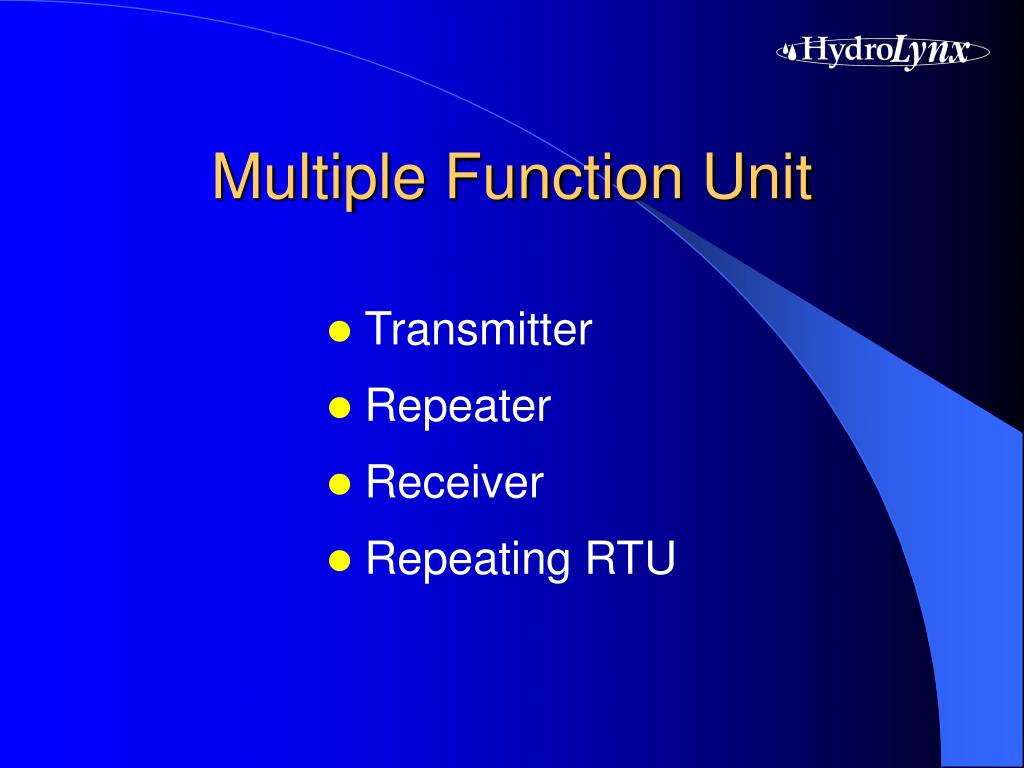

  7. Multiple Function Unit • Transmitter • Repeater • Receiver • Repeating RTU

  8. Analyze Data Before Transmitting • Sample over an interval • Compute the mean, max or min • Compute totals or differences • Transmit raw and/or computed data

  9. Multi-Path Communication • 6 communication ports available • Receive on one or more ports • Retransmit on the same or another port • Change report format for retransmission • Limit retransmission to station ID ranges • Remember transmissions to prevent talk back

  10. Alarm Testing and Control • Set upper and lower alarm limits • Set a change alarm limit • Alarms are reset by value or time • Alarms activate transmissions or control • Digital controls can turn on samplers, lights, low water crossing arms

  11. Laptop Programming Toolkit • A MS Windows software program allows you configure the 50386 • Program through a COM port or through a telemetry link • Programming protocols include ScadaLynx and Modbus
