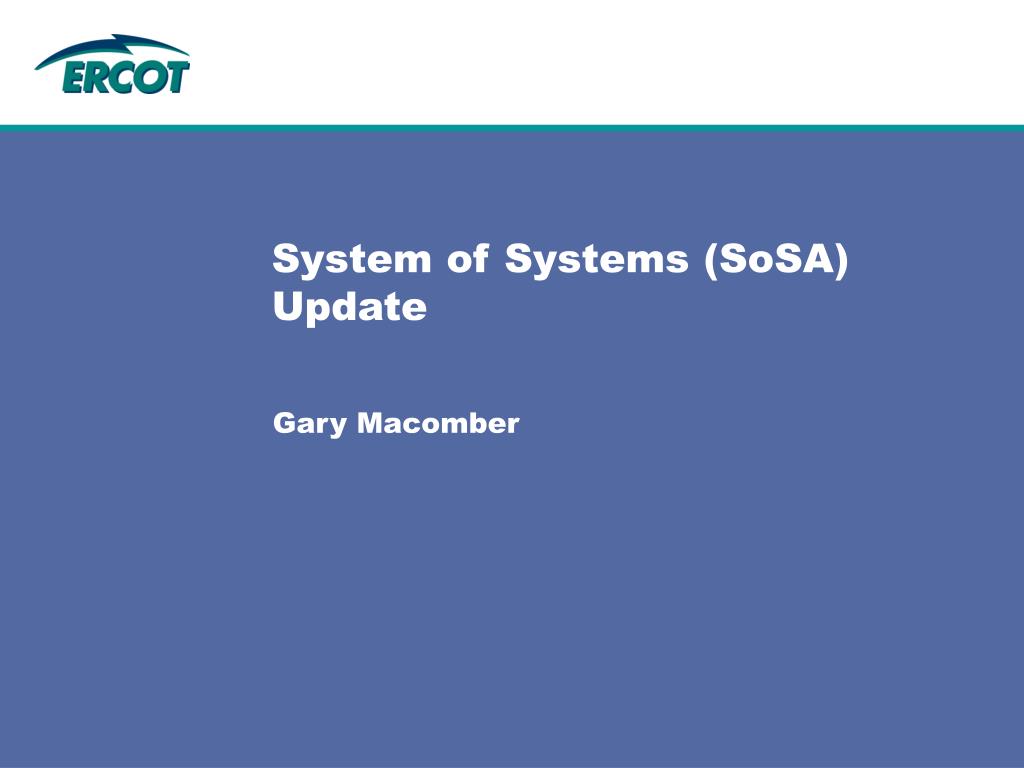

  1. System of Systems (SoSA) Update Gary Macomber

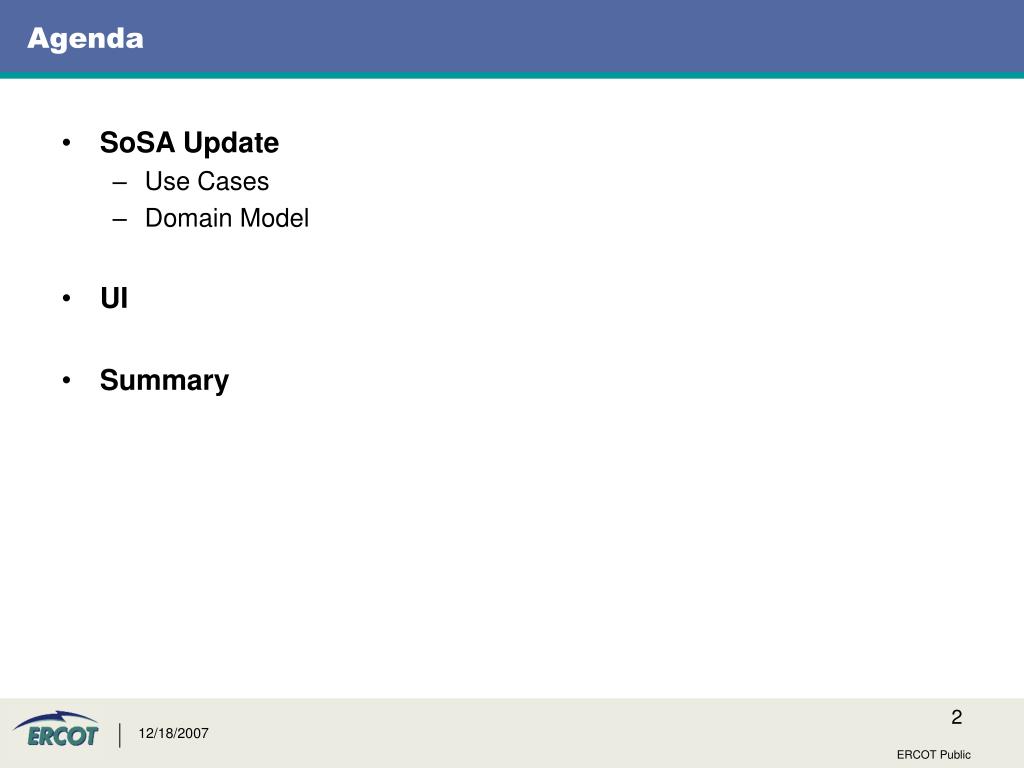

  2. Agenda • SoSA Update • Use Cases • Domain Model • UI • Summary ERCOT Public

  3. SoSA – Use Cases and Domain Model • Use Cases • MMS Component level use cases 98% complete • EMS Component level use cases 95% complete • Updating System level based on reconciliation with Component level • NMMS and CMM being updated (Feb) • Planning to republish in early January • Domain Model • Updated to include EDS 1 and 2 items not previously included • Published 14 December • Complete thru EDS 3 Release 6.1 in early January ERCOT Public

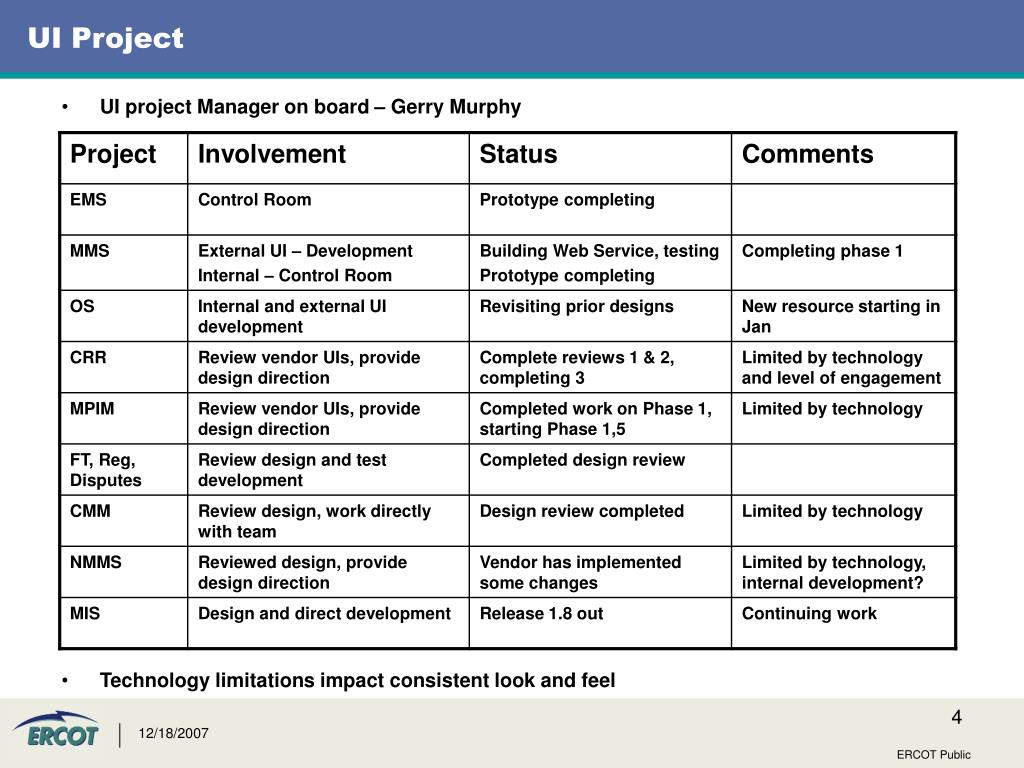

  4. UI Project • UI project Manager on board – Gerry Murphy • Technology limitations impact consistent look and feel ERCOT Public

  5. ERCOT Control Room Screen Concept Dashboard (ERCOT Designed/Developed) Summary Detail Summary Detail Detail Detail Detail Detail (Vendor Developed) ERCOT Public

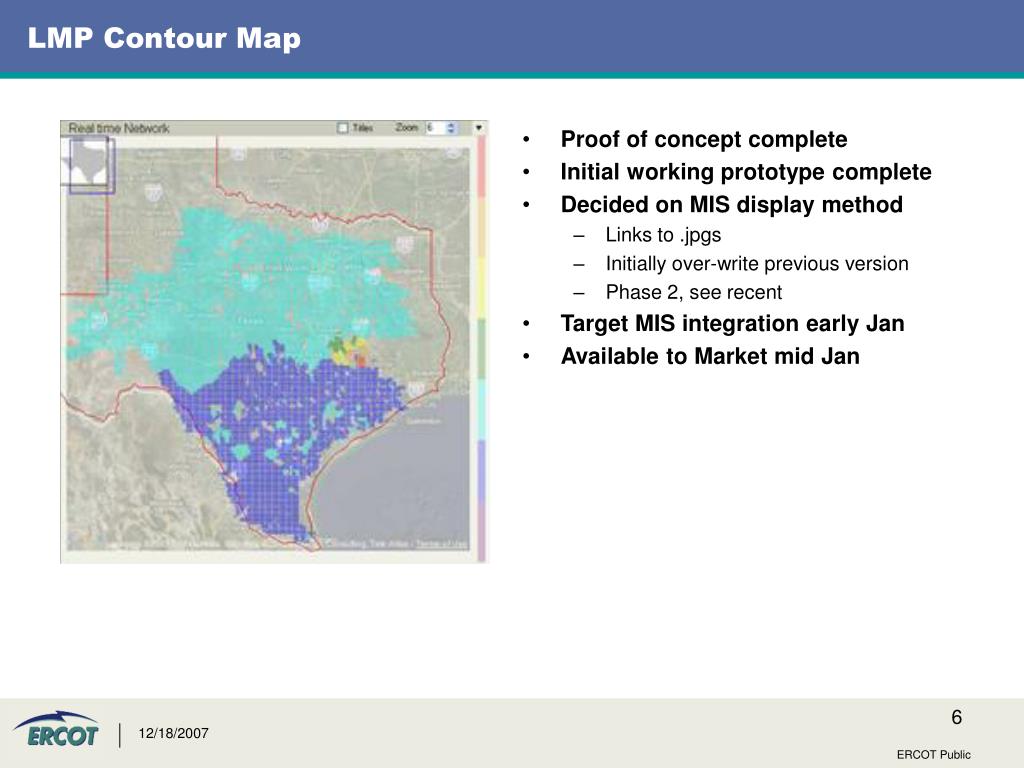

  6. LMP Contour Map • Proof of concept complete • Initial working prototype complete • Decided on MIS display method • Links to .jpgs • Initially over-write previous version • Phase 2, see recent • Target MIS integration early Jan • Available to Market mid Jan ERCOT Public

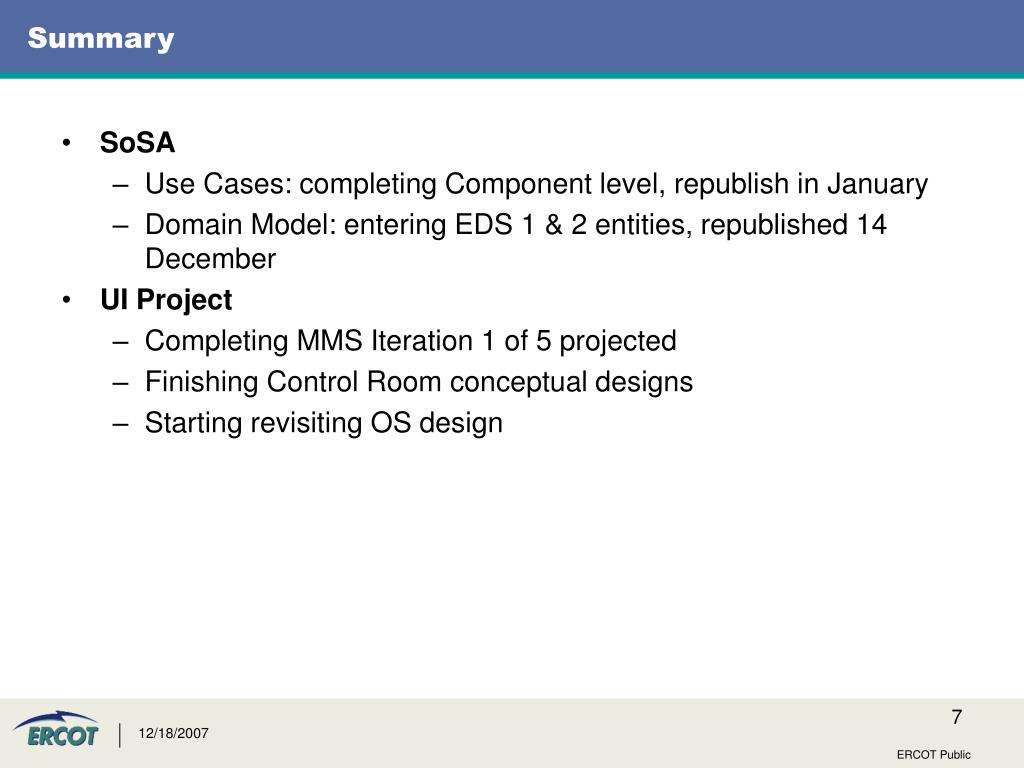

  7. Summary • SoSA • Use Cases: completing Component level, republish in January • Domain Model: entering EDS 1 & 2 entities, republished 14 December • UI Project • Completing MMS Iteration 1 of 5 projected • Finishing Control Room conceptual designs • Starting revisiting OS design ERCOT Public
