  1. System Analysis and Design System Design - Mr. Ahmad Al-Ghoul

  2. learning Objectives • Explain the concept of normalization System Analysis and Design System Design

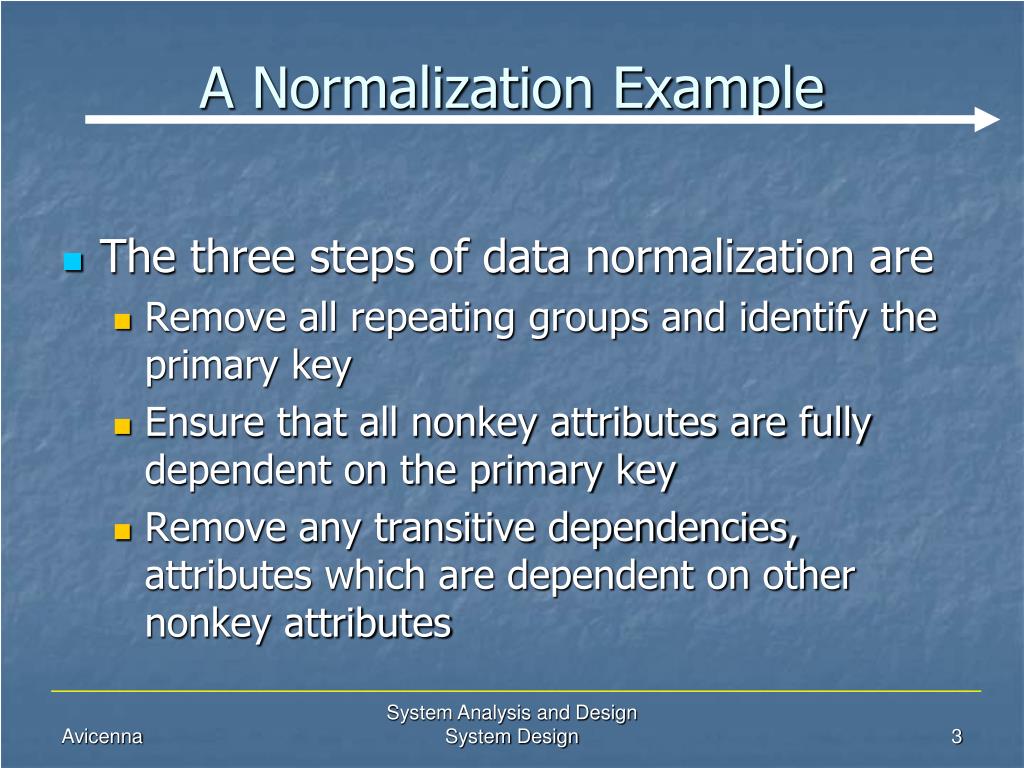

  3. A Normalization Example • The three steps of data normalization are • Remove all repeating groups and identify the primary key • Ensure that all nonkey attributes are fully dependent on the primary key • Remove any transitive dependencies, attributes which are dependent on other nonkey attributes System Analysis and Design System Design

  4. A Normalization Example • A Normalization Example • To show the normalization process, consider the familiar situation which might depict several entities in a school advising system: ADVISOR, COURSE, and STUDENT • The relationships among the three entities are shown in the ERD below [1] System Analysis and Design System Design

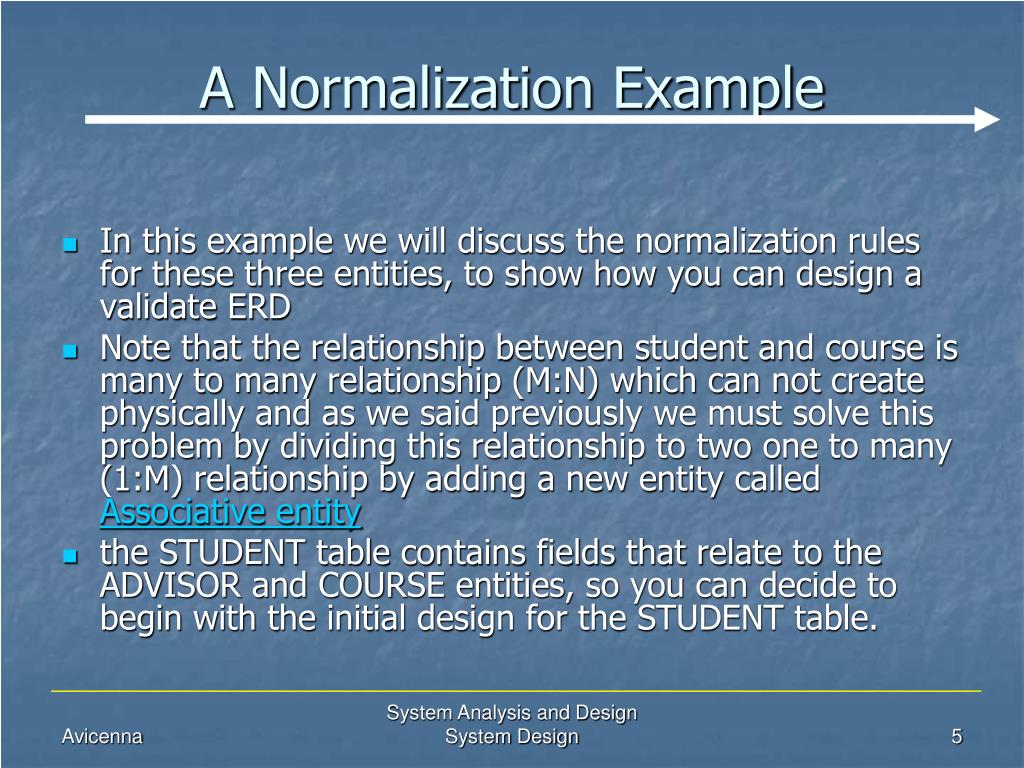

  5. A Normalization Example • In this example we will discuss the normalization rules for these three entities, to show how you can design a validate ERD • Note that the relationship between student and course is many to many relationship (M:N) which can not create physically and as we said previously we must solve this problem by dividing this relationship to two one to many (1:M) relationship by adding a new entity called Associative entity • the STUDENT table contains fields that relate to the ADVISOR and COURSE entities, so you can decide to begin with the initial design for the STUDENT table. System Analysis and Design System Design

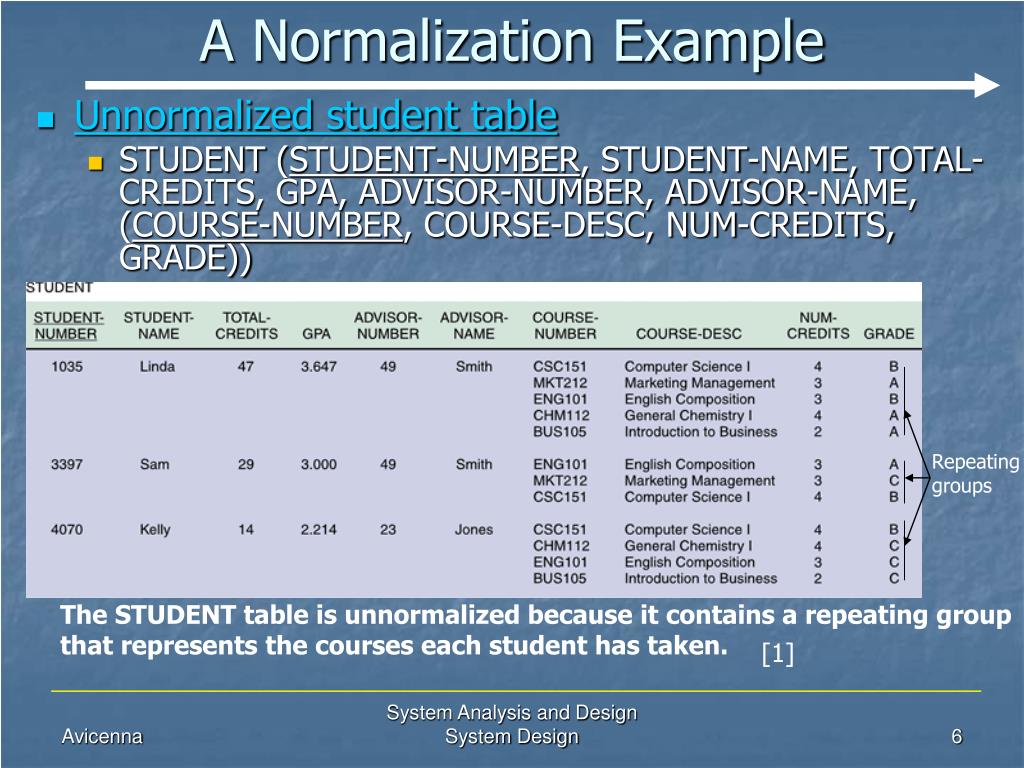

  6. A Normalization Example • Unnormalized student table • STUDENT (STUDENT-NUMBER, STUDENT-NAME, TOTAL-CREDITS, GPA, ADVISOR-NUMBER, ADVISOR-NAME, (COURSE-NUMBER, COURSE-DESC, NUM-CREDITS, GRADE)) Repeating groups The STUDENT table is unnormalized because it contains a repeating group that represents the courses each student has taken. [1] System Analysis and Design System Design

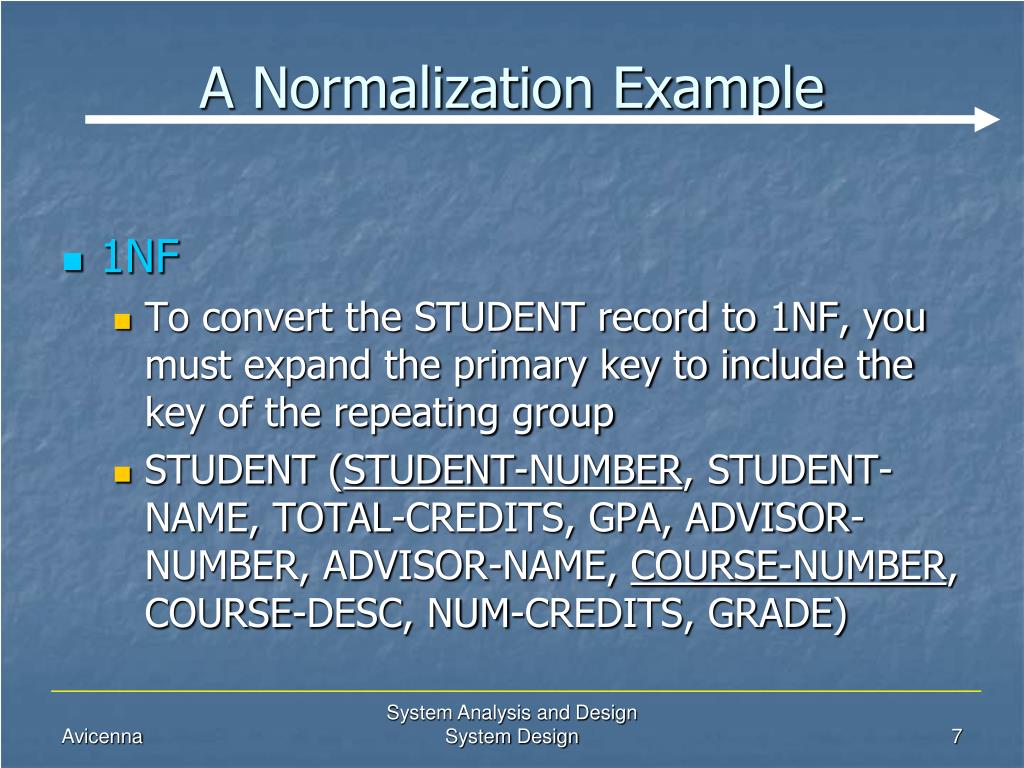

  7. A Normalization Example • 1NF • To convert the STUDENT record to 1NF, you must expand the primary key to include the key of the repeating group • STUDENT (STUDENT-NUMBER, STUDENT-NAME, TOTAL-CREDITS, GPA, ADVISOR-NUMBER, ADVISOR-NAME, COURSE-NUMBER, COURSE-DESC, NUM-CREDITS, GRADE) System Analysis and Design System Design

  8. UNF A Normalization Example Choose data items UNF to 1NF Identify keys Split groups Eliminate repeating groups 1NF level 1 1 1 1 1 1 2 2 2 2 STUDENT-NUMBER, STUDENT-NAME, TOTAL-CREDITS, GPA, ADVISOR-NUMBER, ADVISOR-NAME, COURSE-NUMBER, COURSE-DESC, NUM-CREDITS, GRADE STUDENT-NUMBER, STUDENT-NAME, TOTAL-CREDITS, GPA, ADVISOR-NUMBER, ADVISOR-NAME, COURSE-NUMBER, COURSE-DESC, NUM-CREDITS, GRADE System Analysis and Design System Design

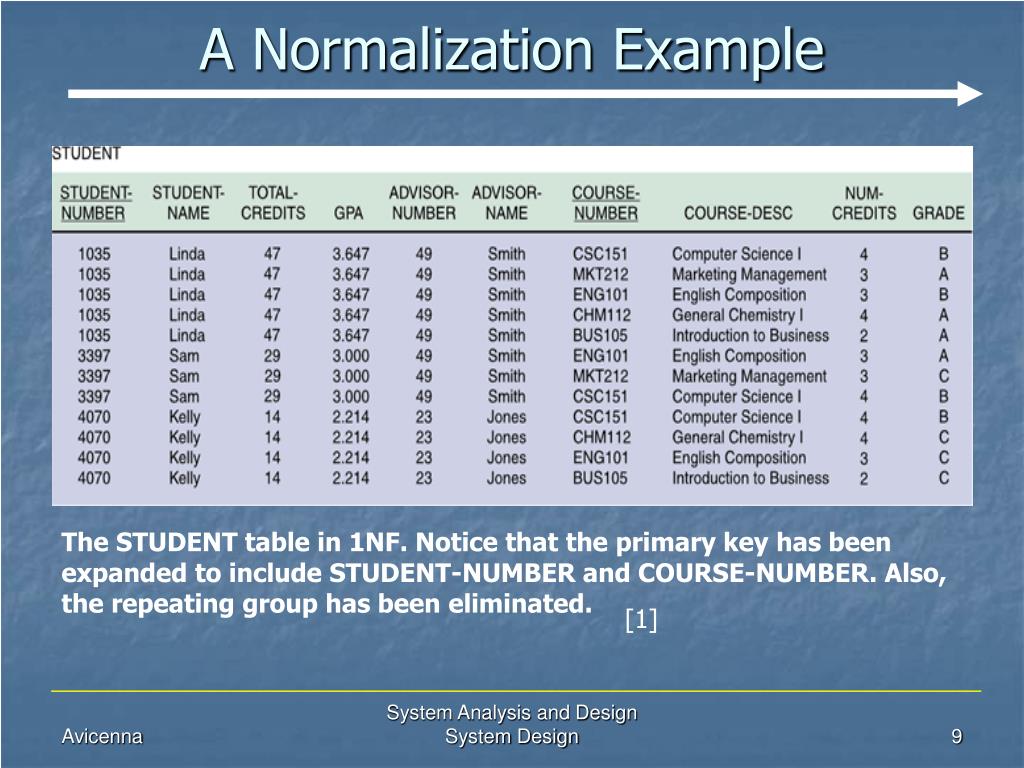

  9. A Normalization Example The STUDENT table in 1NF. Notice that the primary key has been expanded to include STUDENT-NUMBER and COURSE-NUMBER. Also, the repeating group has been eliminated. [1] System Analysis and Design System Design

  10. A Normalization Example • 2NF • No attribute dependent on a portion of a primary key • The student name, total credits, GPA, advisor number, and advisor name all relate only to the student number • The course description depends on the course number • Grade field depends on the entire primary key System Analysis and Design System Design

  11. A Normalization Example Does this attribute depend on the whole of the primary key? 1NF to 2NF 2NF 1NF STUDENT-NUMBER STUDENT-NAME TOTAL-CREDITS GPA ADVISOR-NUMBER ADVISOR-NAME COURSE-NUMBER COURSE-DESC NUM-CREDITS STUDENT-NUMBER COURSE-NUMBER GRADE STUDENT-NUMBER, STUDENT-NAME, TOTAL-CREDITS, GPA, ADVISOR-NUMBER, ADVISOR-NAME, COURSE-NUMBER, COURSE-DESC, NUM-CREDITS, GRADE System Analysis and Design System Design

  12. A Normalization Example • You would create a new table for each field and combination of fields in the primary key • STUDENT (STUDENT-NUMBER, STUDENT-NAME, TOTAL-CREDITS, GPA, ADVISOR-NUMBER, ADVISOR-NAME) • COURSE (COURSE-NUMBER, COURSE-DESC, NUM-CREDITS) • GRADE (STUDENT-NUMBER, COURSE-NUMBER, GRADE) System Analysis and Design System Design

  13. A Normalization Example STUDENT, COURSE, and GRADE tables in 2NF. Notice that all fields are functionally dependent on the entire primary key of their respective tables. [1] System Analysis and Design System Design

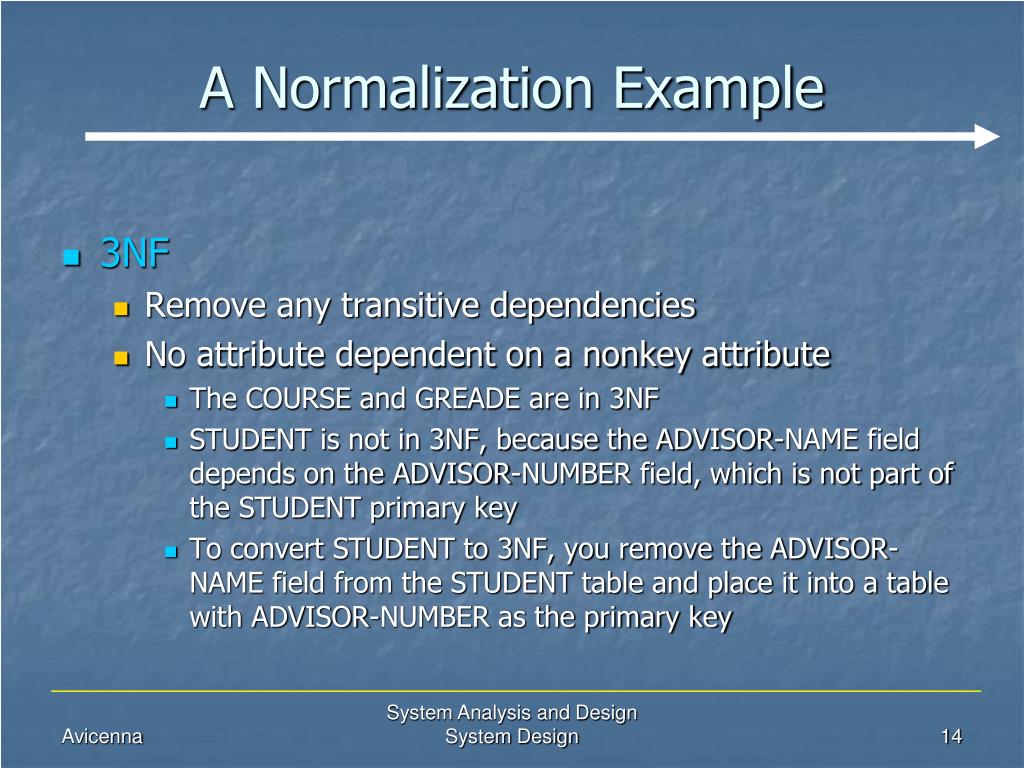

  14. A Normalization Example • 3NF • Remove any transitive dependencies • No attribute dependent on a nonkey attribute • The COURSE and GREADE are in 3NF • STUDENT is not in 3NF, because the ADVISOR-NAME field depends on the ADVISOR-NUMBER field, which is not part of the STUDENT primary key • To convert STUDENT to 3NF, you remove the ADVISOR-NAME field from the STUDENT table and place it into a table with ADVISOR-NUMBER as the primary key System Analysis and Design System Design

  15. A Normalization Example Is this attribute dependent on any other non-key attribute(s)? 2NF 3NF STUDENT-NUMBER STUDENT-NAME TOTAL-CREDITS GPA ADVISOR-NUMBER ADVISOR-NAME COURSE-NUMBER COURSE-DESC NUM-CREDITS STUDENT-NUMBER COURSE-NUMBER GRADE STUDENT-NUMBER STUDENT-NAME TOTAL-CREDITS GPA ADVISOR-NUMBER ADVISOR-NUMBER ADVISOR-NAME COURSE-NUMBER COURSE-DESC NUM-CREDITS STUDENT-NUMBER COURSE-NUMBER GRADE System Analysis and Design System Design

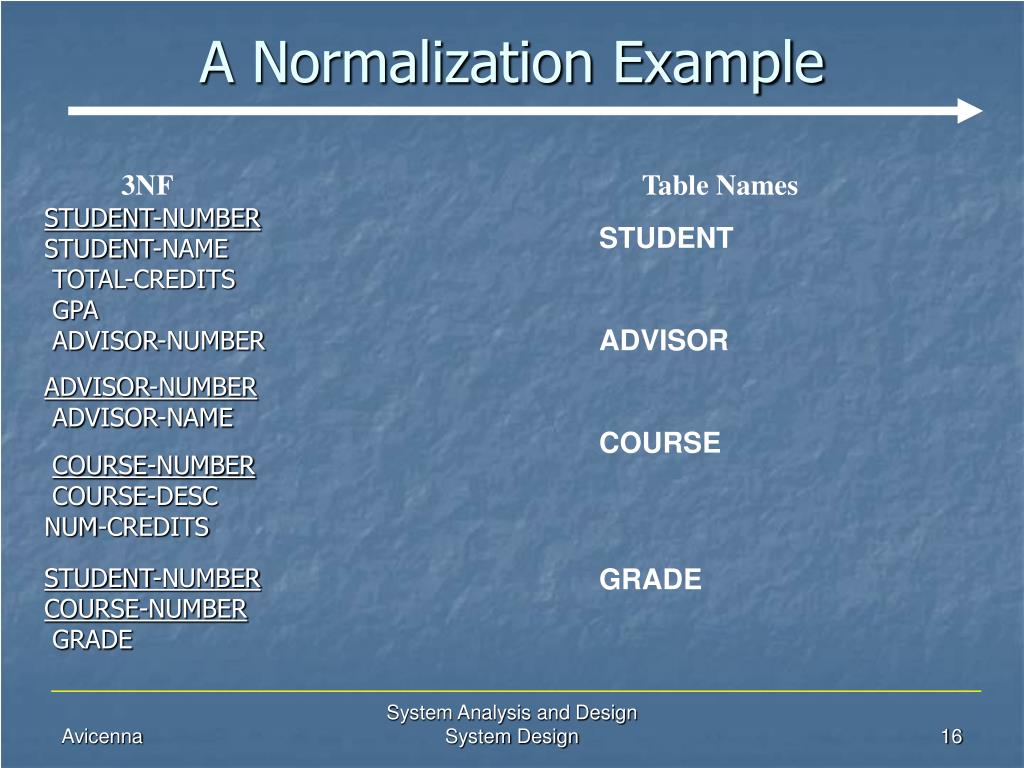

  16. A Normalization Example 3NF Table Names STUDENT-NUMBER STUDENT-NAME TOTAL-CREDITS GPA ADVISOR-NUMBER ADVISOR-NUMBER ADVISOR-NAME COURSE-NUMBER COURSE-DESC NUM-CREDITS STUDENT-NUMBER COURSE-NUMBER GRADE STUDENT ADVISOR COURSE GRADE System Analysis and Design System Design

  17. A Normalization Example • 3NF • The final 3NF design is • STUDENT (STUDENT-NUMBER, STUDENT-NAME, TOTAL-CREDITS, GPA, ADVISOR-NUMBER) • ADVISOR (ADVISOR-NUMBER, ADVISOR-NAME) • COURSE (COURSE-NUMBER, COURSE-DESC, NUM-CREDITS) • GRADE (STUDENT-NUMBER, COURSE-NUMBER, GRADE) System Analysis and Design System Design

  18. A Normalization Example ADVISOR STUDENT ADVISES RECEIVES is on COURSE SHOWS GRADE Associative entity The ERD for STUDENT, ADVISOR, and COURSE after normalization System Analysis and Design System Design

  19. A Normalization Example • Compare between the ERD before normalization and after • After normalization we have four entitles: STUDENT, ADVISOR, COURSE, and GRADE, which is an associative entity • You can see that (M:N) relationship between STUDENT and COURSE has been converted into two 1:M relationships • One relationship between STUDENT and GRADE and the other relationship between COURSE and GRADE • You should know that normal forms beyond 3NF exist, but they rarely are used in business-oriented systems System Analysis and Design System Design

  20. Sequence Summary • 1NF • All key attributes defined • No repeating groups in a table • All attributes dependent on a primary key • 2NF • No attribute dependent on a portion of a primary key • Attributes may be functionally dependent on nonkey attributes • 3NF • Remove any transitive dependencies • No attribute dependent on a nonkey attribute System Analysis and Design System Design

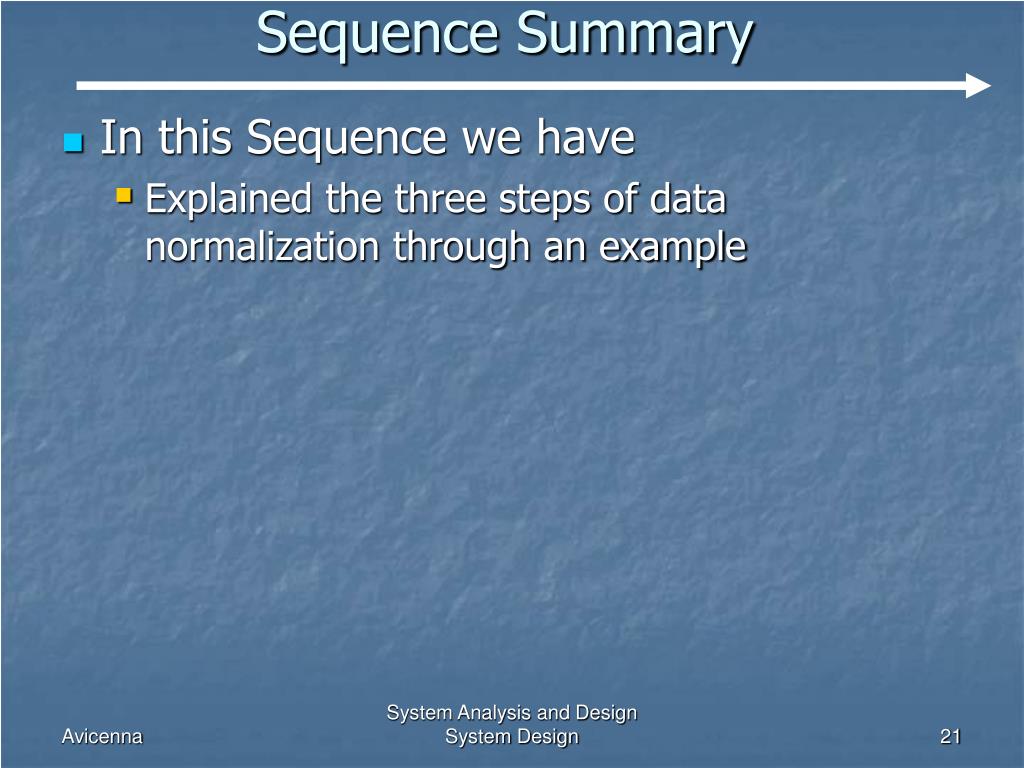

  21. Sequence Summary • In this Sequence we have • Explained the three steps of data normalization through an example System Analysis and Design System Design

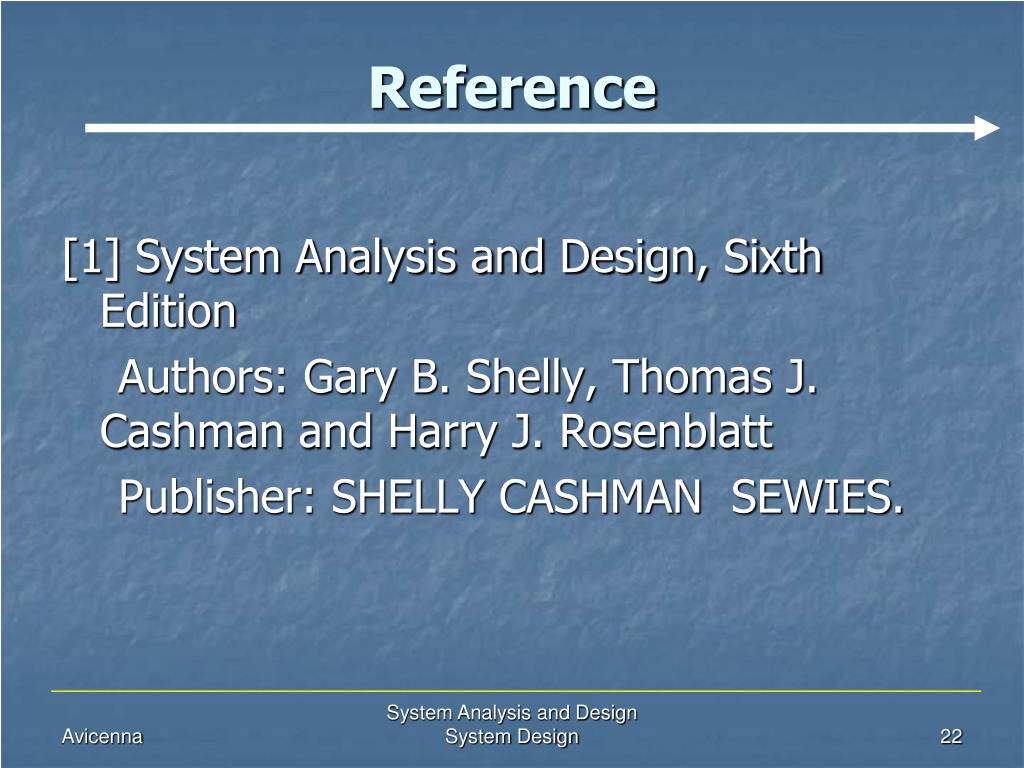

  22. Reference [1] System Analysis and Design, Sixth Edition Authors: Gary B. Shelly, Thomas J. Cashman and Harry J. Rosenblatt Publisher: SHELLY CASHMAN SEWIES. System Analysis and Design System Design
