  1. Shriram foundry Ltd. Customer Name:- TATA MOTORS LTD. Part Name:- Bed plate 5Lt. Part No:- 5709 0110 3703 Foundry Tooling 3DModel Presentation

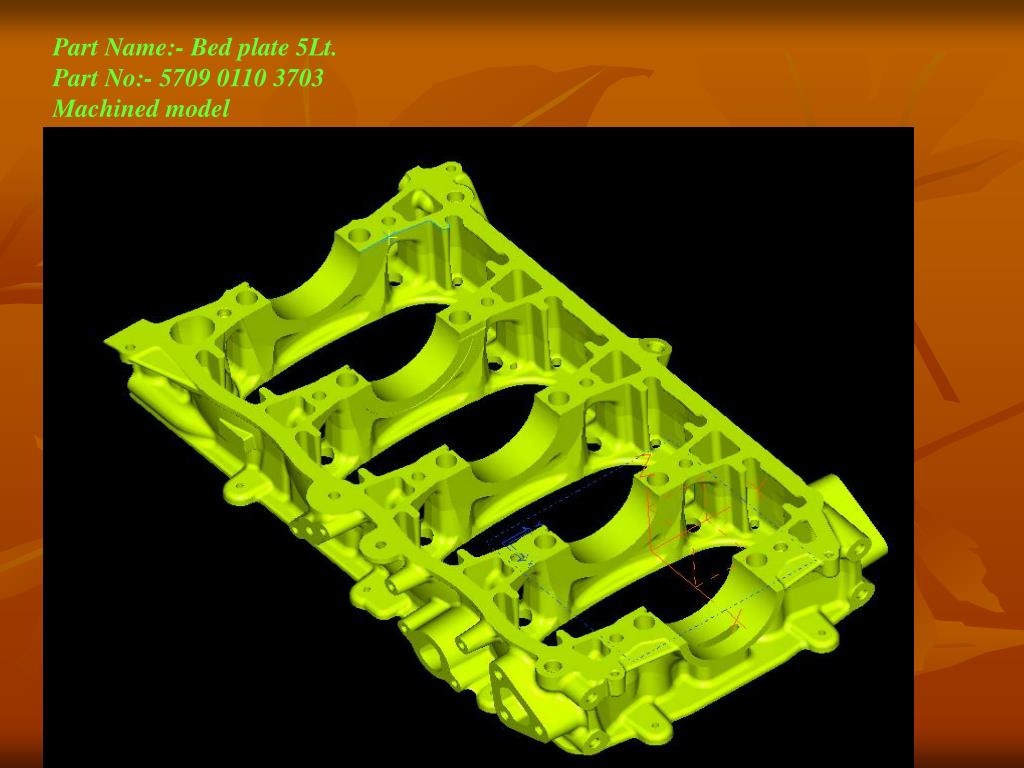

  2. Part Name:- Bed plate 5Lt. Part No:- 5709 0110 3703 Machined model Machined

  3. Part Name:- Bed plate 5Lt. Part No:- 5709 0110 3703 Machined model

  4. Part Name:- Bed plate 5Lt. Part No:- 5709 0110 3703 cope pattern Casting

  5. Part Name:- Bed plate 5Lt. Part No:- 5709 0110 3703 Drag pattern Lock print 25 x 25 mm Print 500mm Print 700mm

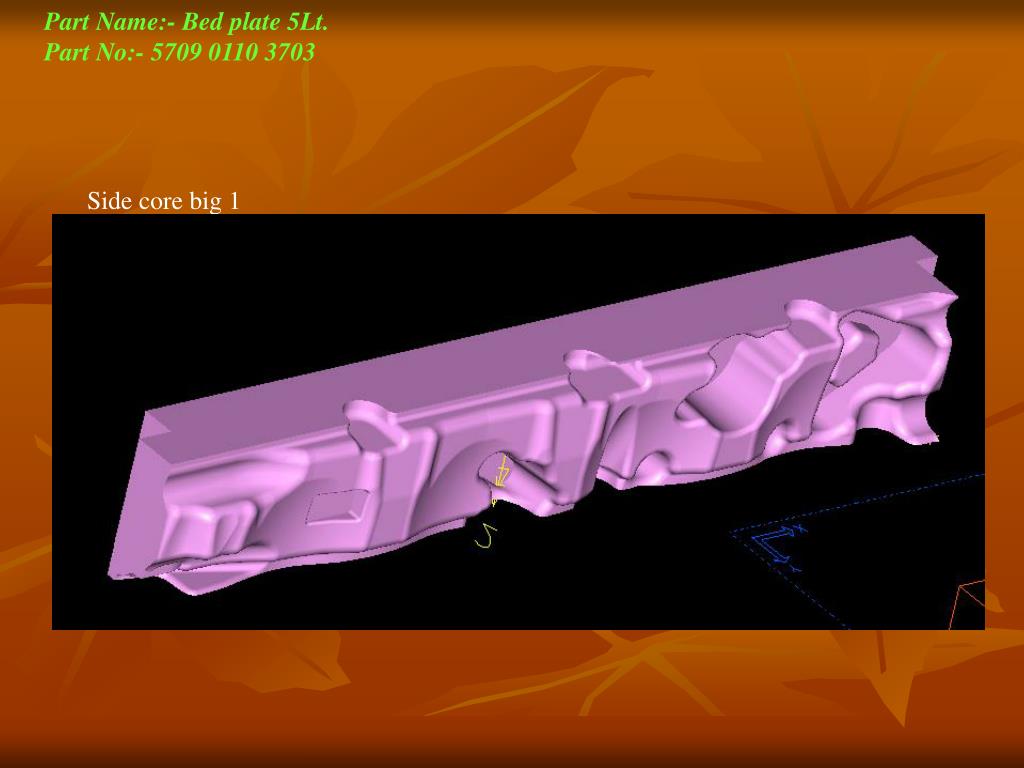

  6. Part Name:- Bed plate 5Lt. Part No:- 5709 0110 3703 Side core big 1

  7. Part Name:- Bed plate 5Lt. Part No:- 5709 0110 3703 Side core big 2

  8. Part Name:- Bed plate 5Lt. Part No:- 5709 0110 3703 Side core small 3

  9. Part Name:- Bed plate 5Lt. Part No:- 5709 0110 3703 Side core small 4

  10. Part Name:- Bed plate 5Lt. Part No:- 5709 0110 3703 Main core 5

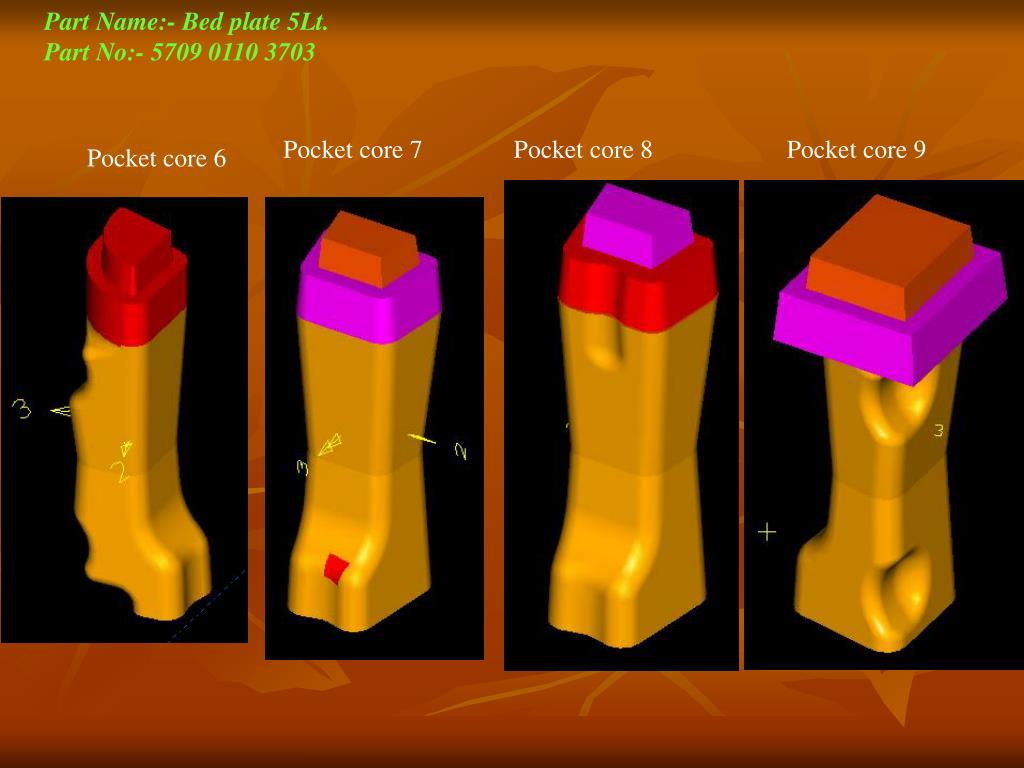

  11. Part Name:- Bed plate 5Lt. Part No:- 5709 0110 3703 Pocket core 7 Pocket core 8 Pocket core 9 Pocket core 6

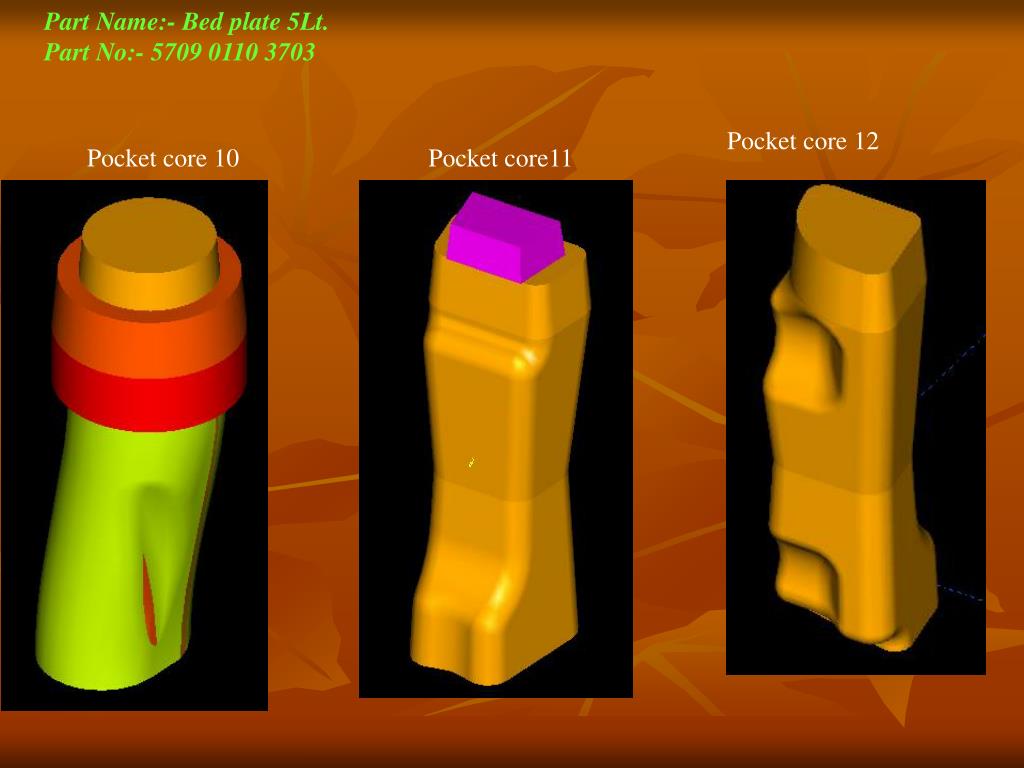

  12. Part Name:- Bed plate 5Lt. Part No:- 5709 0110 3703 Pocket core 12 Pocket core 10 Pocket core11

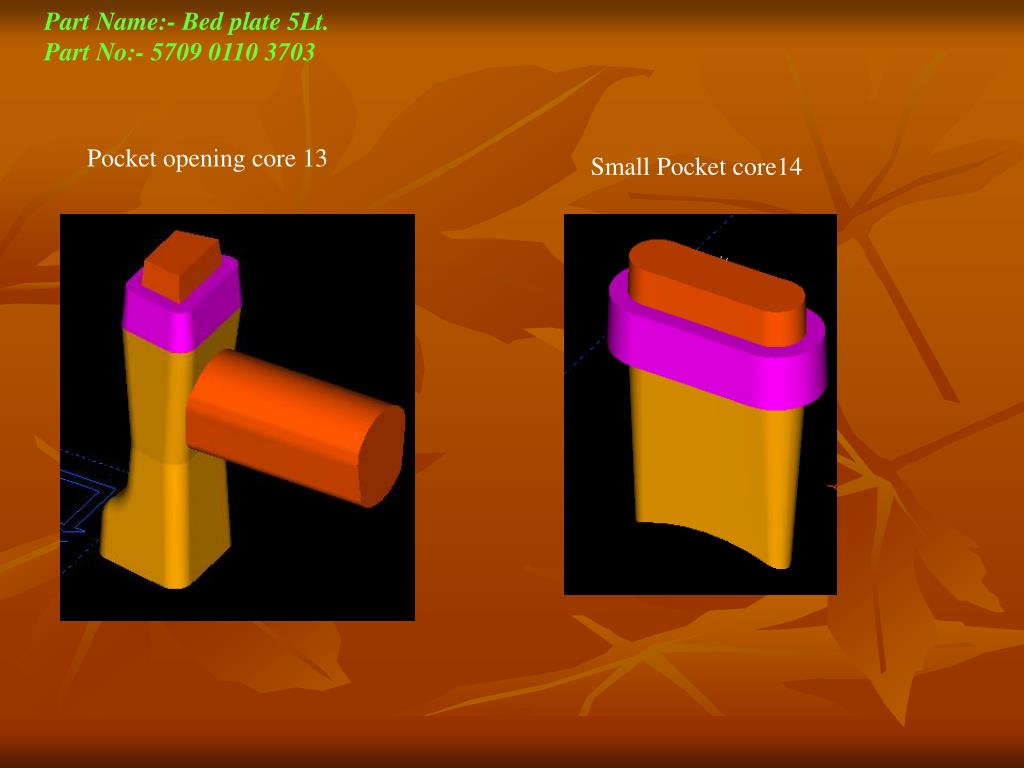

  13. Part Name:- Bed plate 5Lt. Part No:- 5709 0110 3703 Pocket opening core 13 Small Pocket core14

  14. Part Name:- Bed plate 5Lt. Part No:- 5709 0110 3703 Core assembly total 19 nos core Pocket core 5 Side core2 Core assembly lock prin dimn. Side core 4

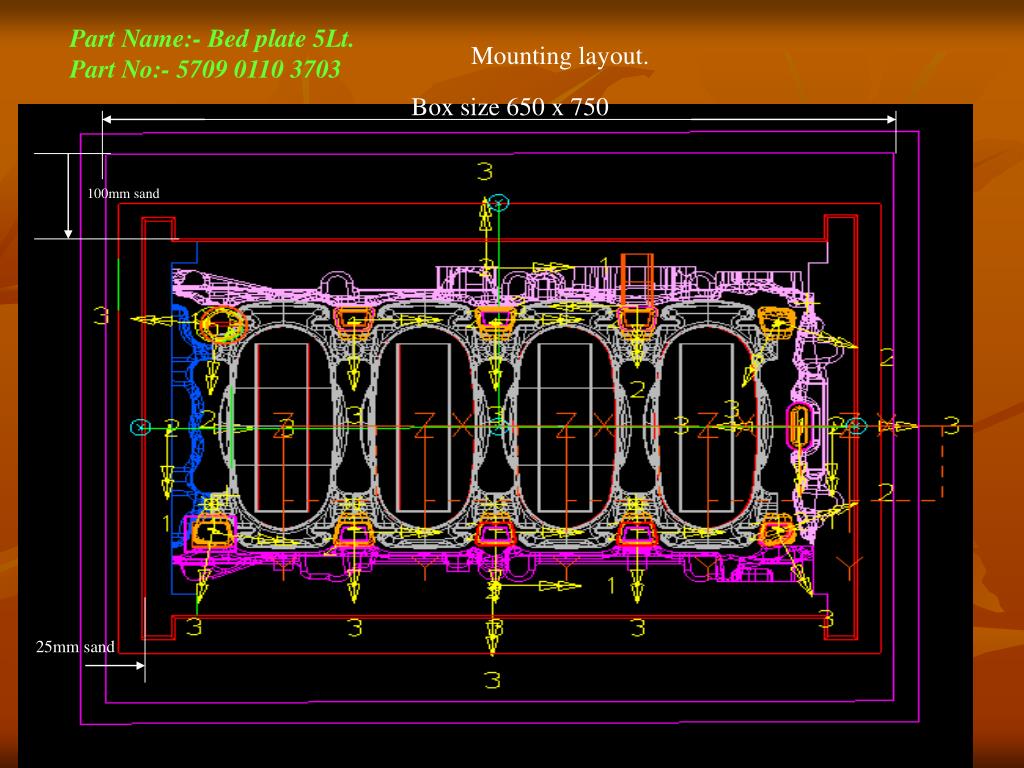

  15. Part Name:- Bed plate 5Lt. Part No:- 5709 0110 3703 Mounting layout. Box size 650 x 750 Side core box 1 Side face daft 1° & pattern print. 100mm sand Side core2 Core assembly lock prin dimn. Side core 4 25mm sand
