  1. ROSENBAUER GROUP High Pressure Fog-Gun NEPIRO Ergo

  2. High Pressure Fog-Gun NEPIRO Ergo Optimized HP-Fog-Gun with O-Stream nozzle and separate trigger shut-off valve (200ltr/min @ 40bar) Benefits: • Not sensitive to clogging • Flushing of particles up to 5mm diameter • Reliable closing of the shut-off valve • Separate shut-off valve • Improved spray pattern • Self-protection water shield • 60°, 30° fog pattern and full jet • Ergonomic design • Large supporting surface • Reaction Forces are directed to the rear hand

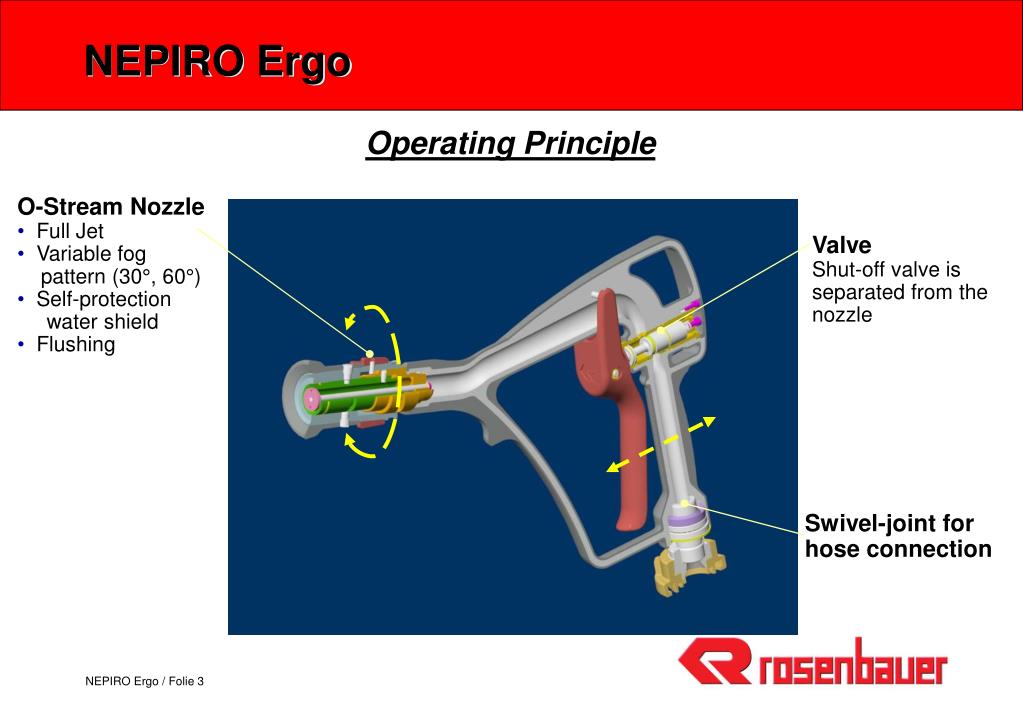

  3. NEPIRO Ergo Operating Principle • O-Stream Nozzle • Full Jet • Variable fog • pattern (30°, 60°) • Self-protection water shield • Flushing Valve Shut-off valve is separated from the nozzle Swivel-joint for hose connection

  4. NEPIRO Ergo Spray Pattern

  5. NEPIRO Ergo Ergonomic Design Large support surface Front grip and spray adjustment Rear grip and trigger Minimal moment of force

  6. Nepiro Ergo Technical Data • Support bracket: • New support bracket • Foam Barrel: • Removable nozzle shield • Lockable foam barrel • Casting: • Rubber-coated casting • Valve: • Variable output from 0 to 200 ltr/min (40 bar) • Free passage > 6 mm • Trigger force < 75 N • Trigger travel 30 mm • O-Stream Nozzle: • Full jet Spray (30°, 60°) User-protective shield • Ball raster • Flushing 6mm
