  1. Windows Server AppFabric Cache Security & Management

  2. Outline • AppFabric + Powershell • Security • Performance monitoring • Logging

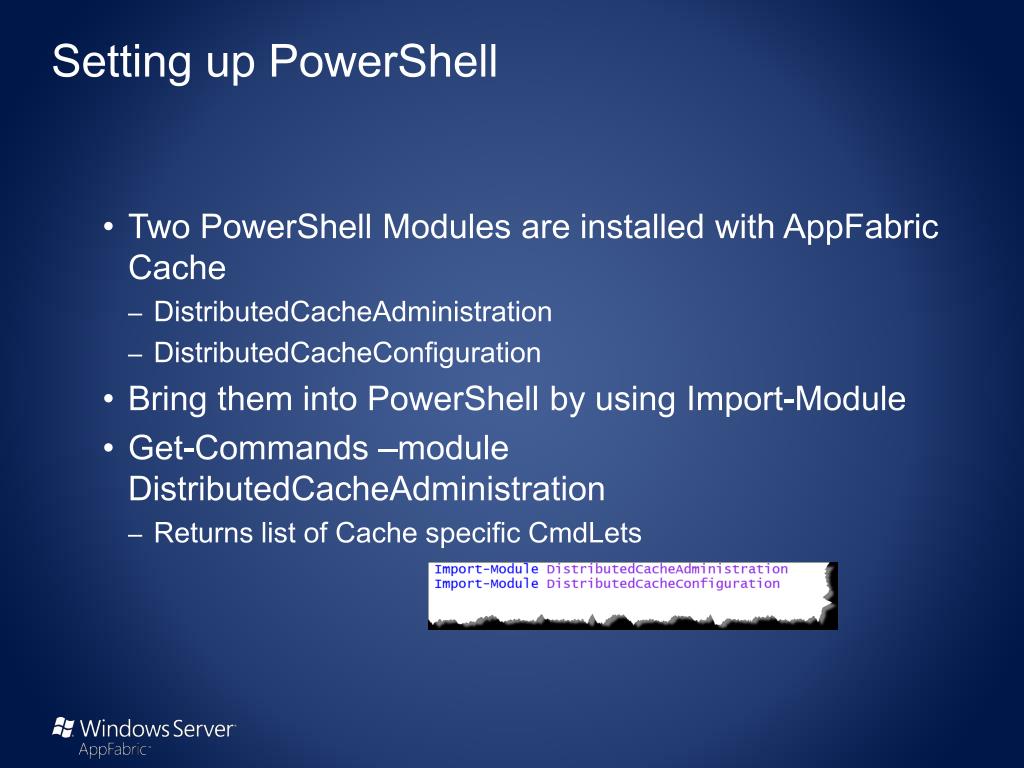

  3. Setting up PowerShell • Two PowerShell Modules are installed with AppFabric Cache • DistributedCacheAdministration • DistributedCacheConfiguration • Bring them into PowerShell by using Import-Module • Get-Commands –module DistributedCacheAdministration • Returns list of Cache specific CmdLets

  4. Loading configuration • Use-CacheCluster loads the cluster configuration into your PowerShell context • Defaults to configuration for the current machine • Use parameters to load different configuration • If you specify parameters you must specify both

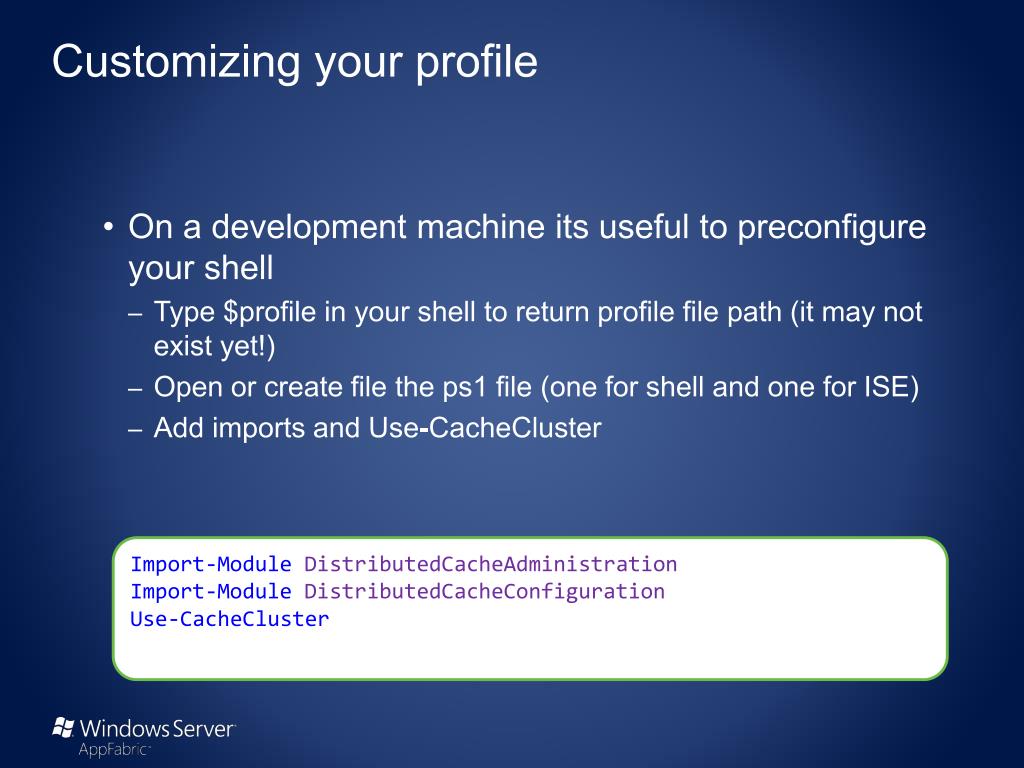

  5. Customizing your profile • On a development machine its useful to preconfigure your shell • Type $profile in your shell to return profile file path (it may not exist yet!) • Open or create file the ps1 file (one for shell and one for ISE) • Add imports and Use-CacheCluster Import-Module DistributedCacheAdministration Import-Module DistributedCacheConfiguration Use-CacheCluster

  6. Control cmdlets

  7. Configuration cmdlets

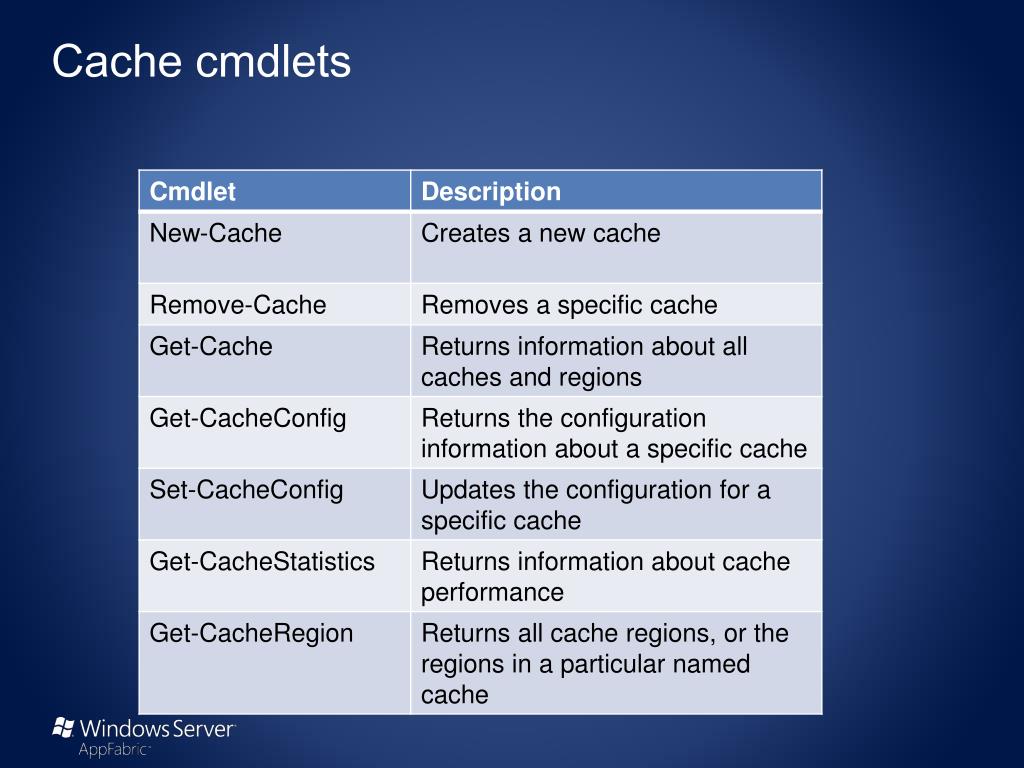

  8. Cache cmdlets

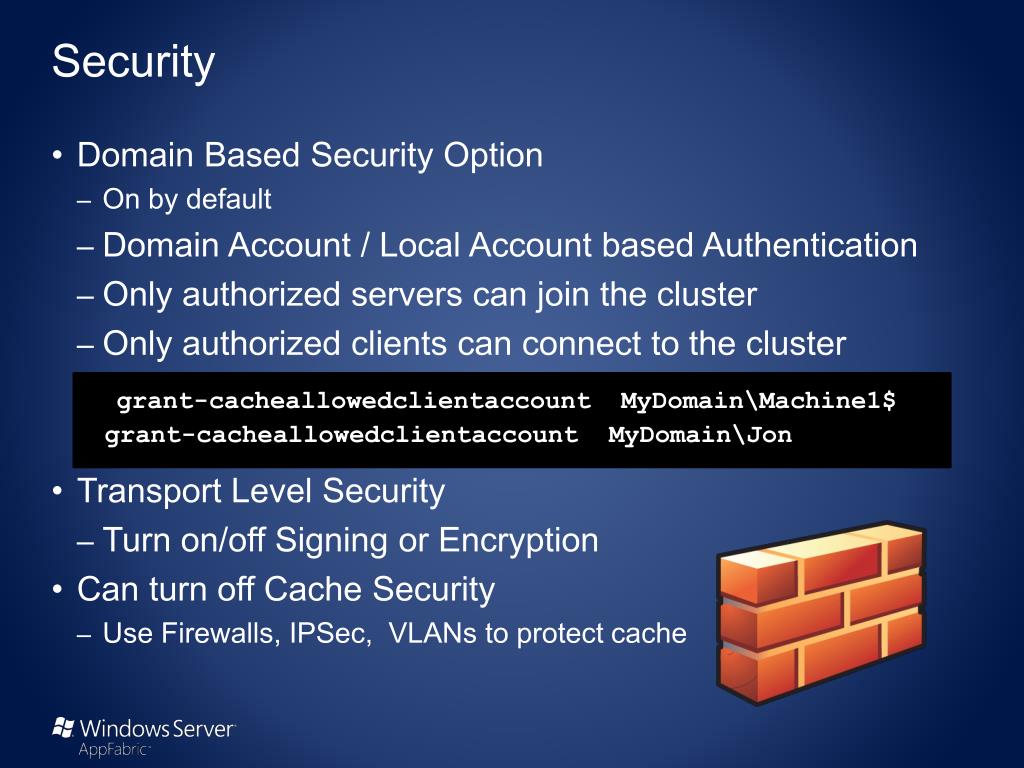

  9. Security • Domain Based Security Option • On by default • Domain Account / Local Account based Authentication • Only authorized servers can join the cluster • Only authorized clients can connect to the cluster • Transport Level Security • Turn on/off Signing or Encryption • Can turn off Cache Security • Use Firewalls, IPSec, VLANs to protect cache grant-cacheallowedclientaccountMyDomain\Machine1$ grant-cacheallowedclientaccountMyDomain\Jon

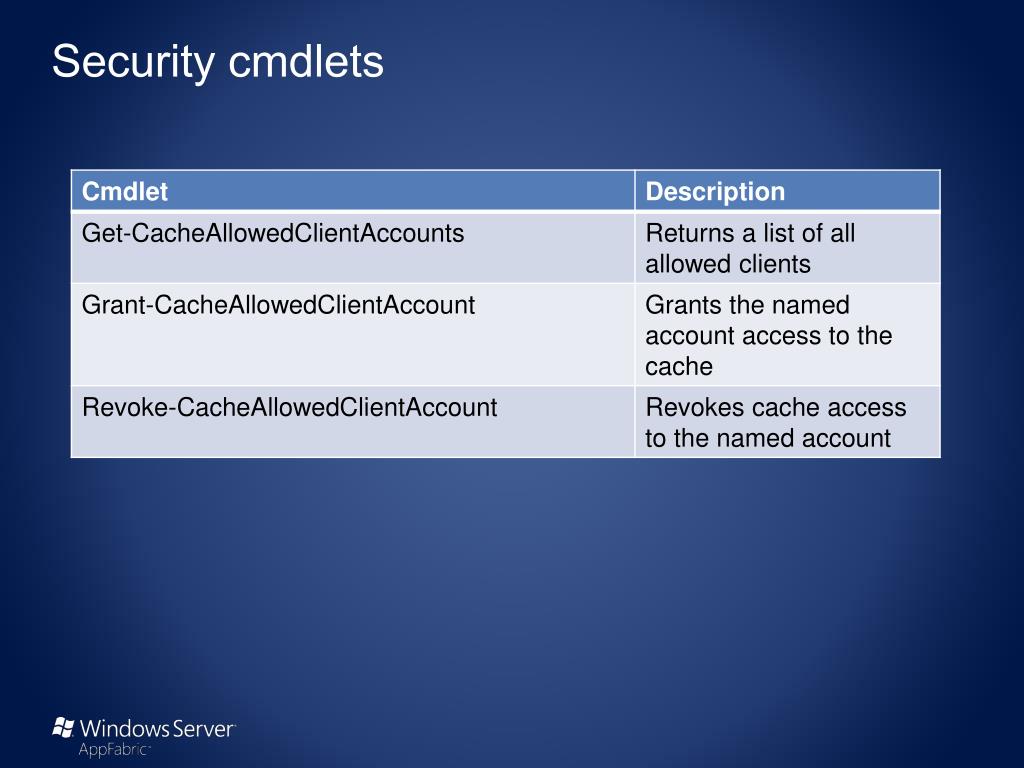

  10. Security cmdlets

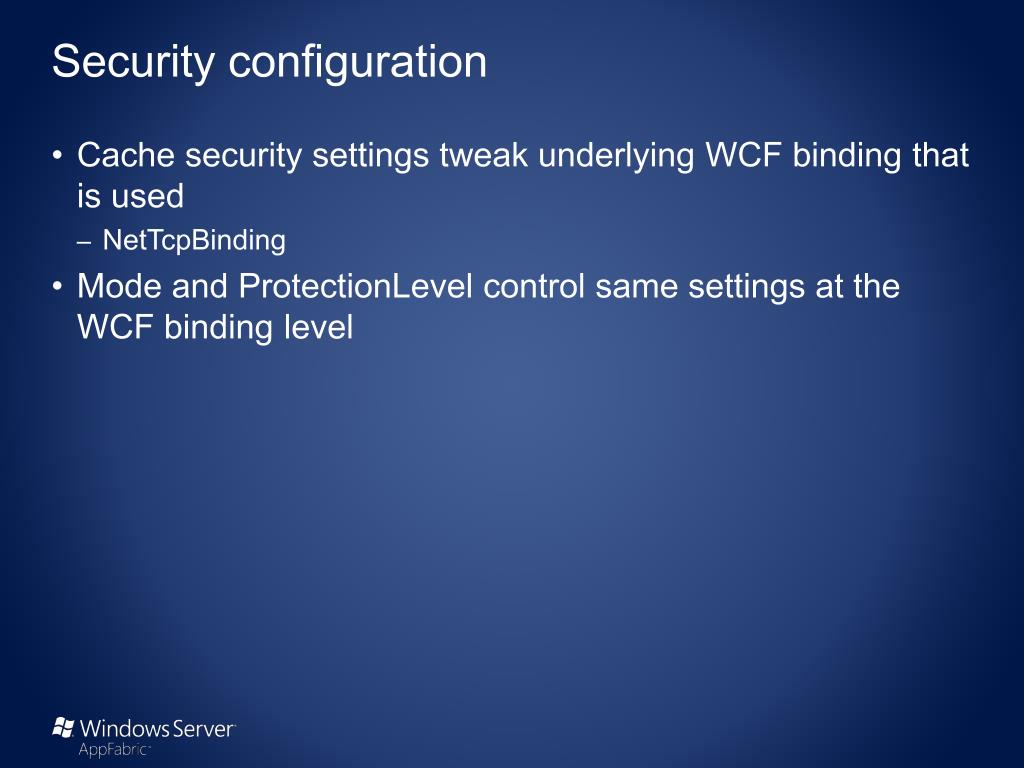

  11. Security configuration • Cache security settings tweak underlying WCF binding that is used • NetTcpBinding • Mode and ProtectionLevelcontrol same settings at the WCF binding level

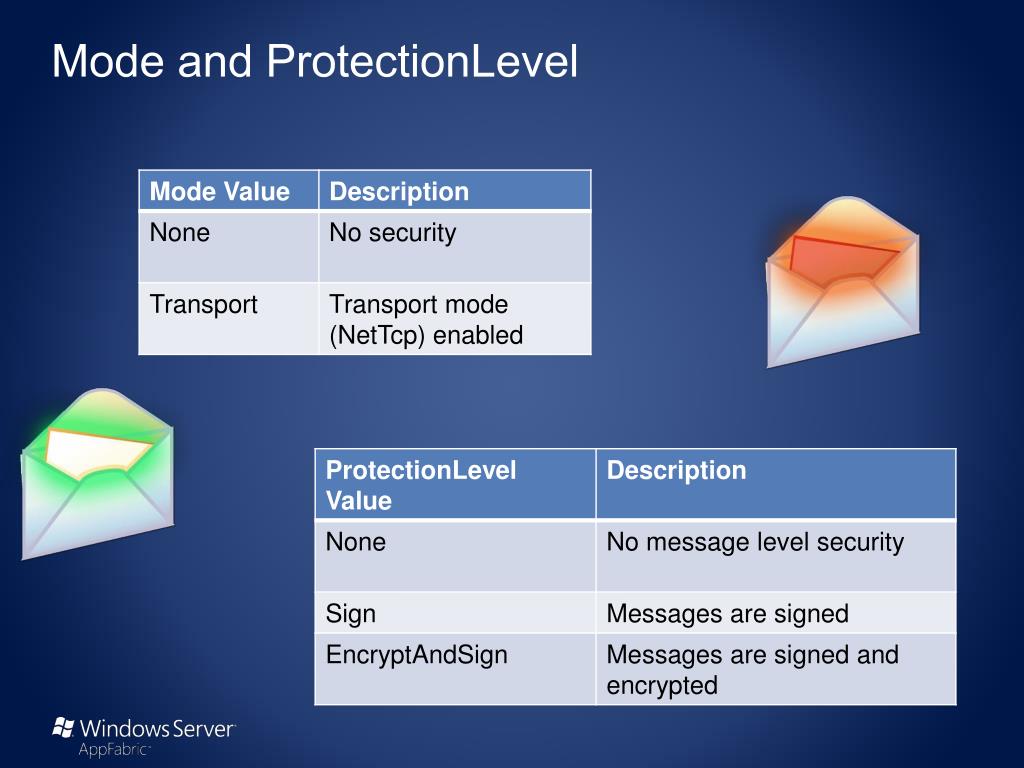

  12. Mode and ProtectionLevel

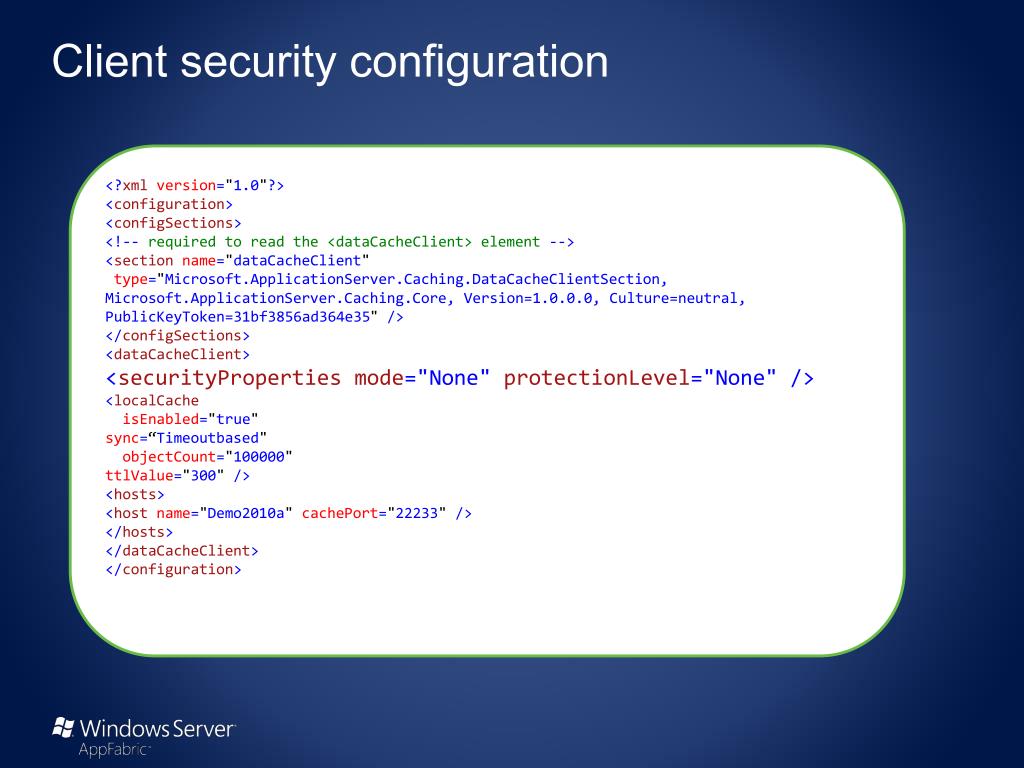

  13. Client security configuration <?xmlversion="1.0"?> <configuration> <configSections> <!-- required to read the <dataCacheClient> element --> <sectionname="dataCacheClient" type="Microsoft.ApplicationServer.Caching.DataCacheClientSection, Microsoft.ApplicationServer.Caching.Core, Version=1.0.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35" /> </configSections> <dataCacheClient> <securityPropertiesmode="None" protectionLevel="None" /> <localCache isEnabled="true" sync=“Timeoutbased" objectCount="100000" ttlValue="300" /> <hosts> <hostname="Demo2010a"cachePort="22233" /> </hosts> </dataCacheClient> </configuration>

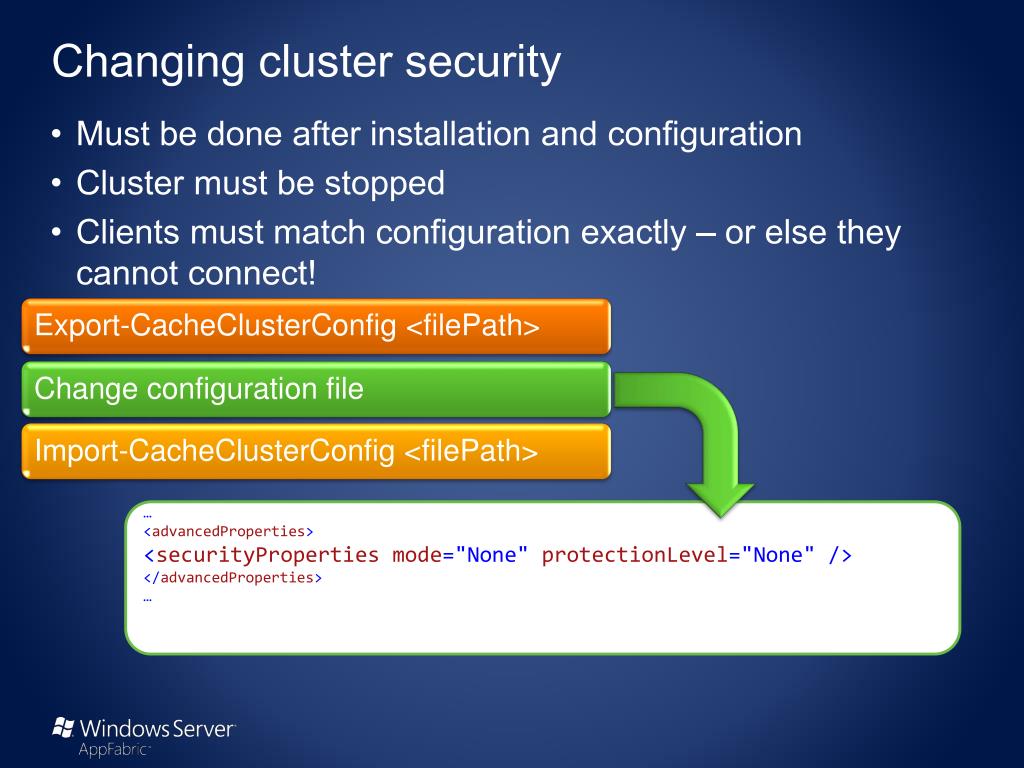

  14. Changing cluster security • Must be done after installation and configuration • Cluster must be stopped • Clients must match configuration exactly – or else they cannot connect! … <advancedProperties> <securityPropertiesmode="None" protectionLevel="None" /> </advancedProperties> …

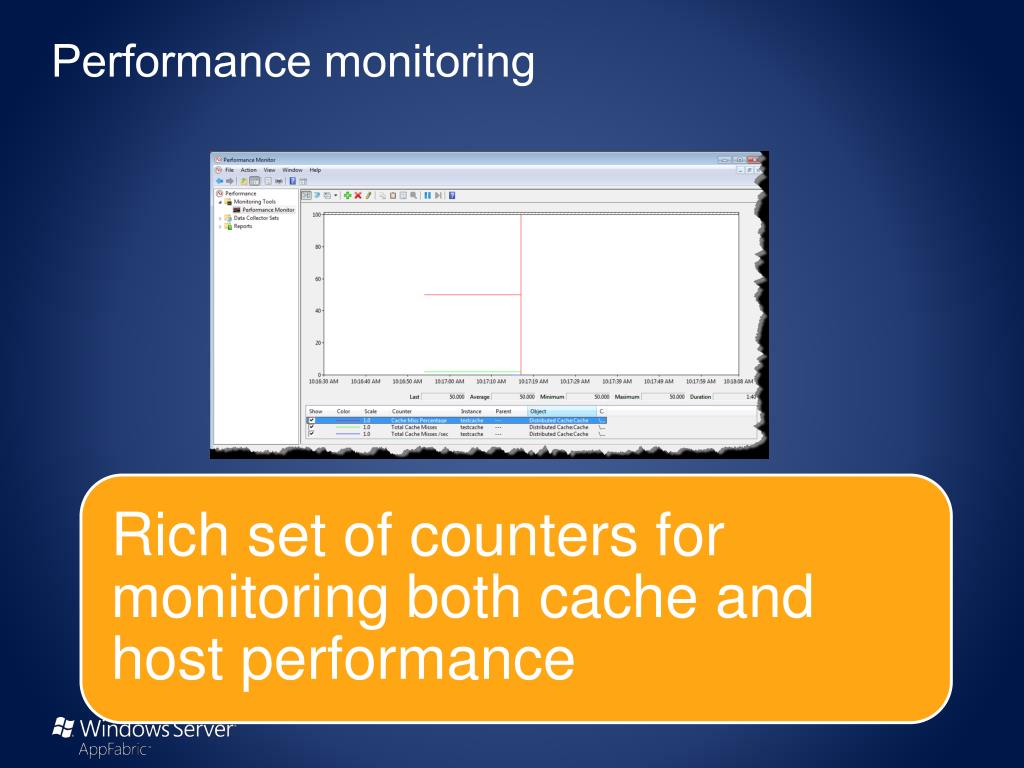

  15. Performance monitoring

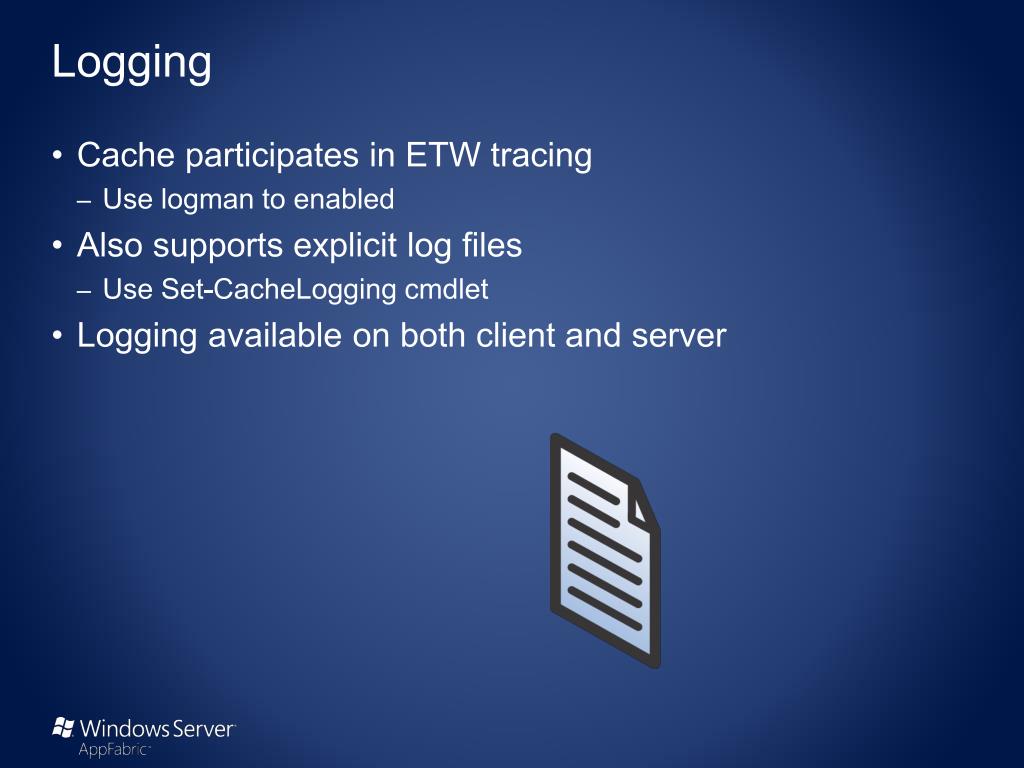

  16. Logging • Cache participates in ETW tracing • Use logman to enabled • Also supports explicit log files • Use Set-CacheLogging cmdlet • Logging available on both client and server

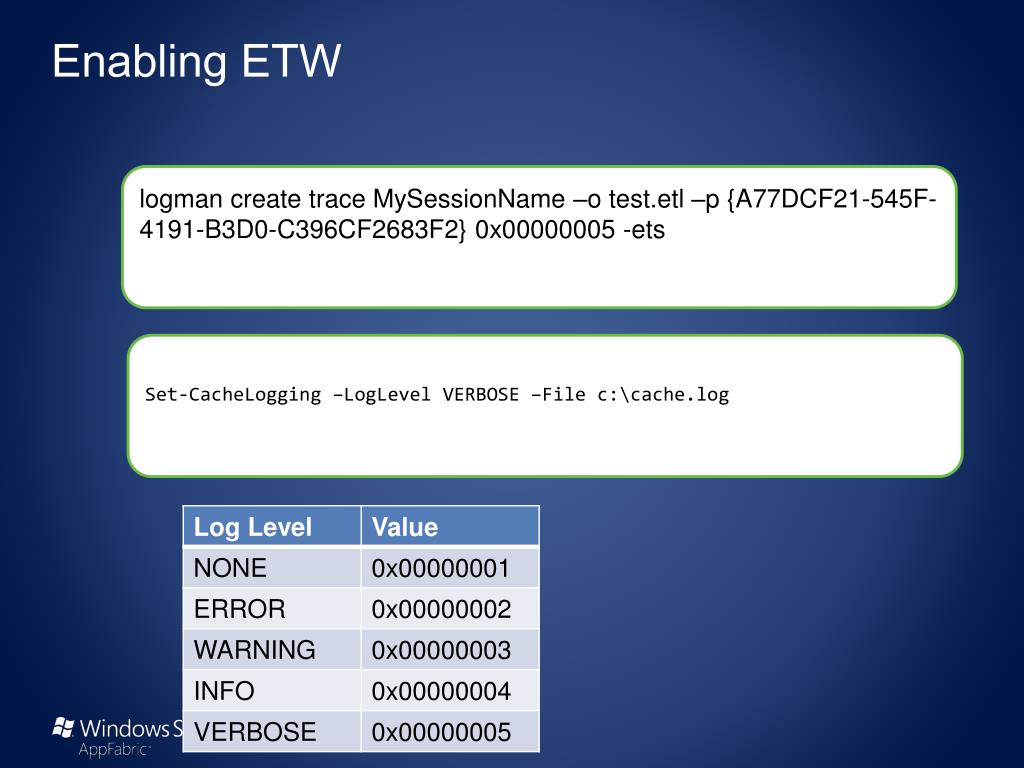

  17. Enabling ETW • logman create trace MySessionName –o test.etl –p {A77DCF21-545F-4191-B3D0-C396CF2683F2} 0x00000005 -ets Set-CacheLogging –LogLevel VERBOSE –File c:\cache.log

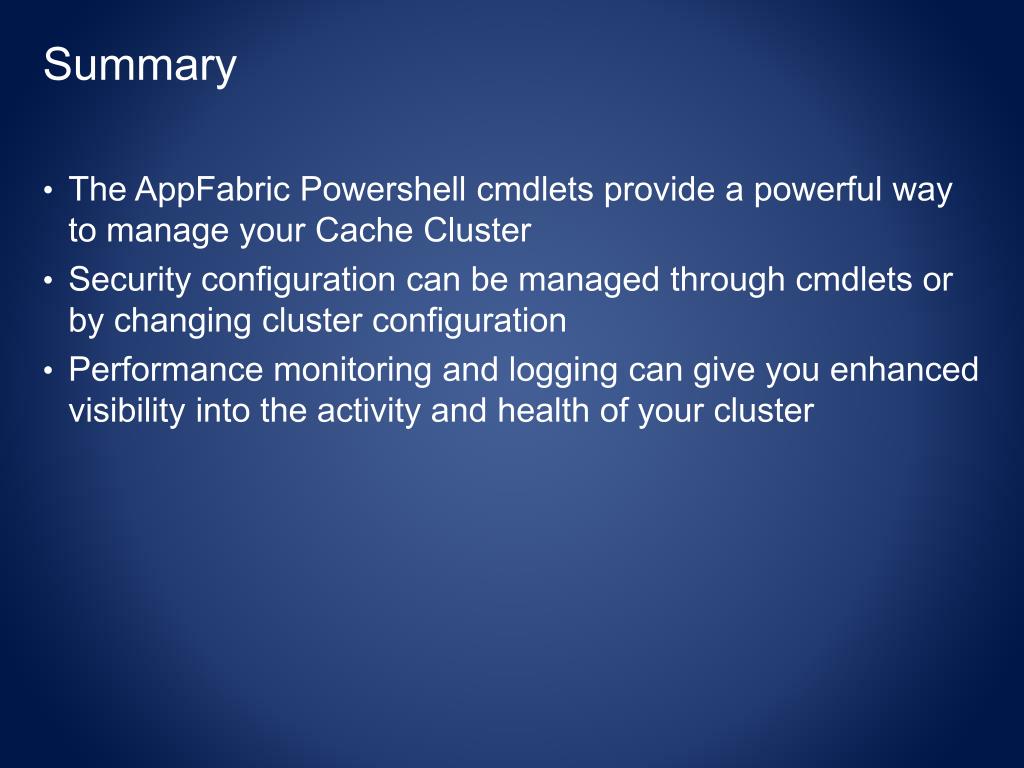

  18. Summary • The AppFabric Powershellcmdlets provide a powerful way to manage your Cache Cluster • Security configuration can be managed through cmdlets or by changing cluster configuration • Performance monitoring and logging can give you enhanced visibility into the activity and health of your cluster

  19. Questions?
