Electrolyte Analyzer 0.3 mL

Labnic Electrolyte Analyzer features advanced design and quality components, offering K and Na testing with just 80-150 u00b5L of sample and 0.3 mL of reagent. It operates efficiently at 15u201330 u00b0C with easy assembly, low reagent use, and a maintenance-free ion-selective electrode.

susanlabnic
Download Presentation

Electrolyte Analyzer 0.3 mL

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

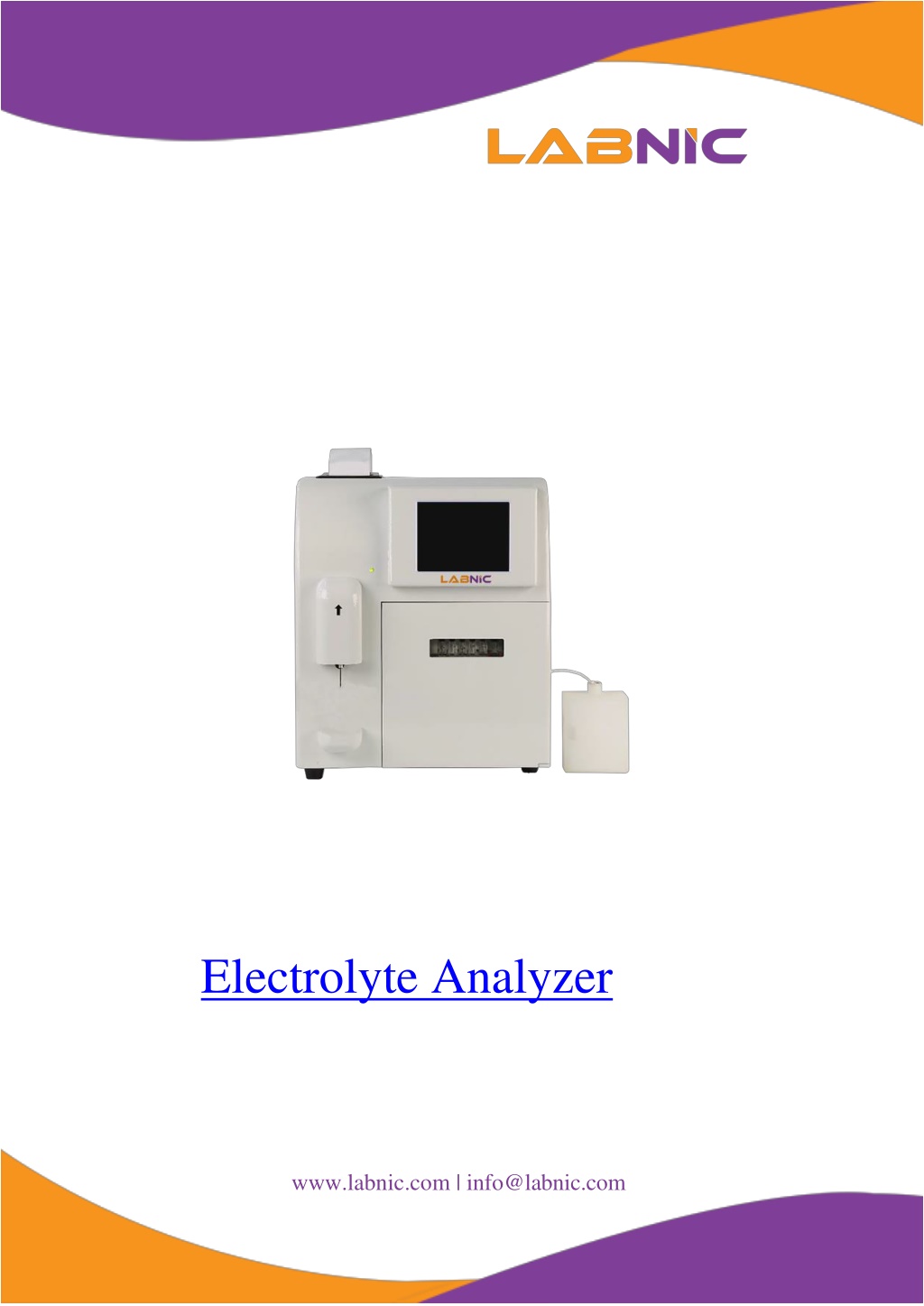

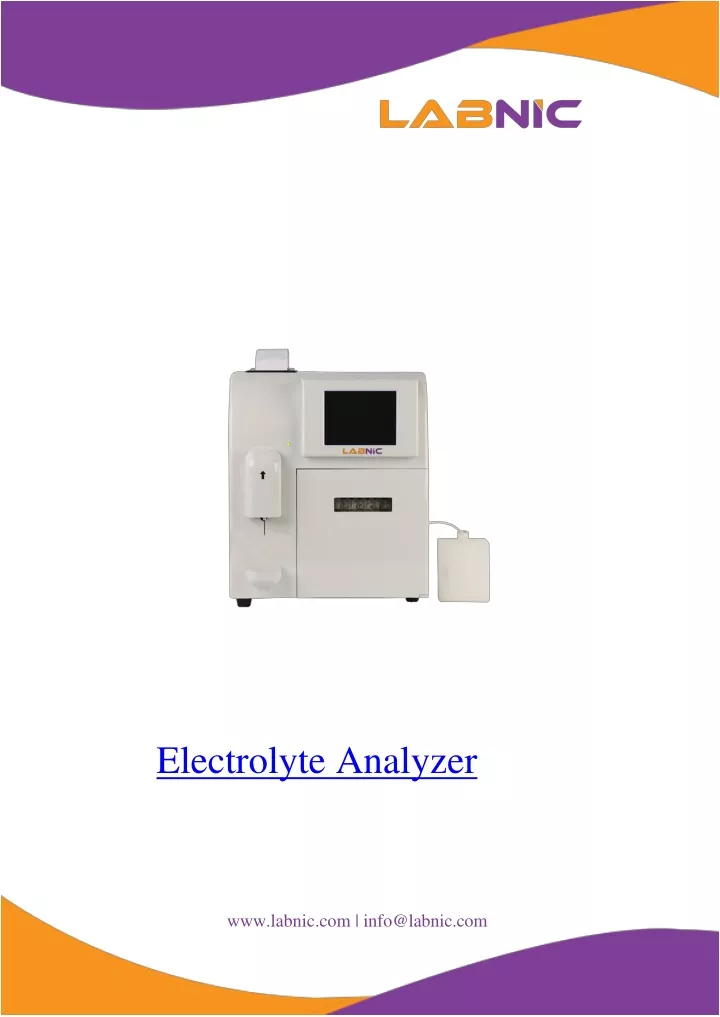

  1. Electrolyte Analyzer www.labnic.com | info@labnic.com

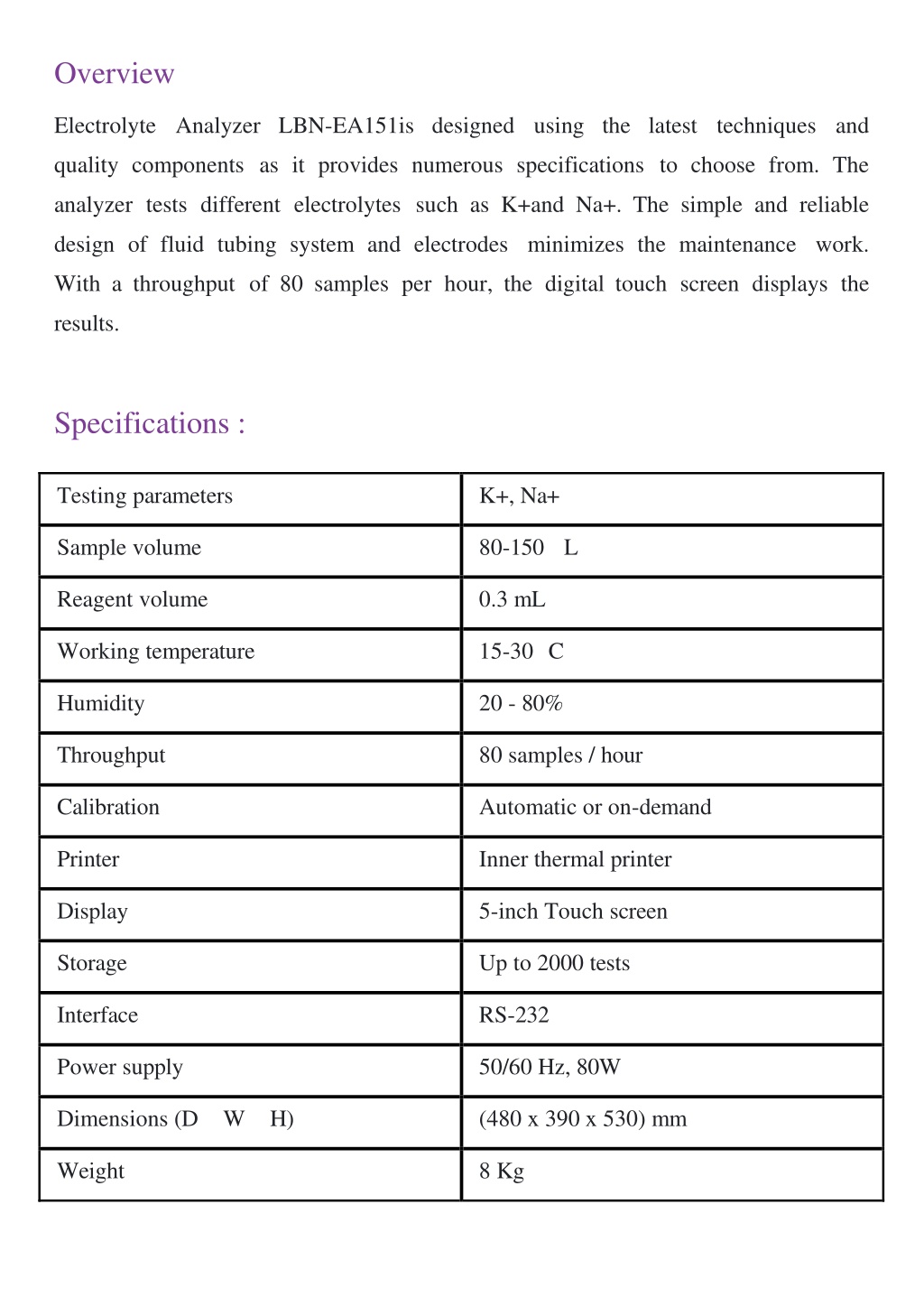

  2. Overview Electrolyte Analyzer LBN-EA151is designed using the latest techniques and quality components as it provides numerous specifications to choose from. The analyzer tests different electrolytes such as K+and Na+. The simple and reliable design of fluid tubing system and electrodesminimizes the maintenancework. With a throughput of 80 samples per hour, the digital touch screen displays the results. Specifications : Testing parameters K+, Na+ Sample volume 80-150 L Reagent volume 0.3 mL Working temperature 15-30 C Humidity 20 - 80% Throughput 80 samples / hour Calibration Automatic or on-demand Printer Inner thermal printer Display 5-inch Touch screen Storage Up to 2000 tests Interface RS-232 Power supply 50/60 Hz, 80W Dimensions (D W H) (480 x 390 x 530) mm Weight 8 Kg

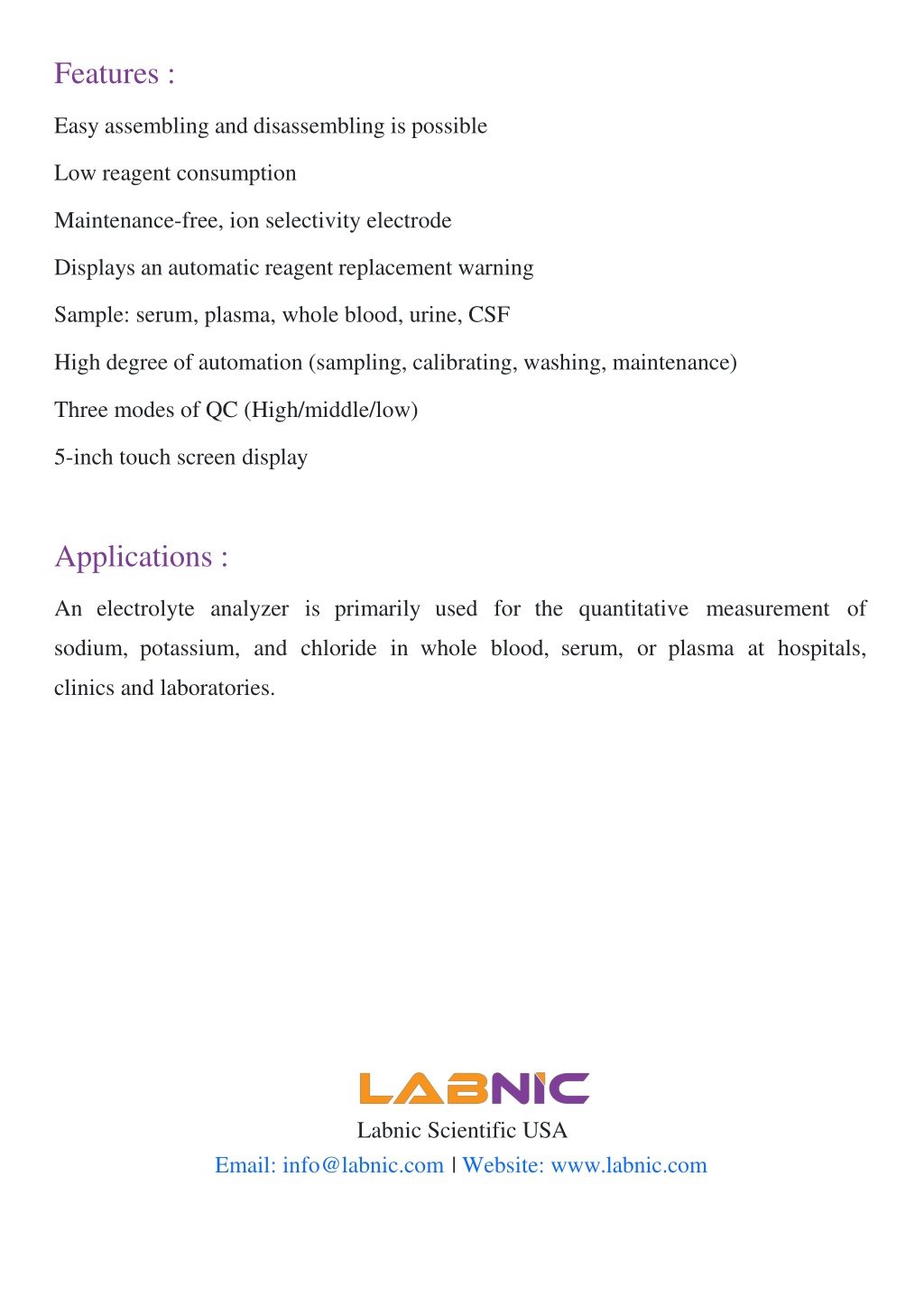

  3. Features : Easy assembling and disassembling is possible Low reagent consumption Maintenance-free, ion selectivity electrode Displays an automatic reagent replacement warning Sample: serum, plasma, whole blood, urine, CSF High degree of automation (sampling, calibrating, washing, maintenance) Three modes of QC (High/middle/low) 5-inch touch screen display Applications : An electrolyte analyzer is primarily used for the quantitative measurement of sodium, potassium, and chloride in whole blood, serum, or plasma at hospitals, clinics and laboratories. Labnic Scientific USA Email: info@labnic.com | Website: www.labnic.com
