Dissolved Oxygen Meter 600 g

Labnic Dissolved Oxygen Meter is a desktop device measuring dissolved oxygen in mg/L, ppm, or % saturation with a water-resistant membrane keypad. It offers 0.0 to 200% DO saturation with 0.001 resolution, a 7-inch screen, and the ability to transfer up to 1,000 data sets.<br>

susanlabnic
Download Presentation

Dissolved Oxygen Meter 600 g

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

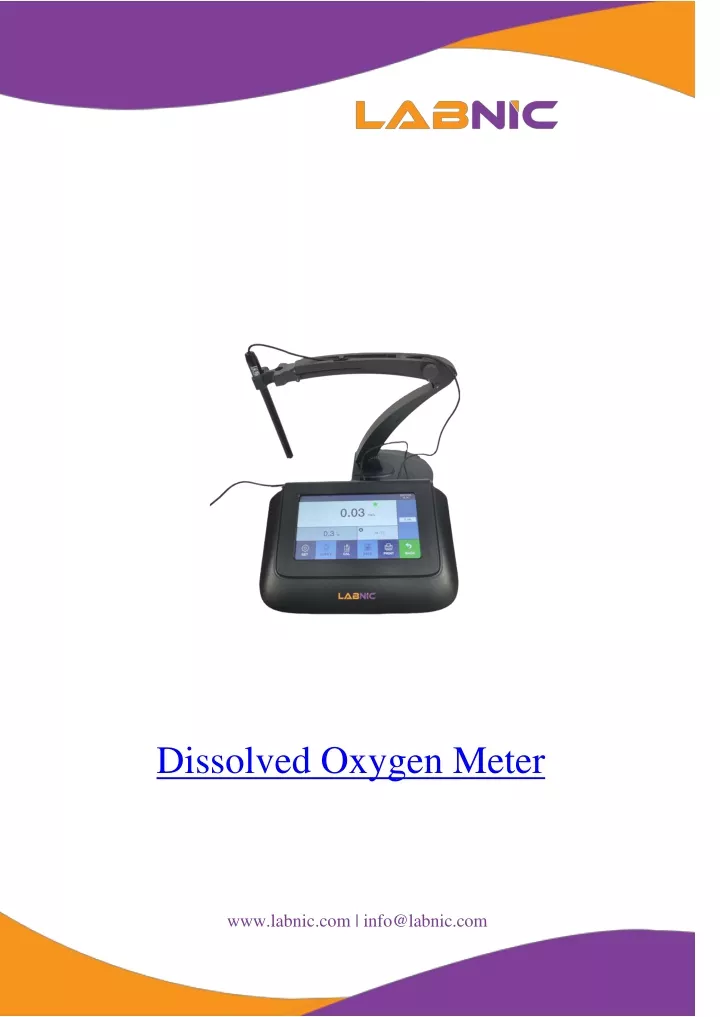

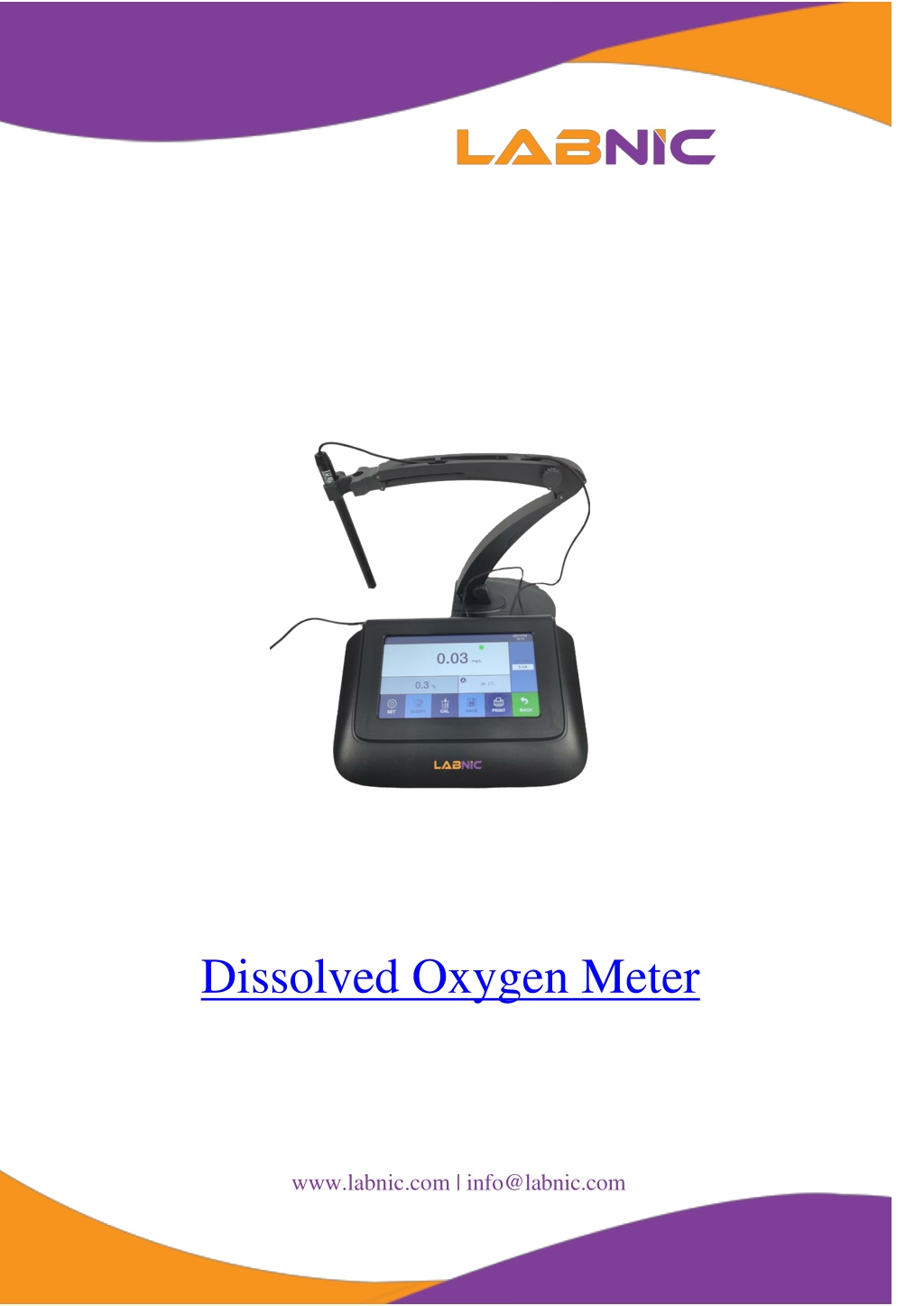

  1. Dissolved Oxygen Meter www.labnic.com | info@labnic.com

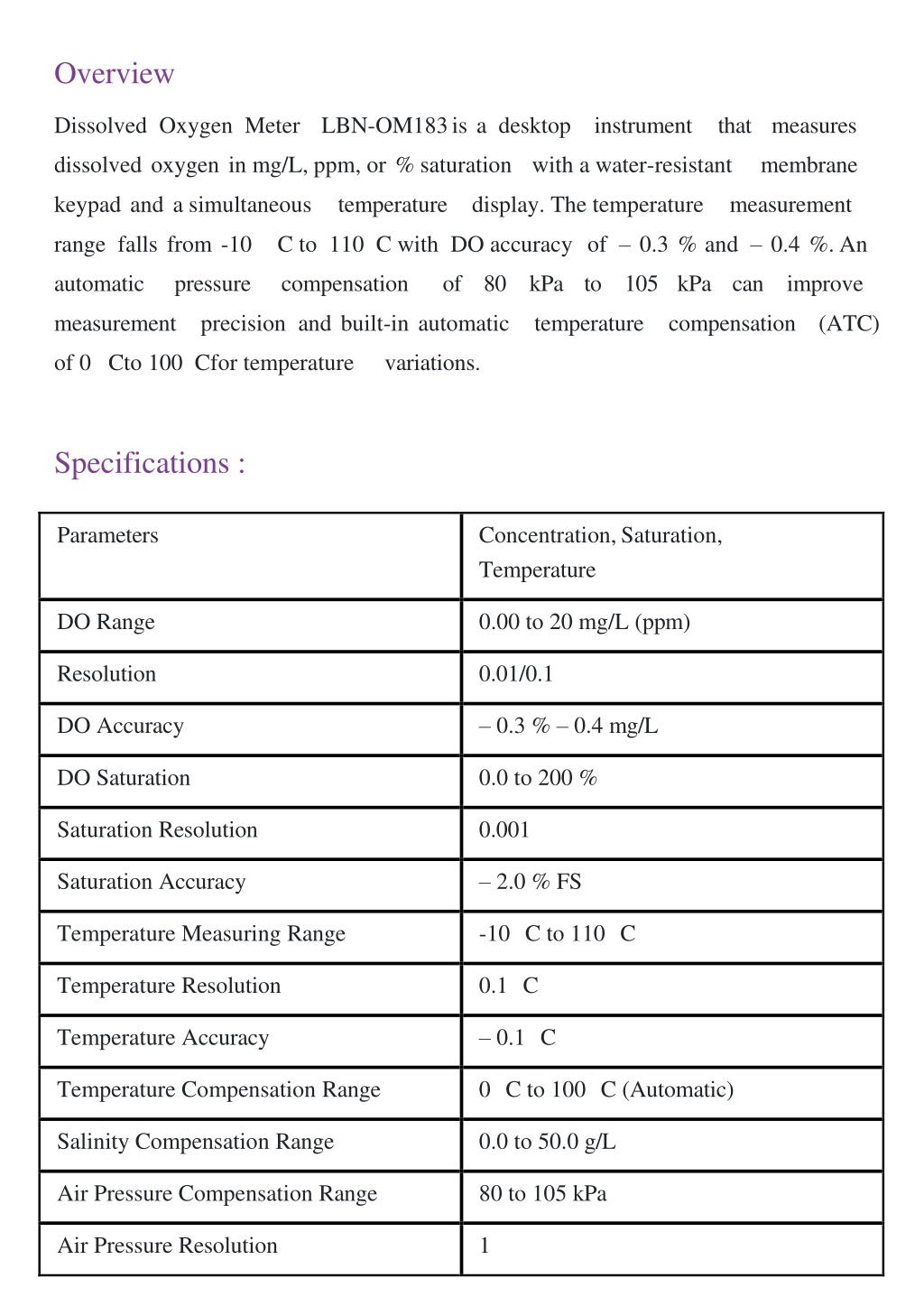

  2. Overview Dissolved Oxygen Meter LBN-OM183 is a desktop instrument that measures dissolved oxygen in mg/L, ppm, or % saturation with a water-resistant membrane keypad and a simultaneous temperature display. The temperature measurement range falls from -10 C to 110 C with DO accuracyof – 0.3 % and – 0.4 %. An automatic pressure compensation of 80 kPa to 105 kPa can improve measurement precision and built-in automatic temperature compensation (ATC) of 0 Cto 100 Cfor temperature variations. Specifications : Parameters Concentration, Saturation, Temperature DO Range 0.00 to 20 mg/L (ppm) Resolution 0.01/0.1 DO Accuracy – 0.3 % – 0.4 mg/L DO Saturation 0.0 to 200 % Saturation Resolution 0.001 Saturation Accuracy – 2.0 % FS Temperature Measuring Range -10 C to 110 C Temperature Resolution 0.1 C Temperature Accuracy – 0.1 C Temperature Compensation Range 0 C to 100 C (Automatic) Salinity Compensation Range 0.0 to 50.0 g/L Air Pressure Compensation Range 80 to 105 kPa Air Pressure Resolution 1

  3. Air Pressure Accuracy – 2 % Stability – 0.07 mg/L/1h Response Time d 30 s (25 C, 90 % Response) Working Conditions Temperature: 5 C to 40 C Humidity: 5 % to 85 % Power 12V/1A (With Power Adapter) Dimensions (WDH) 240 170 70 mm Weight 600 g Features : 7-inch screen with high resolution of 1024600 Auto-calibration, auto temperature compensation, data storage USB data export, clock, wireless printing, function setup, smart self-diagnosis Adjustable screen brightness Data storage of 1000 sets of test data can be edited and transferred DO mode have functions of ATC, auto salinity compensation and auto pressure compensation Wireless Bluetooth block Optional PC software and cell phone APP Polarographic DO electrode can measure temp., salinity and DO Equipped with DO electrode calibration sleeve, only need 3 to 5 minutes for polarization Combined diaphragm cap, replace sensitive membrane just by screwing new cap IP54 dustproof and waterproof Optional real time data transmission

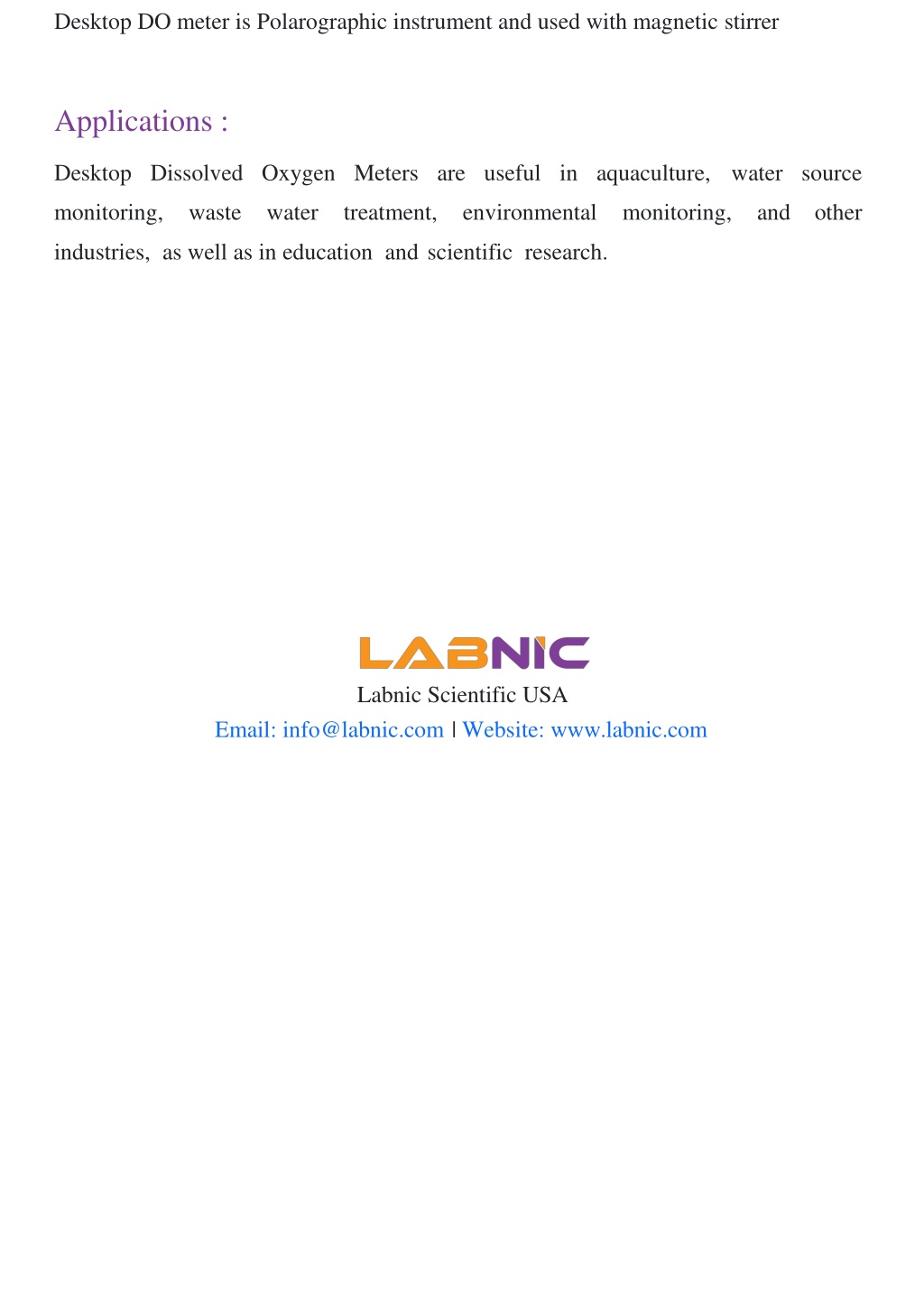

  4. Desktop DO meter is Polarographic instrument and used with magnetic stirrer Applications : Desktop Dissolved Oxygen Meters are useful in aquaculture, water source monitoring, waste water treatment, environmental monitoring, and other industries, as well as in education and scientific research. Labnic Scientific USA Email: info@labnic.com | Website: www.labnic.com
