Dissolved Oxygen Meter 0.001

Labnic Dissolved Oxygen Meter measures DO in mg/L, ppm, and % saturation with a range of 0.00 to 20 mg/L, resolutions of 0.01/0.1, and accuracy of u00b10.3% or u00b10.4 mg/L. It features 0.0 to 200% DO saturation, a 5-inch LCD screen with a 150u00b0 viewing angle and a compact bench cradle for easy use.

susanlabnic
Download Presentation

Dissolved Oxygen Meter 0.001

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

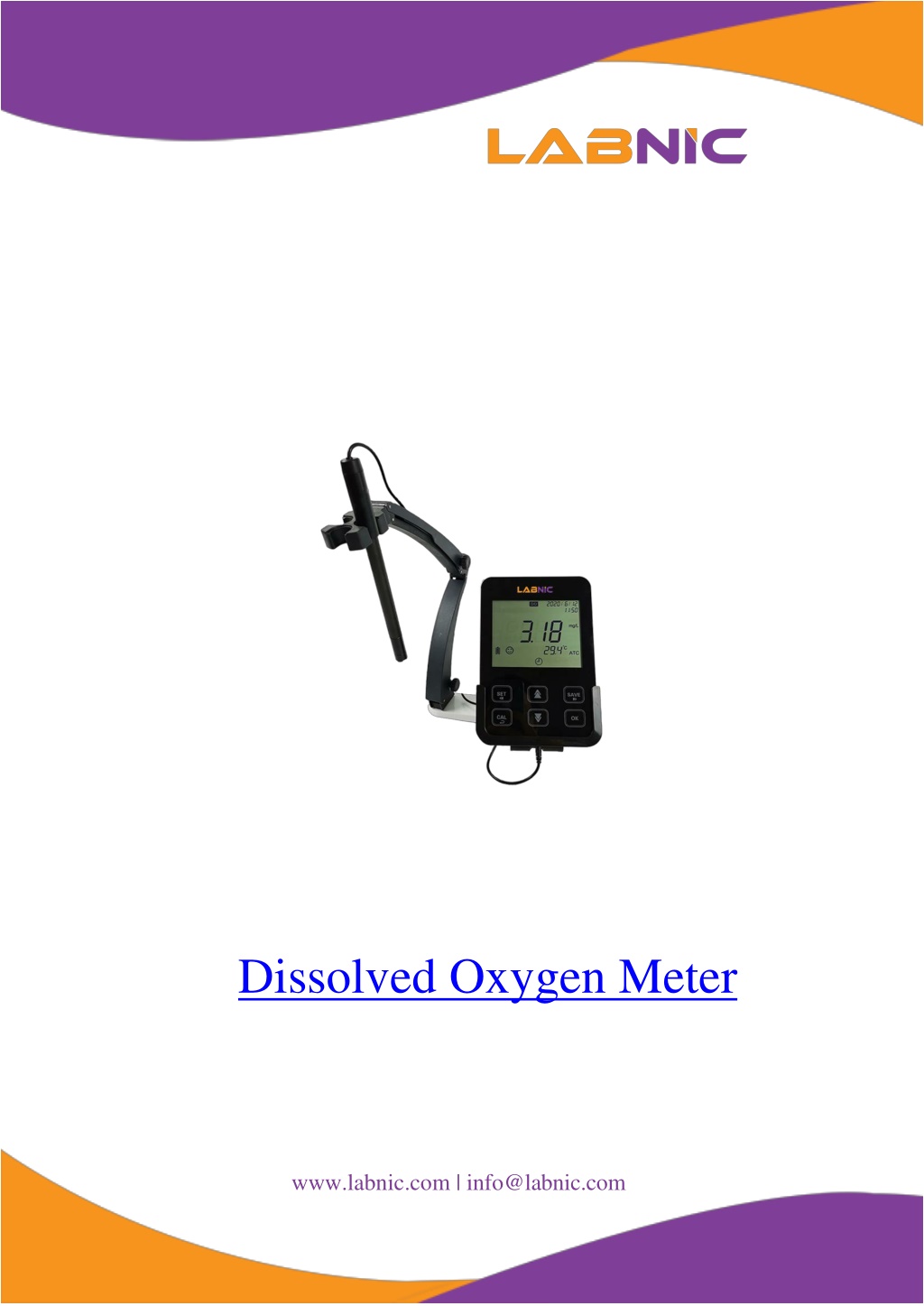

  1. Dissolved Oxygen Meter www.labnic.com | info@labnic.com

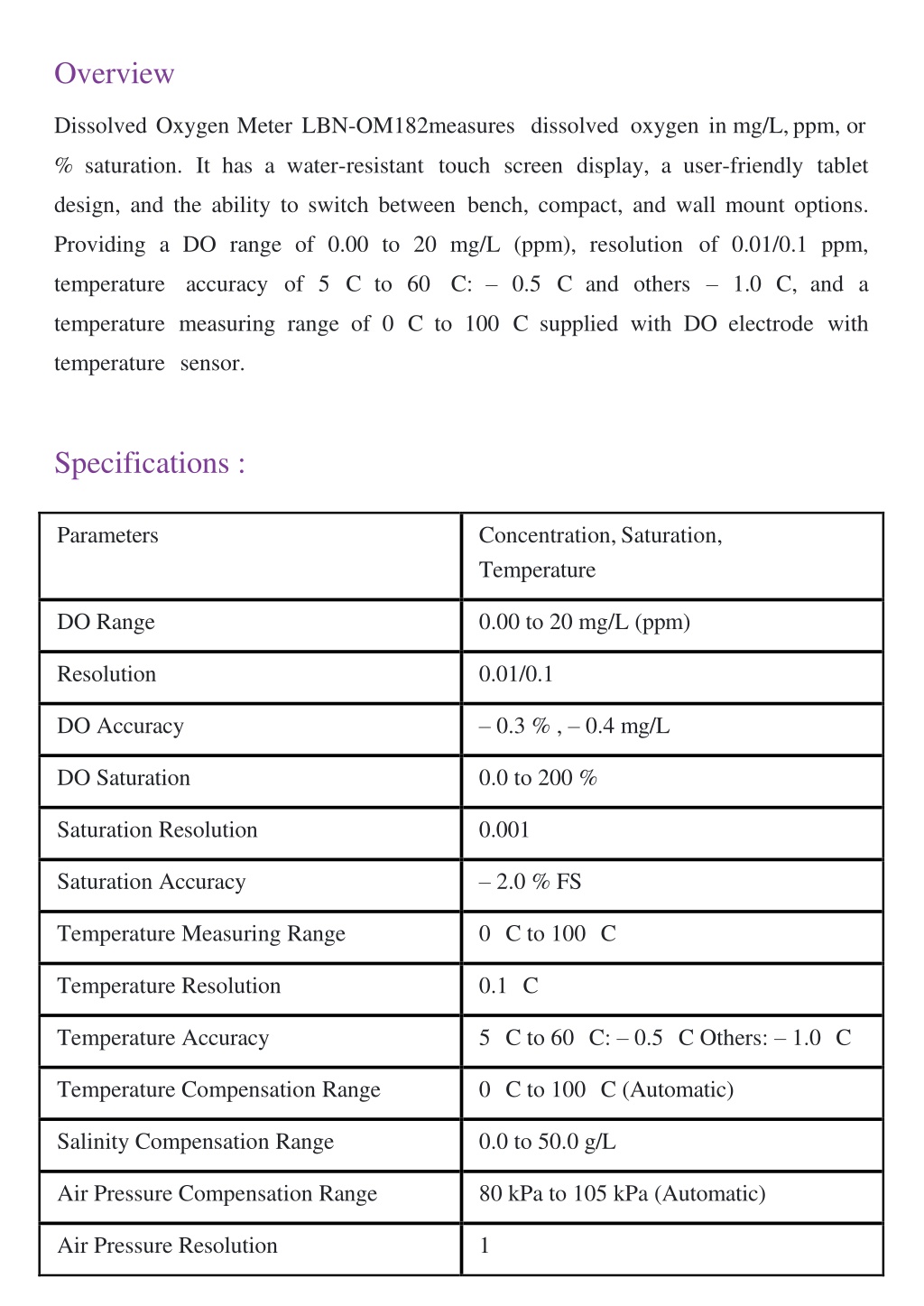

  2. Overview Dissolved Oxygen Meter LBN-OM182measures dissolved oxygen in mg/L, ppm, or % saturation. It has a water-resistant touch screen display, a user-friendly tablet design, and the ability to switch between bench, compact, and wall mount options. Providing a DO range of 0.00 to 20 mg/L (ppm), resolution of 0.01/0.1 ppm, temperatureaccuracy of 5 C to 60C: – 0.5 C and others – 1.0 C, and a temperature measuring range of 0 C to 100 C supplied with DO electrode with temperaturesensor. Specifications : Parameters Concentration, Saturation, Temperature DO Range 0.00 to 20 mg/L (ppm) Resolution 0.01/0.1 DO Accuracy – 0.3 % , – 0.4 mg/L DO Saturation 0.0 to 200 % Saturation Resolution 0.001 Saturation Accuracy – 2.0 % FS Temperature Measuring Range 0 C to 100 C Temperature Resolution 0.1 C Temperature Accuracy 5 C to 60 C: – 0.5 C Others: – 1.0 C Temperature Compensation Range 0 C to 100 C (Automatic) Salinity Compensation Range 0.0 to 50.0 g/L Air Pressure Compensation Range 80 kPa to 105 kPa (Automatic) Air Pressure Resolution 1

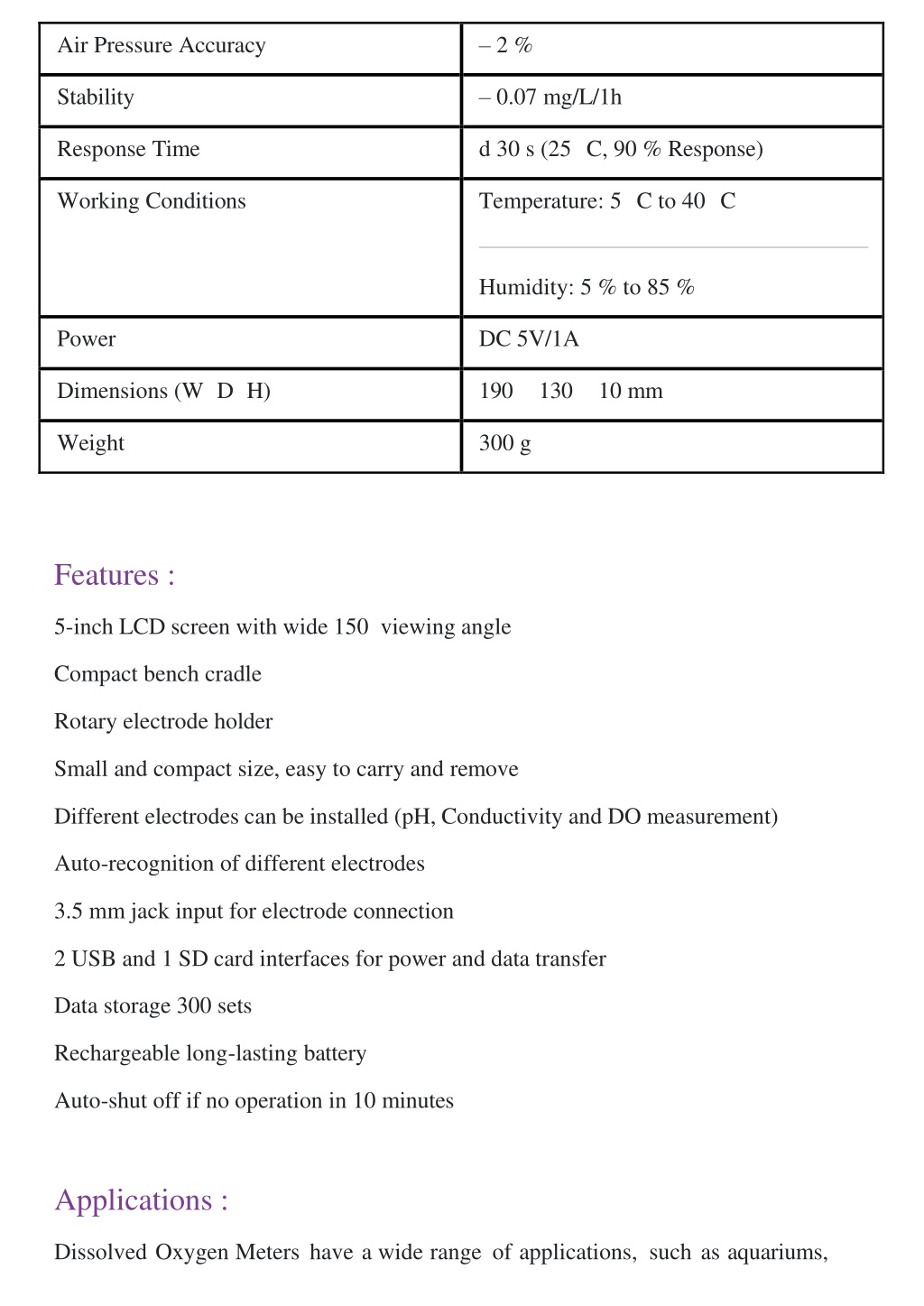

  3. Air Pressure Accuracy – 2 % Stability – 0.07 mg/L/1h Response Time d 30 s (25 C, 90 % Response) Working Conditions Temperature: 5 C to 40 C Humidity: 5 % to 85 % Power DC 5V/1A Dimensions (WDH) 190 130 10 mm Weight 300 g Features : 5-inch LCD screen with wide 150 viewing angle Compact bench cradle Rotary electrode holder Small and compact size, easy to carry and remove Different electrodes can be installed (pH, Conductivity and DO measurement) Auto-recognition of different electrodes 3.5 mm jack input for electrode connection 2 USB and 1 SD card interfaces for power and data transfer Data storage 300 sets Rechargeable long-lasting battery Auto-shut off if no operation in 10 minutes Applications : Dissolved Oxygen Meters have a wide range of applications, such as aquariums,

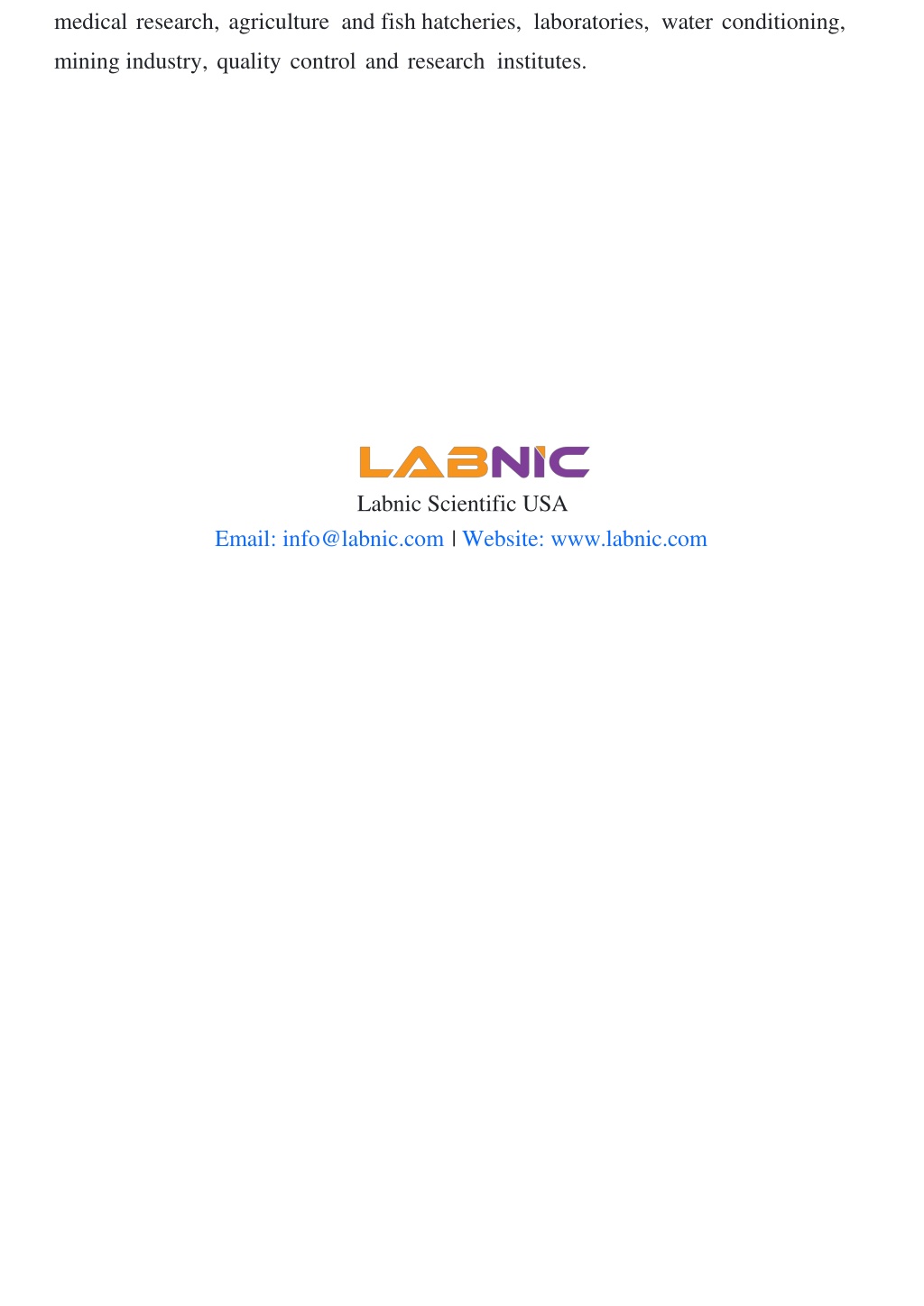

  4. medical research, agriculture and fish hatcheries, laboratories, water conditioning, mining industry, quality control and research institutes. Labnic Scientific USA Email: info@labnic.com | Website: www.labnic.com
