Automatic Glassware Washer 206 L

Labnic Automatic Glassware Washer is designed with a 195 L cleaning space, quiet operation at 45 dB, and a 0.75 KW circulating pump. It includes a 7.1-inch LCD touchscreen and automatic fault diagnosis, making it ideal for reliable and precise cleaning in environments ranging from 5u00b0C to 40u00b0C.u00a0

susanlabnic
Download Presentation

Automatic Glassware Washer 206 L

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

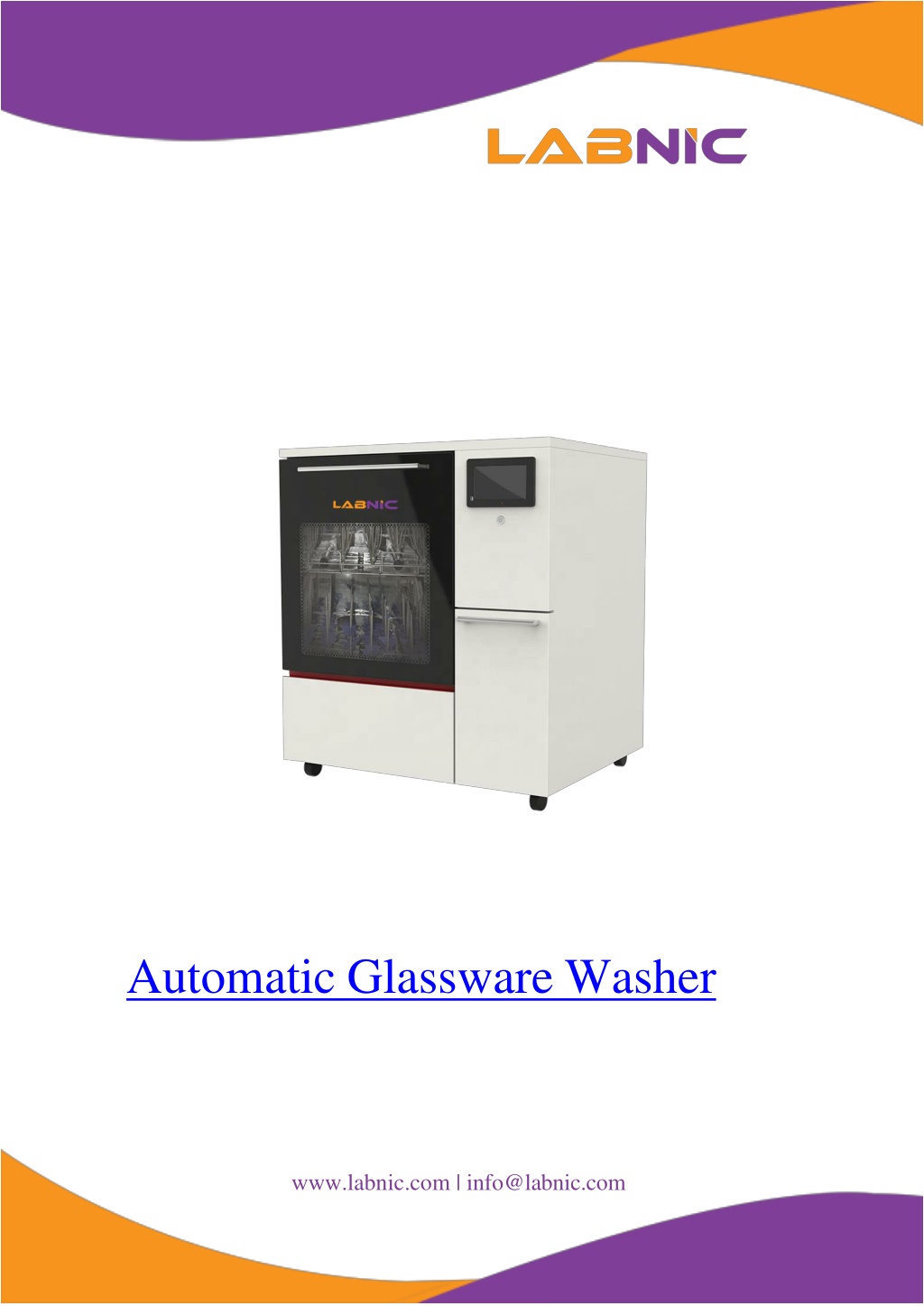

  1. Automatic Glassware Washer www.labnic.com | info@labnic.com

  2. Overview Automatic Glassware Washer LBN-GW131 is designed to be long-lasting, dependable, and energy efficient. It has a 7.1inch true color display LCDtouch screen, is simple to use, and has a 1/4 cleaning rack for easy adjustment and replacement. It has a 206 L washing chamber with upper and lower utensils reaching heights of 170 and 265 mm, respectively. The exterior is made of 304 brushed stainless steel, while the interior is made of AISI316Lstainless steel mold with special welding technology to prevent bacteria breeding. Specifications : Washing Chamber Volume 206 L Cleaning Space 195 L Working Environment 5 C to 40 C Maximum Noise 45 dB Circulating Pump Power 0.75 KW Circulation Pump Flow 430 L/min Water Heating Power 4 KW Drying Fan Power 1.1 KW Drying Heating Power 2.4 KW Peristaltic Pump Plus Dosage 360 ML/min Power Supply 220V/50Hz Rated Total Power 5KW Cleaning Chamber Size 552565807 mm External Dimension 909715998 mm

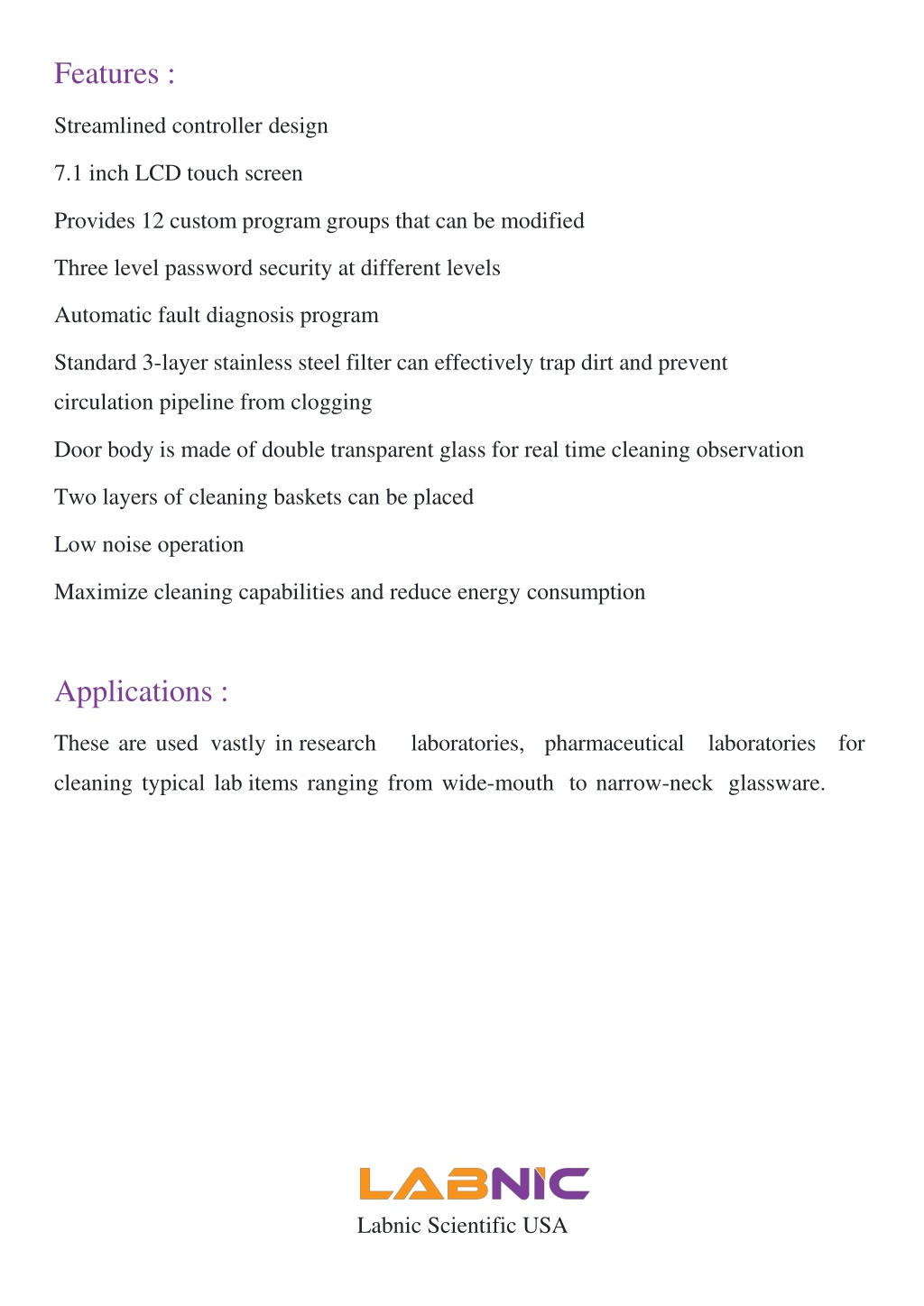

  3. Features : Streamlined controller design 7.1 inch LCD touch screen Provides 12 custom program groups that can be modified Three level password security at different levels Automatic fault diagnosis program Standard 3-layer stainless steel filter can effectively trap dirt and prevent circulation pipeline from clogging Door body is made of double transparent glass for real time cleaning observation Two layers of cleaning baskets can be placed Low noise operation Maximize cleaning capabilities and reduce energy consumption Applications : These are used vastly in research laboratories, pharmaceutical laboratories for cleaning typical lab items ranging from wide-mouthto narrow-neckglassware. Labnic Scientific USA

  4. Email: info@labnic.com | Website: www.labnic.com
