Automatic Glassware Washer

Labnic Automatic Glassware Washer, with a 170L cavity, offers cleaning temperatures from 50u00b0C to 93u00b0C. It features a 320 L/min circulation pump, 35 standard and 100 custom procedures, tap and pure water intake, speed detection, and overheating protection for efficient, safe operation.

susanlabnic
Download Presentation

Automatic Glassware Washer

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

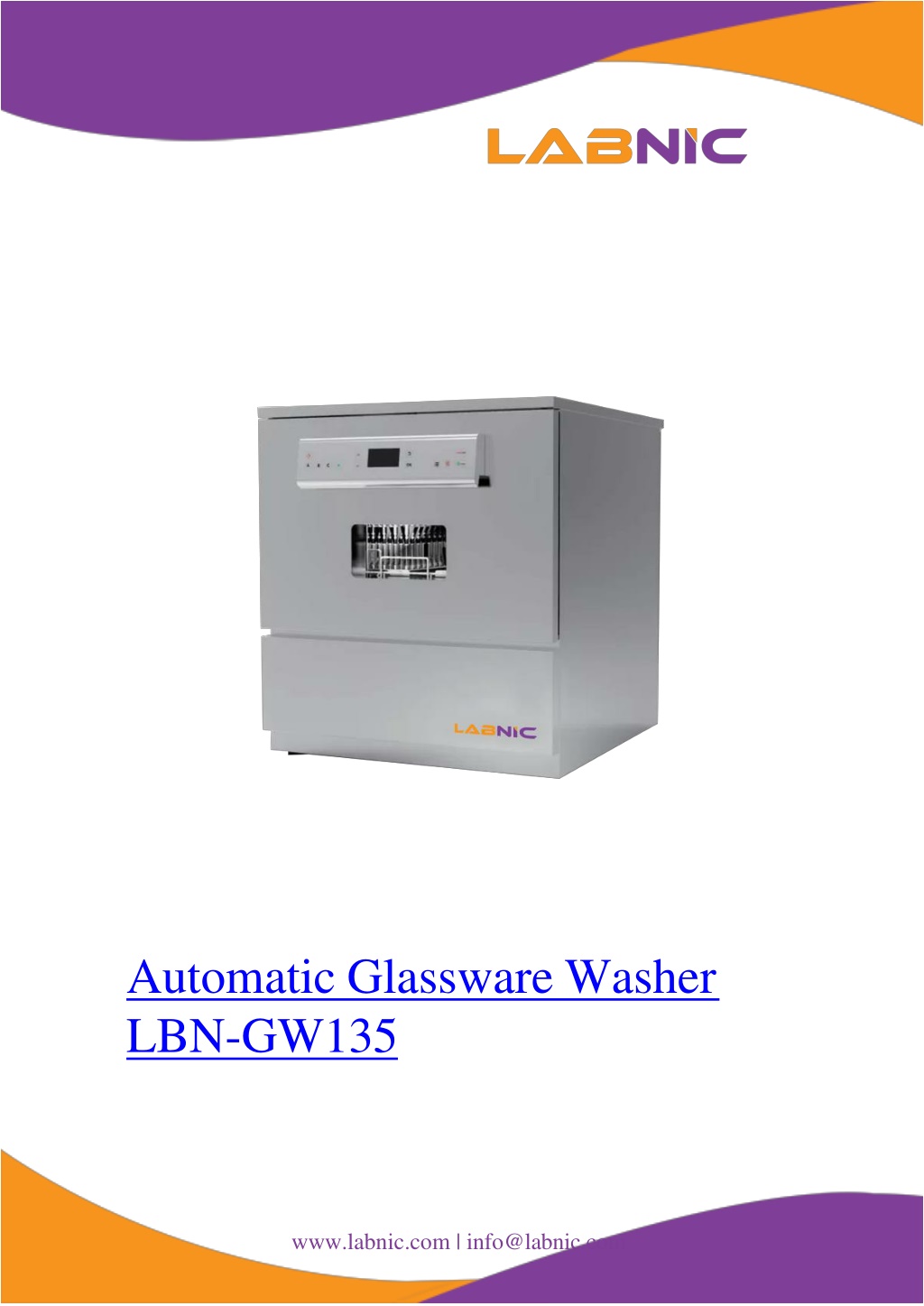

  1. Automatic Glassware Washer LBN-GW135 www.labnic.com | info@labnic.com

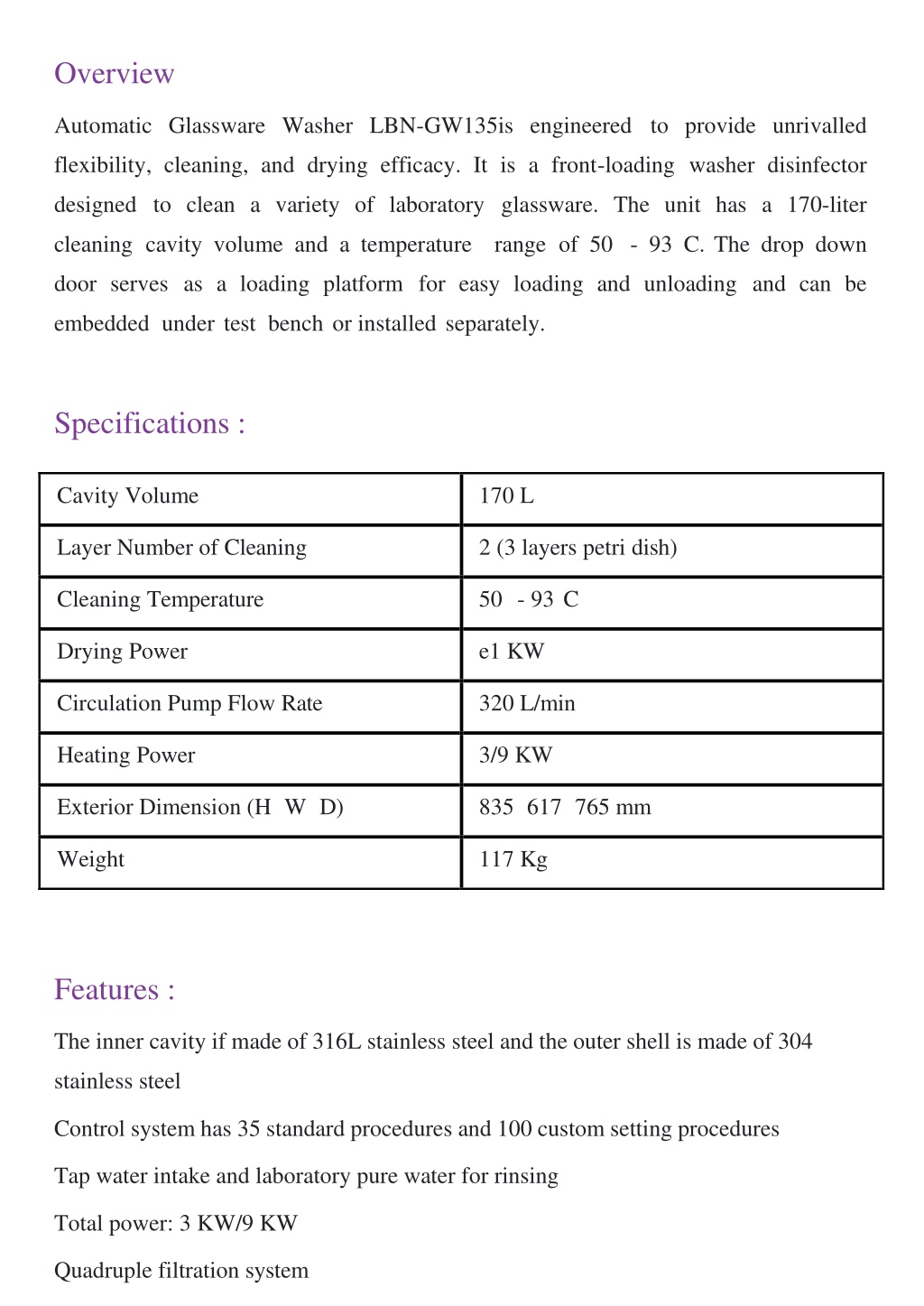

  2. Overview Automatic Glassware Washer LBN-GW135is engineered to provide unrivalled flexibility, cleaning, and drying efficacy. It is a front-loading washer disinfector designed to clean a variety of laboratory glassware. The unit has a 170-liter cleaning cavity volume and a temperature range of 50- 93 C. The drop down door serves as a loading platform for easy loading and unloading and can be embedded under test bench or installed separately. Specifications : Cavity Volume 170 L Layer Number of Cleaning 2 (3 layers petri dish) Cleaning Temperature 50 - 93 C Drying Power e1 KW Circulation Pump Flow Rate 320 L/min Heating Power 3/9 KW Exterior Dimension (HWD) 835617765 mm Weight 117 Kg Features : The inner cavity if made of 316L stainless steel and the outer shell is made of 304 stainless steel Control system has 35 standard procedures and 100 custom setting procedures Tap water intake and laboratory pure water for rinsing Total power: 3 KW/9 KW Quadruple filtration system

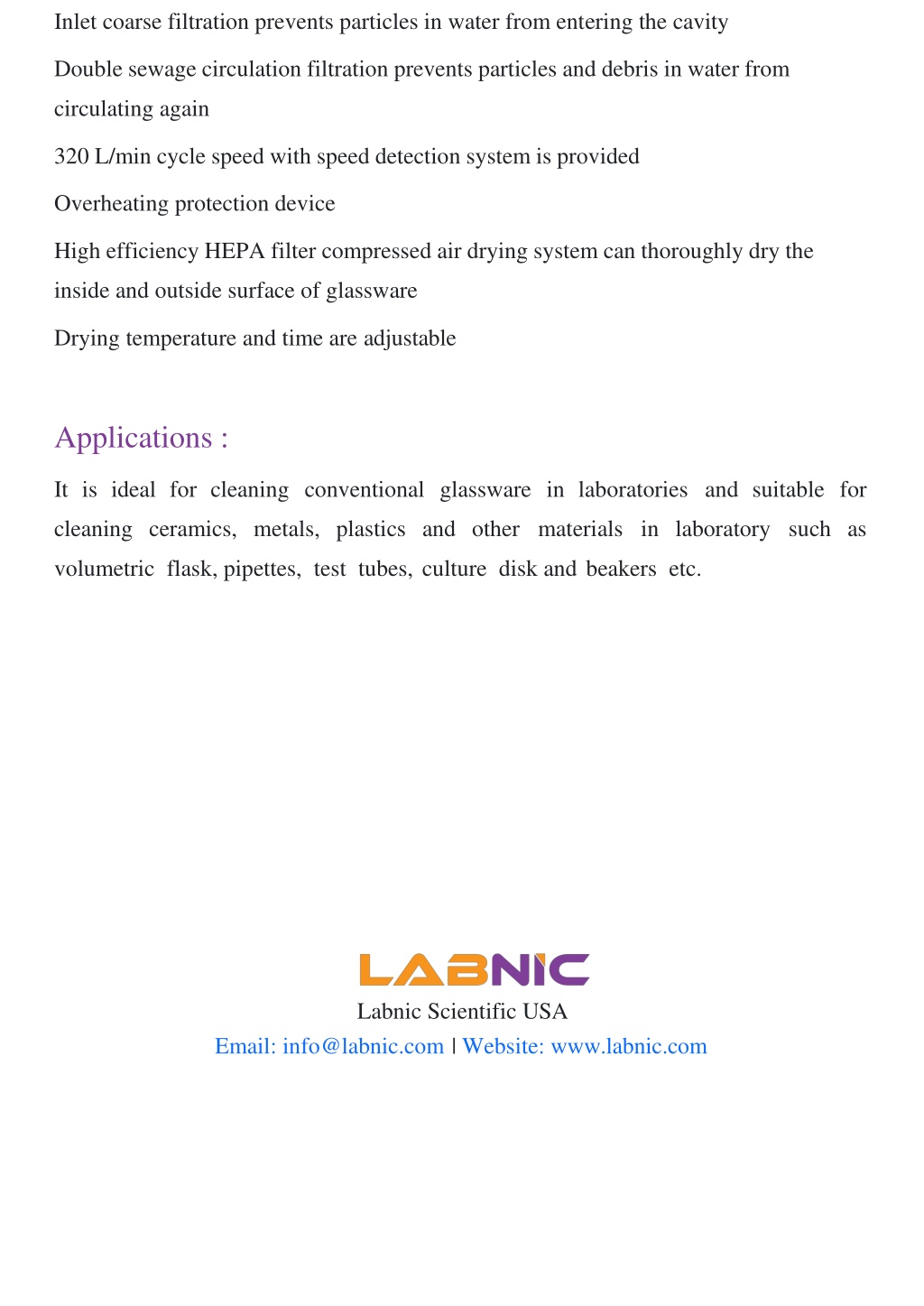

  3. Inlet coarse filtration prevents particles in water from entering the cavity Double sewage circulation filtration prevents particles and debris in water from circulating again 320 L/min cycle speed with speed detection system is provided Overheating protection device High efficiency HEPA filter compressed air drying system can thoroughly dry the inside and outside surface of glassware Drying temperature and time are adjustable Applications : It is ideal for cleaning conventional glassware in laboratories and suitable for cleaning ceramics, metals, plastics and other materials in laboratory such as volumetric flask, pipettes, test tubes, culture disk and beakers etc. Labnic Scientific USA Email: info@labnic.com | Website: www.labnic.com
