Auto ESR Analyzer 0.2 mm

Labnic Auto ESR Analyzer uses the Westergren method and infrared measurement for automatic analysis, featuring 40 channels with selectable analysis times of 30 or 60 minutes, a 3-minute sampling interval and a range of 0 to 120 mm/hr. It performs 80 tests/hr and offers automatic temperature compensation for accurate results.

susanlabnic
Download Presentation

Auto ESR Analyzer 0.2 mm

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

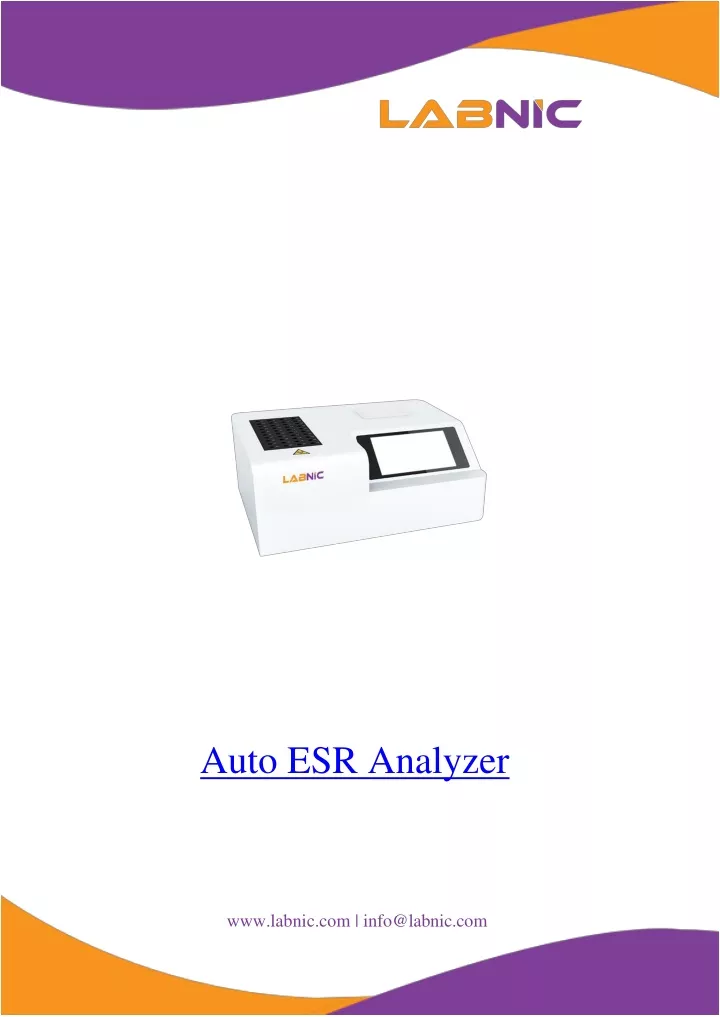

  1. Auto ESR Analyzer www.labnic.com | info@labnic.com

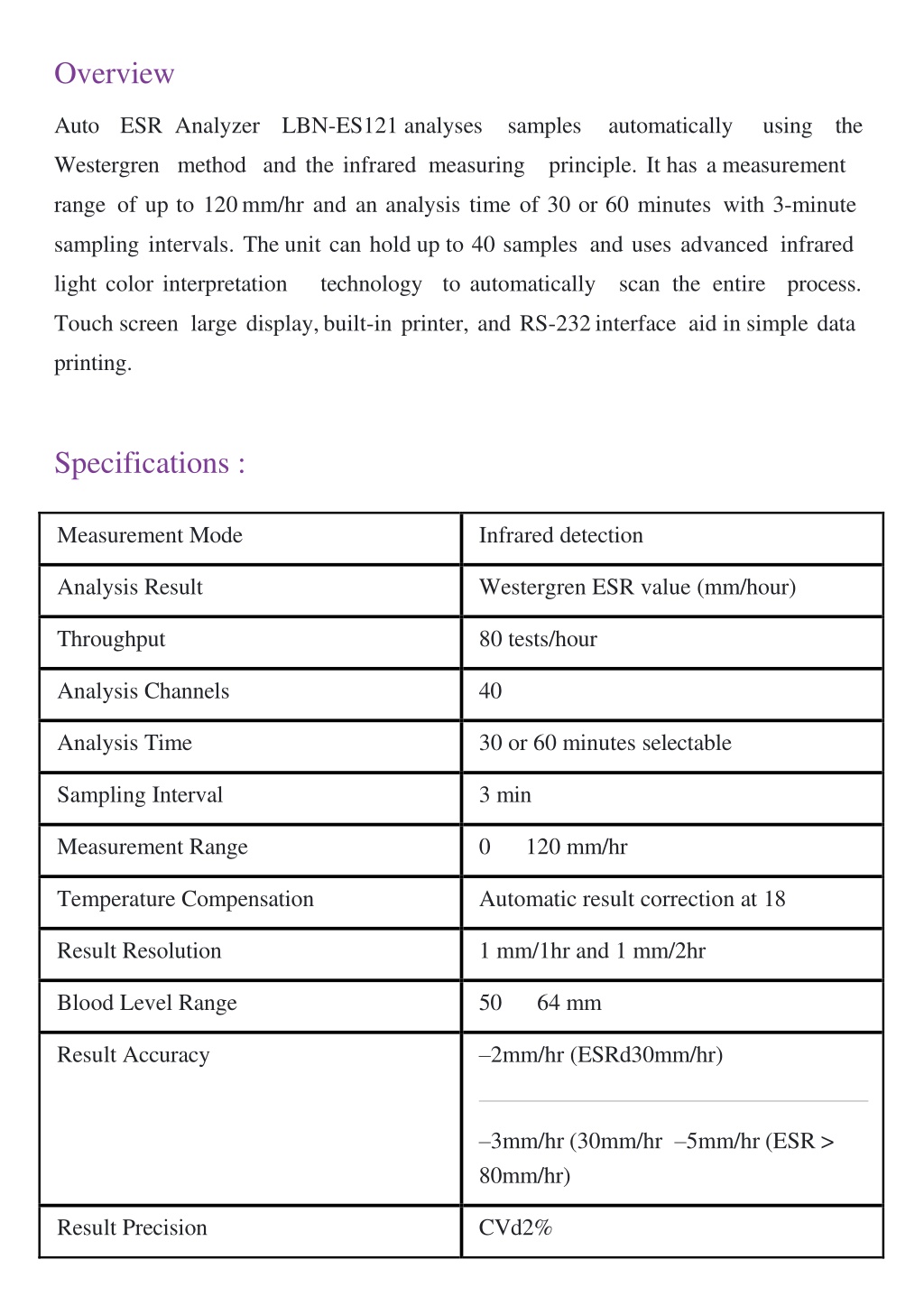

  2. Overview Auto ESR Analyzer LBN-ES121 analyses samples automatically using the Westergren method and the infrared measuring principle. It has a measurement range of up to 120 mm/hr and an analysis time of 30 or 60 minutes with 3-minute sampling intervals. The unit can hold up to 40 samples and uses advanced infrared light color interpretation technology to automatically scan the entire process. Touch screen large display, built-in printer, and RS-232 interface aid in simple data printing. Specifications : Measurement Mode Infrared detection Analysis Result Westergren ESR value (mm/hour) Throughput 80 tests/hour Analysis Channels 40 Analysis Time 30 or 60 minutes selectable Sampling Interval 3 min Measurement Range 0 120 mm/hr Temperature Compensation Automatic result correction at 18 Result Resolution 1 mm/1hr and 1 mm/2hr Blood Level Range 50 64 mm Result Accuracy –2mm/hr (ESRd30mm/hr) –3mm/hr (30mm/hr –5mm/hr (ESR > 80mm/hr) Result Precision CVd2%

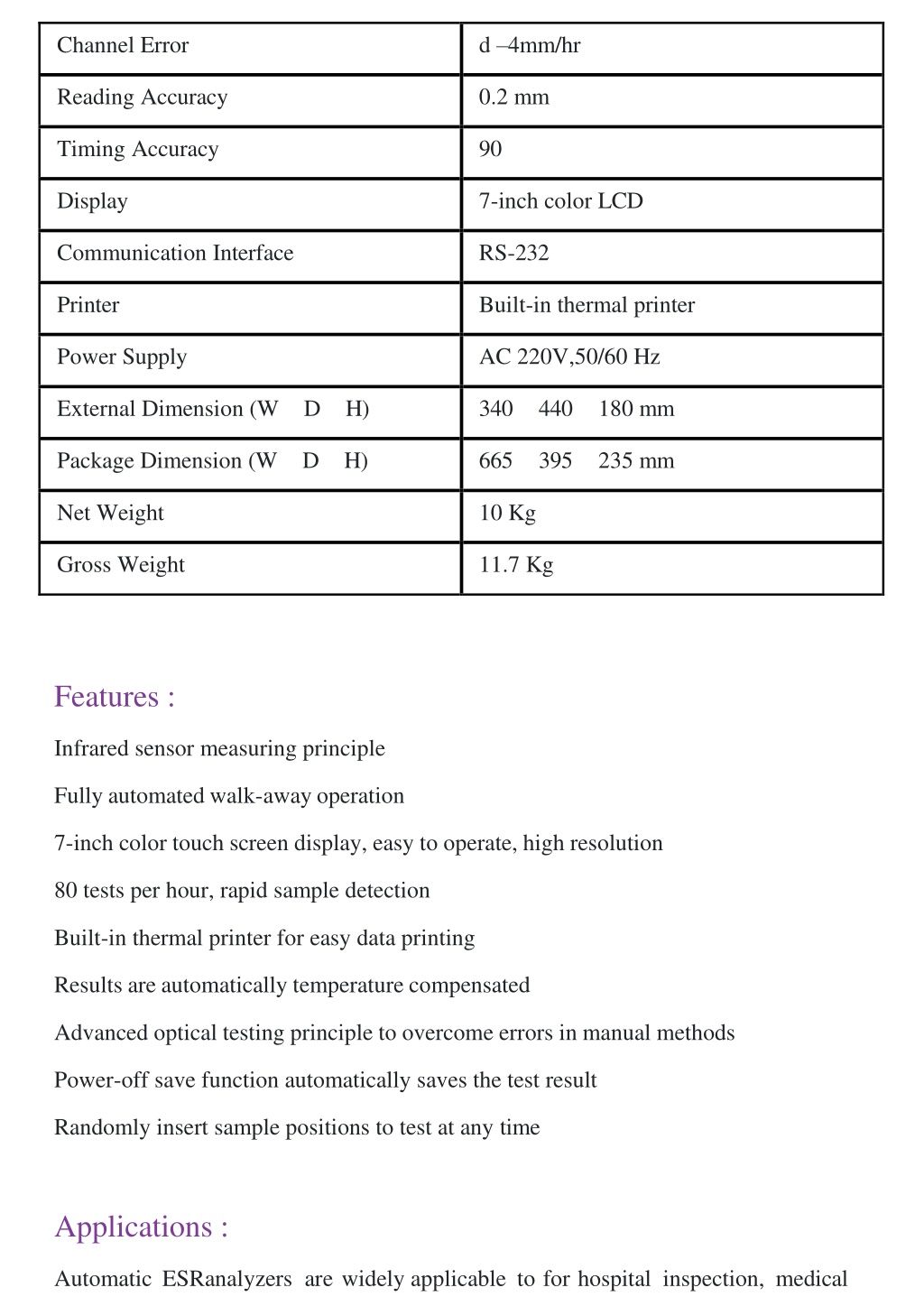

  3. Channel Error d –4mm/hr Reading Accuracy 0.2 mm Timing Accuracy 90 Display 7-inch color LCD Communication Interface RS-232 Printer Built-in thermal printer Power Supply AC 220V,50/60 Hz External Dimension (W D H) 340 440 180 mm Package Dimension (W D H) 665 395 235 mm Net Weight 10 Kg Gross Weight 11.7 Kg Features : Infrared sensor measuring principle Fully automated walk-away operation 7-inch color touch screen display, easy to operate, high resolution 80 tests per hour, rapid sample detection Built-in thermal printer for easy data printing Results are automatically temperature compensated Advanced optical testing principle to overcome errors in manual methods Power-off save function automatically saves the test result Randomly insert sample positions to test at any time Applications : Automatic ESRanalyzers are widely applicable to for hospital inspection, medical

  4. laboratories,researchinstitutes,universitiesand diseasecontrol centresetc. Labnic Scientific USA Email: info@labnic.com | Website: www.labnic.com
