Presentation Transcript

  1. MATE

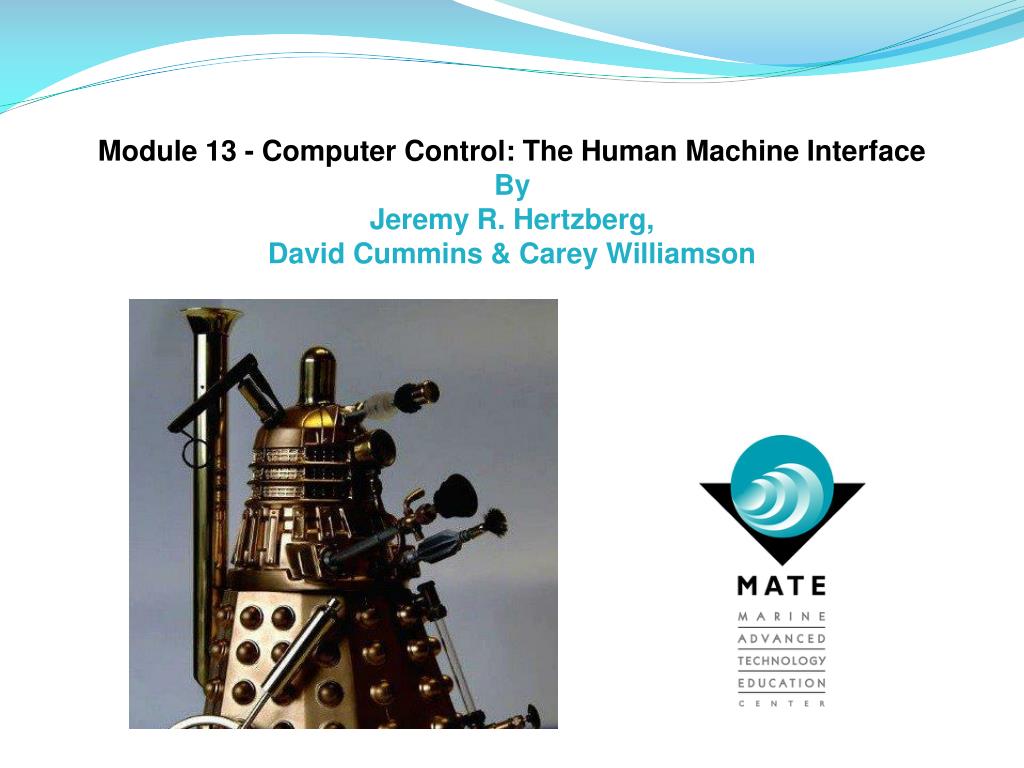

  2. Module 13 - Computer Control: The Human Machine Interface By Jeremy R. Hertzberg, David Cummins & Carey Williamson

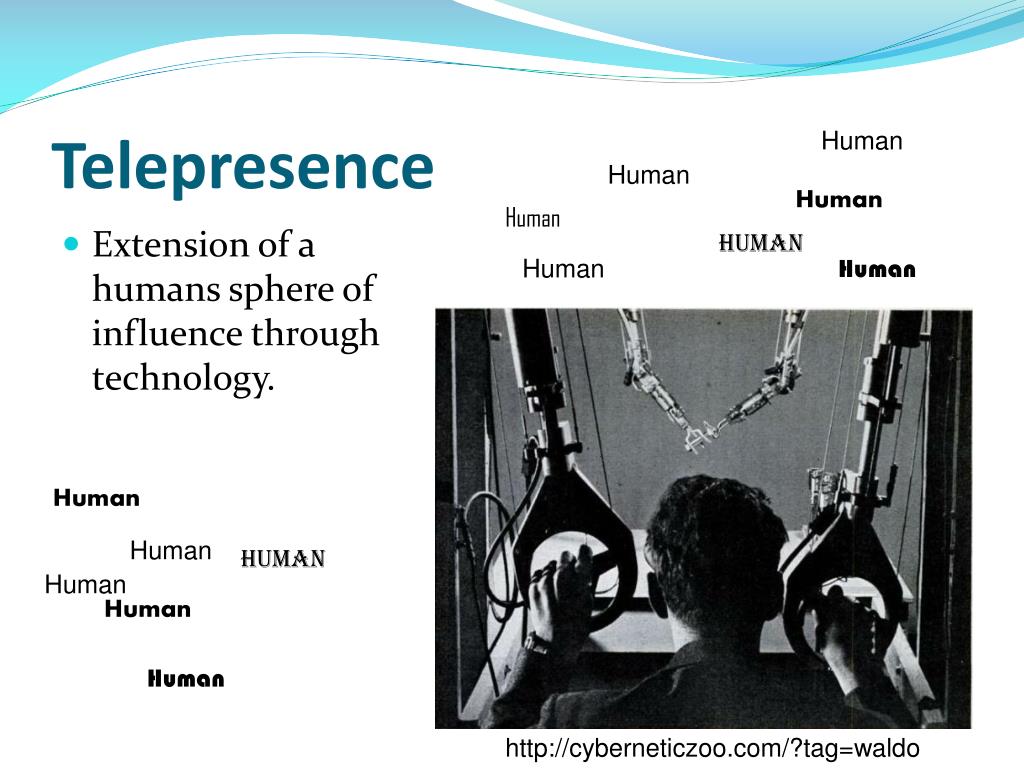

  3. Telepresence Human Human Human Human • Extension of a humans sphere of influence through technology. Human Human Human Human Human Human Human Human Human http://cyberneticzoo.com/?tag=waldo

  4. Human-ROV • ½ the equation is Human • ½ the equation is technology • For this system to function the two MUST communicate effectively. http://qeyler.hubpages.com/hub/The-Aliens-of-Deep-Space-Nine

  5. The interface between humans and machines is called:Human Machine Interface (HMI)

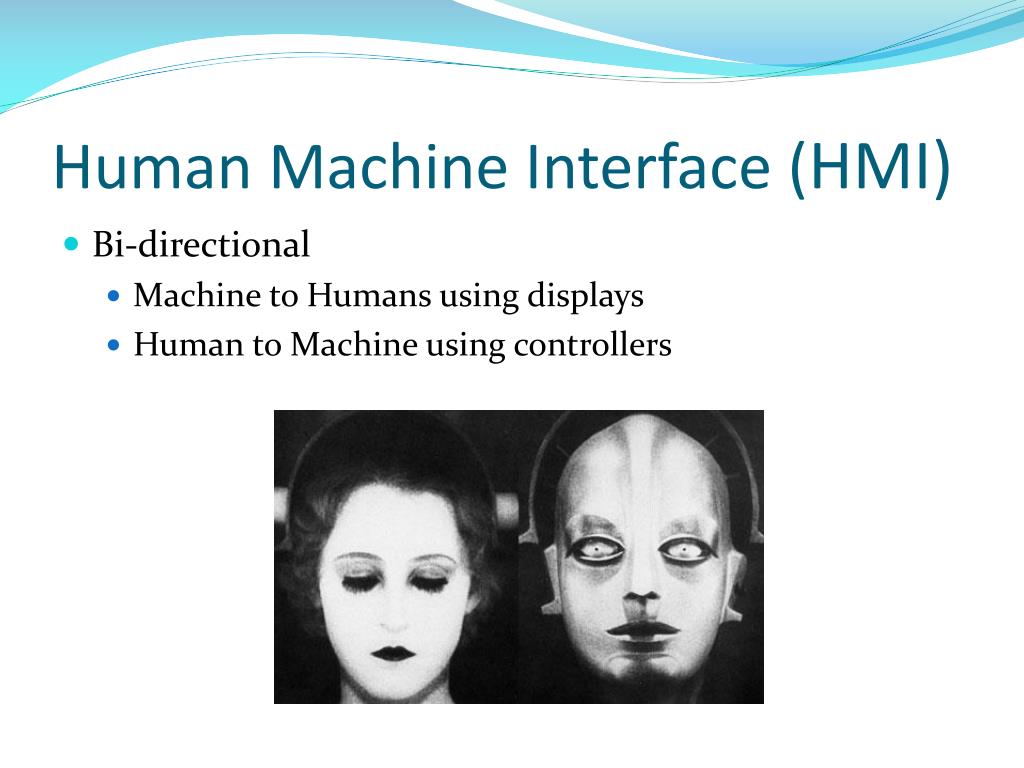

  6. Human Machine Interface (HMI) • Bi-directional • Machine to Humans using displays • Human to Machine using controllers

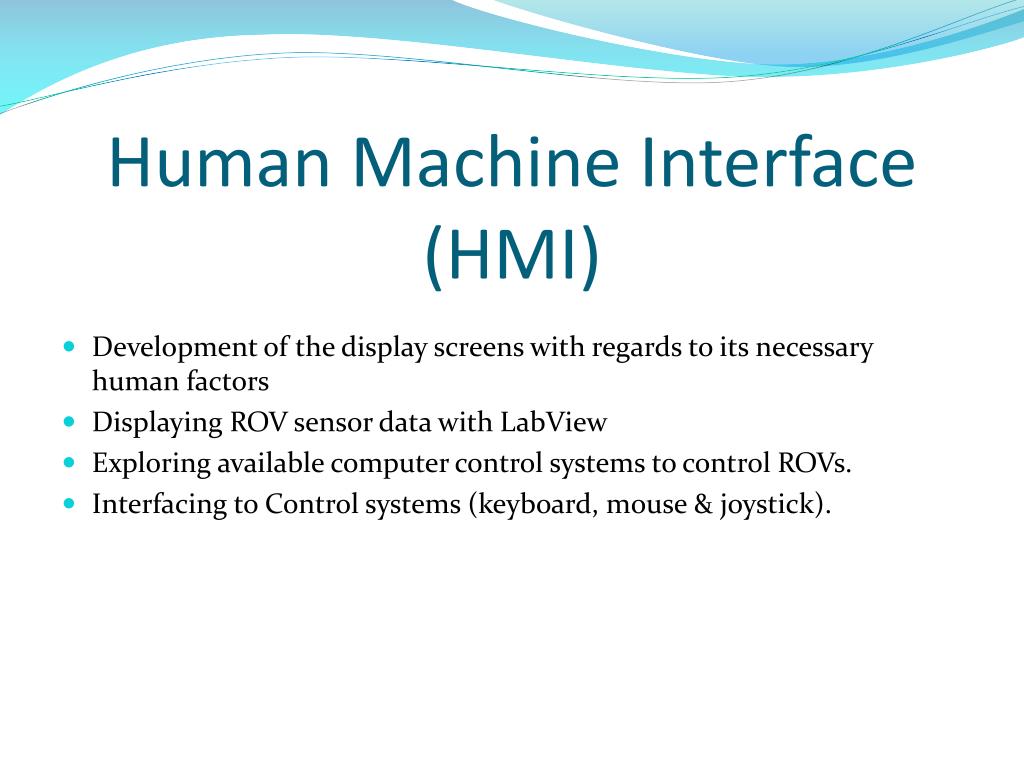

  7. Human Machine Interface (HMI) • Development of the display screens with regards to its necessary human factors • Displaying ROV sensor data with LabView • Exploring available computer control systems to control ROVs. • Interfacing to Control systems (keyboard, mouse & joystick).
