  1. Flue Gas Analysis As A Furnace Diagnostic ToolDoug Simmers- Worldwide Product Manager Rosemount Analytical

  2. Contents • Overview of traditional applications for combustion flue gas analyzers • Traditional analyzer technologies • New measurement goals • Analyzer applications to detect furnace anomalies • New analyzer developments

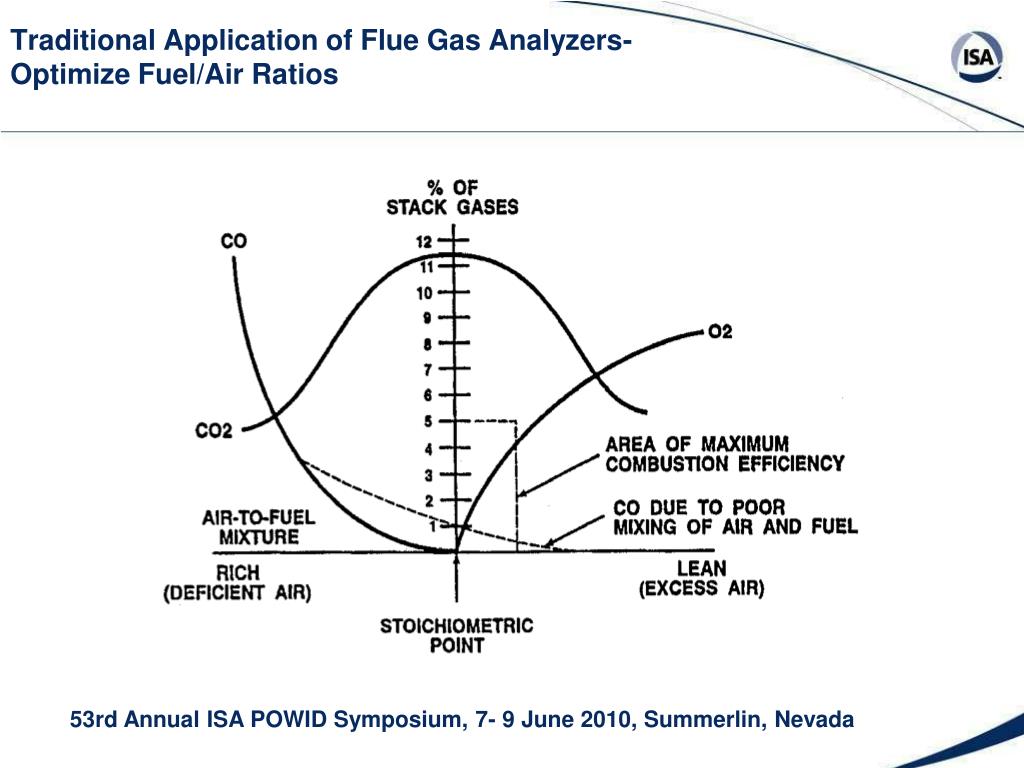

  3. Traditional Application of Flue Gas Analyzers- Optimize Fuel/Air Ratios

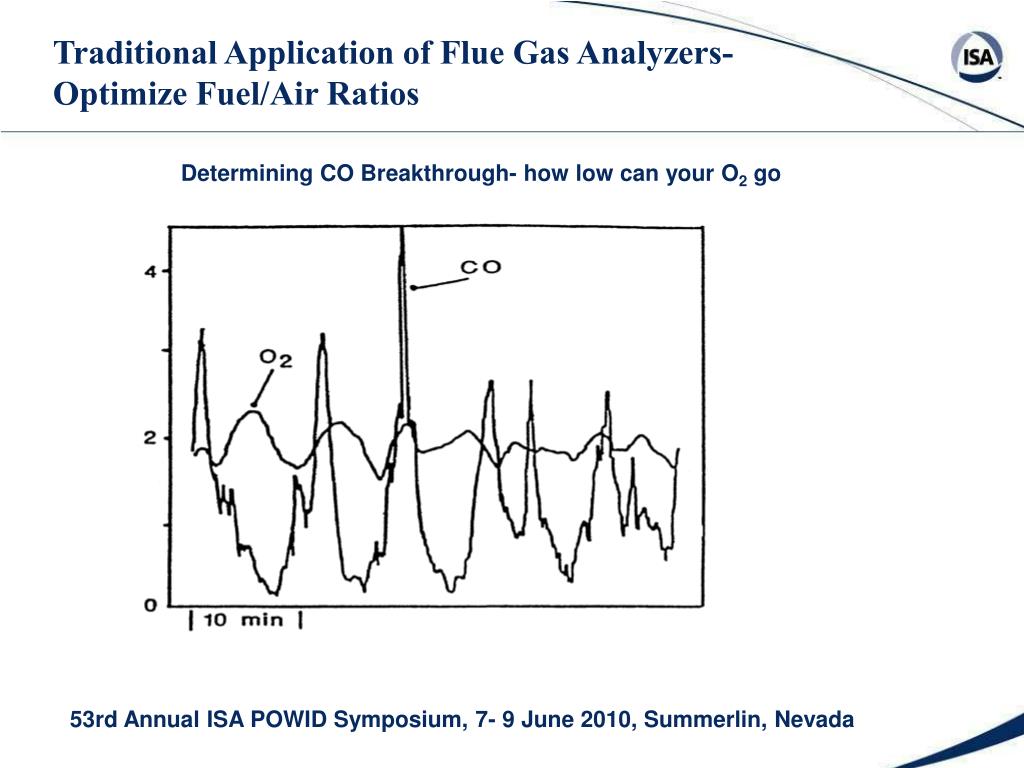

  4. Determining CO Breakthrough- how low can your O2 go Traditional Application of Flue Gas Analyzers- Optimize Fuel/Air Ratios

  5. 16 14 12 Original Setpoint 10 New Setpoint 8 Actual Data 6 4 2 0 0 10 20 30 40 50 60 70 80 90 100 % Steam Flow Traditional Application of Flue Gas Analyzers- Optimize Fuel/Air Ratios The point of CO breakthrough changes with firing rate. Higher firing rates induce greater turbulence in the burner(s), providing better mixing of fuel and air, and a lower possible excess O2 setpoint. This curve should be re-established periodically, but more often is not.

  6. New Measurement Goals-Staged Combustion for NOx Reduction Not enough O2 to react into NOx Excess air flow quenches the flame, Lowering reaction temperatures below That required to make NOx Flue gas O2 setpoints may be shifted up or down, based on minimizing the amount of NOx and CO produced at the burner

  7. Burner Windbox O2 Probe 18% O2 21% O2 Primary Air New Application- Flue Gas Recirculation Controlling Final O2 Entering The Wildbox Flue Gas 3 % O2

  8. New Measurement Goals-Slag Prevention Ash fusion temperatures vary with flue gas O2 levels

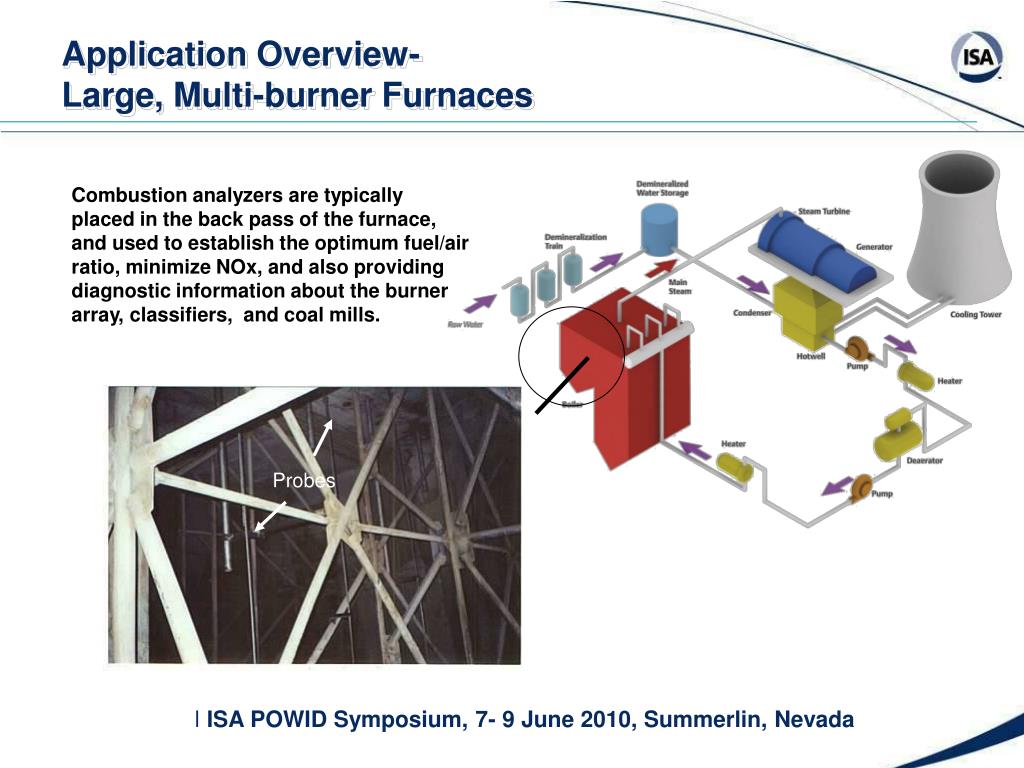

  9. Combustion analyzers are typically placed in the back pass of the furnace, and used to establish the optimum fuel/air ratio, minimize NOx, and also providing diagnostic information about the burner array, classifiers, and coal mills. Application Overview- Large, Multi-burner Furnaces Probes

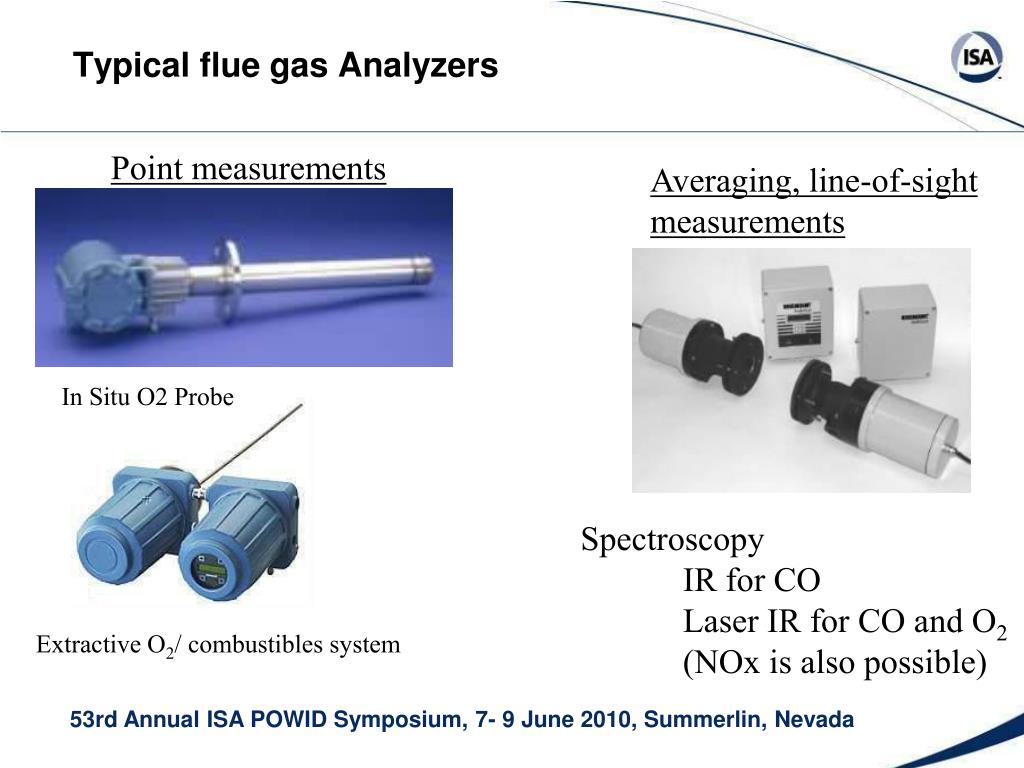

  10. Typical flue gas Analyzers Point Measurements Averaging, Line-of-sight Measurements In Situ O2 Probe Spectroscopy IR for CO Laser IR for CO and O2 (NOx is also possible) Extractive O2/ combustibles system

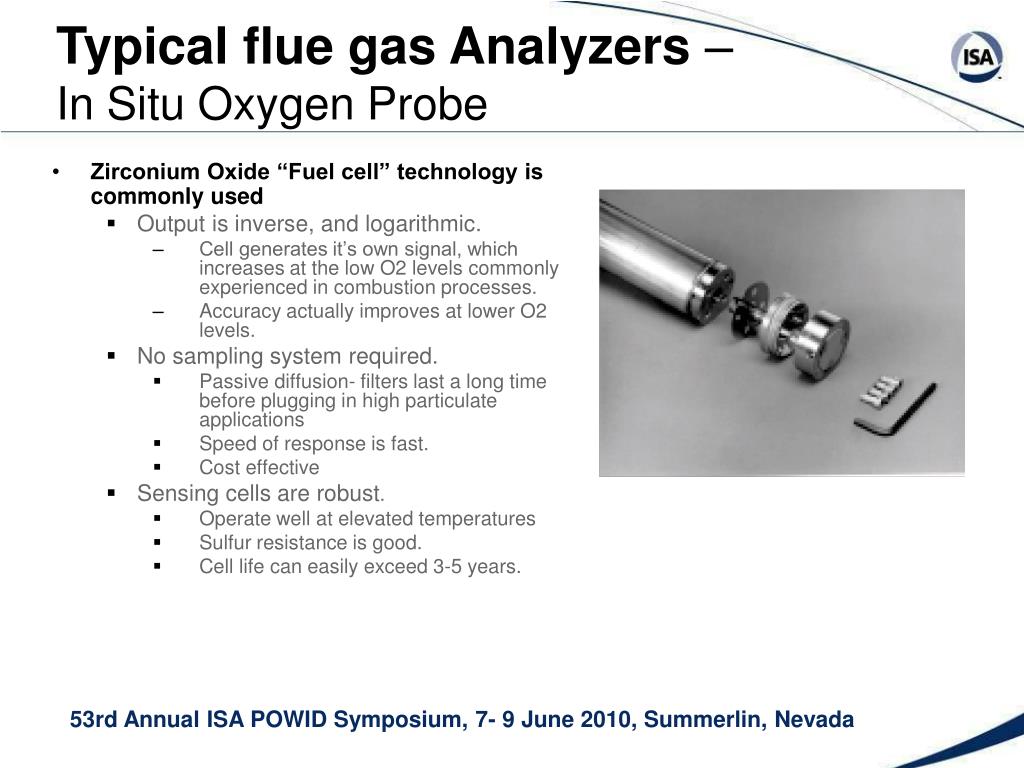

  11. Typical flue gas Analyzers – In Situ Oxygen Probe • Zirconium Oxide “Fuel cell” technology is commonly used • Output is inverse, and logarithmic. • Cell generates it’s own signal, which increases at the low O2 levels commonly experienced in combustion processes. • Accuracy actually improves at lower O2 levels. • No sampling system required. • Passive diffusion- filters last a long time before plugging in high particulate applications • Speed of response is fast. • Cost effective • Sensing cells are robust. • Operate well at elevated temperatures • Sulfur resistance is good. • Cell life can easily exceed 3-5 years.

  12. Typical flue gas Analyzers Point measurements Averaging, line-of-sight measurements In Situ O2 Probe Spectroscopy IR for CO Laser IR for CO and O2 (NOx is also possible) Extractive O2/ combustibles system

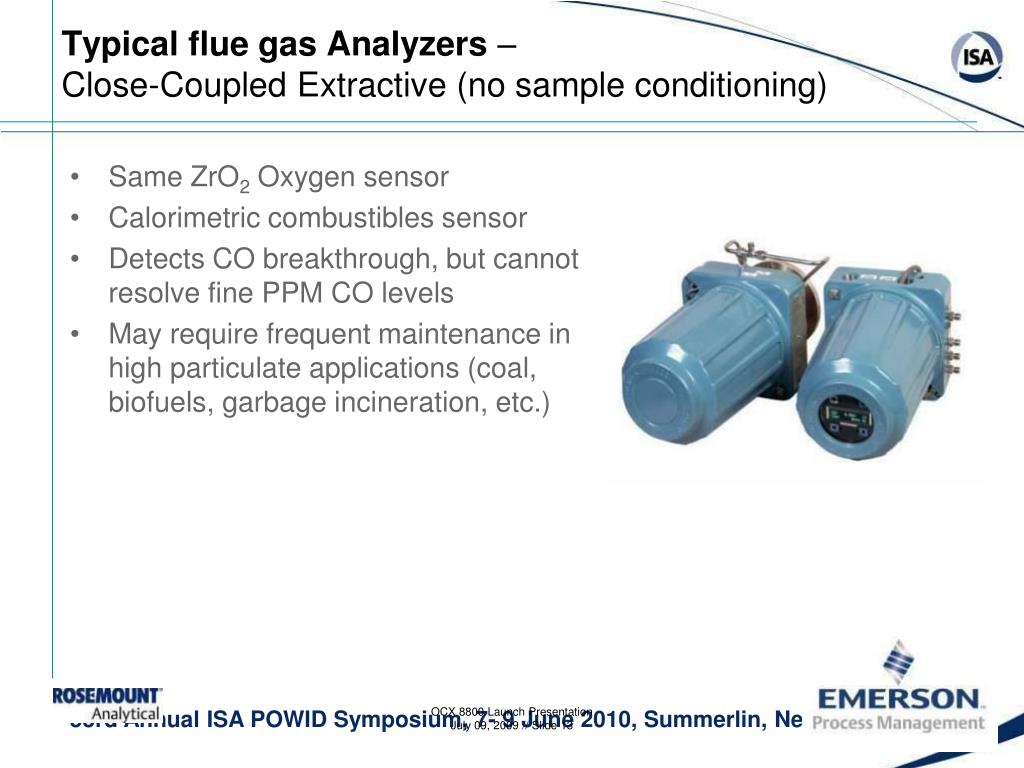

  13. Typical flue gas Analyzers –Close-Coupled Extractive (no sample conditioning) • Same ZrO2 Oxygen sensor • Calorimetric combustibles sensor • Detects CO breakthrough, but cannot resolve fine PPM CO levels • May require frequent maintenance in high particulate applications (coal, biofuels, garbage incineration, etc.) OCX 8800 Launch Presentation July 09, 2009 // Slide 13

  14. Typical flue gas Analyzers Point measurements Averaging, line-of-sight measurements In Situ O2 Probe Spectroscopy IR for CO Laser IR for CO and O2 (NOx is also possible) Extractive O2/ combustibles system

  15. Typical flue gas Analyzers –IR or Laser Spectroscopy for CO • Most implementations are across-stack, or “line-of sight”. • Averages across the flue duct. • Difficult to challenge with a known calibration gas. • CO is a good absorber of IR energy @ about 470nm wave number • CO as well as O2 and NOx can be reliably detected with tunable diode laser systems. Typical Installation

  16. Historical Progression of Point O2 AnalysisIn Large Multi-Burner Furnaces • Early years- 1970-1980- a single O2 Probe per flue gas duct is sufficient- placement is “somewhere near the middle” • Confused- 1985- a second O2 probe is added, to get a better average for fuel/air ratio adjustment • The two probes rarely agree, so operators trust the readings from neither probe. • After many calibrations, it’s understood that both probes are telling the truth, and significant stratification exists in the ductwork • 1990- More probes are added in order to again get a better O2 average • More stratification is witnessed by the operators, and more confusion ensues • Probes that are particularly out of the norm are often removed from the average (exactly the wrong thing to do)!

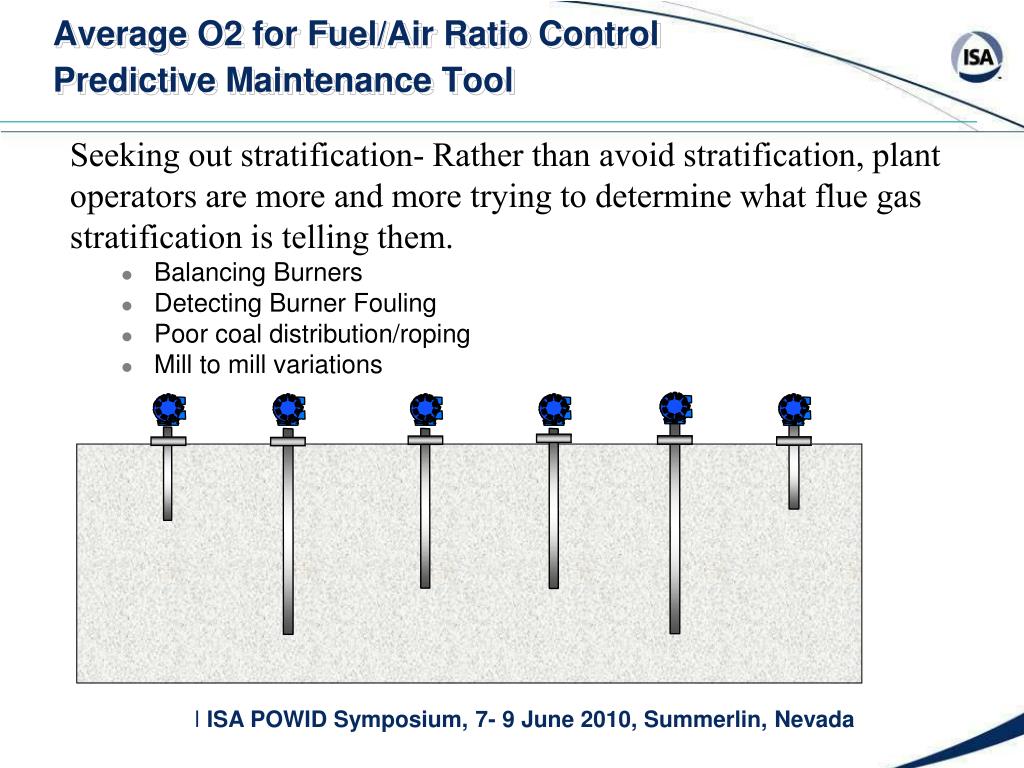

  17. Average O2 for Fuel/Air Ratio Control Predictive Maintenance Tool • Seeking out stratification- Rather than avoid stratification, plant operators are more and more trying to determine what flue gas stratification is telling them. • Balancing Burners • Detecting Burner Fouling • Poor coal distribution/roping • Mill to mill variations

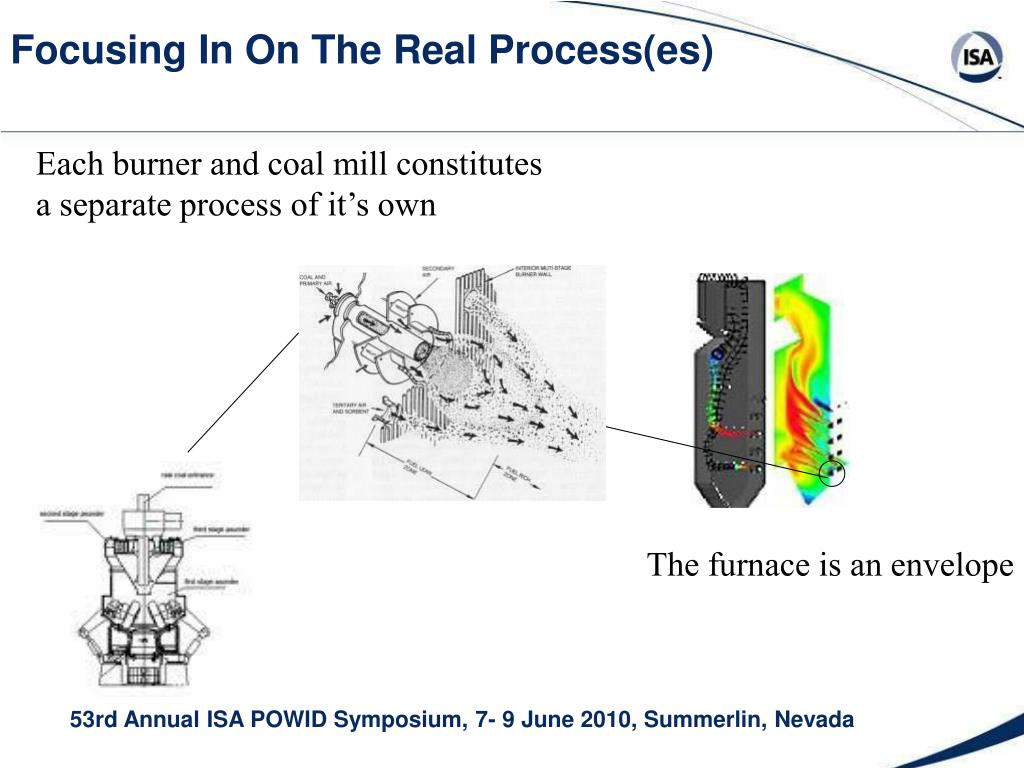

  18. Focusing In On The Real Process(es) Each burner and coal mill constitutes a separate process of it’s own The furnace is an envelope

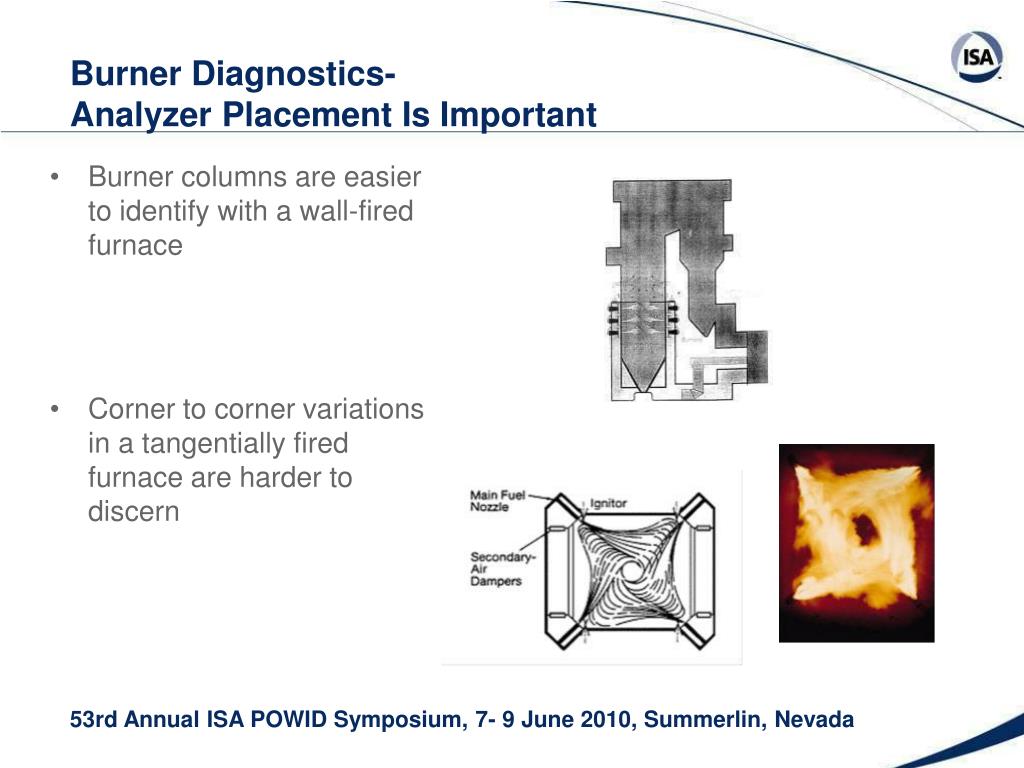

  19. Burner Diagnostics-Analyzer Placement Is Important • Burner columns are easier to identify with a wall-fired furnace • Corner to corner variations in a tangentially fired furnace are harder to discern

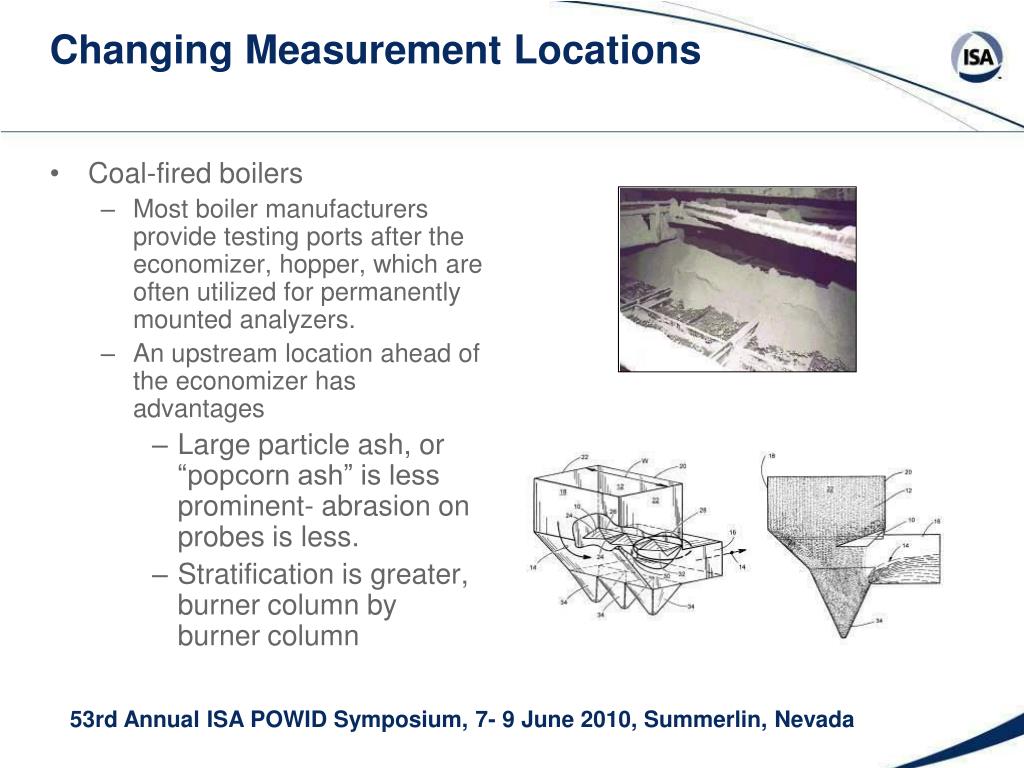

  20. Changing Measurement Locations • Coal-fired boilers • Most boiler manufacturers provide testing ports after the economizer, hopper, which are often utilized for permanently mounted analyzers. • An upstream location ahead of the economizer has advantages • Large particle ash, or “popcorn ash” is less prominent- abrasion on probes is less. • Stratification is greater, burner column by burner column

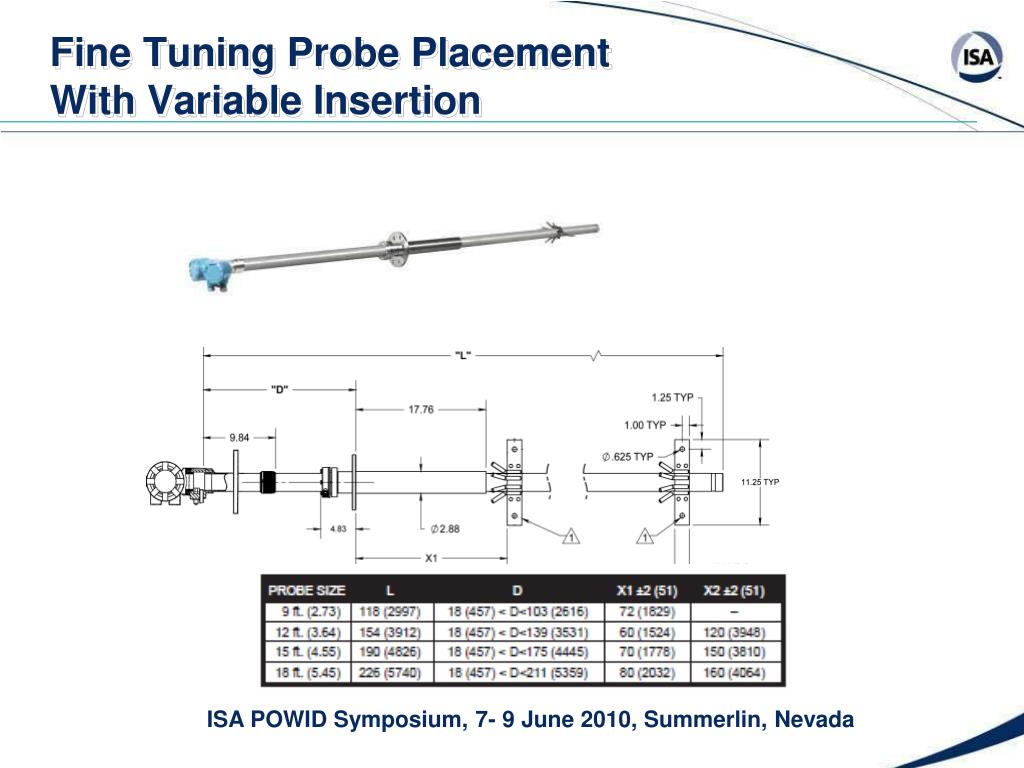

  21. Fine Tuning Probe Placement With Variable Insertion

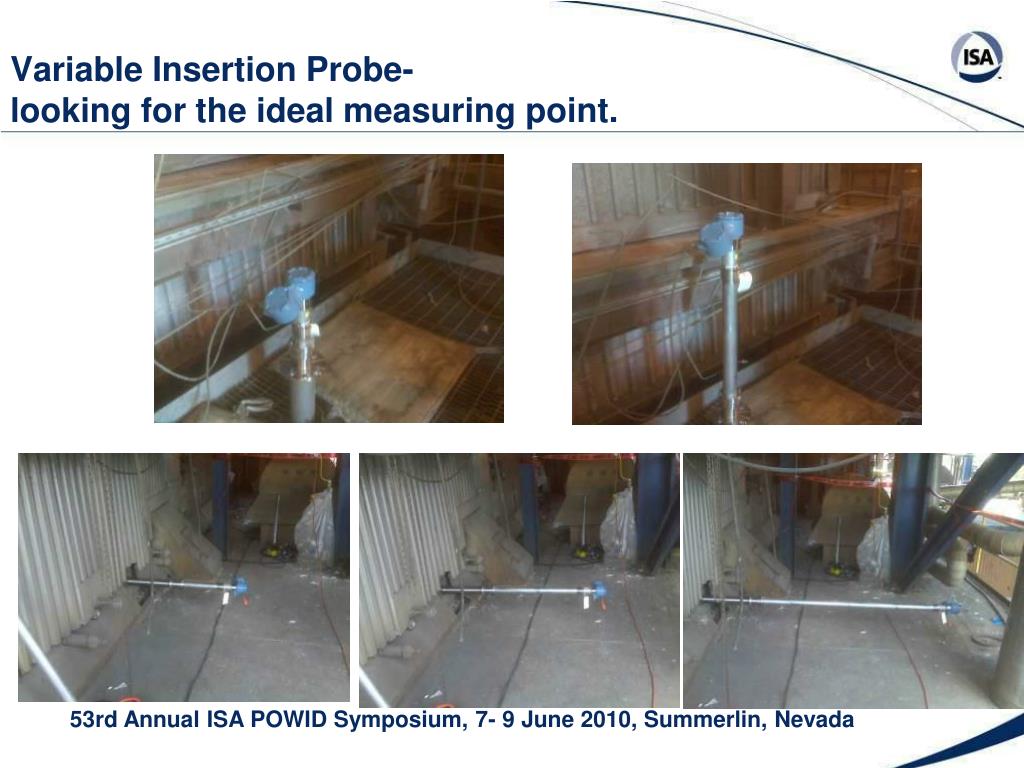

  22. Variable Insertion Probe- looking for the ideal measuring point.

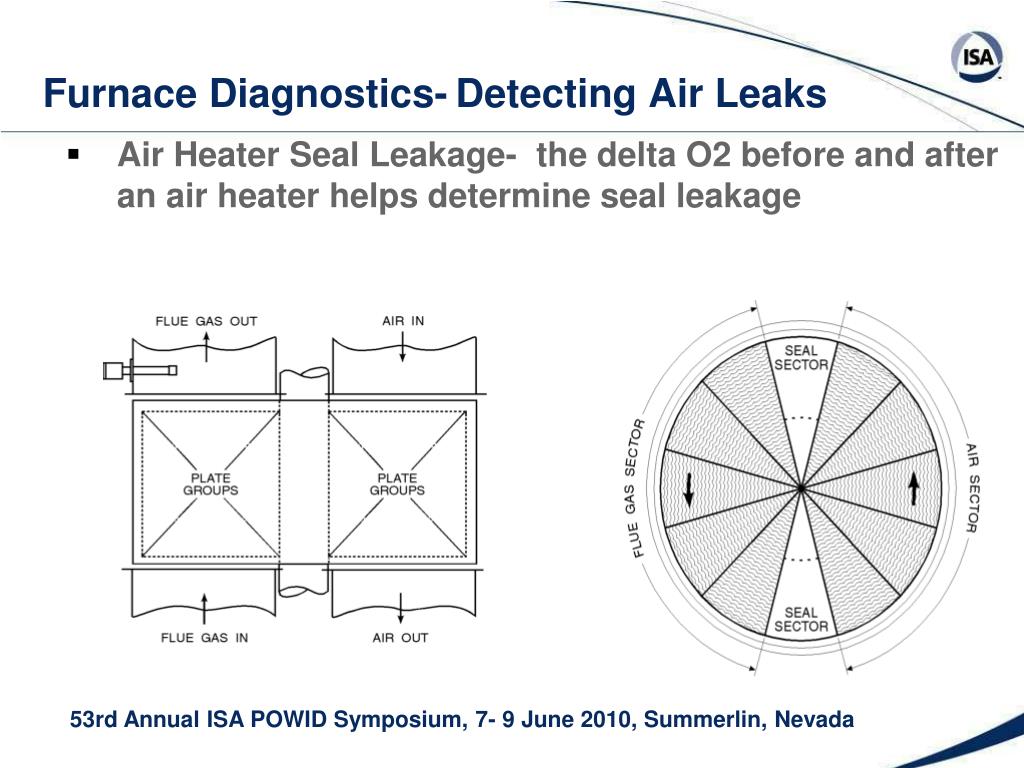

  23. Furnace Diagnostics-Detecting Air Leaks • Air Heater Seal Leakage- the delta O2 before and after an air heater helps determine seal leakage

  24. 4.1 % 3.8 % 3.2 % 3.3 % 2.9 % 3.1 % Furnace Diagnostics- Flue duct seal leaks are indicated by outer probes reading higher Furnace Diagnostics-Detecting Air Leaks 3.4 % 3.4 %

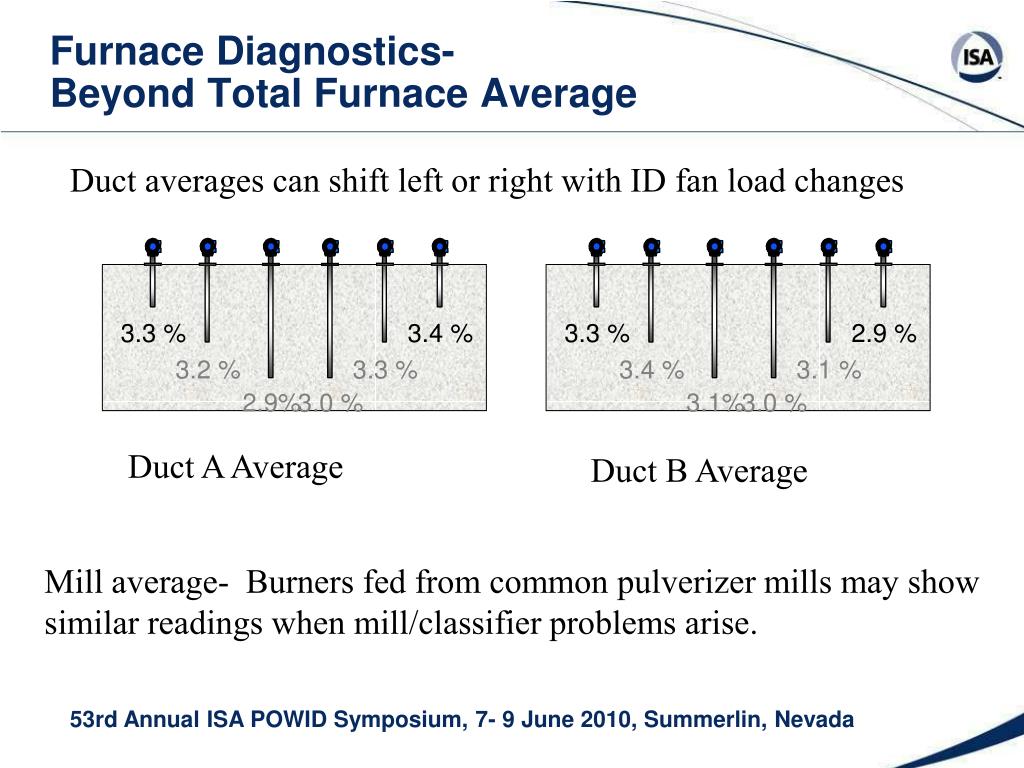

  25. 3.3 % 3.3 % 3.4 % 2.9 % 3.4 % 3.2 % 3.3 % 3.1 % 3.1% 2.9% 3.0 % 3.0 % Furnace Diagnostics- Beyond Total Furnace Average Duct averages can shift left or right with ID fan load changes Duct A Average Duct B Average Mill average- Burners fed from common pulverizer mills may show similar readings when mill/classifier problems arise.

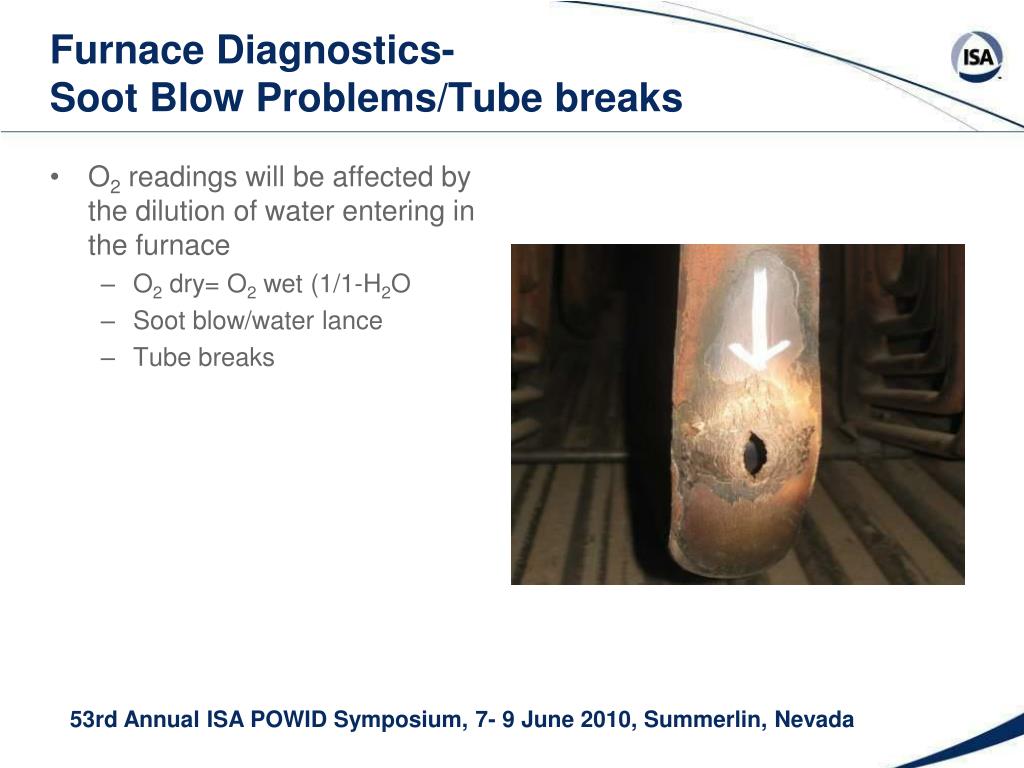

  26. Furnace Diagnostics- Soot Blow Problems/Tube breaks • O2 readings will be affected by the dilution of water entering in the furnace • O2 dry= O2 wet (1/1-H2O • Soot blow/water lance • Tube breaks

  27. Duct Burners for Combined Cycle Combustion Turbines

  28. Duct Burners Increase Steam Production, But Now O2 Can Be Controlled To A More Efficient Level.

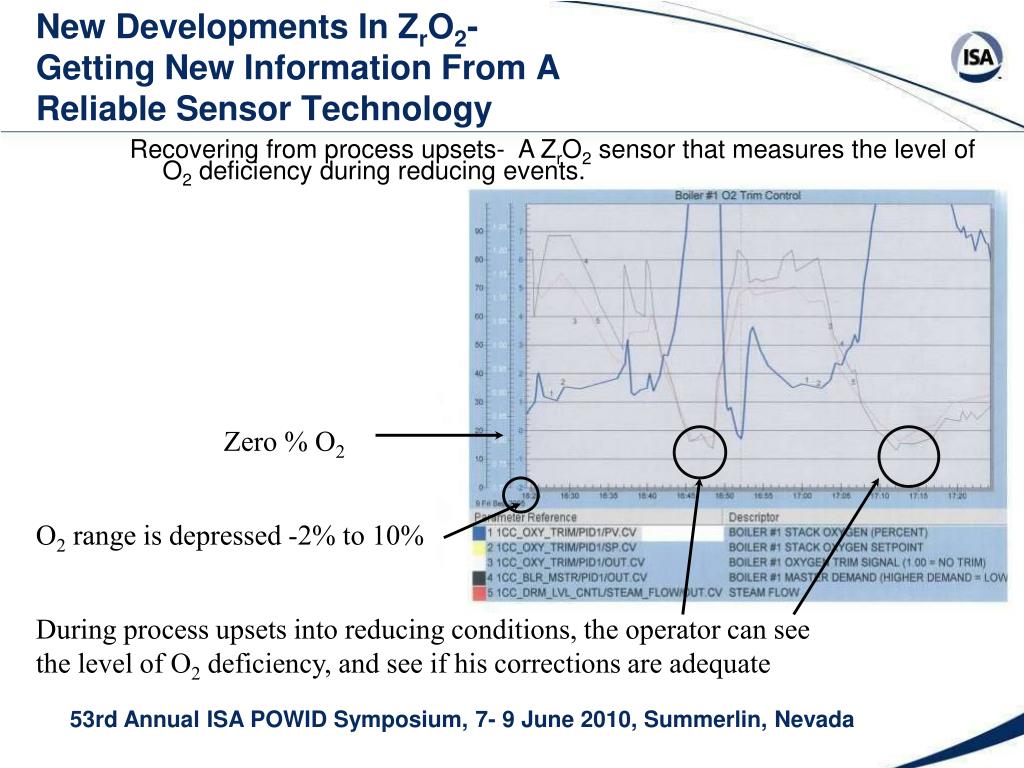

  29. New Developments In ZrO2-Getting New Information From AReliable Sensor Technology Recovering from process upsets- A ZrO2 sensor that measures the level of O2 deficiency during reducing events. Zero % O2 O2 range is depressed -2% to 10% During process upsets into reducing conditions, the operator can see the level of O2 deficiency, and see if his corrections are adequate

  30. New Developments In ZrO2-Getting New Information From AReliable Sensor Technology New ZrO2 probe sensor that measures CO breakthrough. O2Probes CO Probe Boiler load (megawatts) IR CO analyzer

  31. Summary • Flue gas analysis has historically provided a good tool for optimizing fuel/air ratios in large furnaces • Analyzers help achieve new goals such as NOx reduction and slag reduction. • Multi-burner furnaces often have significant flue gas stratification, which is often a cause for operator concern • Stratification profiles provide a great diagnostic of upstream processes at the burners and pulverizers • The furnace is just an envelope for the process– each burner is it’s own process. • Point measurements provide good granularity of upstream burner columns, but more instruments are required in order to get a good average • Line-of-sight measurements are inherently averaging, so fewer are required to get a good total average, but stratification is masked • New developments in CO measurements will improve NOx reduction, combustion efficiency, and burner diagnostics.

  32. Thank You- Questions? Chris Morrissey- S. California Sales Engineer Chris.Morrissey@emerson.com (951) 285-1629 Chris Lesser- RM Regional Sales Manager chris.lesser@emerson.com (303) 883-7180 Dave Anderson- Marketing Manager dave.anderson@emerson.com (949) 322-8178 Doug Simmers- Worldwide Product Manager doug.simmers@emerson.com (330) 309-2494
