  1. Using support vector machines for time series prediction and product quality control Uwe Thissen Department of Analytical Chemistry University of Nijmegen

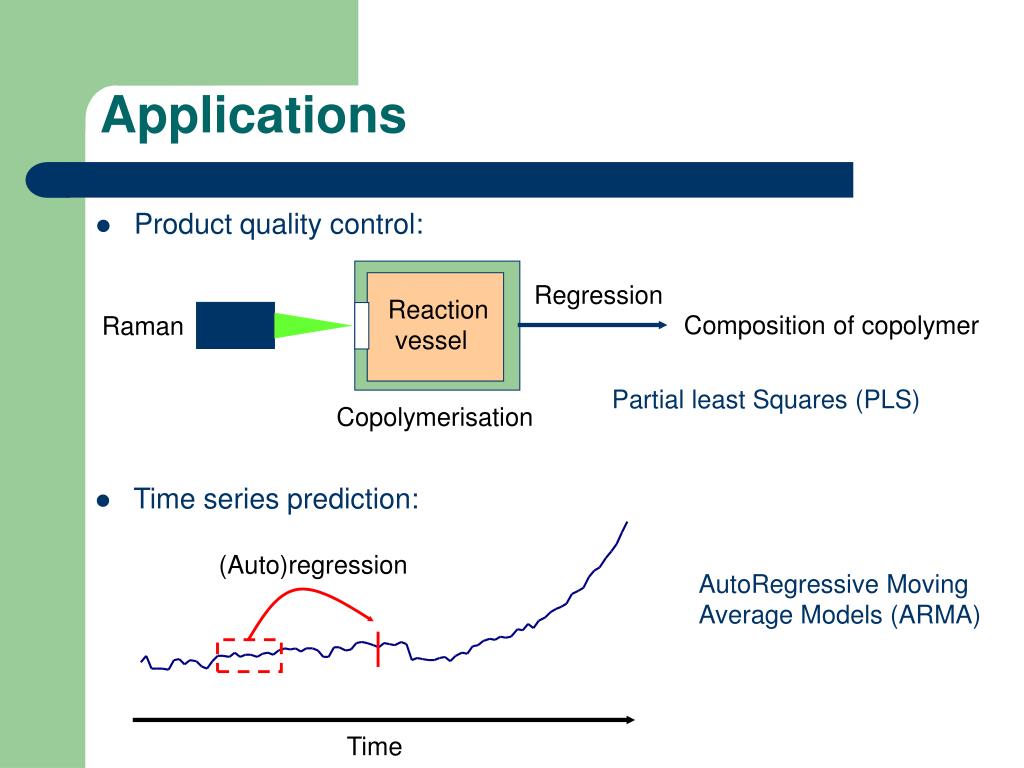

  2. Regression Reaction vessel Composition of copolymer Raman Copolymerisation • Time series prediction: (Auto)regression AutoRegressive Moving Average Models (ARMA) Time Applications • Product quality control: Partial least Squares (PLS)

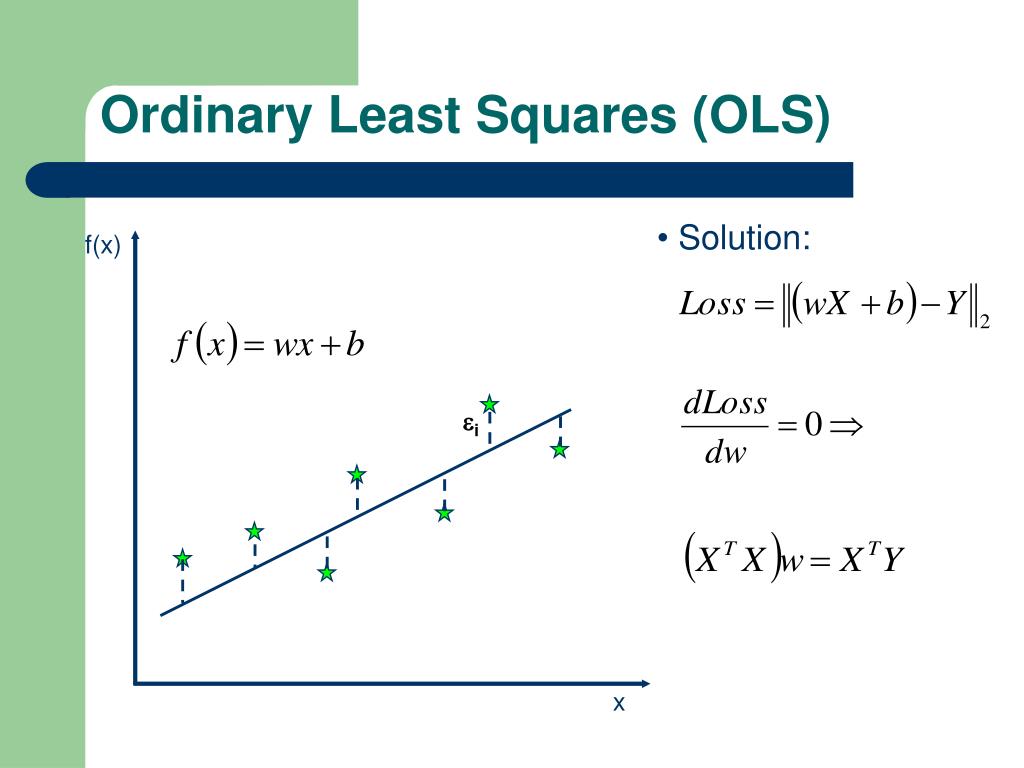

  3. f(x) i x Ordinary Least Squares (OLS) • Solution:

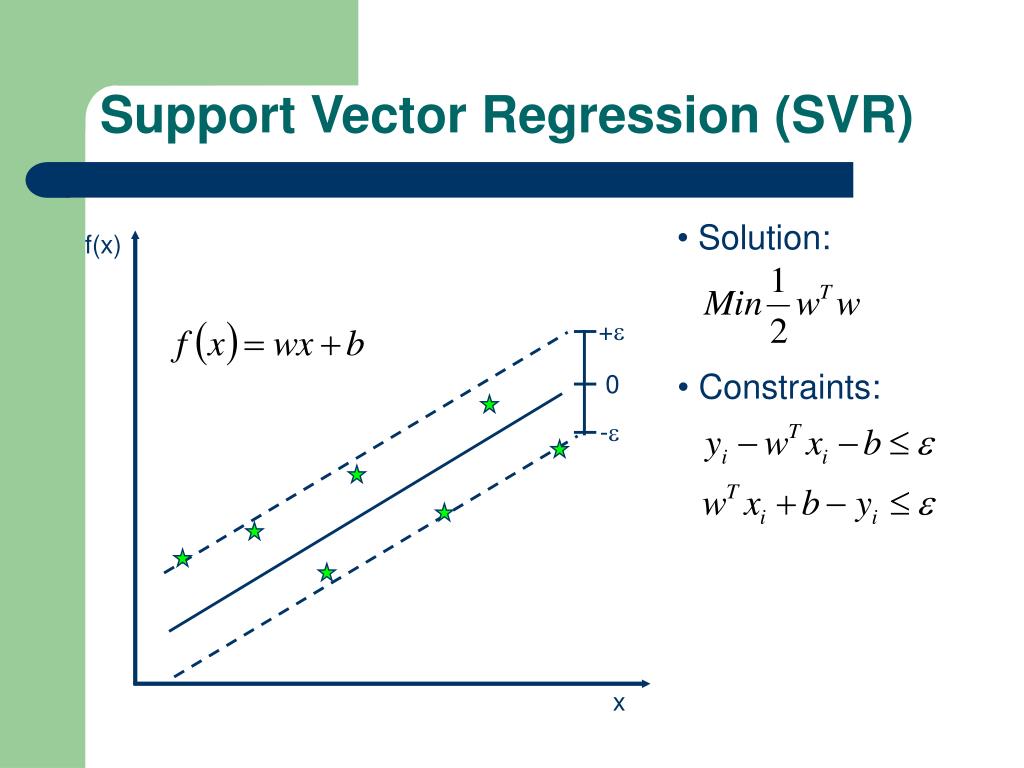

  4. Solution: f(x) + • Constraints: 0 - x Support Vector Regression (SVR)

  5. Minimise: f(x) + 0 • Constraints: -  * x Support Vector Regression (SVR)

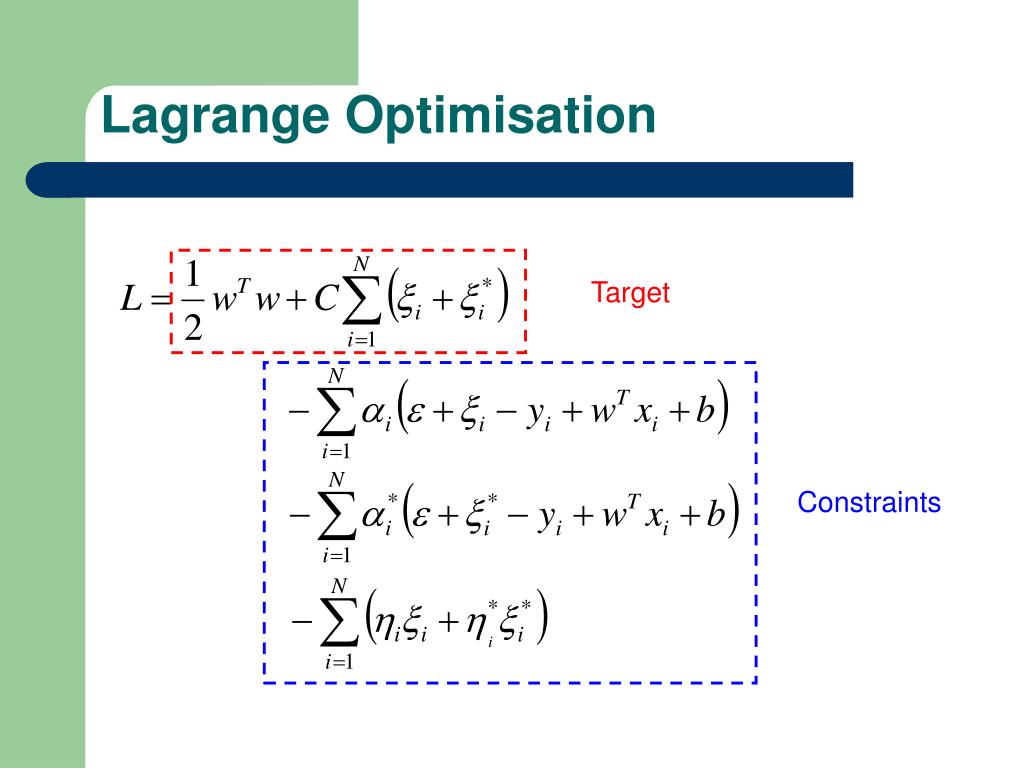

  6. Target Constraints Lagrange Optimisation

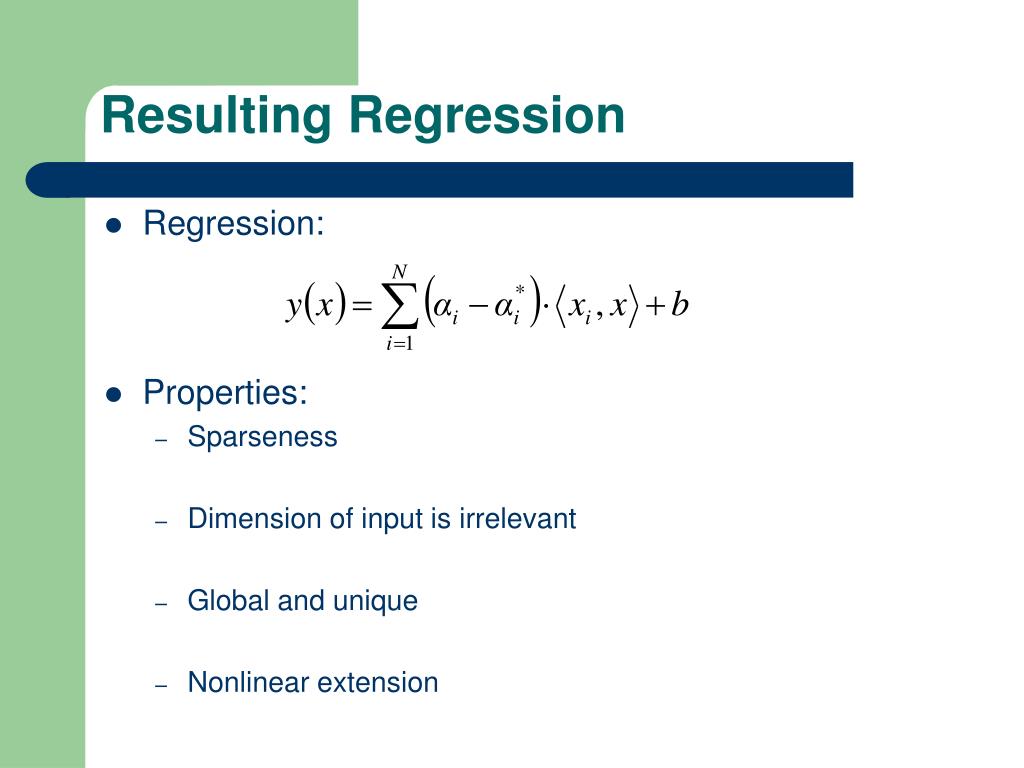

  7. Resulting Regression • Regression: • Properties: • Sparseness • Dimension of input is irrelevant • Global and unique • Nonlinear extension

  8. f(x) f(x)  + +  0 0 - - x (x) Nonlinear Regression

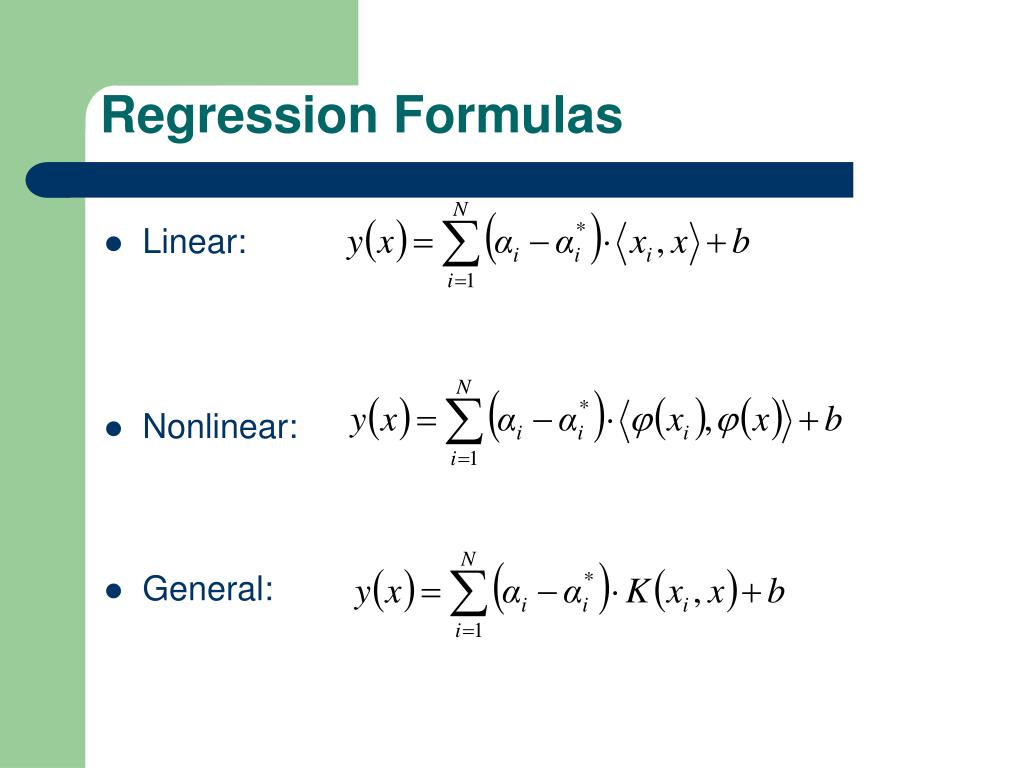

  9. Linear: • Nonlinear: • General: Regression Formulas

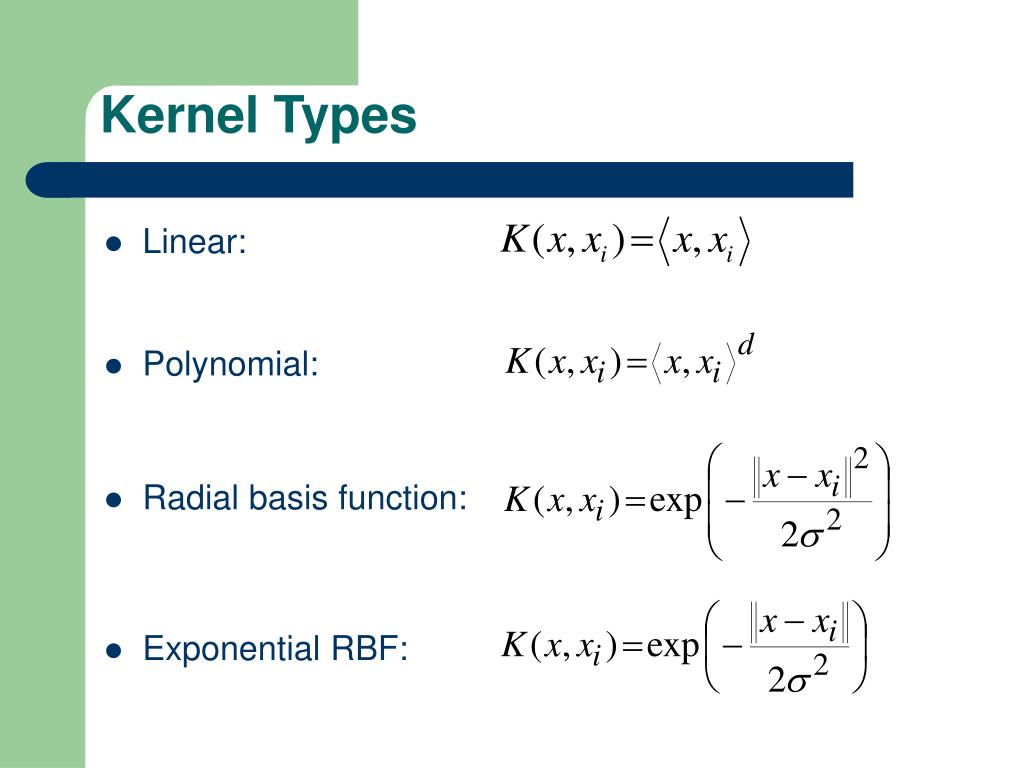

  10. Kernel Types • Linear: • Polynomial: • Radial basis function: • Exponential RBF:

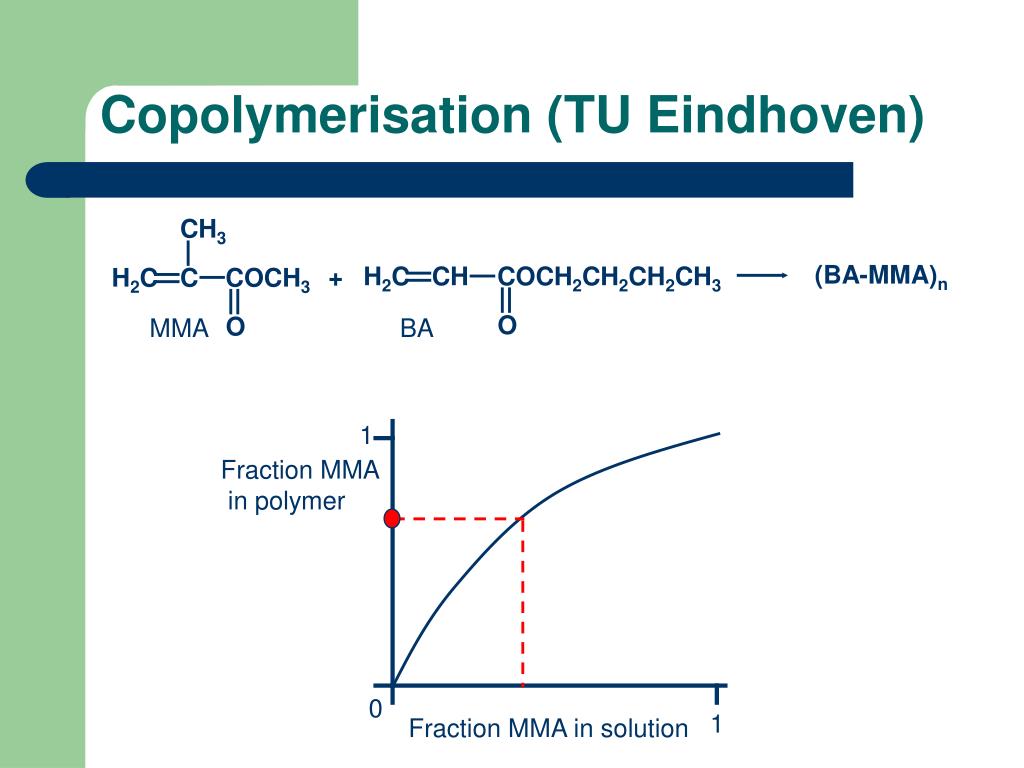

  11. CH3 (BA-MMA)n + H2C CH COCH2CH2CH2CH3 H2C C COCH3 MMA BA O O 1 Fraction MMA in polymer 0 1 Fraction MMA in solution Copolymerisation (TU Eindhoven)

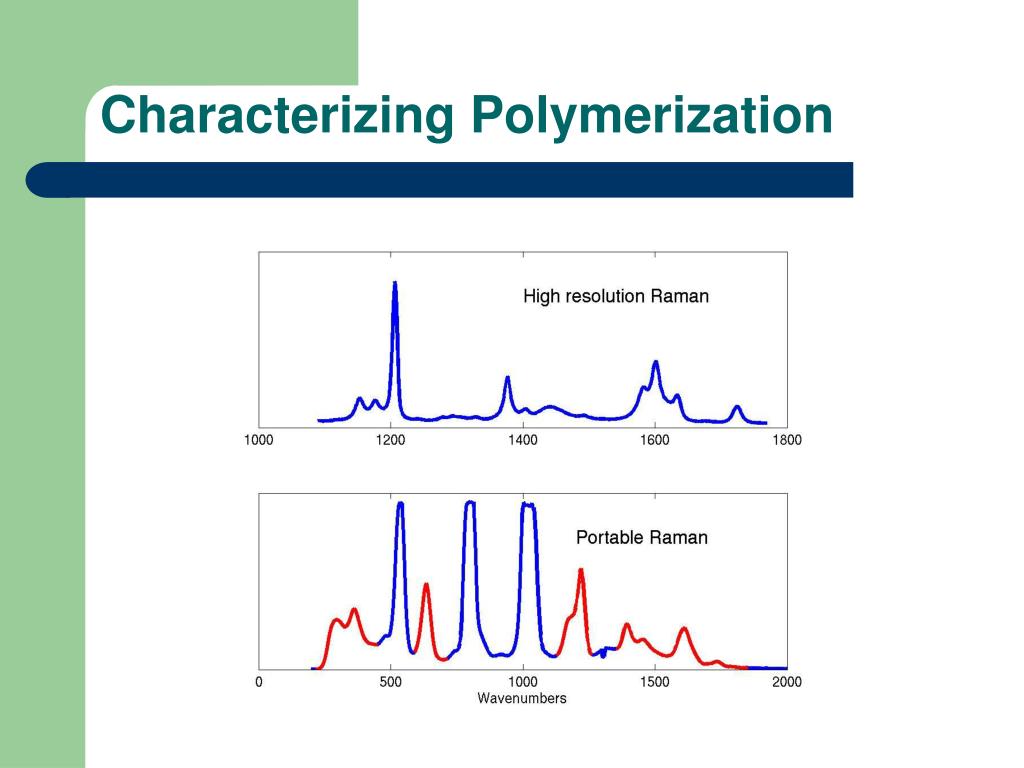

  12. Characterizing Polymerization

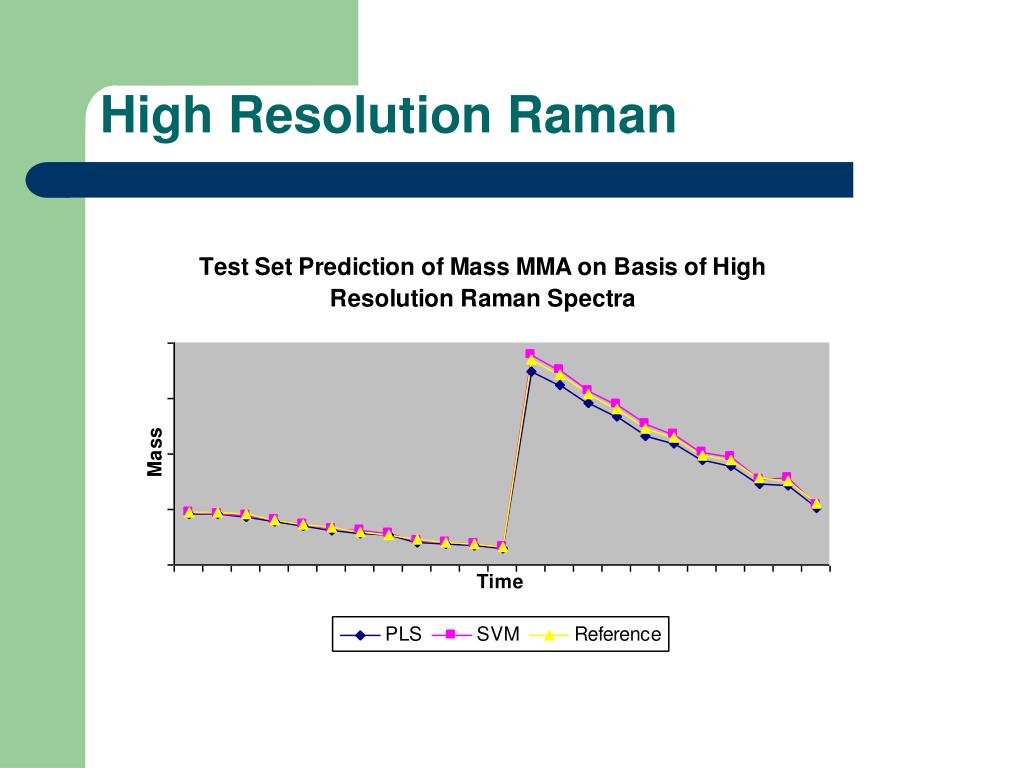

  13. High Resolution Raman

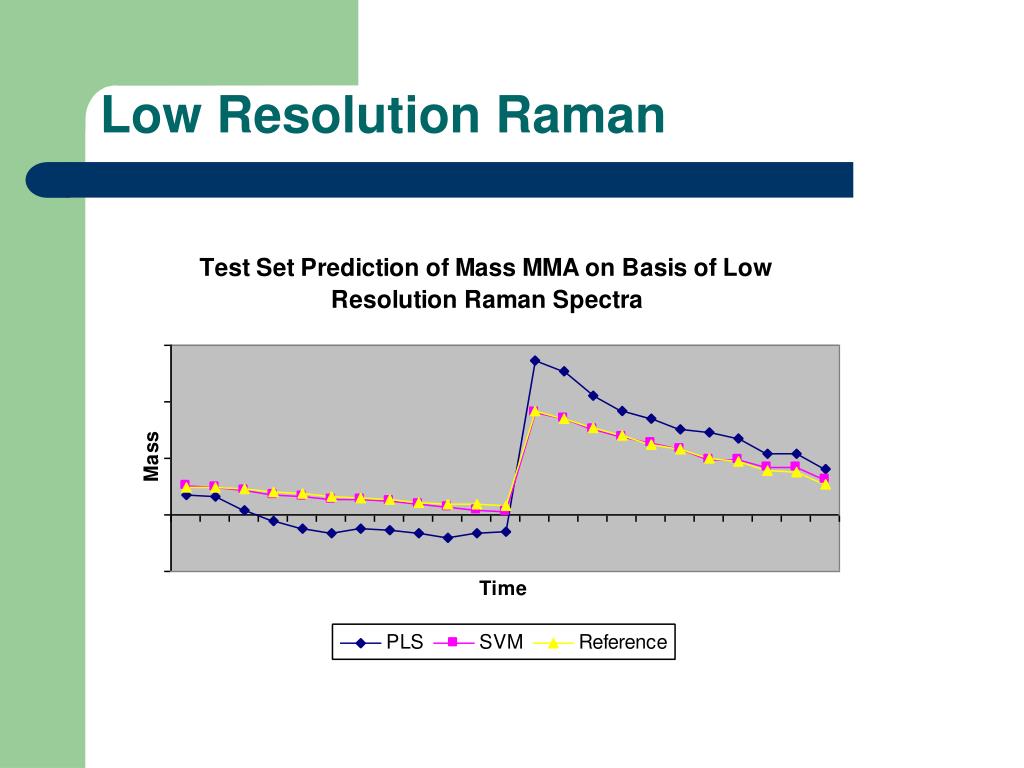

  14. Low Resolution Raman

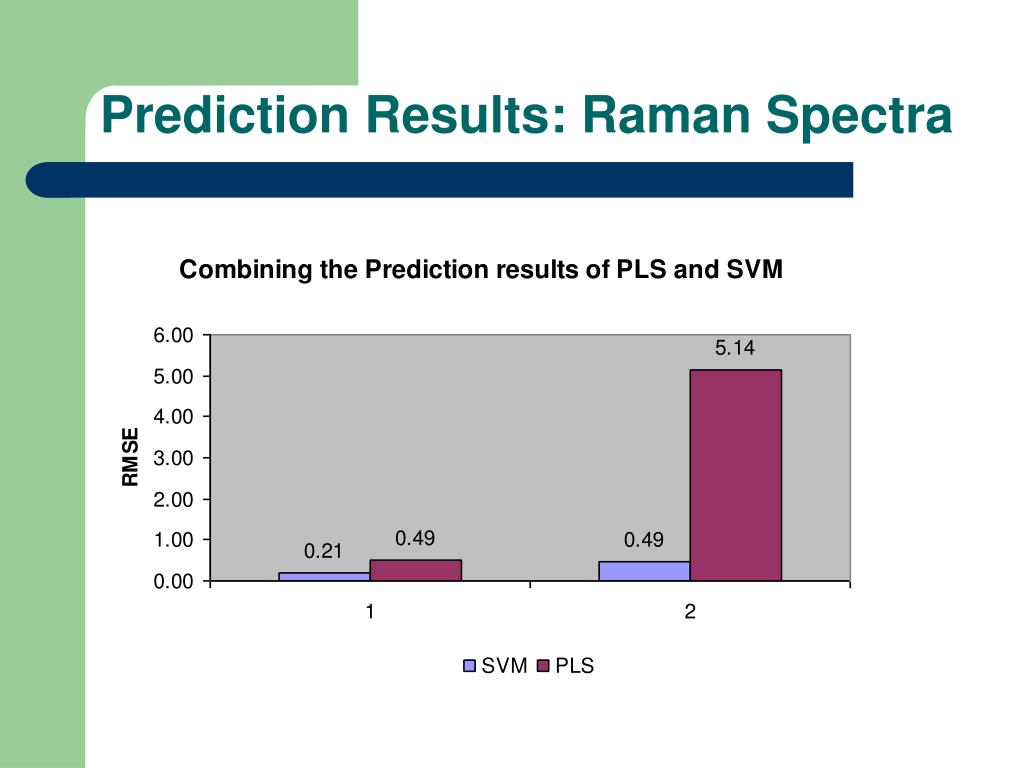

  15. Prediction Results: Raman Spectra

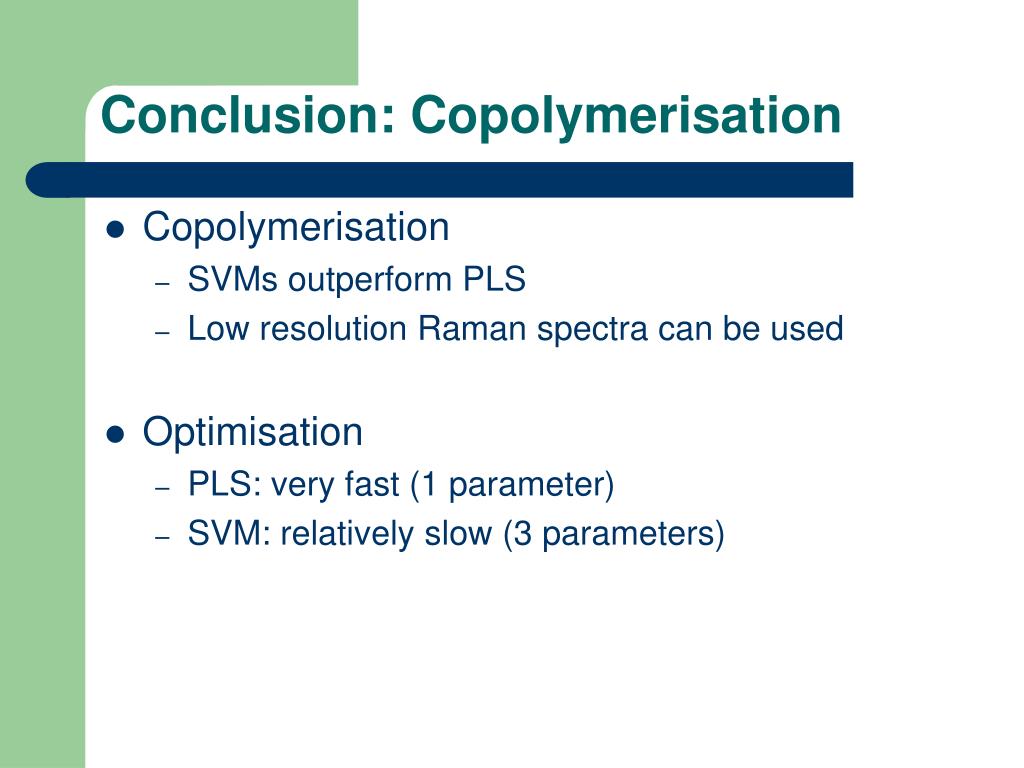

  16. Conclusion: Copolymerisation • Copolymerisation • SVMs outperform PLS • Low resolution Raman spectra can be used • Optimisation • PLS: very fast (1 parameter) • SVM: relatively slow (3 parameters)

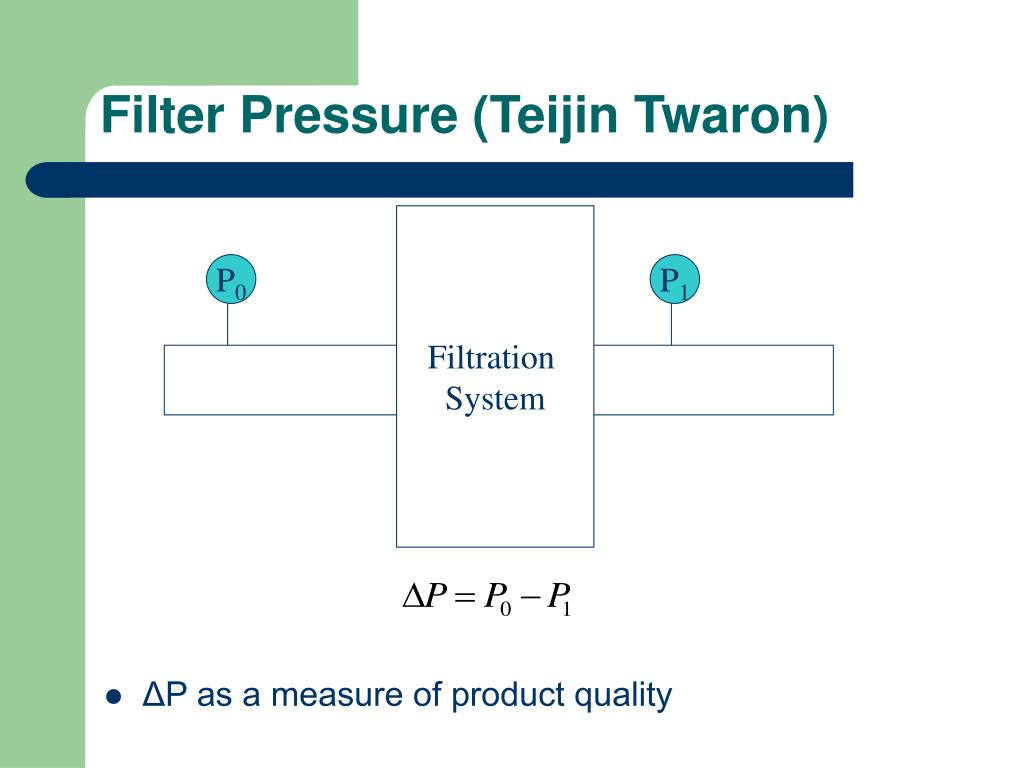

  17. Filtration System P0 P1 Filter Pressure (Teijin Twaron) • ΔP as a measure of product quality

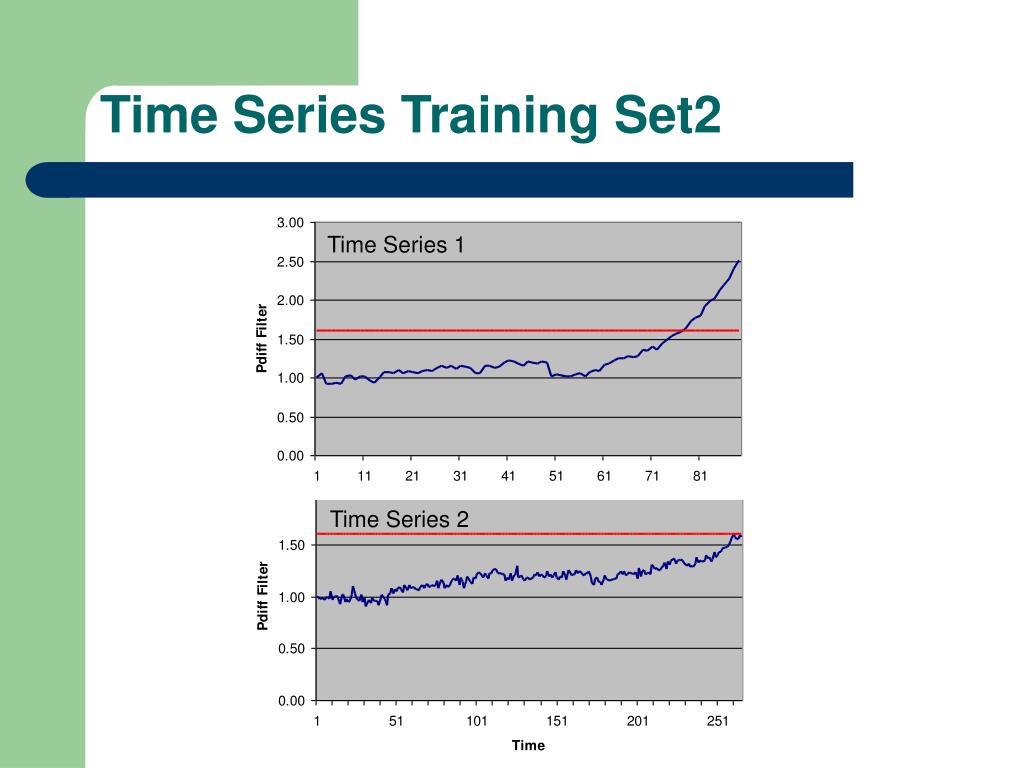

  18. Time Series Training Set2 Time Series 1 Time Series 2

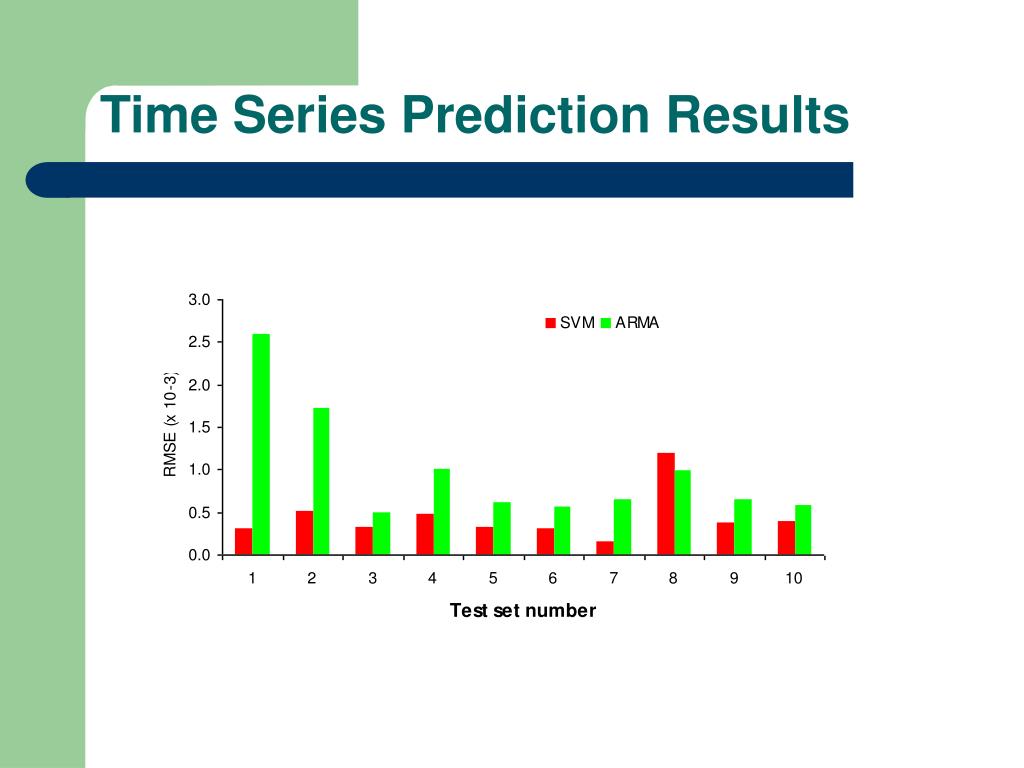

  19. Time Series Prediction Results

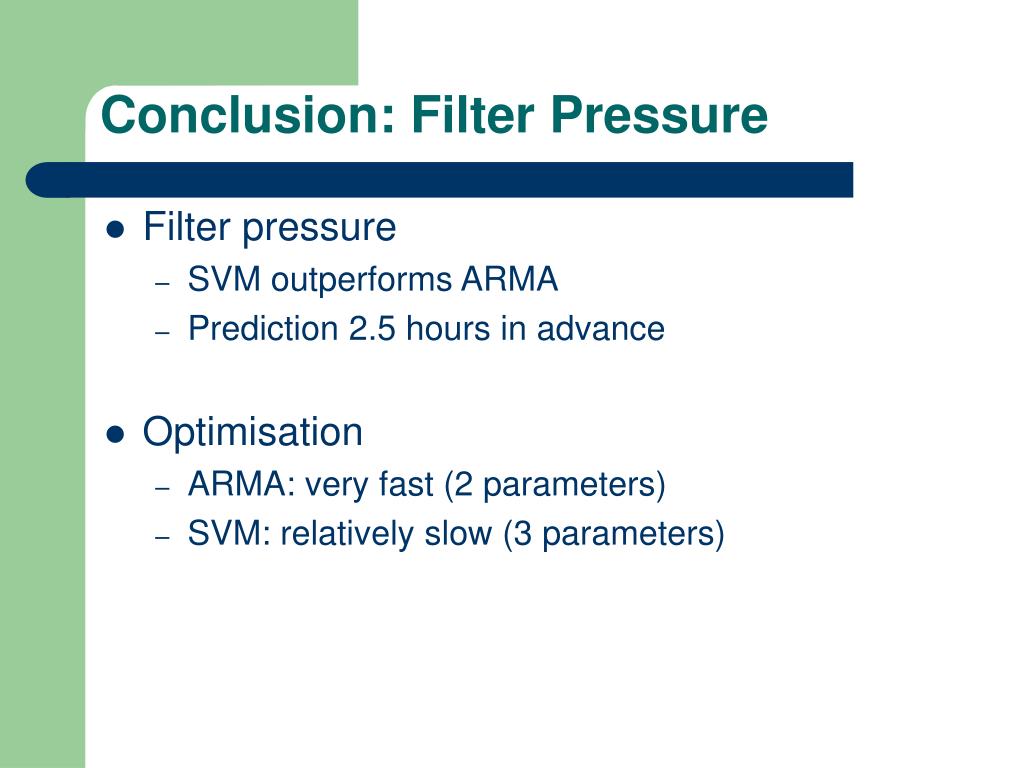

  20. Conclusion: Filter Pressure • Filter pressure • SVM outperforms ARMA • Prediction 2.5 hours in advance • Optimisation • ARMA: very fast (2 parameters) • SVM: relatively slow (3 parameters)

  21. Usability Of SV Regression • Performance in industrial applications • SVMs are useful candidates • Lower prediction errors • Usage of low resolution data • Optimisation • PLS, ARMA are fast • SVM is relatively slow

  22. Acknowledgements Head of Department:Prof. Dr. L. Buydens Supervisor:Dr. W. Melssen Students: R. van Brakel, B. Üstün Partners:M. Pepers (University of Eindhoven, NL) Dr. T. de Weijer (Teijin Twaron, Arnhem, NL) Funds: Dutch Technology Foundation (STW)
