proteins structure translation etc
Proteins: structure, translation, etc.

2-1

  • Structure of proteins
  • - amino acids, peptide bond, primary-quaternary structures, disulfide bond
  • Protein synthesis
  • protein translation, co-translational folding, stalling, etc.
  • Protein folding and unfolding
  • - Levinthal paradox, acquisition of native structure, loss of structure
amino acid structures
Amino acid structures

2-2

aspartic

acid (D)

glutamic

acid (E)

methionine (M)

isoleucine (I)

valine (V)

leucine (L)

phenylalanine (F)

tyrosine (Y)

tryptophan (W)

aspargine (N)

glutamine (Q)

serine (S)

threonine (T)

glycine (G)

lysine (K)

arginine (R)

histidine (H)

cysteine

proline

alanine (A)

+

2

+

3

amino acid relationships
Amino acid relationships

2-3

Suggested amino acid substitutions

hydrophobic

MILV

FYW

C

P

small neutral

G(A*)ST

hydrophilic

EDNQ

KRH

Solvent exposed

(SEA>30 Å2 ,)

Interior

(SEA<10 Å2, )

SEA, solvent exposed area

aromatic

Amino acids connected by a line can be substituted with 95% confidenceAdapted from D. Bordo and P. Argos (1991) J. Mol. Biol. 217, 721-729.

*A is also

fairly hydrophobic

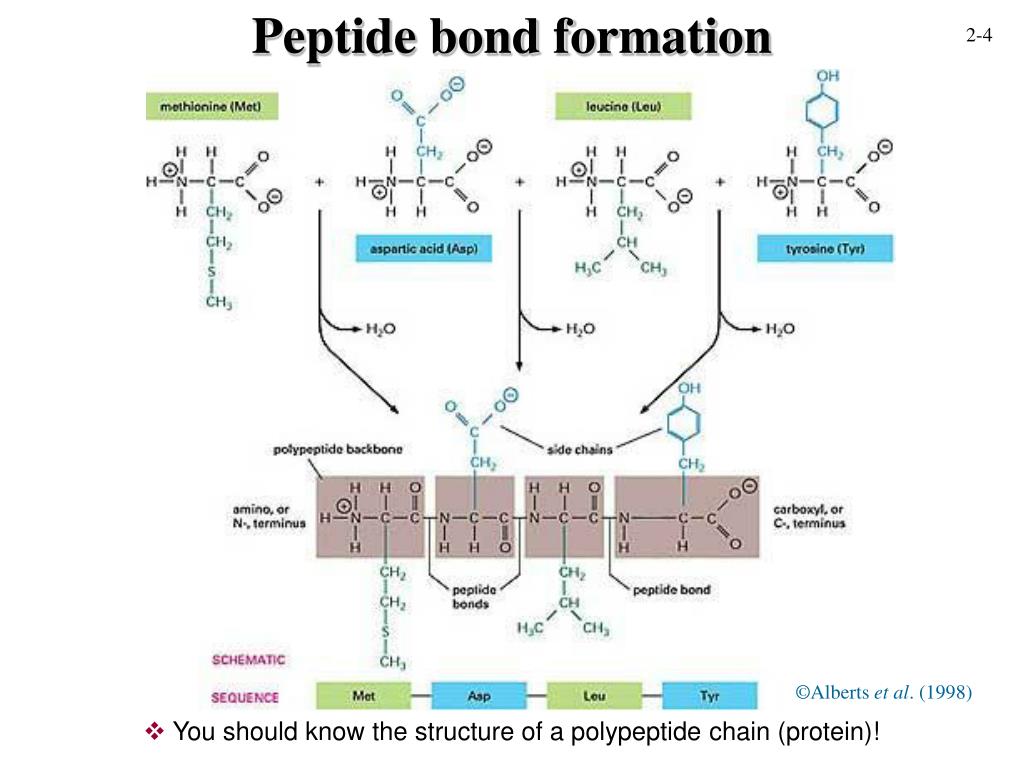

peptide bond formation
Peptide bond formation

2-4

©Alberts et al. (1998)

  • You should know the structure of a polypeptide chain (protein)!
the peptide bond

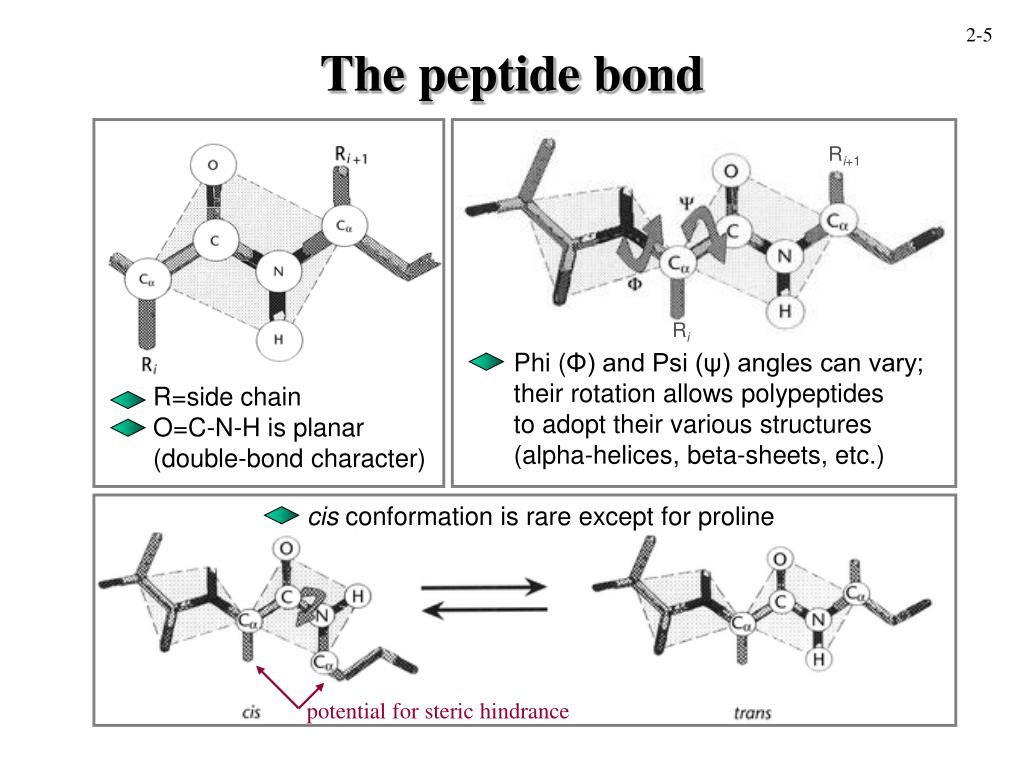

The peptide bond

Ri+1

Ri

Phi (Φ) and Psi (ψ) angles can vary;

their rotation allows polypeptides

to adopt their various structures

(alpha-helices, beta-sheets, etc.)

cis conformation is rare except for proline

potential for steric hindrance

2-5

R=side chain

O=C-N-H is planar(double-bond character)

protein structure overview

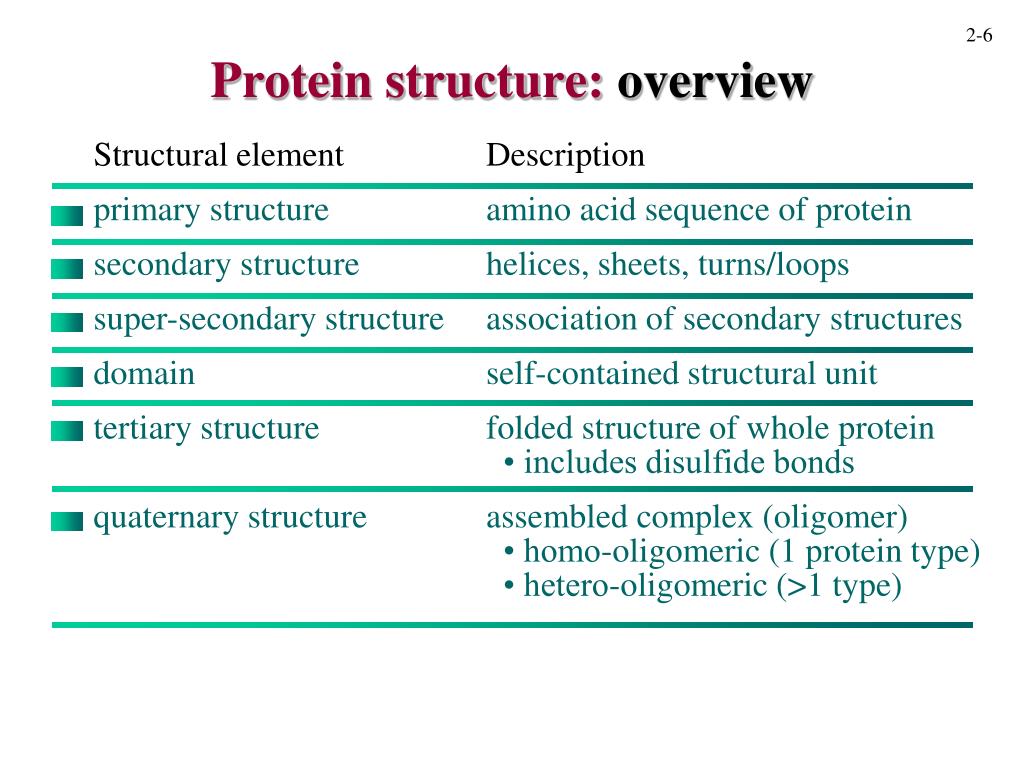

Protein structure: overview

Structural element Description

primary structure amino acid sequence of protein

secondary structure helices, sheets, turns/loops

super-secondary structure association of secondary structures

domain self-contained structural unit

tertiary structure folded structure of whole protein• includes disulfide bonds

quaternary structure assembled complex (oligomer) • homo-oligomeric (1 protein type) • hetero-oligomeric (>1 type)

2-6

protein structure helices

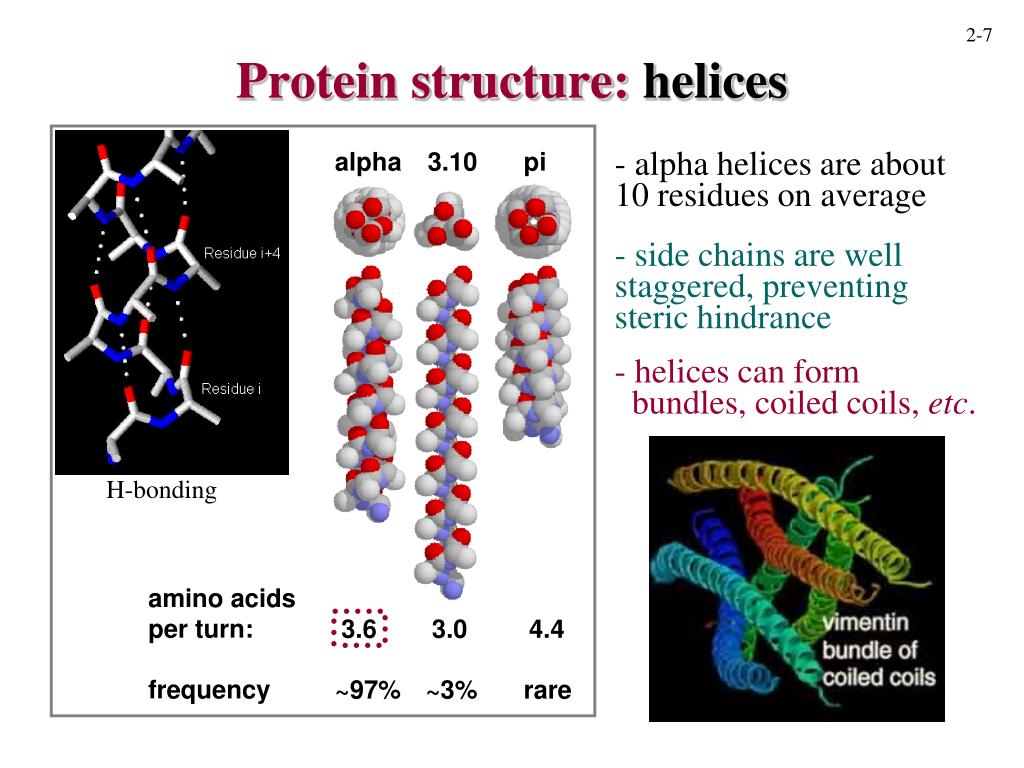

Protein structure: helices

alpha

3.10

pi

amino acids

per turn:

3.6

3.0

4.4

frequency

~97%

~3%

rare

2-7

- alpha helices are about10 residues on average

- side chains are wellstaggered, preventingsteric hindrance

- helices can form bundles, coiled coils, etc.

H-bonding

protein structure sheets

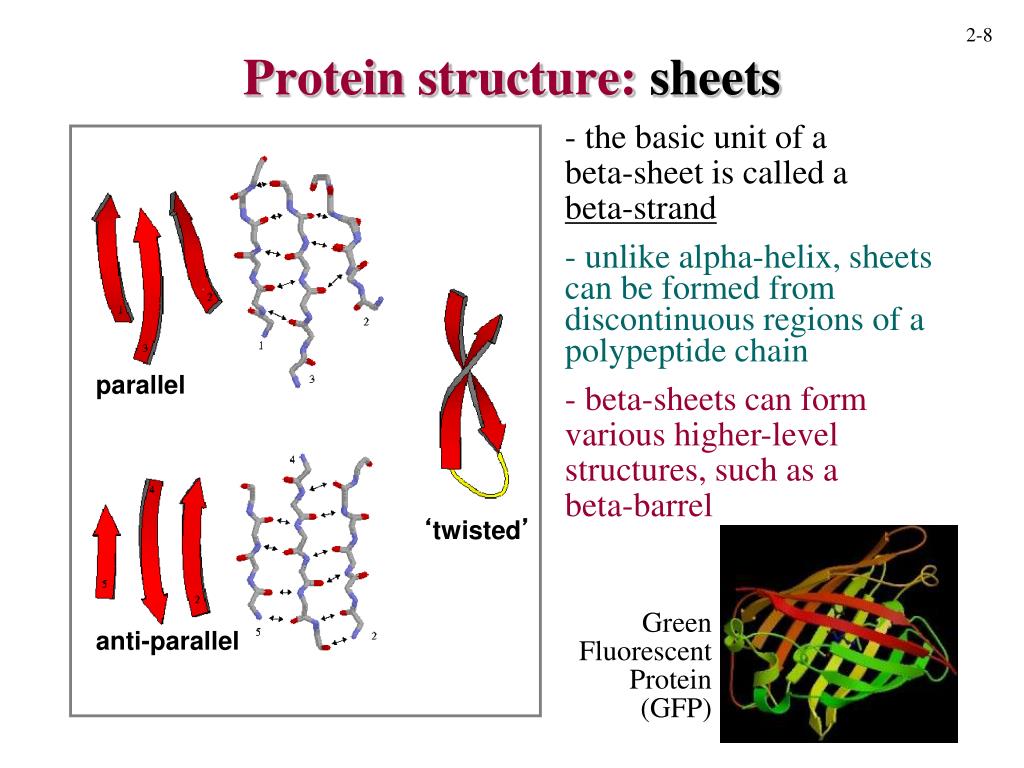

Protein structure: sheets

Green

Fluorescent

Protein

(GFP)

2-8

- the basic unit of a

beta-sheet is called a

beta-strand

- unlike alpha-helix, sheets can be formed from discontinuous regions of a polypeptide chain

parallel

- beta-sheets can form

various higher-level

structures, such as a

beta-barrel

‘twisted’

anti-parallel

protein structure sheets detail
Protein structure: sheets (detail)

2-9

- notice the difference in H-bonding pattern between parallel and anti-parallel beta-sheets

- also notice orientation of side chains relative to the sheets

‘twisted’

protein structure turns loops

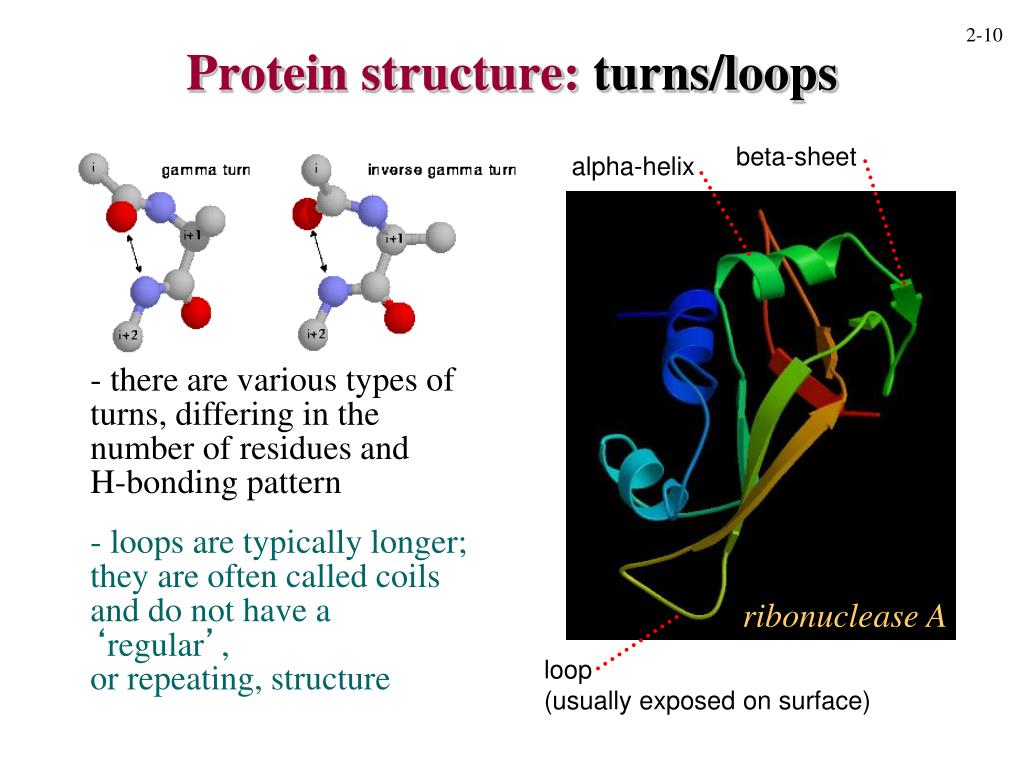

Protein structure: turns/loops

ribonuclease A

2-10

beta-sheet

alpha-helix

- there are various types of

turns, differing in the number of residues and

H-bonding pattern

- loops are typically longer;

they are often called coils and do not have a ‘regular’,

or repeating, structure

loop

(usually exposed on surface)

ramachandran plot
Ramachandran plot

2-11

Psi (ψ)

no steric

clashes

Phi (Φ)

- Phi (Φ) and Psi (ψ) rotate, allowing the polypeptide to assume its various conformations

- some conformations of the polypeptide backbone result in steric hindrance and are disallowed

- glycine has no side chain and is therefore conformationally highly flexible (it is often found in turns)

permitted

if atoms are

more closely

spaced

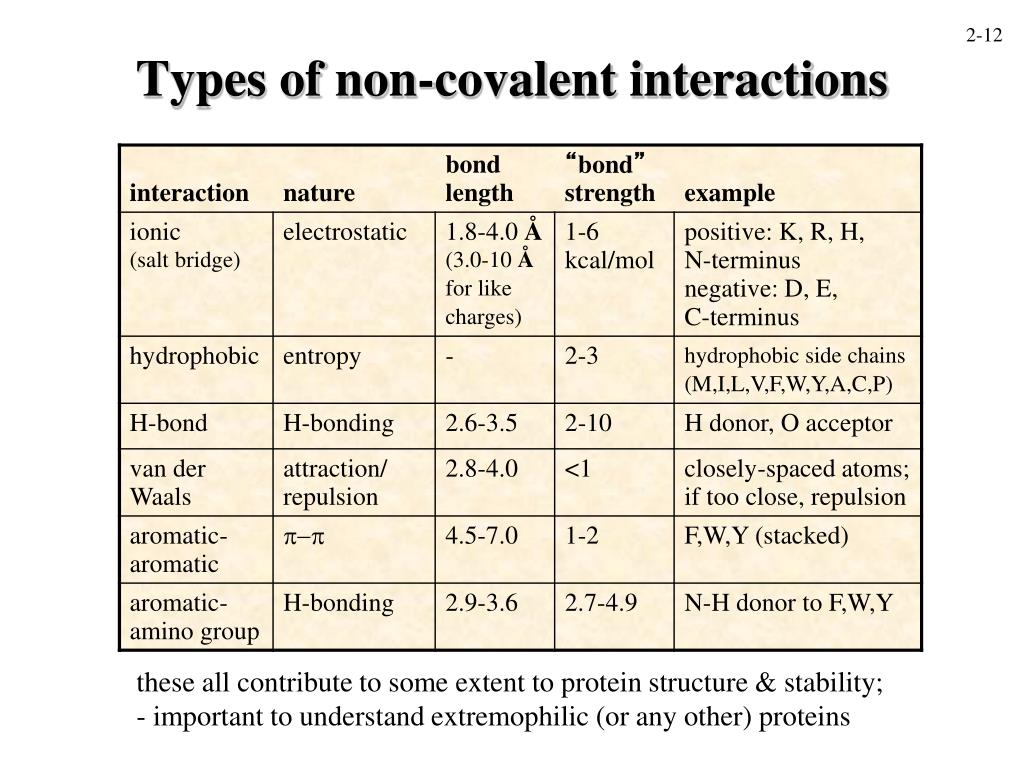

types of non covalent interactions
Types of non-covalent interactions

2-12

these all contribute to some extent to protein structure & stability;

- important to understand extremophilic (or any other) proteins

protein solvent interactions
Protein-solvent interactions

hydrophilic amino acids (D, E, K, R, H, N, Q)

- these amino acids tend to interact extensively with solvent in context of the folded protein; the interaction is mostly ionic and H-bonding

- there are instances of hydrophilic residues being buried in the interior of the protein; often, pairs of these residues form salt bridges

hydrophobic amino acids (M, I, L, V, F, W, Y, A*, C, P)

- these tend to form the ‘core’ of the protein, i.e., are buried within the folded protein; some hydrophobic residues can be entirely (or partially) exposed

small neutral amino acids (G, A*, S, T)

- less preference for being solvent-exposed or not

2-13

the disulfide bond
The disulfide bond

2-14

protein

protein

oxidation

protein

protein

+

+

+

2 H+

2 e-

reduction

• disulfide bond formation is a covalent modification; the oxidation reaction can either be intramolecular (within the same protein) or inter-molecular (within different proteins, e.g., antibody light and heavy chains). The reaction is reversible.

- most disulfide-bonded proteins are extracellular

(e.g. lysozyme contains four disulfide bonds);

the conditions inside the cytosol are reducing,

meaning that the cysteines are usually in reduced form

- cellular enzymes (protein disulfide isomerases) assist

many proteins in forming proper disulfide bond(s)

protein folding
Protein folding

in the test tube versus in the cell

~40 years

~20 years

2-15

“arguably the single most important process in biology”

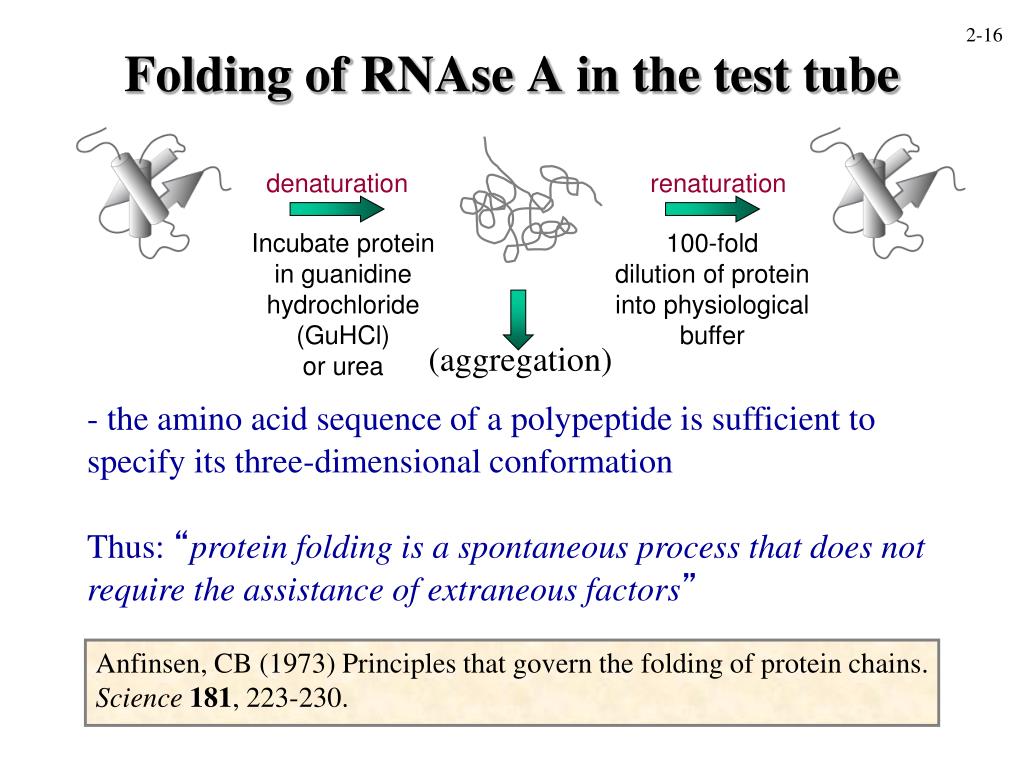

folding of rnase a in the test tube
Folding of RNAse A in the test tube

denaturation

renaturation

Incubate protein

in guanidine

hydrochloride

(GuHCl)

or urea

100-fold

dilution of protein

into physiological

buffer

(aggregation)

Anfinsen, CB (1973) Principles that govern the folding of protein chains. Science181, 223-230.

2-16

- the amino acid sequence of a polypeptide is sufficient to specify its three-dimensional conformation

Thus: “protein folding is a spontaneous process that does not require the assistance of extraneous factors”

levinthal paradox

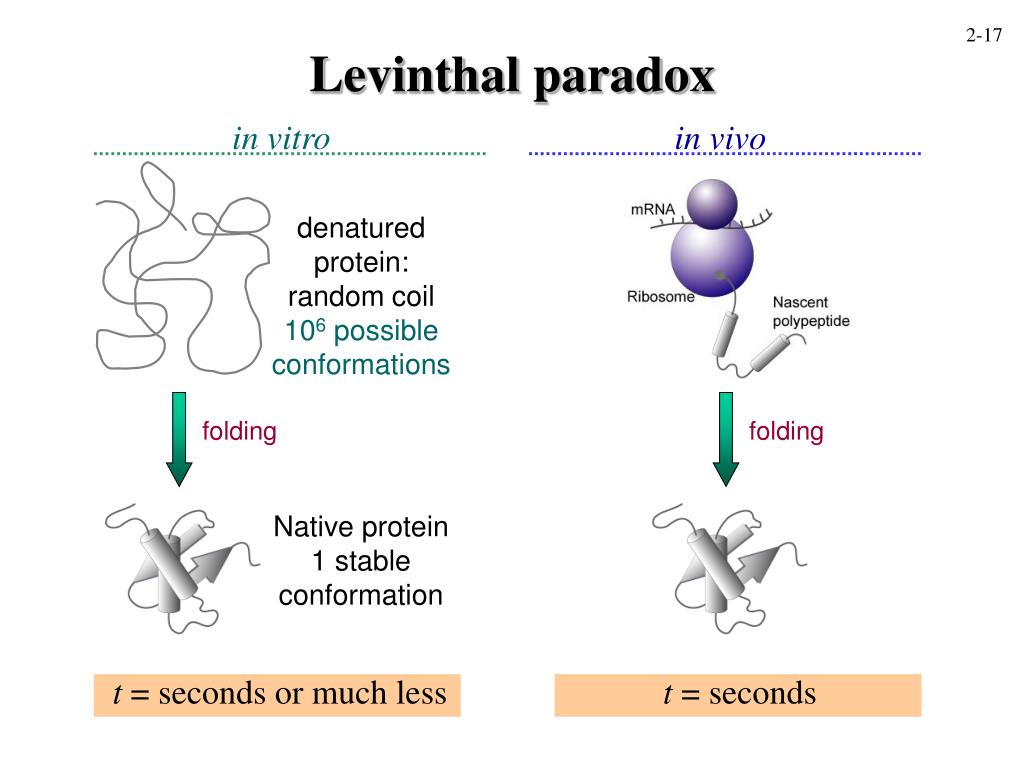

Levinthal paradox

2-17

in vitro

in vivo

denatured

protein:

random coil

106 possible

conformations

folding

folding

Native protein

1 stable

conformation

t = seconds or much less

t = seconds

protein folding theory
Protein folding theory

2-18

• limited number of secondary structure elements: helices,

sheets and turns

• folding can be thought

to occur along

“energy surfaces or landscapes”

Dobson, CM (2001)

Phil Trans R Soc Lond 356, 133-145

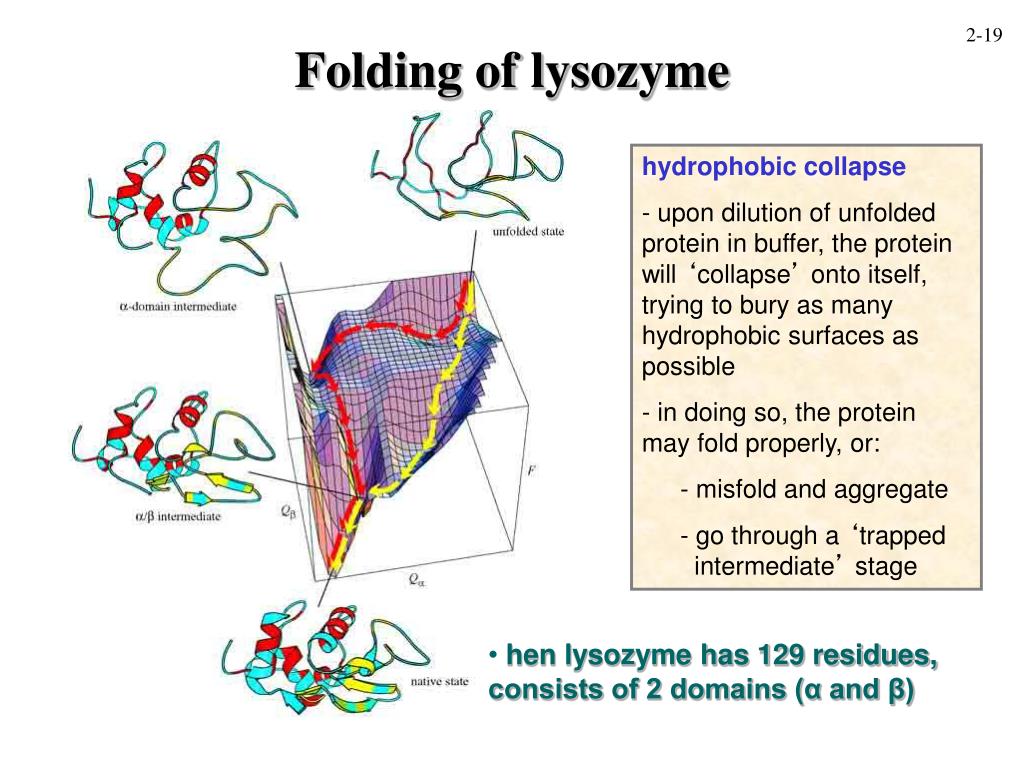

folding of lysozyme
Folding of lysozyme

2-19

hydrophobic collapse

- upon dilution of unfolded protein in buffer, the protein will ‘collapse’ onto itself, trying to bury as many hydrophobic surfaces as possible

- in doing so, the protein may fold properly, or:

- misfold and aggregate

- go through a ‘trapped intermediate’ stage

• hen lysozyme has 129 residues, consists of 2 domains (α and β)

protein synthesis the ribosome
Protein synthesis: the ribosome

2-20

Yusupov et al. (2001) Science 292, 883.

- whole 70S ribosome from Thermus thermophilus at 5.5Å

- small (30S) subunit: 16S RNA, ~20 proteins

- large (50S) subunit: 23S RNA, 5S RNA, >30 proteins

- high concentration in the cell (~ 50 μM)

protein synthesis cycle
Protein synthesis cycle

2-21

interface view of 50S subunit

1. acylation of tRNAs with respective amino acids

2. binding of tRNA charged with methionine to P-site on the AUG start codon (present on the mRNA)

3. next tRNA charged with appropriate amino acid binds A-site

4. transpeptidation (peptide bond formation) between P-site (N-terminal) amino acid and A-site amino acid leads to the growth of the polypeptide chain. The catalysis is by the peptidyltransferase, which consists only of RNA. The ribosome is thus a ribozyme.

5. the E-site represents the ‘exit’ site for the uncharged tRNA

6. release from tRNA and disassembly then occurs

E-, P-, A-site

tRNAs and mRNA

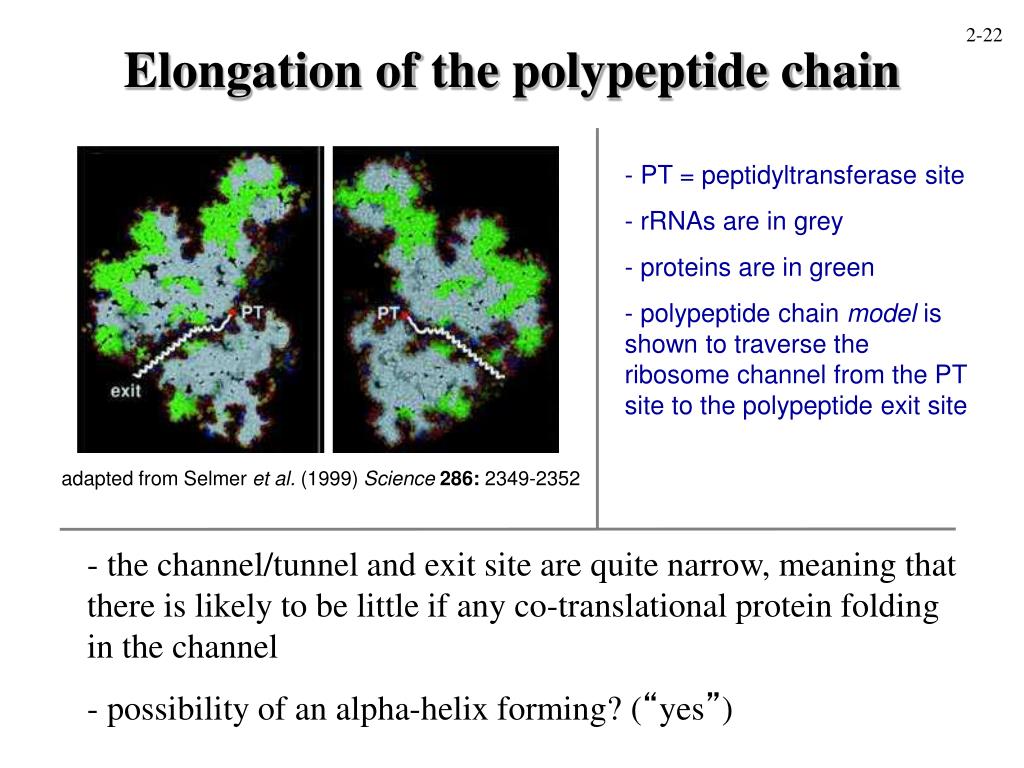

elongation of the polypeptide chain
Elongation of the polypeptide chain

2-22

- PT = peptidyltransferase site

- rRNAs are in grey

- proteins are in green

- polypeptide chain model is shown to traverse the ribosome channel from the PT site to the polypeptide exit site

adapted from Selmer et al. (1999) Science286: 2349-2352

  • the channel/tunnel and exit site are quite narrow, meaning that there is likely to be little if any co-translational protein folding in the channel
  • possibility of an alpha-helix forming? (“yes”)
co translational protein folding
Co-translational protein folding

2-23

Fact: - first ~30 amino acids of the polypeptide chain present within the ribosome is constrained(the N-terminus emerges first)

Assumption: as soon as the nascent chain is extruded, it will start to fold co-translationally (i.e., acquire secondary structures, super-secondary structures, domains) until the complete polypeptide is produced and extruded

folding

assembly

observing co translation al folding
Observing co-translational folding

Result:

2

3

4

5

6

7

8

10

12

min

60 kDa

no

ProK

40 kDa

20 kDa

2

3

4

5

6

7

8

10

12

min

60 kDa

with

ProK

40 kDa

20 kDa

2-24

Experiment:

1. translate firefly luciferase RNA in vitro in the presence of 35S-methionine for 2 min

2. Prevent re-initiation of translation with aurintricarboxylic acid (ATCA): ‘synchronizing’

3. at set timepoints, quench translation, incubate with proteinase K (digests unstructured/non-compact regions in proteins, but not folded domains/proteins)

4. add denaturing (SDS) buffer, then perform SDS-PAGE (polyacrylamide gel electrophoresis)

5. dry gel, observe by autoradiography

Firefly

Luciferase

(62 kDa)

N-terminal domain

(~22 kDa)

C-terminal domain

(~40 kDa)

antibiotics protein synthesis

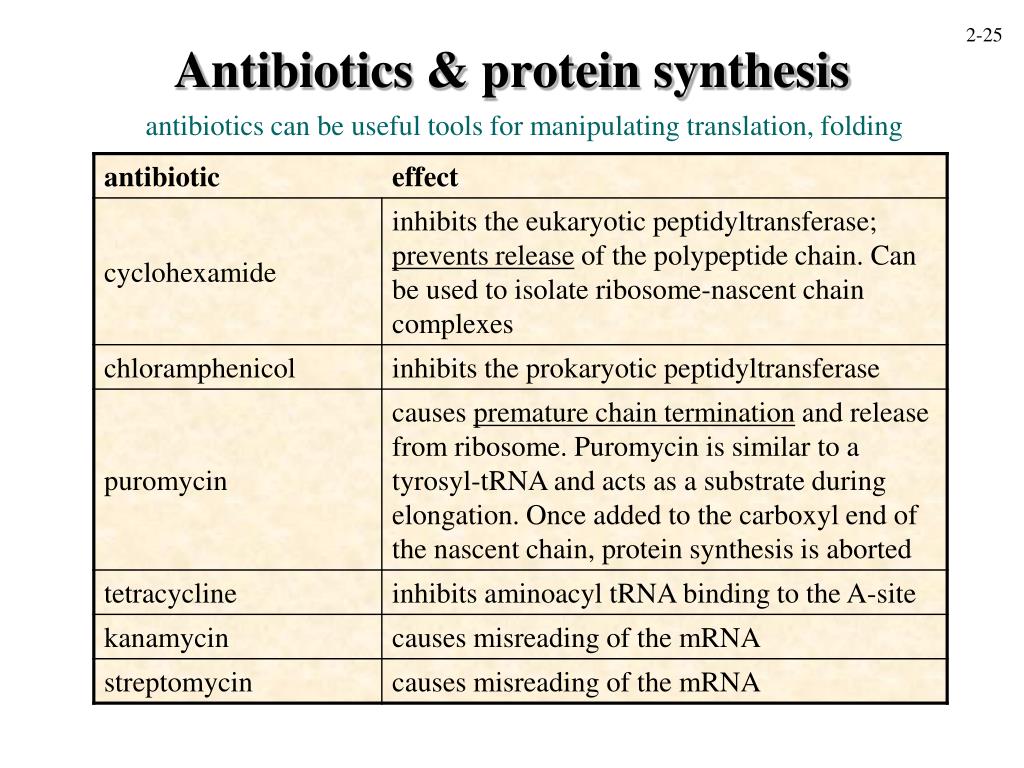

Antibiotics & protein synthesis

2-25

antibiotics can be useful tools for manipulating translation, folding

ssra rna in bacteria
ssrA RNA in bacteria

2-26

Problem:- turnover (degradation) of mRNA occurs very quickly in bacteria, and the 3’ end of the mRNA has a higher probability of being degraded first

- if the stop codon is removed, there are no signals for mRNA release from the ribosome, and the mRNA will stall

Solution:- SsrA, or 10SA RNA is a small RNA (363 nt) that resembles a tRNA and can be charged with alanine. It is placed into the peptidyltransferase site by the protein SsrB

- SsrA can be used as a template, and codes a peptide, ANDENYALAA

- the fusion protein containing this sequence is recognized and degraded by the ClpAP or ClpPX proteases

nascent chain stalling in eukaryotes

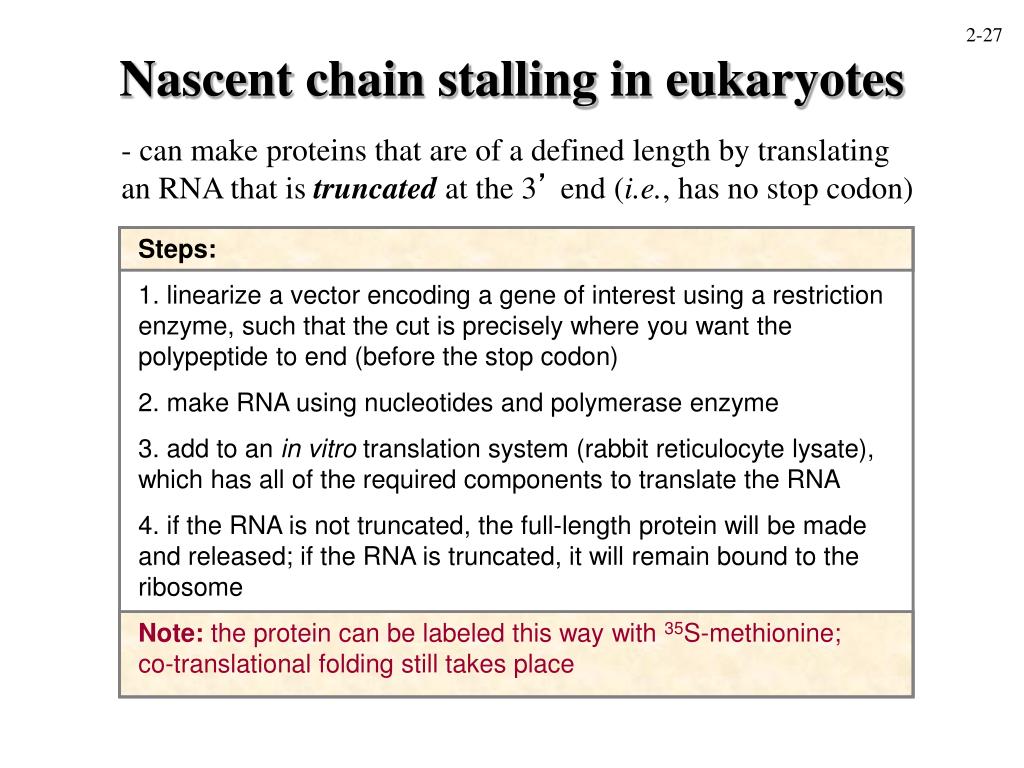

Nascent chain stalling in eukaryotes

2-27

- can make proteins that are of a defined length by translating an RNA that is truncated at the 3’ end (i.e., has no stop codon)

Steps:

1. linearize a vector encoding a gene of interest using a restriction enzyme, such that the cut is precisely where you want the polypeptide to end (before the stop codon)

2. make RNA using nucleotides and polymerase enzyme

3. add to an in vitro translation system (rabbit reticulocyte lysate), which has all of the required components to translate the RNA

4. if the RNA is not truncated, the full-length protein will be made and released; if the RNA is truncated, it will remain bound to the ribosome

Note: the protein can be labeled this way with 35S-methionine;co-translational folding still takes place

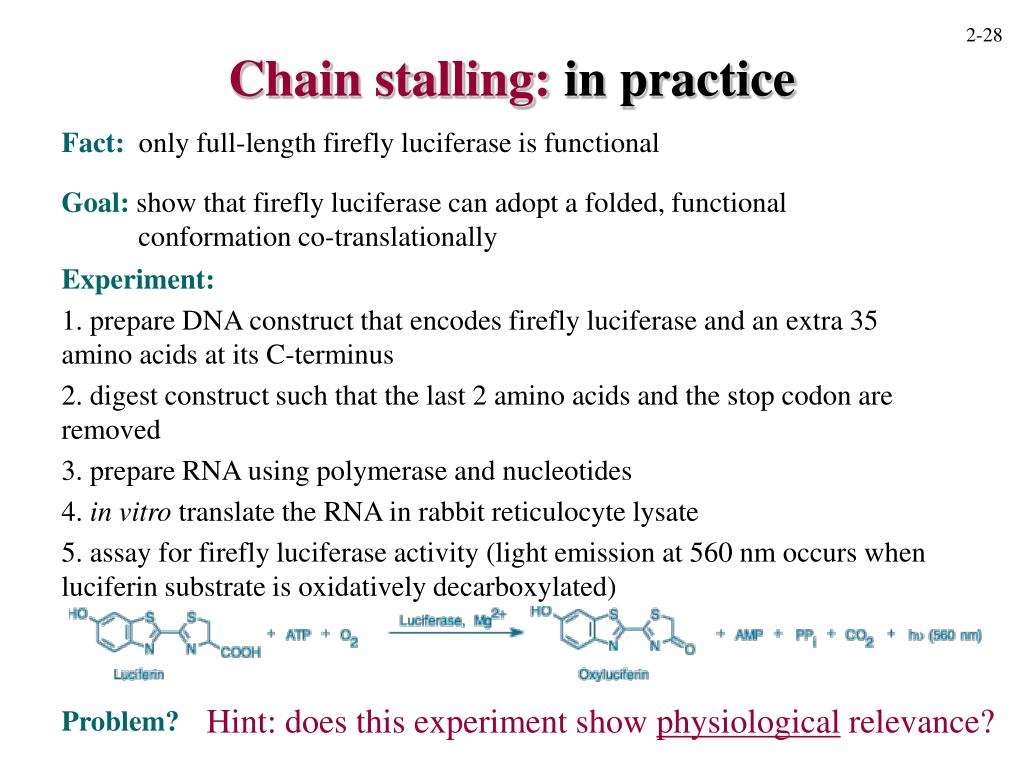

chain stalling in practice
Chain stalling: in practice

2-28

Fact: only full-length firefly luciferase is functional

Goal: show that firefly luciferase can adopt a folded, functional conformation co-translationally

Experiment:

1. prepare DNA construct that encodes firefly luciferase and an extra 35 amino acids at its C-terminus

2. digest construct such that the last 2 amino acids and the stop codon are removed

3. prepare RNA using polymerase and nucleotides

4. in vitro translate the RNA in rabbit reticulocyte lysate

5. assay for firefly luciferase activity (light emission at 560 nm occurs when luciferin substrate is oxidatively decarboxylated)

Hint: does this experiment show physiological relevance?

Problem?

protein folding in 3 different environments
Protein folding:in 3 different environments

2-29

• ex vivo refolding rabbit reticulocyte lysate

- rabbit reticulocyte lysate is an abundant source of molecular chaperones, many of which are ATP-dependent

• in vitro folding environments

- protein folding (from denaturant), when possible, requires the proper environment:

proper pH, salts, concentration of protein, temperature, stabilizing agents (e.g., other proteins, glycerol, etc.)

• in vivo folding

- molecular chaperones, protein folding catalysts, proper redox environment, availability of binding partners

following the acquisition of native structure

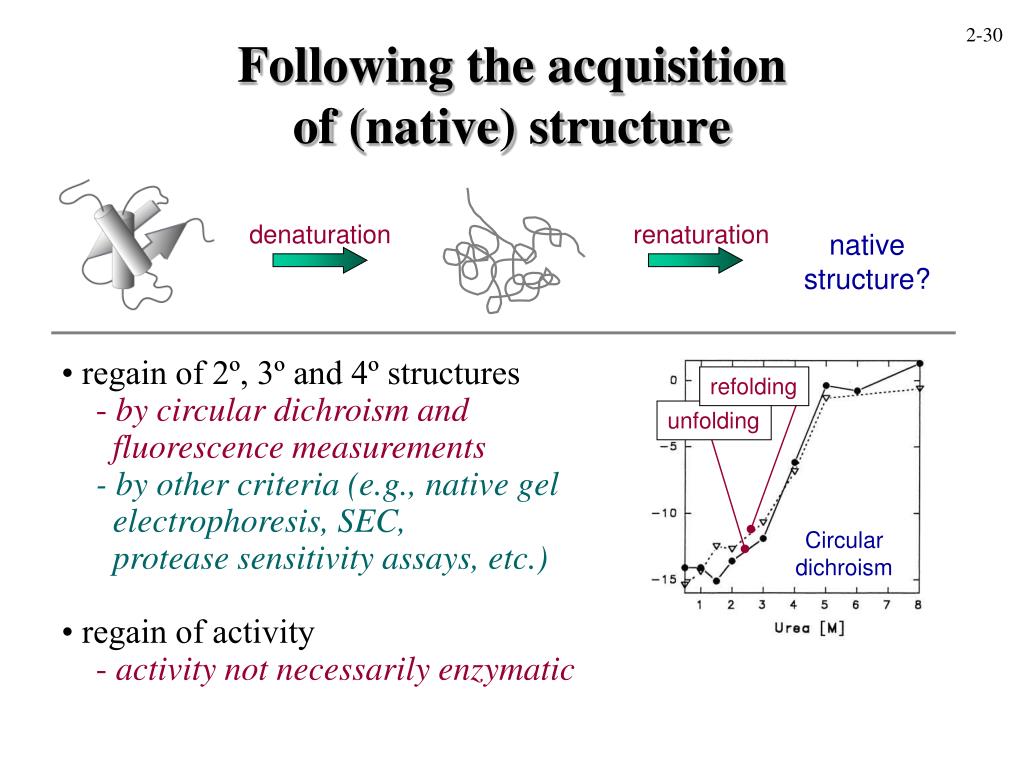

Following the acquisitionof (native) structure

denaturation

renaturation

native

structure?

• regain of 2º, 3º and 4º structures

- by circular dichroism and

fluorescence measurements

- by other criteria (e.g., native gel

electrophoresis, SEC,

protease sensitivity assays, etc.)

• regain of activity

- activity not necessarily enzymatic

refolding

unfolding

Circular

dichroism

2-30

acquisition of native structure examples
Acquisition of native structure: examples

2-31

• actin

- chemically denatured actin can be refolded by incubating it in rabbit reticulocyte lysate; native gel electrophoresis, and binding to DNAse I is used to assess folding

• various small proteins (RNAse A, lysozyme, etc.)

- can be denatured chemically and refolded simply by dilution of the denaturing agent; activity assays are available, but folding can be monitored using spectroscopic techniques

• other

- small-angle light x-ray scattering (SAXS), NMR are some other techniques used to monitor protein folding

protein denaturants
Protein denaturants

2-32

• high temperatures

- cause protein unfolding, aggregation

• low temperatures

- some proteins are sensitive to cold denaturation

• heavy metals (e.g., lead, cadmium, etc.)

- highly toxic; efficiently induce the ‘stress response’

• proteotoxic agents (e.g., alcohols, cross-linking agents, etc.)

• oxygen radicals, ionizing radiation

- cause permanent protein damage

• chaotropes (urea, guanidine hydrochloride, etc.)

- highly potent at denaturing proteins;

often used in protein folding studies

following the loss of structure

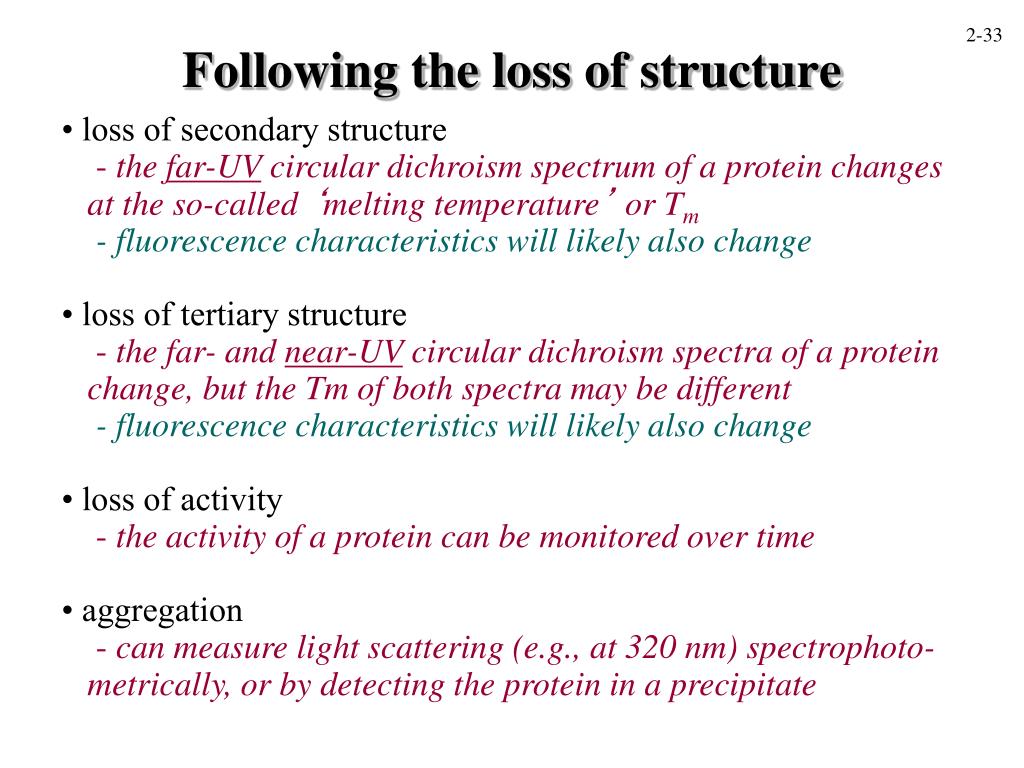

Following the loss of structure

2-33

• loss of secondary structure

- the far-UV circular dichroism spectrum of a protein changes at the so-called ‘melting temperature’ or Tm

- fluorescence characteristics will likely also change

• loss of tertiary structure

- the far- and near-UV circular dichroism spectra of a protein change, but the Tm of both spectra may be different

- fluorescence characteristics will likely also change

• loss of activity

- the activity of a protein can be monitored over time

• aggregation

- can measure light scattering (e.g., at 320 nm) spectrophoto-metrically, or by detecting the protein in a precipitate

loss of structure example

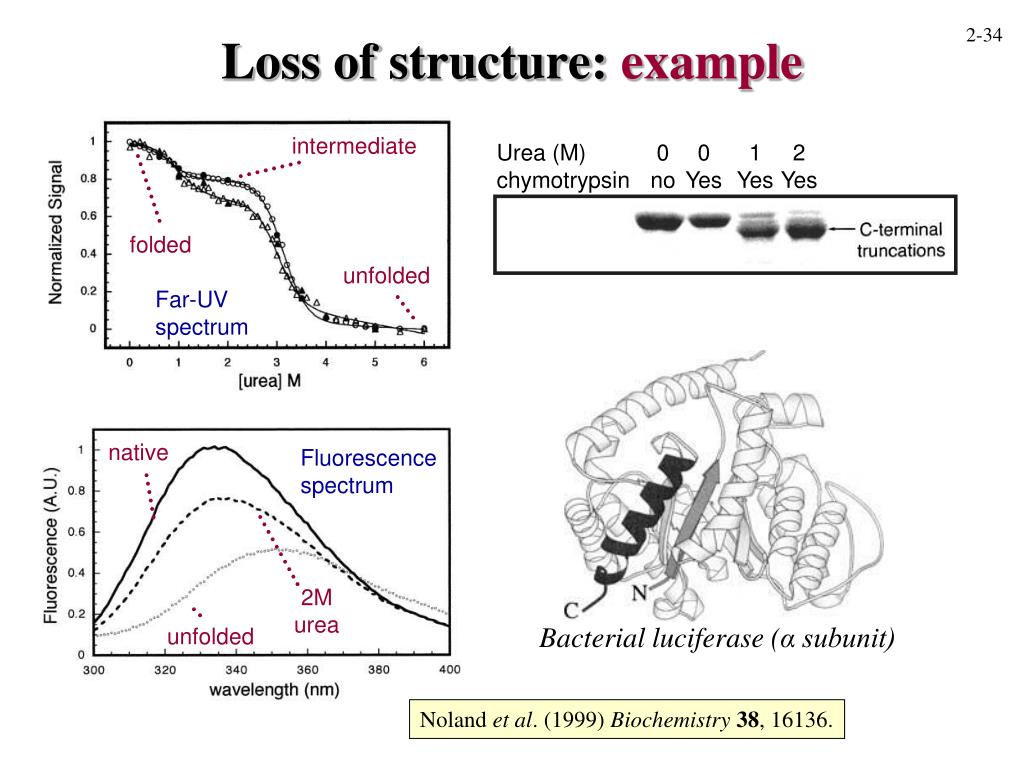

Loss of structure: example

2-34

intermediate

Urea (M)

chymotrypsin

0

no

0

Yes

1

Yes

2

Yes

folded

unfolded

Far-UV

spectrum

native

Fluorescence

spectrum

2M

urea

Bacterial luciferase (α subunit)

unfolded

Noland et al. (1999) Biochemistry38, 16136.
