PM2.5 Implementation Rule- Modeling Summary

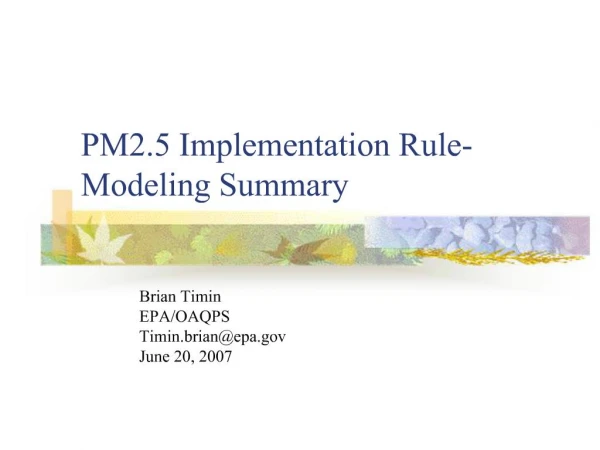

1. PM2.5 Implementation Rule- Modeling Summary Brian Timin EPA/OAQPS Timin.brian@epa.gov June 20, 2007

2. Attainment Demonstrations CAA Section 172(c) requires States with a nonattainment area to submit an attainment demonstration All States must submit attainment demonstrations which include modeling (§51.1007) Emissions inventories (base and future years) Adopted control measures

3. Air Quality Modeling “National or regional” modeling EPA or other regional modeling which uses national or regional databases without specific local improvements to emissions, meteorology, land use, etc. “Local” modeling State or regional organization modeling which uses detailed local data to make improvements in model inputs Most States are performing “local” photochemical modeling for their PM2.5 nonattainment areas In some cases the modeling will be supplemented with local dispersion modeling for primary PM2.5

4. Regional and National Modeling The PM2.5 rule says that States can use “regional or national” modeling as part of their demonstration However, the State/RPO modeling is generally more consistent with modeling guidance Therefore, in most cases, EPA modeling should only be used as supplemental information (weight of evidence) EPA has not produced any modeling for 2010 (or 2009) since the CAIR rule All recent EPA modeling is for 2015 and 2020

5. Ozone/PM2.5/Regional Haze Modeling Guidance “Guidance on the use of Models and Other Analyses for Demonstrating Attainment of Air Quality Goals for Ozone, PM2.5, and Regional Haze” http://www.epa.gov/scram001/guidance/guide/final-03-pm-rh-guidance.pdf Original draft- January 2001 Draft final- September 2006 Final version- April 2007 Final ozone guidance has been incorporated into the final PM2.5 and RH guidance (single, slimmed down, 253 page document)

6. What’s in the Guidance? Part I- Using Model Results Modeled Attainment tests 8-hour ozone NAAQS Unmonitored area analysis Annual and 24-hour PM2.5 NAAQS Unmonitored area analysis Local area analysis (high primary PM2.5 areas) Regional Haze reasonable progress Supplemental analyses/weight of evidence Activities to support Mid-Course review and future modeling Required documentation

7. What’s in the Guidance? Part II- Generating Model Results Conceptual description Modeling protocol Selecting a model(s) Choosing days/episodes Selecting domain & spatial resolution Developing met inputs Developing emissions inputs Evaluating model performance/diagnostic analyses

8. Choosing an Air Quality Model There is no “preferred model” Models should meet Appendix W requirements for “alternative models” “Alternative Models” should be: Peer reviewed Demonstrated to be applicable to the problem being addressed Adequate data bases should be available to run the model Model should be shown to have performed adequately in the past Source code must be available at no cost (or for reasonable cost) Vast majority of States/RPOs will use CMAQ or CAMx for ozone, PM2.5, and regional haze Use of AERMOD for local primary PM2.5 issues (local area analysis) This modeling guidance does not address: Dispersion modeling of PM2.5 for NSR/PSD Transportation conformity hot-spot analyses

9. Recommendations for “Episode” Selection Recommendations are essentially unchanged from original drafts Annual PM2.5 NAAQS Model full year or >= 15 days per quarter 24 Hour NAAQS Model days > 65 ug/m3* or “high end of distribution” Model days in each quarter (as appropriate) Regional Haze Model a full year (or more) or at least 10 worst (and best) visibility days at each Class 1 area

10. Horizontal Resolution Recommendations are essentially unchanged from original drafts <= 12 km resolution for PM2.5 attainment demonstration modeling Higher resolution may be necessary in areas with high primary PM2.5 concentration gradients Recommend <= 36 km resolution for regional haze modeling

11. Weight of Evidence/Supplemental Analyses All attainment demonstrations should include “supplemental” analyses to corroborate the modeling results Three main categories of supplemental analyses Modeling Trends Diagnostic analyses Weight of evidence applies when future design values are “close to” NAAQS (either above or below)

12. Weight of Evidence Recommended WOE range: Annual PM2.5 14.5-15.5 ug/m3 24-hour PM2.5 62-67 ug/m3 8 hour Ozone 82-87 ppb If concentration is >WOE range: “More qualitative results are less likely to support a conclusion differing from the outcome of the modeled attainment test”

13. Base Year Design Value Calculation 5 year weighted average design value (ozone, annual, and 24-hour NAAQS) More stable “anchor point” than a single design value period Same methodology used for CAIR and PM NAAQS rule Consideration should be given to the impact of “extreme” meteorology and/or large emissions changes (during the 5 year period)

14. Base Modeling Year Guidance recommends 2002 as the base emissions year Recommendation based on EPA memo establishing 2002 as a base year for inventory submittals Other, more recent years can be used

15. Future Modeling Year(s) Future modeling years depend on attainment dates and details contained in the O3 and PM2.5 implementation rules RACT/RACM Most areas will model 2009 for ozone and PM2.5 Other future years (2012, 2014, and beyond) may be needed depending on classifications, bump-ups and/or attainment date extensions

16. Modeled Attainment Tests All O3/PM2.5/RH modeled attainment tests use model estimates in a “relative” sense Premise: models are better at predicting relative changes in concentrations than absolute concentrations Relative Response Factors (RRF) are calculated by taking the ratio of the model’s future to current predictions of PM2.5 or ozone RRFs are calculated for ozone and for each component of PM2.5 and regional haze

17. Speciated Modeled Attainment Test (SMAT) for PM2.5 The attainment test for PM2.5 uses separate RRFs for each PM2.5 species SMAT test is essentially the same as implemented in CAIR (and PM NAAQS rule) Recommend interpolating species concentrations to FRM sites (when necessary) Species concentrations are interpolated to get species fractions at FRM sites FRM values are not interpolated Guidance recommends species adjustments based on Frank’s (2006) SANDWICH technique

18. Speciated PM2.5 Mass Components as defined in SMAT PM2.5FRM = { [OCMmb] + [EC] + [SO4] + [NO3FRM] + [NH4FRM] + [water] + [crustal material] + [0.5] } OCMmb- organic carbon mass by difference EC- measured elemental carbon SO4- measured sulfate ion NO3FRM- nitrate retained on the FRM filter NH4FRM- ammonium retained on the FRM filter Water- particle bound water mass attached to sulfate, nitrate, and ammonium Other primary particulate- soil and other inorganic mass Blank mass- a constant 0.5 ug/m3 blank mass

19. Model Attainment Test Software (MATS) Software has been developed to project future year design values Performs ozone, PM2.5, and regional haze tests (as outlined in the modeling guidance) MATS for PM2.5 not available yet Interpolates ambient data (where necessary) for ozone and PM2.5 tests Creates “gradient adjusted” spatial fields for unmonitored area analysis

20. MATS Provides a consistent set of ambient data for all States to use Ozone and PM2.5 design values Pre-screened daily average STN and IMPROVE data for PM2.5 attainment test Official IMPROVE visibility data for 2000-2004 base period

21. Status of MATS Released version with ozone and regional haze analyses in June http://www.epa.gov/scram001/modelingapps_mats.htm PM2.5 tests still undergoing QA

22. Unmonitored Area Analysis (UAA) The attainment test is a monitor based test Future year design values should also be examined in unmonitored areas Unmonitored Area Analysis (UAA) is recommended Uses interpolated ambient design values and model output Interpolated spatial fields (design values) are adjusted up or down based on modeled concentration gradients Similar tests for ozone and PM2.5 UAA not designed to look for unmonitored PM micro-scale hot-spot issues 12 km resolution should be sufficient UAA is a supplemental analysis If a problem area is identified, guidance recommends implementing emissions controls or placing new monitor(s) in the area

23. Local Area Analysis (LAA) Analysis to improve the accuracy of modeled emissions changes of local primary PM2.5 Local primary PM2.5 gradients cannot be accurately modeled with a relatively coarse grid model LAA provides a more accurate assessment of the change in air quality at monitors, due to changes in local primary emissions Local area analysis can use either dispersion model or fine grid Eulerian model (1km?)

24. Local Area Analysis Analysis is applied by quarter For dispersion modeling analysis: Identify local sources Quantify local source contribution at monitor Run dispersion model Use relative change in concentration to adjust future year annual or 24-hour design values
