  1. User Services Presenter: Dr. Marvin Bienn 3GPP2 TSG-X Chair marvin.bienn@ericsson.com

  2. Contents • Unstructured Supplementary Services Data (USSD) • Location Based Services • Short Message Service (SMS) cdma2000 Technology Workshop 广州

  3. Supplementary Services Data (USSD) Services Call Me Service (requesting another party to call you – *333#his-number#) Mobile banking balance inquiry (*85#) Mobile Advertising Mobile Voting Mobile Coupons cdma2000 Technology Workshop 广州

  4. USSD Overview • USSD is a real-time circuit-switched communication service that is used to send text between a mobile device (either the subscriber or an application on the device) and an application program in the network. • Means that if information is not delivered immediately, it won’t get delivered later. For example: recipient’s phone is out of range or recipient’s phone is turned off. Note there are implementation workarounds to offset this issue. • Three main types of USSD sessions: • Mobile initiated session • Network initiated session • Network notification. cdma2000 Technology Workshop 广州

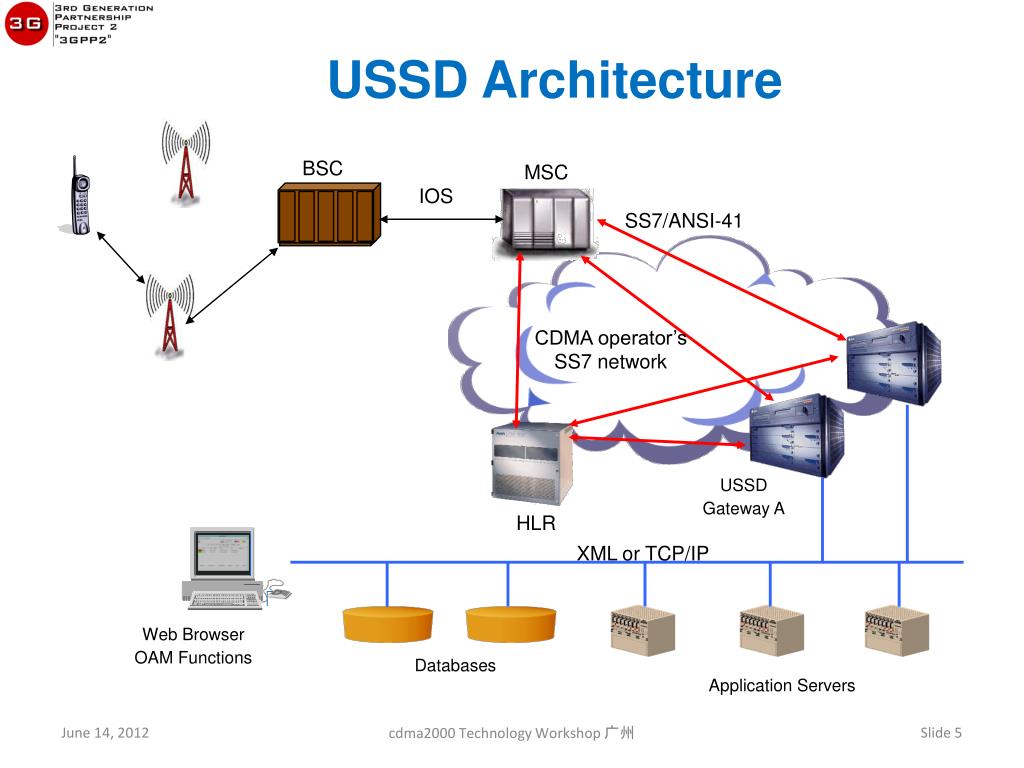

  5. HLR USSD Architecture BSC MSC IOS SS7/ANSI-41 CDMA operator’s SS7 network USSD Gateway A XML or TCP/IP Web Browser OAM Functions Databases Application Servers cdma2000 Technology Workshop 广州

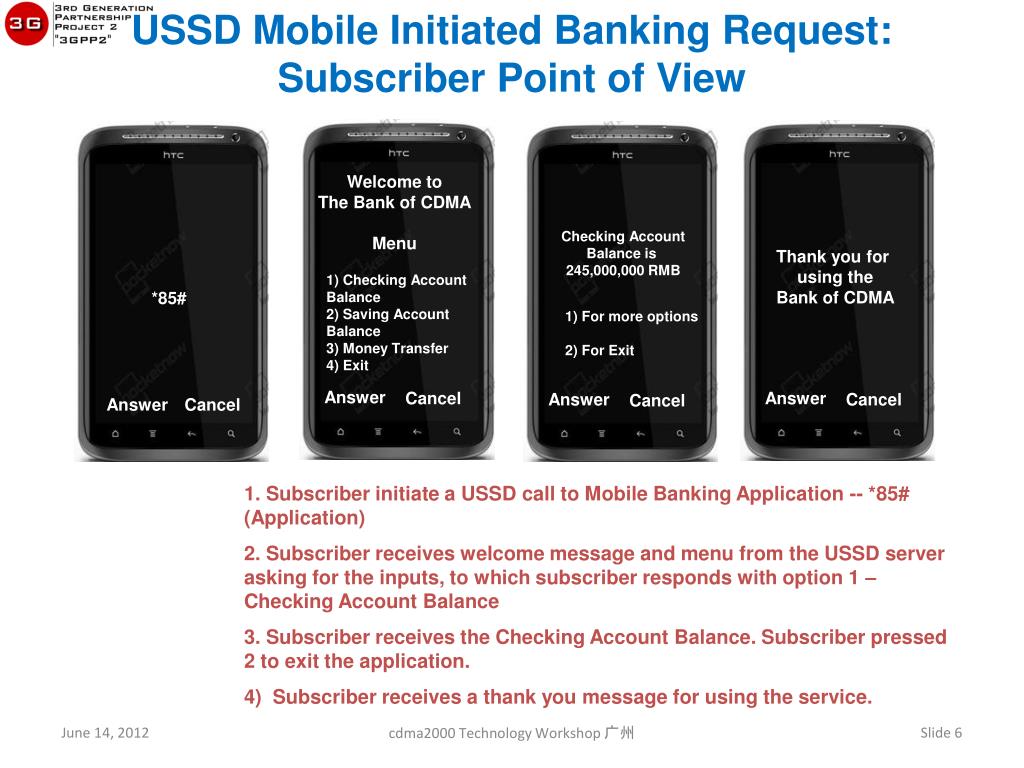

  6. USSD Mobile Initiated Banking Request: Subscriber Point of View Welcome to The Bank of CDMA Menu Checking Account Balance is 245,000,000 RMB Thank you for using the Bank of CDMA 1) Checking Account Balance 2) Saving Account Balance 3) Money Transfer 4) Exit *85# • 1) For more options • 2) For Exit Answer Cancel Answer Answer Cancel Cancel Answer Cancel 1. Subscriber initiate a USSD call to Mobile Banking Application -- *85# (Application) 2. Subscriber receives welcome message and menu from the USSD server asking for the inputs, to which subscriber responds with option 1 – Checking Account Balance 3. Subscriber receives the Checking Account Balance. Subscriber pressed 2 to exit the application. 4) Subscriber receives a thank you message for using the service. cdma2000 Technology Workshop 广州

  7. USSD Mobile Initiated Banking Request:Simplified Information Flow June 14, 2012 cdma2000 Technology Workshop 广州 Slide 7

  8. Location Based Services (LBS) Emergency call positioning Public Safety Family locator Navigation Social Networking Advertisements Consumers Communities Area Monitoring Terminal monitoring National Security Public Infrastructure Road Traffic information Road planning Fleet & workforce management Enterprises Location Based Charging Operators June 14, 2012 cdma2000 Technology Workshop 广州 Slide 8

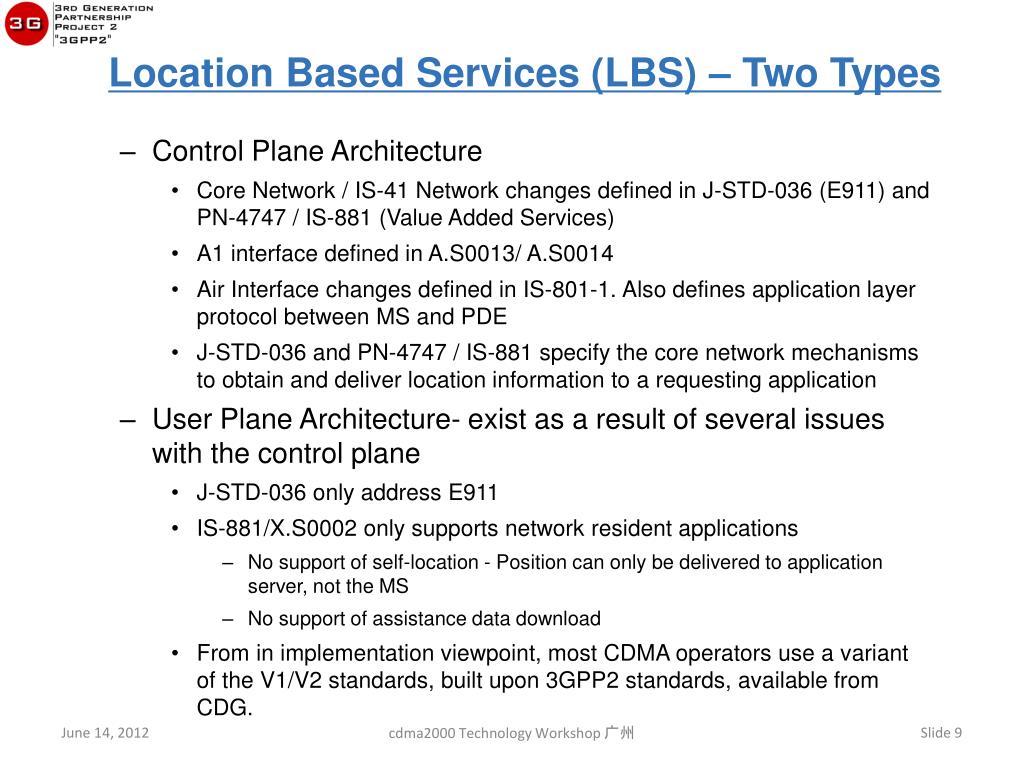

  9. Location Based Services (LBS) – Two Types • Control Plane Architecture • Core Network / IS-41 Network changes defined in J-STD-036 (E911) and PN-4747 / IS-881 (Value Added Services) • A1 interface defined in A.S0013/ A.S0014 • Air Interface changes defined in IS-801-1. Also defines application layer protocol between MS and PDE • J-STD-036 and PN-4747 / IS-881 specify the core network mechanisms to obtain and deliver location information to a requesting application • User Plane Architecture- exist as a result of several issues with the control plane • J-STD-036 only address E911 • IS-881/X.S0002 only supports network resident applications • No support of self-location - Position can only be delivered to application server, not the MS • No support of assistance data download • From in implementation viewpoint, most CDMA operators use a variant of the V1/V2 standards, built upon 3GPP2 standards, available from CDG. June 14, 2012 cdma2000 Technology Workshop 广州 Slide 9

  10. Control Plane Network Reference Model Mobile Position Center (MPC) LCS Application Server L1 defined in IS-881 E3 A1 E2 defined in J-STD-036 Base Station MS E12 MSC / BSC E5 • LCS application servers always invoke MPC to request MS position • Position always delivered to application server via the MPC, not the MS Position Determination Entity (PDE) June 14, 2012 cdma2000 Technology Workshop 广州 Slide 10

  11. Control Plane Information Flow - Where is Joe? Joe LCS Application Server MSC 4. ISPOSREQ 5. isposreq MPC 2. LPREQ HLR BSC PDE 3. lpreq 6. GPOSREQ 8. gposreq 9. Position response 7. Multiple SMDPP/DATABURST exchanges between PDE and MS 1. Position request June 14, 2012 cdma2000 Technology Workshop 广州 Slide 11

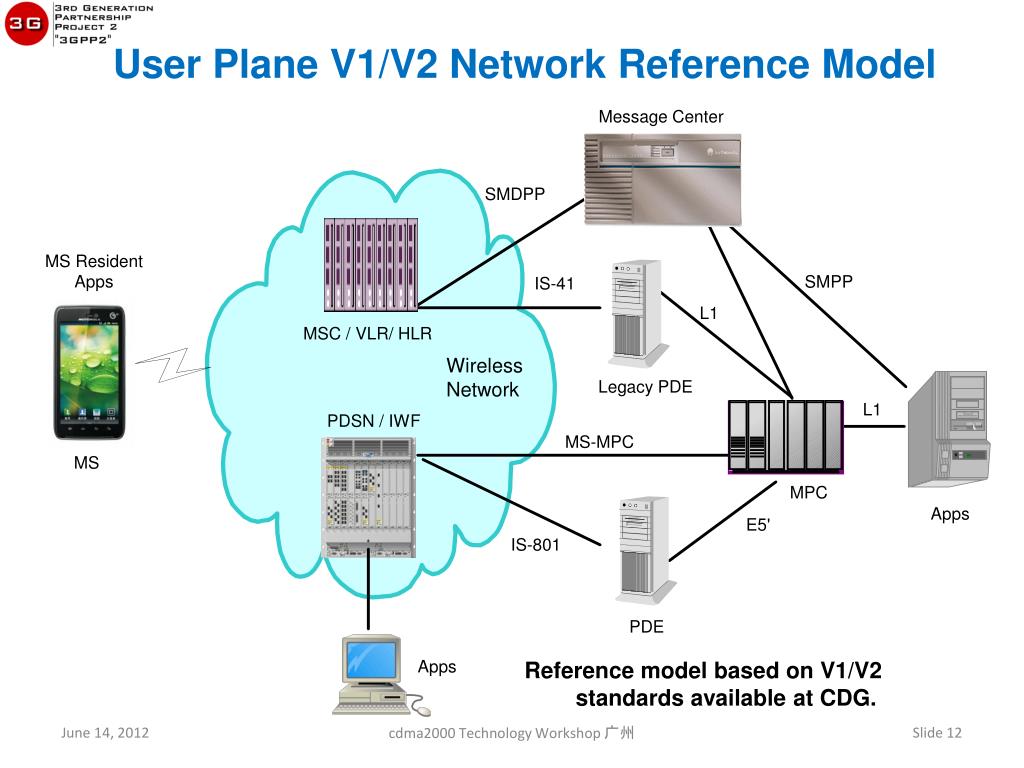

  12. User Plane V1/V2 Network Reference Model Message Center SMDPP MS Resident Apps SMPP IS-41 L1 MSC / VLR/ HLR Wireless Network Legacy PDE L1 PDSN / IWF MS-MPC MS MPC Apps E5' IS-801 PDE Apps Reference model based on V1/V2 standards available at CDG. June 14, 2012 cdma2000 Technology Workshop 广州 Slide 12

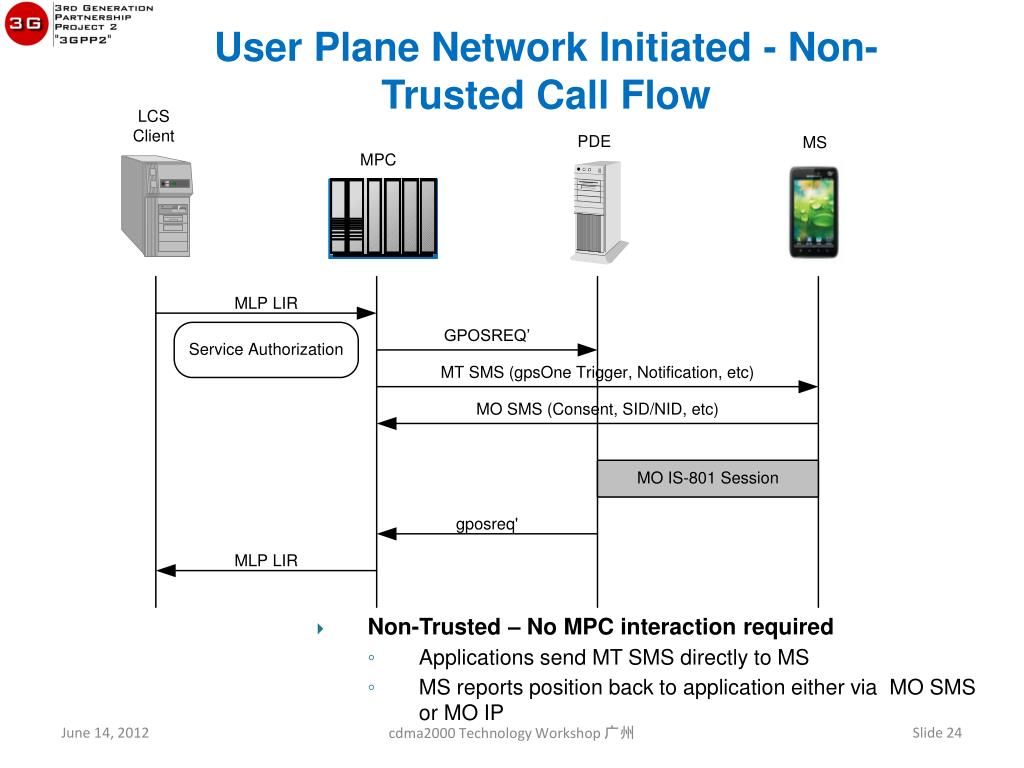

  13. User Plane Network Initiated - Trusted Call Flow Trusted – No MPC interaction required • Applications send MT SMS directly to MS • MS reports position back to application either via MO SMS or MO IP June 14, 2012 cdma2000 Technology Workshop 广州 Slide 13

  14. Short Message Service (SMS) Person-to-Person Mobile Voting M2M Emergency Alerts Dating June 14, 2012 cdma2000 Technology Workshop 广州 Slide 14 Slide 14

  15. SMS Solutions • Three types of solutions: • Solution 1 (Legacy Solution): Sender and the receiver have a CDMA C.S0015 client and are connected to 1xCS access networks. • Solution 2 (Transport Level Mapping): Sender has a CDMA C.S0015 client and has successfully IMS registered while the receiver has a CDMA C.S0015 client and is connected to 1xCS access network or vise versa. • Solution 3 (Application Level Mapping): Sender uses an Instant Messaging client and the receiver has a CDMA C.S0015 client and is connected to 1xCS access network or vise versa. June 14, 2012 cdma2000 Technology Workshop 广州 Slide 15 Slide 15

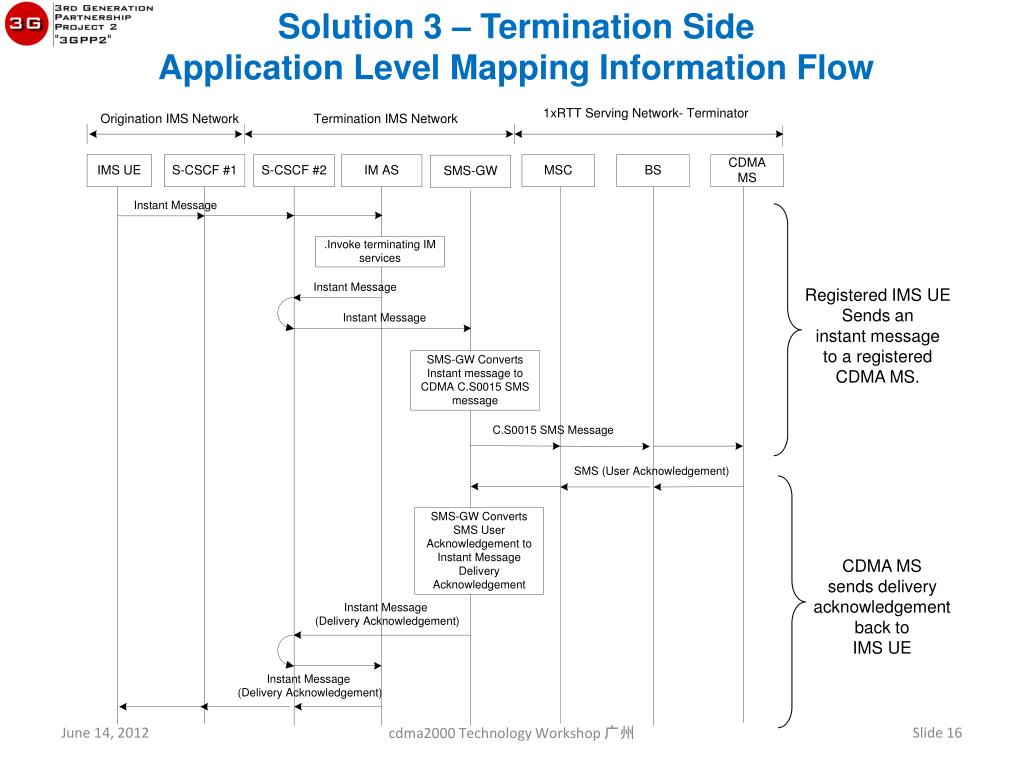

  16. Solution 3 – Termination Side Application Level Mapping Information Flow Registered IMS UE Sends an instant message to a registered CDMA MS. CDMA MS sends delivery acknowledgement back to IMS UE June 14, 2012 cdma2000 Technology Workshop 广州 Slide 16 Slide 16

  17. For more information, please visit http://www.3gpp2.org. cdma2000® is the trademark for the technical nomenclature for certain specifications and standards of the Organizational Partners (OPs) of 3GPP2. Geographically (and as of the date of publication), cdma2000® is a registered trademark of the Telecommunications Industry Association (TIA-USA) in the United States. 18

  18. USSD Additional Slides June 14, 2012 cdma2000 Technology Workshop 广州 Slide 19 Slide 19

  19. CDMA USSD standards • CDMA USSD standards: • 3GPP2 C.S0105-0 v1.0 Unstructured Supplementary Service Data (USSD) Service Options for Spread Spectrum Systems: Service Options 78 and 79 • 3GPP2 X.S0065-0 v1.0 Unstructured Supplementary Service Data (USSD) • 3GPP2 A.S0013-C v4.0/ A.S0013-D v4.0 Interoperability Specification (IOS) for cdma2000 Access Network Interfaces - Part 3 Features • 3GPP2 A.S0014-C v4.0/A.S0014-D v4.0 Interoperability Specification (IOS) for cdma2000 Access Network Interfaces - Part 4 (A1, A1p, A2, and A5 Interfaces) June 14, 2012 cdma2000 Technology Workshop 广州 Slide 20 Slide 20

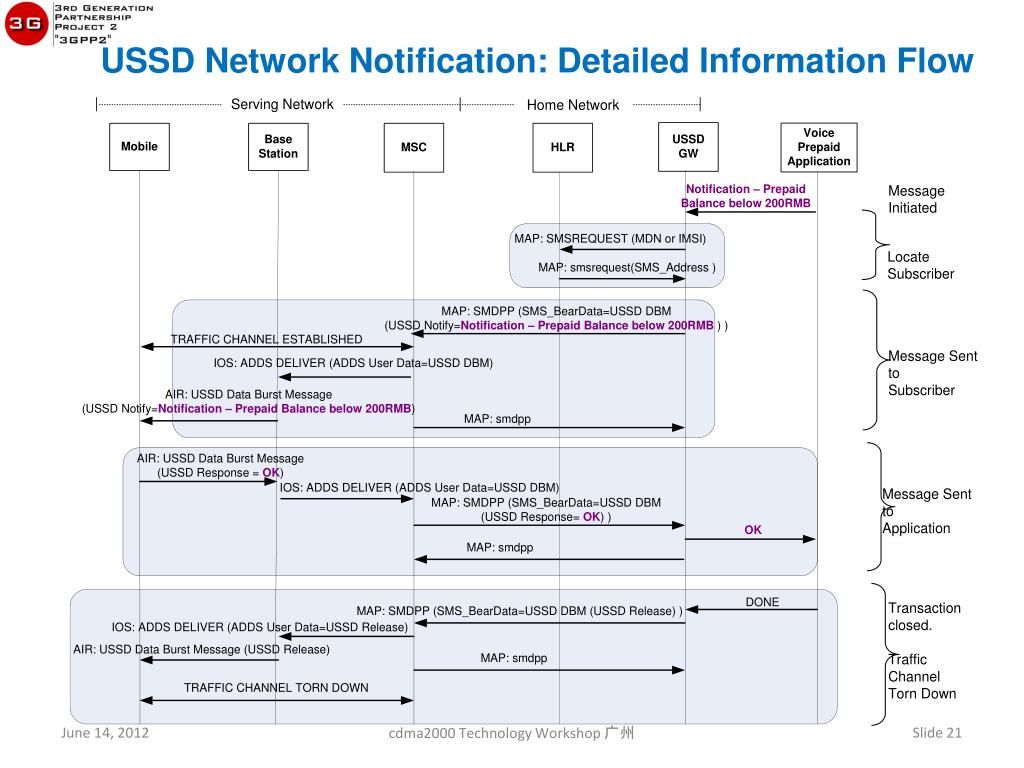

  20. USSD Network Notification: Detailed Information Flow June 14, 2012 cdma2000 Technology Workshop 广州 Slide 21 Slide 21

  21. USSD Mobile Initiated Banking Request – Detailed Information Flow This sequence flow will repeat

  22. LBS Additional Slides June 14, 2012 cdma2000 Technology Workshop 广州 Slide 23 Slide 23

  23. User Plane Network Initiated - Non-Trusted Call Flow • Non-Trusted – No MPC interaction required • Applications send MT SMS directly to MS • MS reports position back to application either via MO SMS or MO IP June 14, 2012 cdma2000 Technology Workshop 广州 Slide 24 Slide 24

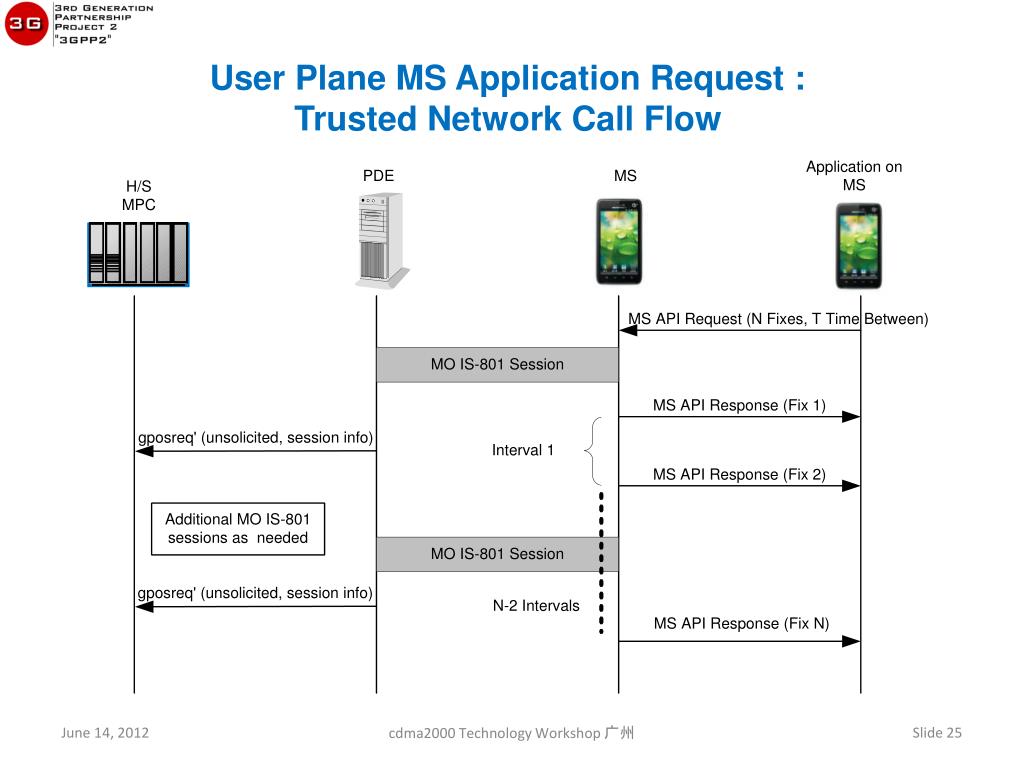

  24. User Plane MS Application Request :Trusted Network Call Flow June 14, 2012 cdma2000 Technology Workshop 广州 Slide 25 Slide 25

  25. SMS Additional Slides June 14, 2012 cdma2000 Technology Workshop 广州 Slide 26 Slide 26

  26. SMS Standards • Solution 1 (Legacy Solution):For sender and receiver having a CDMA C.S0015 client and are connected to 1xCS access networks see: • 3GPP2 C.S0015-B v2.0 Short Message Service (SMS) for Wideband Spread Spectrum Systems • 3GPP2 A.S0013-C v4.0/ A.S0013-D v4.0 Interoperability Specification (IOS) for cdma2000 Access Network Interfaces - Part 3 Features • 3GPP2 A.S0014-C v4.0/A.S0014-D v4.0 Interoperability Specification (IOS) for cdma2000 Access Network Interfaces - Part 4 (A1, A1p, A2, and A5 Interfaces) • 3GPP2 X.S0004-641-E v2.0 Mobile Application Part (MAP) - SMS June 14, 2012 cdma2000 Technology Workshop 广州 Slide 27 Slide 27

  27. SMS Standards • Solution 2 (Transport Level Mapping):For Sender or receiver have a CDMA C.S0015 client and successfully IMS registered see: • All standards under Solution 1 and • 3GPP2 X.S0048-0 v1.0 Short Message Service over IMS • Solution 3 (Application Level Mapping): Sender uses an Instant Messaging client see: • All standards under Solution 2 and • 3GPP2 X.S0064-0 v1.0 SMS Interworking with OMA Instant Messaging June 14, 2012 cdma2000 Technology Workshop 广州 Slide 28 Slide 28

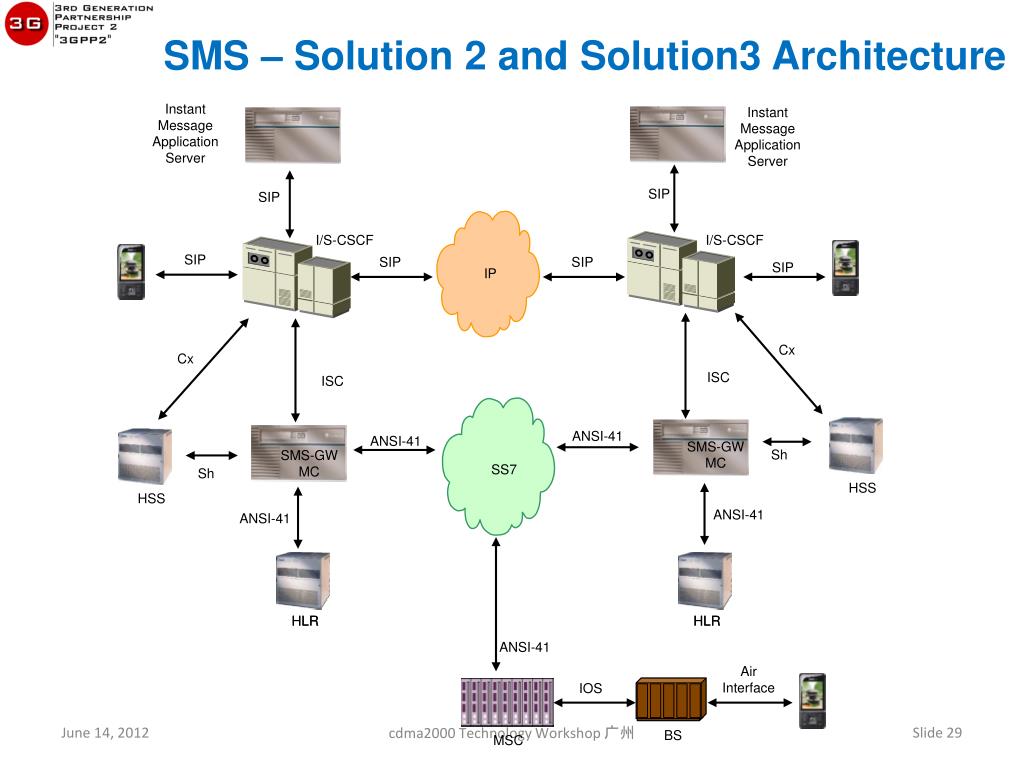

  28. SMS – Solution 2 and Solution3 Architecture June 14, 2012 cdma2000 Technology Workshop 广州 Slide 29 Slide 29
