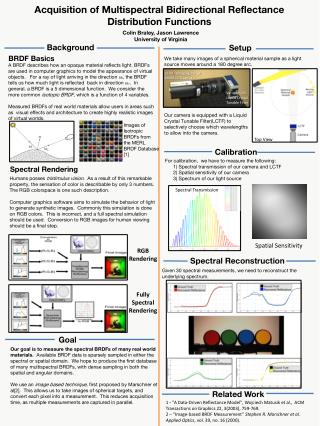

Acquisition of Multispectral Bidirectional Reflectance Distribution Functions. Colin Braley, Jason Lawrence University of Virginia. Background. Setup. BRDF Basics. We take many images of a spherical material sample as a light source moves around a 180 degree arc.
