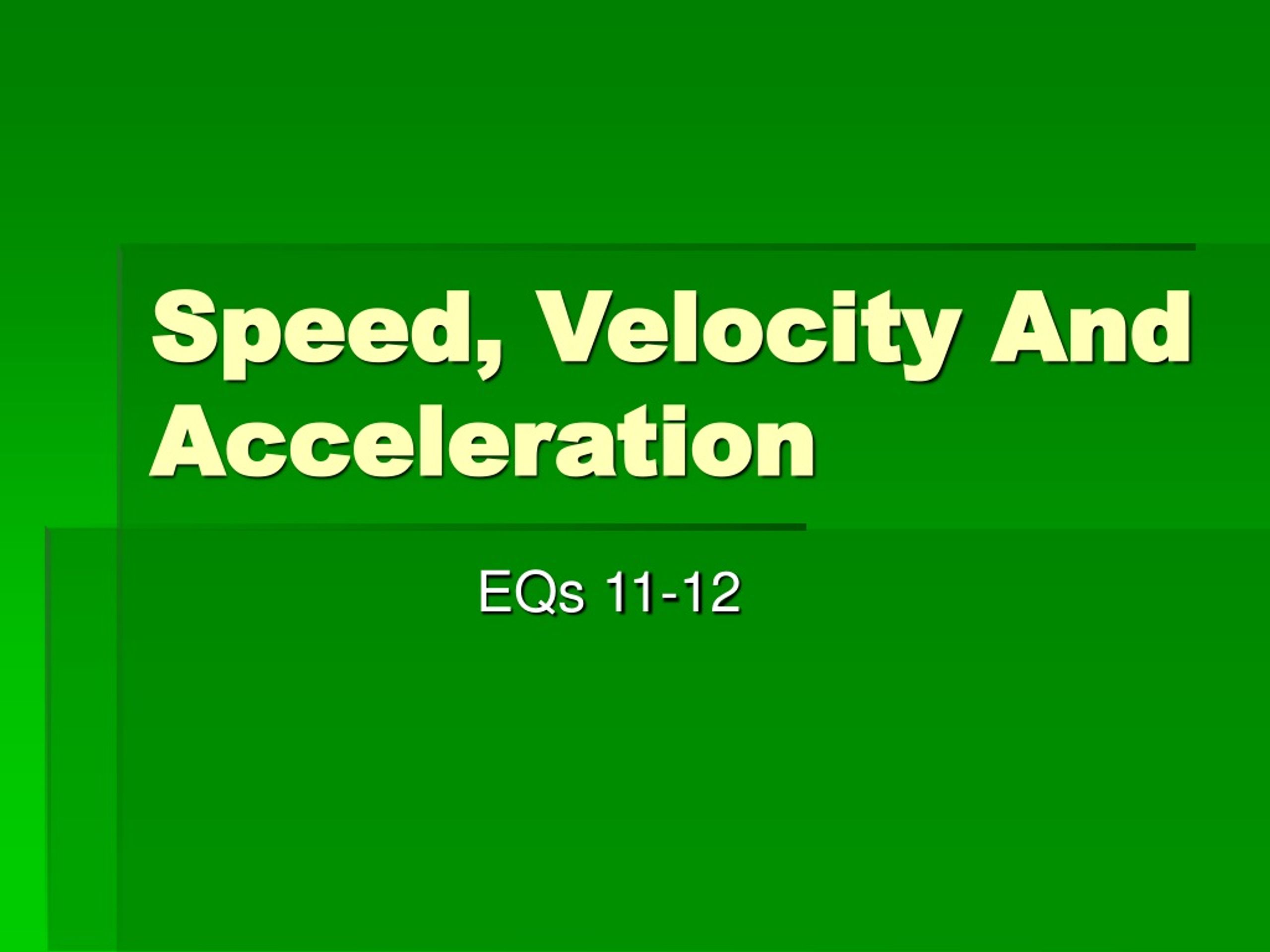

  1. Speed, Velocity And Acceleration EQs 11-12

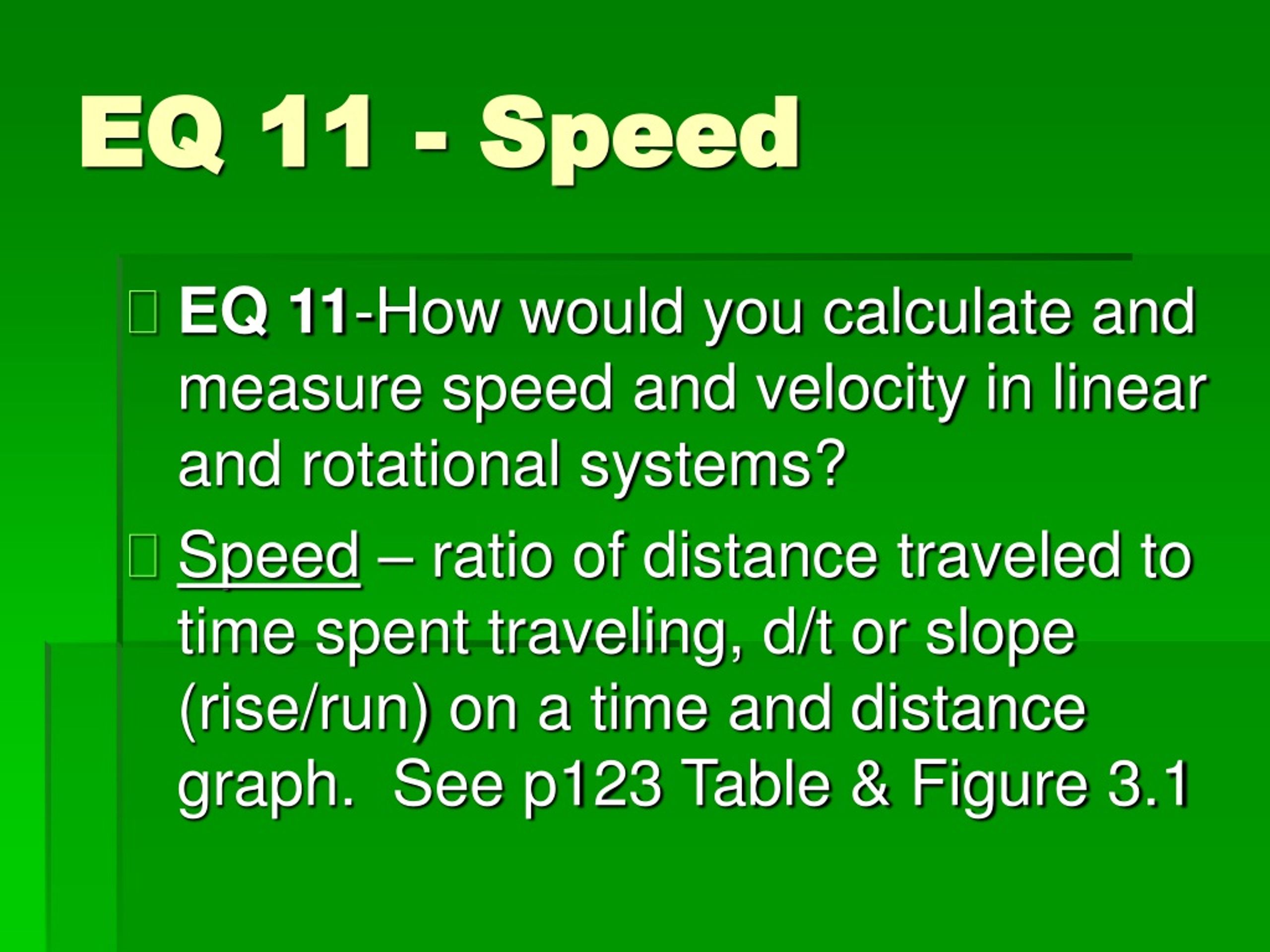

  2. EQ 11 - Speed • EQ 11-How would you calculate and measure speed and velocity in linear and rotational systems? • Speed – ratio of distance traveled to time spent traveling, d/t or slope (rise/run) on a time and distance graph. See p123 Table & Figure 3.1

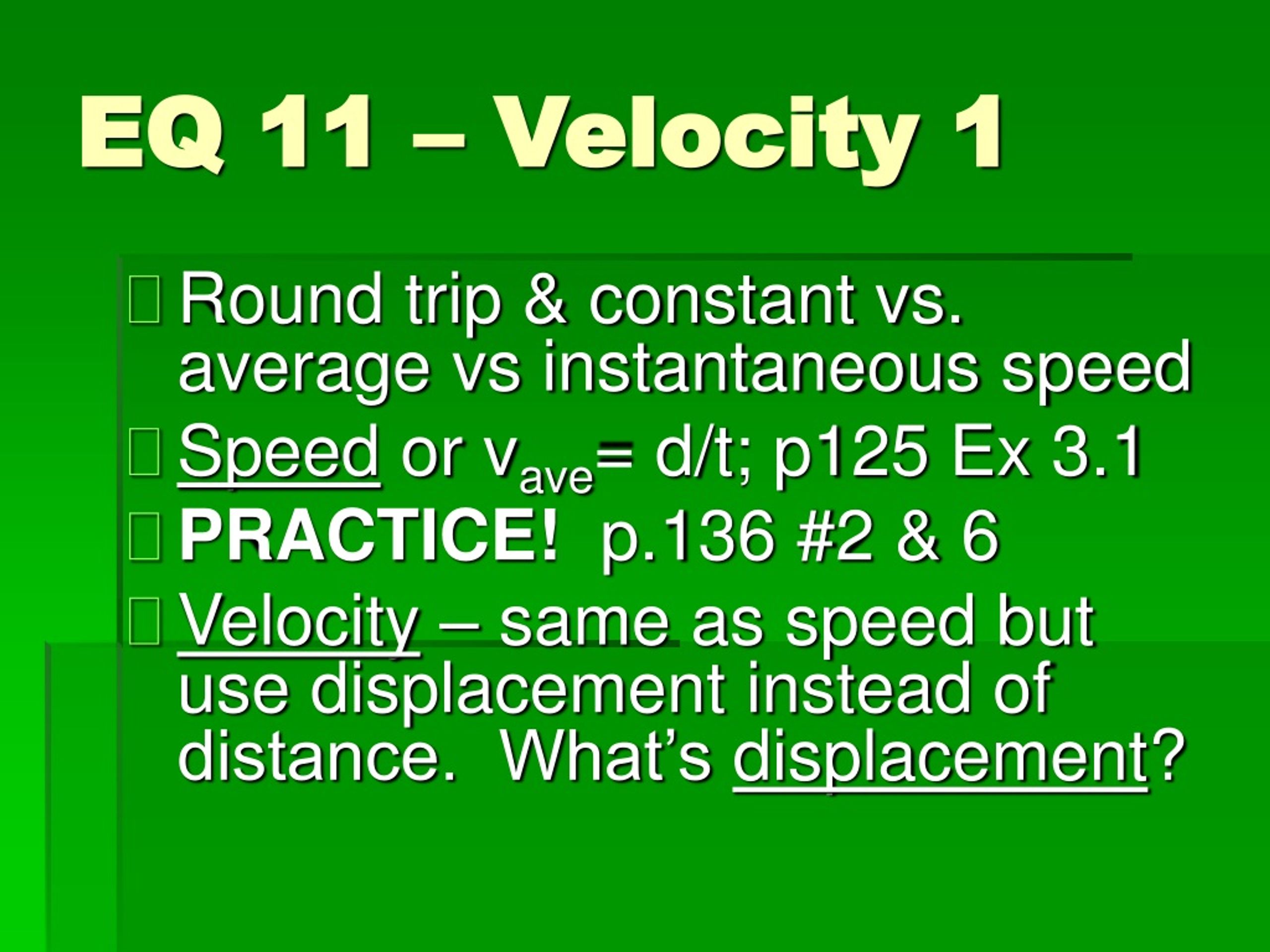

  3. EQ 11 – Velocity 1 • Round trip & constant vs. average vs instantaneous speed • Speed or vave= d/t; p125 Ex 3.1 • PRACTICE! p.136 #2 & 6 • Velocity – same as speed but use displacement instead of distance. What’s displacement?

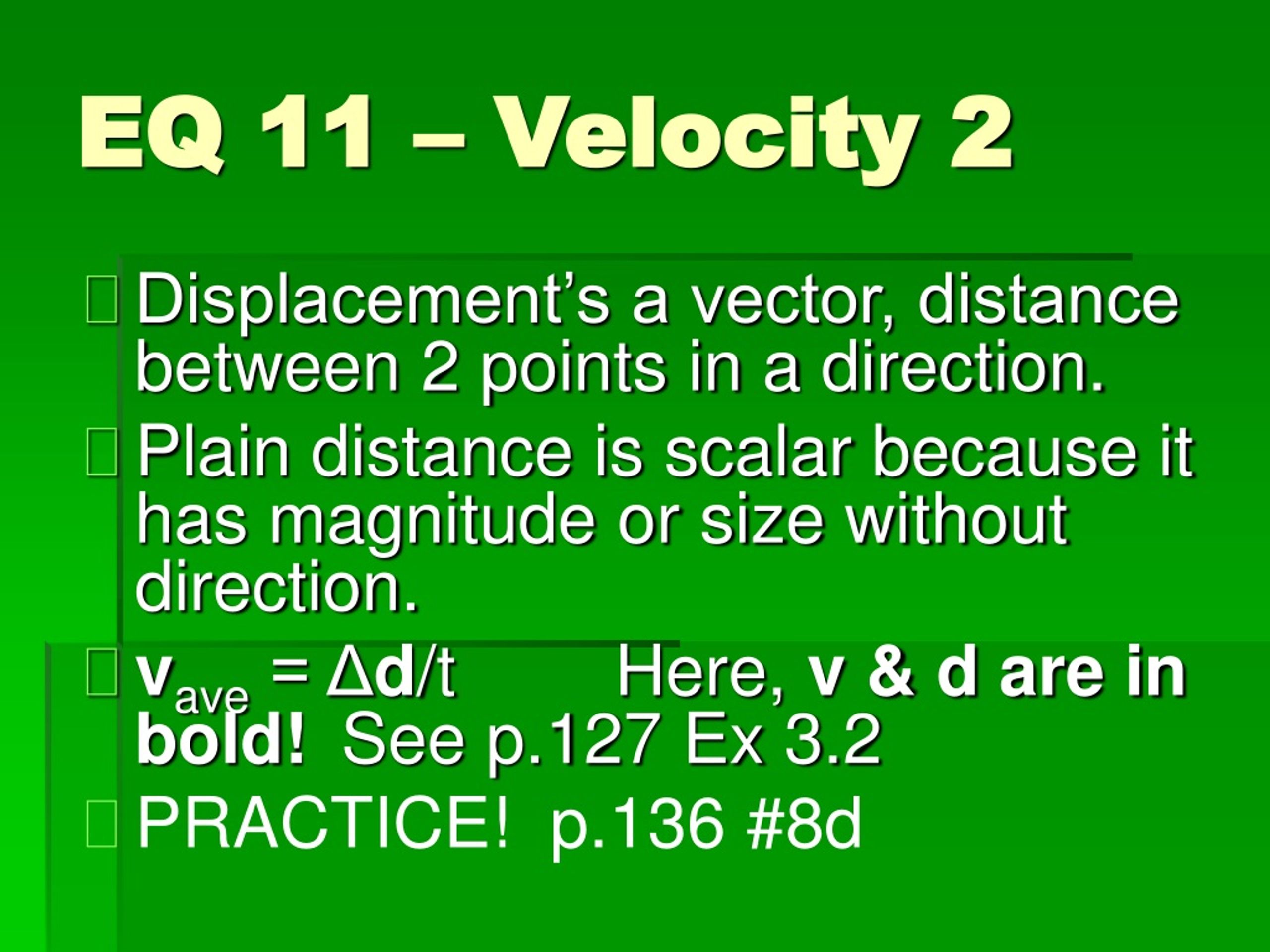

  4. EQ 11 – Velocity 2 • Displacement’s a vector, distance between 2 points in a direction. • Plain distance is scalar because it has magnitude or size without direction. • vave = Δd/t Here, v & d are in bold! See p.127 Ex 3.2 • PRACTICE!p.136 #8d

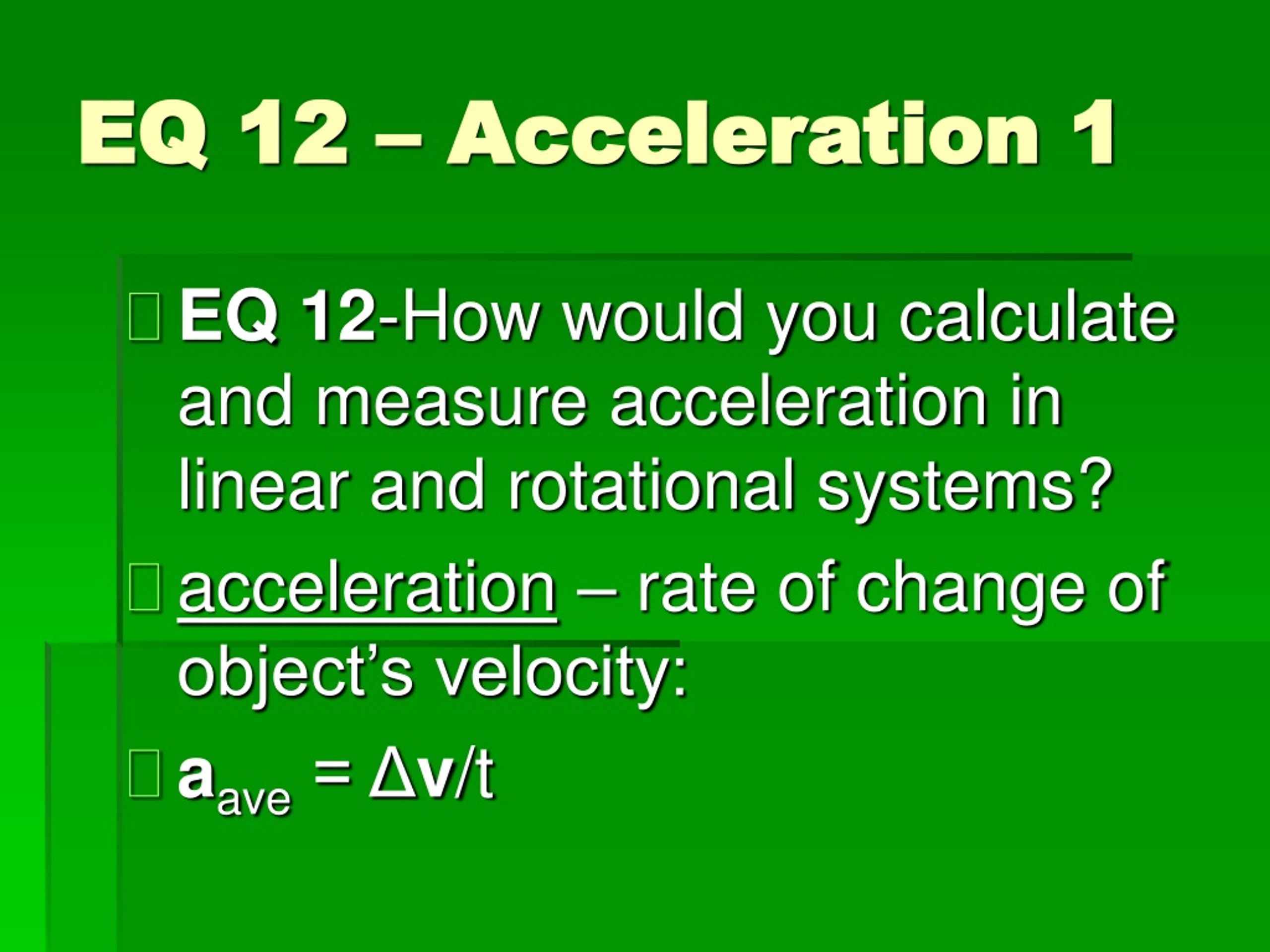

  5. EQ 12 – Acceleration 1 • EQ 12-How would you calculate and measure acceleration in linear and rotational systems? • acceleration – rate of change of object’s velocity: • aave = Δv/t

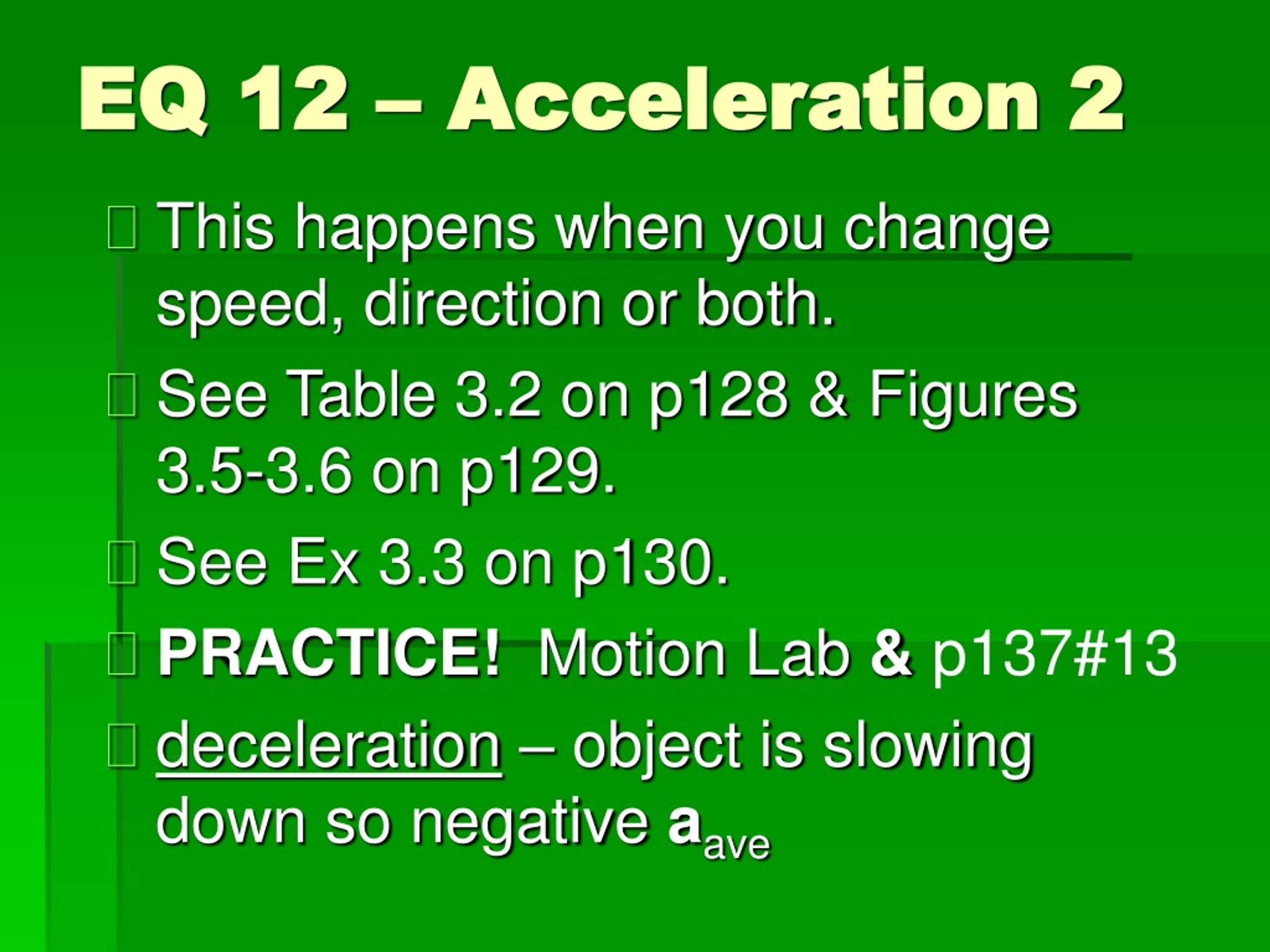

  6. EQ 12 – Acceleration 2 • This happens when you change speed, direction or both. • See Table 3.2 on p128 & Figures 3.5-3.6 on p129. • See Ex 3.3 on p130. • PRACTICE! Motion Lab & p137#13 • deceleration – object is slowing down so negative aave

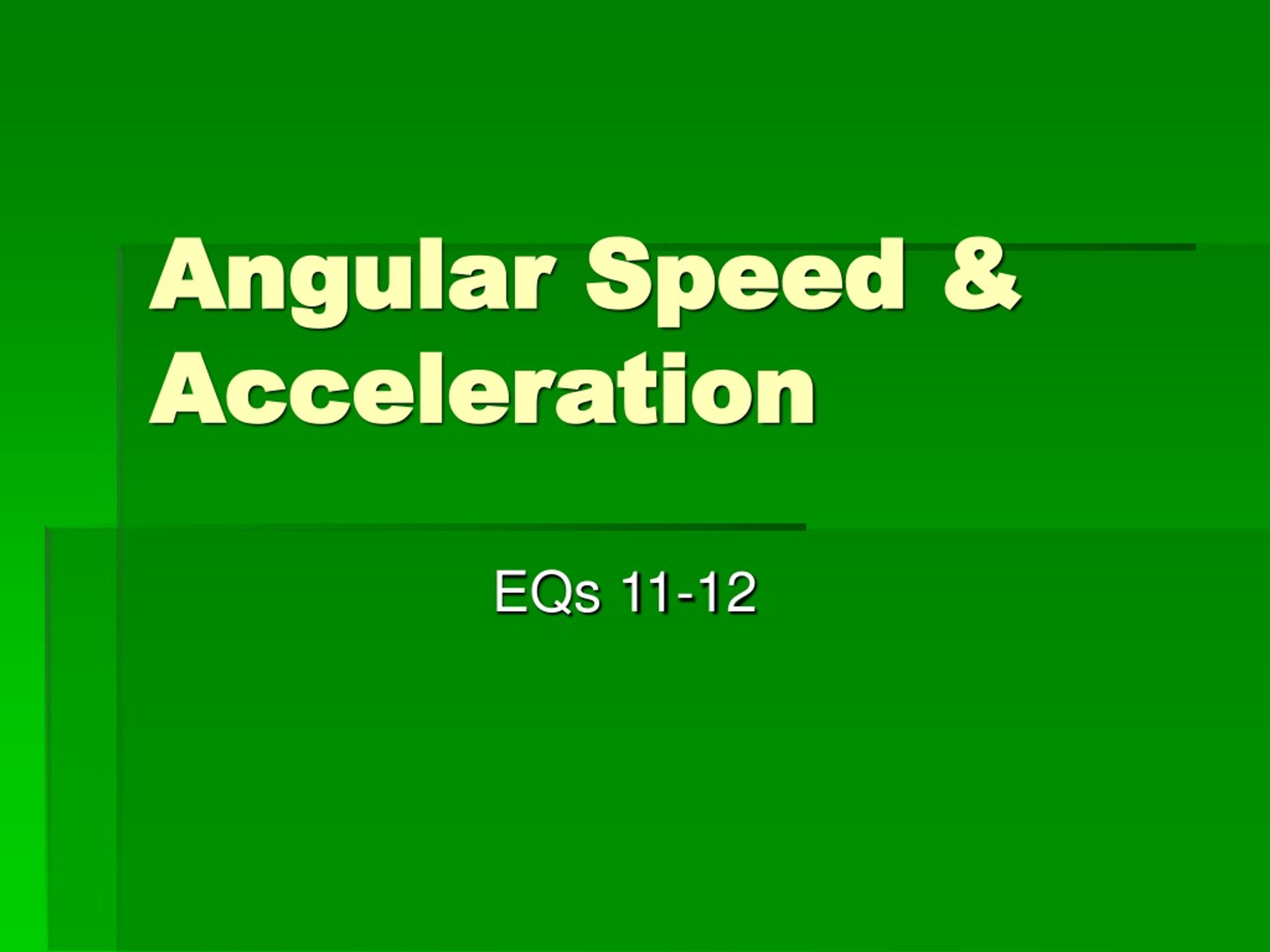

  7. Angular Speed & Acceleration EQs 11-12

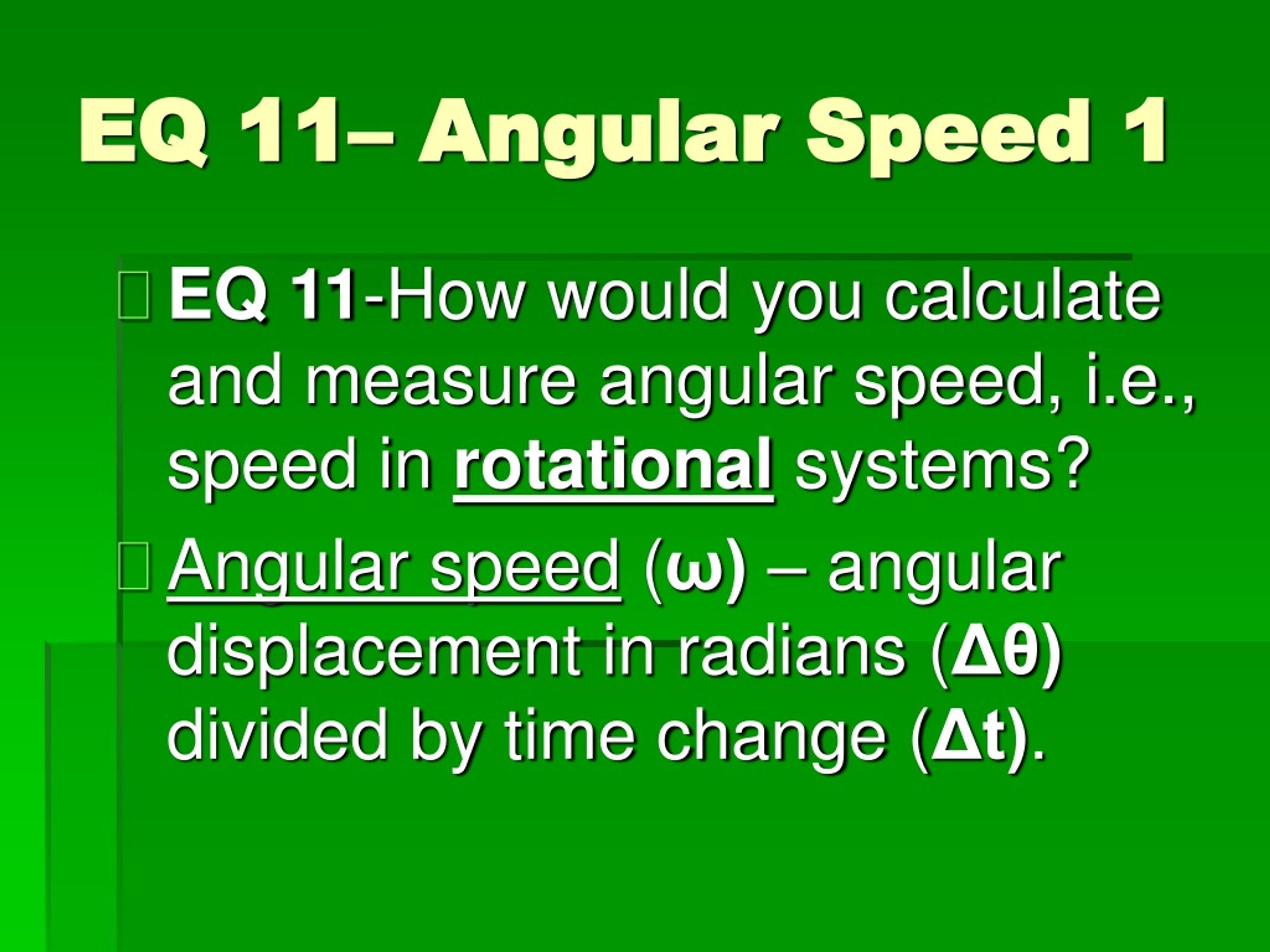

  8. EQ 11– Angular Speed 1 • EQ 11-How would you calculate and measure angular speed, i.e., speed in rotational systems? • Angular speed (ω) – angular displacement in radians (Δθ) divided by time change (Δt).

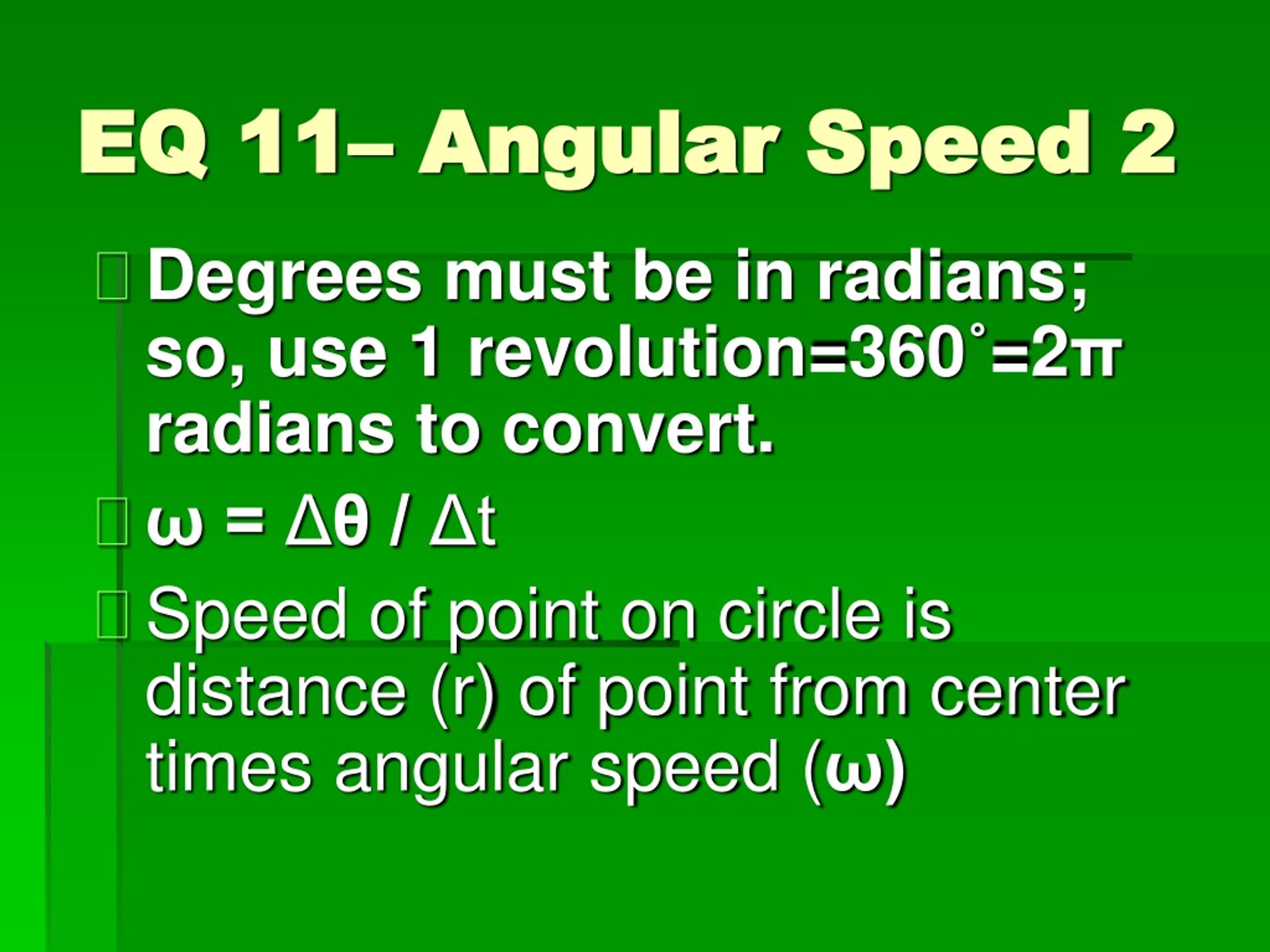

  9. EQ 11– Angular Speed 2 • Degrees must be in radians; so, use 1 revolution=360˚=2π radians to convert. • ω = Δθ / Δt • Speed of point on circle is distance (r) of point from center times angular speed (ω)

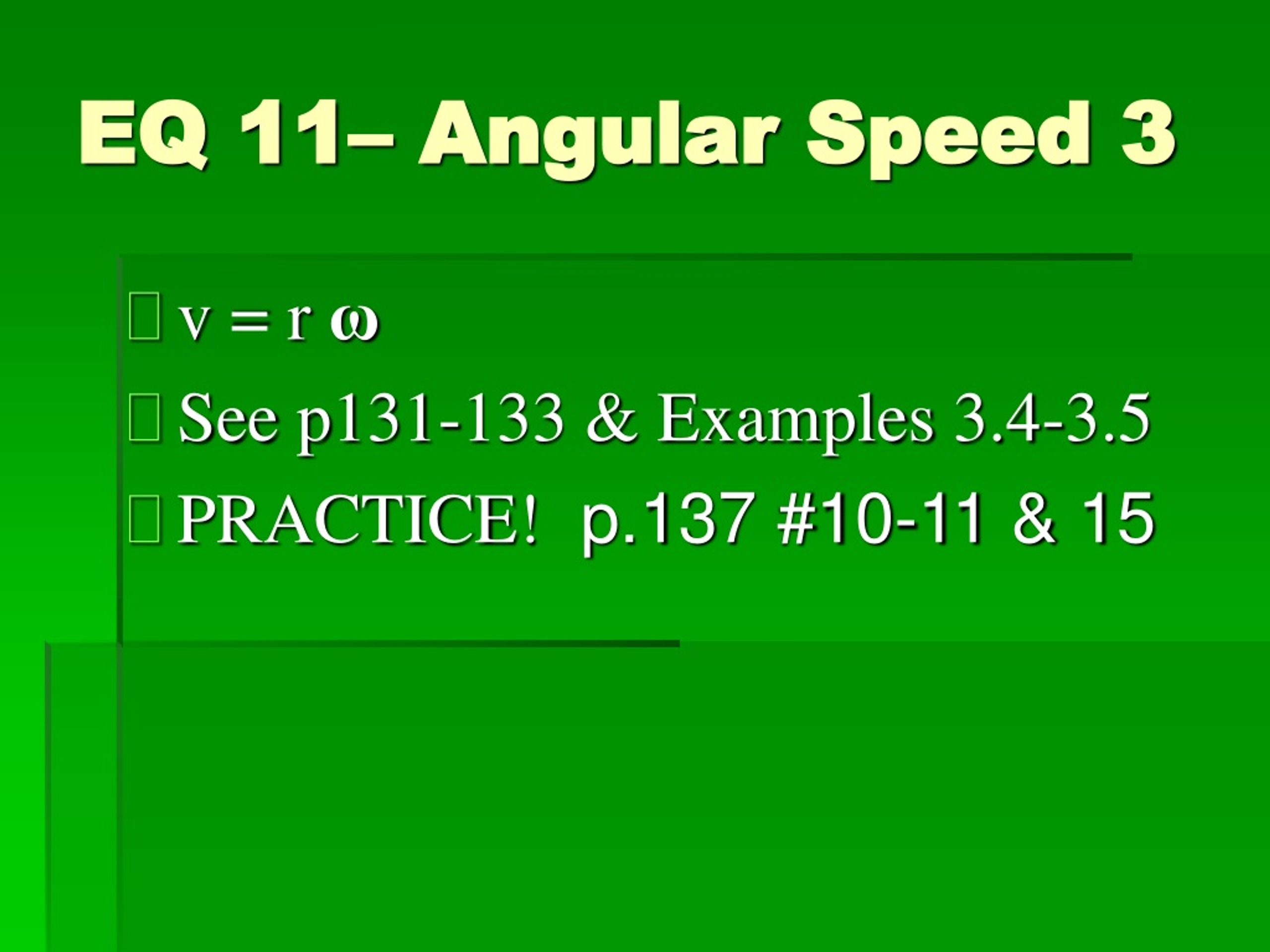

  10. EQ 11– Angular Speed 3 • v = r ω • See p131-133 & Examples 3.4-3.5 • PRACTICE! p.137 #10-11 & 15

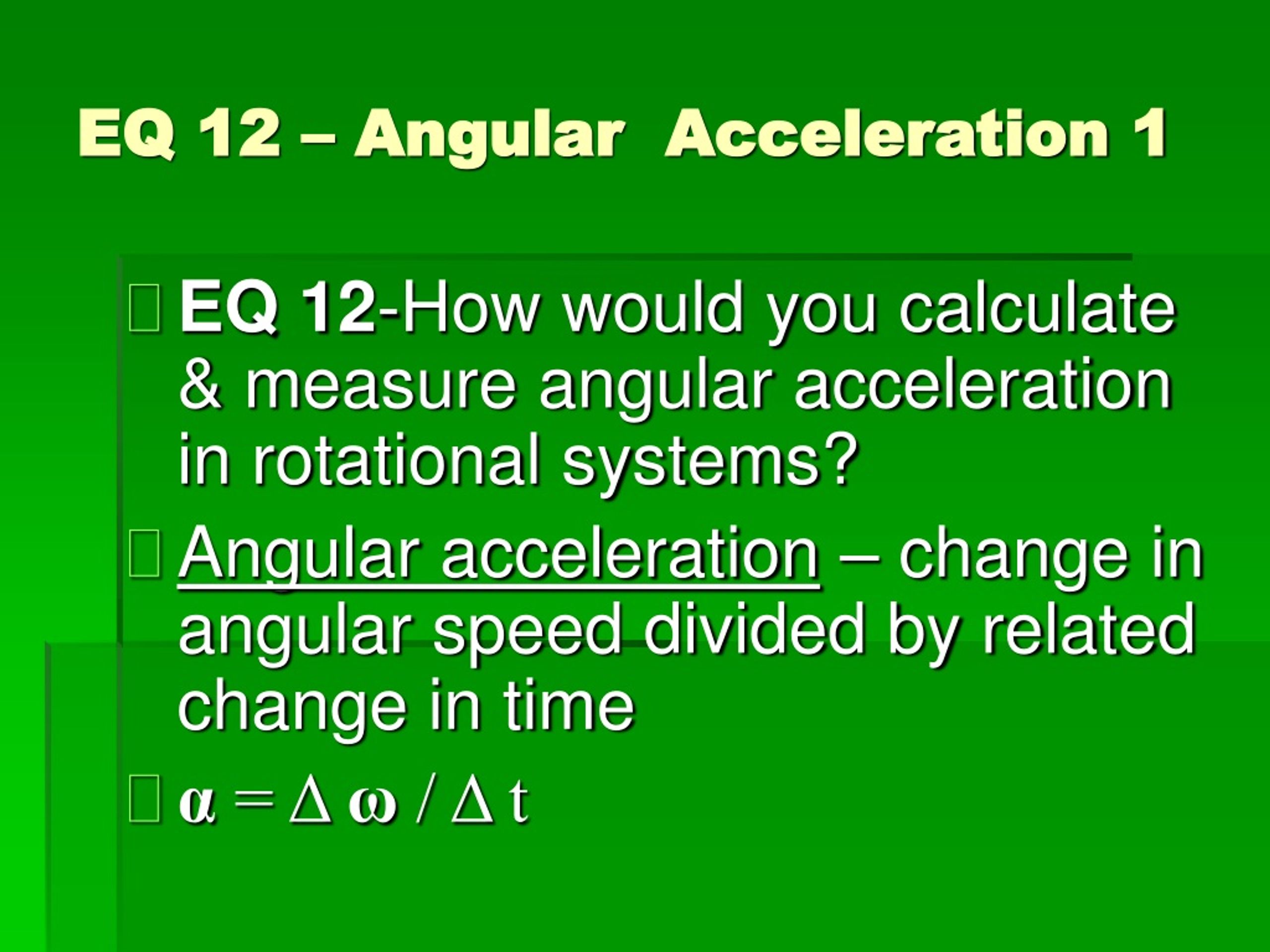

  11. EQ 12 – Angular Acceleration 1 • EQ 12-How would you calculate & measure angular acceleration in rotational systems? • Angular acceleration – change in angular speed divided by related change in time • α = Δ ω / Δ t

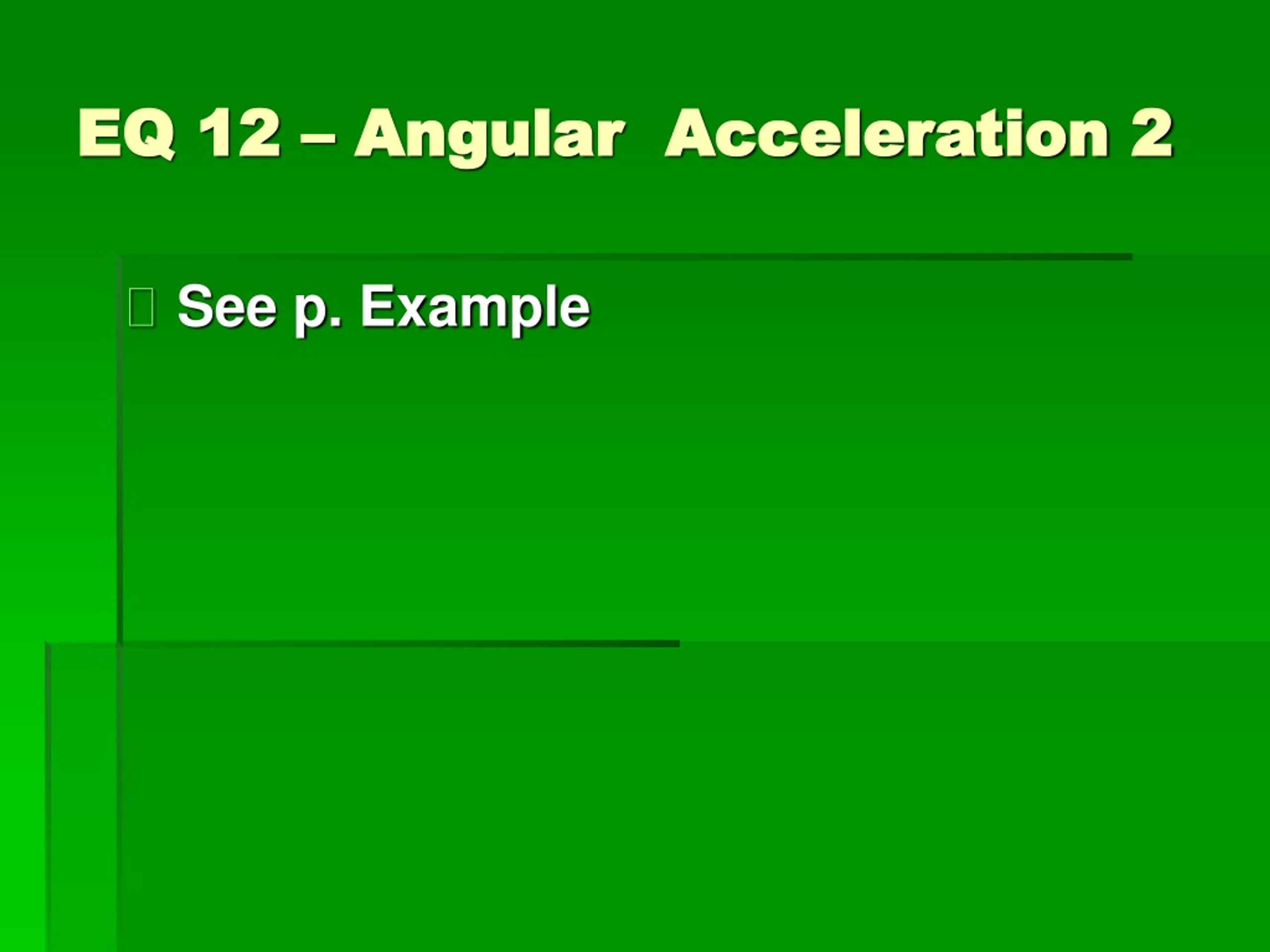

  12. EQ 12 – Angular Acceleration 2 • See p. Example
