Understanding Angles and Parallel Lines in Geometry: A Comprehensive Guide

DESCRIPTION

This educational guide focuses on essential geometry concepts including parallel lines, transversals, linear pairs, and angle relationships. Illustrating key theorems like corresponding angles, alternate interior angles, and vertical angles, this resource aids students in grasping foundational principles. By providing various conjectures and definitions, learners will enhance their problem-solving skills and prepare for advanced geometric principles. Engage with exercises to reinforce understanding of angle relationships in parallel lines and transversal scenarios.

1 / 12

Download Presentation

Understanding Angles and Parallel Lines in Geometry: A Comprehensive Guide

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

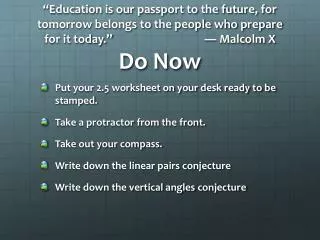

  1. “Education is our passport to the future, for tomorrow belongs to the people who prepare for it today.” ― Malcolm XDo Now • Put your 2.5 worksheet on your desk ready to be stamped. • Take a protractor from the front. • Take out your compass. • Write down the linear pairs conjecture • Write down the vertical angles conjecture

  2. Parallel Lines and Transversals

  3. Parallel Lines • Two lines are said to be parallel if • (i) they both lie in the same plane, and, • (ii) they do not intersect (or cross each other)

  4. Transversal • A third line that crosses a pair of parallel lines on a slant • As the transversal crosses the two parallel lines, eight angles are formed

  5. Draw this in your notes ∠1 = ∠3 = ∠5 = ∠7 and ∠2 = ∠4 = ∠6 = ∠8

  6. Linear Pairs • Pairs of adjacent angles are supplementary (always add up to 180o), as you can see from the figure. • Thus∠ 1 + ∠ 2 = 180o , ∠ 2 + ∠ 3 = 180o , ∠ 3 + ∠ 4 = 180o , ∠ 5 + ∠ 6 = 180o , etc.

  7. Corresponding Angles • Angles in the same relative position around the two intersection points are called corresponding angles . • Thus ∠ 1 and ∠ 5 are corresponding angles, as are ∠ 4 and ∠ 8, • ∠ 2 and ∠ 6, and also ∠ 3 and ∠ 7. • Corresponding angles are congruent (same angle measure).

  8. Alternate Interior Angles • Alternate sides of the transversal • Inside the parallel lines • ∠3 and ∠5 are called alternate interior angles. ∠4 and ∠6 are also alternate interior angles. • Alternate interior angles are congruent.

  9. Alternate Exterior Angles • Alternate sides of the transversal • Outside the parallel lines • ∠2 and ∠8 are called alternate exterior angles. ∠1 and ∠7 are also alternate exteriorangles. • Alternate exterior angles are congruent.

  10. Vertical Angles • When two lines cross they form four angles. • ∠ 1 and ∠ 3 are said to be vertical angles • ∠ 2 and ∠ 4 also form vertical angles. • Vertical angles are congruent. • Thus∠ 1 = ∠ 3 and ∠ 2 = ∠ 4

  11. Determine the values of angles A, B, C,and D, in the figure below. Assume that the horizontal lines are parallel.

  12. Exit Slip • Give a counterexample to this statement: “If two angles are supplementary, then they are congruent.” • Use the diagram at the right • Find m<1+m<2. • Find m<4. • Find m<3+m<4. 3. Name the relationship between <1 and <4. 4. Name the relationship between <1 and <2.
