  1. OPTICAL TOOLS COMPETENCE : IDENTIFICATION OF ELECTRONIC COMPONENT By. SETYO SMK MUH.3 YOGYA

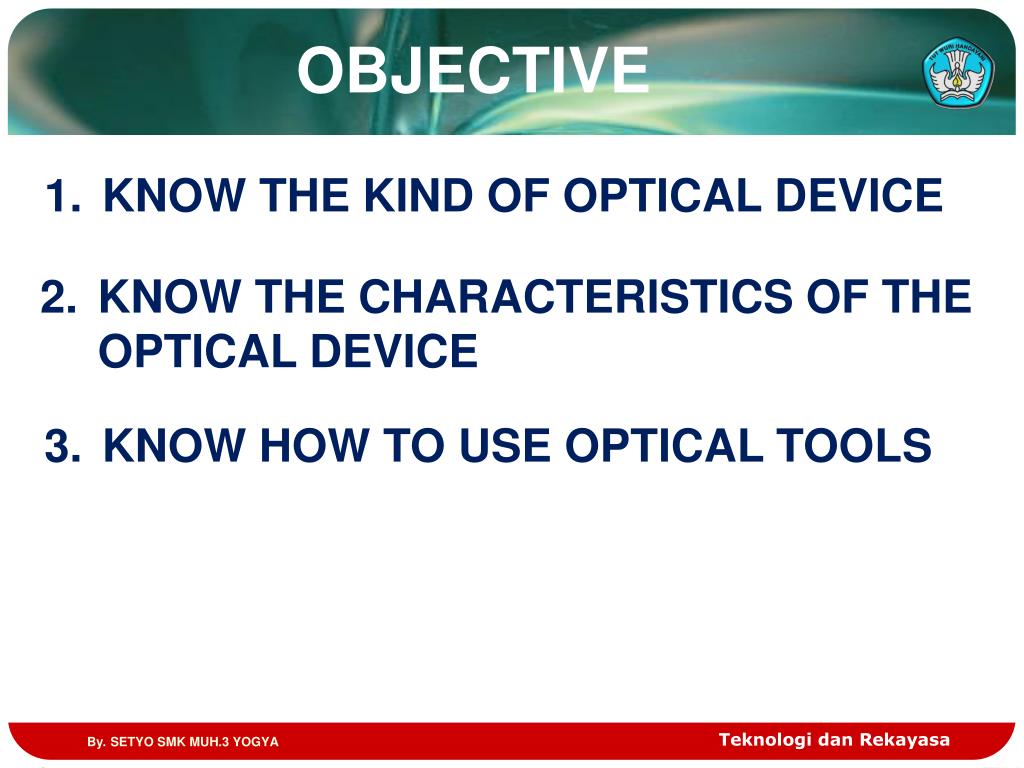

  2. OBJECTIVE KNOW THE KIND OF OPTICAL DEVICE KNOW THE CHARACTERISTICS OF THE OPTICAL DEVICE KNOW HOW TO USE OPTICAL TOOLS Teknologi dan Rekayasa By. SETYO SMK MUH.3 YOGYA

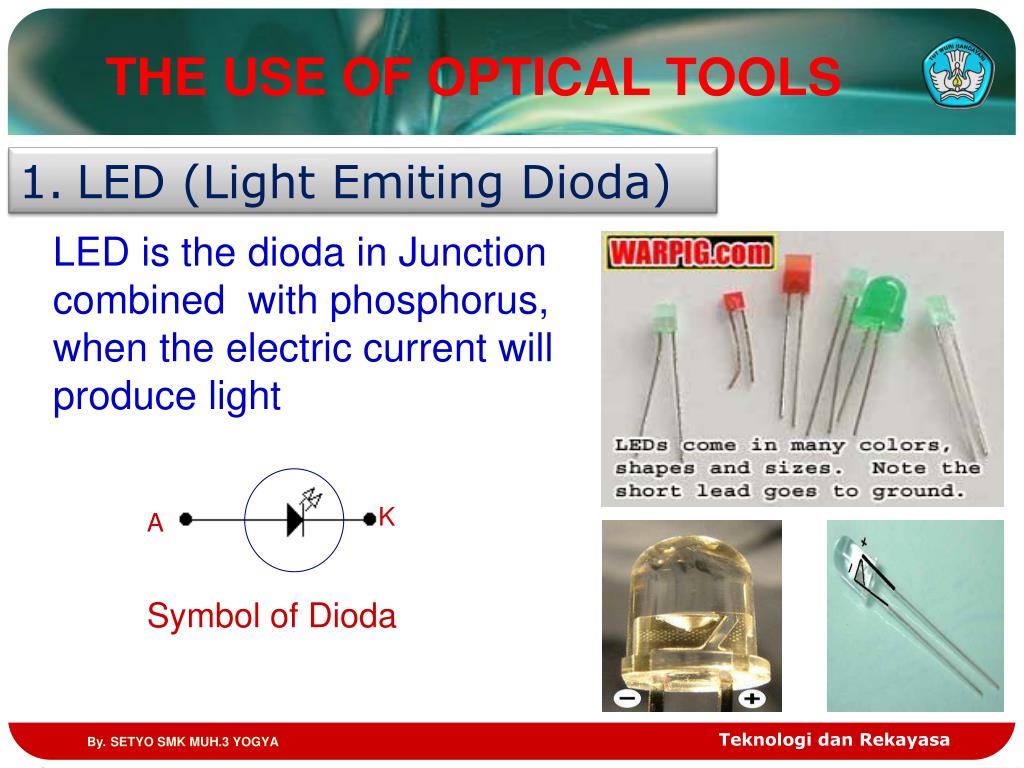

  3. THE USE OF OPTICAL TOOLS LED (Light Emiting Dioda) LED is the dioda in Junction combined with phosphorus, when the electric current will produce light Symbol of Dioda K A TeknologidanRekayasa By. SETYO SMK MUH.3 YOGYA

  4. LCD (Liquid Crystal Display) LCD is display tools are widely used as an output display Digital process, such as Calculator, Clock, Counter and even monitor the Personal Computer LCD Calculator Display LCD for Display LCD for PC Teknologi dan Rekayasa By. SETYO SMK MUH.3 YOGYA

  5. OPTICAL TOOLS IN SOLAR CELLS Solar Cells is photovoltaic panels, Crystal from the processing silica sand that is made in the series-parallel when the mold is exposed to sun rays or light TL lamp can produce electrical energy DC or AC Teknologi dan Rekayasa By. SETYO SMK MUH.3 YOGYA

  6. Photo Resistor/LDR (Light Dependent resistor) LDR is a resistor that has a nature when exposed to light resistansi value will be changed The bright light the small value resistansi, and light the dark when the value of the larger resistansi Teknologi dan Rekayasa By. SETYO SMK MUH.3 YOGYA

  7. Photo Dioda Photo Dioda is a semiconductor that has a 2 pole, Anoda and cathode structure PN Junction in combination with the Optics, that cash flow is determined by the size of the light so The bright light of the electric currentw A K Teknologi dan Rekayasa By. SETYO SMK MUH.3 YOGYA

  8. Photo Transistor Photo Transistor is a semi-conductor that has a 3 electrode, Emitor, Basis and Colektor, structure and PN Junction NP or otherwise combined with Optic, so that the flow of base flow is determined by the size of the light intensity NPN PNP Used Photo transistors is widely used as a means of control electronics associated with the current settings using the effect light Teknologi dan Rekayasa By. SETYO SMK MUH.3 YOGYA

  9. THE END THANKS YOU Teknologi dan Rekayasa By. SETYO SMK MUH.3 YOGYA
