Presentation Transcript
Implicit surfaces l.jpg

Implicit Surfaces

CS 319

Advanced Topics in Computer Graphics

John C. Hart


Implicit surfaces2 l.jpg
Implicit Surfaces

f = 0

f < 0

f > 0

  • Real function f (x,y,z)

  • Classifies points in space

  • Image synthesis (sometimes)

    • inside f > 0

    • outside f < 0

    • on the surface f = 0

  • CAGD: inside f < 0, outside f > 0

  • Surface f-1(0): Manifold if zero is a regular value of f

f = 0

f > 0

f < 0


Why use implicits l.jpg
Why Use Implicits?

  • v. polygons

    • smoother

    • compact, fewer higher-level primitives

    • harder to display in real time

  • v. parametric patches

    • easier to blend

    • no topology problems

    • lower degree

    • harder to parameterize

    • easier to ray trace


Conversion l.jpg
Conversion

  • Implicitization: parametric -> implicit

    • find f given p s.t. f (p(s,t)) = 0

    • elimination, resultants [Sederberg 83]

    • “moving surfaces” method reduces degree

  • Parameterization: implicit -> parametric

    • find p given f s.t. f (p(s,t)) = 0

    • Creates parametric patches

    • Polygonization

    • Texture mapping


Surface normals l.jpg
Surface Normals

  • Surface normal usually gradient of function

    f(x,y,z) = (df/dx, df/dy, df/dz)

  • Gradient not necessarily unit length

  • Gradient points in direction of increasing f

    • Outward when f < 0 denotes interior

    • Inward when f > 0 denotes interior


Plane l.jpg
Plane

x

N

  • Plane bounds half-space

  • Specify plane with point p and normal N

  • Points in plane x are perp. to normal N

  • f is distance if ||N|| = 1

f > 0

p

x

f < 0

f(x) = (x-p)N

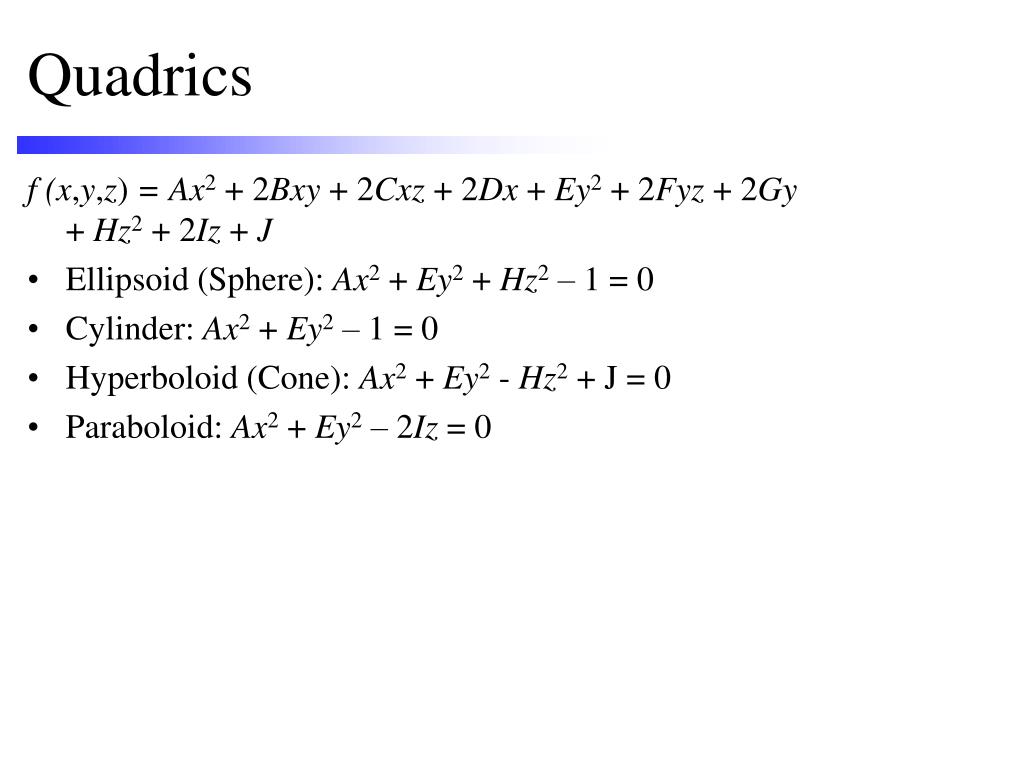

Quadrics l.jpg
Quadrics

f (x,y,z) =Ax2 + 2Bxy + 2Cxz + 2Dx + Ey2 + 2Fyz + 2Gy + Hz2 + 2Iz + J

  • Ellipsoid (Sphere): Ax2 + Ey2 + Hz2 – 1 = 0

  • Cylinder: Ax2 + Ey2 – 1 = 0

  • Hyperboloid (Cone): Ax2 + Ey2 - Hz2 + J = 0

  • Paraboloid: Ax2 + Ey2 – 2Iz = 0


Homogeneous quadrics l.jpg
Homogeneous Quadrics

Homogeneous coordinates

  • [xyzw]

  • Divide by w to find actual coords: [x/wy/wz/w 1]

f(x) = xTQx

Transforming quadrics

x Q xT = 0, x’ = xT

find Q’ s.t. x’Q’x’T = 0

x = x’T* since x homo.

x’T* Q (x’T*)T = 0

x’(T* QT*T)x’T = 0

Q’ = T* QT*T

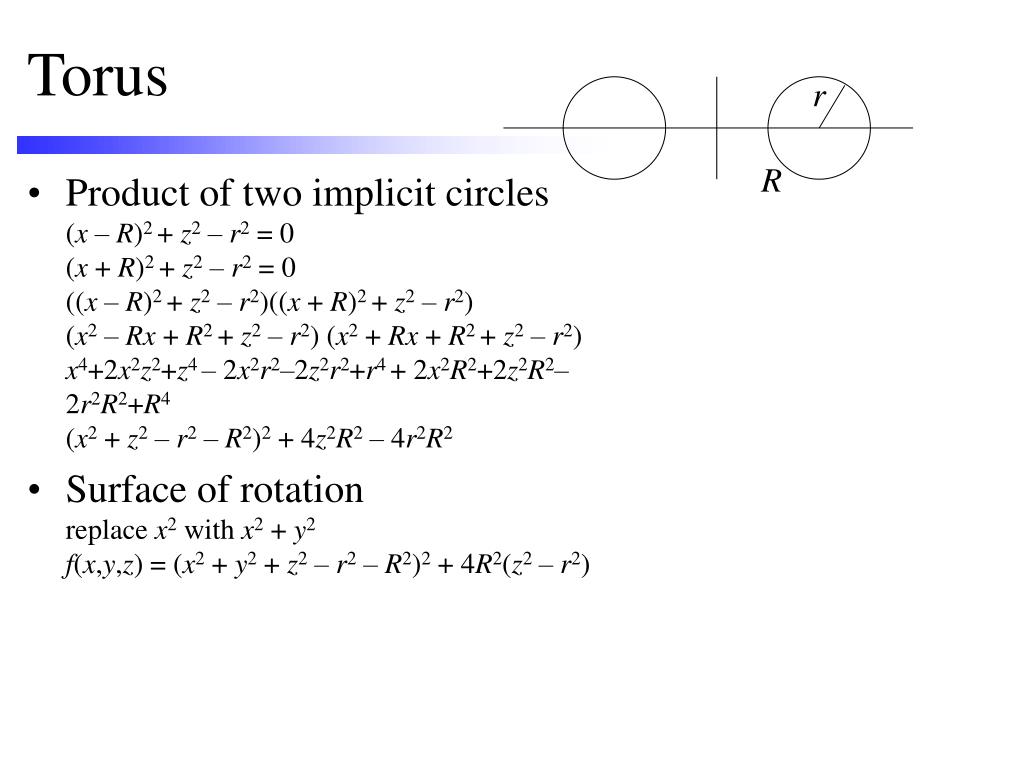

Torus l.jpg
Torus

r

R

  • Product of two implicit circles

    (x – R)2 + z2 – r2 = 0

    (x + R)2 + z2 – r2 = 0

    ((x – R)2 + z2 – r2)((x + R)2 + z2 – r2)

    (x2 – Rx + R2 + z2 – r2) (x2 + Rx + R2 + z2 – r2)

    x4+2x2z2+z4 – 2x2r2–2z2r2+r4 + 2x2R2+2z2R2–2r2R2+R4

    (x2 + z2 – r2 – R2)2 + 4z2R2 – 4r2R2

  • Surface of rotation

    replace x2 with x2 + y2

    f(x,y,z) = (x2 + y2 + z2 – r2 – R2)2 + 4R2(z2 – r2)


Deforming implicits l.jpg
Deforming Implicits

  • f on undeformed space

  • Affine

    • Scale: (ax,by,cz) (stretch, squash)

    • Shear: (x + ay + bz, y + cz, z)

  • Non-Affine (Barr S84)

    • Taper: (z x, z y, z)

    • Twist: (x cos z - y sin z, x sin z + y cos z, z)

    • Bend: look it up…

( f T-1)(x,y,z)

f (T-1(x,y,z))

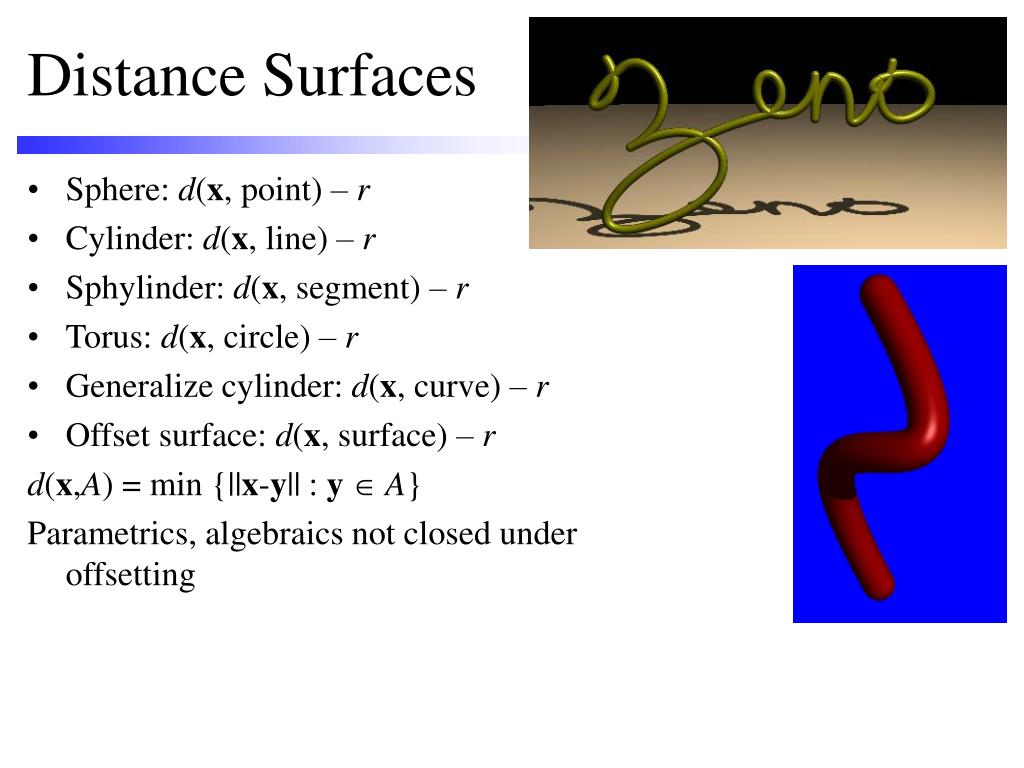

Distance surfaces l.jpg
Distance Surfaces

  • Sphere: d(x, point) – r

  • Cylinder: d(x, line) – r

  • Sphylinder: d(x, segment) – r

  • Torus: d(x, circle) – r

  • Generalize cylinder: d(x, curve) – r

  • Offset surface: d(x, surface) – r

    d(x,A) = min {||x-y|| : yA}

    Parametrics, algebraics not closed under offsetting


Slide12 l.jpg
CSG

f < 0

g < 0

  • Assume f < 0 inside

  • CSG ops by min/max ops

    • Union: min f,g

    • Intersection: max f,g

    • Complement: -f

    • Subtraction: max f,-g

  • Problem: C1 discontinuity

  • Can we smooth the blend crease?

f < 0

g < 0

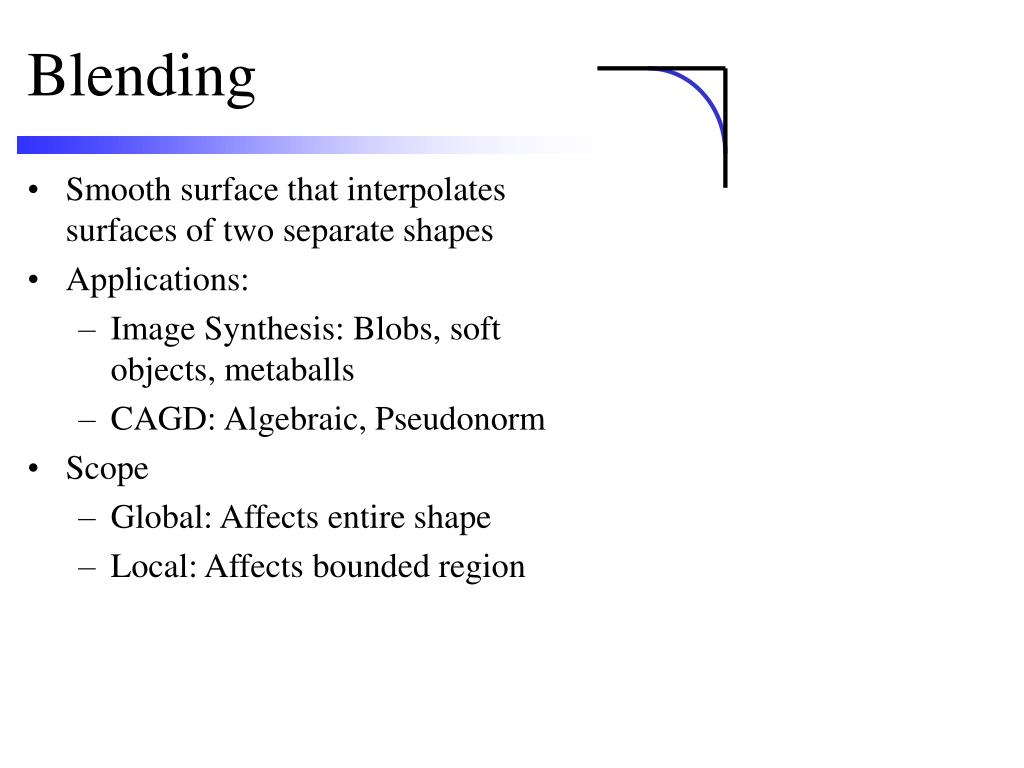

Blending l.jpg
Blending

  • Smooth surface that interpolates surfaces of two separate shapes

  • Applications:

    • Image Synthesis: Blobs, soft objects, metaballs

    • CAGD: Algebraic, Pseudonorm

  • Scope

    • Global: Affects entire shape

    • Local: Affects bounded region


Blobs l.jpg
Blobs

  • Blinn TOG 1(3) 1982

  • Sum of Gaussians

    ri2(x,y,z) = x2 + y2 + z2

    f(x) = -1 + Sexp(-(Bi/Ri2)ri2 + Bi)

    B – blobbiness (positive)

    R – radius of blob at rest

    r – radius function

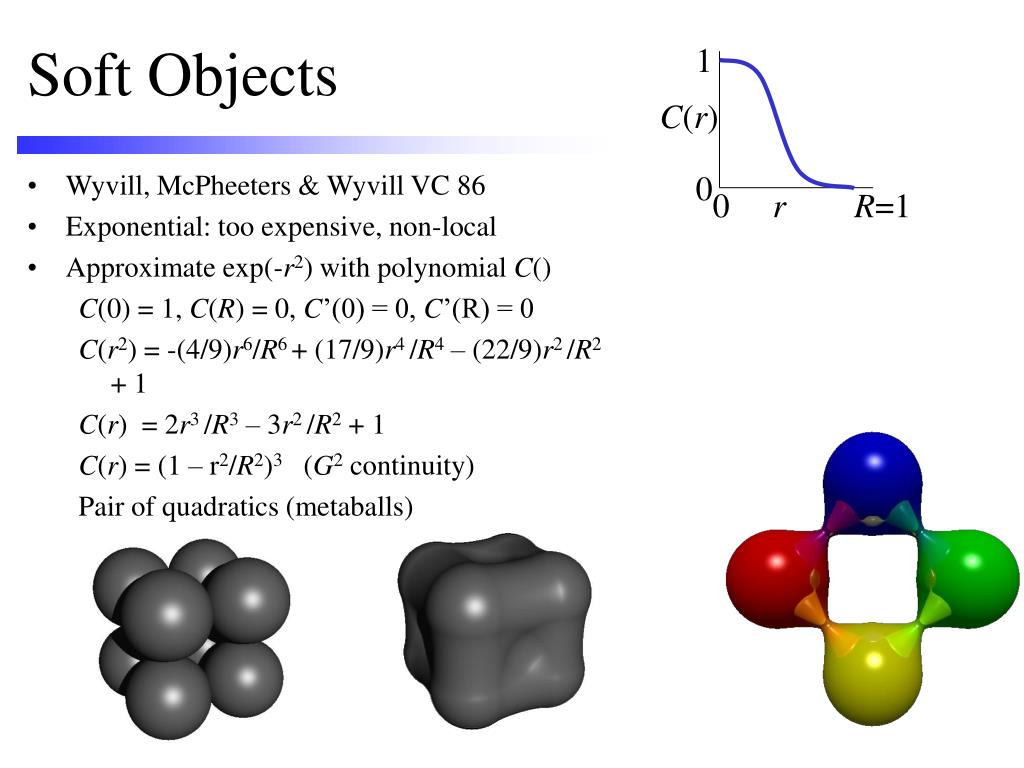

Soft objects l.jpg
Soft Objects

1

C(r)

  • Wyvill, McPheeters & Wyvill VC 86

  • Exponential: too expensive, non-local

  • Approximate exp(-r2) with polynomial C()

    C(0) = 1, C(R) = 0, C’(0) = 0, C’(R) = 0

    C(r2) = -(4/9)r6/R6 + (17/9)r4 /R4 – (22/9)r2 /R2 + 1

    C(r) = 2r3 /R3 – 3r2 /R2 + 1

    C(r) = (1 – r2/R2)3 (G2 continuity)

    Pair of quadratics (metaballs)

0

0

r

R=1


Algebraic blends l.jpg
Algebraic Blends

r2

s2

  • Hoffman & Hopcroft VC 85

  • Blend f -1(0) with g-1(0)

  • Consider shells f -1(s1), g-1(s2)

  • Blends occur where f -1(s1) intersects g-1(s2)

  • Define some h(s1,s2) = 0

  • h(s1,s2) = (s1 – r1)2/r12 +(s2 – r2)2/r22 – 1 (ellipse)

  • Blend: H(x) = h( f (x),g(x))

  • If f,g quadric, then H quartic, usually a torus

  • If f < r1 and g < r2 then return H otherwise return min f,g

r1

s1


Pseudonorm blend l.jpg

y

Pseudonorm Blend

r2

S(x,y) = 1 - [1 - x/r1]t - [1 - y/r2]t

  • Rockwood Geometric Modeling: Algorithms & Trends 1987, Ed. Farin.

  • Local blend

    • r1,r2 extent of blend

    • t adherence

x

r1

BU ( f,g) = 1 - [1 - f/r1]t - [1 - g/r2]t

BI ( f,g) = -BU (-f,-g)


Blend normals l.jpg
Blend Normals

  • H(x) = h( f (x),g(x))

  • h(f,g) = A( f ) + B(g) + C, usually

  • H = A’( f ) f + B’(g) g

  • E.g. algebraic blend

    • h(f,g) = (f-a)2/a2 + (g-b)2/b2 – 1

    • H = (2(f-a)/a2)f + (2(g-b)/b2)g

  • Normal of blend a blend of normals


Hypertexture l.jpg
Hypertexture

  • Noise

    • Perlin S85

    • Smoothly interp. random values

  • Noise range deformation

    • f(x,y,z) + N(x,y,z)

    • Islands of debris can form

  • Noise domain deformation

    • f((x,y,z) + DN(x,y,z))

    • No debris


Ray tracing l.jpg
Ray Tracing

d

o

  • Parametric ray

    • r(t) = o + td

    • anchor o

    • (unit) direction d

  • Solve implicit function on ray

    • F(t) = f(r(t))

    • Real function of one variable

    • Zeroes of F  implicit surface ray intersections

F

t

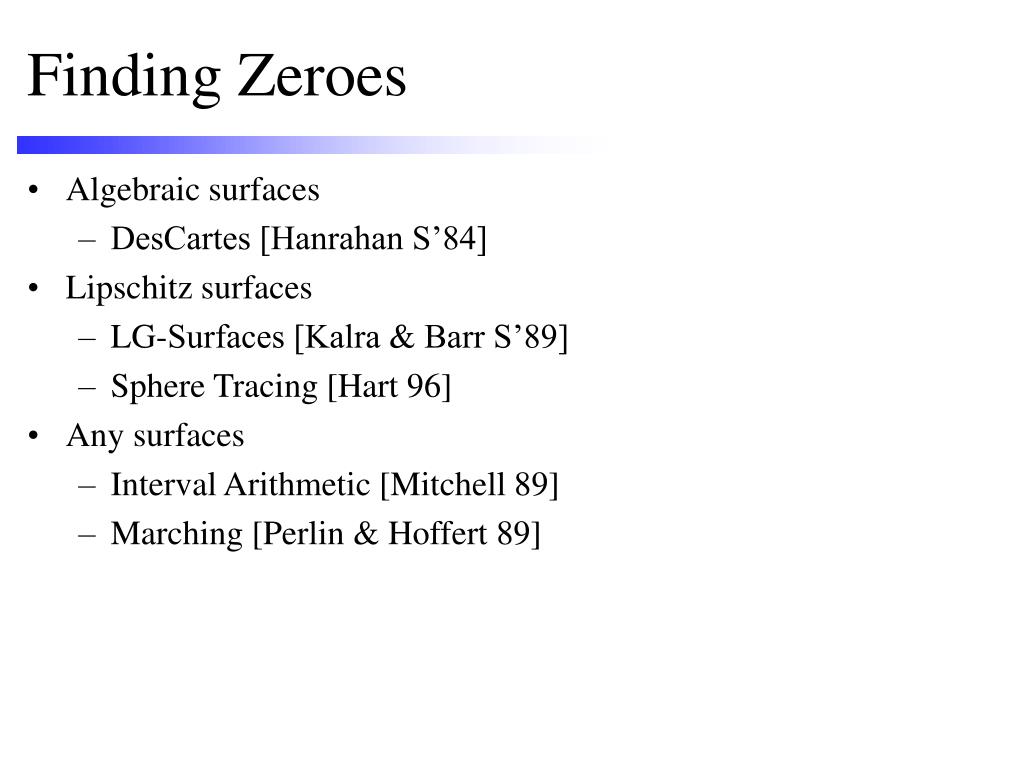

Finding zeroes l.jpg
Finding Zeroes

  • Algebraic surfaces

    • DesCartes [Hanrahan S’84]

  • Lipschitz surfaces

    • LG-Surfaces [Kalra & Barr S’89]

    • Sphere Tracing [Hart 96]

  • Any surfaces

    • Interval Arithmetic [Mitchell 89]

    • Marching [Perlin & Hoffert 89]
