  1. JENDL/HE-2007 & On going Activities for JENDL-4 S. Kunieda Japan Atomic Energy Agency Y. Watanabe Kyushu University IAEA 1-st RCM of CRP on FENDL-3.0, 2-5 Dec. 2008

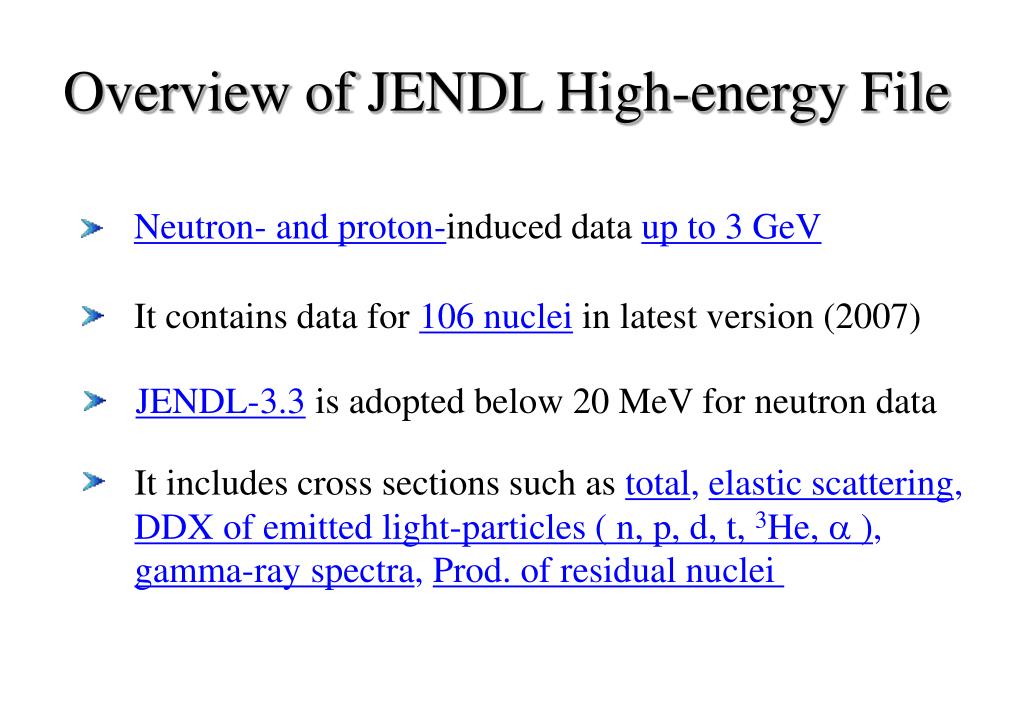

  2. Overview of JENDL High-energy File Neutron- and proton-induced data up to 3 GeV It contains data for 106 nuclei in latest version (2007) JENDL-3.3 is adopted below 20 MeV for neutron data It includes cross sections such as total, elastic scattering, DDX of emitted light-particles ( n, p, d, t, 3He, a ), gamma-ray spectra, Prod. of residual nuclei

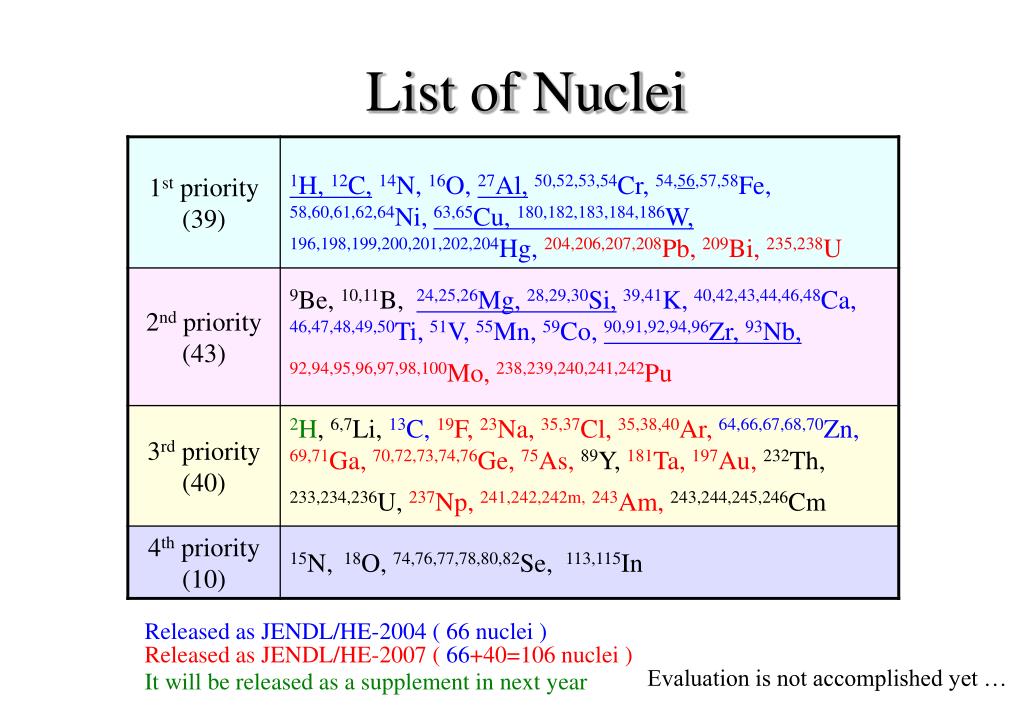

  3. List of Nuclei Released as JENDL/HE-2004 ( 66 nuclei ) Released as JENDL/HE-2007 ( 66+40=106 nuclei ) Evaluation is not accomplished yet … It will be released as a supplement in next year

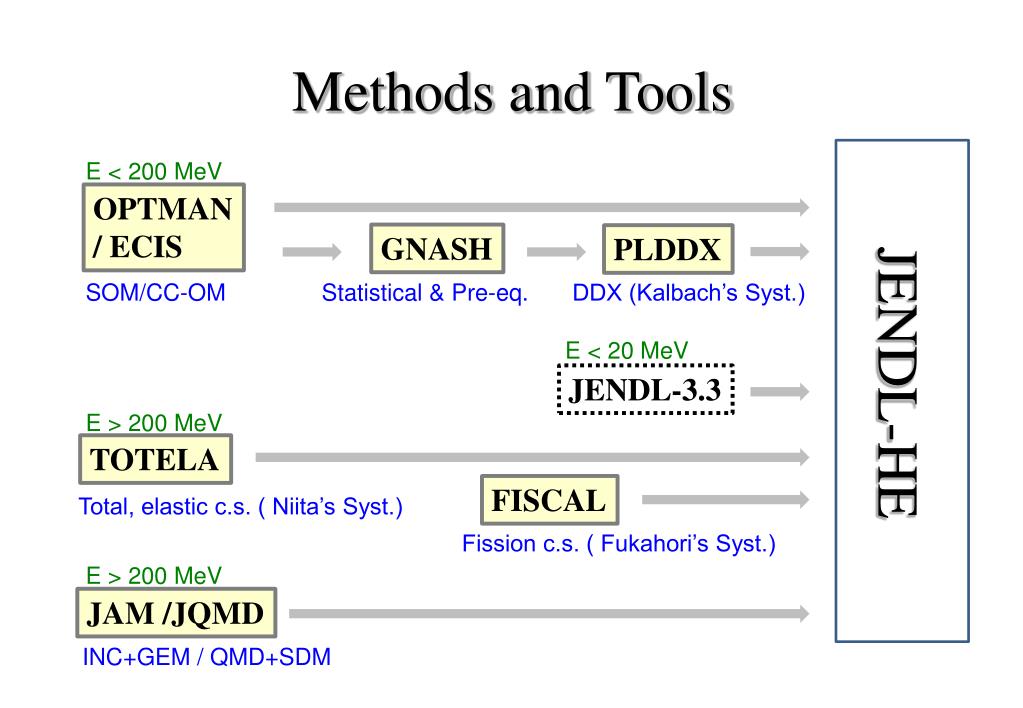

  4. Methods and Tools E < 200 MeV OPTMAN / ECIS GNASH PLDDX SOM/CC-OM Statistical & Pre-eq. DDX (Kalbach’s Syst.) E < 20 MeV JENDL-3.3 JENDL-HE E > 200 MeV TOTELA FISCAL Total, elastic c.s. ( Niita’s Syst.) Fission c.s. ( Fukahori’s Syst.) E > 200 MeV JAM /JQMD INC+GEM / QMD+SDM

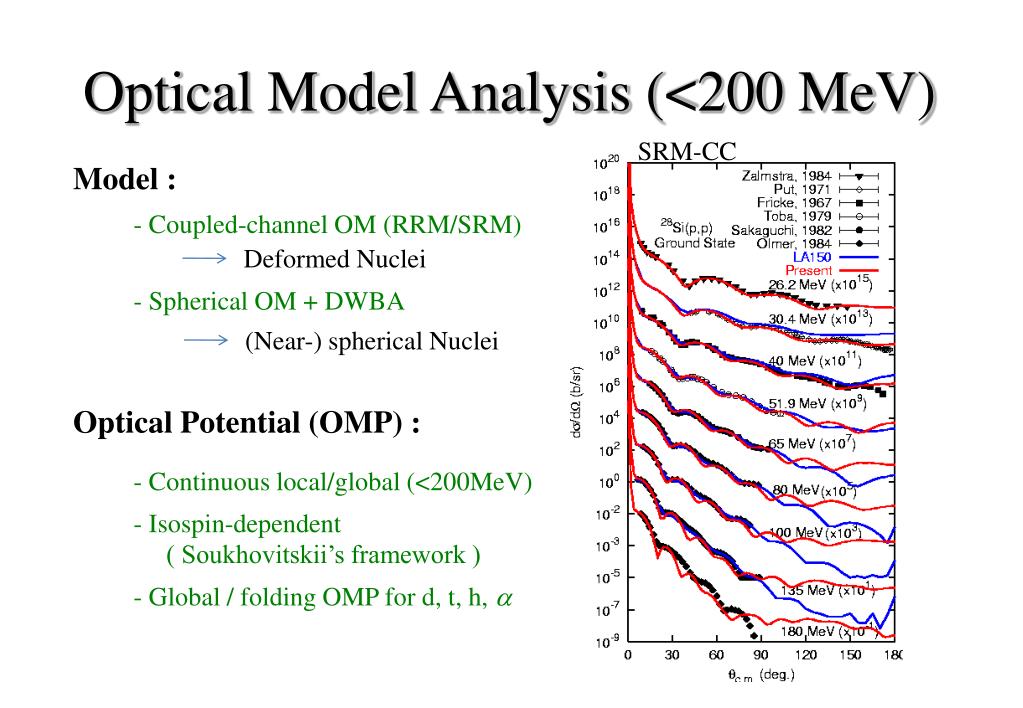

  5. Optical Model Analysis (<200 MeV) SRM-CC Model : • Coupled-channel OM (RRM/SRM) Deformed Nuclei - Spherical OM + DWBA (Near-) spherical Nuclei Optical Potential (OMP) : - Continuous local/global (<200MeV) • Isospin-dependent • ( Soukhovitskii’s framework ) - Global/ folding OMP for d, t, h, a

  6. Optical Model Analysis (<200 MeV) s (barn) s (barn) s (barn) s (barn) s (barn) s (barn)

  7. Optical Model Analysis (<200 MeV) s (barn) s (barn) s (barn) s (barn) s (barn) s (barn)

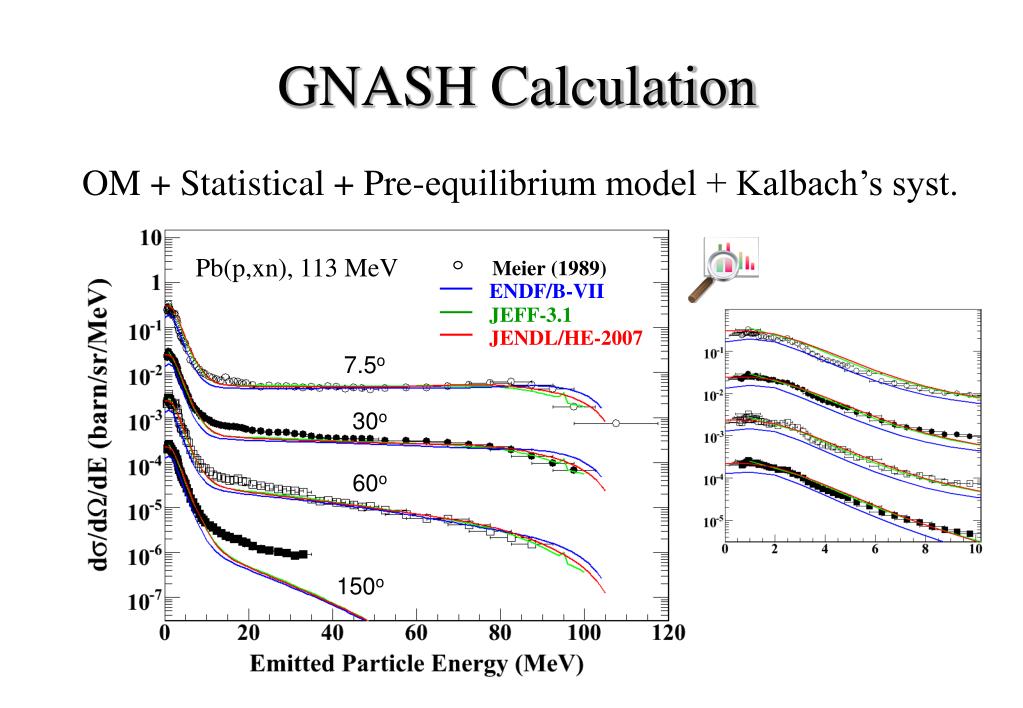

  8. GNASH Calculation OM + Statistical + Pre-equilibrium model + Kalbach’s syst. Meier (1989) ENDF/B-VII Pb(p,xn), 113 MeV JEFF-3.1 JENDL/HE-2007 7.5o 30o 60o 150o

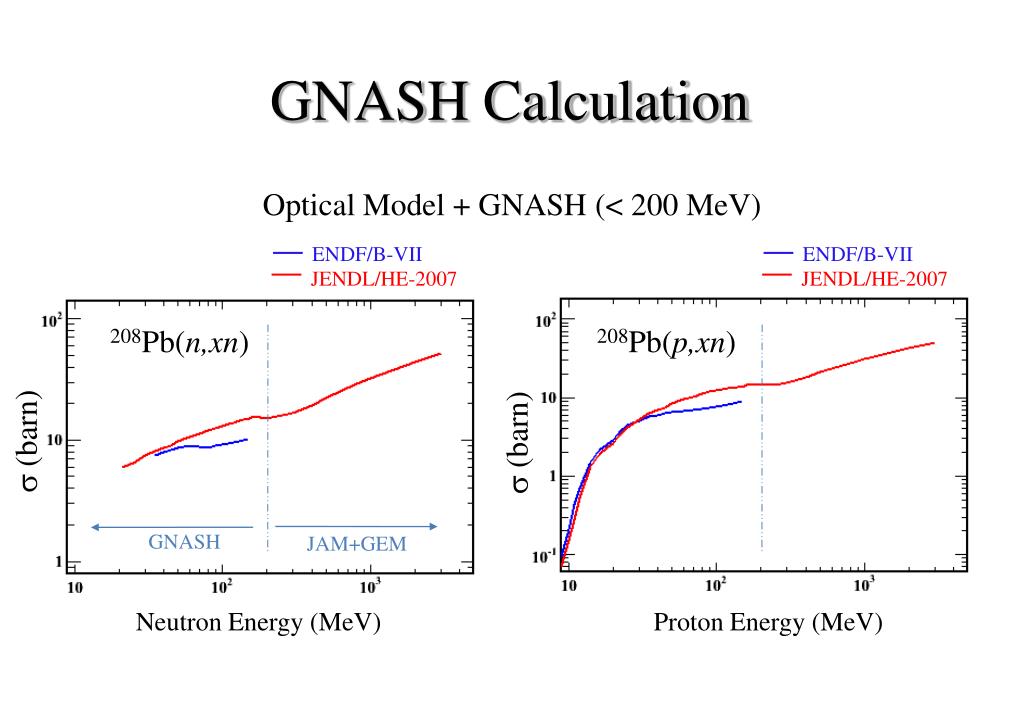

  9. GNASH Calculation Optical Model + GNASH (< 200 MeV) 208Pb(n,xn) 208Pb(p,xn) s(barn) s(barn) ENDF/B-VII ENDF/B-VII JENDL/HE-2007 JENDL/HE-2007 GNASH JAM+GEM Neutron Energy (MeV) Proton Energy (MeV)

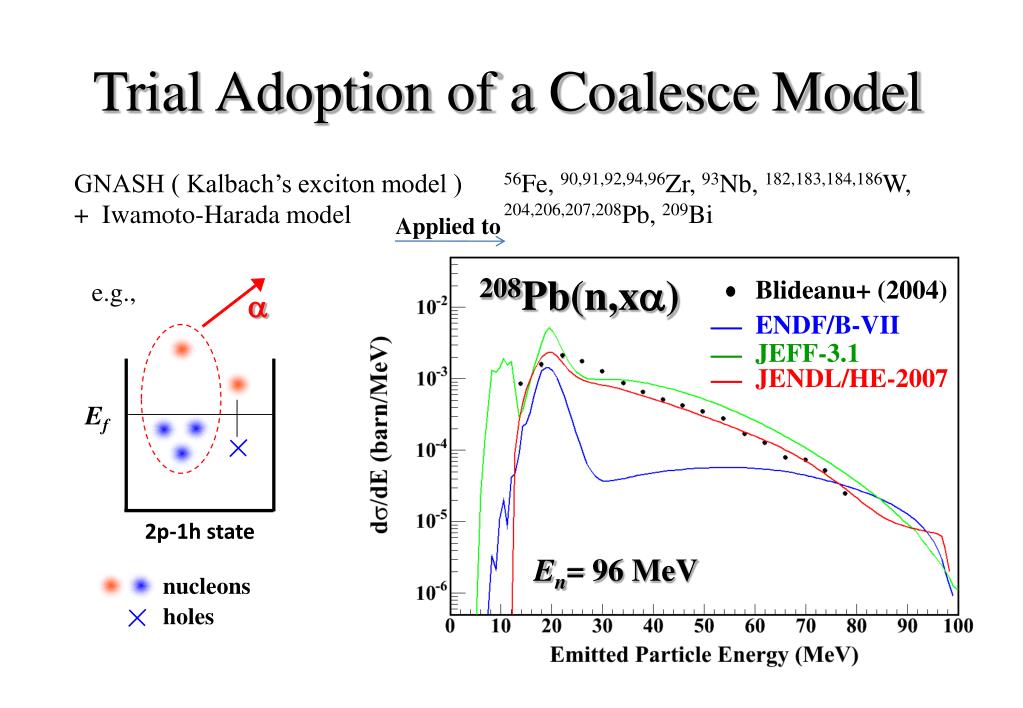

  10. Trial Adoption of a Coalesce Model GNASH ( Kalbach’s exciton model ) + Iwamoto-Harada model 56Fe, 90,91,92,94,96Zr, 93Nb, 182,183,184,186W, 204,206,207,208Pb, 209Bi Applied to e.g., 56Fe(n,xa) a 208Pb(n,xa) Blideanu+ (2004) Sylpen+ (2004) ENDF/B-VII ENDF/B-VII JEFF-3.1 JEFF-3.1 JENDL/HE-2007 Ef JENDL/HE-2007 2p-1h state nucleons En= 62.7 MeV En= 96 MeV holes

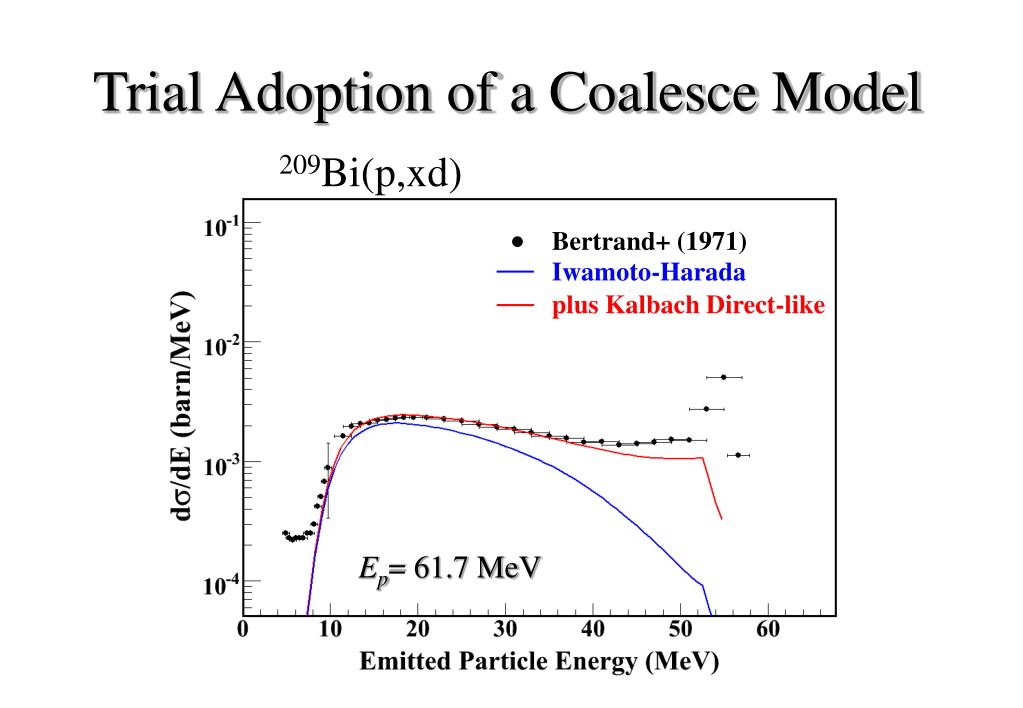

  11. Trial Adoption of a Coalesce Model 209Bi(p,xd) Bertrand+ (1971) Iwamoto-Harada plus Kalbach Direct-like Ep= 61.7 MeV

  12. Titarenko+ (2002) Prod. X-sec. of Residual ENDF/B-VII JEFF-3.1 JENDL/HE-2007 209Bi(p,x) Cross Section (b) Incident Proton Energy (MeV)

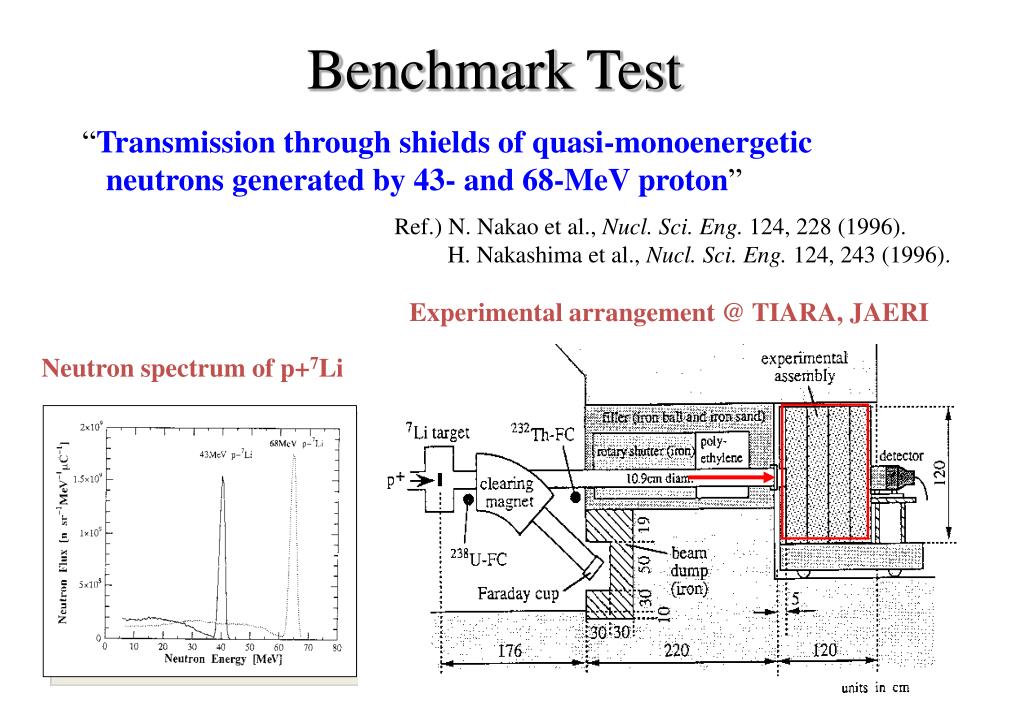

  13. Experimental arrangement @ TIARA, JAERI Benchmark Test “Transmission through shields of quasi-monoenergetic neutrons generated by 43- and 68-MeV proton” Ref.) N. Nakao et al., Nucl. Sci. Eng. 124, 228 (1996). H. Nakashima et al., Nucl. Sci. Eng. 124, 243 (1996). Neutron spectrum of p+7Li

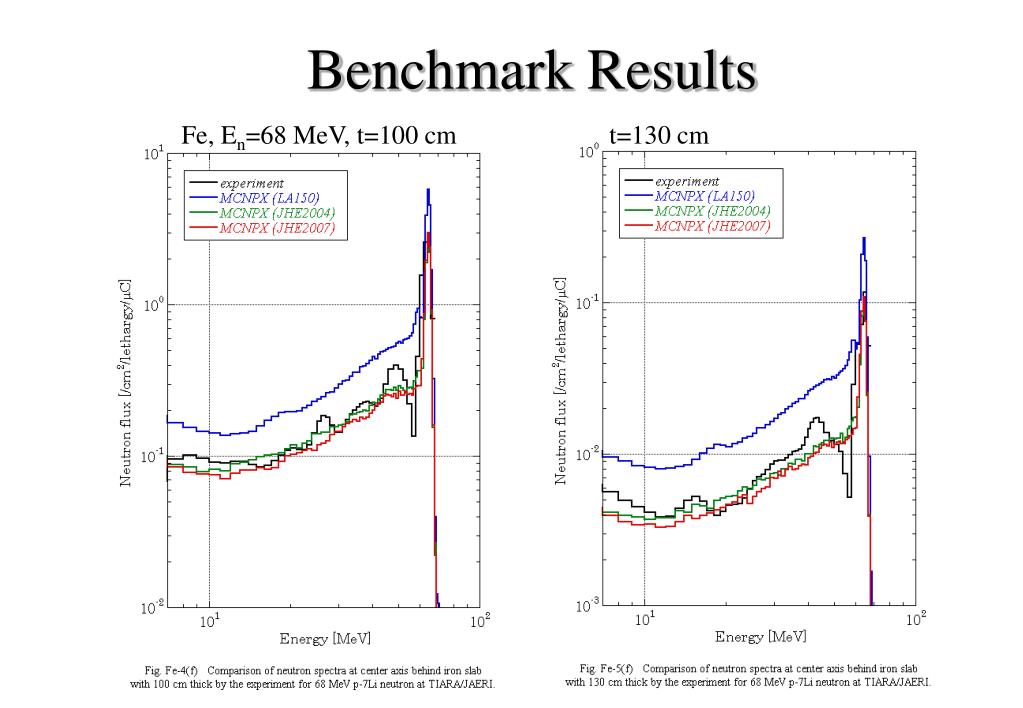

  14. Benchmark Results Fe, En=68 MeV, t=100 cm t=130 cm

  15. On going Activities for JENDL-4

  16. JENDL-4 will be released in the end of FY2009 MA, FP, structural material and light nuclei En < 20 MeV Integral results are fed back to nuclear data Re-evaluation of RR parameters CCONE/POD calculations with latest parameter-setsfor fast-energy region

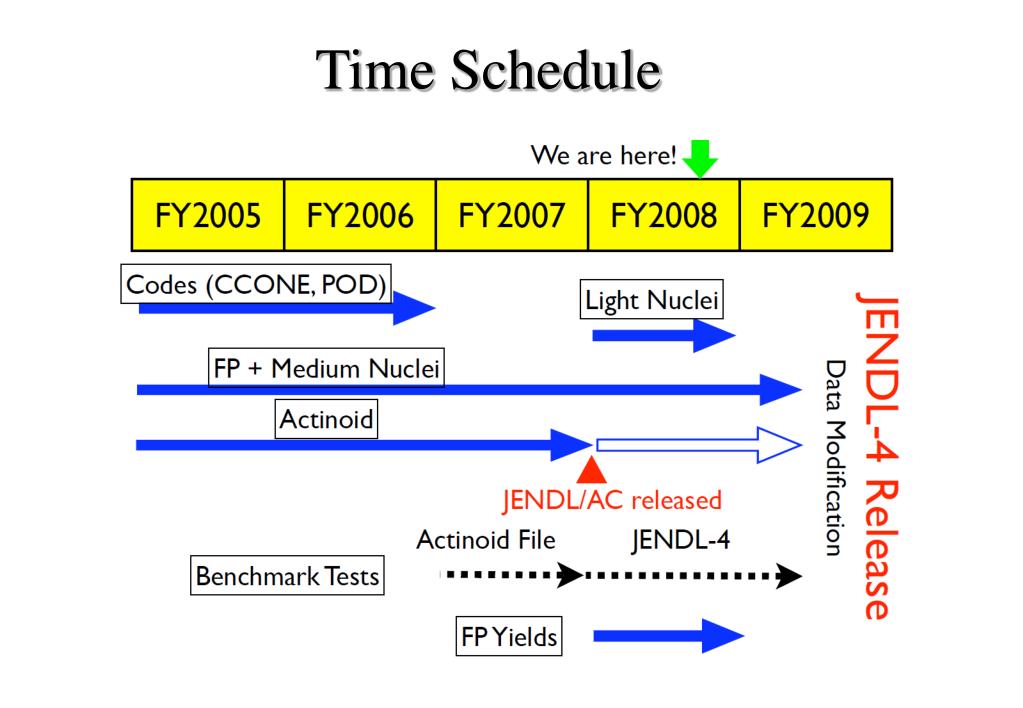

  17. Time Schedule

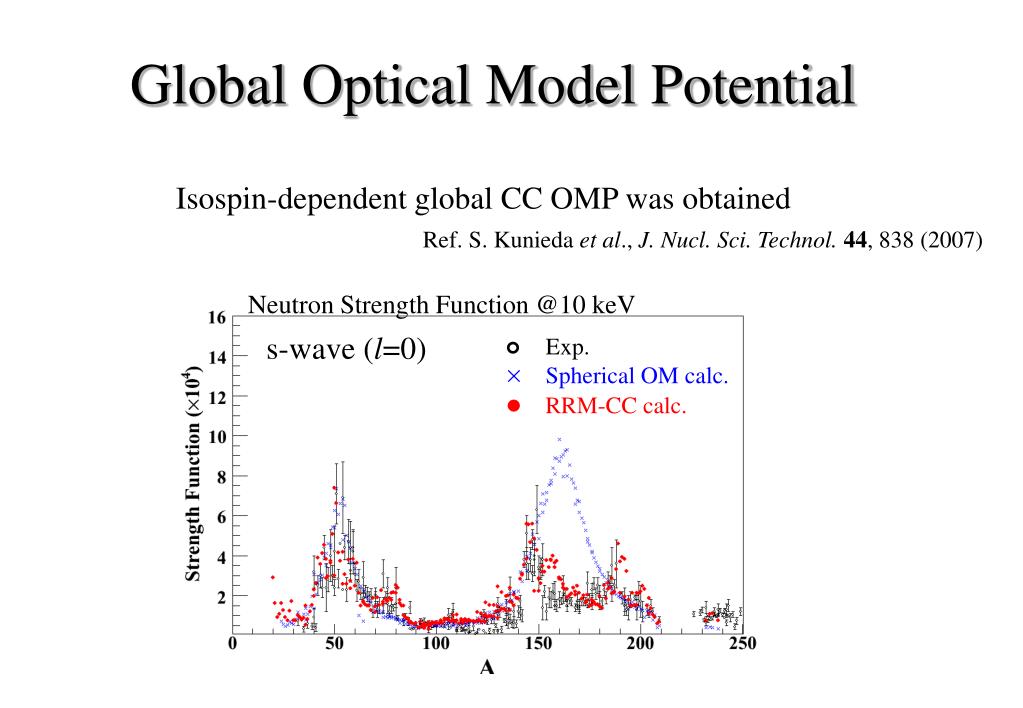

  18. Global Optical Model Potential Isospin-dependent global CC OMP was obtained Ref. S. Kunieda et al., J. Nucl. Sci. Technol.44, 838 (2007) Neutron Strength Function @10 keV s-wave (l=0) Exp. Spherical OM calc. RRM-CC calc.

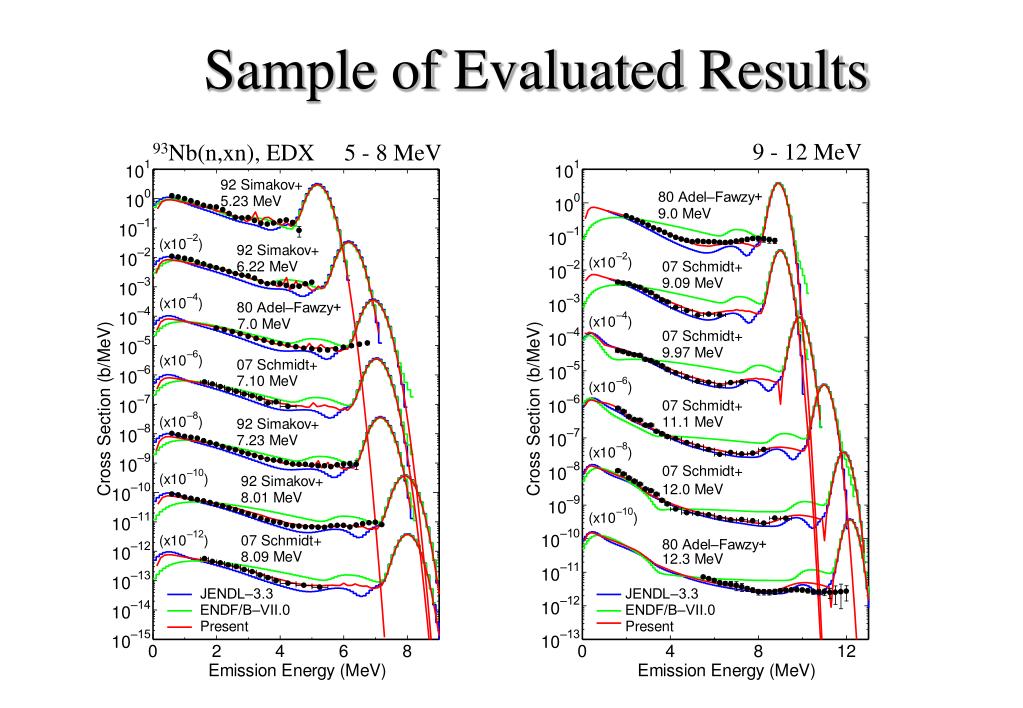

  19. Sample of Evaluated Results 9 - 12 MeV 93Nb(n,xn), EDX 5 - 8 MeV

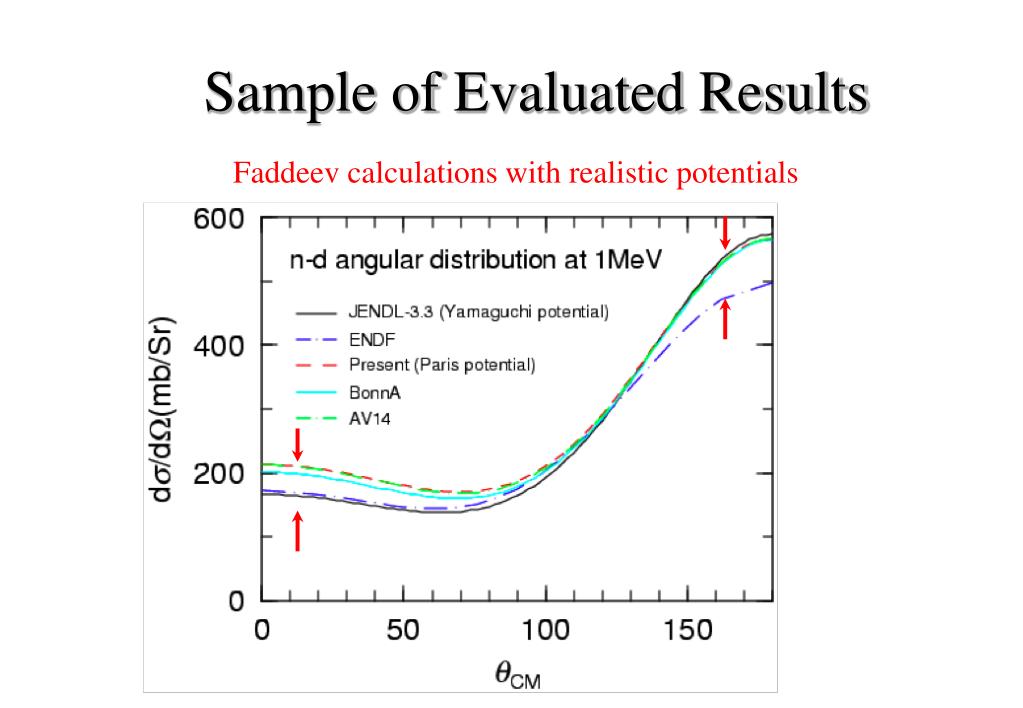

  20. Sample of Evaluated Results • Faddeev calculations with realistic potentials

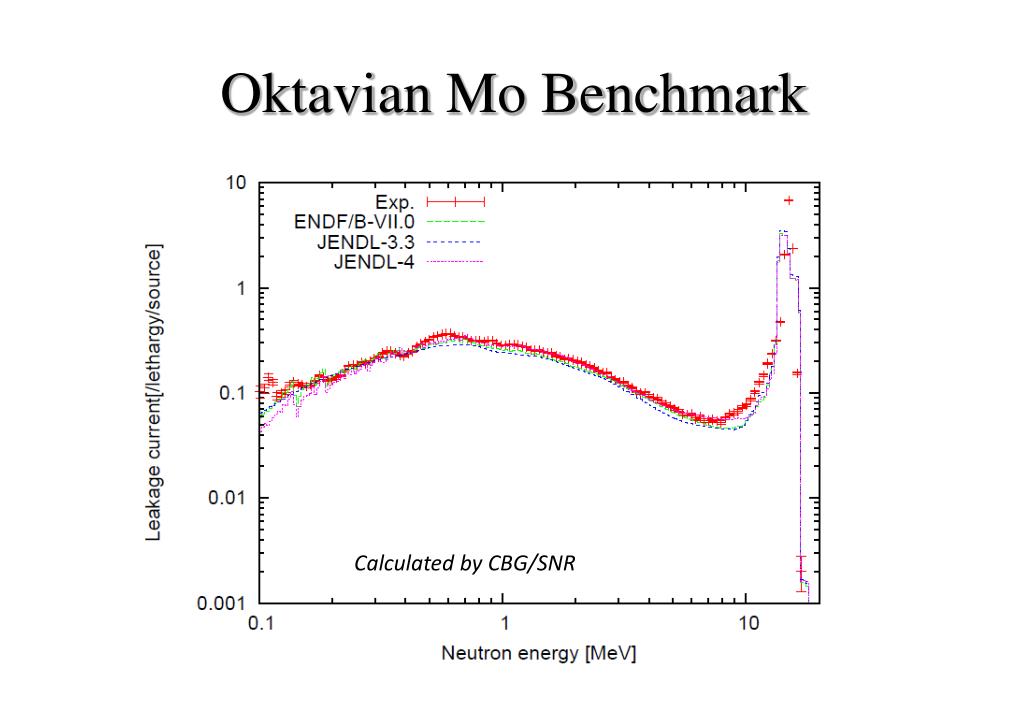

  21. Oktavian Mo Benchmark • Calculated by CBG/SNR

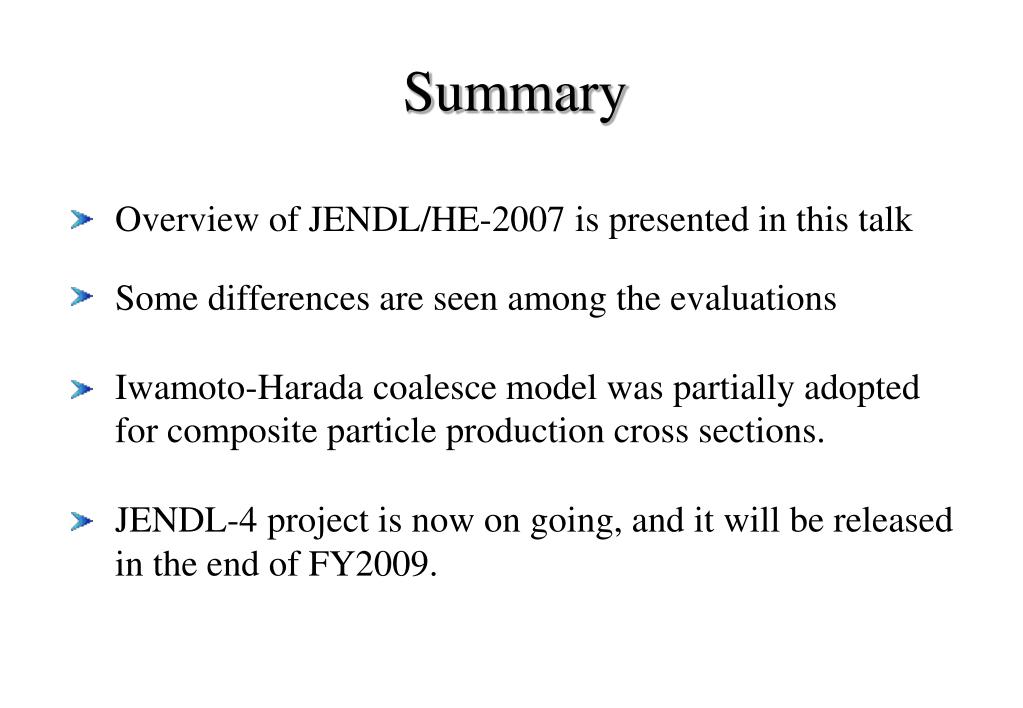

  22. Summary Overview of JENDL/HE-2007 is presented in this talk Some differences are seen among the evaluations Iwamoto-Harada coalesce model was partially adopted for composite particle production cross sections. JENDL-4 project is now on going, and it will be released in the end of FY2009.

  23. Simple Folding Model Results Exp. data Present (a,a) 64Zn s/srth. 208Pb 107Ag 92Mo Scattering Angle(deg.)

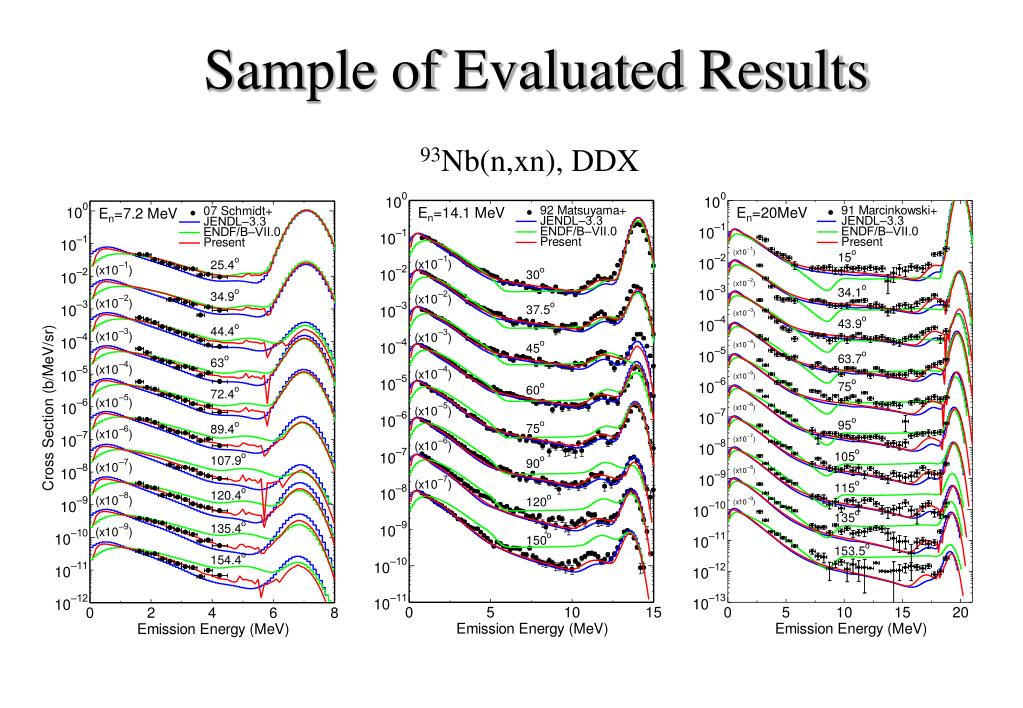

  24. Sample of Evaluated Results 93Nb(n,xn), DDX

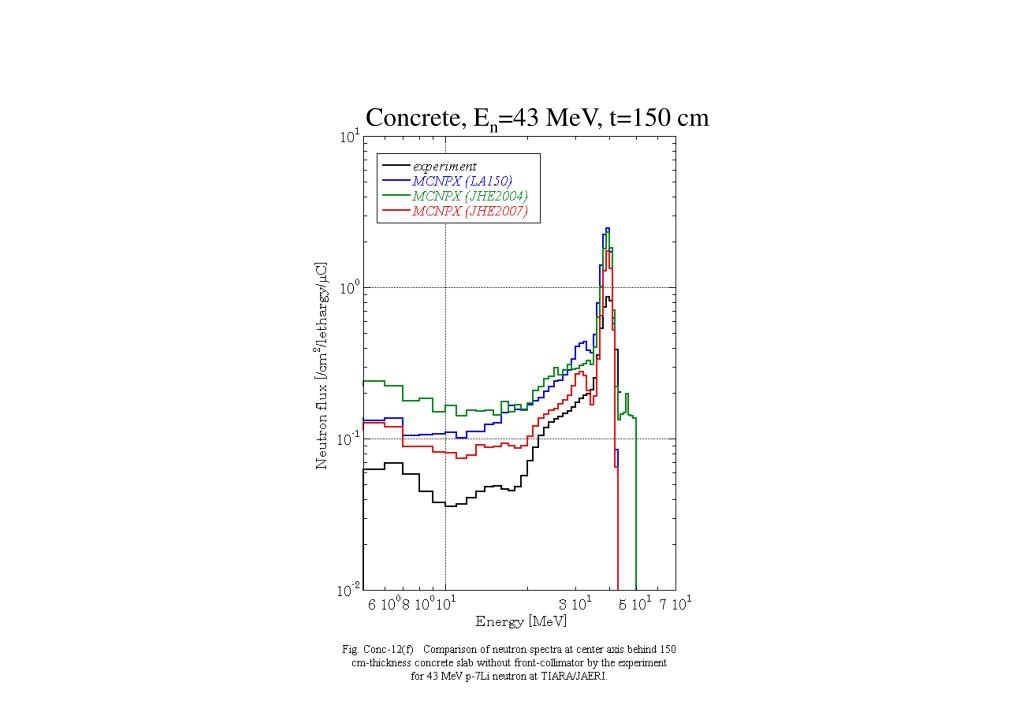

  25. Concrete, En=43 MeV, t=150 cm
