valve product list
Valve Product List
  • Butterfly Valve
  • Gate Valve
  • Check Valve
  • Grooved Valve
  • Ball Valve
  • Y-Strainer
  • Cock Valve

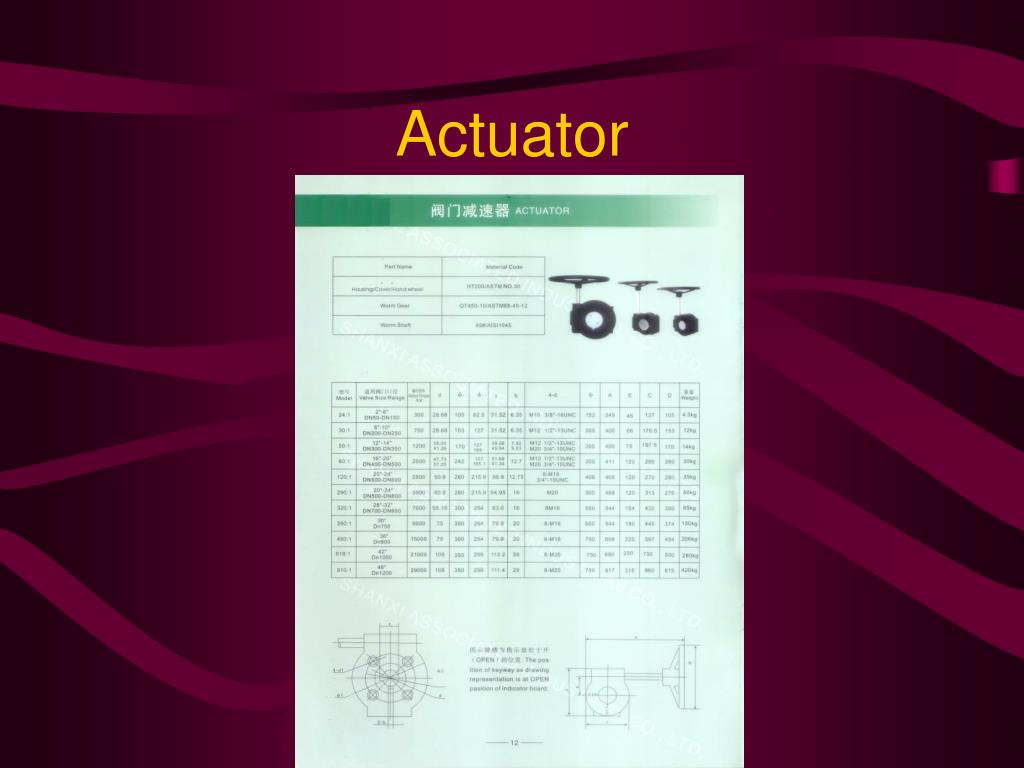

  • Actuator
butterfly valve
Butterfly Valve

Soft-Sealing Butterfly ValveMetal Sealing Butterfly valve

1.Non backed butterfly valve 1.Metal sealing butterfly valve

2.Backed butterfly valve 2.Metal sealing flanged

3.Type U flanged butterfly valve butterfly valve

4.Flanged rubber butterfly valve AWWA Butterfly valve

5.Soft-sealing double eccentric 1.C504 F1

flanged butterfly valve 2.C504 F2

6.Soft-sealing single eccentric

flanged butterfly valve

groove butterfly valve

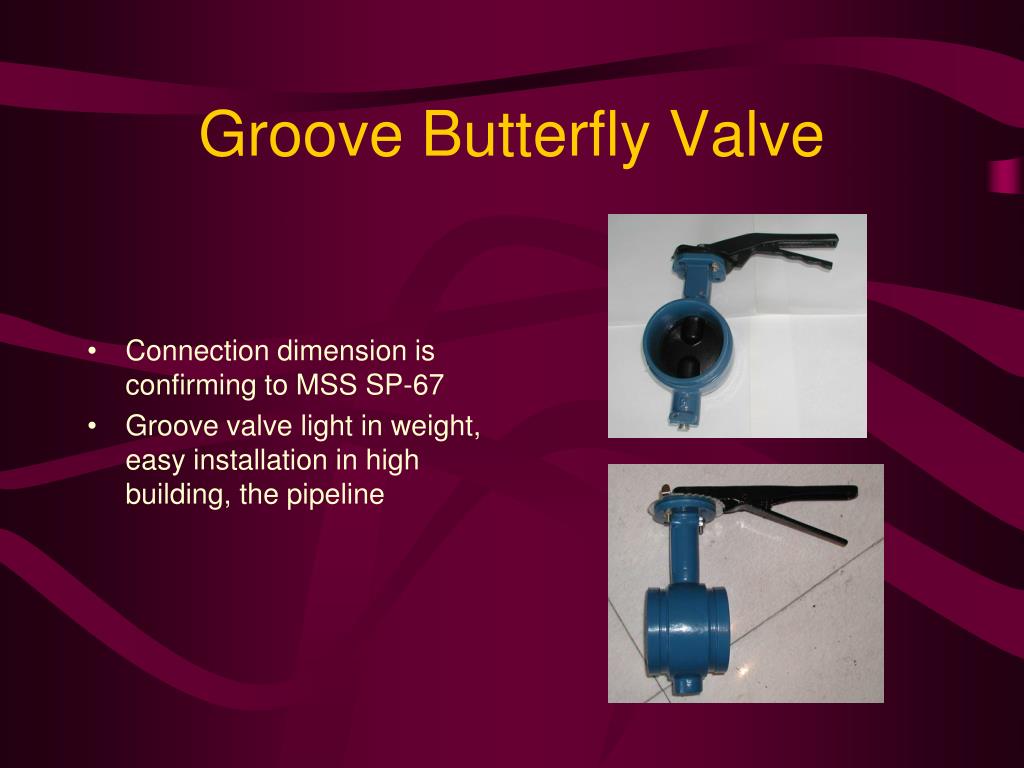

Groove Butterfly Valve
  • Connection dimension is confirming to MSS SP-67
  • Groove valve light in weight, easy installation in high building, the pipeline
awwa valve

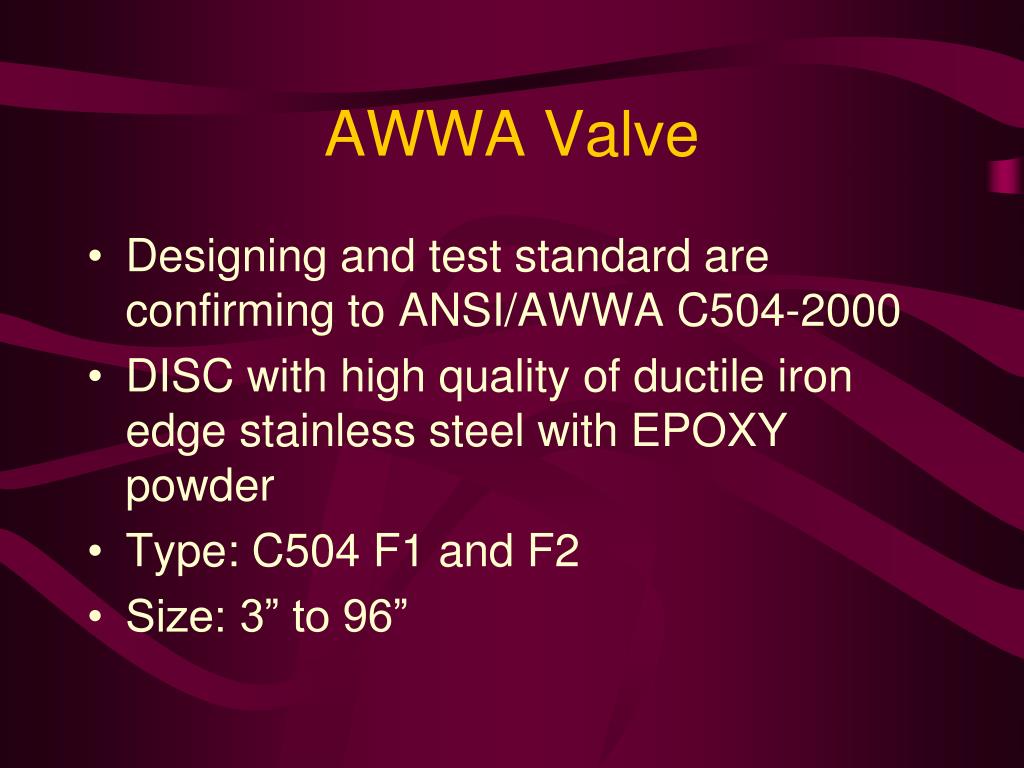

AWWA Valve
  • Designing and test standard are confirming to ANSI/AWWA C504-2000
  • DISC with high quality of ductile iron edge stainless steel with EPOXY powder
  • Type: C504 F1 and F2
  • Size: 3” to 96”
gate valve

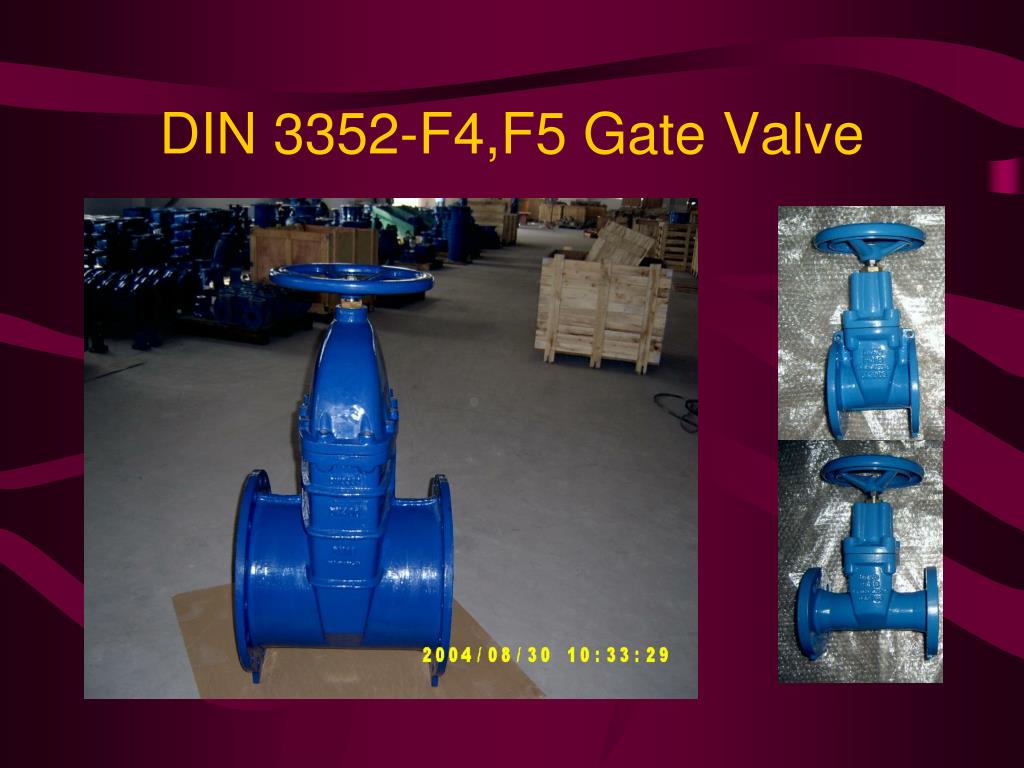

Gate Valve
  • Standard: ANSI, BS and DIN
  • Type: Non-Rising and Rising stem Rubber gate valve; Metal sealing gate valve
check valve

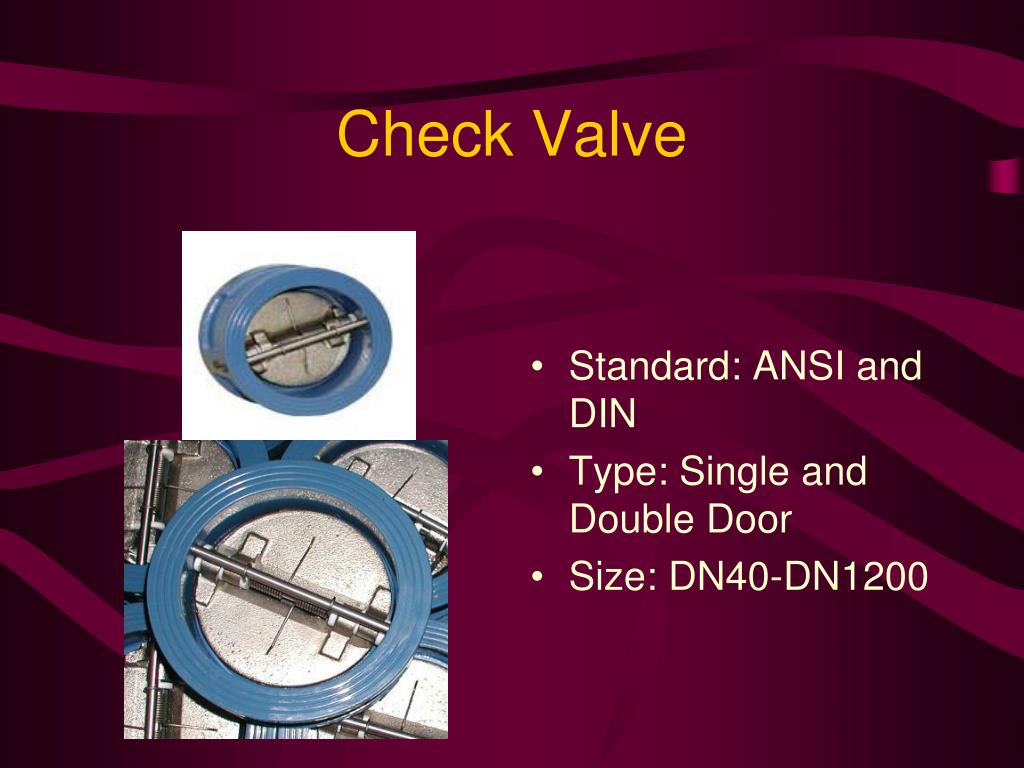

Check Valve
  • Standard: ANSI and DIN
  • Type: Single and Double Door
  • Size: DN40-DN1200
y strainer
Y-Strainer
  • Standard: ANSI and DIN
  • Size:DN15-DN400
cock valve

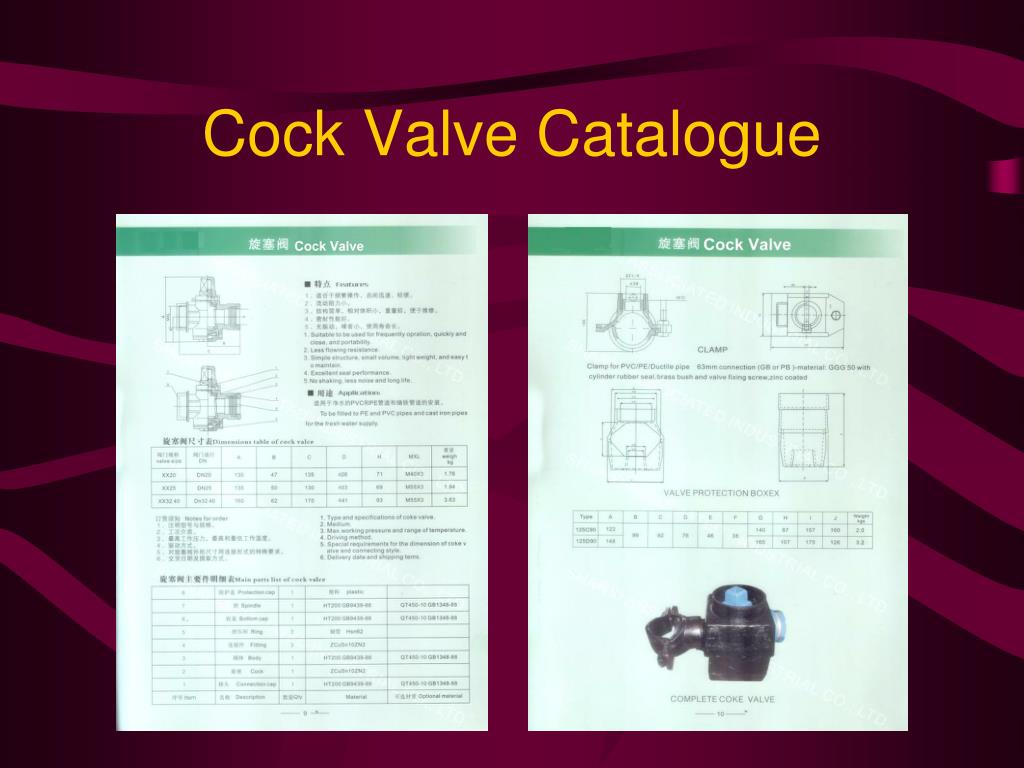

Cock Valve
  • Suitable to be used for frequently operation, quickly and close, and portability
  • Less flowing resistance
  • Simple structure, small volume, light weight, and easy to maintain
  • Excellent seal performance
  • No shaking, less noise and long life
cock valve1
Cock Valve
  • Size: DN20, DN25, DN32 and DN40
  • Application: To be fitted to PE and PVC pipe and cast iron pipes for the fresh water supply.
more information please feel free to check our valve s drawings or contact us thanks

More information, please feel free to check our valve’s drawings, or contact us. Thanks
