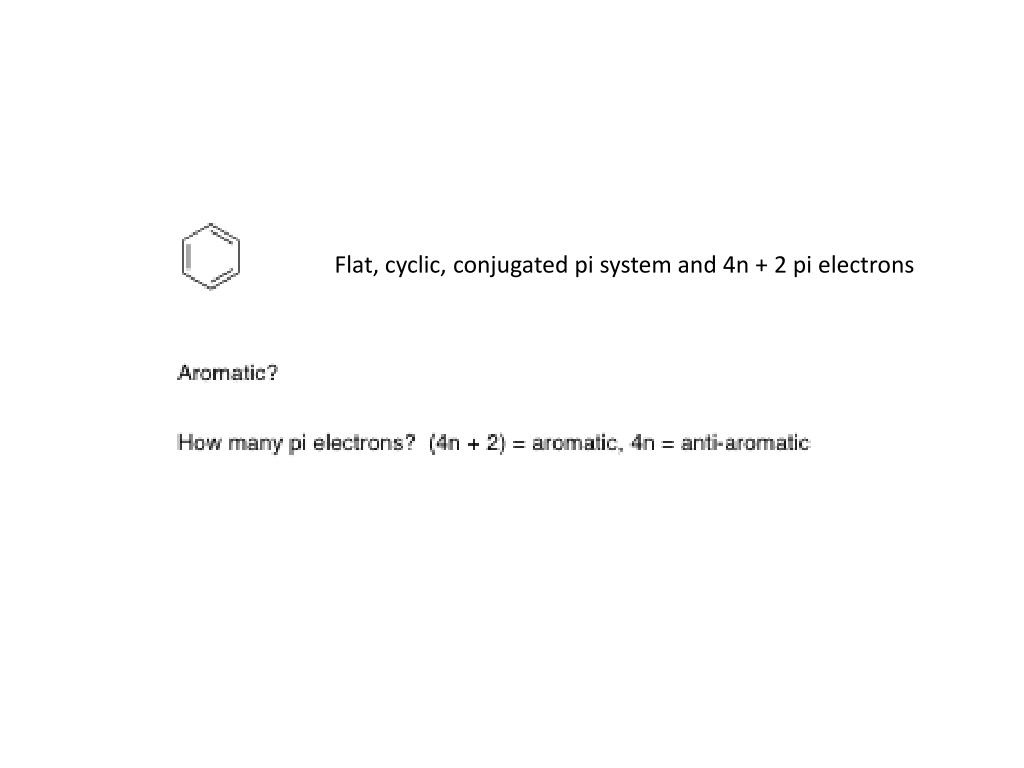

Chapter 17 & 18 Discussion. Flat, cyclic, conjugated pi system and 4n + 2 pi electrons. Aromatic if 2, 6, 10, 14, 18 pi electrons….. Anti-aromatic if 4, 8, 12, 16, ….. pi electrons If neither then not aromatic or anti-aromatic. Anti-aromatic more stable than expected.
E N D
Aromatic if 2, 6, 10, 14, 18 pi electrons….. Anti-aromatic if 4, 8, 12, 16, ….. pi electrons If neither then not aromatic or anti-aromatic. Anti-aromatic more stable than expected. Anti-aromatic – less stable and likely will not form at all.

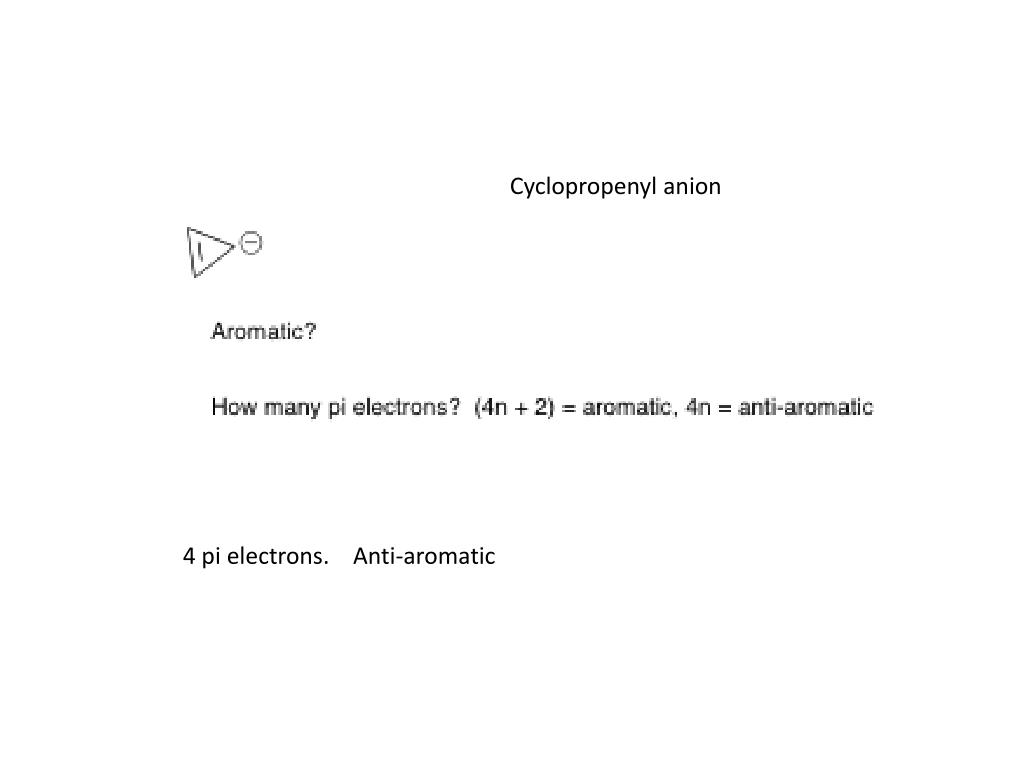

Cyclopropenyl anion 4 pi electrons. Anti-aromatic

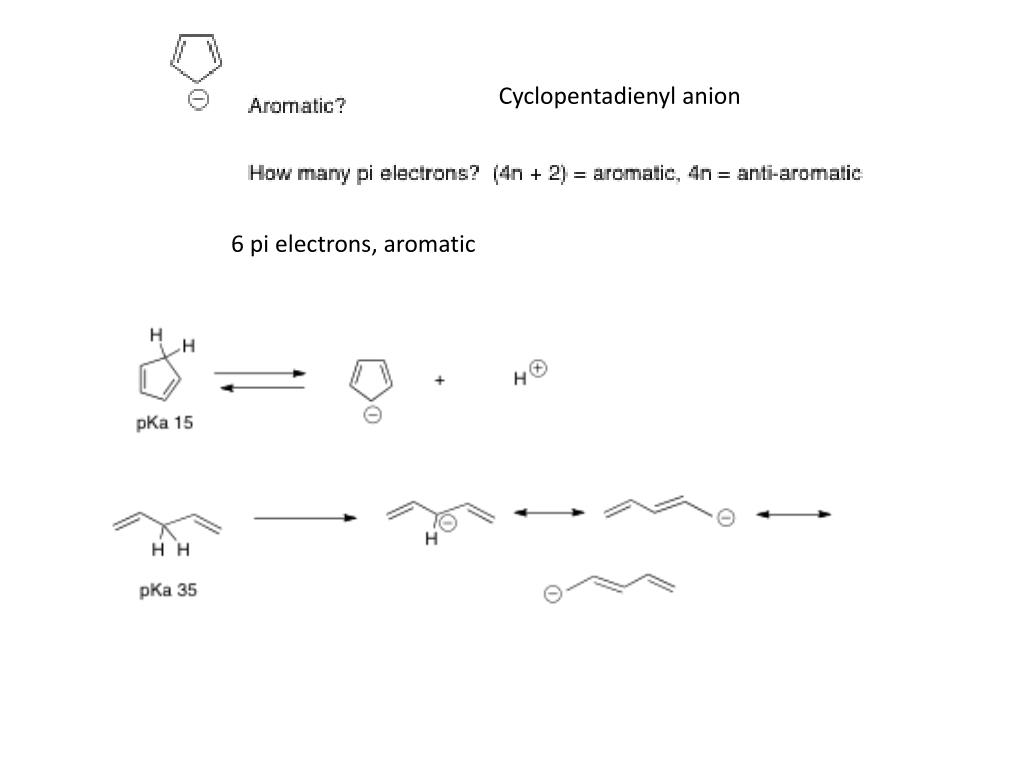

Cyclopentadienyl anion 6 pi electrons, aromatic

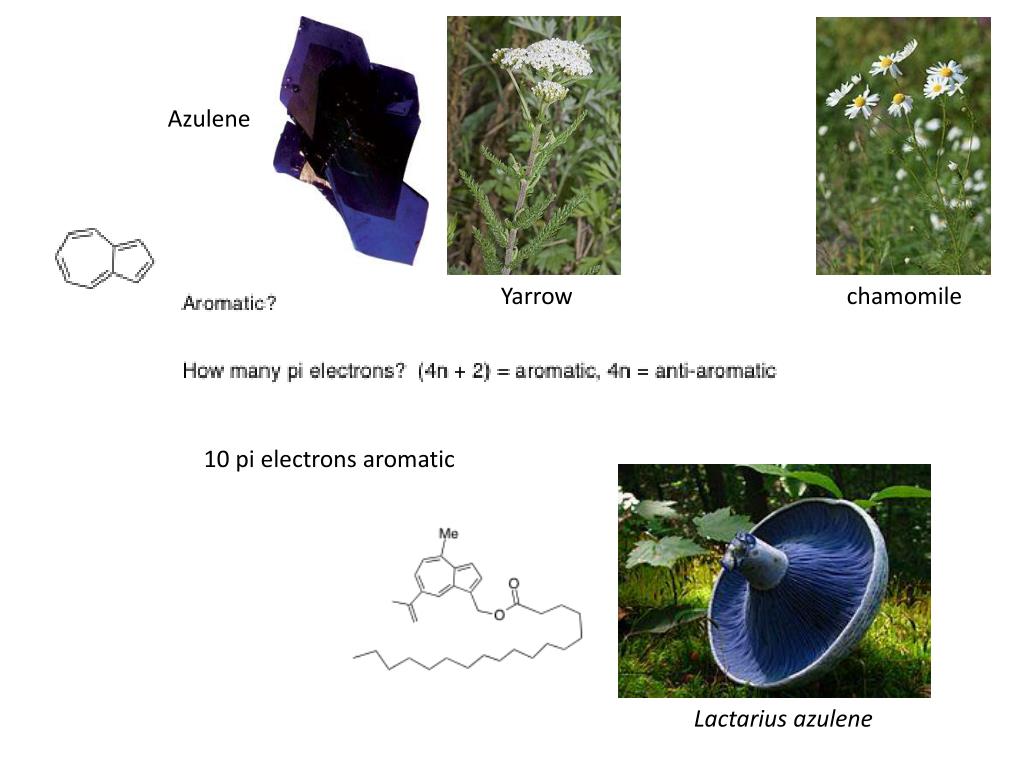

Azulene Yarrow chamomile 10 pi electrons aromatic Lactariusazulene

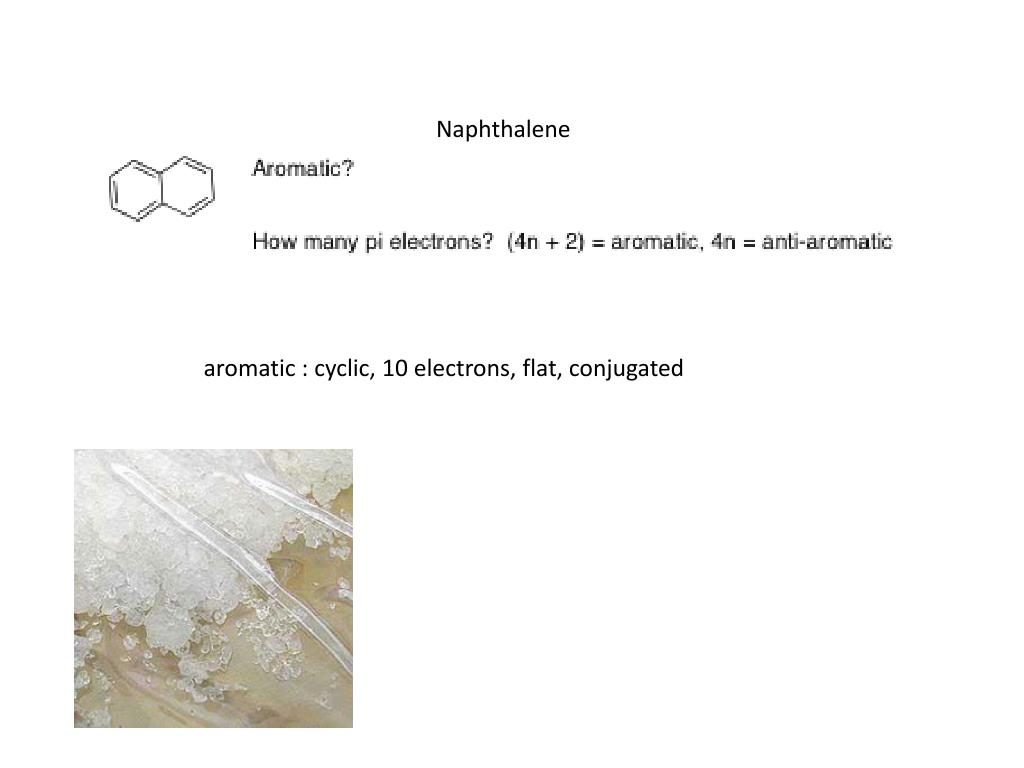

Naphthalene aromatic : cyclic, 10 electrons, flat, conjugated
naphthalene Azulene Why is naphthalene nonpolar and azulene polar?

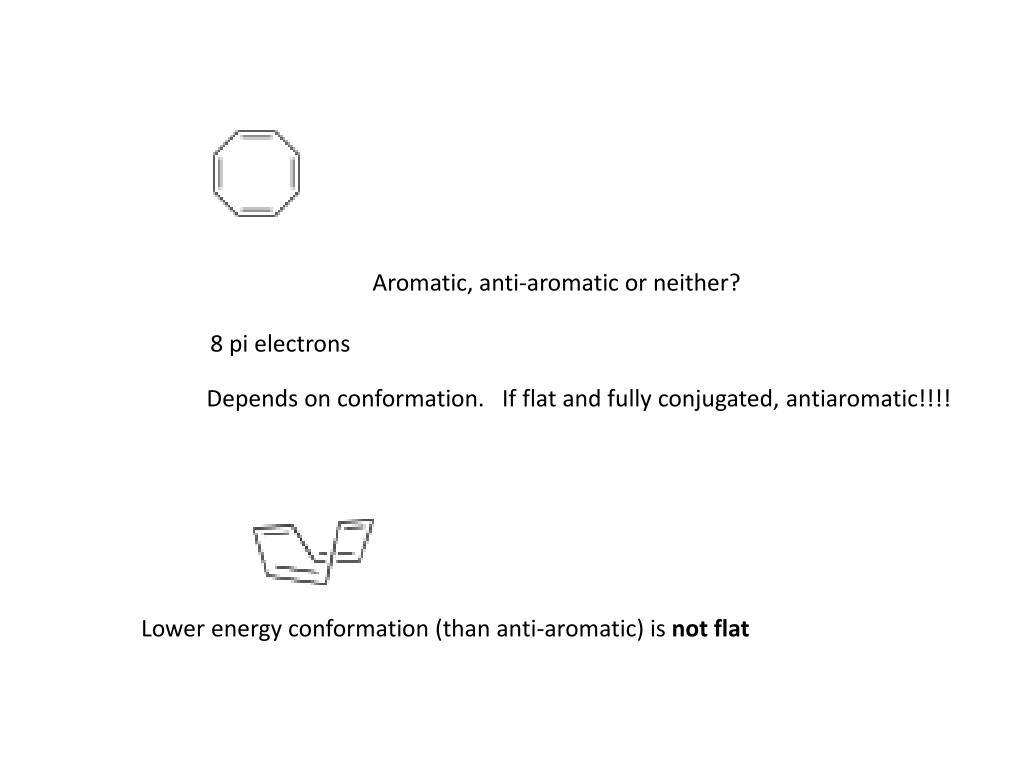

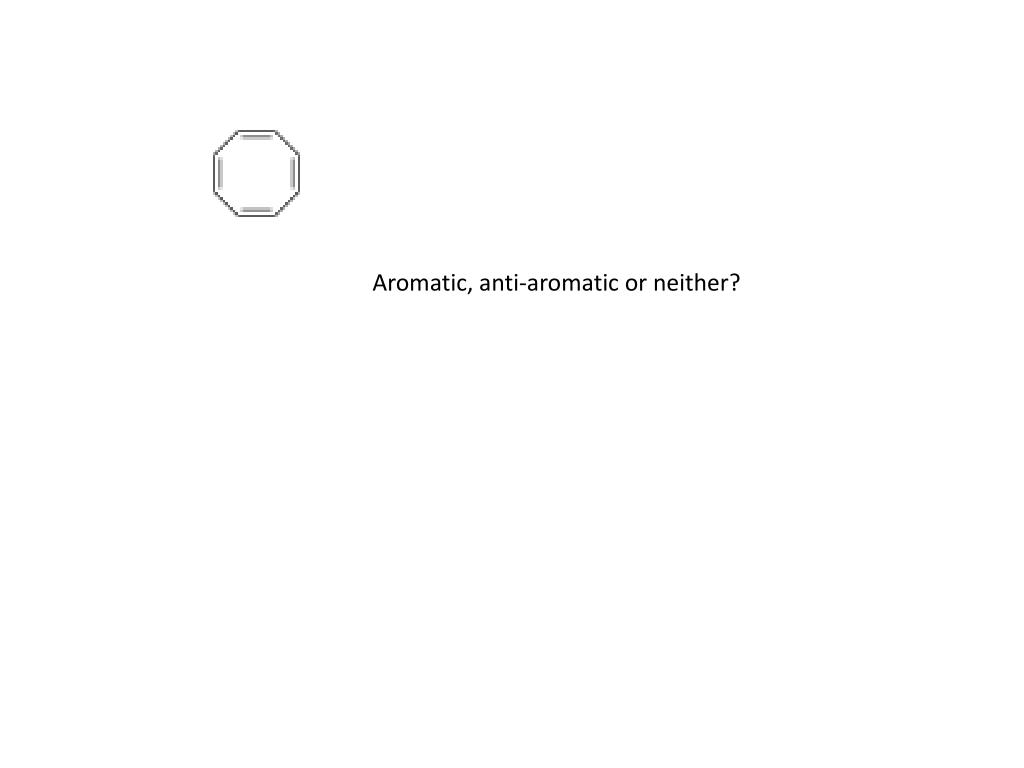

Aromatic, anti-aromatic or neither? 8 pi electrons Depends on conformation. If flat and fully conjugated, antiaromatic!!!! Lower energy conformation (than anti-aromatic) is not flat

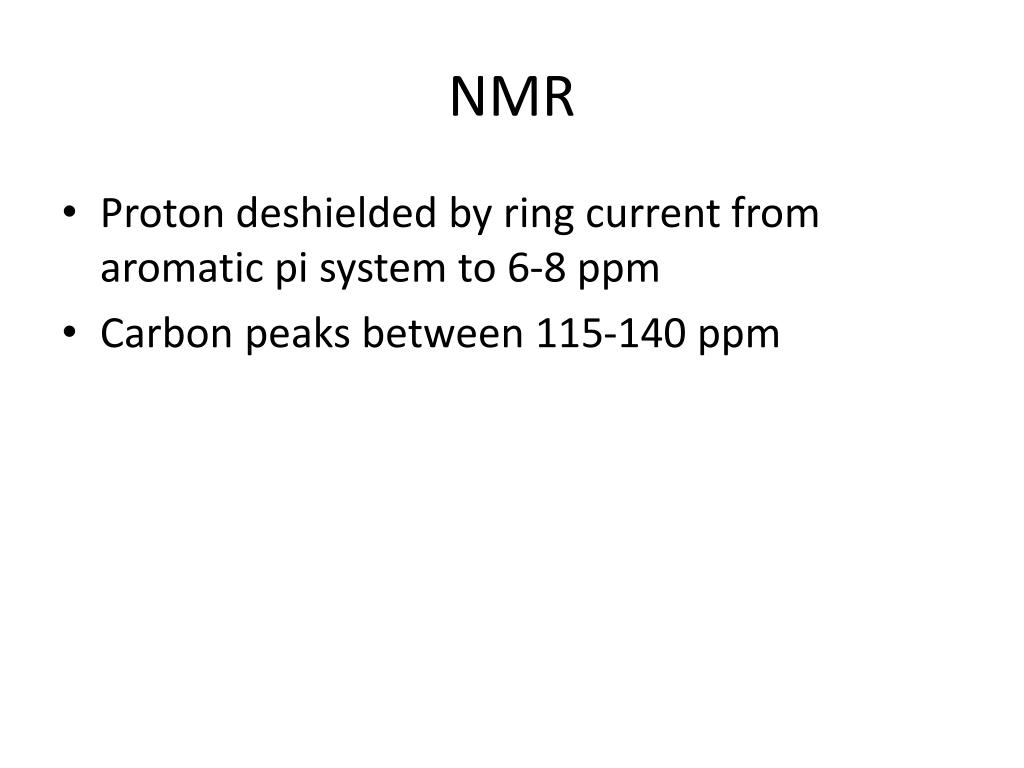

NMR • Proton deshielded by ring current from aromatic pi system to 6-8 ppm • Carbon peaks between 115-140 ppm

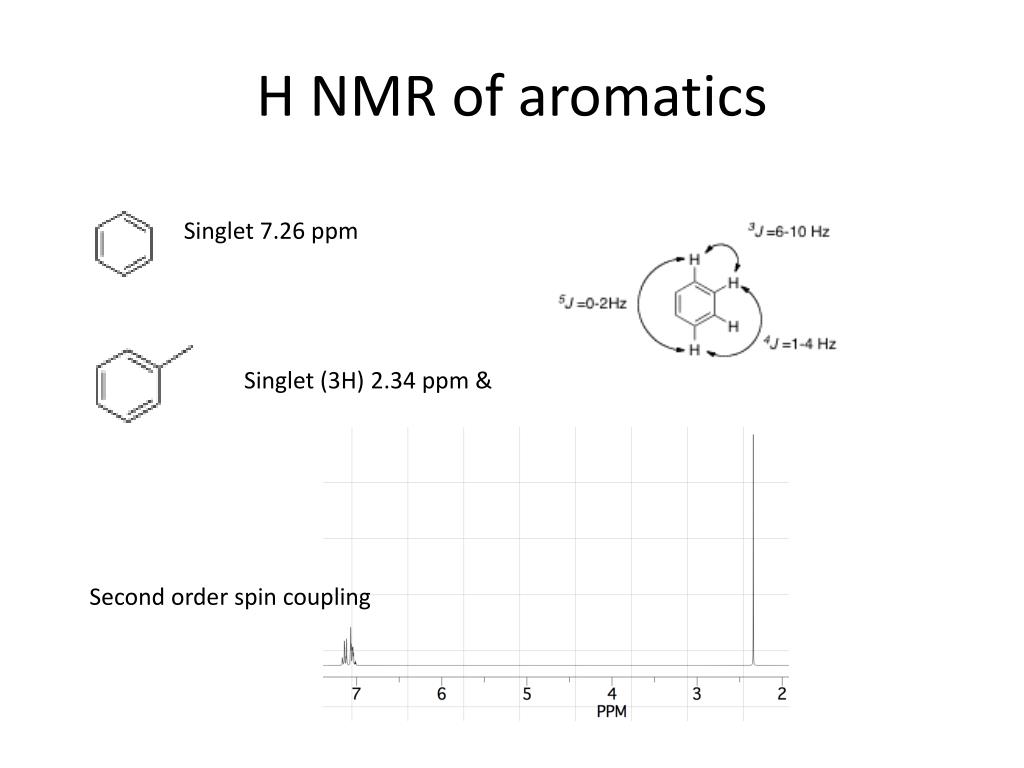

H NMR of aromatics Singlet 7.26 ppm Singlet (3H) 2.34 ppm & Second order spin coupling

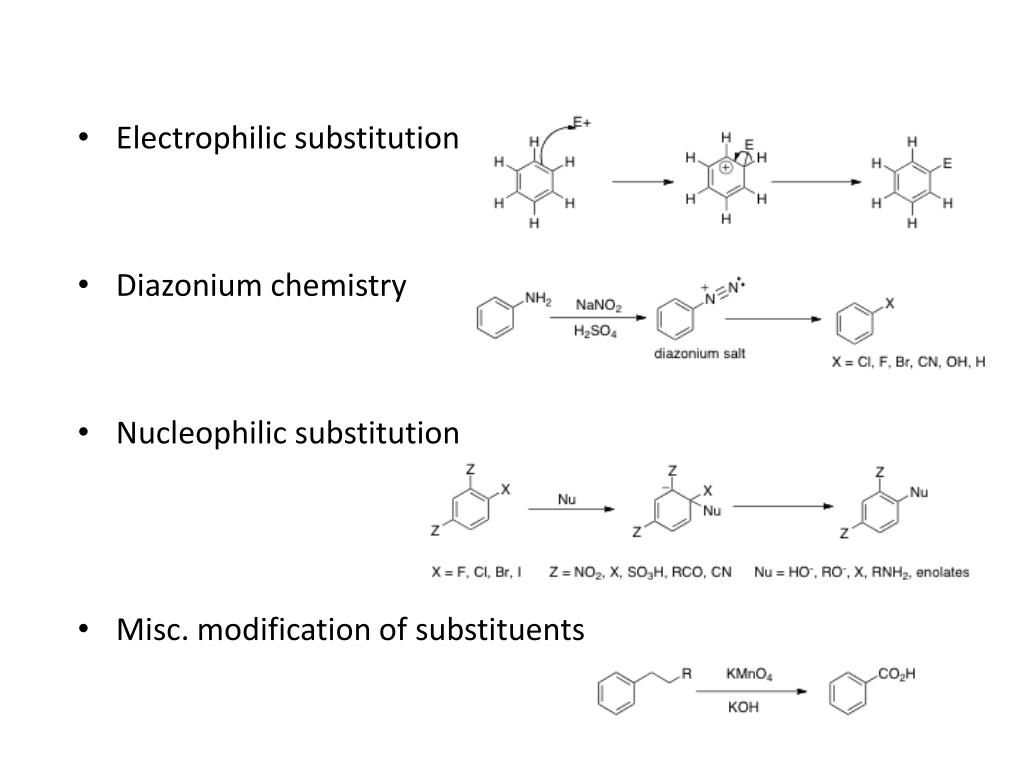

Electrophilic substitution • Diazonium chemistry • Nucleophilic substitution • Misc. modification of substituents

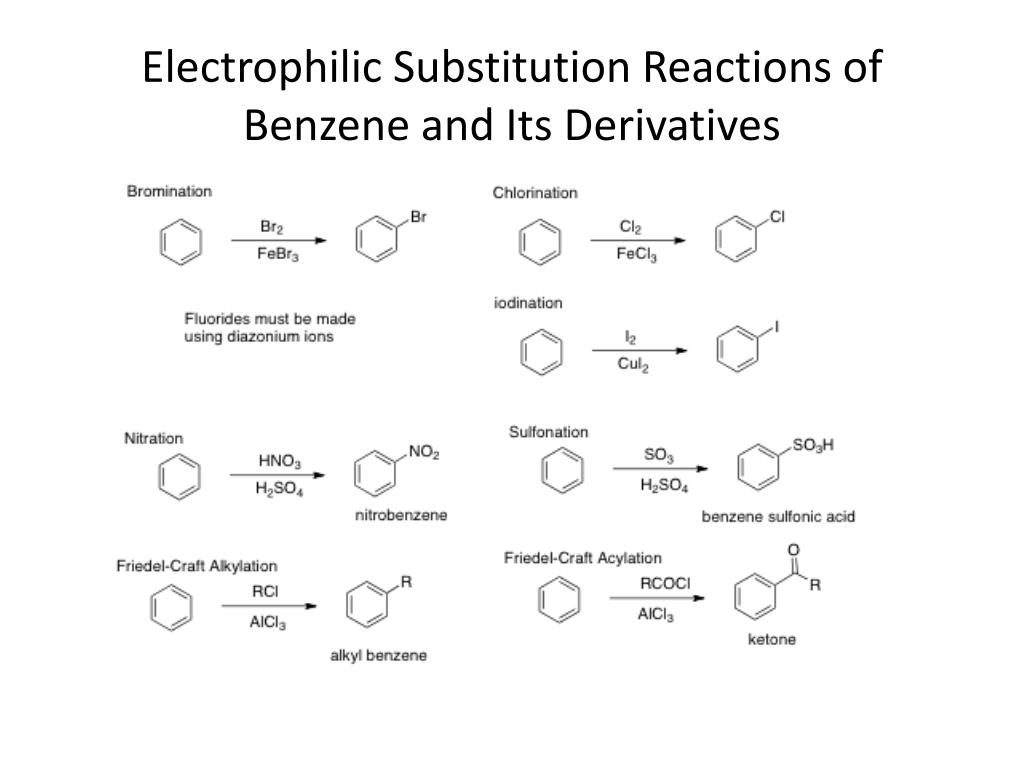

Electrophilic Substitution Reactions of Benzene and Its Derivatives

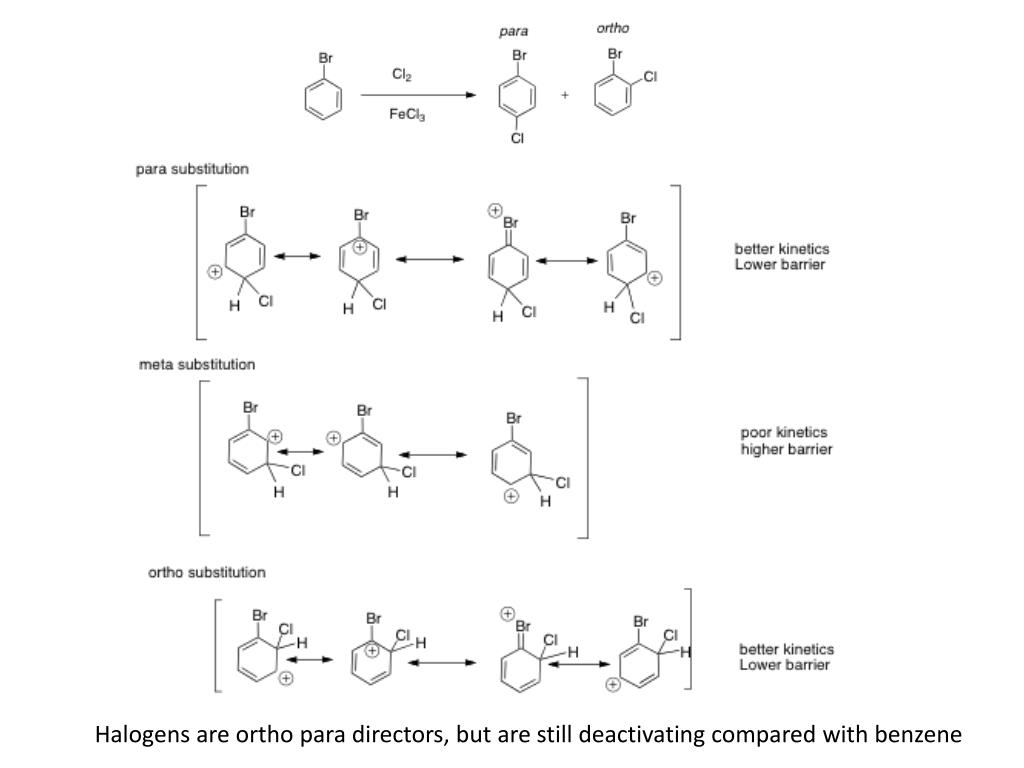

Halogens are orthopara directors, but are still deactivating compared with benzene

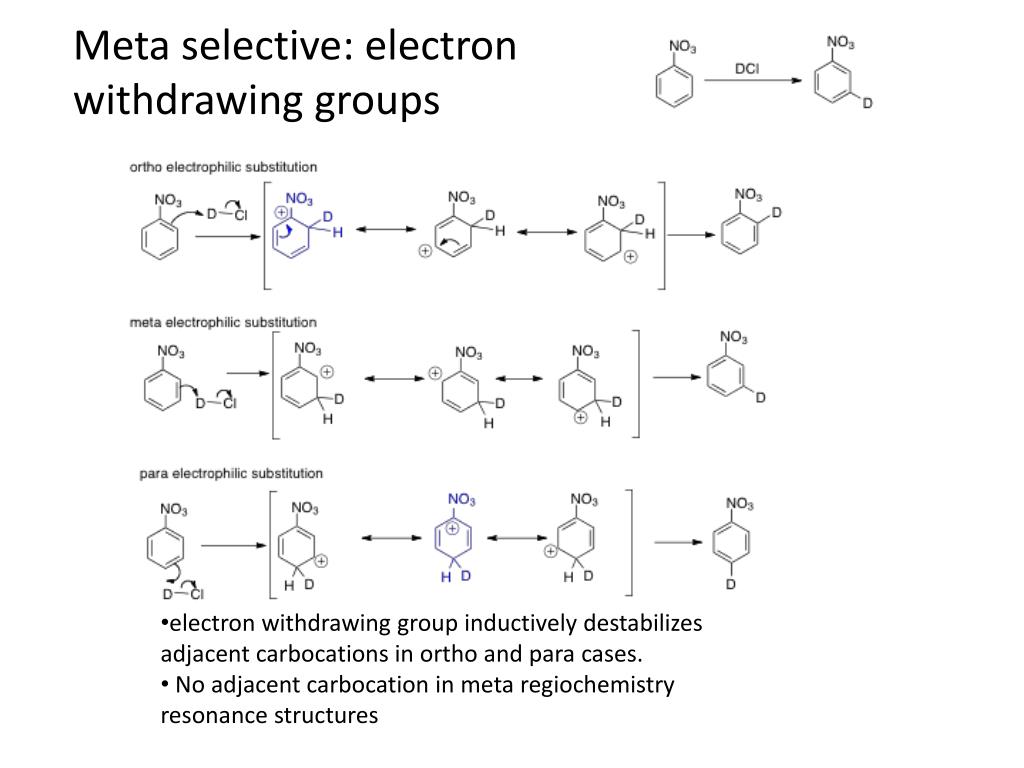

Meta selective: electron withdrawing groups • electron withdrawing group inductively destabilizes adjacent carbocations in ortho and para cases. • No adjacent carbocation in meta regiochemistry resonance structures

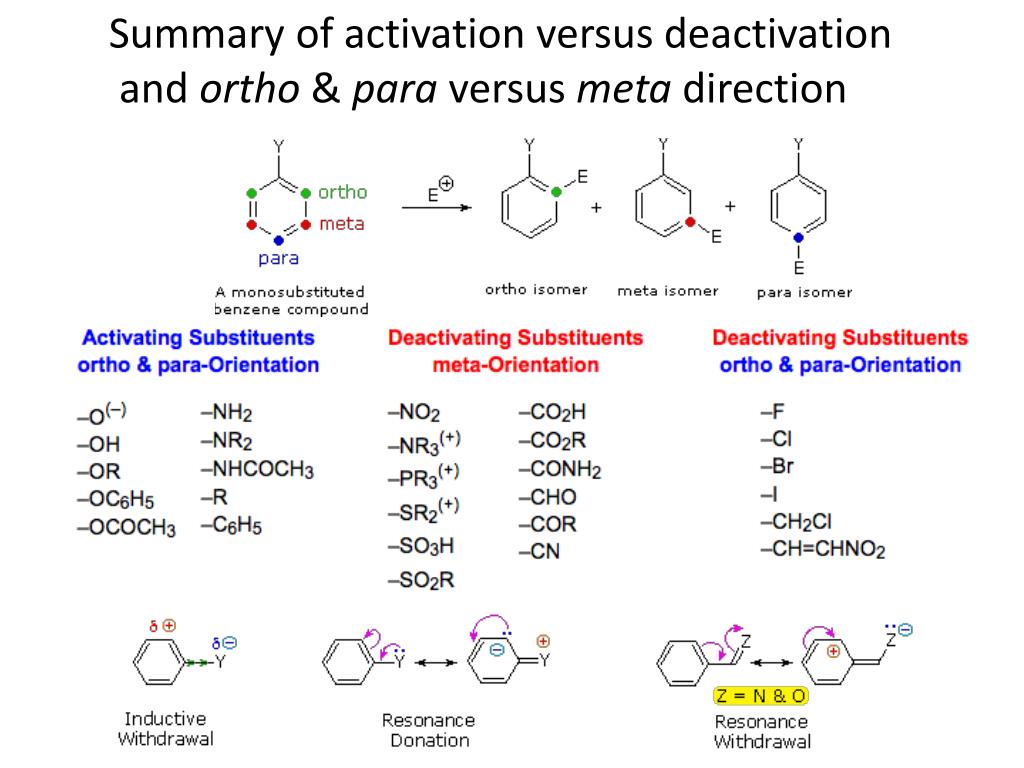

Summary of activation versus deactivation and ortho& paraversus meta direction

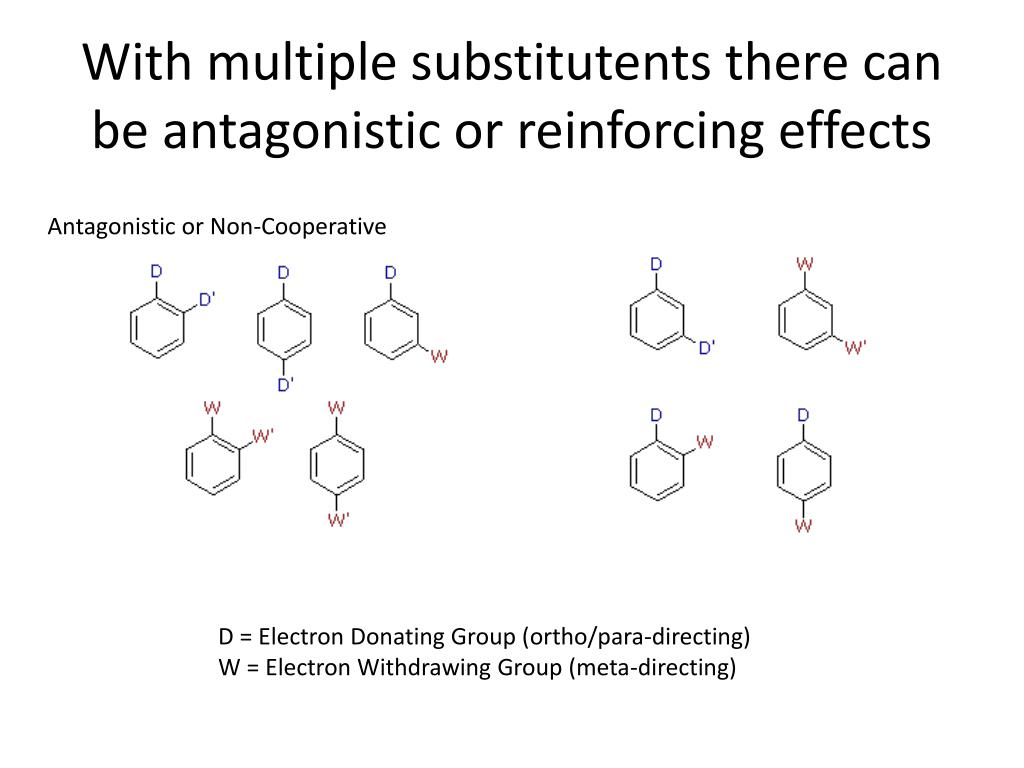

With multiple substitutents there can be antagonistic or reinforcing effects Antagonistic or Non-Cooperative D = Electron Donating Group (ortho/para-directing) W = Electron Withdrawing Group (meta-directing)

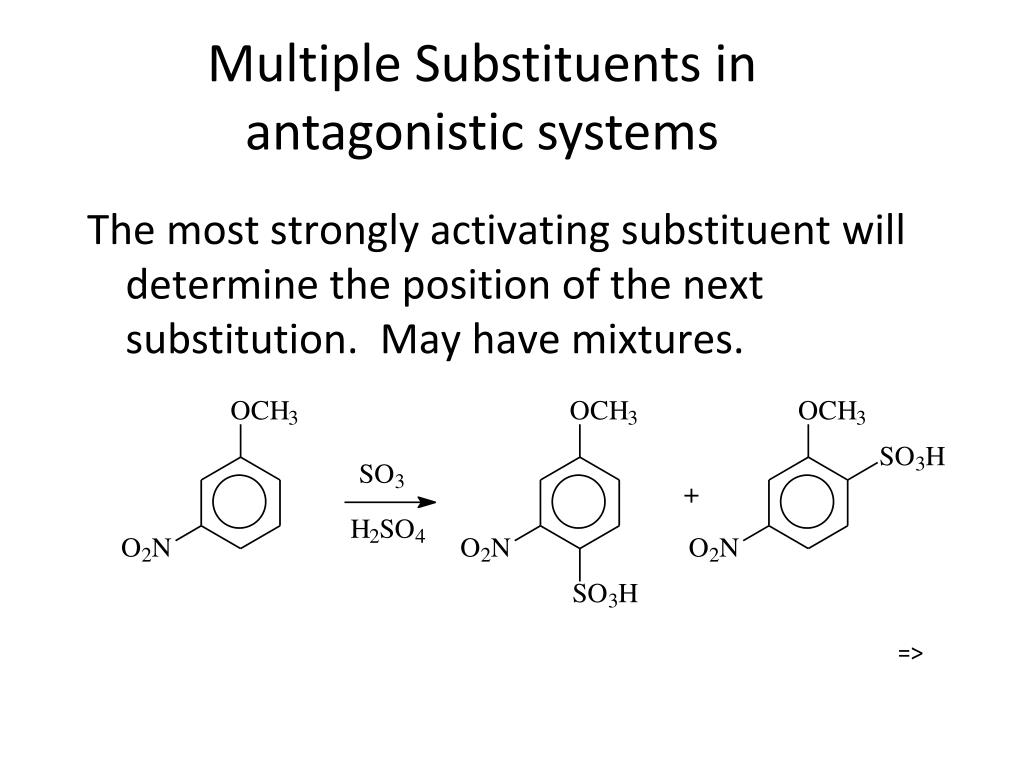

=> Multiple Substituents in antagonistic systems The most strongly activating substituent will determine the position of the next substitution. May have mixtures.
