Presentation Transcript
volume
Volume
  • Volume determines the amount metabolism in the cytoplasm
  • Metabolism will require import of precursors
  • Metabolism will result in the export of secretions
  • And the export of excretory products

© 2010 Paul Billiet ODWS

surface area
Surface area
  • Surface area will determine the exchange of materials between the cell and its environment
  • Bigger cells will metabolise more
  • But they will need more surface to support that metabolism
  • And the sites of metabolism in bigger cells will be further from the surface of the cell

© 2010 Paul Billiet ODWS

growing cells

1µm

2µm

3µm

4µm

5µm

6µm

Growing cells

© 2010 Paul Billiet ODWS

how are surface area and volume affected by growth

Size

/ µm

Surface area

/ µm2

Volume

/ µm3

SA/V

How are surface area and volume affected by growth?

1

2

3

4

5

6

6

24

54

96

150

216

1

8

27

64

125

216

6

3

2

1.5

1.2

1

© 2010 Paul Billiet ODWS

surface area volume ratio
Surface Area:Volume Ratio

© 2010 Paul Billiet ODWS

solving the problem
Solving the problem
  • Bigger cells have a greater metabolism than smaller cells
  • BUT bigger cells have a proportionallyless surface for exchange
  • How to increase surface area with increasing size?

© 2010 Paul Billiet ODWS

throw out extensions
Throw out extensions

Microvilli of small intestine epithelium

Image Credit www.cytochemistry.net/

flatten into a thin film
Flatten into a thin film

Image Credits http://anatomia.uw.hu/

Chick blastodisc

divide the cytoplasm into smaller volumes
Divide the cytoplasm into smaller volumes

8-cell Embryo

Early human embryos

Zygote

Image Credit http://www.rmfcfertility.com/

Image Credit http://www.advancedfertility.com/

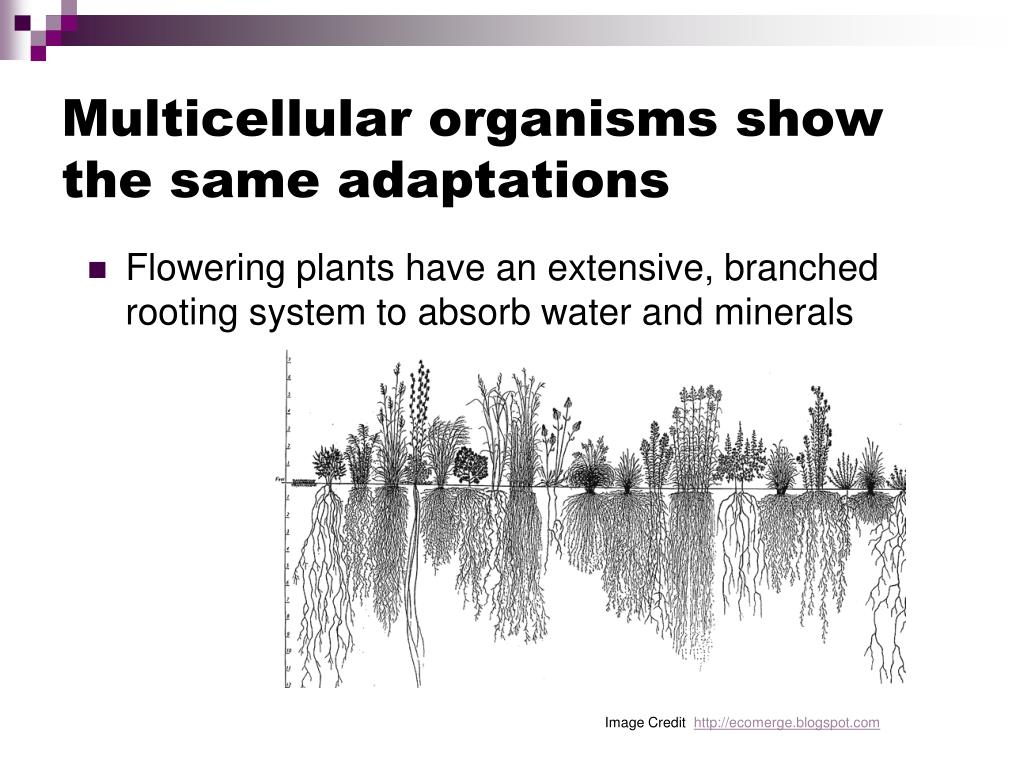

multicellular organisms show the same adaptations

Image Credit http://ecomerge.blogspot.com

Multicellular organisms show the same adaptations
  • Flowering plants have an extensive, branched rooting system to absorb water and minerals
multicellular organisms show the same adaptations13

Image Credit C. Candalh, INSERM

Multicellular organisms show the same adaptations
  • Mammals have a long small intestine with internal folding to absorb digested food
