Memory Pool ACM 2012 5120379038 YanqingPeng
Dynamic memory allocation in C #define N 10000 intmain() { int* p =malloc(sizeof(int));//allocate a pointer to an integer int* pa =malloc(sizeof(int)* N); //allocate an array with N integers /*statement*/ free(p); free(pa); return 0; }
Dynamic memory allocation in C++ constintN=10000; intmain() { int* p =new int; //allocate a pointer to an integer int* pa =new int[N];//allocate an array with N integers /*statement*/ delete p; delete [] pa; return 0; }
Some Problems… • Memory Leak • Mismatching Operators • Fragmentation • Long Execution Time • ……
Memory Leak voidfoo() throw(std::runtime_error) { int* p =new int; /*statement*/ if( condition )throw std::runtime_error(“This is a Memory Leak”); /*statement*/ delete p; //May cause a memory leak }
Some Problems… • Memory Leak • Mismatching Operators • Fragmentation • Long execution time • ……
Mismatching Operators constintN=10000; intmain() { int* p =static_cast<int*>(malloc(sizeof(int));//allocate by malloc int* pa =new int[N];//allocate by new[] /*statement*/ delete p; //de-allocate by delete delete pa; //de-allocate by delete return 0; }
Some Problems… • Memory Leak • Mismatching Operators • Fragmentation • Long execution time • ……
Fragmentation • Memory = 8 bytes • Allocate the whole memory • De-allocate odd bytes • Allocate a 4-byte block : std::bad_alloc 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7
Some Problems… • Memory Leak • Mismatching Operators • Fragmentation • Long execution time • ……
Long execution time intmain() { for(intn = ~0U >> 1; n; --n) //delete (new int()); return 0; } • Time=4235ms
Long execution time intmain() { for(intn = ~0U >> 1; n; --n) delete (new int()); return 0; } • Time=1038020ms
Placement New and Memory Pool • 使用Placement New可以在指定的内存上构造对象。指定的内存需要事先申请,并且保证没有其它变量正在使用这块内存。对于非POD对象,需要显式调用其析构函数。 #include <new> structobj{}; char* buffer =newchar[1<<8]; void foo() { obj* p =new(buffer)obj;//placement new p -> ~obj(); //invoke the destructor explicitly delete p; } • 如果预先申请好一大块buffer进行之后的分配……
Placement New and Memory Pool • 使用内存池来管理这个buffer! #include <new> structobj{}; classMemoryPool; void foo() { obj* p =new(MemoryPool::allocate<obj>())obj; p -> ~obj(); MemoryPool::deallocate<obj>(p); }
Fixed-size Memory Pool • 预先申请好一块内存区域,并把它分成定长的块。 • 每次需要内存申请时,将一块尚未分配的块返回。每次释放时,将传入的内存块重新标记为未分配。 • 定长内存池在工程中应用非常广泛。代码量少、效率高,非常适合用作大量同类型小数据的内存管理器。
Prototype template<typenameType> classMemoryPool { char*memStart; void*head; Type*left, *right, *memEnd; public: MemoryPool(size_t); ~MemoryPool(); inline Type*allocate(); inline booldeallocate(Type*); };
Constructor template<typenameType> MemoryPool<Type>::MemoryPool(size_t _capacity) : memStart(new char[std::max(sizeof(Type),sizeof(void*))* _capacity]), head(0), left(reinterpret_cast<Type*>(memStart)), right(left), memEnd(left + _capacity) {} 内存的开始地址 memStart=1 内存的结束地址的后一位 memEnd=7 未初始化的内存 初始化内存的开始地址 left=1 未初始化内存的开始地址 right=1 [left, right)为已初始化的内存地址区间 第一个初始化内存 head = NULL
Allocation 1 • 若没有空余的已初始化内存,则从未初始化的内存头部取出一块作为返回值 if(!head) return right++; memStart=1 memEnd=7 未初始化的内存 left=1 right=1 head = NULL
Allocation 1 • 若没有空余的已初始化内存,则从未初始化的内存头部取出一块作为返回值 if(!head) return right++; memStart=1 memEnd=7 分配的内存 未初始化的内存 head = NULL 已初始化内存 left=1 right=2
Allocation 1 • 若没有空余的已初始化内存,则从未初始化的内存头部取出一块作为返回值 memStart=1 if(!head) return right++; memEnd=7 分配的内存 未初始化的内存 分配的内存 已初始化内存 left=1 right=3 head = NULL
Allocation 1 • 若没有空余的已初始化内存,则从未初始化的内存头部取出一块作为返回值 memStart=1 memEnd=7 if(!head) return right++; 分配的内存 分配的内存 未初始化的内存 分配的内存 已初始化内存 left=1 right=4 head = NULL
De-allocation memStart=1 head = NULL memEnd=7 • 将返回的内存块(p)插入已初始化内存链表头部,内存块中存放下一个已初始化的内存 void**newHead=reinterpret_cast<void**>(p); *newHead=head; head =newHead; 分配的内存 分配的内存 未初始化的内存 分配的内存 已初始化内存 left=1 right=4
De-allocation • 将返回的内存块(p)插入已初始化内存链表头部,内存块中存放下一个已初始化的内存 void**newHead=reinterpret_cast<void**>(p); *newHead=head; head =newHead; memStart=1 head=1 memEnd=7 NULL 分配的内存 未初始化的内存 分配的内存 已初始化内存 left=1 right=4
De-allocation • 将返回的内存块(p)插入已初始化内存链表头部,内存块中存放下一个已初始化的内存 void**newHead=reinterpret_cast<void**>(p); *newHead=head; head =newHead; head=3 memStart=1 memEnd=7 NULL 1 未初始化的内存 分配的内存 已初始化内存 left=1 right=4
De-allocation • 将返回的内存块(p)插入已初始化内存链表头部,内存块中存放下一个已初始化的内存 void**newHead=reinterpret_cast<void**>(p); *newHead=head; head =newHead; memStart=1 head=2 memEnd=7 NULL 1 未初始化的内存 3 已初始化内存 left=1 right=4
Allocation2 • 若已初始化内存块链表非空,则删除表首并返回该地址 Type* ret =reinterpret_cast<Type*>(head); head =*(reinterpret_cast<void**>(head)); return ret; memStart=1 head=2 memEnd=7 NULL 1 未初始化的内存 3 已初始化内存 left=1 right=4
Allocation2 • 若已初始化内存块链表非空,则删除表首并返回该地址 Type* ret =reinterpret_cast<Type*>(head); head =*(reinterpret_cast<void**>(head)); return ret; head=3 memStart=1 memEnd=7 NULL 1 未初始化的内存 分配的内存 已初始化内存 left=1 right=4
Allocation2 • 若已初始化内存块链表非空,则删除表首并返回该地址 Type* ret =reinterpret_cast<Type*>(head); head =*(reinterpret_cast<void**>(head)); return ret; memStart=1 head=1 memEnd=7 NULL 分配的内存 未初始化的内存 分配的内存 已初始化内存 left=1 right=4
Allocation2 memStart=1 head = NULL memEnd=7 • 若已初始化内存块链表非空,则删除表首并返回该地址 Type* ret =reinterpret_cast<Type*>(head); head =*(reinterpret_cast<void**>(head)); return ret; 分配的内存 分配的内存 未初始化的内存 分配的内存 已初始化内存 left=1 right=4
Destructor • 这个就不画图了…… delete []memStart;
Pseudo-code • Initialization • Store the start address, number of blocks and the number of uninitialized unused block • Allocation • Check if there any free blocks • If necessary - initialize and append unused memory block to the list • Go to the head of the unused block list • Extract the block number from the head of the unused block in the list and set it as the new head • Return the address for the old block head • De-allocation • Check the memory address is valid • Calculate the memory addresses index id • Set its contents to the index id of the current head of unused blocks and set itself as the head
Benchmark #include “memorypool.h” MemoryPool<int>pool(10); intmain() { for(intn = ~0U >> 1; n; --n) pool.deallocate(pool.allocate()); return 0; } • Time=17904ms
Resizing • 使用类似vector的扩张方法 • 每次内存不够时,重新申请一块长度为已有内存两倍的内存块 • 使用一个类去维护多个相同长度的定长内存池
Thread-safety • 线程安全是编程中的术语,指某个函数 (计算机科学)、函数库在多线程环境中被调用时,能够正确地处理各个线程的局部变量,使程序功能正确完成。 • 一般来说,线程安全的函数应该为每个调用它的线程分配专门的空间,来储存需要单独保存的状态(如果需要的话),不依赖于“线程惯性”,把多个线程共享的变量正确对待(如,通知编译器该变量为“易失(volatile)”型,阻止其进行一些不恰当的优化),而且,线程安全的函数一般不应该修改全局对象。 • 使用互斥锁保证线程安全。
Thread-safety (Using pthread) #include <pthread.h> template<typenameType> classmt_MemoryPool { MemoryPool<Type> pool; pthread_mutex_t lock; public: mt_MemoryPool(size_tcapacity) : pool(capacity) { pthread_mutex_init(&lock,0); } inlineType* allocate(); inlinebooldeallocate(Type*); };
Thread-safety (Using pthread) template <typenameType> inlineType* mt_MemoryPool::allocate(); { pthread_mutex_lock(&lock); Type*ret=pool.allocate(); pthread_mutex_unlock(&lock); returnret; }
Thread-safety (Using pthread) template <typenameType> inlineboolmt_MemoryPool::deallocate(Type* p); { pthread_mutex_lock(&lock); boolret = pool.deallocate(p); pthread_mutex_unlock(&lock); return ret; }
Smart Pointer • 用类似智能指针的思想实现内存池分配空间的自动归还 • 引用计数 • 在智能指针的析构中自动析构对象并归还
Smart Pointer voidfoo() throw(std::runtime_error) { MemoryPool<int>::pointerp =pool.allocate(); /*statement*/ if( condition )throw std::runtime_error(“No memory leak.”); /*statement*/ } // p will be executed when leaving this scope
Variable-size Memory Pool • 不同于定长内存池,不定长内存池可以在构造后申请各种不同大小的内存块。 p =pool.allocate<int>(); • 实现方法:内部维护多个定长内存池,每次找到最小的能满足条件的内存池进行内存分配。如果申请的内存大于所有的内存池大小,则直接调用malloc() • 如:分别维护1,2,4,8,16,32,64,128,256,512,1024bytes的定长内存池,对于每一个内存申请向上对齐到2的整次幂后分配对应大小的内存块,此时空间最多浪费一倍 • 效率低于定长内存池
Singleton / Static Class • 强制使类只生成一个实例。 • 使用单例模式:将构造函数声明为private,通过public函数GetInstance函数中的static class reference获取唯一的实例 MemoryPool& pool =MemoryPool::GetInstance(); • 静态类:将类的所有函数声明为static,全局静态实例保证唯一性。 p =MemoryPool::allocate<int>(); MemoryPool::deallocate<int>(p);

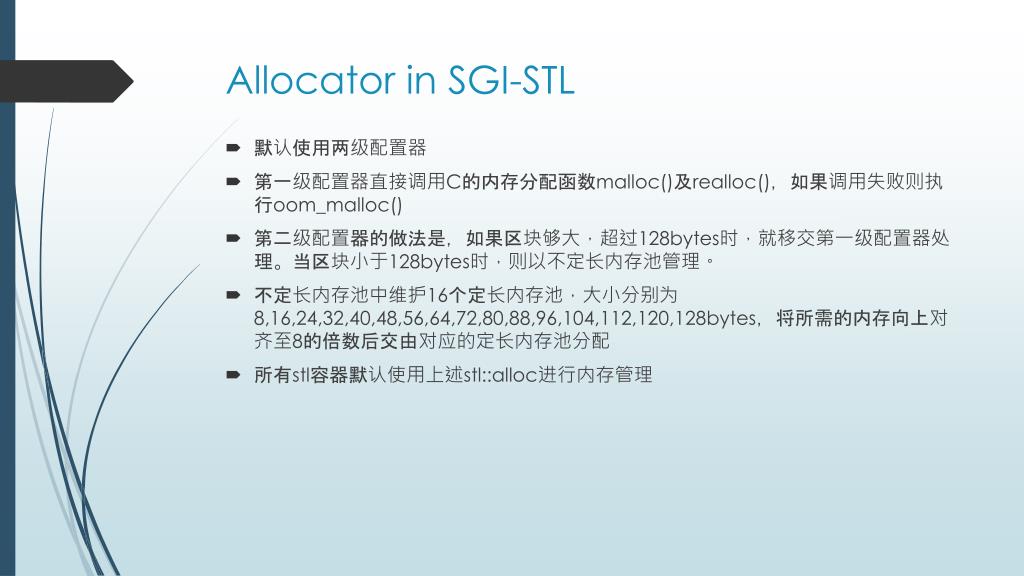

Allocator in SGI-STL • 默认使用两级配置器 • 第一级配置器直接调用C的内存分配函数malloc()及realloc(),如果调用失败则执行oom_malloc() • 第二级配置器的做法是,如果区块够大,超过128bytes时,就移交第一级配置器处理。当区块小于128bytes时,则以不定长内存池管理。 • 不定长内存池中维护16个定长内存池,大小分别为8,16,24,32,40,48,56,64,72,80,88,96,104,112,120,128bytes,将所需的内存向上对齐至8的倍数后交由对应的定长内存池分配 • 所有stl容器默认使用上述stl::alloc进行内存管理
Reference • Stanley B.Lippman, JoseeLajoie, Barbara E. Moo C++ Primer[M] Addison-Wesley Educational Publishers Inc, 2012.08 • 候捷 STL源码剖析 [M] 华中科技大学出版社, 2002.06 • SGI SGI STL Allocator Design [G/OL] from: http://www.sgi.com/tech/stl/alloc.html • Wikipedia Memory Pool [G/OL], 2013.04 from: http://en.wikipedia.org/wiki/Memory_pool
