Presentation Transcript
Slide1 l.jpg

Physiology of the Cardio-Vascular SystemLecture 1 / The MyocardiumDr. Sherwan R SulaimanMD / MSc / PhD2011-2012

Structure of the heart l.jpg
Structure of the Heart

  • Adult human heart = 300-350 g

  • Built upon a “collagenous skeleton” located at atrioventricular junction (fibrotendinous ring)

  • The ring isolates the atria electrically from the ventricles, except at the bundle of His

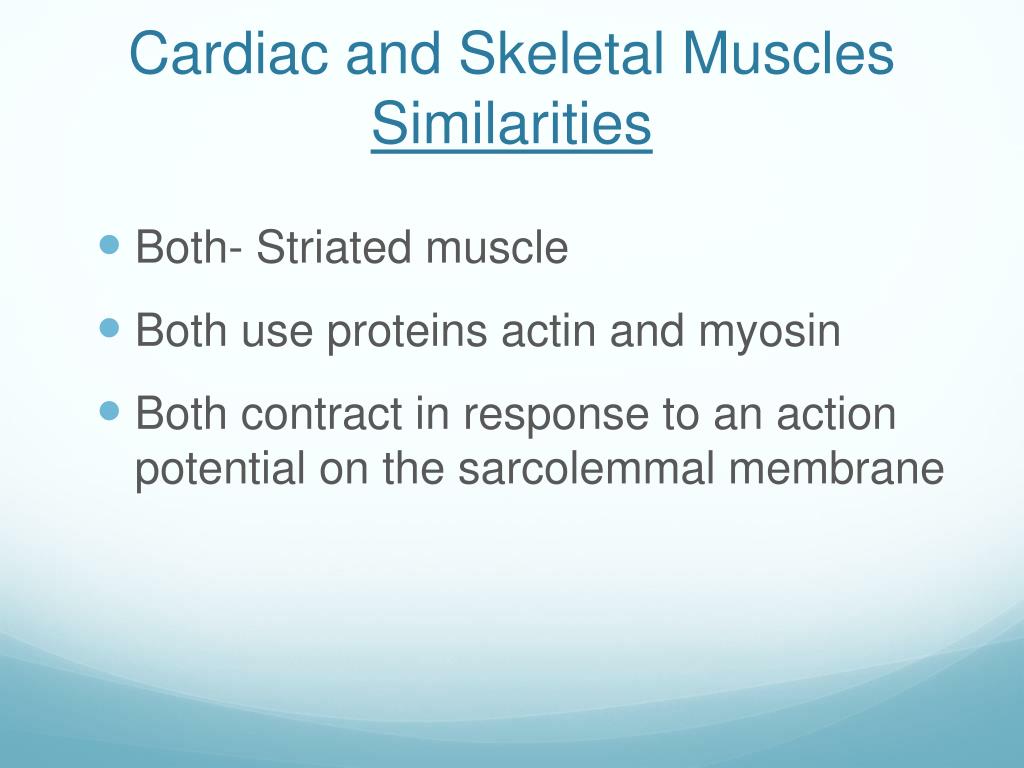

Cardiac and skeletal muscles similarities l.jpg
Cardiac and Skeletal MusclesSimilarities

  • Both- Striated muscle

  • Both use proteins actin and myosin

  • Both contract in response to an action potential on the sarcolemmal membrane

Cardiac and skeletal muscles differences l.jpg
Cardiac and Skeletal MusclesDifferences

Skeletal muscle

  • Neurogenic

    (motor neuron-end plate-acetylcholine)

  • Insulated from each other

  • Contracts in all or none fashion

  • Short action potential

Cardiac Muscle

  • Myogenic

    (action potential originates within the muscle)

  • Gap-junctions

  • Action potential is longer

Cardiac muscle fibers contractile or conductile l.jpg
Cardiac Muscle Fiberscontractile or conductile

  • Contractile

    Action potential leads to vigorous force development and/or mechanical shortening

  • Conductile

    initiation or propagation of action potentials

Conduction system conductile fibers l.jpg
Conduction SystemConductile Fibers

  • Sinoatrial (SA) node 100-110/min

  • Atrioventricular (AV) node 40-60/min

  • AV bundle (Bundle of His) 20-40/min

  • Left and right bundle branch

  • Purkinje fibers (rapid conduction) 20-40/min

Specialised cardiac muscle cells

Slide8 l.jpg

AV node

(node of Tawara)

irregularly arranged branching fibers

Bundle of His

unbranched fibers

Slide9 l.jpg



Purkinje fibers

Ventricular myocardium

Purkinje fibers

Nodal cells l.jpg
Nodal Cells

  • Smaller than contractile cells or Purkinje cells

  • Low propagation velocity(0.05m/sec)

  • Reduced density of gap junctions

  • Lack fast Na channels

Purkinje cells l.jpg
Purkinje Cells

  • Larger than ordinary cardiac fibers and bundle fibers

  • Conduct action potentials four times faster than a ventricular myocyte(4m/sec)

  • May be binucleate

  • Few myofibrils

  • Vacuous cytoplasm (filled with glycogen)

  • Subendocardial location

  • Linked to cardiac fibers and bundle fibers by gap junctions and desmosomes

Excitation and contraction of cardiac myocyte l.jpg

Excitation and Contraction of Cardiac Myocyte

Cardiac myocyte l.jpg
Cardiac Myocyte

Myofiber:is a group of myocytes held together by surrounding collagen connective tissue

excess collagen,

may cause LV diastolic dysfunction

(e.g. left ventricular hypertrophy)

Slide14 l.jpg



Purkinje fibers

Ventricular myocardium

Purkinje fibers

Cardiac myocyte16 l.jpg
Cardiac Myocyte

  • 10-20 mm in diameter

  • 50-100 mm long

  • Single central nucleus

  • The cell is branched, attached to adjacent cells in an end-to-end fashion (intercalated disc)

    • Desmosomes (proteoglycan glue)

    • Gap junction (region of close apposition)

Gap junctions l.jpg
Gap Junctions

  • Low resistance connections

  • Small pores in the center of each gap junction

  • Allows ions and small peptides to flow from one cell to another

  • Action potential is propagated to adjacent muscle cells

Heart behaves as a single motor unit

Slide18 l.jpg

Theoretically, An ion inside an SA nodal cell could travel throughout the heart via the gap junctions

Sarcomere l.jpg

Basic contractile unit within the myocyte

  • Refers to the unit from one Z band to the next

  • Resting length:1.8-2.4 mm

  • Composed of interdigitating filaments

    • Thick myosin protein

    • Thin actin protein

Slide20 l.jpg

T: T tubules

mit: mitochondria

g: glycogen

contractile unit: sarcomere

Z line: the actin filaments are attached

I: band of actin filaments, titin and Z line

A: band of actin-myosin overlap

H: clear central zone containing only myosin

Sarcolemma sarco flesh lemma thin husk l.jpg
Sarcolemma (sarco = flesh; lemma = thin husk)

  • Each cell is bounded by a complex cell membrane

  • Composed of a lipid bilayer

    • Hydrophilic heads

    • Hydrophobic tails

  • Impermeable to charged molecules (barrier for diffusion)

  • Contains membrane proteins, which include receptors, pumps and channels

Slide22 l.jpg

Sarcolemma contains a number of ion channels and pumps that contribute to overall Ca2+ levels within the myocyte

Transverse tubular system t tubules l.jpg
Transverse Tubular System contribute to overall (T-tubules)

  • The sarcolemma of the myocyte invaginates to form an extensive tubular network

  • Extends the extracellular space into the interior of the cell

  • Transmit the electrical stimulus rapidly (well developed in ventricular myocytes but is scanty in atrial and purkinje cells)

Mitochondria l.jpg
Mitochondria contribute to overall

  • Generate the energy in the form of adenosine triphosphate (ATP)

  • Maintain the heart’s contractile function and the associated ion gradients

Sarcoplasmic reticulum sr l.jpg
Sarcoplasmic Reticulum (SR) contribute to overall

  • A fine network spreading throughout the myocytes

  • Demarcated by its lipid bilayer

  • Close apposition to the T tubules

  • Junctional sr

  • Longitudinal SR

Slide26 l.jpg

JSR: contribute to overall junctional SR

LSR: longitudinal SR

Subsarcolemmal cisternae junctional sr l.jpg
Subsarcolemmal Cisternae contribute to overall Junctional SR

  • the tubules of the SR expand into bulbous swellings

  • contains a store of Ca2+ ions

  • release calcium from the calcium release channel (ryanodine receptor) to initiate the contractile cycle

Longitudinal or network sr l.jpg
Longitudinal or Network SR contribute to overall

  • consists of ramifying tubules

  • concerned with the uptake of calcium that initiates relaxation

  • achieved by the ATP-requiring calcium pump (SERCA= sarcoendoplasmic reticulum Ca2+ -ATPase)

Cardiac cycle l.jpg
Cardiac Cycle contribute to overall

  • Systole

    • isovolumic contraction

    • ejection

  • Diastole

    • isovolumic relaxation

    • rapid inflow- 70-75%

    • diastasis

    • atrial systole- 25-30%

Onset of ventricular contraction l.jpg
Onset of Ventricular Contraction contribute to overall

  • Isovolumic contraction

    • Tricuspid & Mitral valves close

      • as ventricular pressure rises above atrial pressure

    • Pulmonic & Aortic valves open

      • as ventricular pressure rises above pulmonic & aortic artery pressure

Ejection of blood from ventricles l.jpg
Ejection of blood from ventricles contribute to overall

  • Most of blood ejected in first 1/2 of phase

  • Ventricular pressure peaks and starts to fall off

  • Ejection is terminated by closure of the semilunar valves (pulmonic & aortic)

Ventricular relaxation l.jpg
Ventricular Relaxation contribute to overall

  • Isovolumetric (isometric) relaxation-As the ventricular wall relaxes, ventricular pressure (P) falls; the aortic and pulmonic valves close as the ventricular P falls below aortic and pulmonic artery P

  • Rapid inflow-When ventricular P falls below atrial pressure, the mitral and tricuspid valves will open and ventricles fill

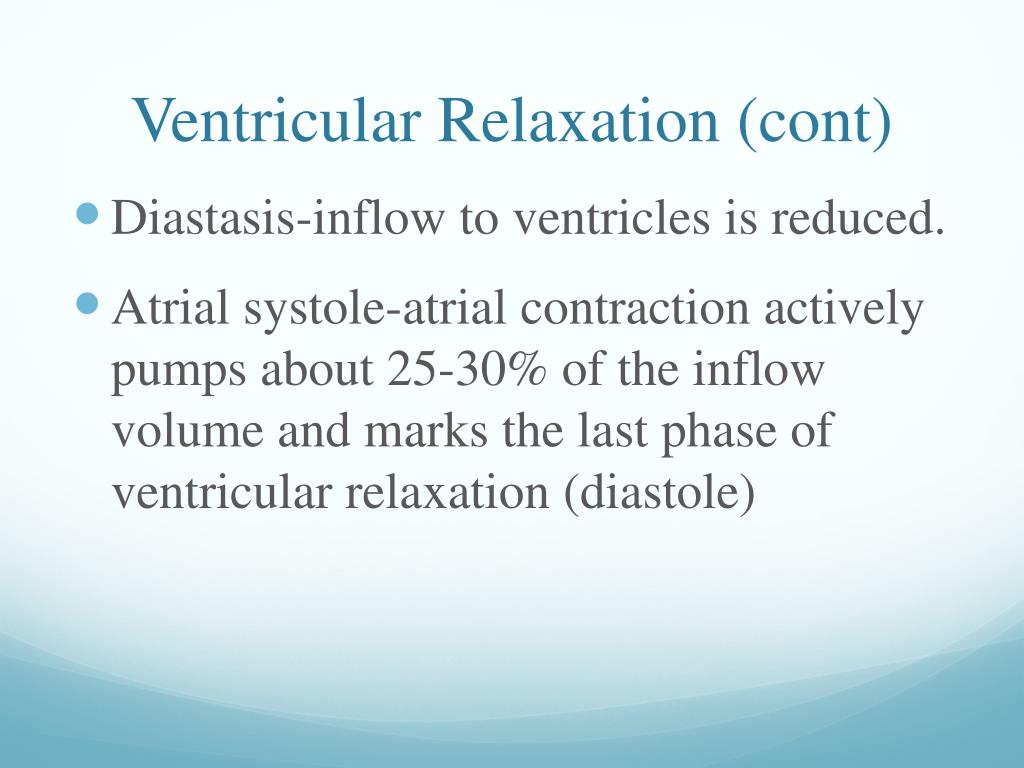

Ventricular relaxation cont l.jpg
Ventricular Relaxation (cont) contribute to overall

  • Diastasis-inflow to ventricles is reduced.

  • Atrial systole-atrial contraction actively pumps about 25-30% of the inflow volume and marks the last phase of ventricular relaxation (diastole)

Ventricular volumes l.jpg
Ventricular Volumes contribute to overall

  • End Diastolic Volume-(EDV)

    • volume in ventricles at the end of filling

  • End Systolic Volume- (ESV)

    • volume in ventricles at the end of ejection

  • Stroke volume (EDV-ESV)

    • volume ejected by ventricles

  • Ejection fraction

    • % of EDV ejected (SV/EDV X 100%)

    • normal 50-60%

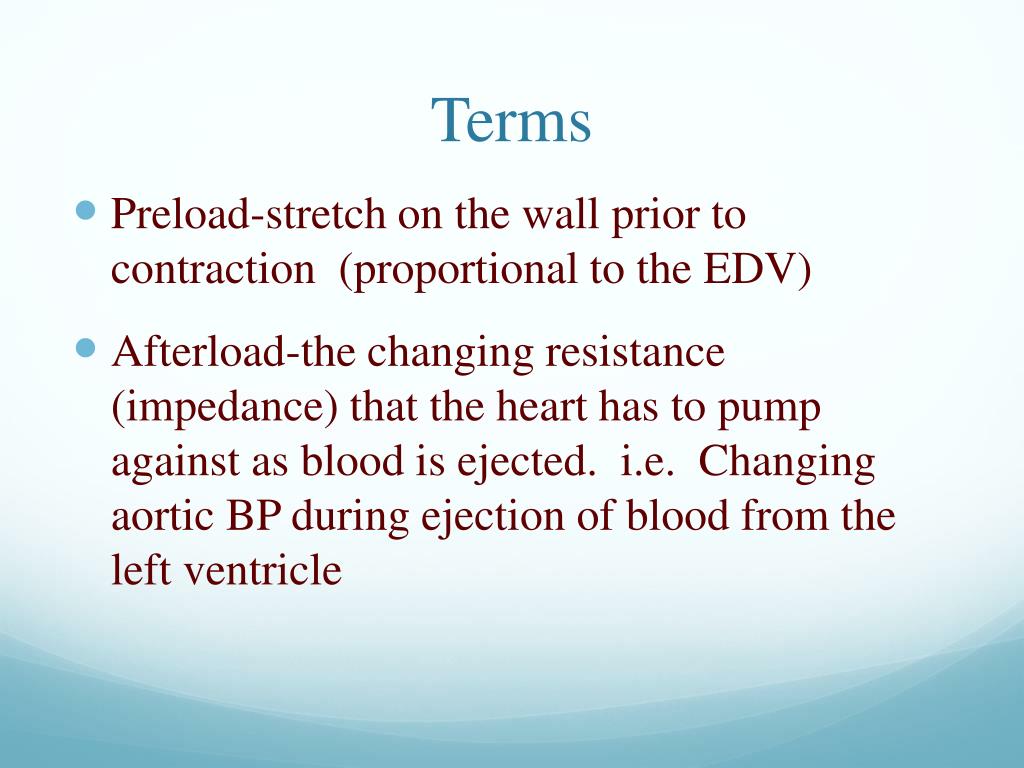

Terms l.jpg
Terms contribute to overall

  • Preload-stretch on the wall prior to contraction (proportional to the EDV)

  • Afterload-the changing resistance (impedance) that the heart has to pump against as blood is ejected. i.e. Changing aortic BP during ejection of blood from the left ventricle

Atrial pressure waves l.jpg
Atrial Pressure Waves contribute to overall

  • A wave

    • associated with atrial contraction

  • C wave

    • associated with ventricular contraction

      • bulging of AV valves and tugging on atrial muscle

  • V wave

    • associated with atrial filling

Function of valves l.jpg
Function of Valves contribute to overall

  • Open with a forward pressure gradient

    • e.g. when LV pressure > the aortic pressure the aortic valve is open

  • Close with a backward pressure gradient

    • e.g. when aortic pressure > LV pressure the aortic valve is closed

Heart valves l.jpg
Heart Valves contribute to overall

  • AV valves

    • Mitral & Tricupid

      • Thin & filmy

      • Chorda tendineae act as check lines to prevent prolapse

      • papillary muscles-increase tension on chorda t.

  • Semilunar valves

    • Aortic & Pulmonic

      • stronger construction

Valvular dysfunction l.jpg
Valvular dysfunction contribute to overall

  • Valve not opening fully

    • stenotic

  • Valve not closing fully

    • insufficient/regurgitant/leaky

  • Creates vibrational noise

    • aka murmurs

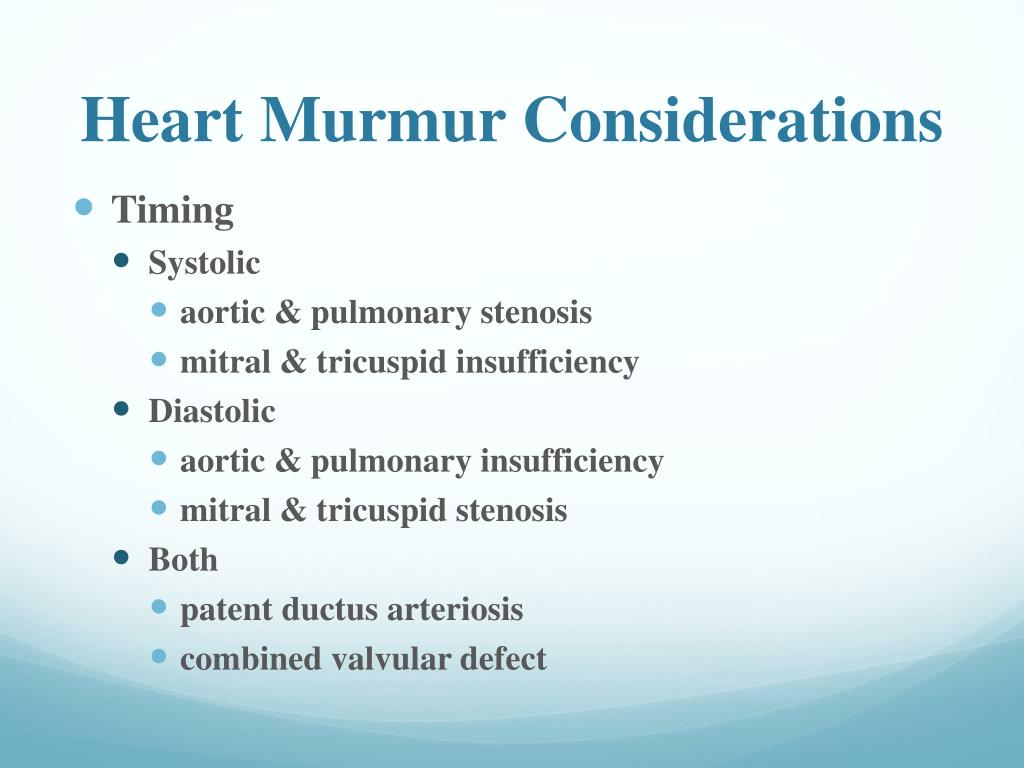

Heart murmur considerations l.jpg
Heart Murmur Considerations contribute to overall

  • Timing

    • Systolic

      • aortic & pulmonary stenosis

      • mitral & tricuspid insufficiency

    • Diastolic

      • aortic & pulmonary insufficiency

      • mitral & tricuspid stenosis

    • Both

      • patent ductus arteriosis

      • combined valvular defect

Law of laplace l.jpg
Law of Laplace contribute to overall

  • Wall tension = (pressure)(radius)/2

  • At a given operating pressure as ventricular radius  , developed wall tension .

    •  tension   force of ventricular contraction

    • two ventricles operating at the same pressure but with different chamber radii

      • the larger chamber will have to generate more wall tension, consuming more energy & oxygen

    • Batista resection

  • How does this law explain how capillaries can withstand high intravascular pressure?

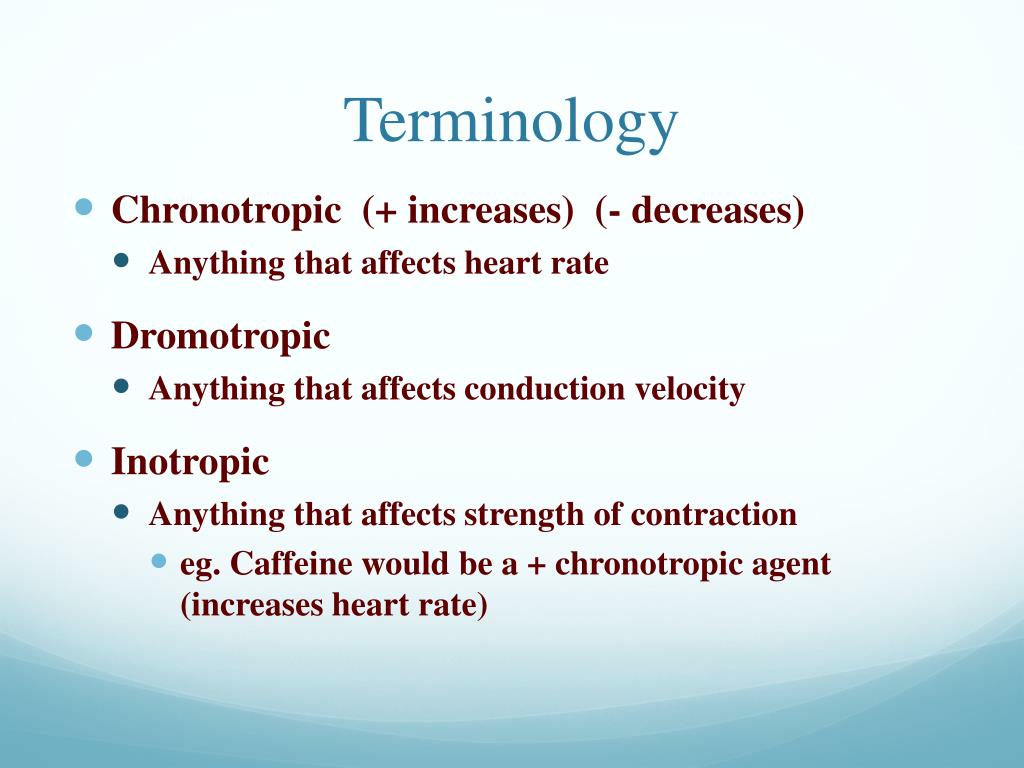

Terminology l.jpg
Terminology contribute to overall

  • Chronotropic (+ increases) (- decreases)

    • Anything that affects heart rate

  • Dromotropic

    • Anything that affects conduction velocity

  • Inotropic

    • Anything that affects strength of contraction

      • eg. Caffeine would be a + chronotropic agent (increases heart rate)

Control of heart pumping l.jpg
Control of Heart Pumping contribute to overall

  • Intrinsic properties of cardiac muscle cells

  • Frank-Starling Law of the Heart

    • Within physiologic limits the heart will pump all the blood that returns to it without allowing excessive damming of blood in veins

      • heterometric & homeometric autoregulation

      • direct stretch on the SA node

Mechanism of frank starling l.jpg
Mechanism of Frank-Starling contribute to overall

  • Increased venous return causes increased stretch of cardiac muscle fibers. (Intrinsic effects)

    • increased cross-bridge formation

    • increased calcium influx

      • both increases force of contraction

    • increased stretch on SA node

      • increases heart rate

Heterometric autoregulation l.jpg
Heterometric autoregulation contribute to overall

  • Within limits as cardiac fibers are stretched the force of contraction is increased

    • More cross bridge formation as actin overlap is removed

    • More ca++ influx into cell associated with the increased stretch

Homeometric autoregulation l.jpg
Homeometric autoregulation contribute to overall

  • Ability to increase strength of contraction independent of a length change

    • Flow induced

      • increased stroke volume maintained as EDV decreases

    • Pressure induced

      • increase in aortic BP (afterload) will + force of contraction

    • Rate induced

      • increased heart rate will + force “treppe”

Direct stretch on sa node l.jpg
Direct Stretch on SA node contribute to overall

  • Stretch on the SA node will increase Ca++ and/or Na+ permeability which will increase heart rate

Extrinsic influences l.jpg
Extrinsic Influences contribute to overall

  • Autonomic nervous system

  • Hormonal influences

  • Ionic influences

  • Temperature influences

Control of heart by ans l.jpg
Control of Heart by ANS contribute to overall

  • Sympathetic innervation-

    • + heart rate

    • + strength of contraction

    • + conduction velocity

  • Parasympathetic innervation

    • - heart rate

    • - strength of contraction

    • - conduction velocity

Interaction of ans l.jpg
Interaction of ANS contribute to overall

  • SNS effects on the heart blocked using propranolol (beta blocker) which blocks beta receptors

  • Para effects blocked using atropine which blocks muscarinic receptors

    • HR will increase

    • Strength of contraction decreases

  • What can be concluded?

Interaction of ans56 l.jpg
Interaction of ANS contribute to overall

  • From the previous results it can be concluded that under resting conditions:

    • Parasympathetic NS exerts a dominate inhibitory influence on heart rate

    • Sympathetic NS exerts a dominate stimulatory influence on strength of contraction

Interaction of the sns psns l.jpg
Interaction of the SNS & PSNS contribute to overall

  • SNS

  • PARA

Cardiac cell





Ad. Cycl.







Direct vs indirect sns influence l.jpg
Direct vs. Indirect SNS influence contribute to overall

  • Direct innervation of Cardiac cells accounts for most of the SNS effect.

    • Norepinephrine acting on -1 receptors. (85%)

  • Indirect effects would be due to circulating catacholamines (epinephrine & norepinephrine) released primarily from the adrenal medulla (blood borne) which would find their way to the cardiac -1 receptors. (15%)

Cardioacclerator reflex l.jpg
Cardioacclerator reflex contribute to overall

  • Stretch on right atrial wall + stretch receptors which in turn send signals to medulla oblongata + SNS outflow to heart

    • AKA Bainbridge reflex

    • Helps prevents damning of blood in the heart & central veins

Neurocardiogenic syncope l.jpg
Neurocardiogenic syncope contribute to overall

Benzold-Jarisch reflex (Baroreceptors in ventricles)

Stimulation of sensory endings mainly in the ventricles (some in the atria) that reflex via the X CN to the CNS

Inferoposterior wall of LV which is supplied by the circumflex artery is site of majority of receptors

Reflex effects results in hypotension & bradycardia

Reflex stimulated by

Occlusion of circumflex artery (inferior wall infarct)

 in LVP & LV volume (eg. Aortic stenosis)

Major hormonal influences l.jpg
Major Hormonal Influences contribute to overall

  • Thyroid hormones

    • + inotropic

    • + chronotropic

    • also causes an increase in CO by  BMR

Ionic influences l.jpg
Ionic influences contribute to overall

  • Effect of elevated [K+]ECF

    • dilation and flaccidity of cardiac muscle at concentrations 2-3 X normal (8-12 meq/l)

    • decreases resting membrane potential

  • Effect of elevated [Ca++] ECF

    • spastic contraction

Effect of body temperature l.jpg
Effect of body temperature contribute to overall

  • Elevated body temperature

    • HR increases about 10 beats for every degree F elevation in body temperature

    • Contractile strength will increase temporarily but prolonged fever can decrease contractile strength due to exhaustion of metabolic systems

  • Decreased body temperature

    • decreased HR and strength

Energy substrate for cardiac cells l.jpg
Energy substrate for cardiac cells contribute to overall

  • Heart is versatile & can use many different energy substrates

  • Fatty acids-70% preferred

  • Glucose

  • Glycerol

  • Lactate

  • Pyruvate

  • Amino acids

Relationship of energy to work l.jpg
Relationship of energy to work contribute to overall

  • 75% of energy the heart utilizes is converted to heat

  • The remaining 25% is utilized as work which is broken down into:

    • Pressurization of blood (>99%)

    • Acceleration of blood (<1%)

Work output of the heart l.jpg
Work output of the heart contribute to overall

  • Pressurization of the blood (potential energy)

    • Moving blood from low pressure to high pressure (volume pressure work or external work)

      • The majority of the work (>99%)

  • Acceleration of blood to its ejection velocity (kinetic energy)

    • Out the aortic & pulmonic valves normally accounts for less than 1% of the work component

      • Can increase to ~ 50% with valvular stenosis

Blood flow to myocardium l.jpg
Blood flow to myocardium contribute to overall

  • The myocardium is supplied by the coronary arteries & their branches.

  • Cells near the endocardium may be able to receive some O2 from chamber blood

  • The heart muscle at a resting heart rate takes the maximum oxygen out of the perfusing coronary flow (70% extraction)

    • Any  demand must be met by  coronary flow

Ischemia l.jpg
Ischemia contribute to overall

  • Normally the first cells to depolarize are the last to repolarize.

    • Depolarization & repolarization waves are in opposite directions

      • QRS and T wave point in the same direction

  • Ischemia prolongs depolarization & therefore delays repolarization

    • Depolarization & repolarization waves are now in the same direction

      • This will cause an inversion in T wave (opposite deflection compared to QRS)

Infarction l.jpg
Infarction contribute to overall

  • Damaged cells lose ability to repolarize

  • Most of the frank damage occurs upon reperfusion & is associated with free radical damage.

  • Damaged area is in an abnormal state of depolarization

  • When normal myocardium is in a resting polarized state, there is a “current of injury” between damaged & normal myocardium

    • creates a depressed baseline which appears as an elevated ST segment
