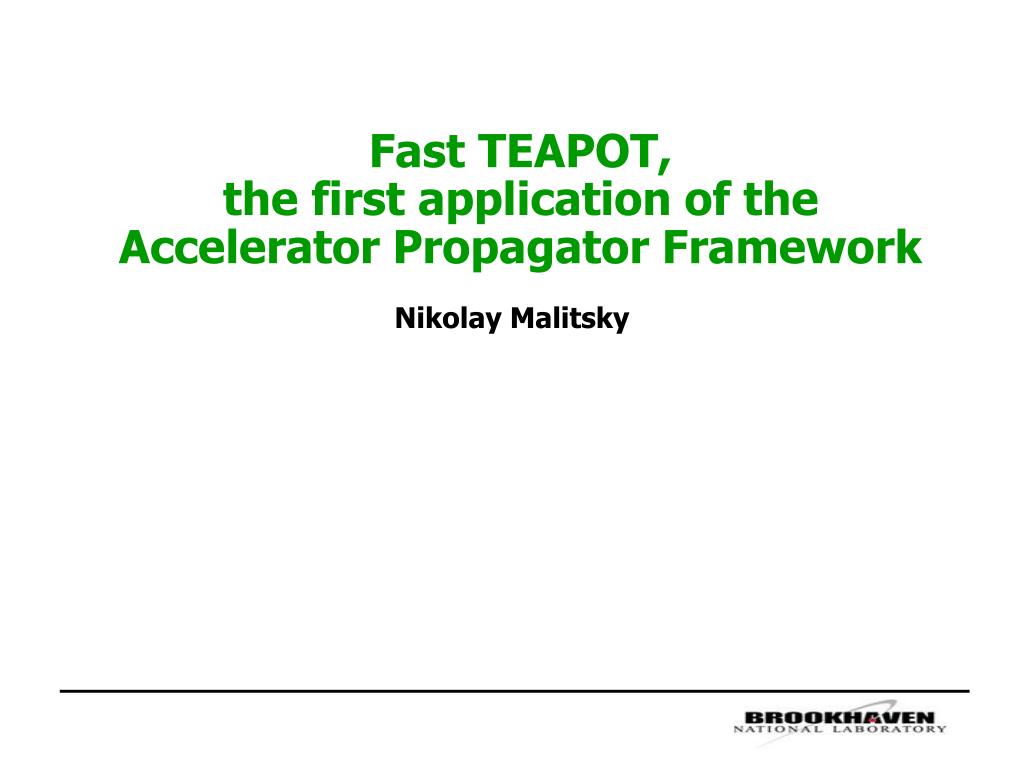

Fast TEAPOT, the first application of the Accelerator Propagator Framework

Loading in 2 Seconds...

play fullscreen
1 / 5

Fast TEAPOT, the first application of the Accelerator Propagator Framework - PowerPoint PPT Presentation


  • 212 Views
  • Uploaded on

Nikolay Malitsky. Fast TEAPOT, the first application of the Accelerator Propagator Framework. Conceptual idea. TEAPOT. Fast TEAPOT. Composite Tracker. (all nonlinear elements). (coupling, chromaticity). (full actual model). TEAPOT Quad. TEAPOT Quad. TEAPOT Quad. ZLIB Map (FF).

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Fast TEAPOT, the first application of the Accelerator Propagator Framework' - sopoline-vance


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
slide2

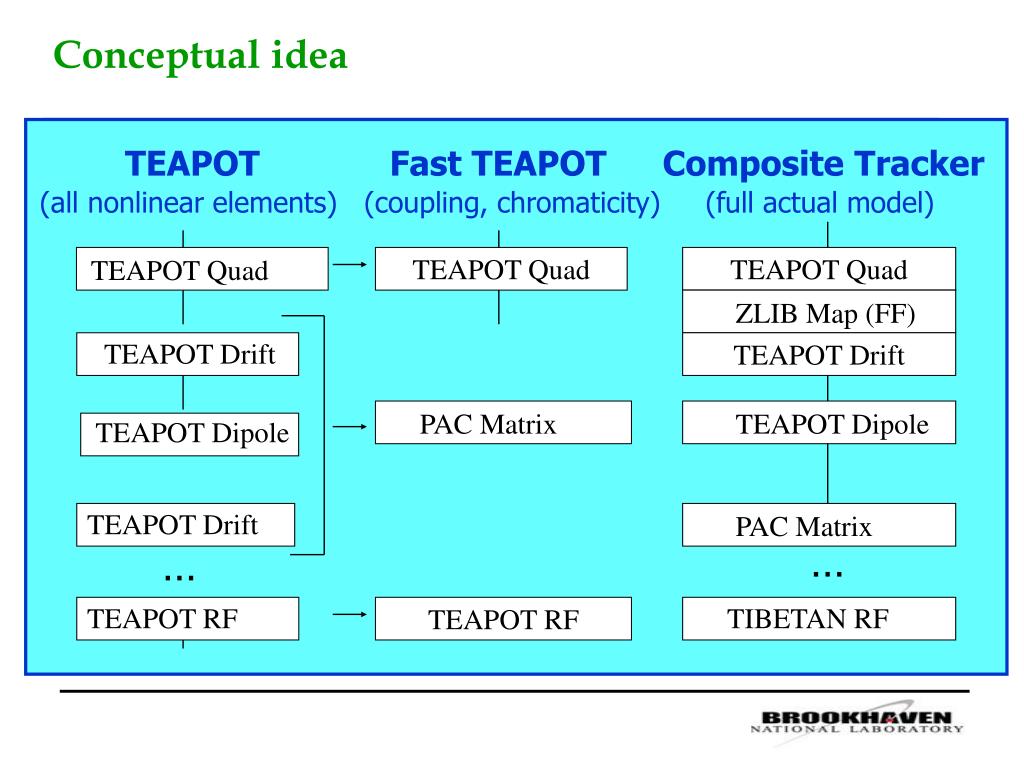

Conceptual idea

TEAPOT

Fast TEAPOT

Composite Tracker

(all nonlinear elements)

(coupling, chromaticity)

(full actual model)

TEAPOT Quad

TEAPOT Quad

TEAPOT Quad

ZLIB Map (FF)

TEAPOT Drift

TEAPOT Drift

PAC Matrix

TEAPOT Dipole

TEAPOT Dipole

TEAPOT Drift

PAC Matrix

TEAPOT RF

TIBETAN RF

TEAPOT RF

chromaticity

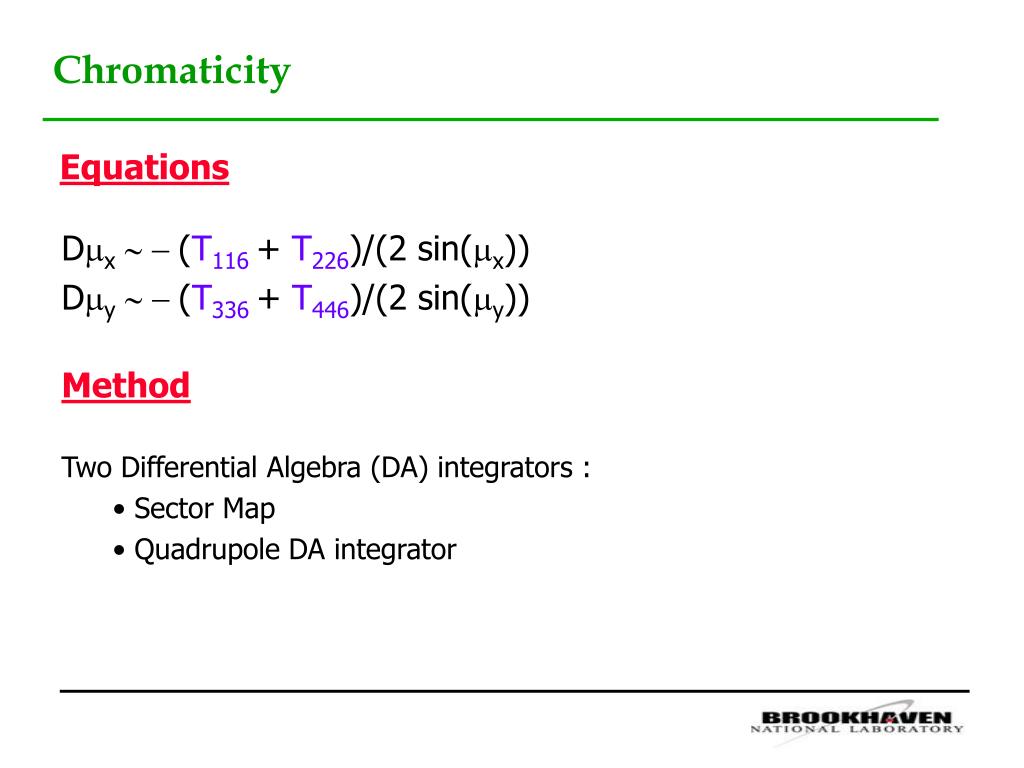

Chromaticity

Equations

Dmx ~ - (T116+ T226)/(2 sin(mx))

Dmy ~ - (T336+ T446)/(2 sin(my))

Method

Two Differential Algebra (DA) integrators :

  • Sector Map
  • Quadrupole DA integrator
local sector map integrator

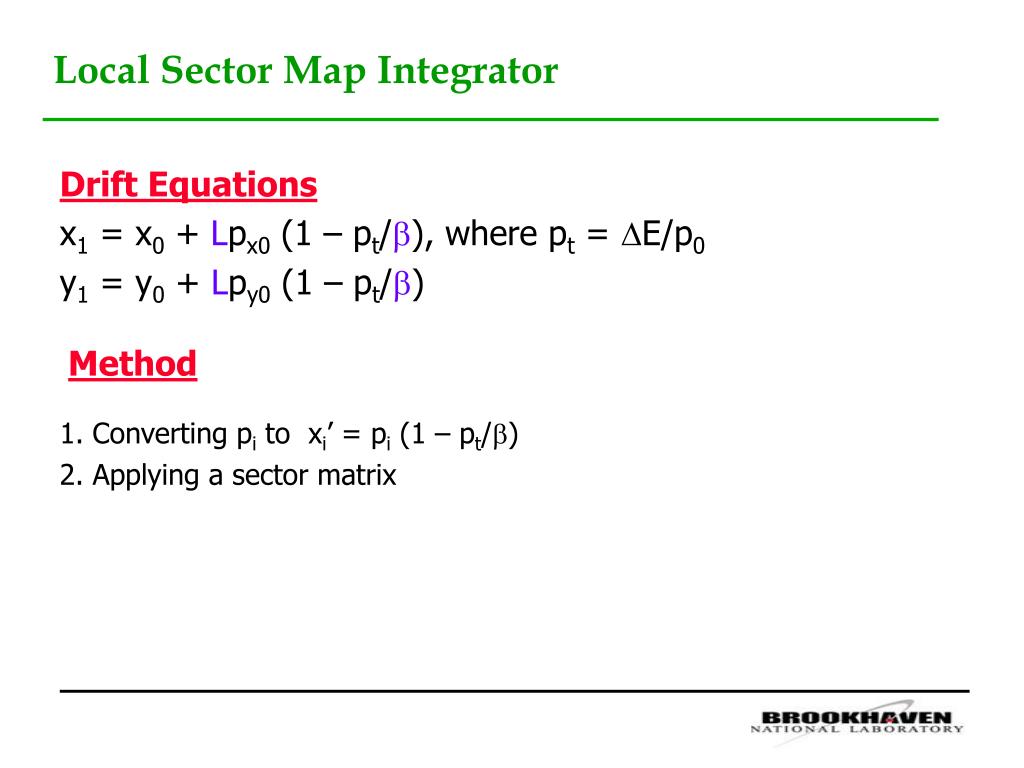

Local Sector Map Integrator

Drift Equations

x1 = x0 + Lpx0 (1 – pt/b), where pt = DE/p0

y1 = y0 + Lpy0 (1 – pt/b)

Method

1. Converting pi to xi’ = pi (1 – pt/b)

2. Applying a sector matrix

results

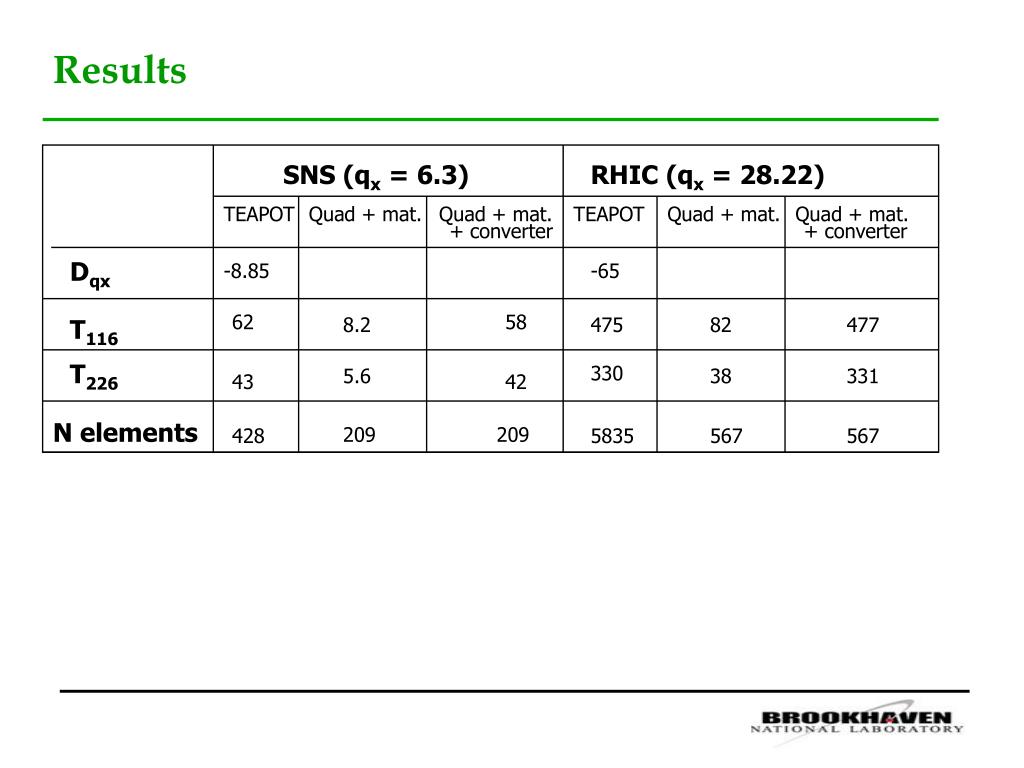

Results

SNS (qx = 6.3)

RHIC (qx = 28.22)

TEAPOT

Quad + mat.

Quad + mat.

TEAPOT

Quad + mat.

Quad + mat.

+ converter

+ converter

Dqx

-8.85

-65

62

58

8.2

475

82

477

T116

T226

330

5.6

38

331

43

42

N elements

209

209

428

5835

567

567
